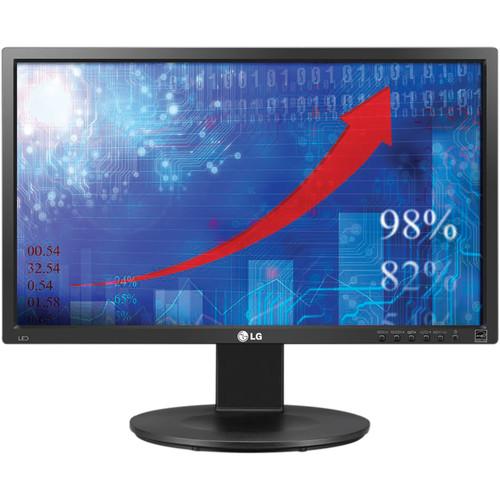

User Manual for LG 24MB34D-B 24" 16:9 LCD Monitor Click to enlarge the picture
Contents of the user manual for the LG 24MB34D-B 24" 16:9 LCD Monitor
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 24MB34D-B 24" 16:9 LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With Reader Mode and Flicker-Safe technologies built right in to the 24MB34D-B 24" 16:9 LCD Monitor from LG you can watch videos, view documents, and more for extended periods of time with reduced eye strain. In addition to reduction in blue light and screen flicker, this LG monitor also features SUPER+Resolution technology to help reduce rough edges and blurring for an improved viewing experience.

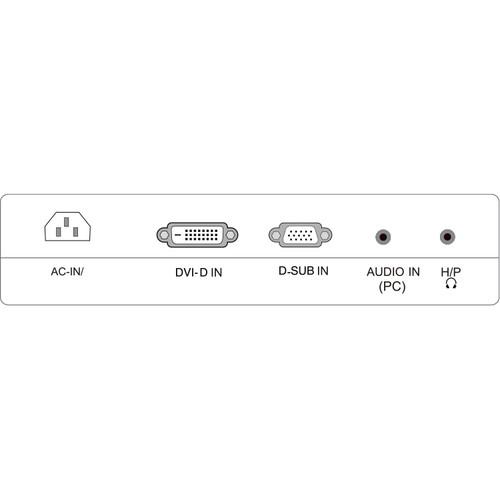

Setup is simple as the 24MB34D-B monitor comes equipped with both D-Sub and DVI-D connectors. Once configured viewers can take advantage of a Full-HD 1920 x 1080 resolution, a 1000:1 contrast ratio, a 5 ms response time, and support for up to 16.7 million colors. Additionally, this monitor can be viewed from its included stand or mounted to the wall using a VESA compatible wall mount to take full advantage of the 178° horizontal and vertical viewing angles. - Reader Mode
- Reader Mode provides optimal conditions for reading by reducing blue light, helping to protect your eyes. With just a touch of a button, you can comfortably read on the monitor for extended periods of time.
- Flicker-Safe
- Flicker-Safe dimming technology is applied to minimize the flicker level that causes eye fatigue. With almost-zero flicking, watching for long periods of time is easy and comfortable.
- Color Calibrated
- SUPER+Resolution technology helps to detect rough edges and blurring in of content when enlarged, offering improved quality with a better sense of high resolution.
- Special Features
- Original Ratio
DDC/CI
HDCP
Intelligent Auto (Auto Resolution)
Key Lock
Plug-and-Play
Factory Calibration
Reader Mode
Flicker Safe
Six Axis Control UPC: 719192614338 In the Box LG 24MB34D-B 24" 16:9 LCD Monitor Power Cord D-Sub Cable DVI-D Cable Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 24MB34D-B 24" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 24MB34D-B Specs | Panel Size | 24" (61 cm) | | Viewable Image Area | 23.8" (60.5 cm) | | Panel Type | Twisted Nematic (TN) | | Color Depth (Number of Colors) | 16.7 million | | Pixel Pitch (H x V) | 0.275 x 0.275 | | Aspect Ratio | 16:9 | | Color Gamut | 72% | | Resolution | 1920 x 1080 | | Brightness | 250 cd/m² | | Contrast Ratio | Static: 1000:1
Dynamic: 5,000,000:1 | | Response Time (GtG) | 5 ms | | Inputs | D-Sub, DVI-D | | Surface Treatment | Hard Coating (3H), Anti-glare | | Viewing Angles (H/V) | 178°/178° | | Tilt Adjustment | -5-20° | | VESA Mount Standard | 100 x 100 mm | | Power | Type
Built-in power (power only)
Power Supply
100 -240 VAC, 50/60 Hz
Power Consumption
Power Save/Sleep Mode (Max): 0.3 W
Power Consumption: 23 W
Normal On (Typical): 25 W
DC Off (Max.): 0.3 W | | Frequency | Analog (H-Frequency): 30~83 kHz
Analog (V-Frequency): 56~75 Hz
Digital (H-Frequency): 30~83 kHz
Digital (V-Frequency): 56~75 Hz | | TAA Compliant | Yes | | Certification | EPEAT-Gold
TCO (6.0)/UL(cUL)/TUV-GS/TUV-ERGO
EMC: FCC-B, CE
ISO13406-2 (ISO 9241-307)
Windows 8

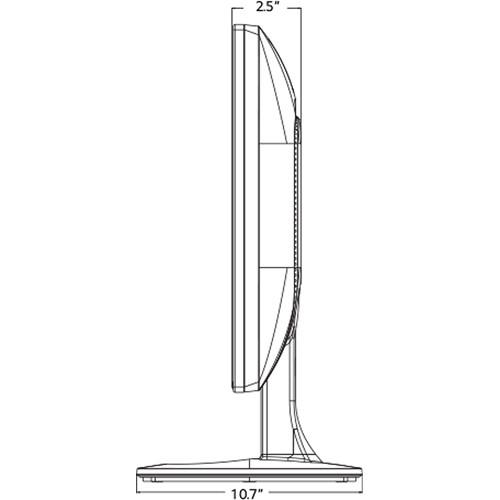

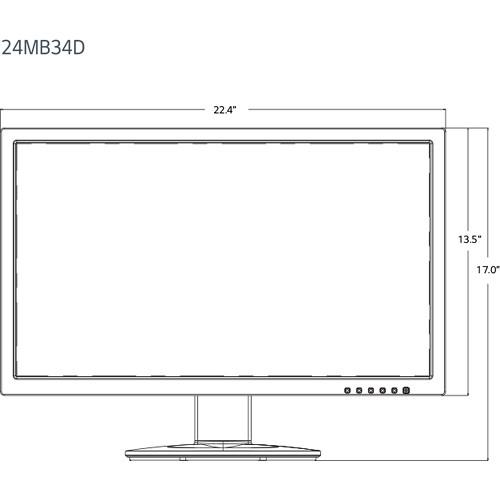

ENERGY STAR | | Detachable Base | Yes | | Dimensions | With Stand
22.4 x 10.7 x 17" (56.9 x 27.2 x 43.2 cm)
Without Stand
22.4 x 2.5 x 13.5" (56.9 x 6.4 x 34.3 cm) | | Weight | With Stand
8.8 lb (4 kg)
Without Stand
8.15 lb (3.7 kg) | | | | Package Weight | 11.7 lb | | Box Dimensions (LxWxH) | 25.0 x 16.0 x 5.0" |
