User Manual for LG 24MB35P-B 24" LED Backlit IPS Monitor Click to enlarge the picture
Contents of the user manual for the LG 24MB35P-B 24" LED Backlit IPS
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 24MB35P-B 24" LED Backlit IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

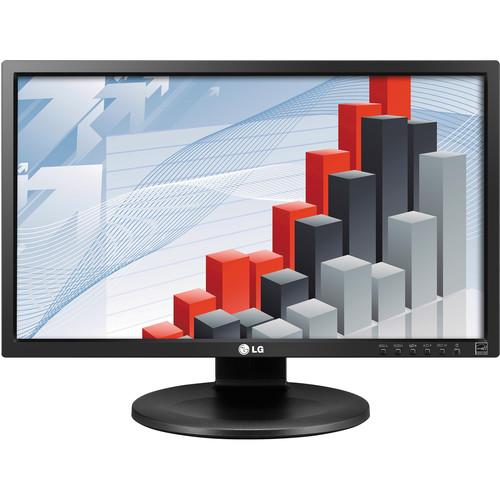

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More xtqcqdyytffdbesdffratecacycudf The 24MB35P-B 24" LED Backlit IPS Monitor from LG features a 16:9 aspect ratio along with a 1920 x 1080 native resolution, 1,000:1 contrast ratio, 5 ms response time, 72% color gamut, and a brightness rating of 250 cd/m². The 24MB35P-B display utilizes IPS (In-Plane Switching) technology to provide enhanced 178° horizontal and vertical viewing angles.
This LG monitor ships color-calibrated to ensure color accuracy. You can also take advantage of Reader Mode which reduces blue light making it easier to read text on the monitor for extended periods of time, and flicker-safe technology to nearly eliminate display flicker to reduce eye fatigue. - Reader Mode
- Reader Mode provides optimal conditions for reading by reducing blue light helping to protect your eyes. With just a touch of a button, you can comfortably read on the monitor for extended periods of time.
- Flicker-Safe
- With Flicker-Safe dimming technology the flicker level is greatly decreased thus reducing eye fatigue.
- Color Calibrated
- SUPER+Resolution technology helps to detect rough edges and blurring within enlarged content, offering improved quality with a better sense of high resolution.
UPC: 719192193888 In the Box LG 24MB35P-B 24" LED Backlit IPS Monitor Power Cord Stand Base D-Sub Cable DVI-D Cable Limited 3-Year Warranty User Manual PDF 8.6mbxtqcqdyytffdbesdffratecacycudf More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 24MB35P-B 24" LED Backlit IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 24MB35P-B Specs | | | Size | 23.8" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 5,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 83 kHz | | Vertical Frequency | 56 to 75 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 72% CIE1976 | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°

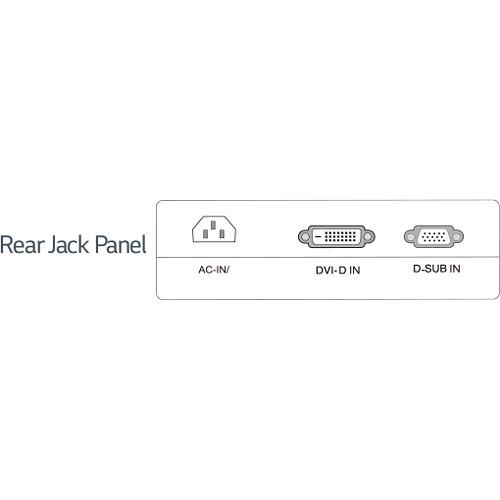

Vertical: 178° | | Dot Pitch | 0.275 x 0.275 mm | | | | Connectivity | 1 x DVI-D
1 x VGA | | | | Power Consumption | 23 W (Eco)
0.3 W (Standby)

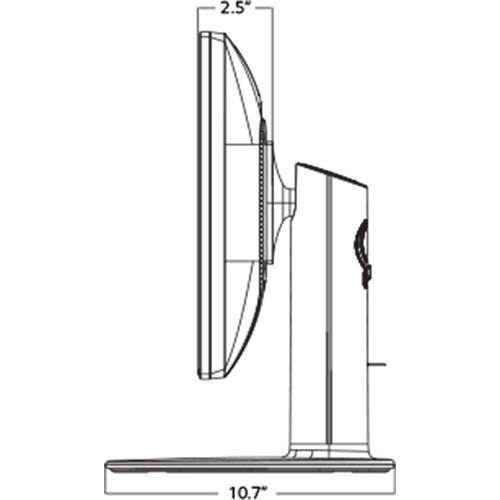

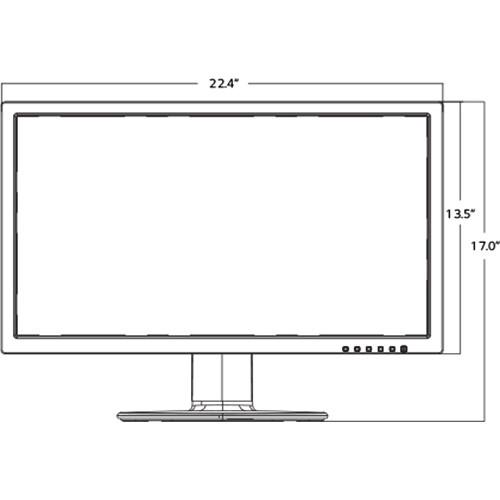

31 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Certifications | ENERGY STAR, EPEAT GOLD, TCO Certified, as per Manufacturer | | | | Height Adjustment | 4.7" / 12 cm | | Rotation Adjustment | 90° | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 22.4 x 10.7 x 17.0" / 56.9 x 27.2 x 43.2 mm (With Stand)
22.4 x 13.5 x 2.5" / 56.9 x 34.3 x 6.4 mm (Without Stand) | | Weight | 11.2 lb / 5.1 kg (With Stand)
10.4 lb / 4.7 kg (Without Stand) | | | | Package Weight | 15.5 lb | | Box Dimensions (LxWxH) | 25.3 x 16.3 x 9.0" |
