User Manual for LG 24MK400H-B 24" 16:9 FreeSync LCD Monitor Click to enlarge the picture
Contents of the user manual for the LG 24MK400H-B 24" 16:9 FreeSync LCD
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 24MK400H-B 24" 16:9 FreeSync LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

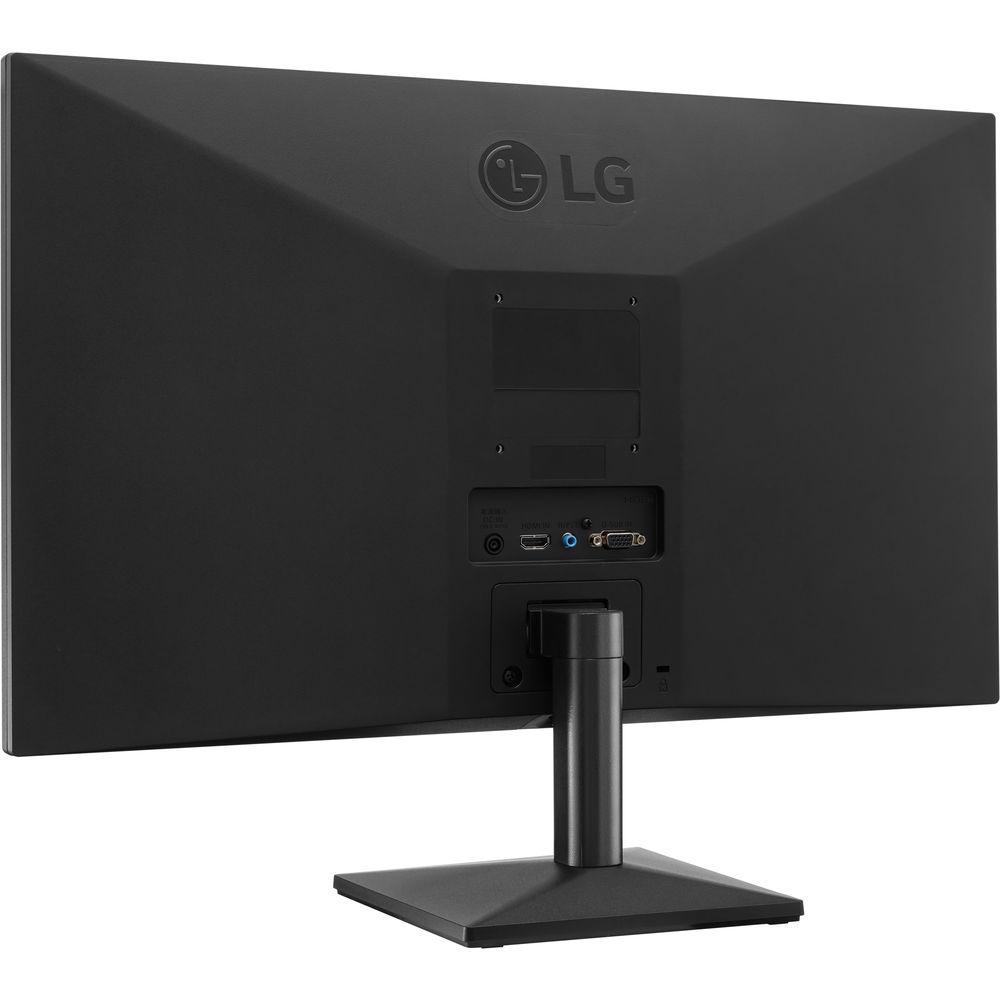

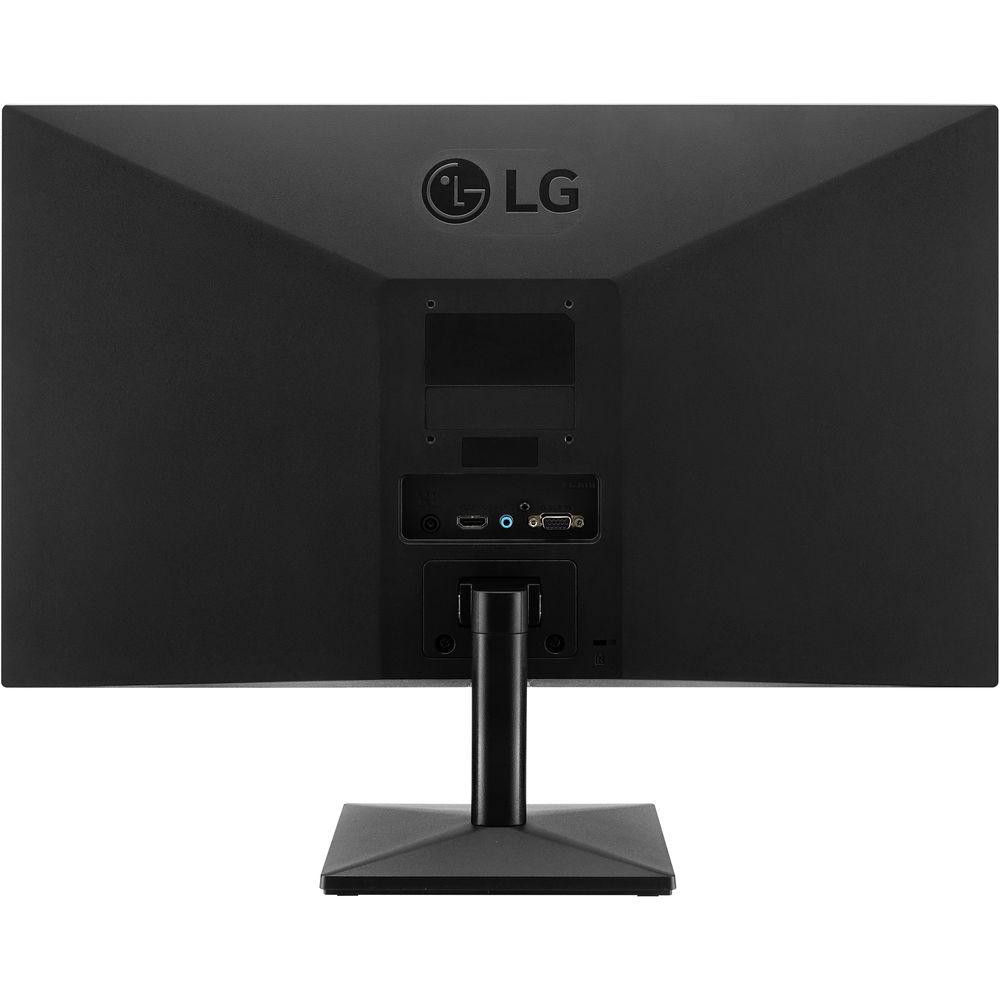

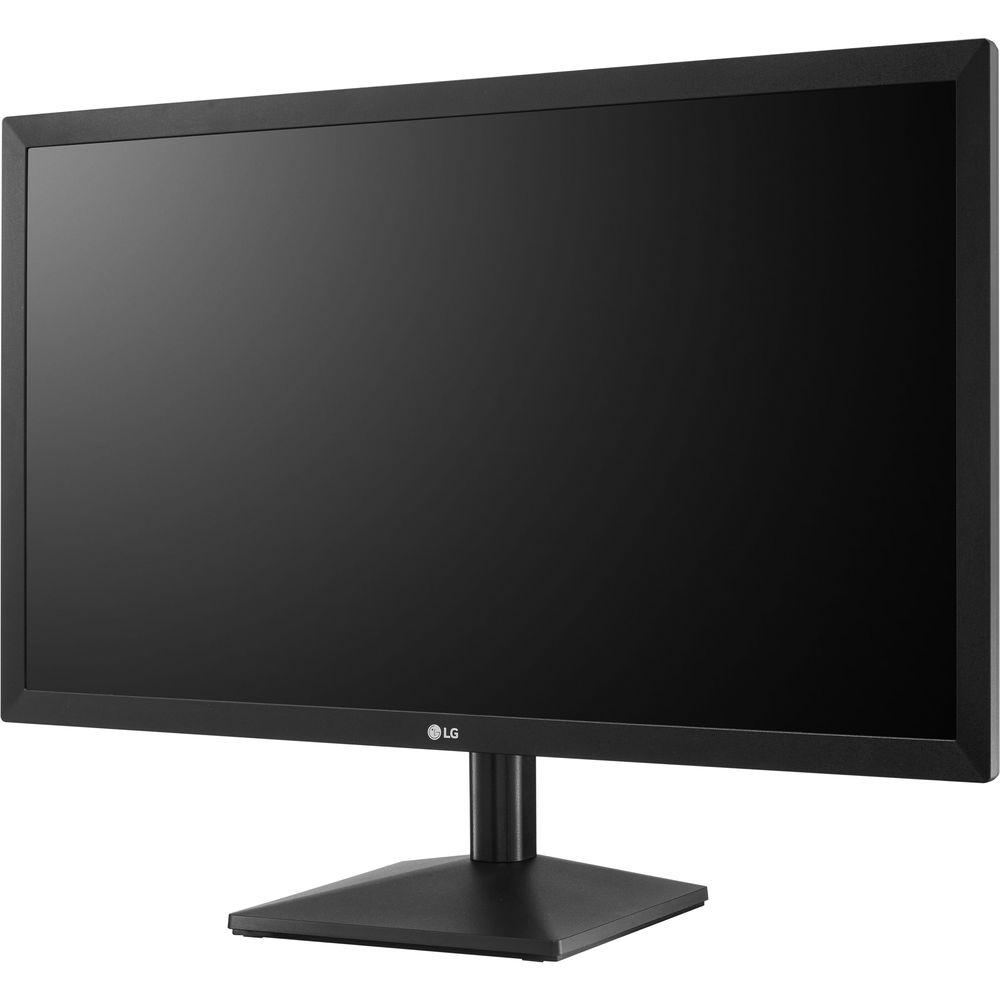

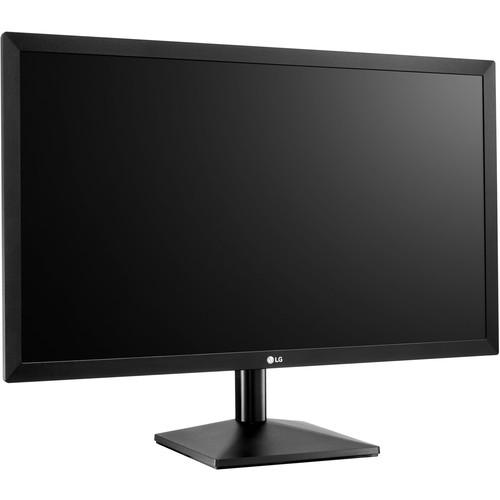

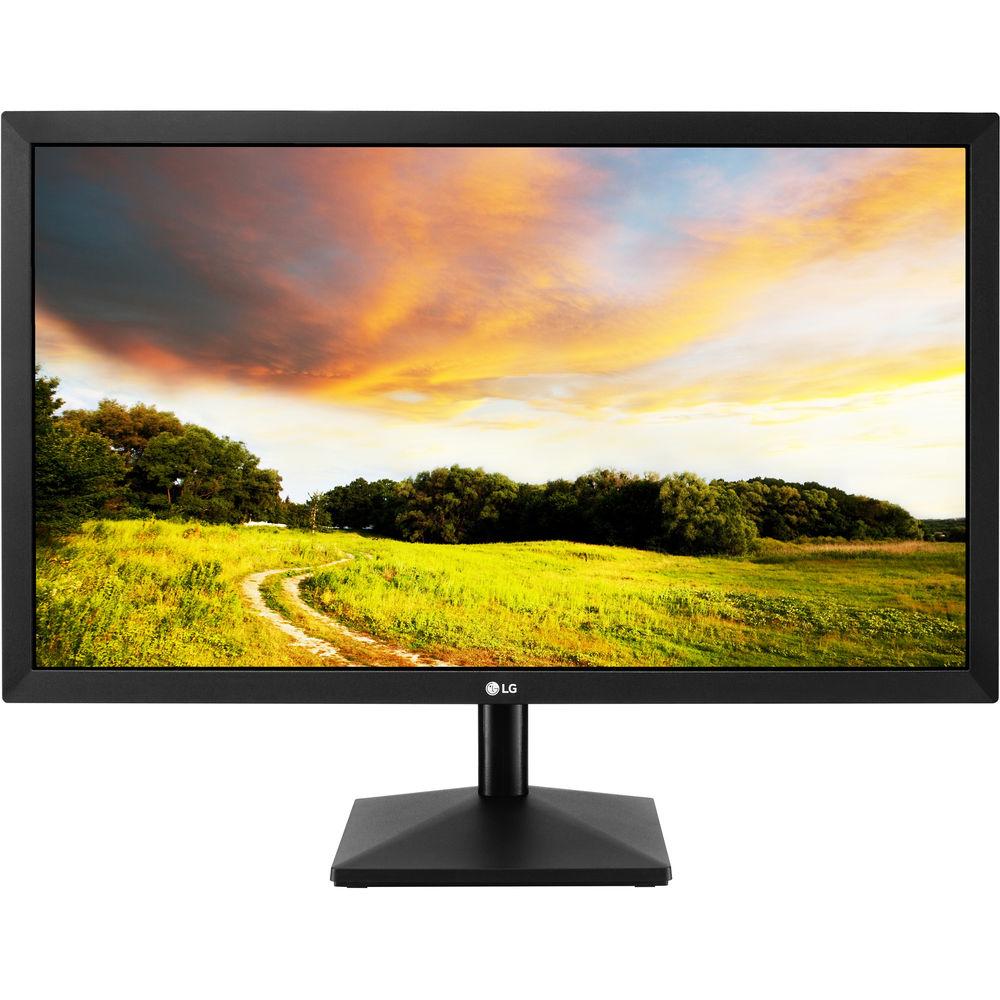

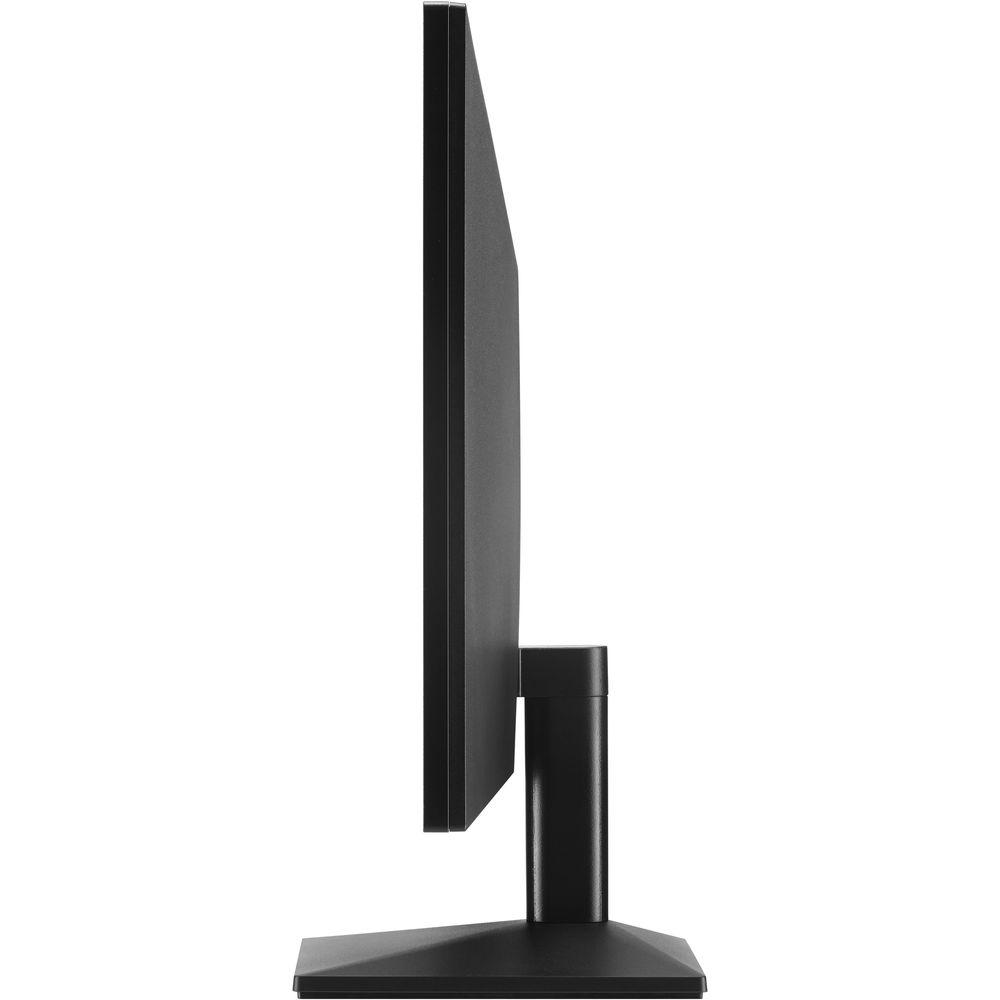

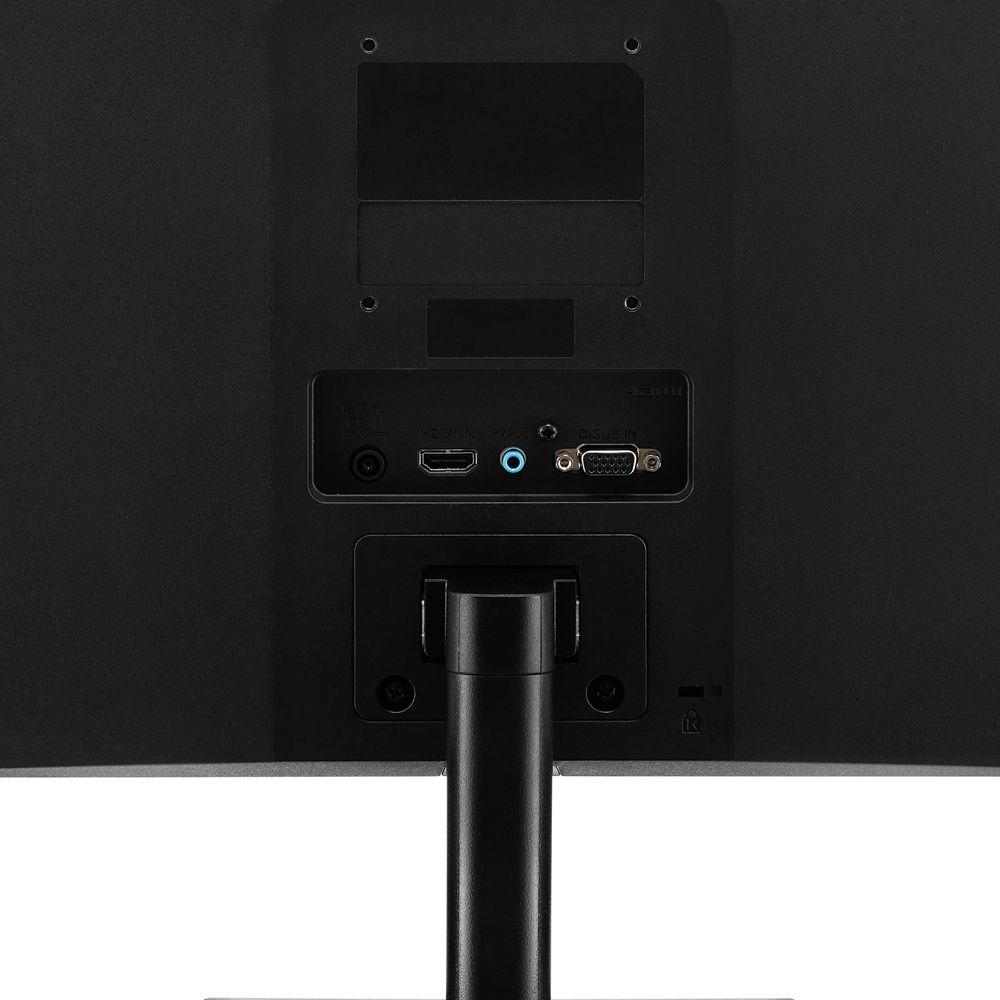

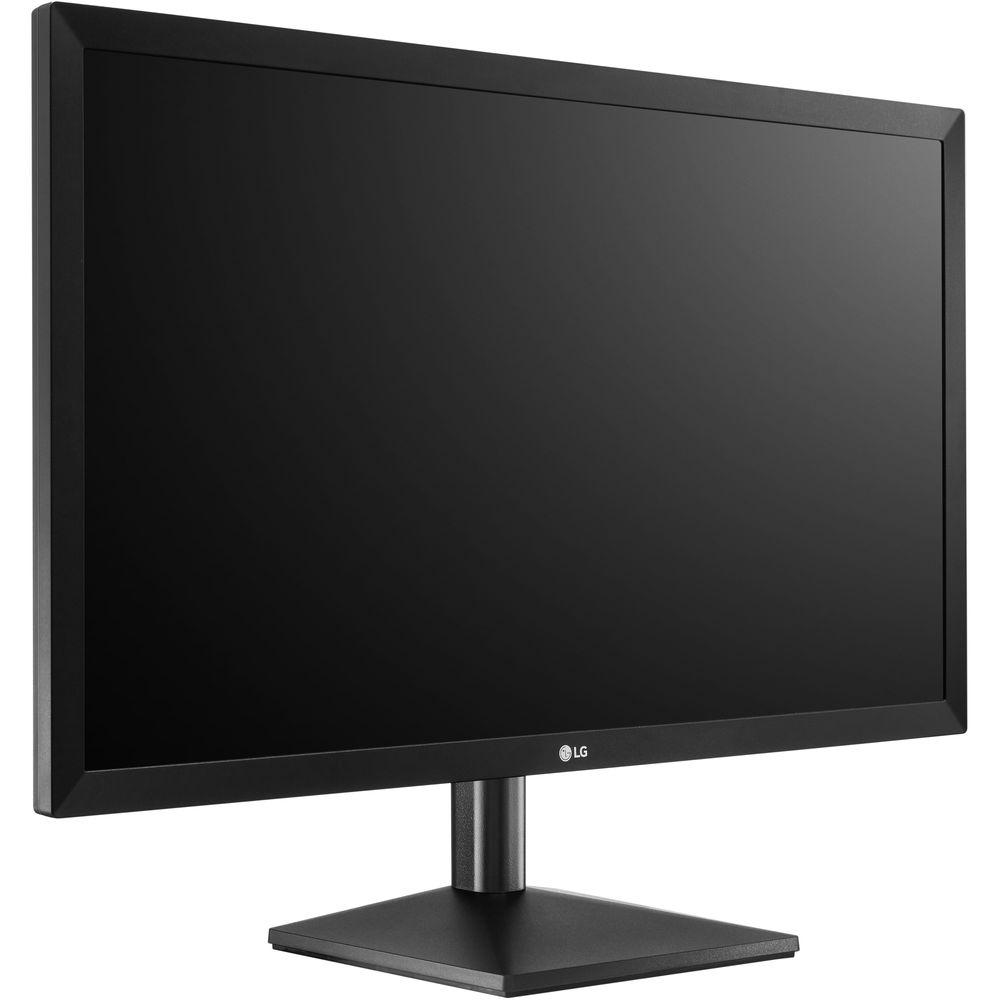

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The 24MK400H-B 24" 16:9 FreeSync LCD Monitor from LG is built with helpful gaming features such as a fast 1 ms response time and support for AMD FreeSync technology. Specs-wise, it features a Twisted Nematic (TN) panel with a 1920 x 1080 Full HD resolution, a 200 cd/m² brightness rating, a 1000:1 static contrast ratio, and support for 16.7 million colors. With these combined, this monitor provides you with clear content reproduction and the responsiveness for fast-paced games. Connect it to your system via HDMI or VGA and tilt it to your viewing preference. Alternatively, you can install an optional VESA mount or arm if needed. - AMD FreeSync
- AMD FreeSync technology syncs the display's refresh rate with your graphics card's frame rate output to reduce screen tearing, stuttering, and ghosting for a smoother gaming experience.
- Dynamic Action Sync
- Dynamic Action Sync minimizes input lag for more responsive movements.
- Black Stabilizer
- Black Stabilizer enhances dark scenes for better visibility, so you can spot enemies that may be waiting for you in the dark.
- On-Screen Control
- Instead of fiddling with hardware buttons, On-Screen Control puts your monitor options into an easy-to-use window.
- Flicker Safe & Reader Mode
- This monitor is built with Flicker Safe and Reader Mode technologies to reduce eyestrain and fatigue over extended viewing periods.
UPC: 719192617490 In the Box LG 24MK400H-B 24" 16:9 FreeSync LCD Monitor Power Cable Stand Base Stand Body 2 x Screws Limited 1-Year Warranty User Manual PDF 5.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 24MK400H-B 24" 16:9 FreeSync LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 24MK400H-B Specs | | | Size | 24" | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 91 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 200 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 75 Hz | | Adaptive Sync Technology | FreeSync | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 72% NTSC | | Response Time | 1 ms (GtG) | | Viewing Angle | Horizontal: 180° (90/90)
Vertical: 130° (65/65) | | Dot Pitch | 0.248 x 0.248 mm | | | | Connectivity | 1 x HDMI
1 x VGA
1 x 3.5 mm Output | | Built-In Speakers | None | | | | Power Consumption | 19.7 W (Typical)
29 W (Maximum)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | | | Certifications | ENERGY STAR, as per Manufacturer | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Mounting-Hole Pattern | 75 x 75 mm | | Lock Slot | No | | | | Package Weight | 9.04 lb | | Box Dimensions (LxWxH) | 26.9 x 15.2 x 4.8" |
