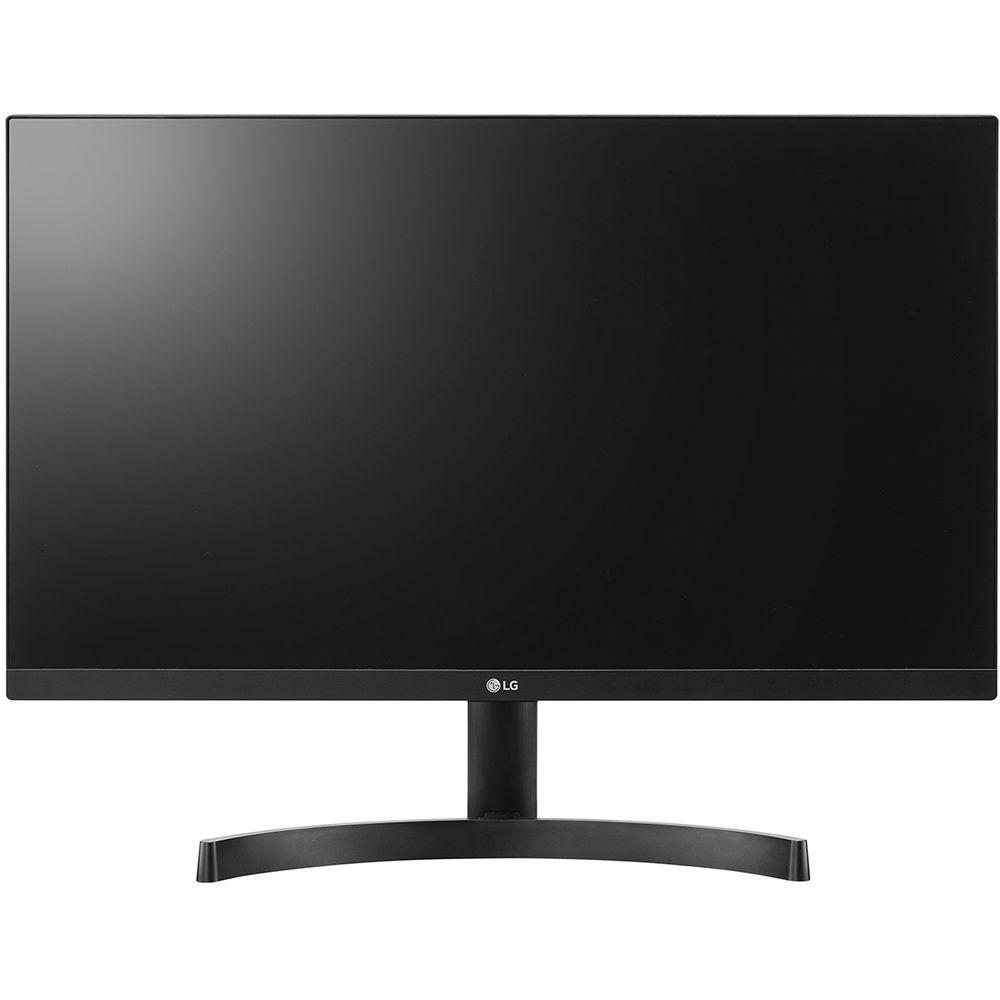

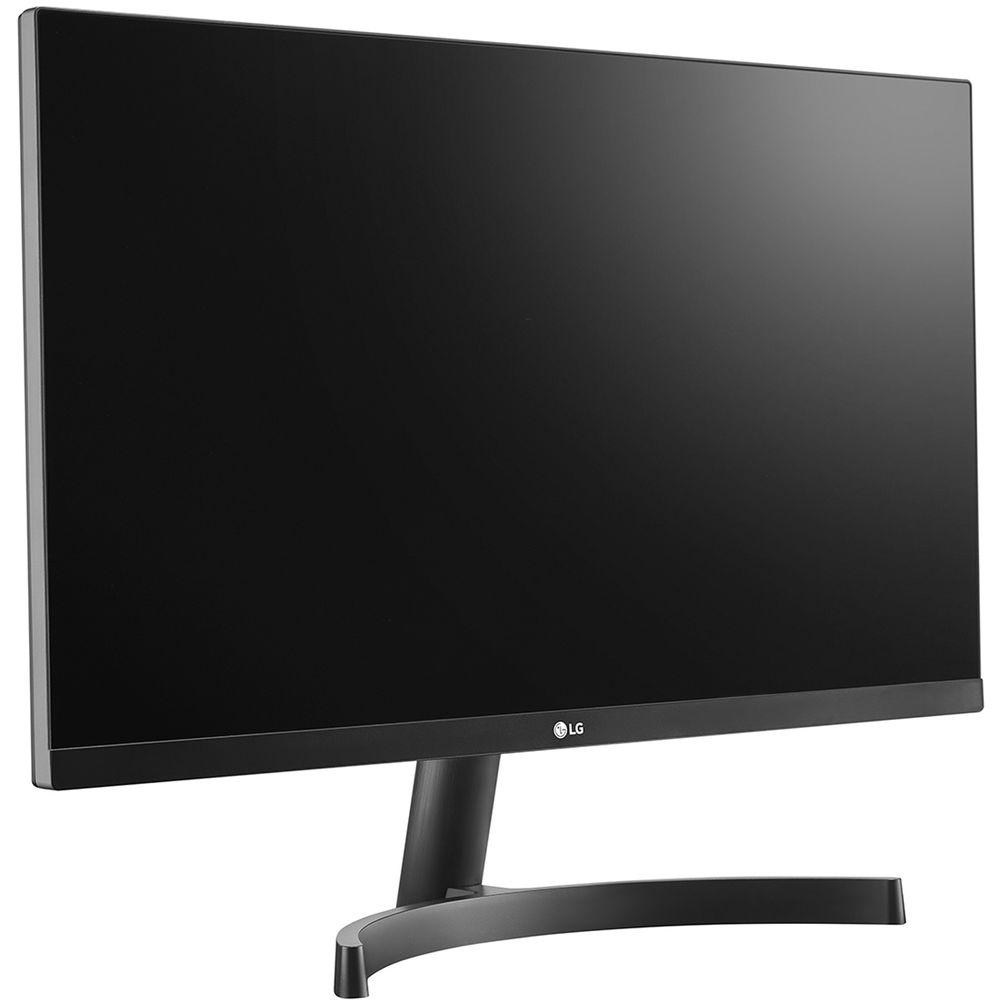

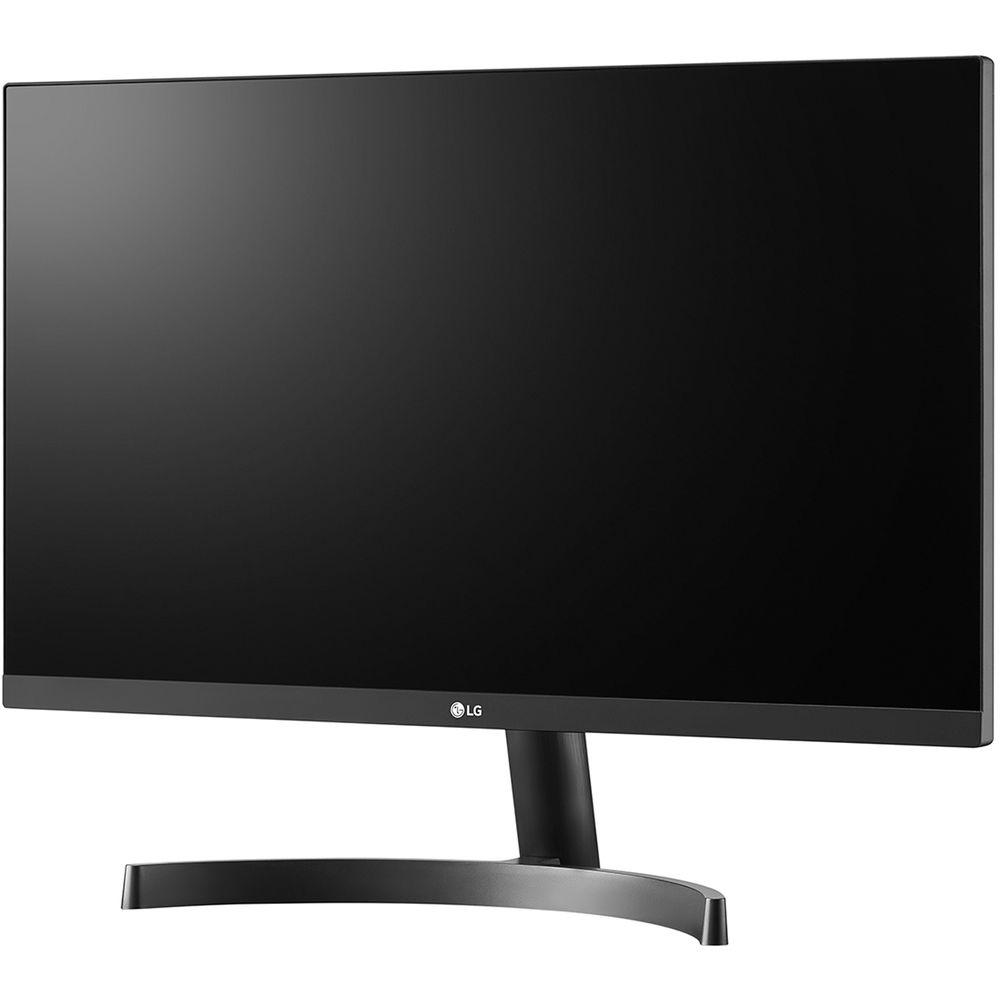

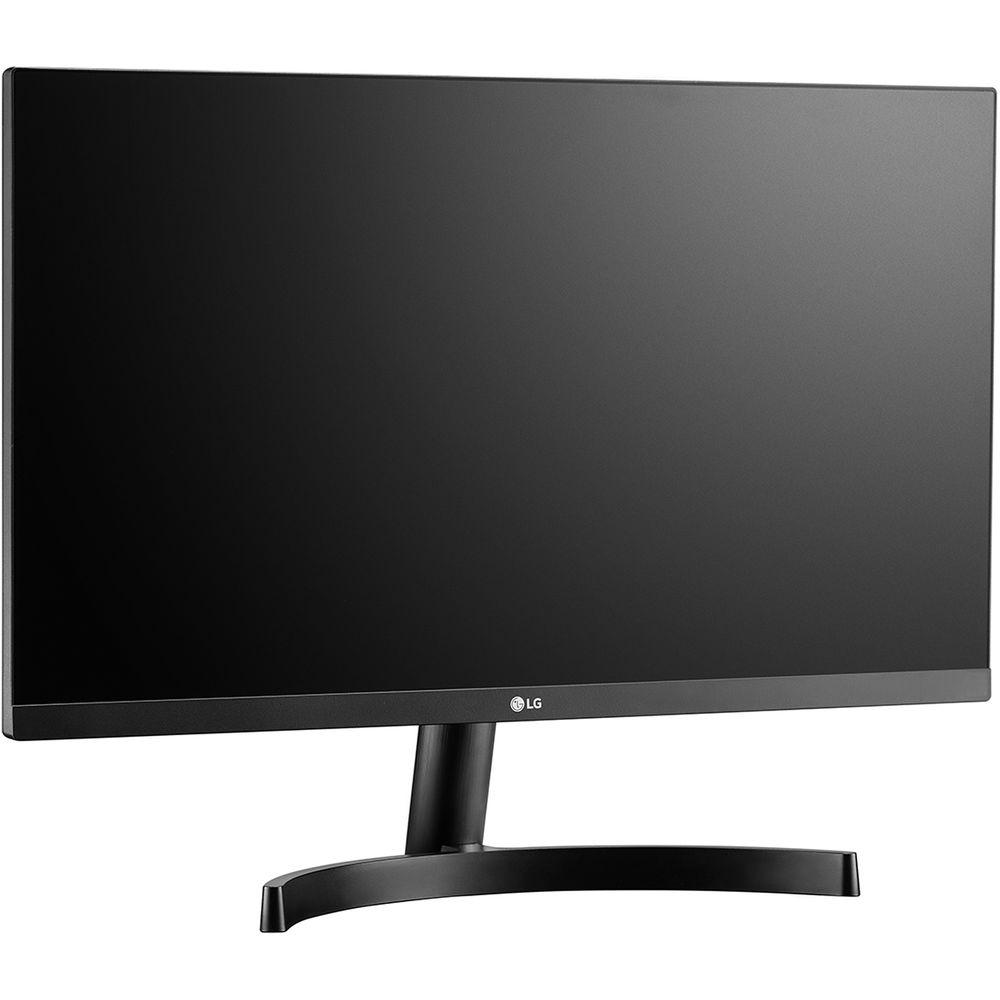

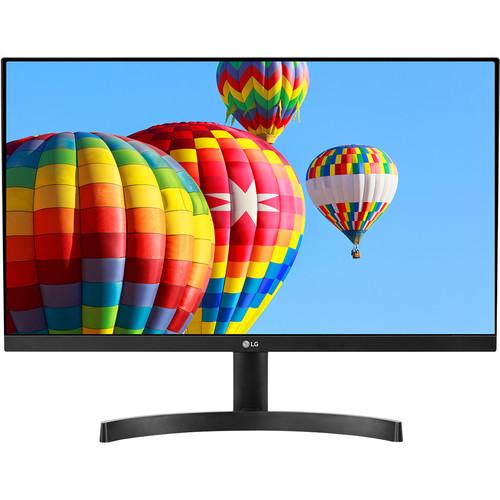

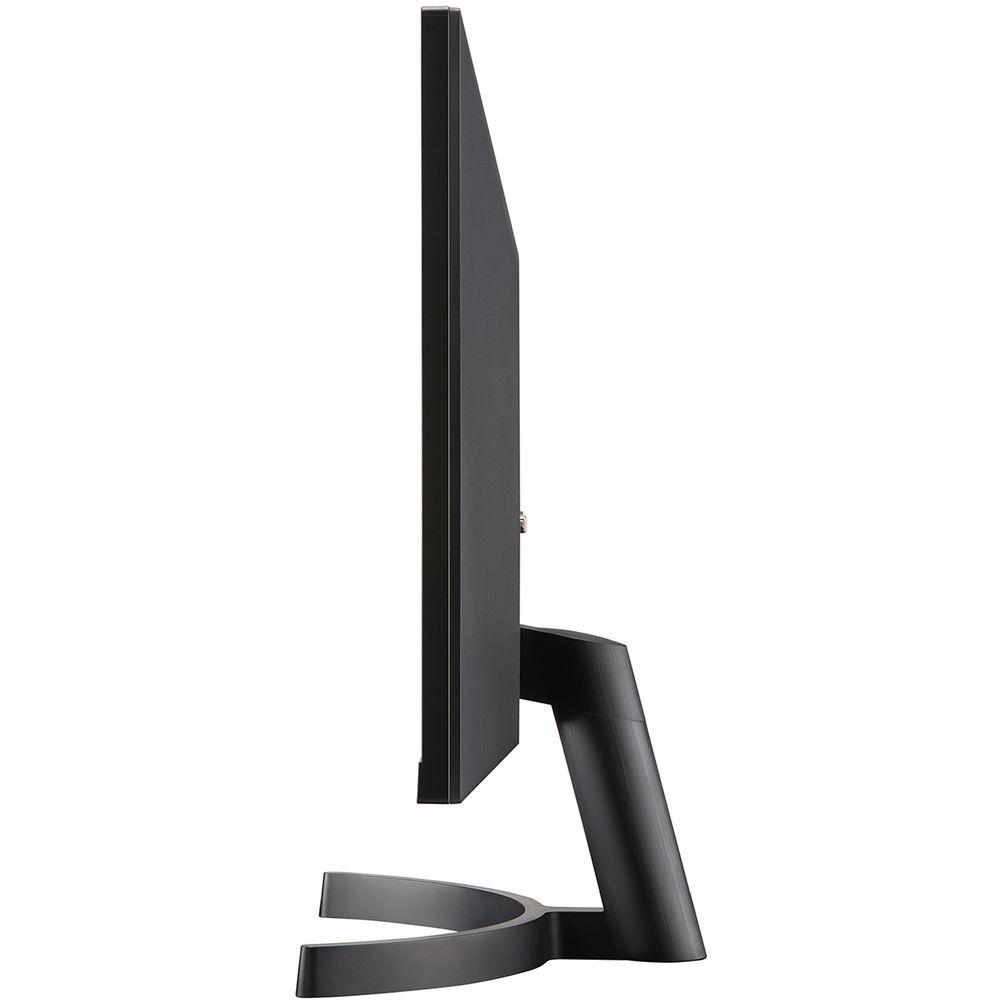

User Manual for LG 24MK600M-B 23.8" 16:9 FreeSync IPS Monitor Click to enlarge the picture
Contents of the user manual for the LG 24MK600M-B 23.8" 16:9 FreeSync IPS
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 24MK600M-B 23.8" 16:9 FreeSync IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The 24MK600M-B 23.8" 16:9 FreeSync IPS Monitor from Dell is built with multiple features designed for gamers. With AMD FreeSync technology, this display can sync its refresh rate with your graphics card's frame rate output to reduce screen tearing, stuttering, and ghosting for smoother gaming. Specs-wise, it's built with an IPS (In-Plane Switching) panel and has a 1920 x 1080 Full HD resolution, a 250 cd/m² brightness rating, a 1000:1 static contrast ratio, a 5 ms response time, and support for 16.7 million colors. Moreover, it has an ultra-thin bezel design for a more immersive viewing experience. Connect this display to your system via HDMI or VGA, and then tilt it to your preferred viewing position. Alternatively, you can install an optional mount, stand, or arm using the VESA mounting holes on the back. - AMD FreeSync Technology
- AMD FreeSync Technology syncs the display's refresh rate with your graphics card's frame rate output to reduce screen tearing, stuttering, and ghosting for a smoother gaming experience.
- Dynamic Action Sync
- Dynamic Action Sync minimizes input lag for more responsive actions from your keyboard, mouse, or controller of your choice.
- Black Stabilizer
- Black Stabilizer increases visibility in dark scenes, allowing you to spot enemies that may be hiding and waiting for you in the dark.
- Crosshair
- The Crosshair features adds an onscreen crosshair overlay to your display so you'll always know where the center of your screen is, which is helpful in FPS games.
- Reader Mode
- Reader Mode reduces blue light emissions to help reduce eyestrain and fatigue over extended viewing periods.
- On-Screen Control
- Instead of fiddling with hardware buttons, On-Screen Control provides you with an easy-to-use window for monitor adjustments including brightness, picture mode presets, Screen Splits 2.0, Dual Controller, and more.
UPC: 719192622487 In the Box LG 24MK600M-B 23.8" 16:9 FreeSync IPS Monitor HDMI Cable Power Cable Limited 1-Year Warranty User Manual PDF 4.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 24MK600M-B 23.8" 16:9 FreeSync IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the LG 24MK600M-B 23.8" 16:9 FreeSync IPS Monitor can be downloaded in PDF format at the link stated below.
Technical parametersLG 24MK600M-B Specs | | | Size | 23.8" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 93 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 75 Hz | | Adaptive Sync Technology | FreeSync | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 72% NTSC | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°

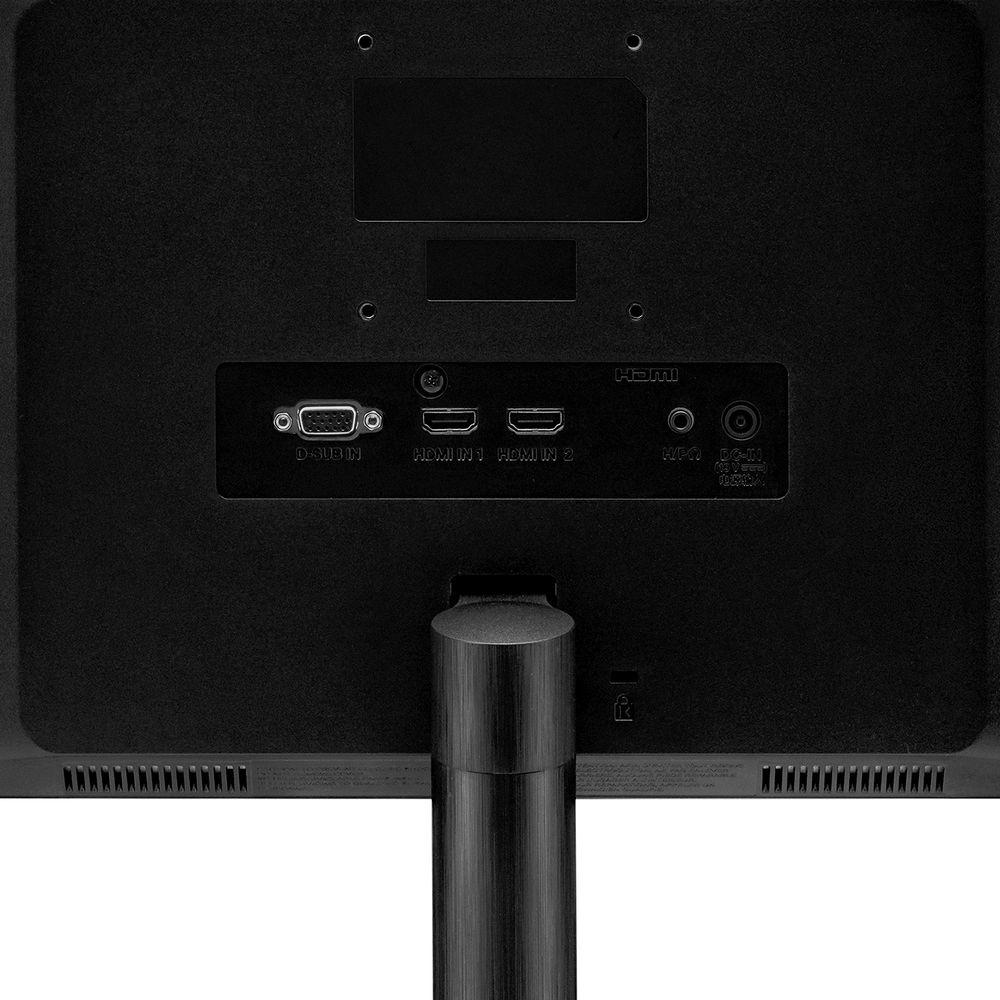

Vertical: 178° | | | | Connectivity | 2 x HDMI
1 x VGA
1 x 3.5 mm Output | | HDCP Support | Yes, Version 1.4 | | Built-In Speakers | None | | | | Power Consumption | 17.5 W (Typical)
14.1 W (Eco)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | CCC, CE, FCC, TUV, UL, VCCI, cUL, as per Manufacturer | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -2 to 15° | | Mounting-Hole Pattern | 75 x 75 mm | | Lock Slot | No | | Dimensions (W x H x D) | 21.2 x 16.4 x 7.2" / 538.5 x 416.6 x 182.9 mm (With Stand)
21.2 x 12.7 x 2.6" / 538.5 x 322.6 x 66.0 mm (Without Stand) | | Weight | 6.8 lb / 3.08 kg (With Stand)
6.1 lb / 2.77 kg (Without Stand) | | | | Package Weight | 9.75 lb | | Box Dimensions (LxWxH) | 23.8 x 15.0 x 5.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 55 owners. Add your rating and experience with the product.
