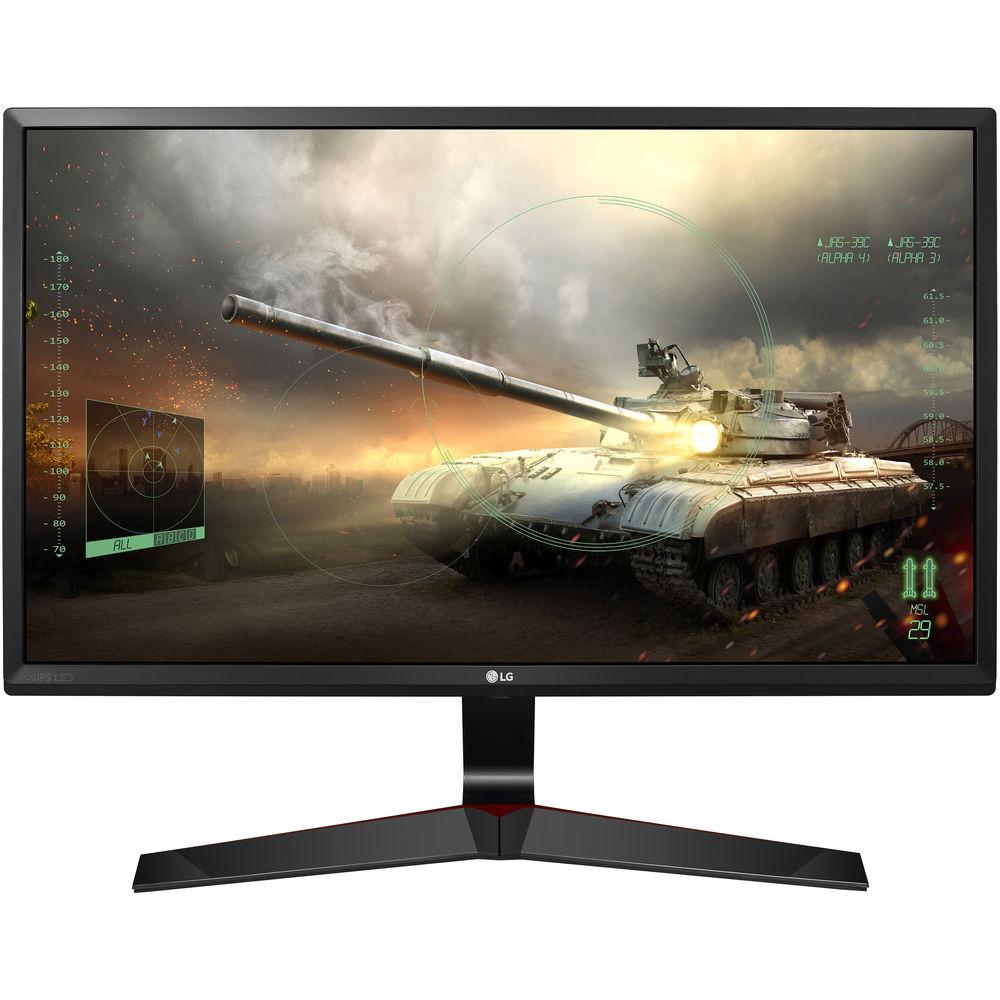

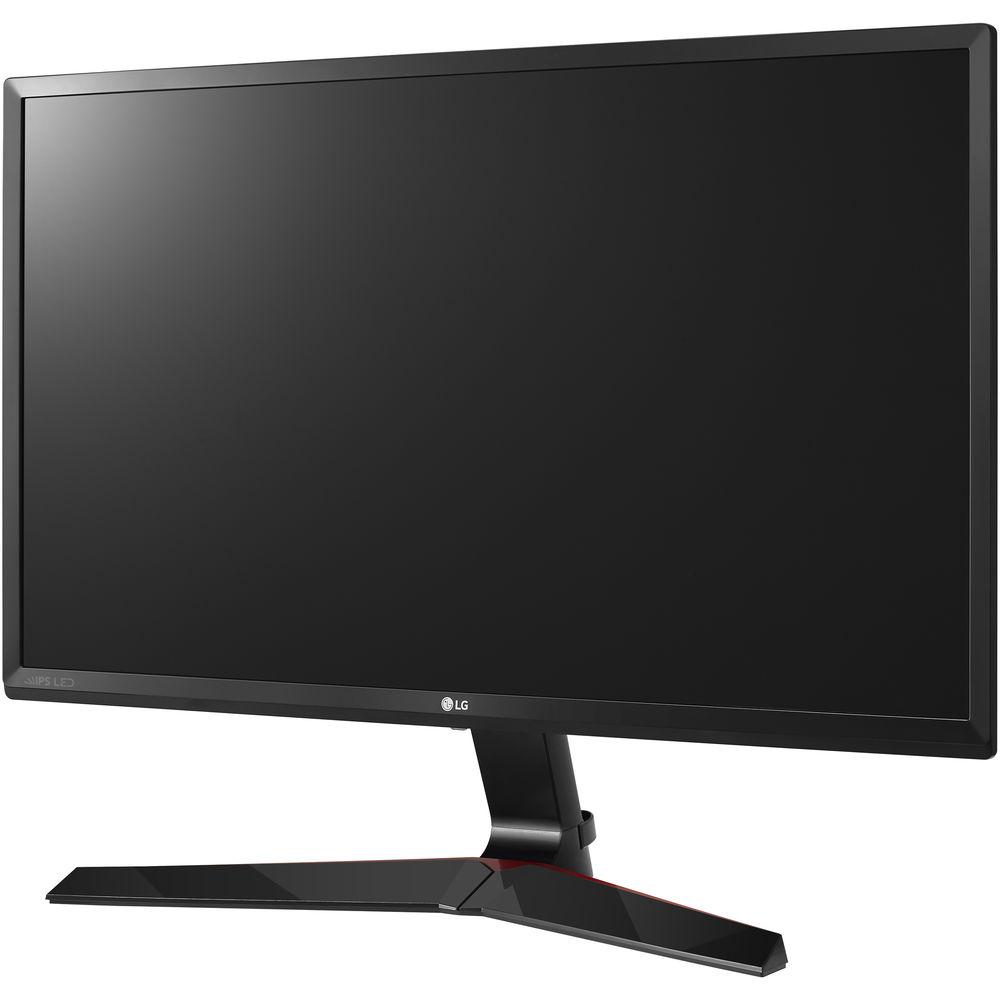

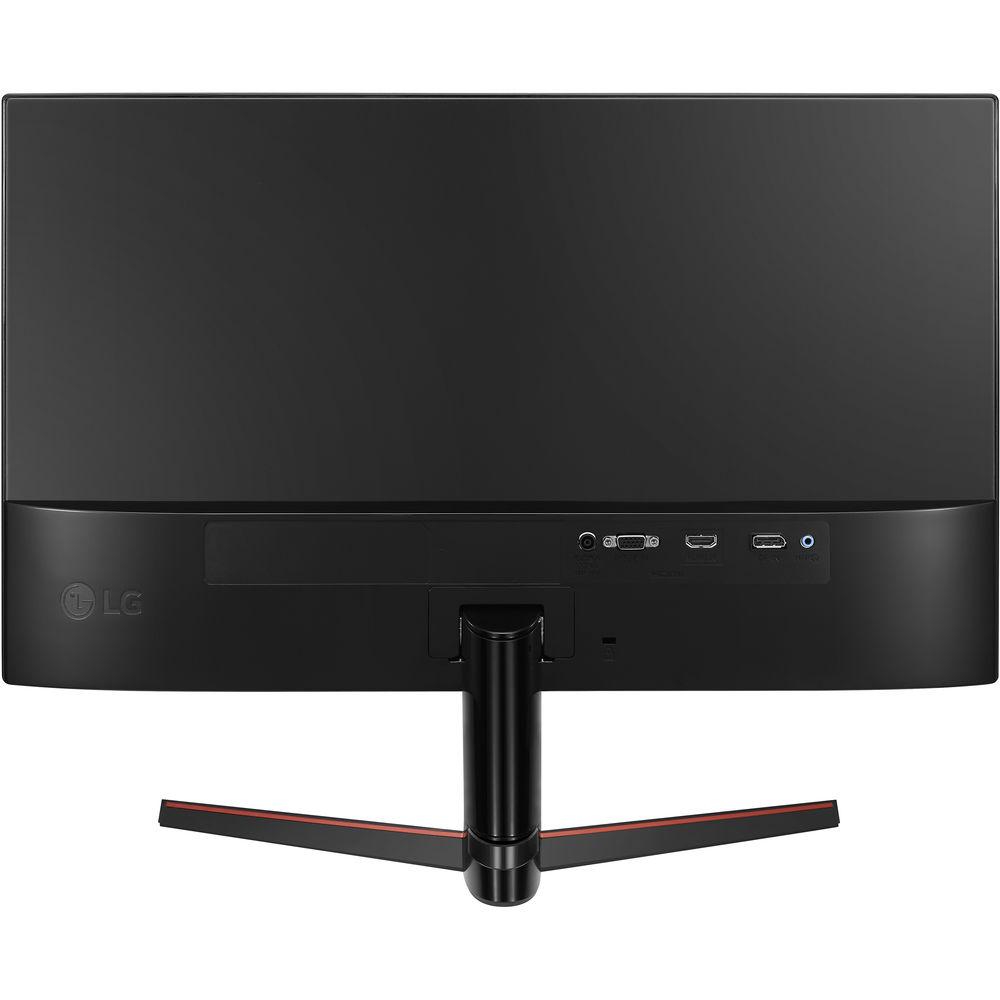

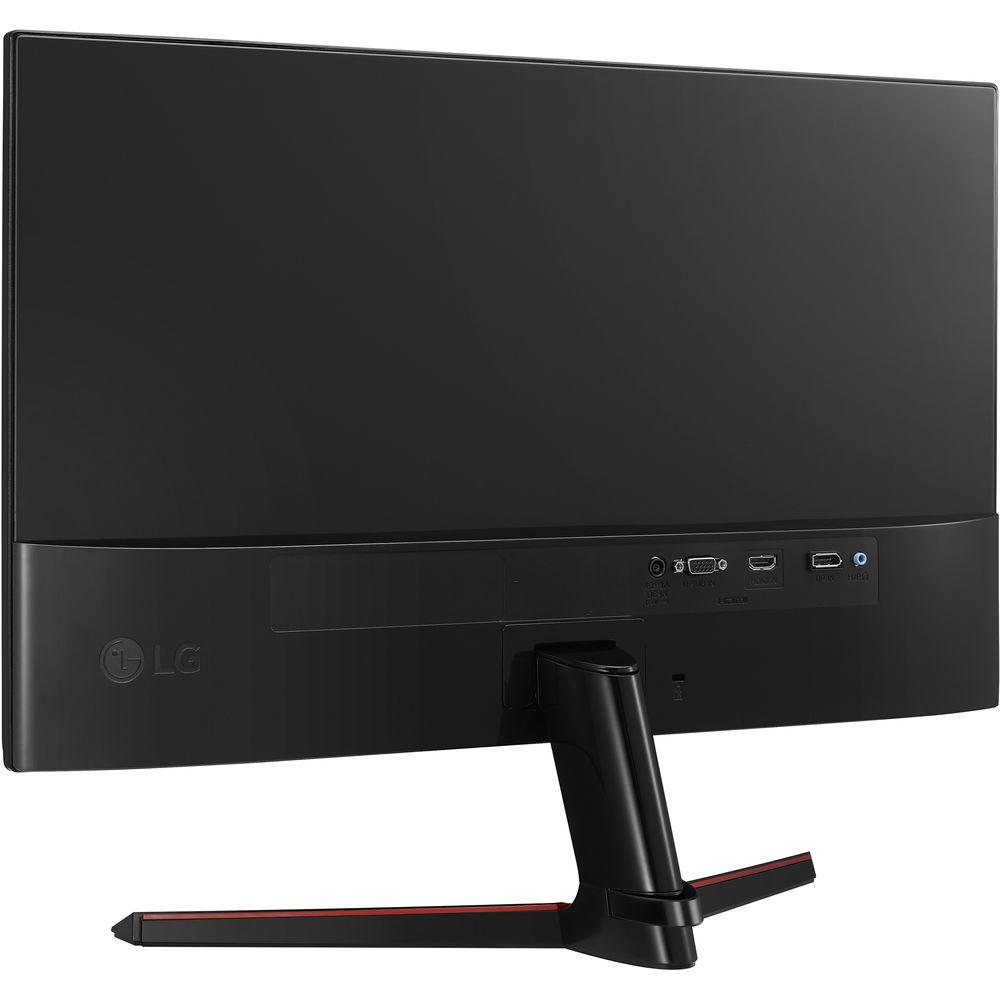

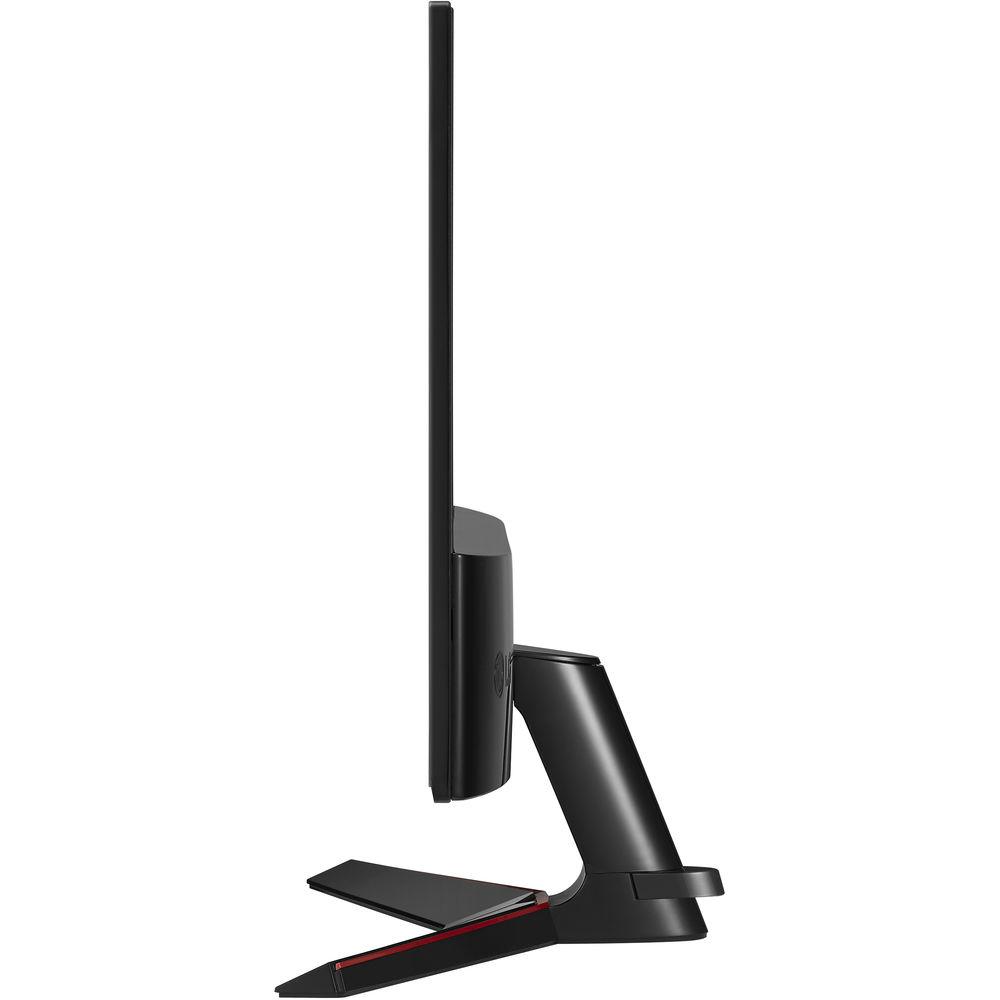

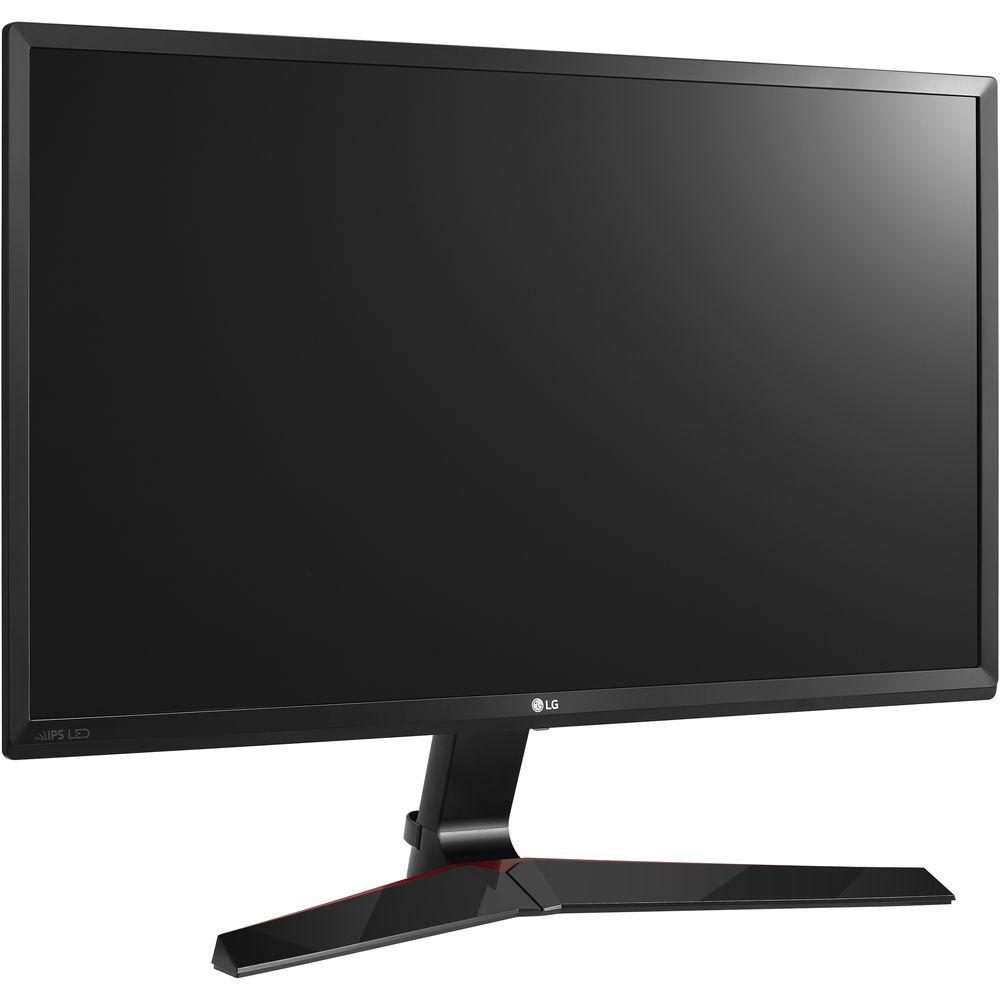

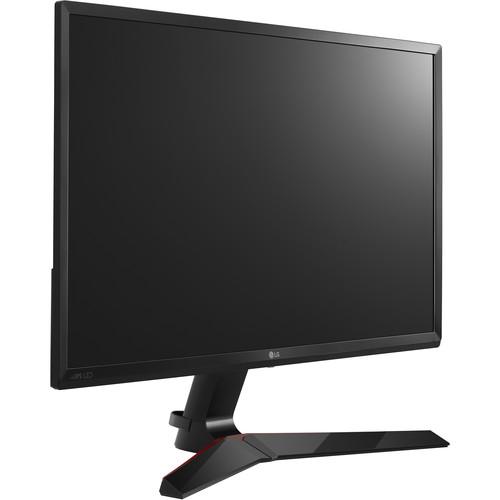

User Manual for LG 24MP59G-P 24" 16:9 IPS Gaming Monitor Click to enlarge the picture
Contents of the user manual for the LG 24MP59G-P 24" 16:9 IPS Gaming
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 24MP59G-P 24" 16:9 IPS Gaming contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Bring your game to the next level with the 24MP59G-P 24" 16:9 IPS Gaming Monitor from LG. With this gaming monitor, you benefit from enhanced clarity thanks to the 1 ms Motion Blur Reduction feature, which is designed to virtually eliminate ghosting and blur that can plague fast-moving games.
In addition to the reduced response time, built-in AMD FreeSync technology assists in syncing your monitor's frame rate to that of your compatible AMD graphics card to reduce stuttering and tearing. For fans of RTS games, LG has included Dynamic Action Sync, which is a feature designed to minimize input lag allowing for more responsive feedback within the game. With the wide variety of games available, this LG monitor offers a variety of gaming modes including two first-person shooter modes and an RTS pre-set mode, making it easy to configure the monitor to suit the type of game being played.
Setup and configuration of this LG monitor is simple as it comes equipped with a variety of inputs, including HDMI, DisplayPort, and D-Sub connectors to ensure the monitor can be plugged into a variety of computer configurations. Once configured, users benefit from a crisp, clear 1920 x 1080 Full HD IPS display along with a 5 ms GtG response time, and a 250 cd/m² brightness rating. Additionally, this widescreen 16:9 display can be tilted from -2 to 15° for maximum viewing comfort, and with 178° horizontal and vertical viewing angles, the screen can be viewed from virtually any angle. - Full HD Gaming with 1 ms Motion Blur Reduction
- The Full HD display with 1ms Motion Blur Reduction allows gamers to enjoy the precision and accuracy needed to play at a very high level. With a response time that is virtually 1 ms, blurring and ghosting are reduced to make the action smoother and gaming more precise.
- AMD FreeSync
- FreeSync reduces the tearing and stuttering that occur between a graphic card's frame rate and a monitor's refresh rate. With FreeSync, gamers can experience seamless, fluid movement throughout their games.
- Dynamic Action Sync
- Gamers can experience optimized, fast-pace gaming with Dynamic Action Sync. Dynamic Action Sync is a feature that minimizes input lag so the gameplay in RTS games is more responsive.
- Black Stabilizer
- Keep visibility even in dark scenes. LG's Black Stabilizer senses dark scenes and helps make it brighter so that you can find the enemies hiding and waiting to attack your player in the dark.
- Game Mode
- Set your game mode to optimize and customize your gaming conditions. There are 3 gamer modes, 2 First-Person-Shooter modes and even a RTS pre-set mode so you can choose the best mode for you and the game you're playing.
- On-Screen Control
- On-Screen Control puts a host of essential monitor settings into a handy window for quick, easy access. Volume, brightness, picture mode presets, Screen Split 2.0, Dual Controller, and more can now be adjusted with just a few clicks of the mouse, instead of hard buttons on the monitor.
- Additional Features
- Picture Mode
Custom, Reader, Photo, Cinema, Color Weakness, FPS Game 1, FPS Game 2, RTS Game, Custom (Game)
Other Features
DDC/CI
HDCP
Intelligent Auto (Auto Resolution)
Key Lock
Plug & Play
Response Time Control
Color Weakness
Flicker Safe
Automatic Standby
SIX Axis Control
Smart Energy Saving
Super Resolution Plus
4 Screen-Split
DAS Mode
Black Stabilizer
Crosshair UPC: 719192609181 In the Box LG 24MP59G-P 24" 16:9 IPS Gaming Monitor Detachable Base Power Cord D-Sub Cable HDMI Cable Limited 1-Year Warranty User Manual PDF 4.5mbyeuvwwwxdcdwcadzefu Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 24MP59G-P 24" 16:9 IPS Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

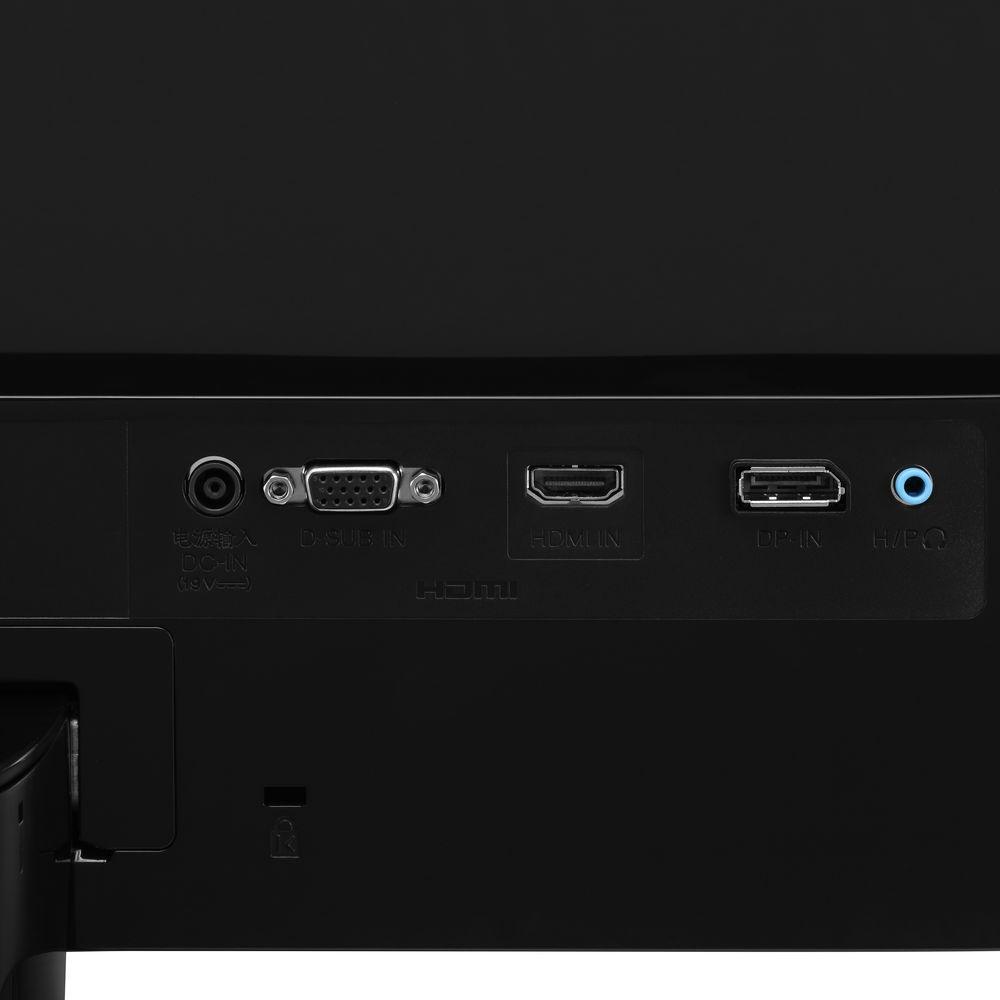

Technical parametersLG 24MP59G-P Specs | Screen Size | 23.8" / 60.5 cm | | Panel Type | IPS | | Color Gamut (CIE1931) | sRBG over 99% | | Color Depth | 6bit+A-FRC, 16.7 million colors | | Pixel Pitch | 0.2745 x 0.2745 mm | | Response Time | 5 ms GTG, 1 ms MBR | | Refresh Rate | 75 Hz | | Aspect Ratio | 16:9 | | Resolution | 1920 x 1080 | | Brightness | 250 cd/m² | | Contrast Ratio | Mega | | Viewing Angles (H/V) | 178/178° | | Surface Treatment | Anti-Glare 3H | | Inputs/Outputs | HDMI in
DisplayPort in
D-Sub in
Headphone out | | Power | 100-240 VAC, 50/60 Hz
Normal Power Consumption On (EPA): 17.1 W | | Tilt (Angle) | -2 to 15° | | Standards | UL(cUL)
TUV-Type
FCC-B, CE
EPA7.0
ErP
EPEAT Gold
Windows (Win 10)
DisplayPort (v. 1.2) | | Dimensions | With Stand
21.7 x 16.5 x 8.0 / 55.1 x 41.9 x 20.3 cm
Without Stand
21.7 x 13.1 x 3.4" / 55.1 x 33.3 x 8.6 cm | | Weight | With Stand
7.1 lb / 3.2 kg
Without Stand
6.2 lb / 2.8 kg | | | | Package Weight | 9.9 lb | | Box Dimensions (LxWxH) | 24.0 x 15.0 x 5.0" |
