LG 27BK550Y-B 24" Full HD IPS

Search your instruction manual in PDF to download

User Manual for LG 27BK550Y-B 24" Full HD IPS Multi-Tasking Monitor

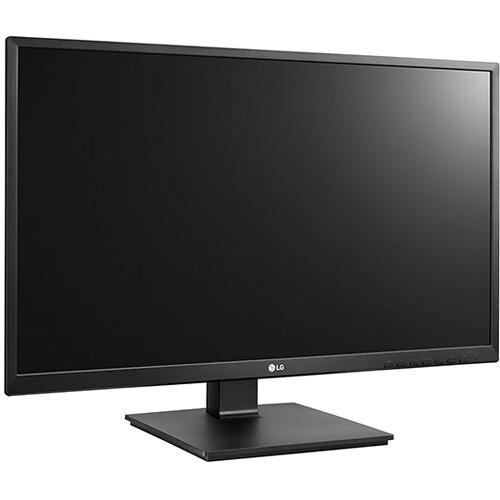

Click to enlarge the picture
LG 27BK550Y-B 24" Full HD IPS Multi-Tasking Monitor Contents of the user manual for the LG 27BK550Y-B 24" Full HD IPS
  • Product category: Computer Monitors LG
  • Brand: LG
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for LG Computer Monitors

LG 27BK550Y-B 24" Full HD IPS Multi-Tasking Monitor LG 27BK550Y-B 24" Full HD IPS Multi-Tasking Monitor LG 27BK550Y-B 24" Full HD IPS Multi-Tasking Monitor LG 27BK550Y-B 24" Full HD IPS Multi-Tasking Monitor LG 27BK550Y-B 24" Full HD IPS Multi-Tasking Monitor LG 27BK550Y-B 24" Full HD IPS Multi-Tasking Monitor LG 27BK550Y-B 24" Full HD IPS Multi-Tasking Monitor LG 27BK550Y-B 24" Full HD IPS Multi-Tasking Monitor LG 27BK550Y-B 24" Full HD IPS Multi-Tasking Monitor
User manual for the LG 27BK550Y-B 24" Full HD IPS contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any LG product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!



Product description

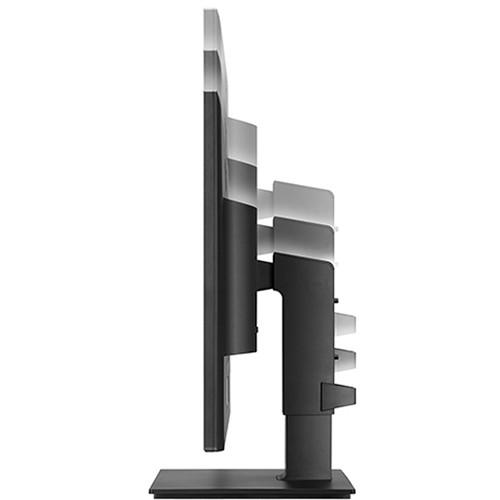

10 Factors to Consider When Selecting A Monitor for Video Editing Read More crbdbxrxcvvu The black 27BK550Y-B 24" Full HD IPS Multi-Tasking Monitor from LG offers a maximum resolution of 1920 x 1080 and brightness rating of 250 cd/m2. It comes with IPS (In-Plane Switching) technology that minimizes color shifts and provides improved picture quality. The monitor features an integrated power module and comes with height, tilt, pivot, and swivel adjustments. It can be wall-mounted (wall mount available separately) and supports mounting of compatible mini PCs on the rear. Using an Intel NUC or 100 x 100mm wall mount, you can easily mount your mini computer on the monitor (bracket and computer available separately).
  • Smart Energy saving by using luminance compensation algorithm
  • Anti-glare (3H) surface treatment
  • 2 x 1.2W audio output
  • Swivel Angle: 0 to 355° (




Upload User Manual

Have you got an user manual for the LG 27BK550Y-B 24" Full HD IPS Multi-Tasking Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: pdf, docx, jpg)

0%


Technical parameters

LG 27BK550Y-B Specs

Size 23.8"
Panel Type IPS-Type LCD
Touchscreen No
Resolution 1920 x 1080
Aspect Ratio 16:9
Pixels Per Inch (ppi) 92 ppi
Finish Matte
Hardness Rating 3H
Maximum Brightness 250 cd/m2
Contrast Ratio 1000:1
Dynamic Contrast Ratio 5,000,000:1
Adaptive Sync Technology None
Horizontal Frequency 30 to 83 kHz
Vertical Frequency 56 to 75 Hz
50 to 61 Hz (HDMI)
Bit Depth / Color Support 8-Bit (16.7 Million Colors)
HDR Compatibility None
Color Gamut 72% CIE1976
Response Time 5 ms (GtG)
Viewing Angle Horizontal: 178°
Vertical: 178°
Dot Pitch 0.2745 x 0.2745 mm

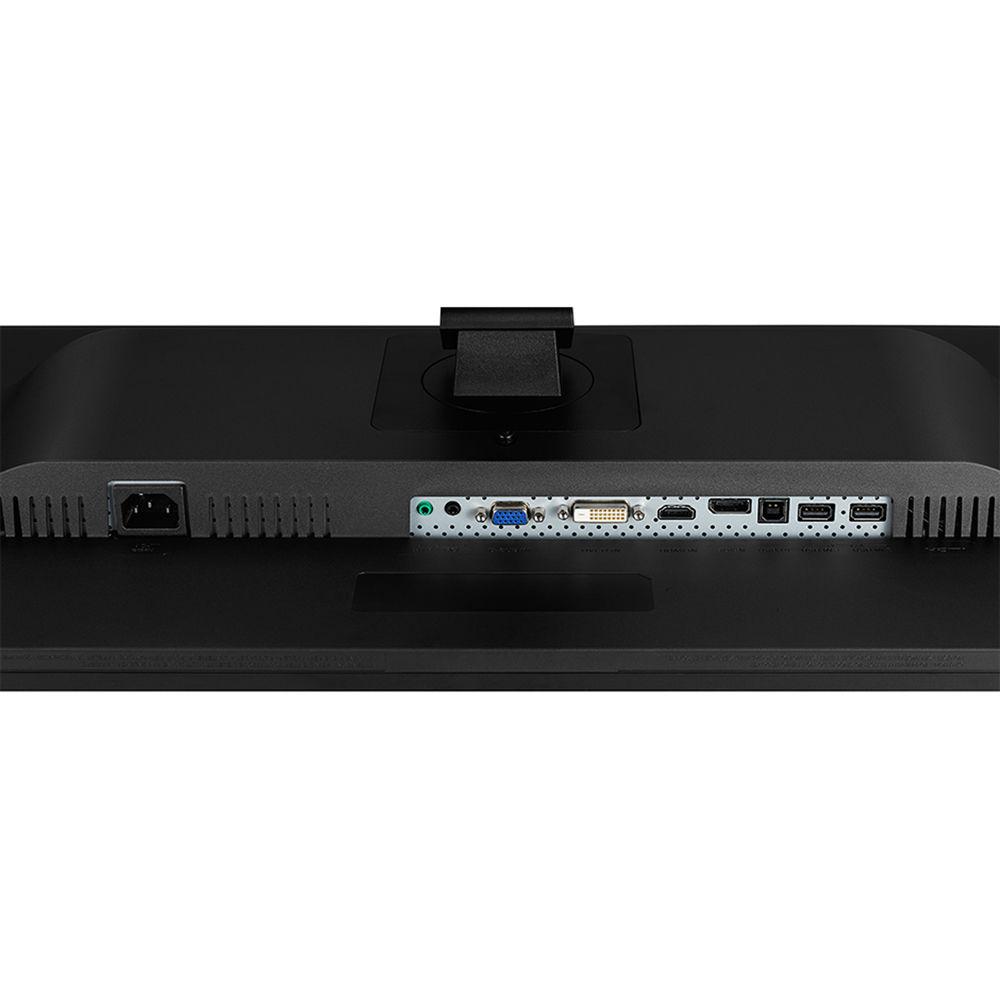

Connectivity 1 x VGA
1 x DVI
1 x DisplayPort 1.2
1 x HDMI 1.4
1 x 3.5 mm Input
1 x 3.5 mm Output
1 x USB Type-B (USB 2.0)
2 x USB Type-A (USB 2.0)
HDCP Support Yes, Version 1.4
Built-In Speakers Yes, 2 x 1.2 W
Supported Languages Brazilian Portuguese
English
Finnish
French
German
Greek
Hindi
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Ukrainian
Power Consumption 28 W (Maximum)
17.1 W (Eco)
23.6 W (Typical)
0.5 W (Standby)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Adapter Type Internal
Certifications EPEAT GOLD, FCC, REACH, RoHS, TCO Certified, TUV, cUL, as per Manufacturer

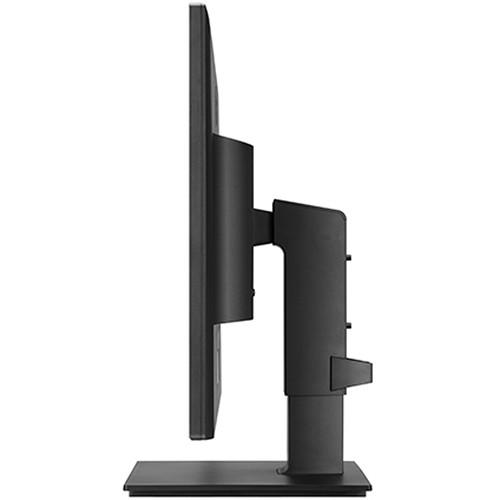

Height Adjustment 5.12" / 13 cm

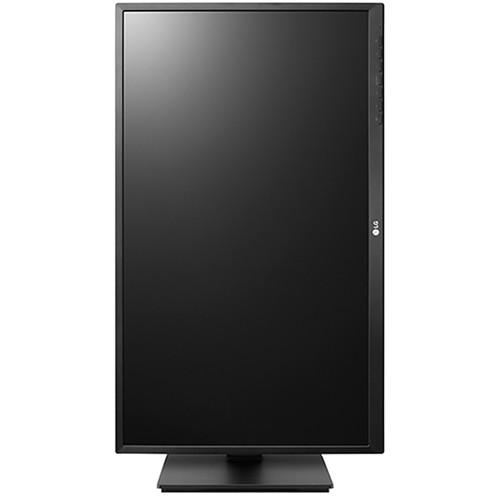

Rotation Adjustment 180° (-90 to 90°)
Swivel Adjustment 355°
Tilt Adjustment -5 to 35°
Mounting-Hole Pattern 100 x 100 mm
Lock Slot Yes
Dimensions (W x H x D) 21.8 x 15.1 x 9.4" / 55.4 x 38.4 x 23.9 cm (With Stand)
21.8 x 13.1 x 2.3" / 55.4 x 33.3 x 5.8 cm (Without Stand)
Weight 12.6 lb / 5.72 kg (With Stand)
7.9 lb / 3.58 kg (Without Stand)
