User Manual for LG 27BK550Y-B 27" Full HD IPS Multi-Tasking Monitor Click to enlarge the picture
Contents of the user manual for the LG 27BK550Y-B 27" Full HD IPS
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 27BK550Y-B 27" Full HD IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

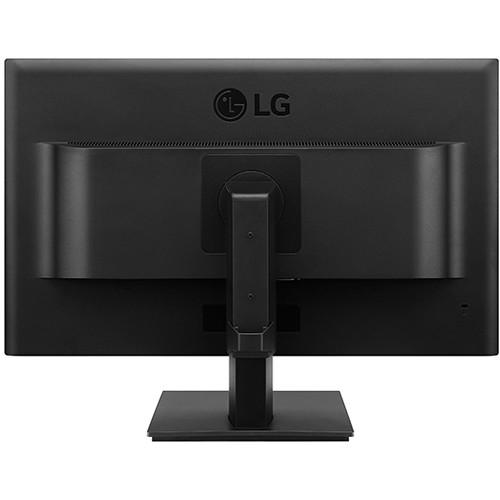

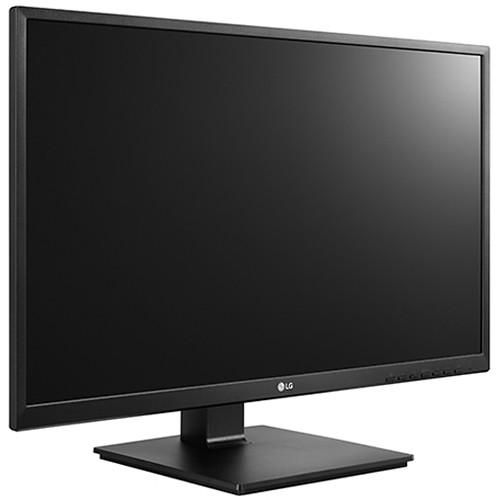

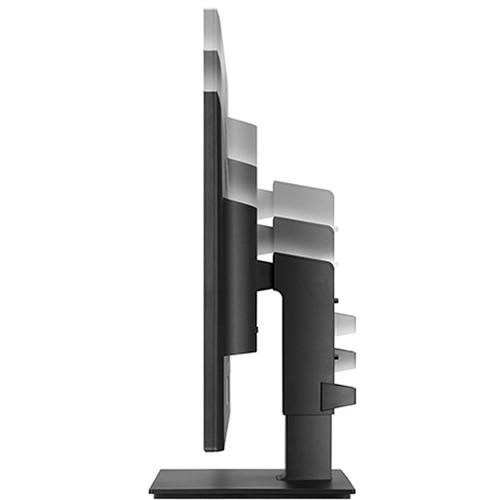

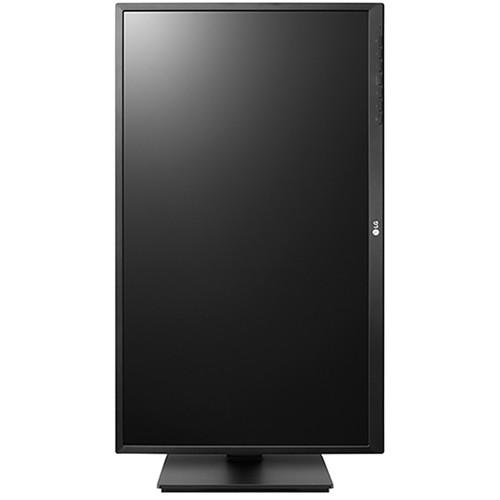

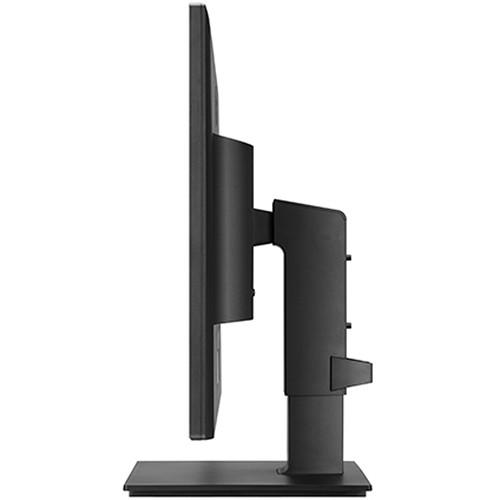

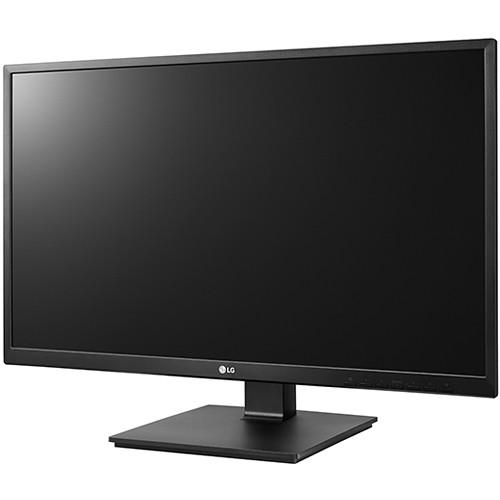

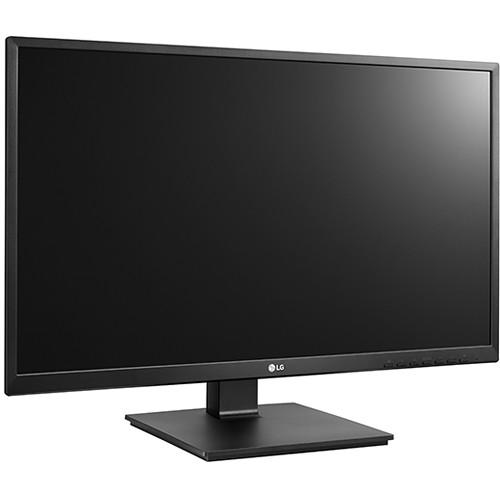

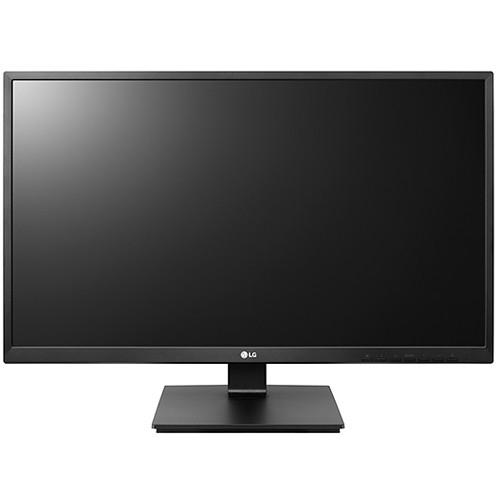

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The black 27BK550Y-B 27" Full HD IPS Multi-Tasking Monitor from LG offers a maximum resolution of 1920 x 1080 and brightness rating of 250 cd/m2. It comes with IPS (In-Plane Switching) technology that minimizes color shifts and provides improved picture quality. The monitor features an integrated power module and comes with height, tilt, pivot, and swivel adjustments. It can be wall-mounted (wall mount available separately) and supports mounting of compatible mini PCs on the rear. Using an Intel NUC or 100 x 100mm wall mount, you can easily mount your mini computer on the monitor (bracket and computer available separately). - Smart Energy saving by using luminance compensation algorithm
- Anti-glare (3H) surface treatment
- Swivel Angle: 0 to 355° (
|
Upload User Manual
Have you got an user manual for the LG 27BK550Y-B 27" Full HD IPS Multi-Tasking Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 27BK550Y-B Specs | | | Size | 27" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 82 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 5,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 83 kHz | | Vertical Frequency | 56 to 75 Hz
50 to 61 Hz (HDMI) | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 72% CIE1976 | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°

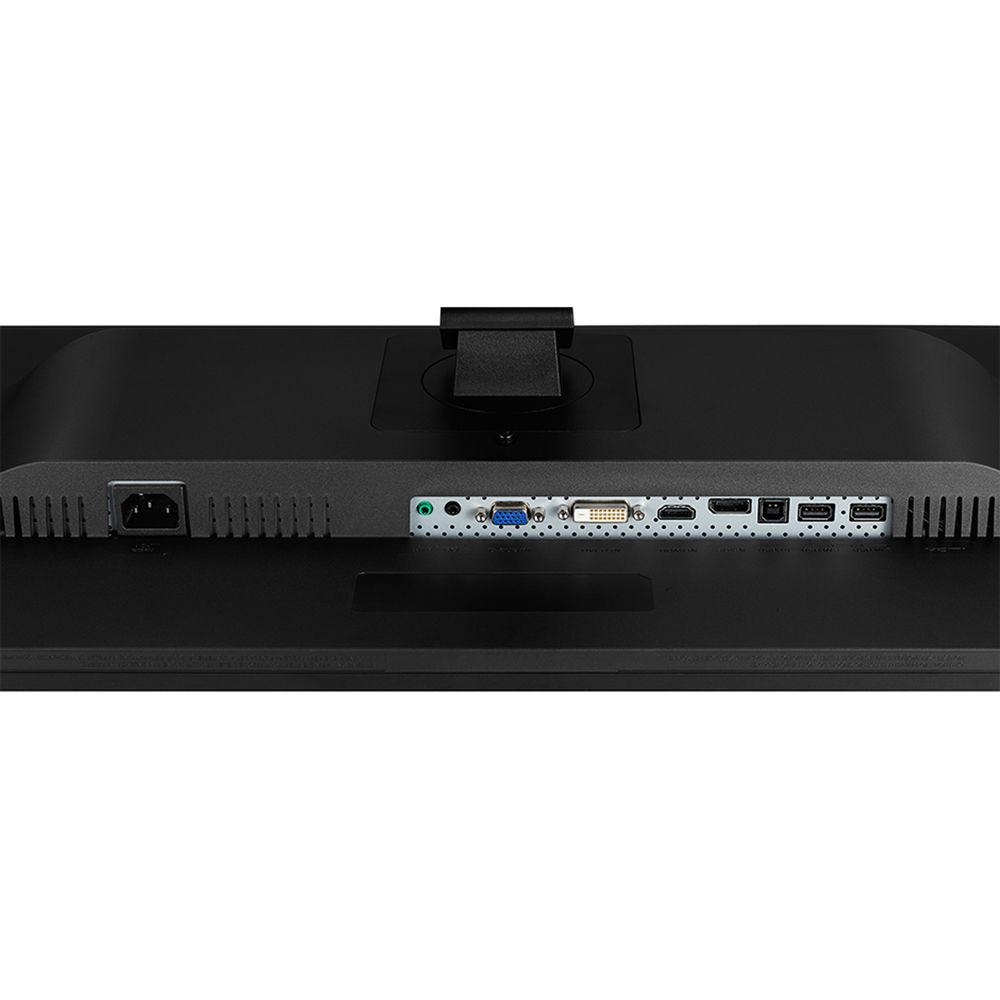

Vertical: 178° | | Dot Pitch | 0.3114 x 0.3114 mm | | | | Connectivity | 1 x VGA
1 x DVI
1 x DisplayPort 1.2
1 x HDMI 1.4
1 x 3.5 mm Input
1 x 3.5 mm Output
1 x USB Type-B (USB 2.0)
2 x USB Type-A (USB 2.0) | | HDCP Support | Yes, Version 1.4 | | Built-In Speakers | Yes, 2 x 1.2 W | | Supported Languages | Brazilian Portuguese
English
Finnish
French
German
Greek
Hindi
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Ukrainian | | | | Power Consumption | 40 W (Maximum)
20.3 W (Eco)
27.4 W (Typical)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Certifications | EPEAT GOLD, FCC, REACH, RoHS, TCO Certified, TUV, cUL, as per Manufacturer | | | | Height Adjustment | 5.12" / 13 cm | | Rotation Adjustment | 180° (-90 to 90°) | | Swivel Adjustment | 355° | | Tilt Adjustment | -5 to 35° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 24.5 x 15.8 x 9.4" / 62.2 x 40.1 x 23.9 cm (With Stand)
24.5 x 14.6 x 2.3" / 62.2 x 37.1 x 5.8 cm (Without Stand) | | Weight | 15.9 lb / 7.21 kg (With Stand)
11.2 lb / 5.08 kg (Without Stand) | | | | Package Weight | 21.7 lb | | Box Dimensions (LxWxH) | 27.7 x 22.2 x 7.4" |
