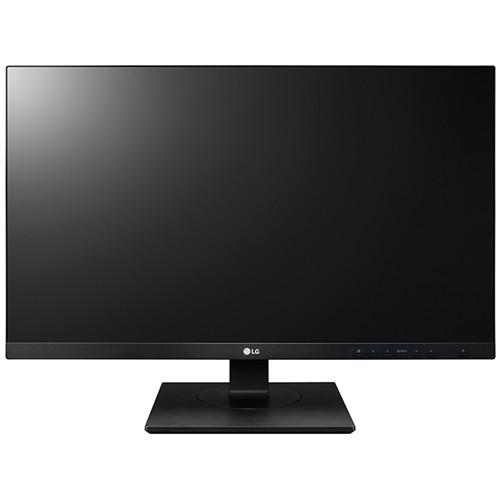

User Manual for LG 27BK750Y-B 27" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the LG 27BK750Y-B 27" 16:9 IPS Monitor
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 27BK750Y-B 27" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Designed for professionals, the 27BK750Y-B 27" 16:9 IPS Monitor from LG minimizes color shifts and provides remarkable picture quality from virtually any viewing angle. With a three-side borderless screen, it minimizes the bezel so the display blends into any workspace. The monitor can be easily assembled without any tools, and can also be be wall-mounted (wall mount sold separately). - Flicker Safe Operation
- Flicker safe reduces onscreen flickers and helps minimize eye strain and eye fatigue
- Reader Mode
- With a touch of a button, Reader Mode reduces the harmful blue light emissions
- Smart Energy Saving
- LG's Smart Energy Saving Mode reduces power consumption without lowering the brightness of the monitor
- Color Calibration
- Color calibration tested for accurate color
- Other Features
-
- Picture mode
- Ratio
- Reader mode
- DDC/CI
- HDCP (1.4)
- Key lock
- Plug-and-play
- Response time
- Color calibrated
- Dual control
- Flicker safe
- Off timer
- Key Type: Tact
- LED Color: White (On mode), Off (Power Save mode)
- Six Axis Control
- Smart Energy Saving (Conserves energy by using luminance compensation algorithm)
- Super resolution
- Anti-glare surface treatment
- On screen control / screen split
- Power charge
- Detachable base
UPC: 719192609082 In the Box LG 27BK750Y-B 27" 16:9 IPS Monitor Power Cord DisplayPort Cable HDMI Cable Software CD Limited 3-Year Warranty User Guide PDF 5.9mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 27BK750Y-B 27" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 27BK750Y-B Specs | | | Size | 27" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 82 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 5,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 83 kHz | | Vertical Frequency | 56 to 75 Hz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 72% CIE1976 | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°

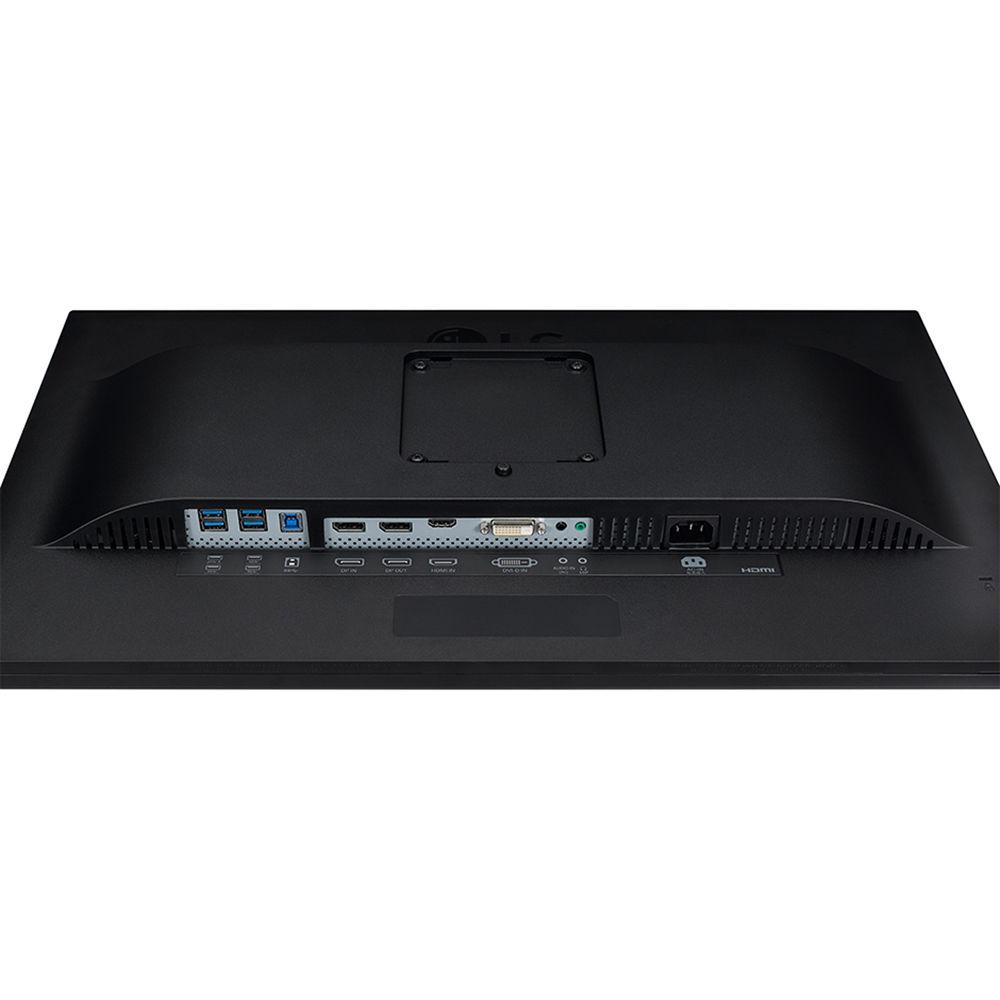

Vertical: 178° | | Dot Pitch | 0.3114 x 0.3114 mm | | | | Connectivity | 1 x DVI
1 x DisplayPort 1.2
1 x HDMI 1.4
1 x DisplayPort Output
1 x 3.5 mm Input
1 x 3.5 mm Output
1 x USB Type-B (USB 3.1 Gen 1)
4 x USB Type-A (USB 3.1 Gen 1) | | HDCP Support | Yes, Version 1.4 | | Built-In Speakers | Yes, 2 x 1.2 W | | Supported Languages | Brazilian Portuguese
English
Finnish
French
German
Greek
Hindi
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Ukrainian | | | | Power Consumption | 28 W (Typical)
20.3 W (Eco)

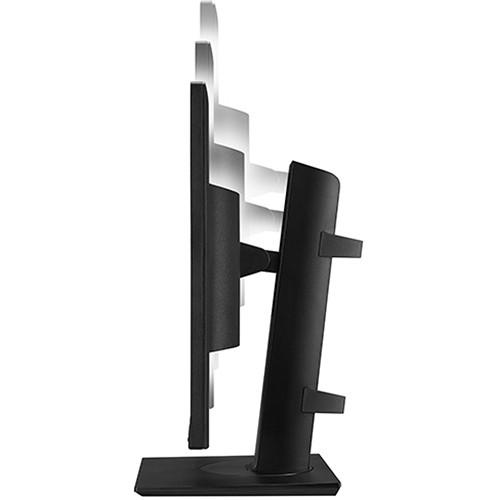

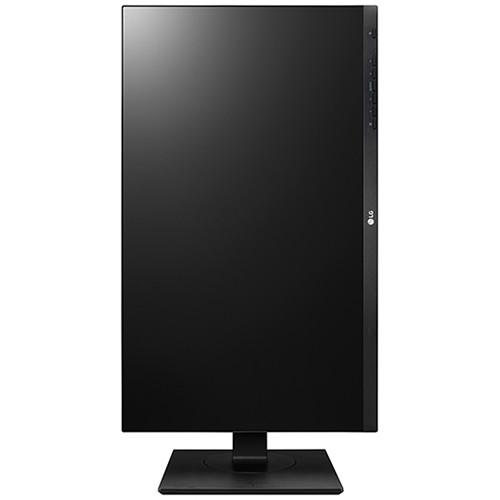

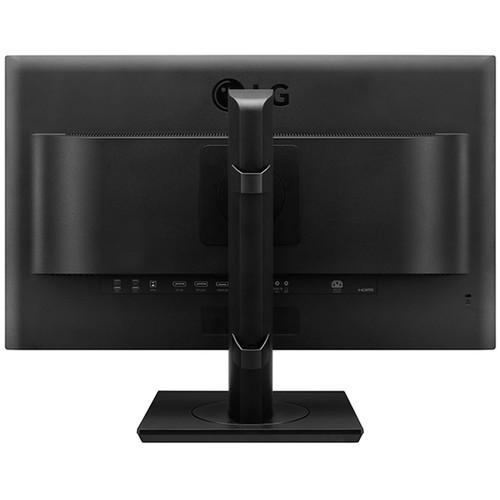

0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | USB Power Delivery | 52 W | | | | Certifications | CE, FCC, REACH, RoHS, TCO Certified, TUV, UL, cUL, as per Manufacturer | | | | Height Adjustment | 5.91" / 150 mm | | Rotation Adjustment | 180° (-90 to 90°) | | Swivel Adjustment | 90° (-45 to 45°) | | Tilt Adjustment | -5 to 25° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 24.1 x 21.4 x 10.9" / 61.2 x 54.4 x 27.7 cm (With Stand)
24.1 x 14.5 x 2.3" / 61.2 x 36.8 x 5.8 cm (Without Stand) | | Weight | 16.8 lb / 7.62 kg (With Stand)
10.8 lb / 4.90 kg (Without Stand) |
