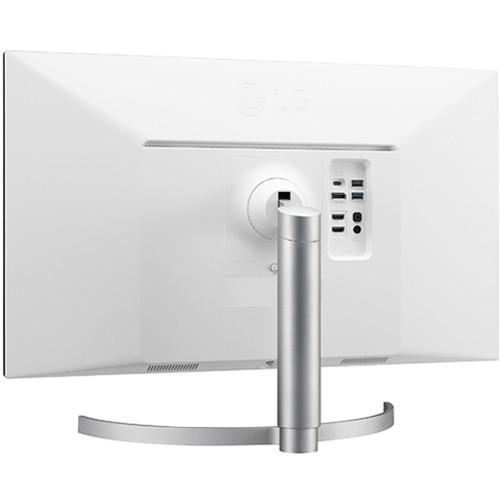

User Manual for LG 27BK85U-W 27" 16:9 HDR IPS Monitor Click to enlarge the picture
Contents of the user manual for the LG 27BK85U-W 27" 16:9 HDR IPS
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 27BK85U-W 27" 16:9 HDR IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

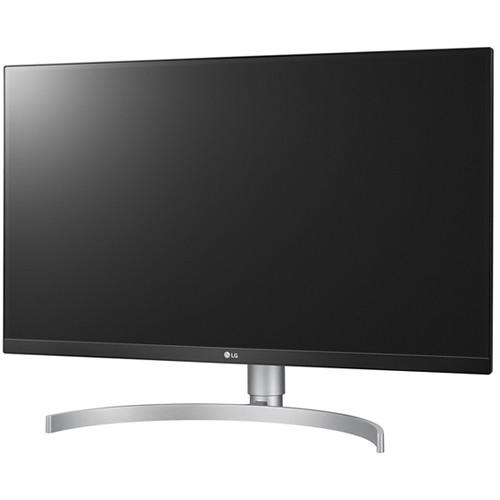

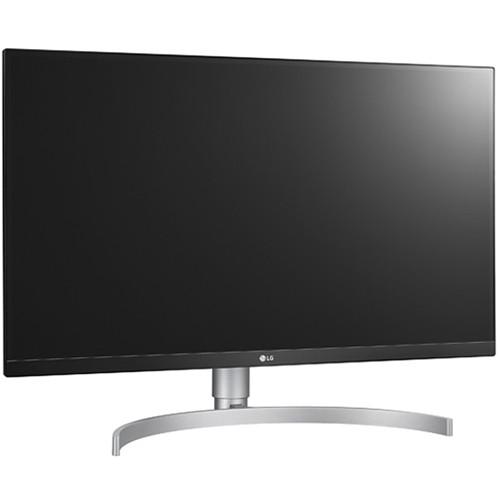

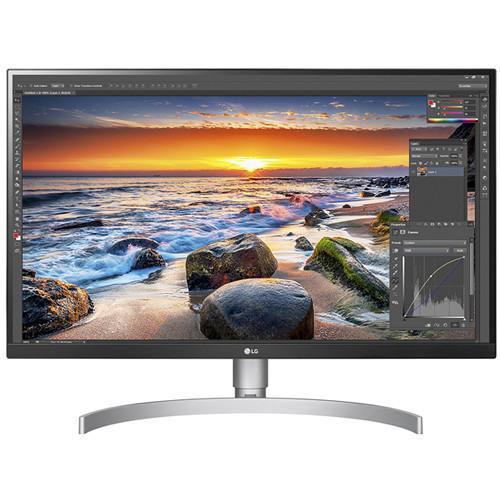

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Compatible with HDR10 to support specific levels of color and brightness that exceed the capabilities of ordinary monitors, the 27BK85U-W 27" 16:9 HDR IPS Monitor from LG supports 99% of the sRGB spectrum, making it a solid choice for photographers, graphic designers, and those looking for highly accurate color. HDR10 also helps transform non-HDR content into HDR-like video using its picture quality algorithm.
LG's 27BK85U-W has a 3H anti-glare panel featuring a native resolution of 3840 x 2160, In-Plane Switching (IPS) technology, a 10-bit (8-bit + A-FRC) color depth, a static contrast ratio of 1000:1, brightness ratings of 450 cd/m2 (peak), 350 cd/m2 (typical), and 280 cd/m2 (minimum), and a 5 ms (GtG) response time. Using the 178° horizontal and vertical viewing angles, it is possible to watch content from virtually any position.

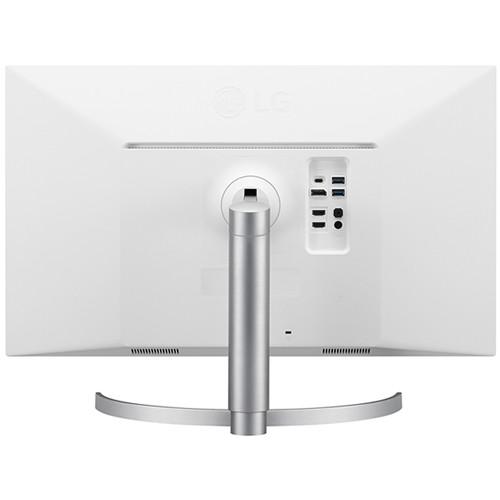

This display has one DisplayPort 1.2 port and two HDMI 2.0 ports, both of which support HDR, and there is also one USB 3.1 Gen 1 Type-C port. Using a 3.5mm jack, users can also output audio. To further help improve viewing and accessibility, the 27BK85U-W features a vertical tilt of -5 to 20°, a clockwise/counterclockwise pivot of 90°, and a height adjustment of 4.33". General Features - HDR10
- To more fully realize content creators' vision, this monitor is compatible with industry-standard HDR10 high dynamic range, supporting specific levels of color and brightness that exceed the capabilities of ordinary monitors.
- HDR Effect
- The HDR effect helps transform non-HDR content into high-quality video that looks like HDR through its picture quality algorithm.
- IPS with sRGB 99 (Typ.)
- This monitor, with 99% coverage of the sRGB spectrum, is a great solution for photographers, graphic designers, or anyone looking for highly accurate color.
- HDCP 2.2 Compatible
- Connect with confidence. This LG 4K monitor is compatible with the HDCP 2.2 copy protection, so it will display video from 4K streaming services, game consoles, and Ultra HD Blu-ray disc players.
- Virtually Borderless Design

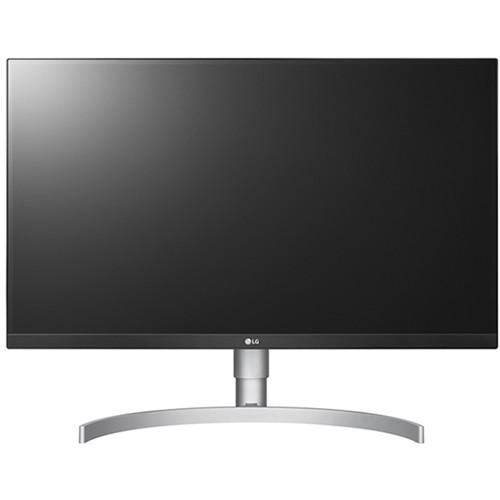

- The ultra-thin bezel on three sides of this streamlined display offers a virtually borderless visual experience, without distracting from the on-screen content.
- USB Type-C
- Offering a new generation of convenience, USB Type-C ports allow 4K video display, data transfers, and laptop/mobile device charging, all at the same time over a single cable. Reduce cord clutter and increase efficiency with USB Type-C. This port operates using the USB 3.0 spec, which is also known as USB 3.1 Gen 1, and transfers data at 5 Gb/s.
- On-Screen Control
- On-Screen Control puts a host of essential monitor settings into a handy window for quick, easy access. Volume, brightness, picture mode presets, Screen Split 2.0 and Dual Controller, and more can now be adjusted with just a few clicks of the mouse, instead of hard buttons on the monitor.
- Arcline Stand

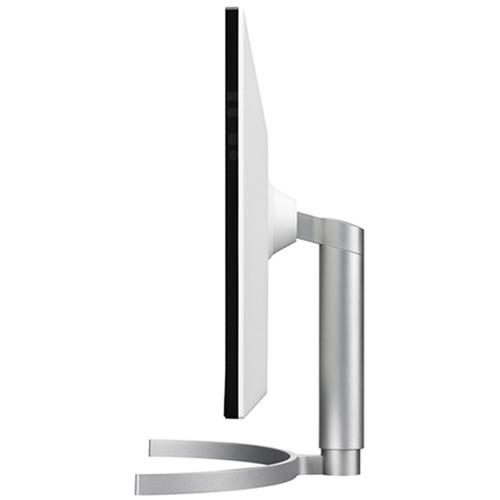

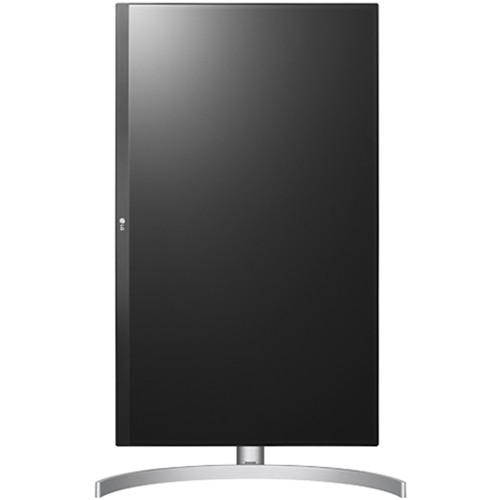

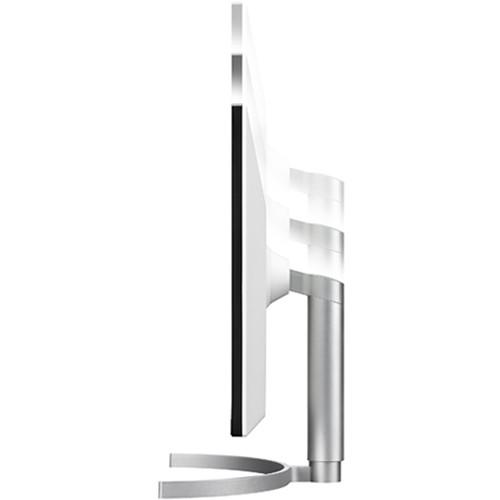

- The design of LG premium monitors is accentuated by the ArcLine stand. The smooth curve of the base provides stability, assuring dependable performance with a touch of elegance. The ArcLine stand also allows for a height adjustment of 4.33", a left/right pivot of 90°, and a tilt of -5 to 20°.
UPC: 719192619821 In the Box LG 27BK85U-W 27" 16:9 HDR IPS Monitor DisplayPort Cable HDMI Cable USB Type-C Cable Power Cable Stand Body Stand Base Cable Holder Limited 3-Year Warranty User Manual PDF 6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 27BK85U-W 27" 16:9 HDR IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 27BK85U-W Specs | | | Size | 27" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 163 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 450 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | FreeSync | | Horizontal Frequency | 30 to 135 kHz (DisplayPort, HDMI) | | Vertical Frequency | 56 to 61 Hz (DisplayPort, HDMI) | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | HDR Compatibility | HDR10 | | Color Gamut | 99% sRGB | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178° (89/89)
Vertical: 178° (89/89) | | Dot Pitch | 0.1554 x 0.1554 mm | | | | Connectivity | 2 x HDMI 2.0
1 x DisplayPort 1.2
1 x USB Type-C (USB 3.1 Gen 1)
1 x 3.5 mm Output | | HDCP Support | Yes, Version 2.2 | | Built-In Speakers | None | | | | Power Consumption | 50 W (Maximum)
32 W (Typical)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | Power Supply | 140 W | | | | Height Adjustment | 4.33" / 110 mm | | Rotation Adjustment | 180° (-90 to 90°) | | Swivel Adjustment | None | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 24.1 x 22.3 x 9.1" / 61.2 x 56.6 x 23.1 cm (With Stand)
24.1 x 14.8 x 1.8" / 61.2 x 37.6 x 4.6 cm (Without Stand) | | Weight | 13.4 lb / 6.08 kg (With Stand)
10.6 lb / 4.81 kg (Without Stand) | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 27.0 x 19.25 x 8.0" |
