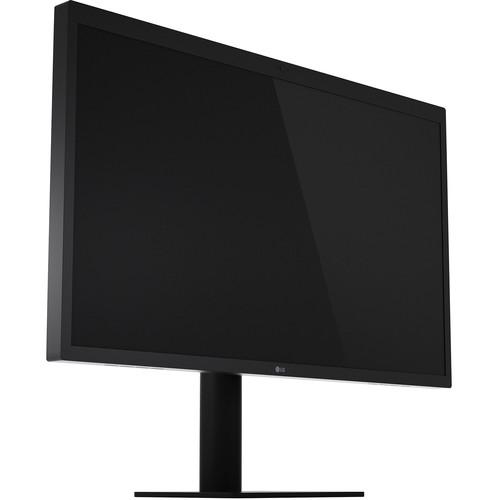

User Manual for LG 27MD5KB-B 27" UltraFine 16:9 5K IPS Monitor Click to enlarge the picture
Contents of the user manual for the LG 27MD5KB-B 27" UltraFine 16:9 5K
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 27MD5KB-B 27" UltraFine 16:9 5K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|
Product description LG Ultrafine 4K & 5K Monitors Offer USB Type-C Compatibility Read More The 27MD5KB-B 27" UltraFine 16:9 5K IPS Monitor from LG lets you experience the definition and detail of your Mac on a large 27" screen with a native resolution of 5120 x 2880 at 60 Hz and 218 ppi. Built with support for 99% of the DCI-P3 color spectrum, you'll be able to precisely edit your photos with rich detail and color. This display also features In-Plane Switching (IPS) technology, support for 1.07 billion colors that is achieved using 8-bit + A-FRC, an anti-glare panel with a 2H hardness rating, a 16:9 aspect ratio, a contrast ratio of 1200:1, a maximum brightness level of 500 cd/m2, and response times of 12 and 14 ms (GtG). Using the 178° horizontal and vertical viewing angles, it is possible to watch content from virtually any position.
This display connects to your Mac using its Thunderbolt 3, which also supports device charging up to 85W. If you'd like to take advantage of this display's USB capabilities, there are three USB 3.1 Gen 1 Type-C ports that operate at 5 Gb/s and deliver 5V / 1.5A of power to compatible devices. Other integrated features include dual 5W speakers, a microphone, and a webcam. To further help improve viewing and accessibility, the this display features a vertical tilt of -5 to 25° and a height adjustment of 4.3".
Please note that the LG 27MD5KB-B 27" UltraFine 16:9 5K IPS Monitor requires a Mac with Thunderbolt 3 and macOS 10.12.2 or later. If your system has Thunderbolt 2, you can use a Thunderbolt 3 to Thunderbolt 2 adapter, but this will not support Power Delivery. This display will not work with USB Type-C host connectivity. General Features - 218 Pixels per Inch / 5K Display
- At 218 pixels per inch to deliver 5K resolution (5120 x 2880 at 27"), the LG UltraFine 5K display lets you experience the definition and detail of a Mac on a large 5K screen.
- Rich Color, Better Detail
- A color spectrum of P3 99% enables you to edit your high-resolution photos precisely. You will experience exceptional detail and rich color on this 5K display.
- 5K Display with Thunderbolt 3
- The LG UltraFine 5K display has a Thunderbolt 3 port that can transmit 5K video and data while simultaneously charging a MacBook Pro (up to 85W) over a single cable. Plus, three USB 3.1 Gen 1 Type-C downstream ports operate at 5 Gb/s and let you connect additional devices as needed.
- Visibility
- The LG UltraFine 5K display reaches a brightness of 500cd/m2 and can express a wide range of color and contrast. You can experience vivid, lifelike images on a 5K screen, which provides a more natural representation.
The default setting is half of the maximum brightness value, but it can be adjusted. - Consistent Color and Clarity
- This 5K high-definition monitor with IPS minimizes color shift and delivers detailed, accurate images on the UltraFine 5K screen. Color is consistent from edge to edge.
- Clear Communication and Entertainment
- The LG UltraFine 5K display has an internal webcam and dual 5W speakers, and a microphone that are designed for entertainment and communication, allowing you to watch movies and video chat.
- Display Control with macOS
- A detailed control of display settings, such as brightness, can be done using macOS without the need to use any physical buttons.

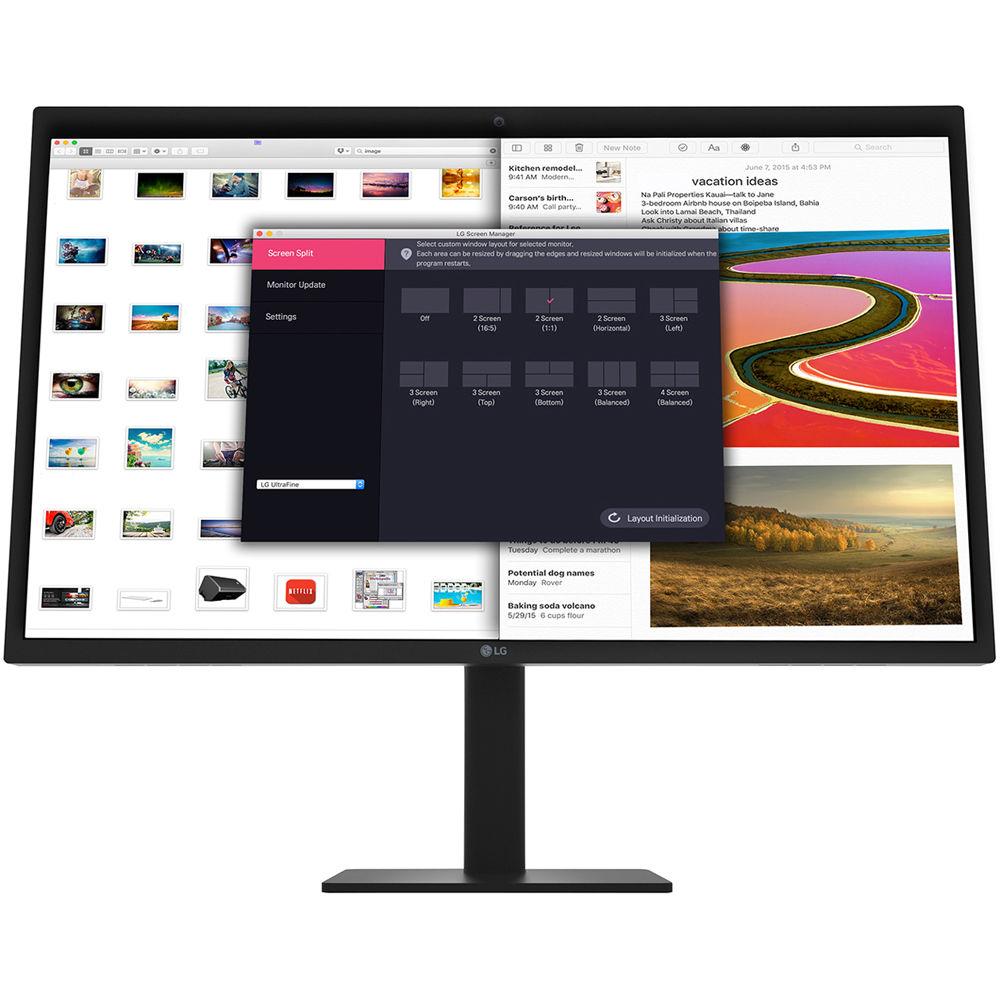

- Multi-Function Screen Manager
- The LG Screen Manager has been optimized for macOS to provide a variety of multi-screen options. For example, it can automatically divide the screen into two to four frames, according to users' specific needs.

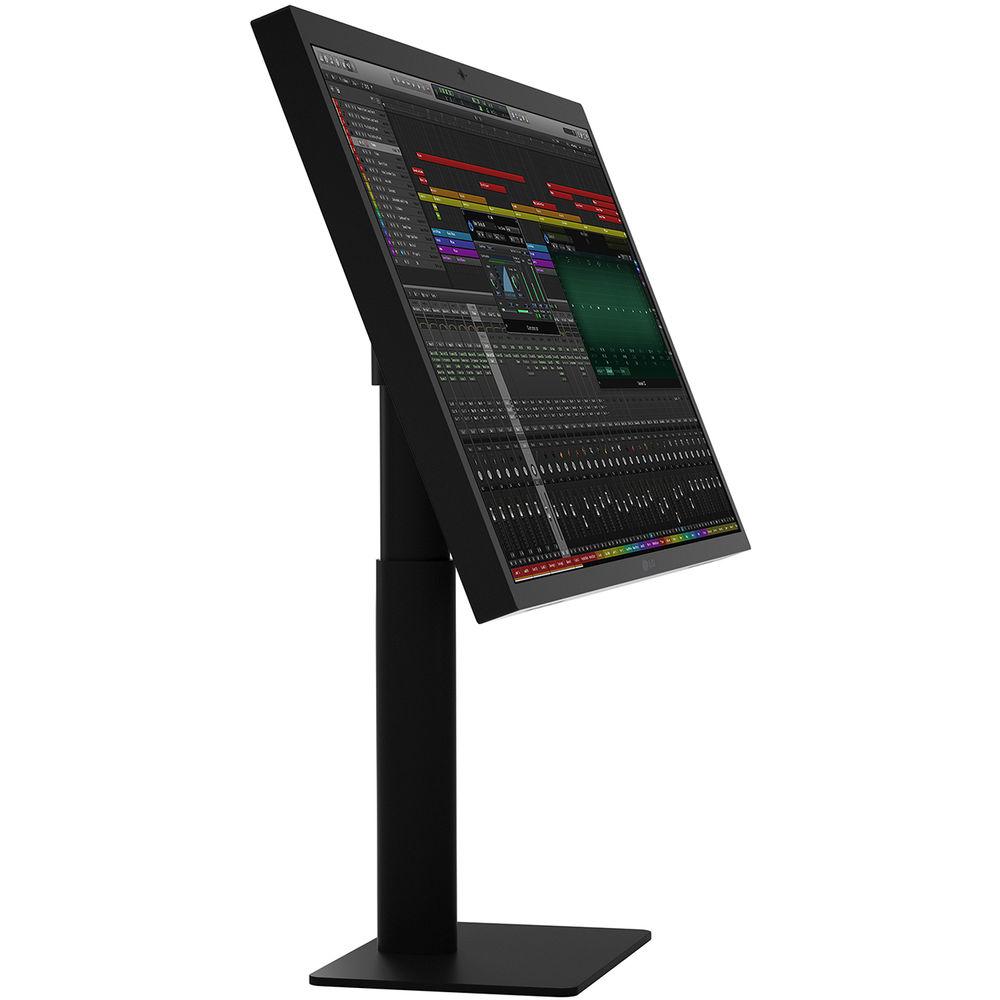

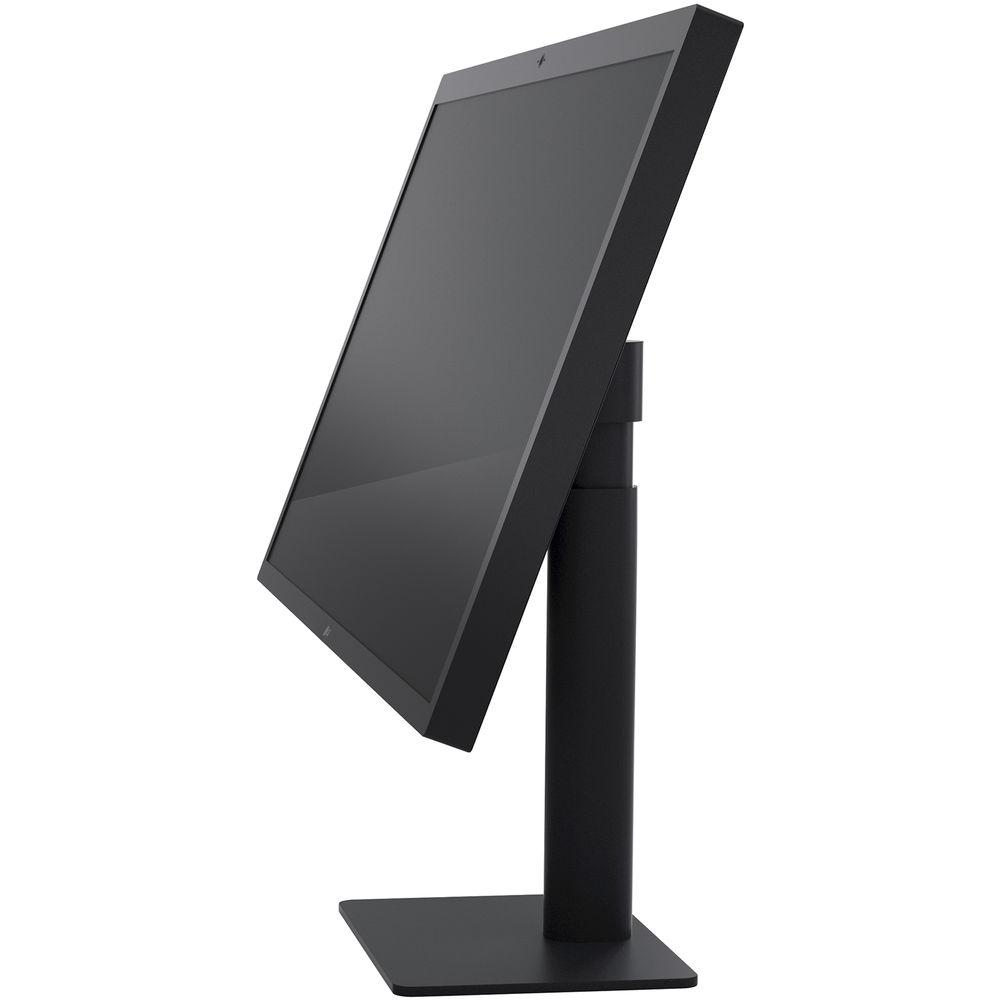

- Adjustable Display Stand
- LG UltraFine 5K displays have convenient height/tilt adjustment. Users can customize the display height to create a more personal, comfortable workstation, or easily wall-mount the display with the use of a separately-sold VESA mount bracket.
- ENERGY STAR
- ENERGY STAR certified monitors meet stringent energy efficiency requirements set by the US Environmental Protection Agency in On, Sleep, and Off Modes. On average, monitors that have earned the ENERGY STAR are 25% more energy efficient than standard options.
UPC: 719192615335 In the Box LG 27MD5KB-B 27" UltraFine 16:9 5K IPS Monitor Thunderbolt 3 Cable (6.6' / 2.0m) Power Cord Stand & Base VESA Design Cover Limited 3-Year Warranty 10 Factors to Consider When Selecting A Monitor for Video Editing Mary Latvis 03/04/2019 User Manual PDF 6.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 27MD5KB-B 27" UltraFine 16:9 5K IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 27MD5KB-B Specs | | | Size | 27" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 5120 x 2880 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 218 ppi | | Finish | Matte | | Hardness Rating | 2H | | Maximum Brightness | 500 cd/m2 | | Contrast Ratio | 1200:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 178 kHz | | Vertical Frequency | 48 to 60 Hz | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Color Gamut | 99% DCI-P3 | | Response Time | 12 ms (GtG)
14 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.11685 x 0.11685 mm | | | | Connectivity | 1 x USB Type-C (Thunderbolt 3)
3 x USB Type-C (USB 3.1 Gen 1) | | HDCP Support | Yes, Version 2.2 | | Built-In Speakers | Yes, 2 x 5 W | | | | Power Consumption | 140 W (Typical)
1.2 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 2.0 A | | Power Adapter Type | Internal | | Power Supply | 200 W | | USB Power Delivery | 85 W (via USB Type-C) | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 0 to 80% | | Storage Humidity | 0 to 85% | | Certifications | BSMI, CB, CCC, CE, EPEAT GOLD, RCM, REACH, RoHS, UL, VCCI, cUL, as per Manufacturer | | | | Height Adjustment | 4.33" / 110 mm | | Tilt Adjustment | -5 to 25° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 24.6 x 18.3 x 9.4" / 62.5 x 46.5 x 23.9 cm (With Stand)
24.6 x 14.8 x 2.1" / 62.5 x 37.6 x 5.3 cm (Without Stand) | | Weight | 18.74 lb / 8.50 kg (With Stand)
14.11 lb / 6.40 kg (Without Stand) | | | | Package Weight | 25.75 lb | | Box Dimensions (LxWxH) | 28.5 x 21.0 x 11.5" |
