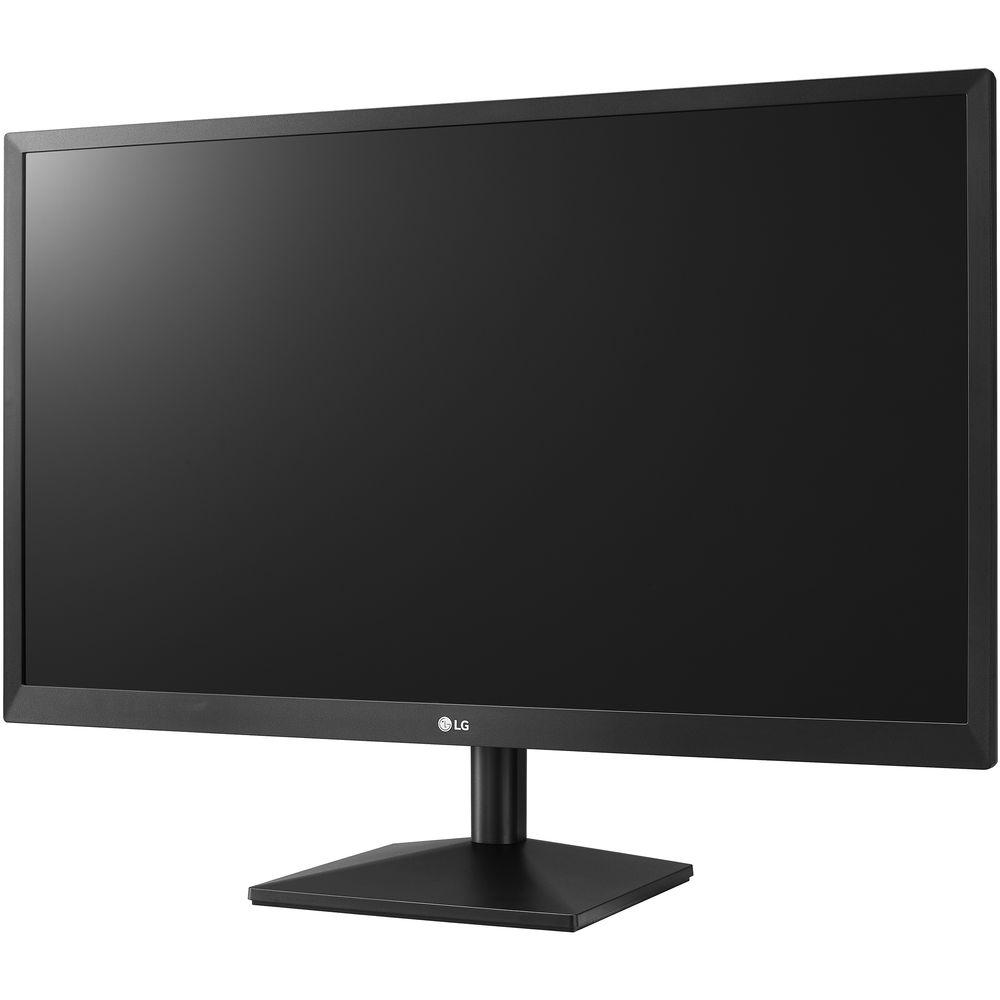

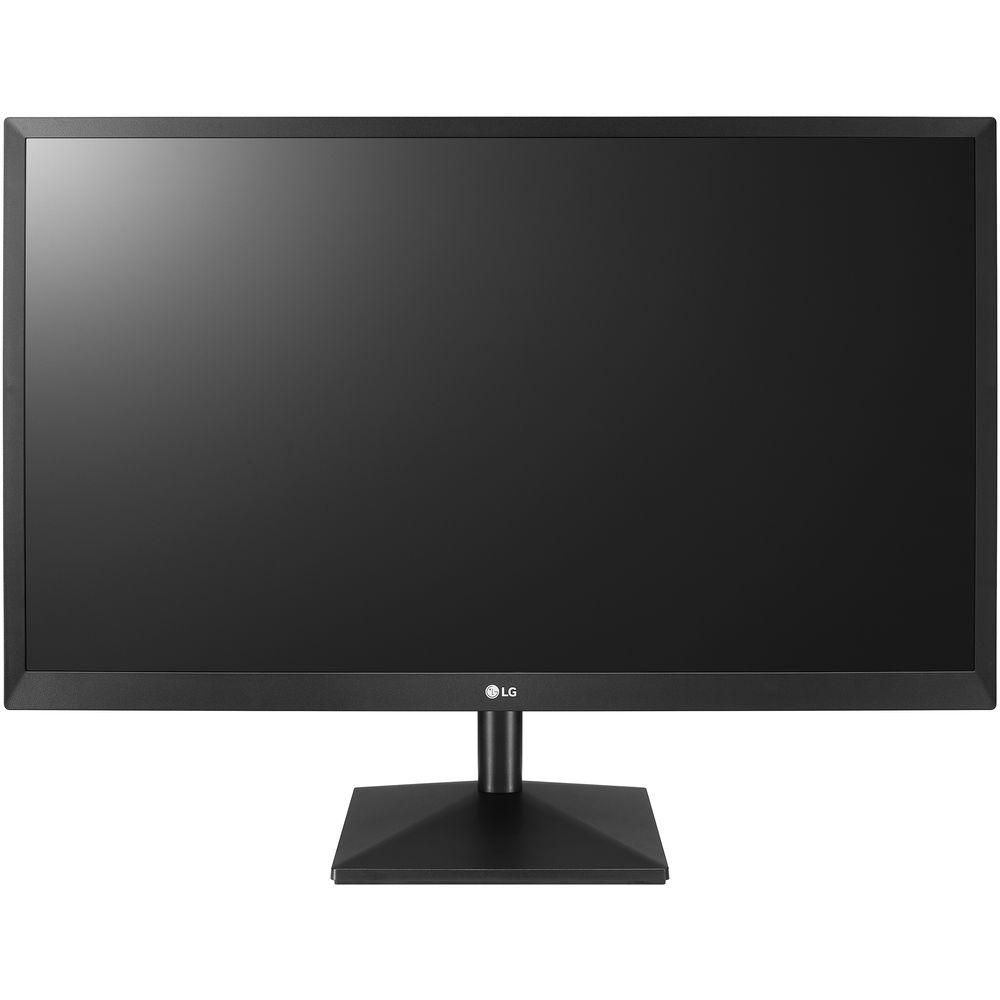

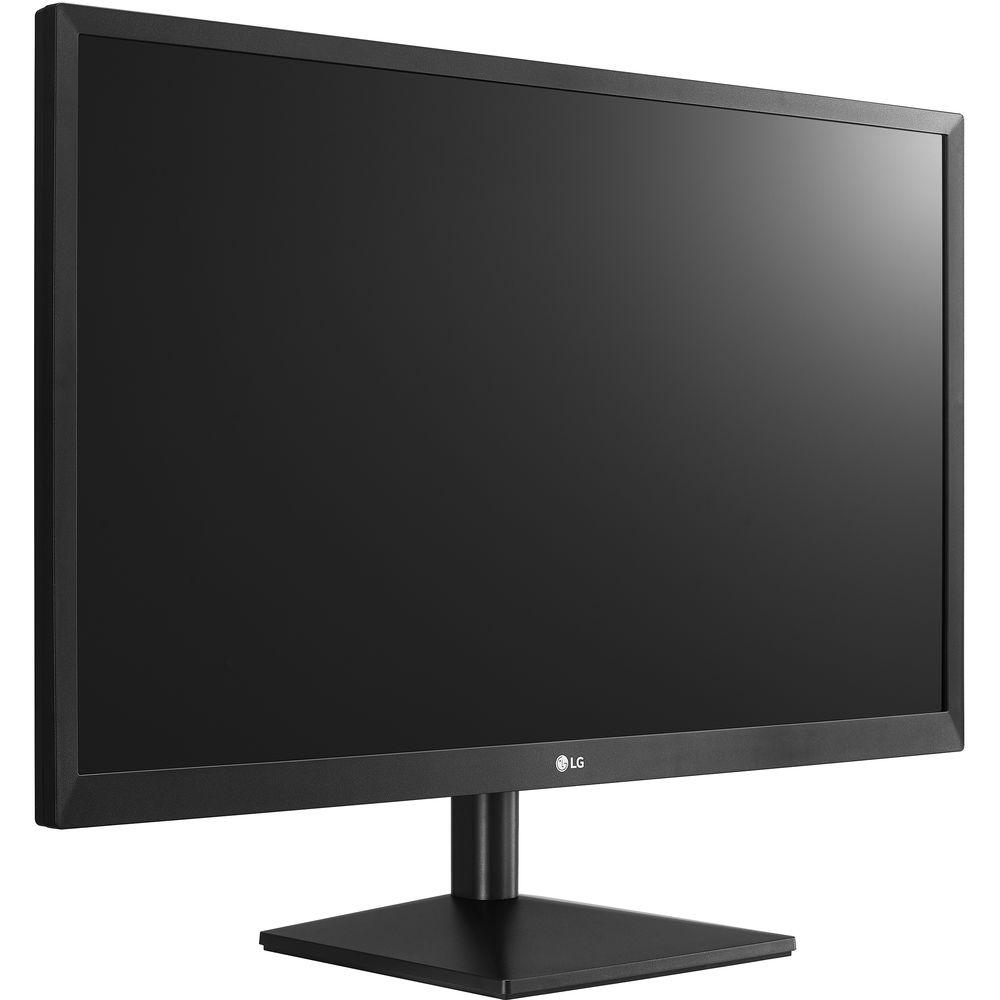

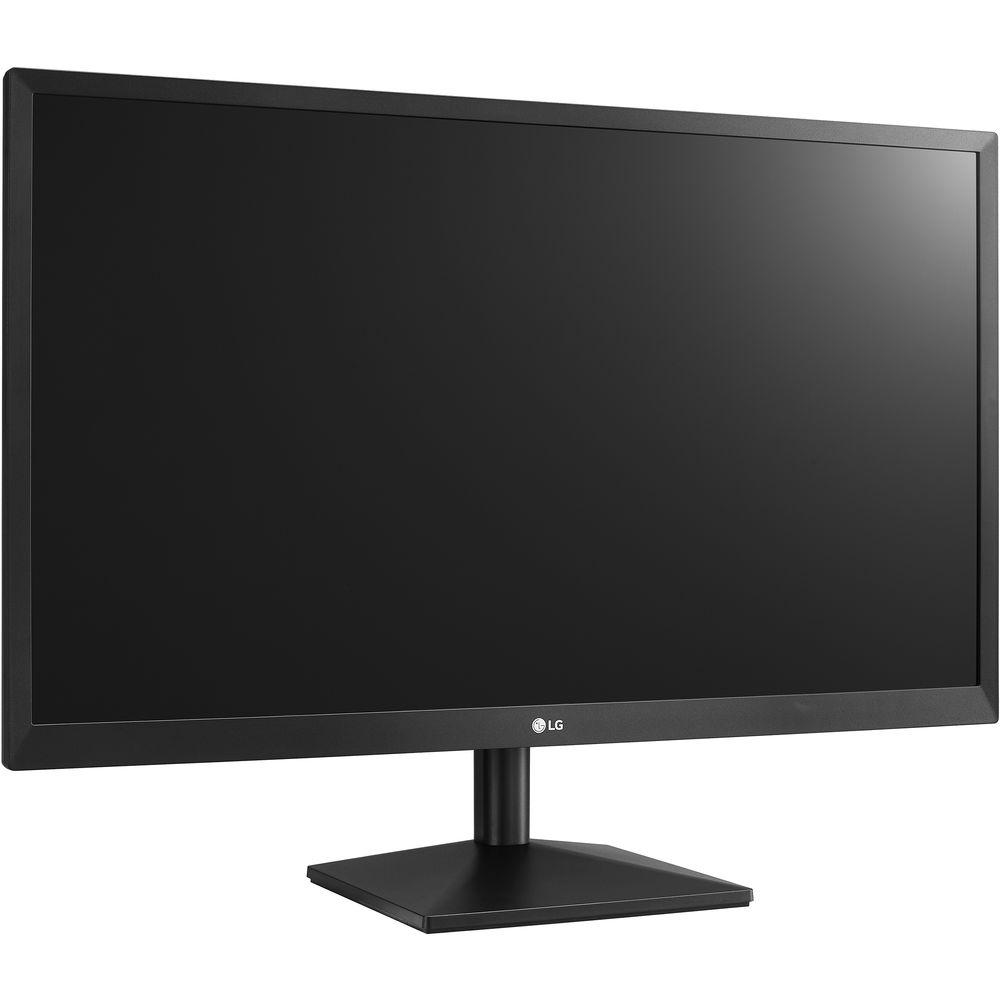

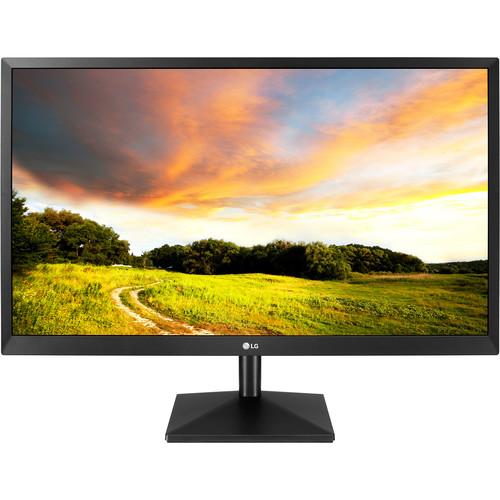

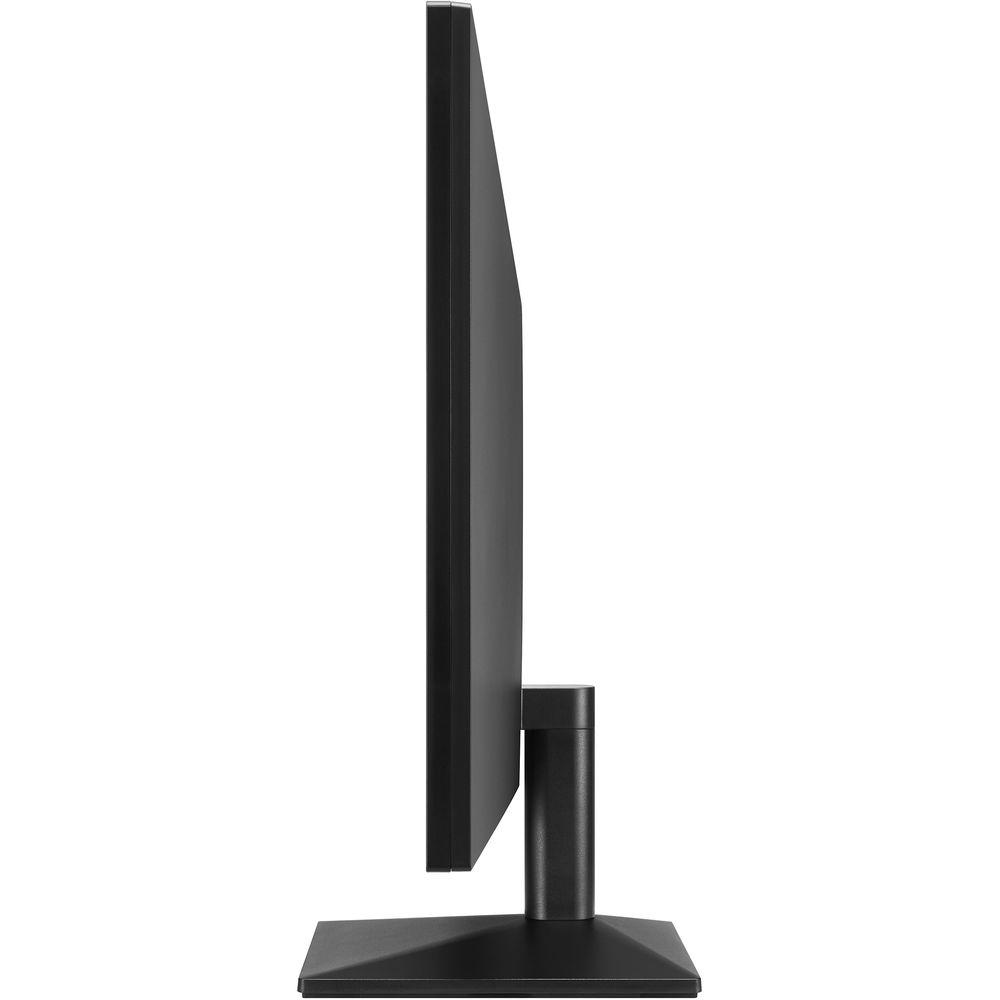

User Manual for LG 27MK400H-B 27" 16:9 LCD Monitor Click to enlarge the picture
Contents of the user manual for the LG 27MK400H-B 27" 16:9 LCD Monitor
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 27MK400H-B 27" 16:9 LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a Full HD 1920 x 1080 resolution, the 27MK400H-B 27" 16:9 LCD Monitor from LG offers a crisp, clear picture for viewing videos, movies, photos, and much more. This LG monitor is also suited for gaming as it supports AMD FreeSync technology, which helps to reduce ghosting and blur by syncing the display with compatible graphics cards. Additional gaming features include dynamic action sync and black stabilizer technology designed to minimize input lag and brighten dark scenes.

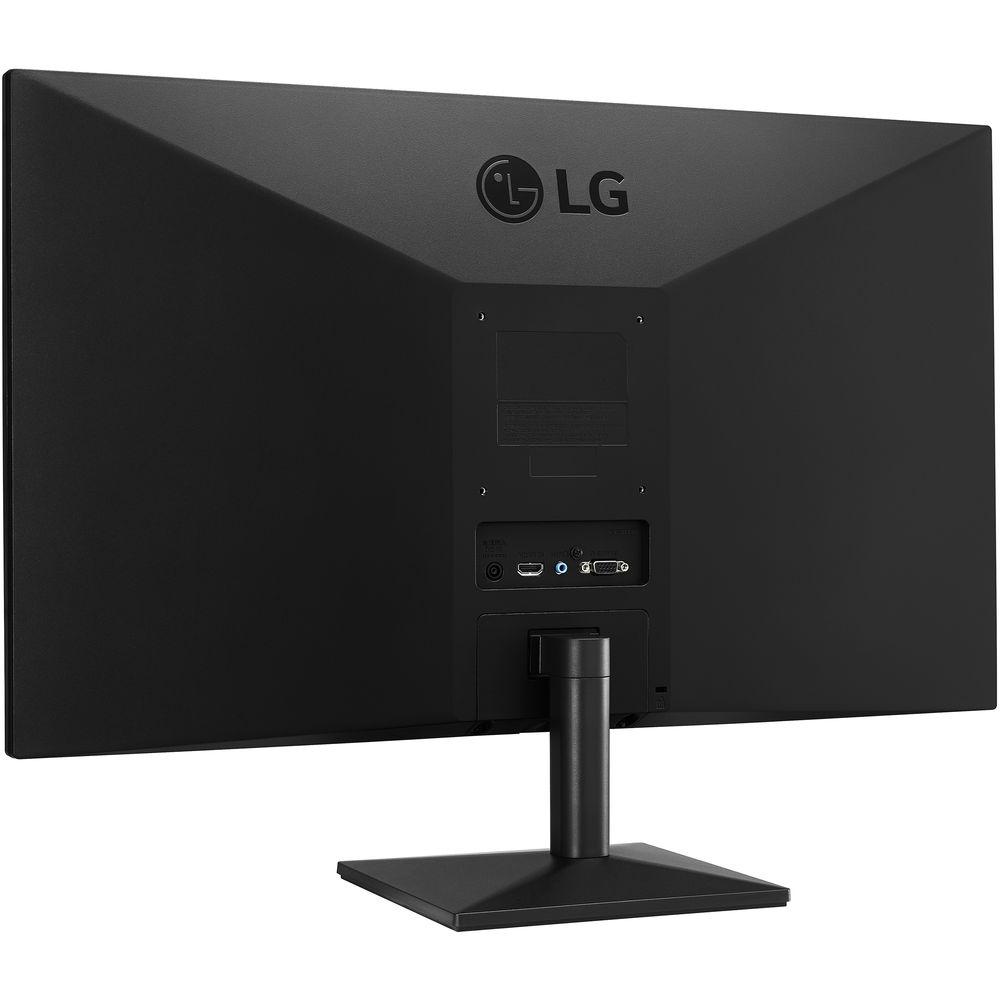

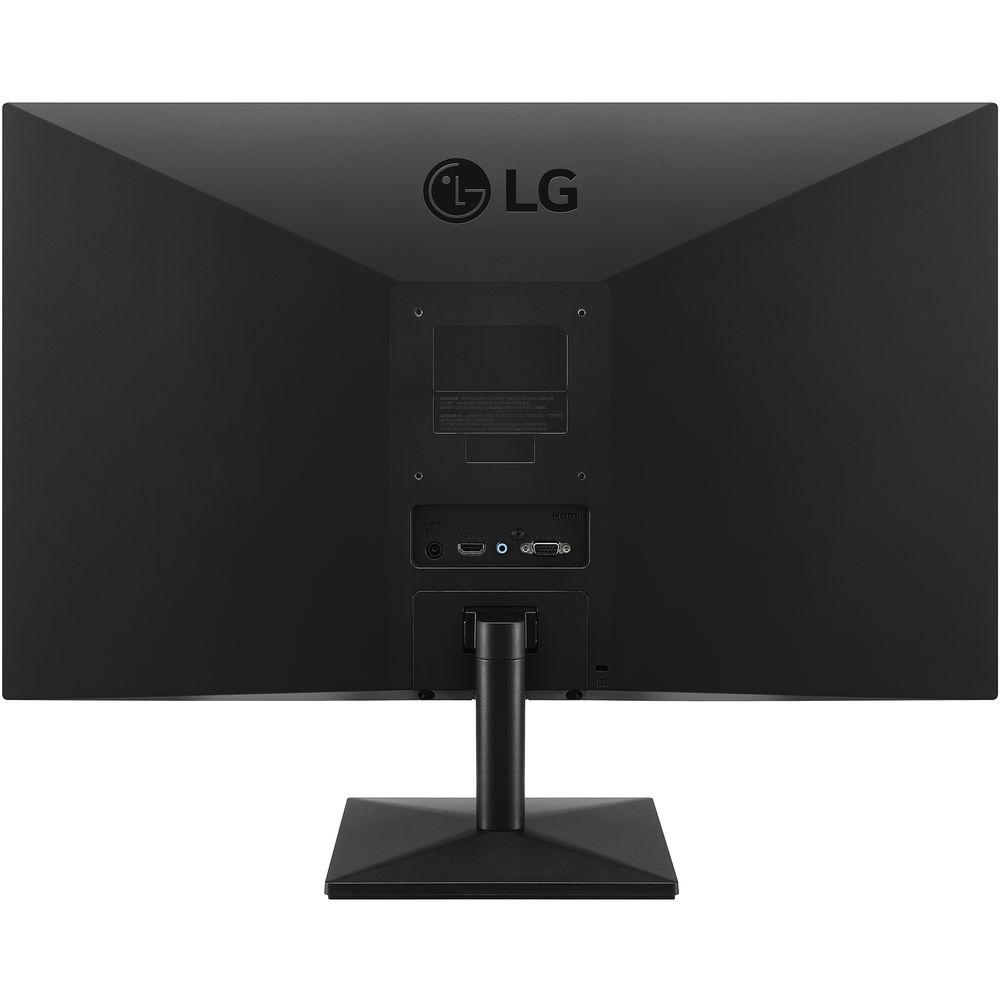

Installation of the 27MK400H-B monitor is simple as it comes equipped with HDMI and VGA inputs. Once configured, viewers can take advantage of the Full HD picture, a 1000:1 contrast ratio, a 2 ms response time, a 300 cd/m² brightness rating, and support for up to 16.7 million colors. The display can also be placed on the included stand and tilted from -5 to 20° to take full advantage of the 170° horizontal and 160° vertical viewing angles or mounted to the wall using a VESA compatible wall mount. - AMD FreeSync
- With FreeSync, gamers can experience seamless, fluid movement throughout hi-res, fast-paced games. FreeSync virtually eliminates screen tearing and stuttering.
- Dynamic Action Sync
- Minimize input lag with Dynamic Action Sync so you can catch every single moment in real-time.
- Black Stabilizer
- Keep visibility even in dark scenes. LG's Black Stabilizer senses dark scenes and helps make it brighter so that you can find the enemies hiding and waiting to attack your player in the dark.
- On-Screen Control
- On-Screen Control puts a host of essential monitor settings into a handy window for quick, easy access. Volume, brightness, picture mode presets, Screen Split 2.0, and Dual Controller and more can now be adjusted with just a few clicks of the mouse, instead of hard buttons on the monitor.
- Wall Mountable
- This VESA-compatible monitor gives you the freedom to take it off the desk and hang it on the wall. Liberate your viewing options and save desktop space with this wall-mountable LG monitor.
- Additional Features
- Picture Mode: Custom, Reader, Color Weakness, Photo, Cinema, Game
Ratio: Wide, Original
DDC/CI
HDCP 1.4
Plug-&-Play
Response Time Control
AMD FreeSync Technology
DAS Mode
Black Stabilizer
Crosshair
Flicker Safe
Automatic Standb
Smart Energy saving
On-Screen Control (OSC)
Super Resolution +
Black Level
DFC
Gamma Control
Color Temperature
OSD Lock
R/G/B Color Control
Auto Adjustment (VGA only) UPC: 719192617506 In the Box LG 27MK400H-B 27" 16:9 LCD Monitor Power Cable HDMI Cable Limited 1-Year Warranty User Manual PDF 4.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 27MK400H-B 27" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 27MK400H-B Specs | | | Size | 27" | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 82 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 75 Hz | | Adaptive Sync Technology | FreeSync | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 72% CIE1931 | | Response Time | 2 ms | | Viewing Angle | Horizontal: 170°

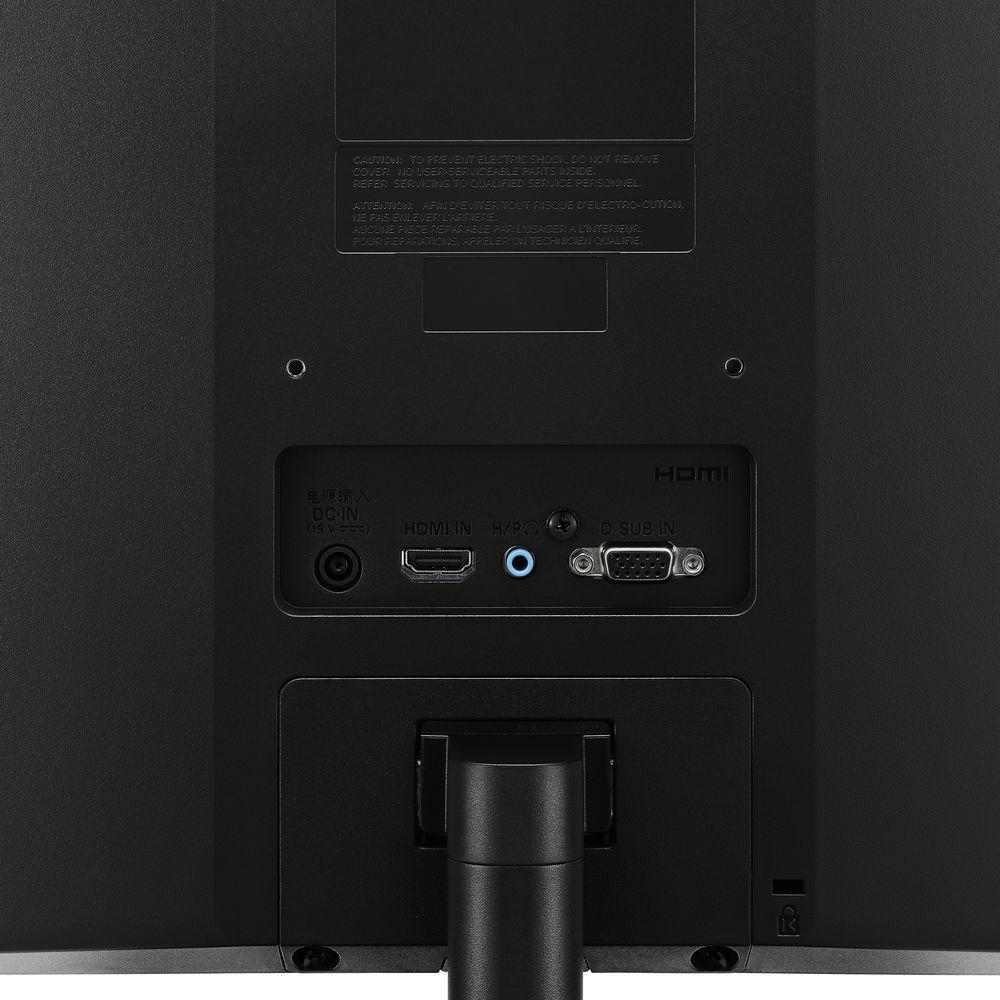

Vertical: 160° | | Dot Pitch | 0.31125 x 0.31125 mm | | | | Connectivity | 1 x HDMI
1 x VGA
1 x 3.5 mm Output | | HDCP Support | Yes, Version 1.4 | | Built-In Speakers | None | | | | Power Consumption | 23 W (Typical)
27 W (Typical)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | CE, ENERGY STAR, FCC, TUV, UL, cUL, as per Manufacturer | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 24.6 x 18.5 x 8.3" / 62.5 x 47.0 x 21.1 cm (With Stand)
24.6 x 14.8 x 1.7" / 62.5 x 37.6 x 4.3 cm (Without Stand) | | Weight | 10.1 lb / 4.58 kg (With Stand)
9.3 lb / 4.22 kg (Without Stand) | | | | Package Weight | 13.6 lb | | Box Dimensions (LxWxH) | 27.8 x 17.9 x 6.3" |
