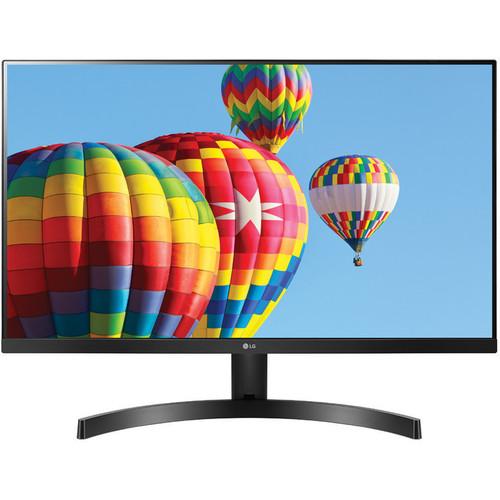

User Manual for LG 27MK600M-B 27" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the LG 27MK600M-B 27" 16:9 IPS Monitor
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
|
User manual for the LG 27MK600M-B 27" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With the Full HD IPS (In-Plane Switching) panel found on the 27MK600M-B 27" 16:9 IPS Monitor from LG, you can view videos, movies, photos, documents, and much more. This monitor features a reduced-size bezel surrounding the 1920 x 1080 resolution screen. In addition, viewers also benefit from a 5 ms response time, a 250 cd/m² brightness rating, a 1000:1 contrast ratio, and support for up to 16.7 million colors. Setup is simple as this display comes equipped with both HDMI and VGA inputs and a 3.5mm audio jack so you can plug your headphones directly into the monitor. Once configured, the monitor can be tilted from -5 to 15° for enhanced viewing comfort. - Full HD IPS Display
- Enjoy the enhanced detail and clarity of Full HD 1080p resolution display and with IPS (In-Plane Switching) technology. Response times are shortened and color reproduction is improved, allowing users to view the screen at virtually any angle.
- Virtually Borderless Design
- The ultra-thin bezel on three sides of this streamlined display offers a virtually borderless visual experience, without distraction from the image.
- Radeon FreeSync
- Radeon FreeSync reduces the tearing and stuttering that occur between a graphic card's frame rate and a monitor's refresh rate, enabling smoother motion and less stuttering in fast, demanding games.
- Gaming Features
- Dynamic Action Sync
Minimize input lag with Dynamic Action Sync so you can catch every single moment in real time.
Black Stabilizer
Keep visibility even in dark scenes. LG's Black Stabilizer senses dark scenes and helps make it brighter, so that you can find the enemies hiding and waiting to attack your player in the dark.
Crosshair
With the Crosshair feature, gamers can take their skills to the next level. By placing the striking point in the center of the display, the feature enhances accuracy in first-person shooter games. - Reader Mode
- Reducing blue light to help lessen eye fatigue, Reader Mode provides optimal conditions for reading. With just a click of a mouse, you can more comfortably read your display.
- On-Screen Control
- On-Screen Control puts a host of essential monitor settings into a handy window for quick, easy access. Volume, brightness, picture mode presets, Screen Split 2.0, and Dual Controller and more can now be adjusted with just a few clicks of the mouse, instead of hard buttons on the monitor.
- Wall Mountable
- This VESA-compatible monitor gives you the freedom to take it off the desk and hang it on the wall. Liberate your viewing options and save desktop space with this wall-mountable LG monitor.
- Additional Features
- Picture Mode: Custom, Reader, Color Weakness, Photo, Cinema, Game
Ratio: Wide/Original
DDC/CI
HDCP
Plug-&-Play
Response Time Control
Color Calibrated
Adaptive Sync: Radeon FreeSync
DAS Mode
Black Stabilizer
Crosshair
Flicker Safe
Automatic Standby
Smart Energy Saving
Super Resolution+
On Screen Control (OSC): Yes (2.0)
Black Level
DFC
Gamma Control
Color Temperature
R/G/B Color Control
OSD Lock
Auto Adjustment (VGA Only) UPC: 719192622470 In the Box LG 27MK600M-B 27" 16:9 IPS Monitor HDMI Cable Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 27MK600M-B 27" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 27MK600M-B Specs | | | Size | 27" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 82 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | FreeSync | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 72% NTSC | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.3114 x 0.3114 mm | | | | Connectivity | 2 x HDMI Input
1 x VGA Input
1 x 3.5 mm Output | | HDCP Support | Yes | | Built-In Speakers | None | | | | Power Consumption | 20.3 W (Eco)
25.5 W (Typical)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | DC Input Power | 19 VDC at 1.3 A | | | | Certifications | CCC, FCC, TUV, UL, VCCI, as per Manufacturer | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -5 to 15° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 24.1 x 8.2 x 17.9" / 61.2 x 20.8 x 45.5 cm (With Stand)
24.1 x 2.9 x 14.3" / 61.2 x 7.4 x 36.3 cm (Without Stand) | | Weight | 10.6 lb / 4.81 kg (With Stand)
9.5 lb / 4.31 kg (Without Stand) | | | | Package Weight | 13.5 lb | | Box Dimensions (LxWxH) | 27.0 x 17.0 x 5.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 84 owners. Add your rating and experience with the product.
