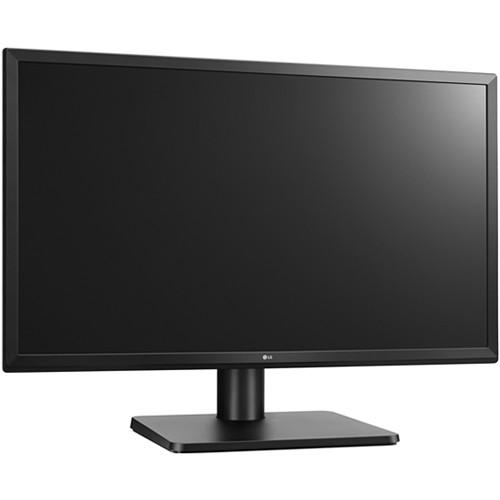

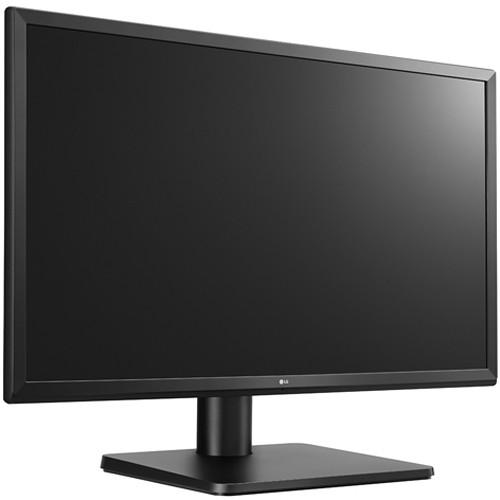

User Manual for LG 27MU58P-B 27" 16:9 4K FreeSync IPS Monitor Click to enlarge the picture
Contents of the user manual for the LG 27MU58P-B 27" 16:9 4K FreeSync
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 27MU58P-B 27" 16:9 4K FreeSync contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More xzsyrzcwwtrubcefwxedwzbevdddsy The 27MU58P-B 27" 16:9 4K FreeSync IPS Monitor from LG is a high resolution 4K display built with helpful features designed for gamers. With AMD FreeSync technology, the display's refresh rate syncs with your graphics card's frame rate output to reduce screen tearing and stuttering for a smoother experience. Specs-wise, it has a 250 cd/m² brightness rating, a 1000:1 static contrast ratio, a 5 ms response time, and 10-bit color support. In addition, it's built with an IPS (In-Plane Switching) panel that offers wide 178° viewing angles and vivid colors. Connect this display to your system via DisplayPort or HDMI and then adjust it to your viewing preference. Otherwise, you can install an optional stand, mount, or arm using the VESA mounting holes on the back. Thanks to its integrated speakers, you can enjoy music, videos, and movies right awa - 4K 3840 x 2160 Resolution
- The 4K 3840 x 2160 resolution provides you with plenty of pixels for highly detailed content reproduction so you can enjoy crisp and clear pictures, videos, and games.
- AMD FreeSync Technology
- AMD FreeSync Technology syncs the display's refresh rate with your graphics card's frame rate output to reduce screen tearing and stuttering for a more fluid experience.
- Black Equalizer
- Black Equalizer optimizes dark scenes so you can see what's usually hidden in the shadows and be prepared for it.
- Flicker Safe
- Flicker Safe reduces screen flickering, which can cause eye strain, so you'll have a more comfortable time watching movies or playing games over extended periods.
- Additional Features
-
- DDC/CI
- HDCP 2.2
- Reader Mode
- Six Axis Control
- Factory Calibrated
- Plug-and-Play
- On-Screen Control
- SUPER+ Resolution
- DAS Mode
- Dual Controller
UPC: 719192614628 In the Box LG 27MU58P-B 27" 16:9 4K FreeSync IPS Monitor Power Cable DisplayPort Cable HDMI Cable Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 27MU58P-B 27" 16:9 4K FreeSync IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

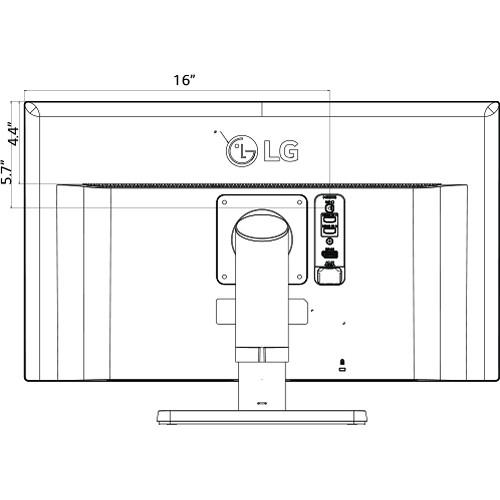

Technical parametersLG 27MU58-B Specs | Display Size | 27" (68.6 cm) | | Panel Type | IPS (In-Plane Switching) | | Color Gamut (CIE1931) | NTSC 72% | | Color Depth (Number of Colors) | 1.08 billion, 10-bit (8-bit + A-FRC) | | Pixel Pitch (H x V) | 0.1554 x 0.1554 mm | | Resolution | 3840 x 2160 @ 60 Hz | | Aspect Ratio | 16:9 | | Resolution | 3840 x 2160 | | Brightness | 250 cd/m² | | Static Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | Mega, on/off | | Response Time (GtG) | 5 ms | | Viewing Angles (H/V) | 178°/178° | | Surface Treatment | Anti-glare 3H | | Horizontal Frequency | HDMI: 30-135 kHz
DisplayPort: 30-135 kHz | | Vertical Frequency | HDMI: 56-61 Hz
DisplayPort: 56-61 Hz | | Frequency Range | Basic: 48-60 Hz

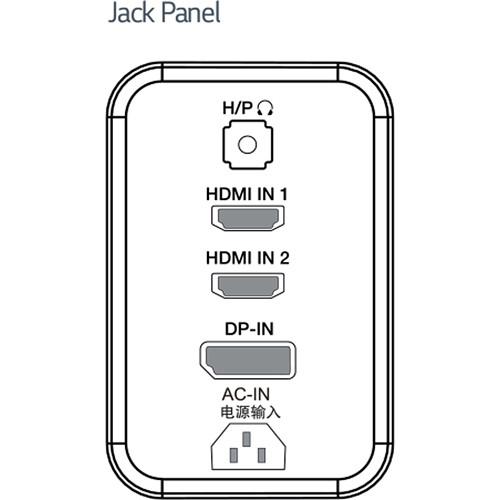

Extended: 40-60 Hz | | Connectivity | 2 x HDMI 2.0
> 1 x DisplayPort 1.2
1 x Headphone-out | | | | VESA Compatibility | 100 x 100 mm | | Tilt | 2-15° | | Pivot | Yes | | Height Adjustable | Yes | | Swivel | Yes | | | | Type | Built-in power, 40 W | | Input | 100-240 VAC, 50 / 60 Hz | | Power Consumption | EPA Typical: 29.5 W

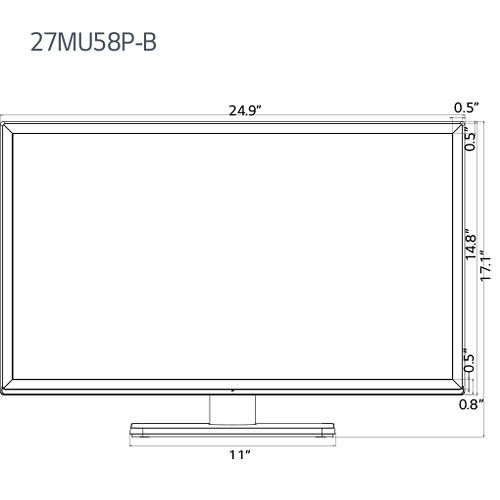

Factory-Out Condition Typical: 37 W | | Power Consumption (Standby/Sleep) | 0.5 W | | DC Off (Max) | 0.3 W | | | | Certifications | TC06.0, UL(cUL), TUV-Type, EPEAT Gold, CB, FCC-B, CE, CCC, BSMI, KC, VCCI, EPA, ErP, ROHS, REACH, Windows 10, FreeSync | | Languages | English, Germanic, French, Spanish, Italian, Swedish, Finnish, Portuguese, Portuguese (Brazil), Polish, Russian, Greek, Ukrainian, Chinese, Traditional Chinese, Japanese, Korean | | Dimensions | With Stand: 24.9 x 8 x 18.2" (63.3 x 20.3 x 46.2 cm)
Without Stand: 24.9 x 2.4 x 14.8 (63.3 x 6.1 x 37.6 cm) | | Weight | With Stand: 12.3 lb (5.6 kg)
Without Stand: 11 lb (5 kg) | | | | Package Weight | 21.5 lb | | Box Dimensions (LxWxH) | 28.0 x 21.0 x 7.5" |
