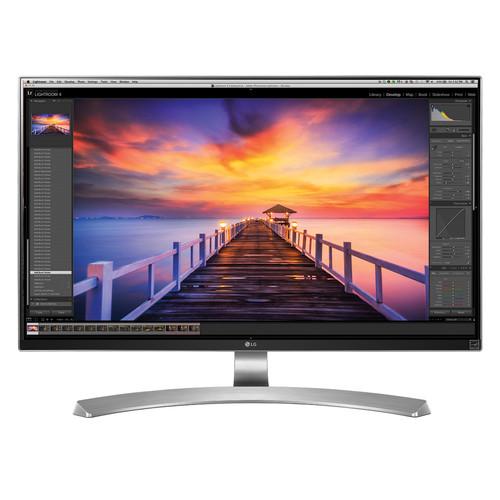

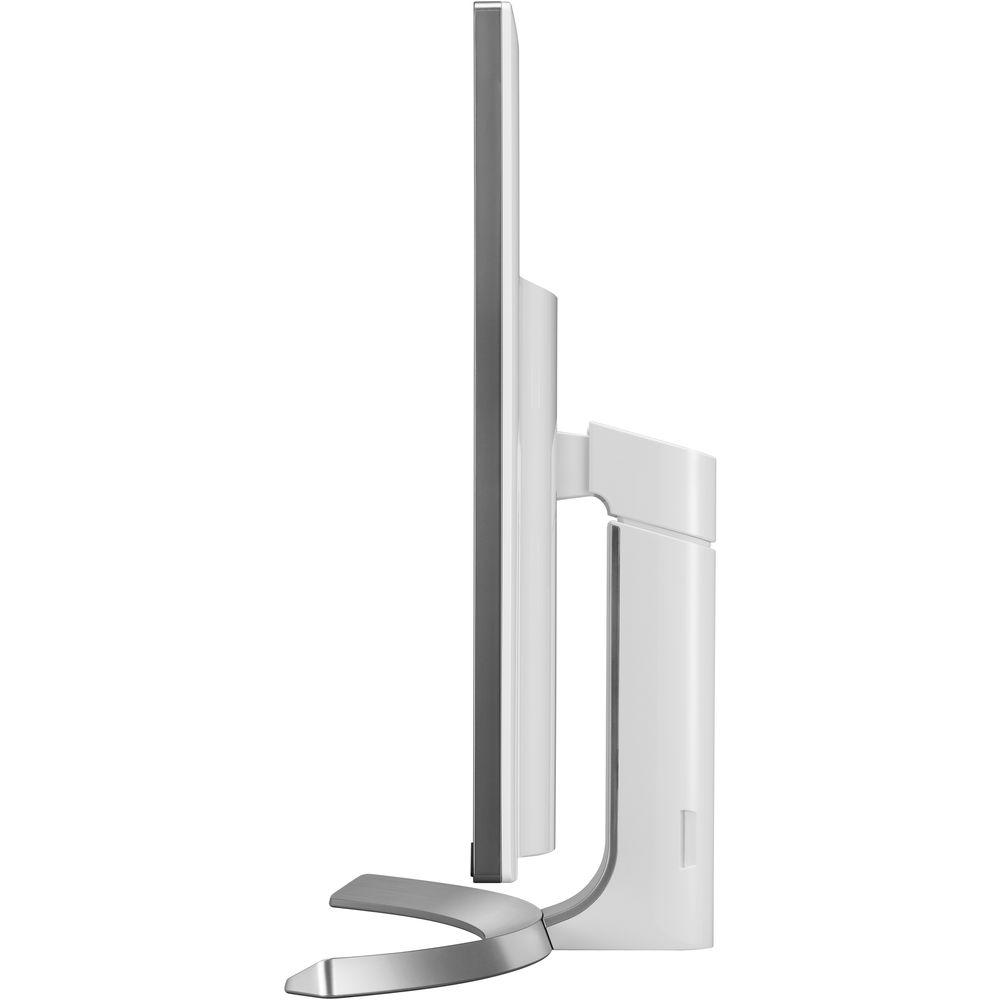

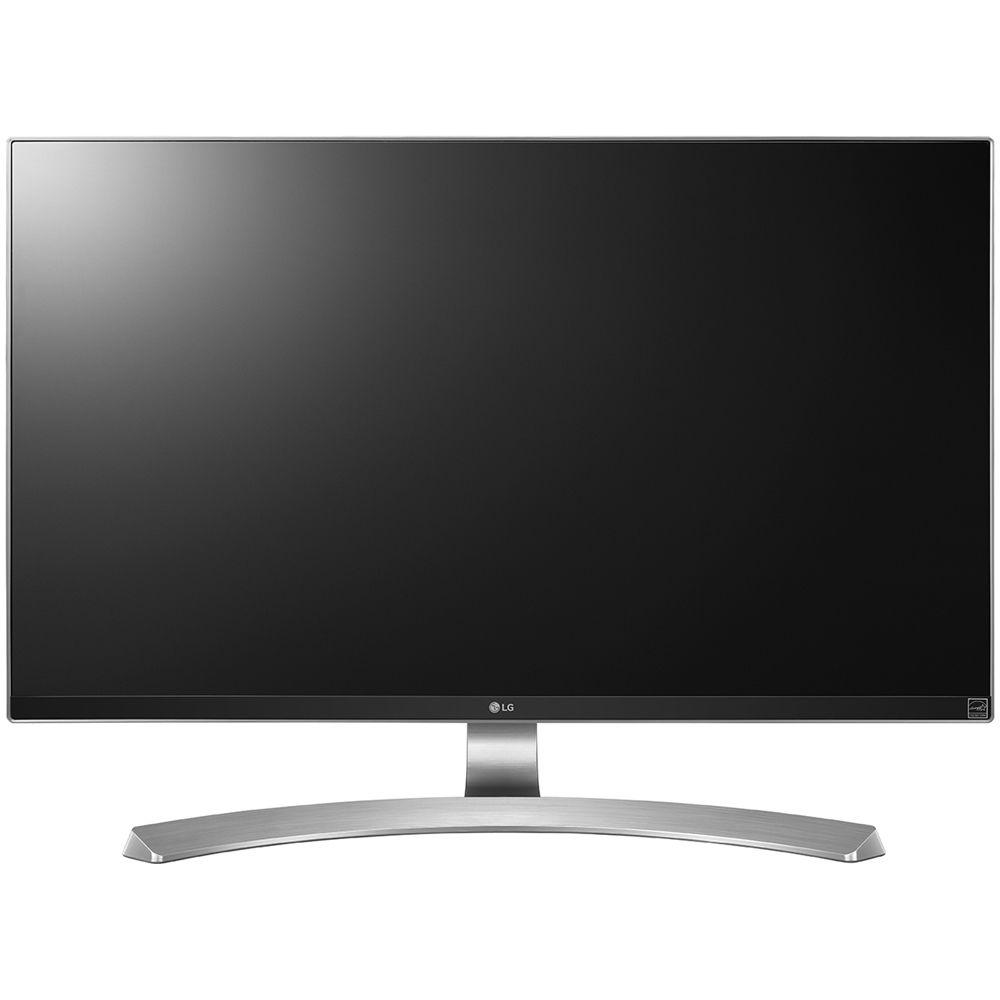

User Manual for LG 27MU88-W 27" 16:9 4K FreeSync IPS Monitor Click to enlarge the picture
Contents of the user manual for the LG 27MU88-W 27" 16:9 4K FreeSync
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 27MU88-W 27" 16:9 4K FreeSync contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

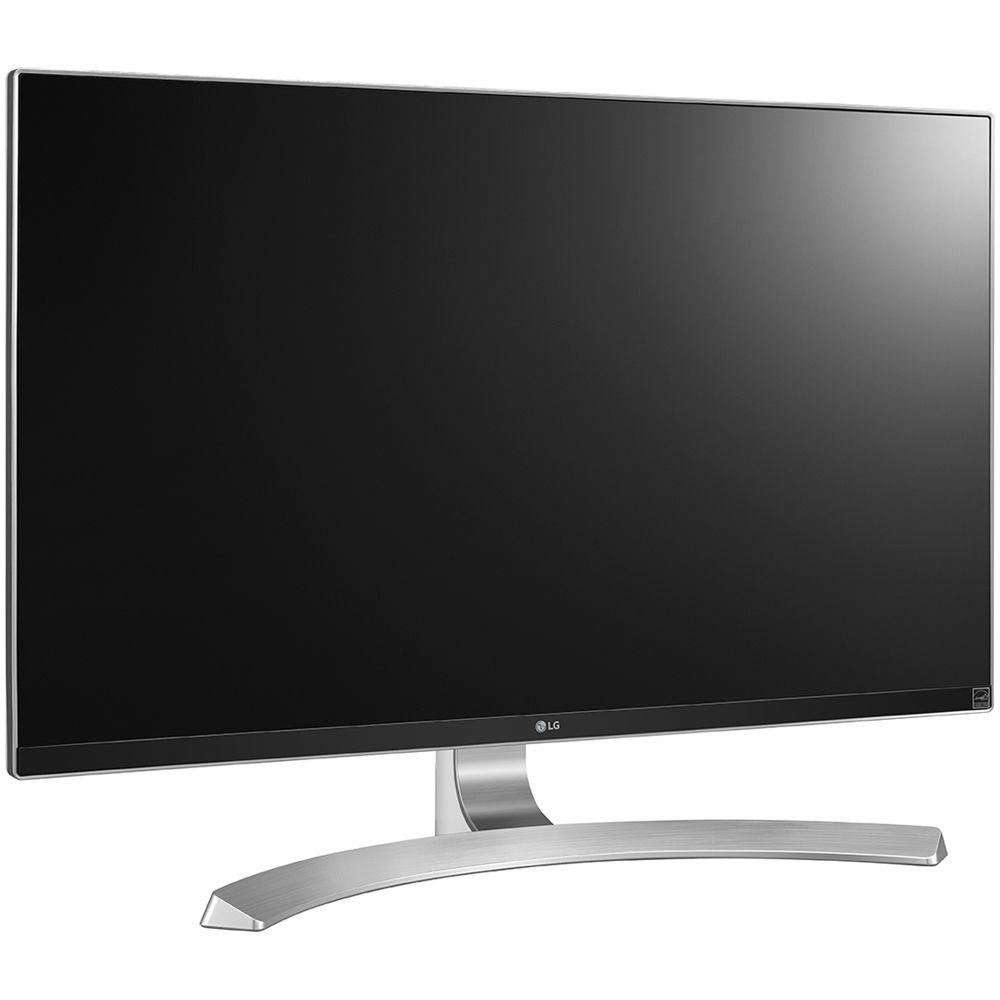

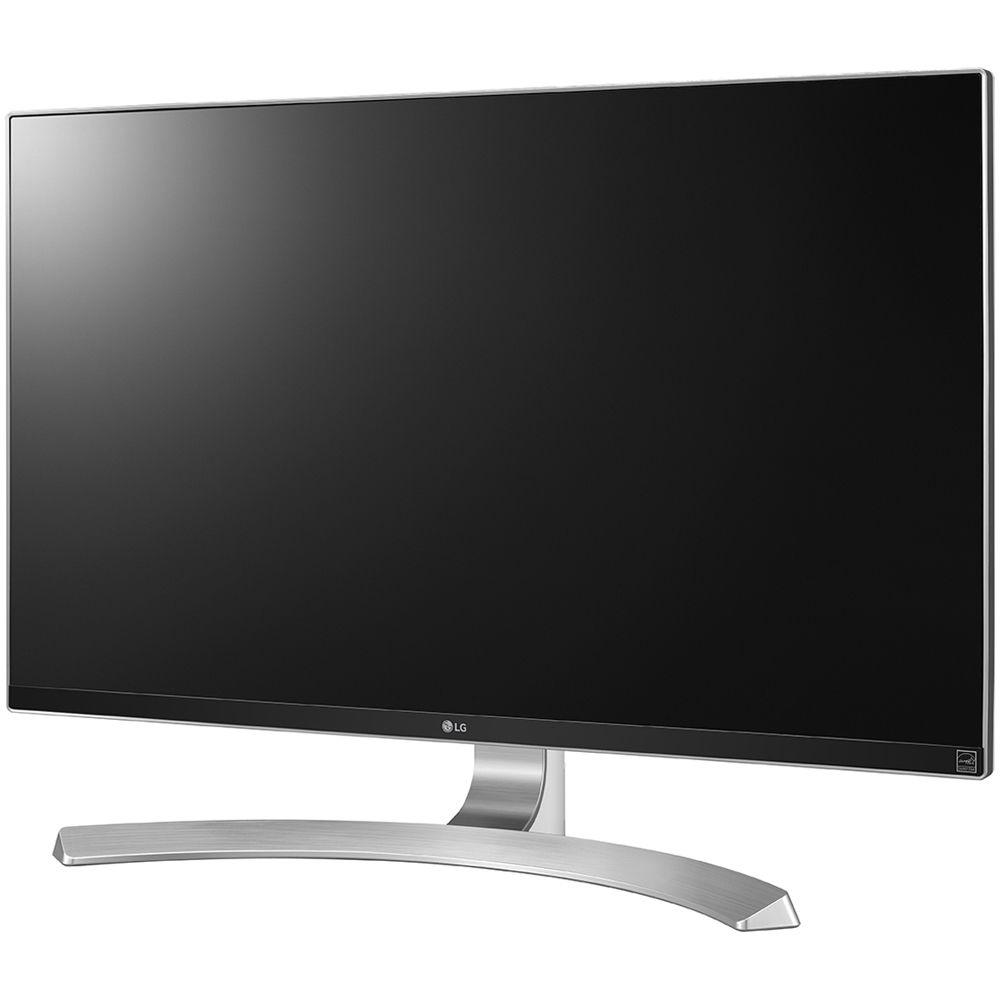

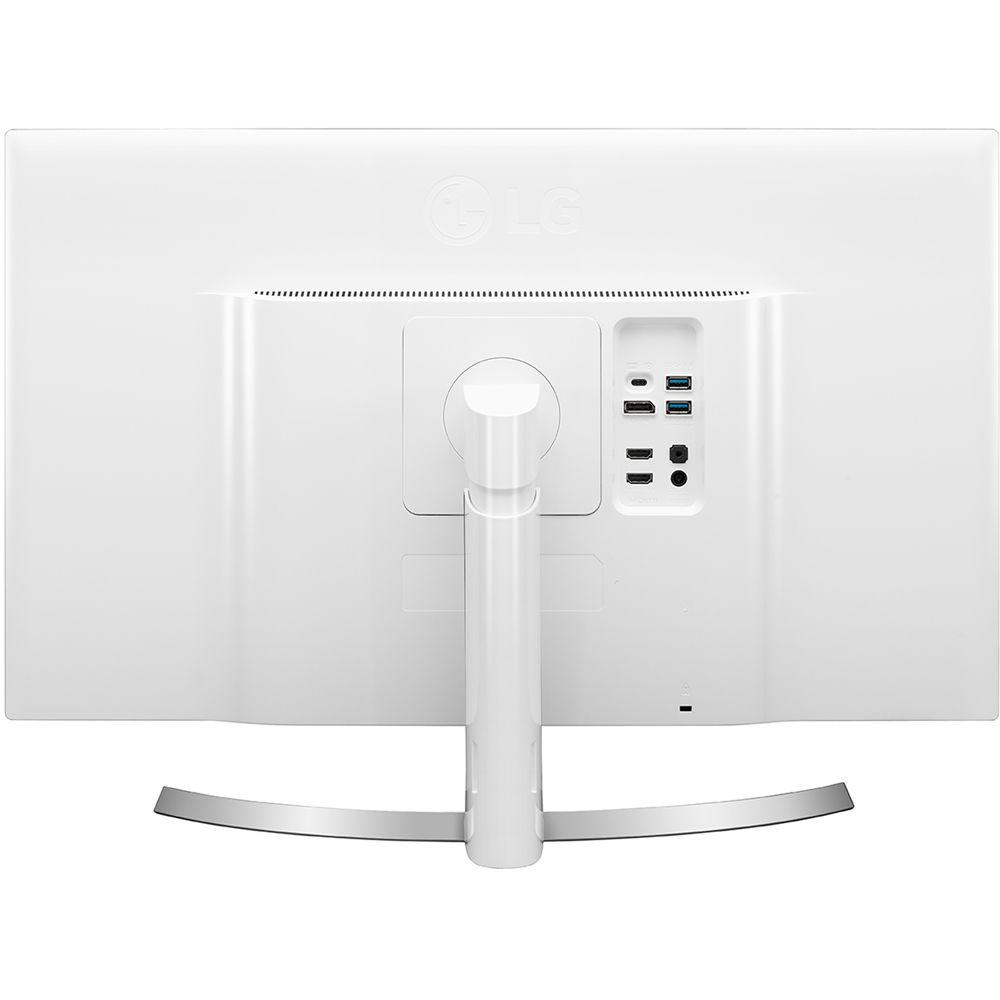

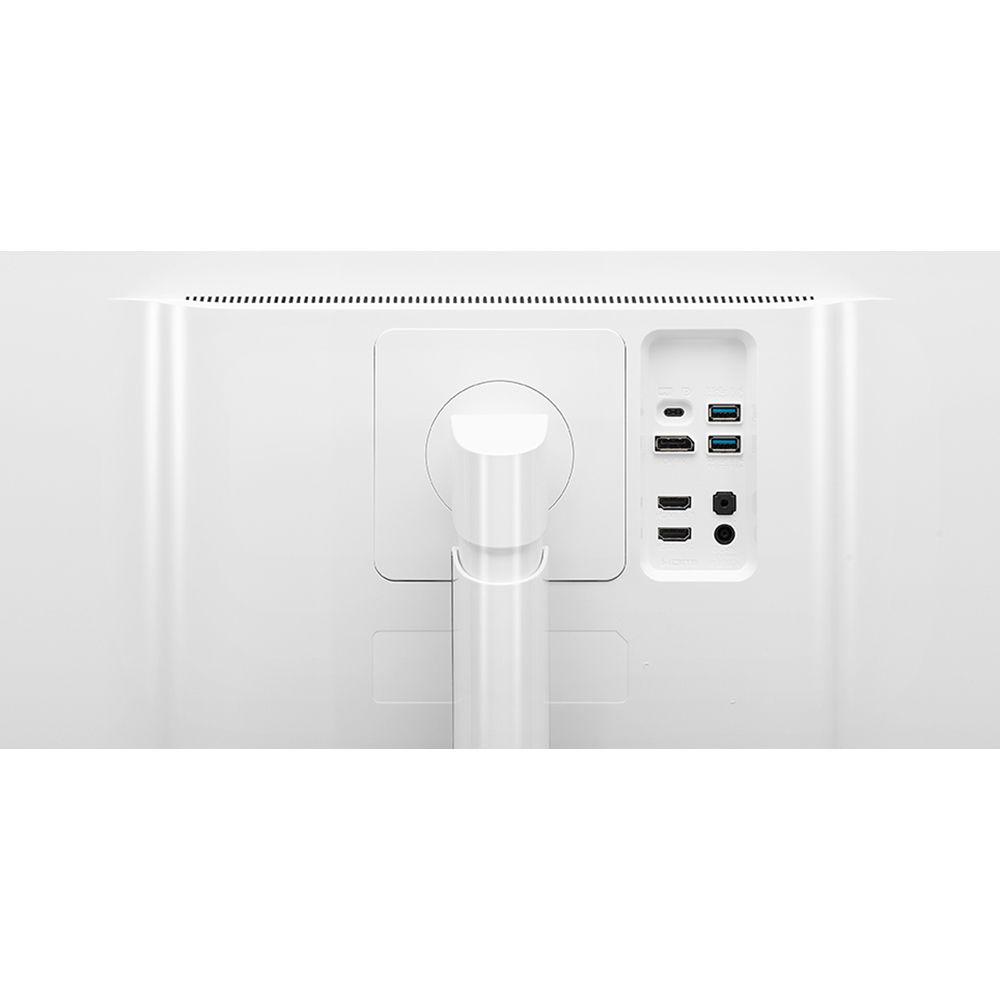

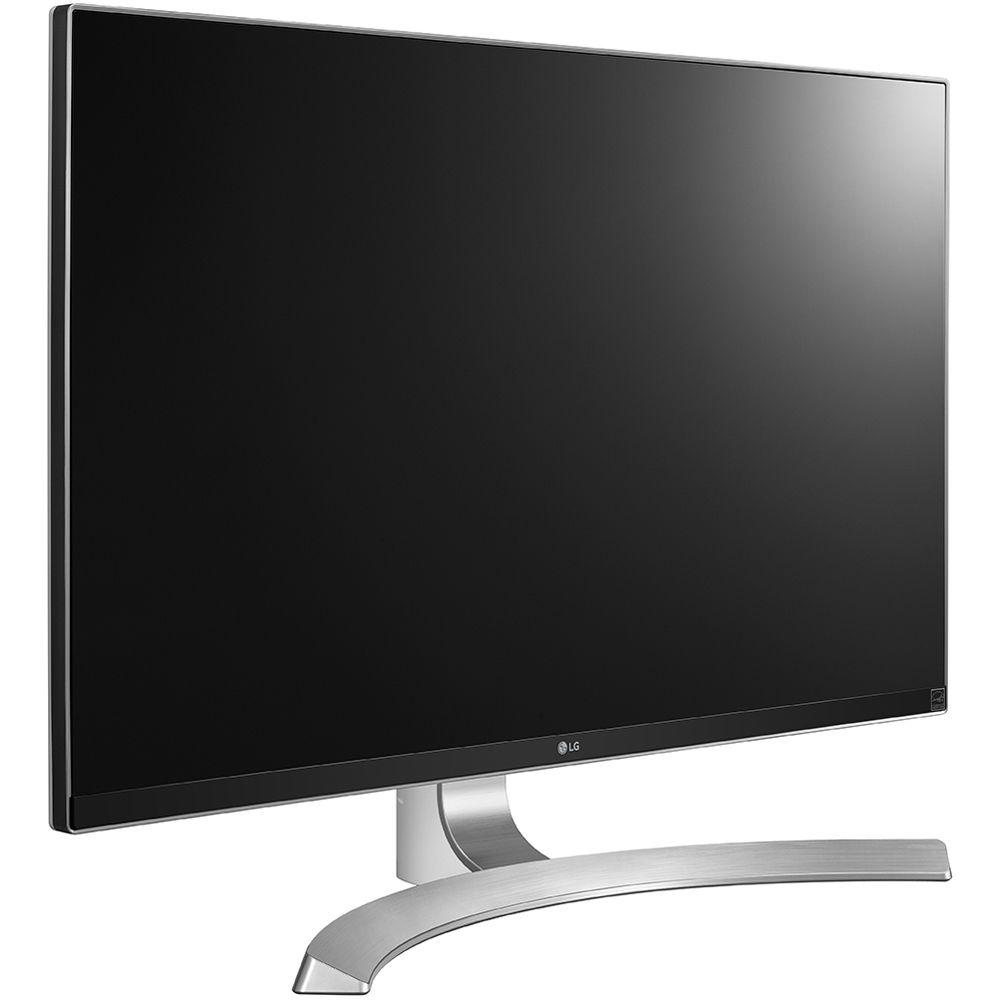

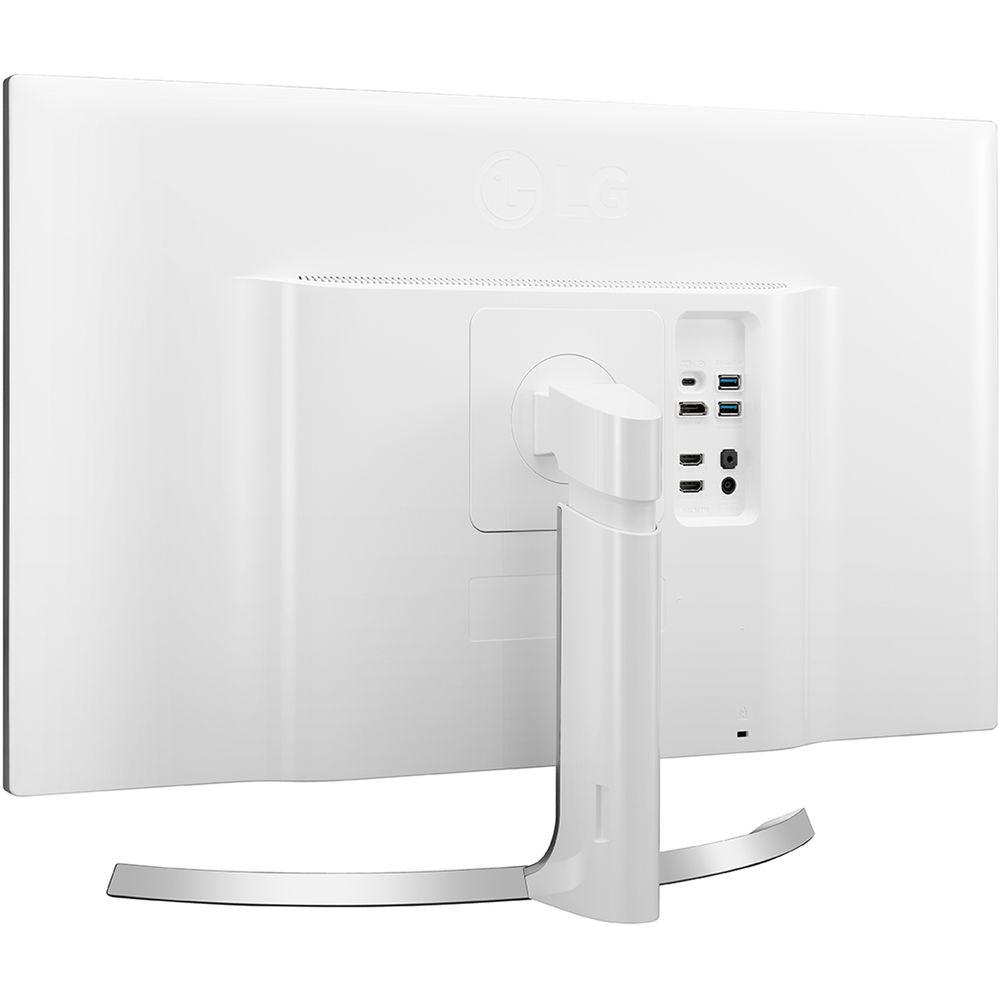

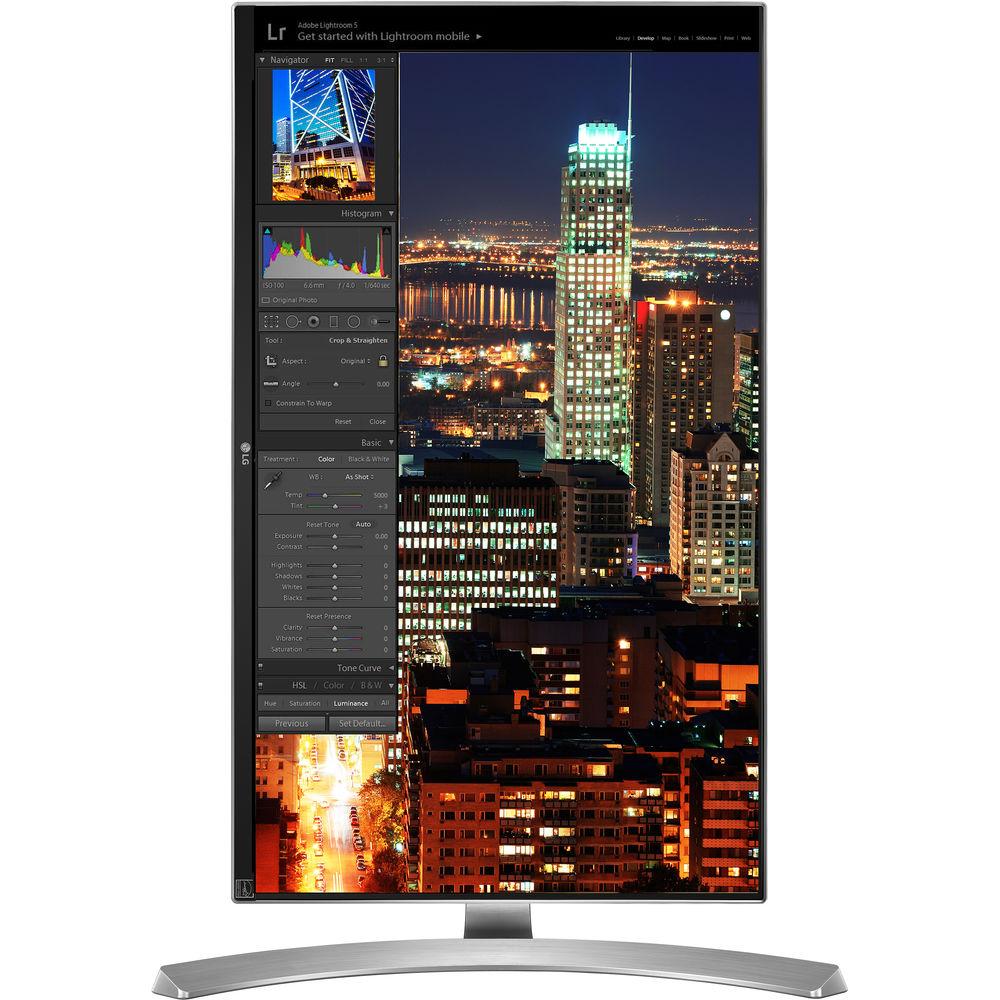

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Experience smooth 4K gaming with the 27MU88-W 27" 16:9 4K FreeSync IPS Monitor from LG. This display is built with an IPS (In-Plane Switching) panel, which delivers wide 178° viewing angles and vivid colors, and features a 3840 x 2160 resolution for crisp and clear content reproduction. Moreover, it supports FreeSync technology, which syncs the display's refresh rate with your graphics card's frame rate output to reduce screen tearing and stuttering. It also has a 350 cd/m² brightness rating, a 1000:1 static contrast ratio, and supports up to 1.07 billion colors for darker blacks and brighter bright colors. After connecting it to your system via HDMI, DisplayPort, or USB Type-C, you'll have access to additional USB ports as well as tilt, pivot, and height adjustments so you can arrange it to your viewing preference. Otherwise, you can use the 100 x 100mm VESA mounting holes on the back to install an alternate mount, stand, or arm. - Ultra HD 4K IPS Display
- Experience Ultra HD 4K content with a 3840 x 2160 resolution, which is four times that of a standard Full HD screen. Furthermore, because it's built with an IPS (In-Plane Switching) display, you'll be able to enjoy wide viewing angles and immersive colors.
- USB Type-C Port
- The USB Type-C port replaces messy cables and power bricks with a single cable. USB Type-C allows for simultaneous 4K video output as well as data and power output when connected to a compatible laptop.
- FreeSync Technology
- Built-in FreeSync technology syncs the display's refresh rate with your graphics card's frame rate output to eliminate tearing and stuttering for a smoother gaming experience.
- Black Stabilizer
- Black Stabilizer provides you with better visibility in visually challenging scenes that are too bright or too dark. With it, you'll be able to spot enemies hiding in dark areas and recover faster from a flash bang attack.
- Flicker Safe and Reader Mode
- Over time, prolonged viewing can cause eye strain and fatigue. Flicker Safe and Reader Mode help maximize visual comfort by reducing the amount of blue light emitted and reducing the flicker level to almost zero.
- Preset Customized Options
- OnScreen Control lets you modify screen settings on your desktop without having to use physical buttons. My Display Presets offers customized picture modes for different applications and all settings are automatically applied so you don't have to adjust settings each time.
- Total Color Management
- Maintain the original color of the monitor through a calibrator (sold separately) and True Color Pro calibration software.
- Additional Features
- DDC/CI, HDCP Yes (2.2), Picture by Picture (PBP), Reader Mode, Six Axis Control, Factory Calibrated, H/W Calibration (True Color Pro), SUPER+ resolution, Marker, DICOM Mode, Quick Charge, and Dual Controller
UPC: 719192608436 In the Box LG 27MU88-W 27" 16:9 4K FreeSync IPS Monitor Power Cord DisplayPort Cable HDMI Cable USB Type-C Cable (3.3') USB Type-A to Type-C Cable Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 27MU88-W 27" 16:9 4K FreeSync IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 27MU88-W Specs | | | Size | 27" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 135 kHz | | Vertical Frequency | 56 to 61 Hz | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Color Gamut | 99% sRGB | | Response Time | 5 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.1554 x 0.1554 mm | | | | Connectivity | 1 x 3.5 mm Output
1 x USB Type-C Input/Output
2 x USB Type-A (USB 3.1 Gen 1) Output
1 x DisplayPort 1.2 Input
2 x HDMI 2.0 | | Supported Languages | Finnish
Korean
Portuguese
Russian
English
Brazilian Portuguese
Spanish
German
Japanese
Swedish
Italian
Greek
Ukrainian
Traditional Chinese
Polish
French | | | | Power Consumption | 0.5 W (Standby)
29 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Supply | 140 W | | USB Power Delivery | 60 W | | | | Certifications | ENERGY STAR, EPEAT GOLD, REACH, RoHS, as per Manufacturer | | | | Height Adjustment | 4.3" / 10.9 cm | | Tilt Adjustment | -3 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 24.2 x 16.7 x 8.8" / 61.5 x 42.4 x 22.4 mm (With Stand)
24.2 x 14.4 x 1.7" / 61.5 x 36.6 x 4.3 mm (Without Stand) | | Weight | 13.7 lb / 6.2 kg (With Stand)
10.4 lb / 4.7 kg (Without Stand) | | | | Package Weight | 21.0 lb | | Box Dimensions (LxWxH) | 33.0 x 19.0 x 6.5" |
