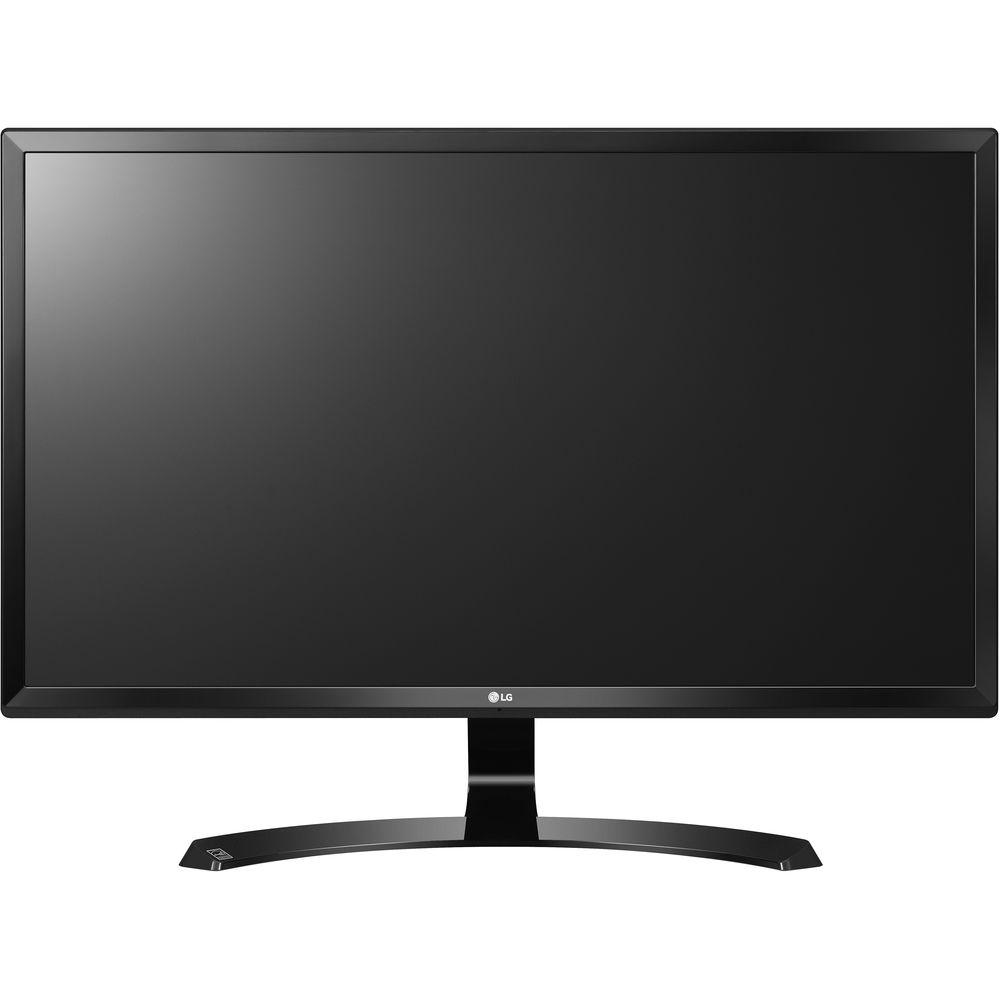

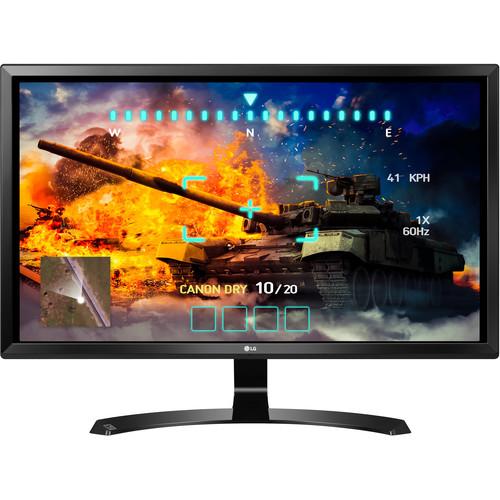

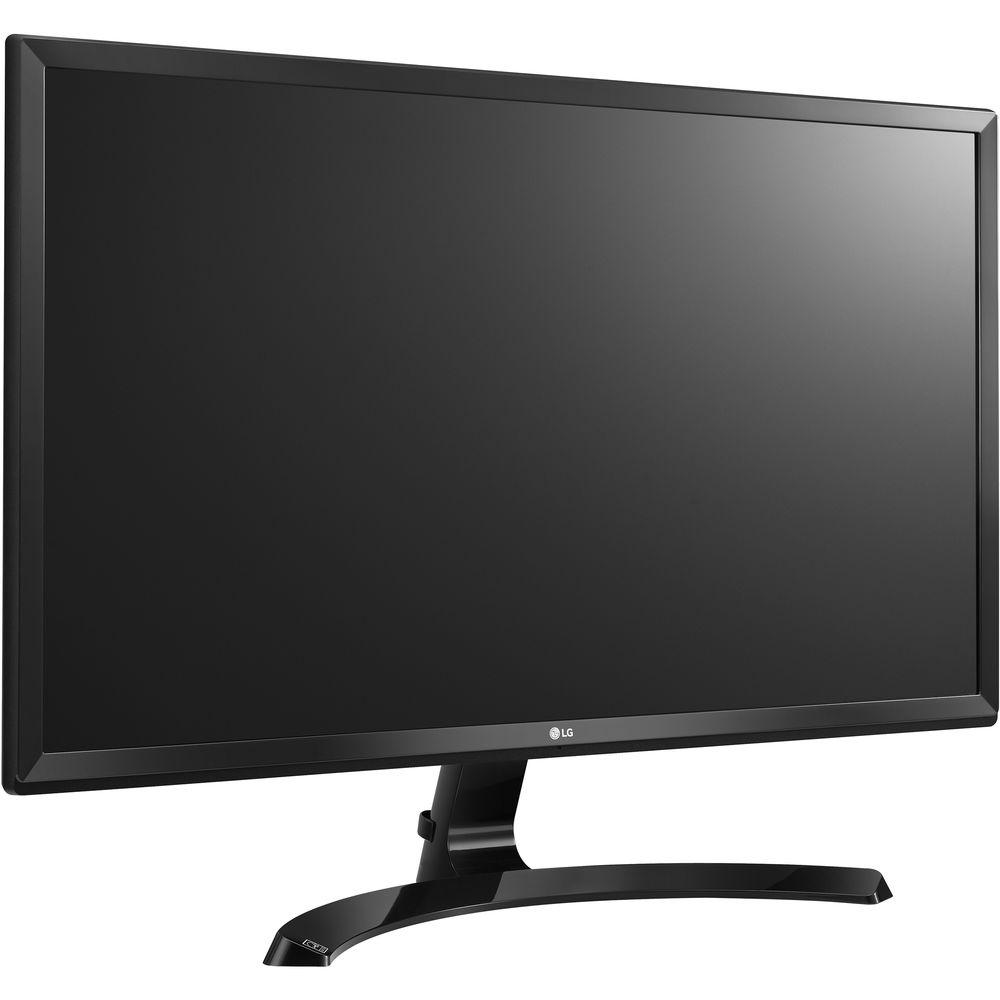

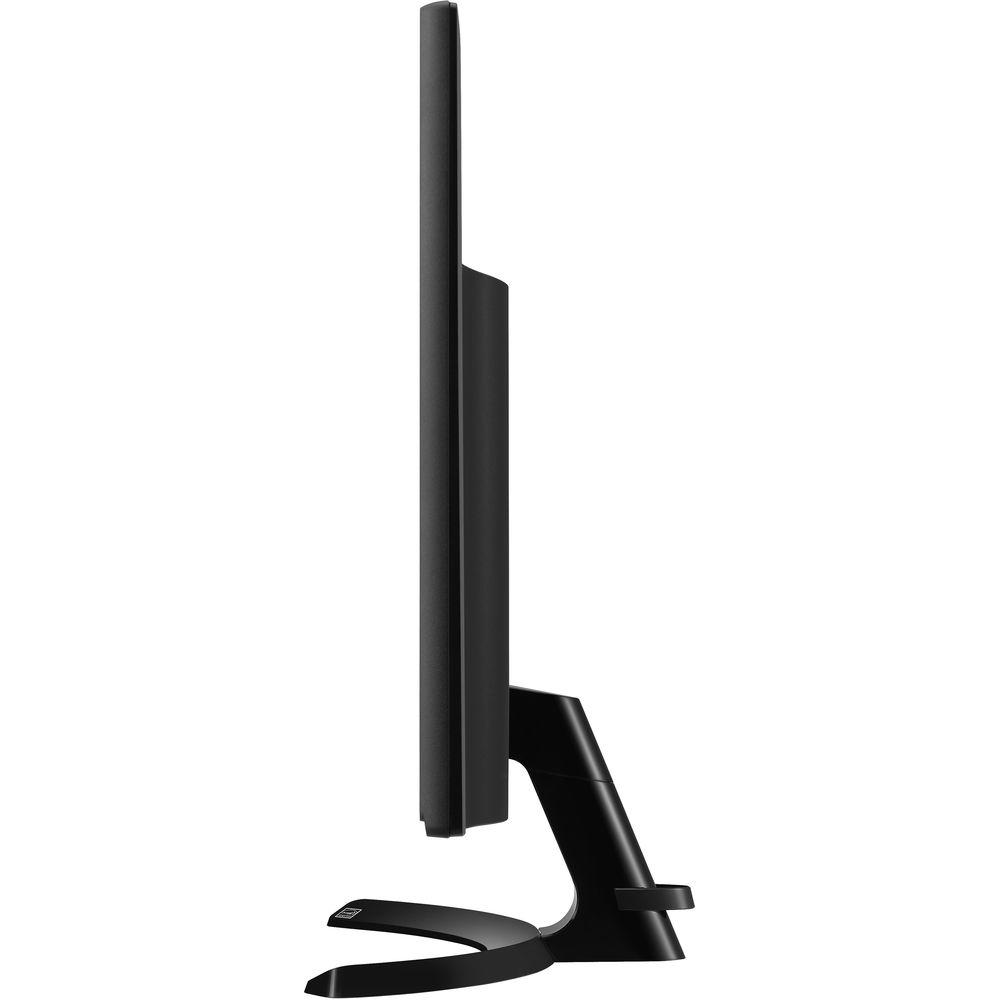

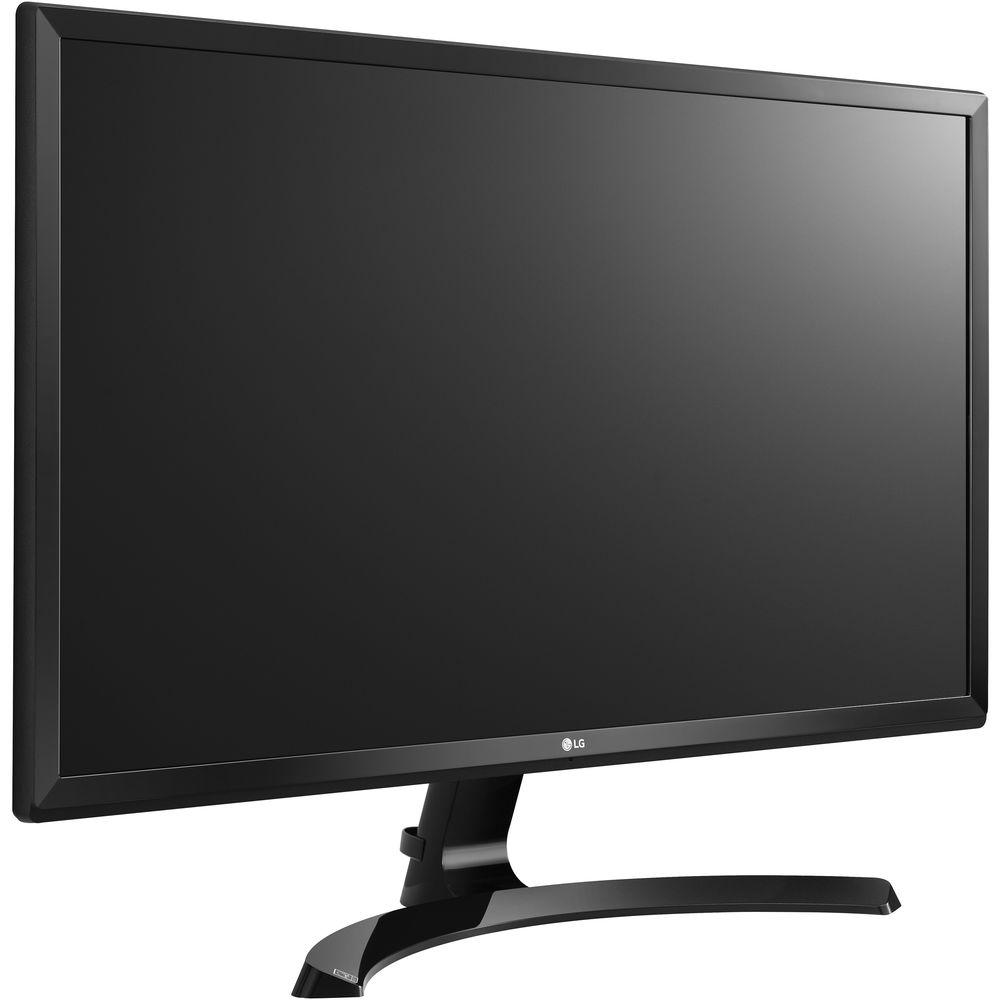

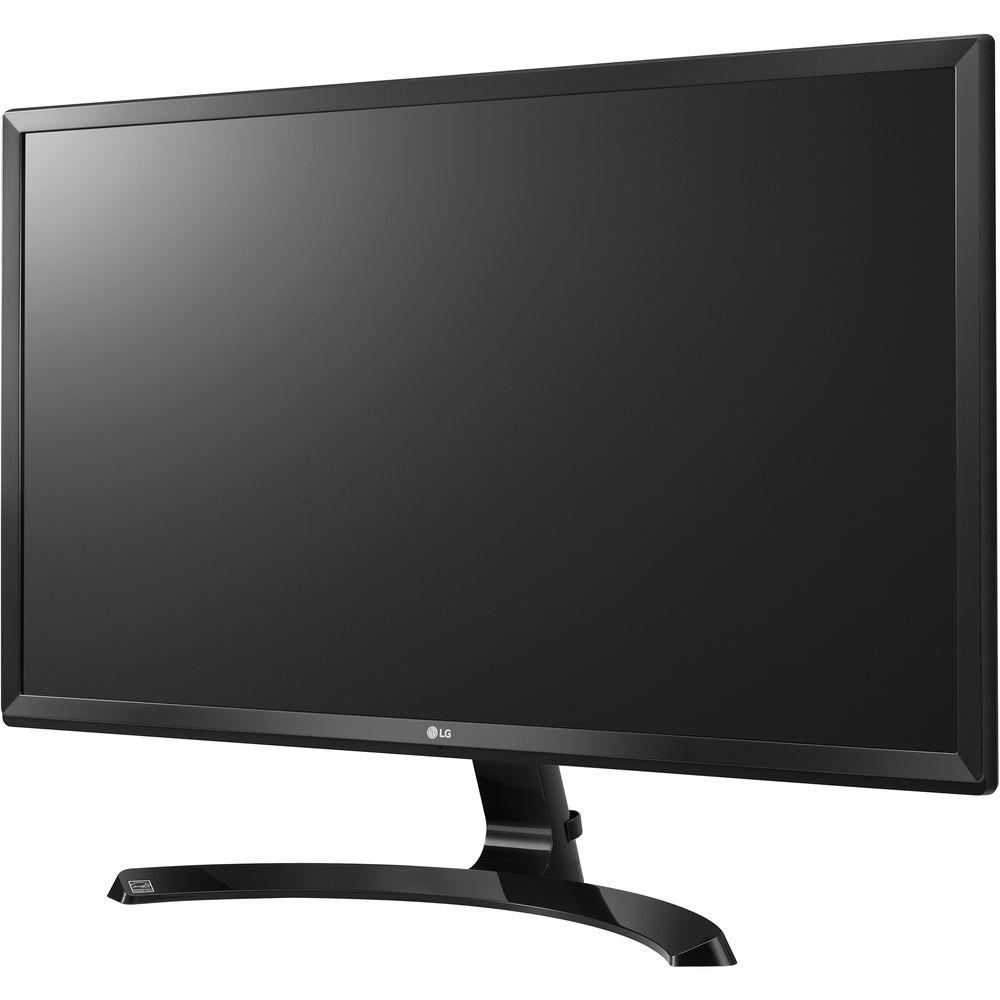

User Manual for LG 27UD58-B 27" 16:9 4K FreeSync IPS Monitor Click to enlarge the picture
Contents of the user manual for the LG 27UD58-B 27" 16:9 4K FreeSync
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 27UD58-B 27" 16:9 4K FreeSync contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

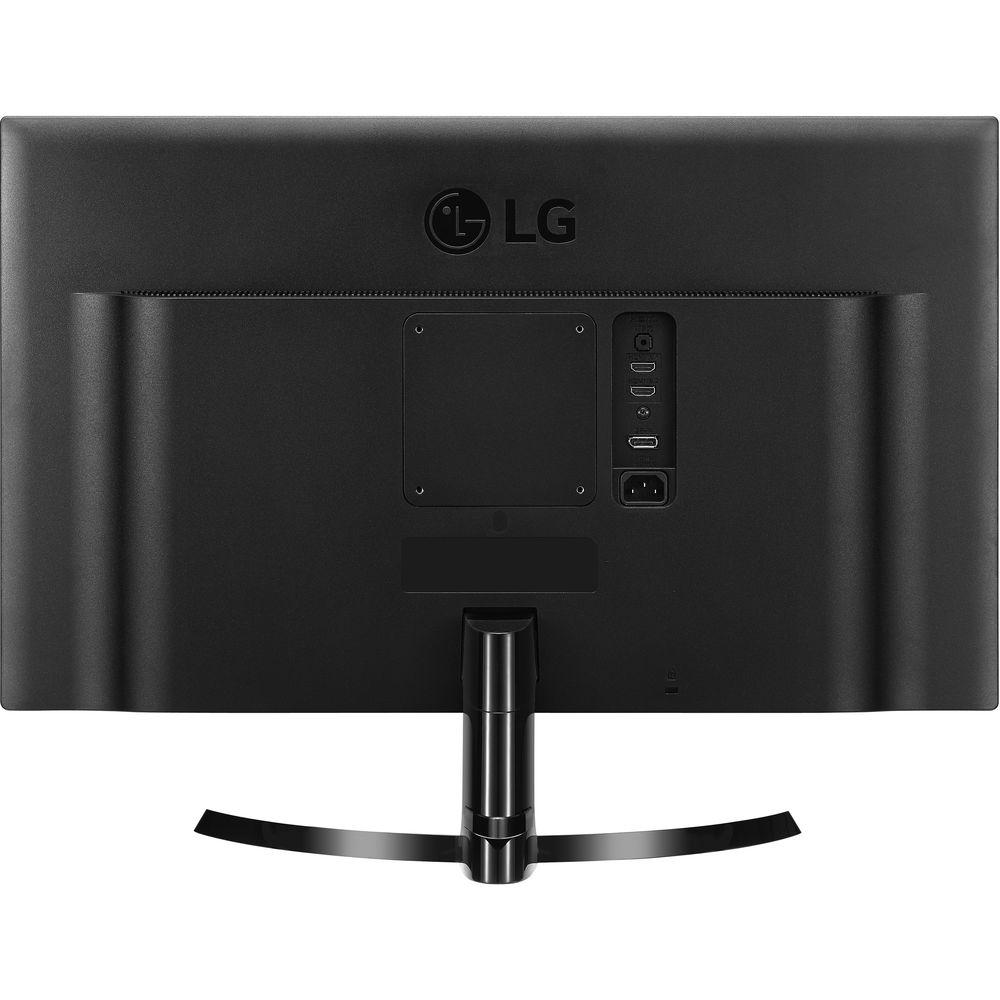

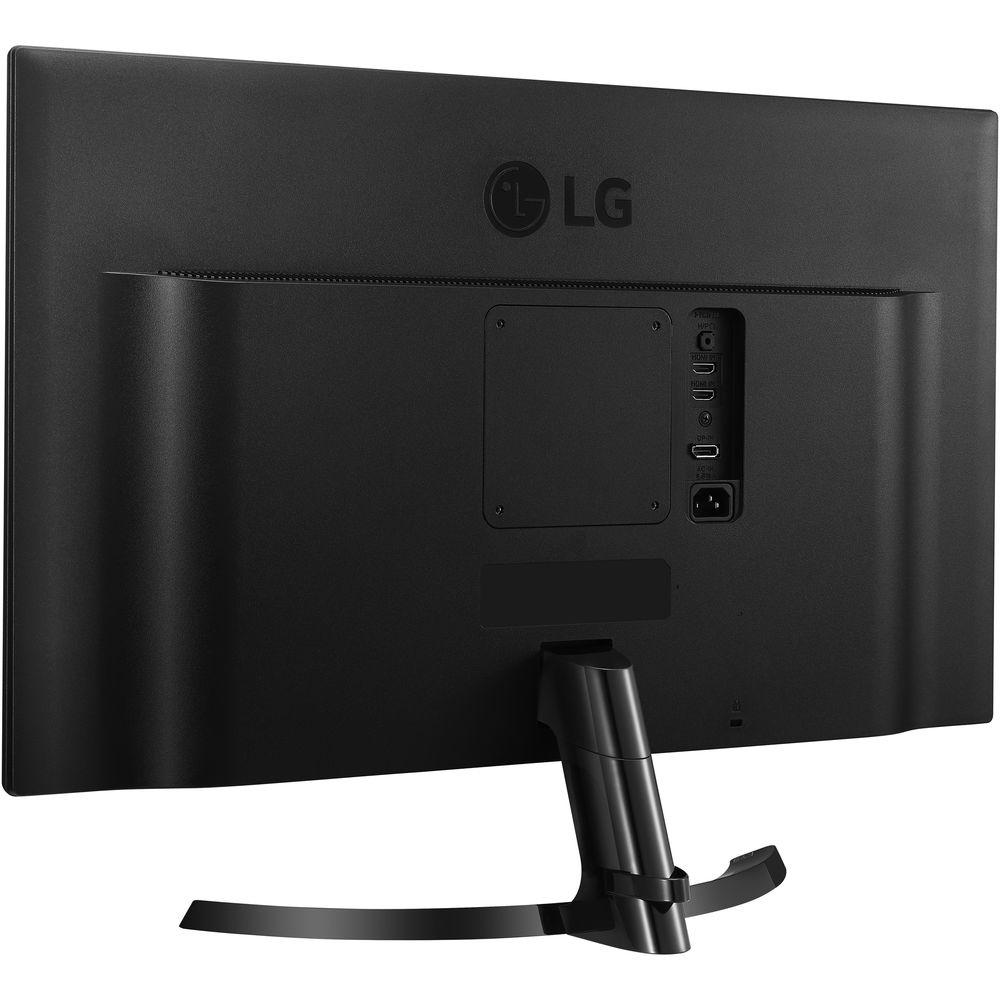

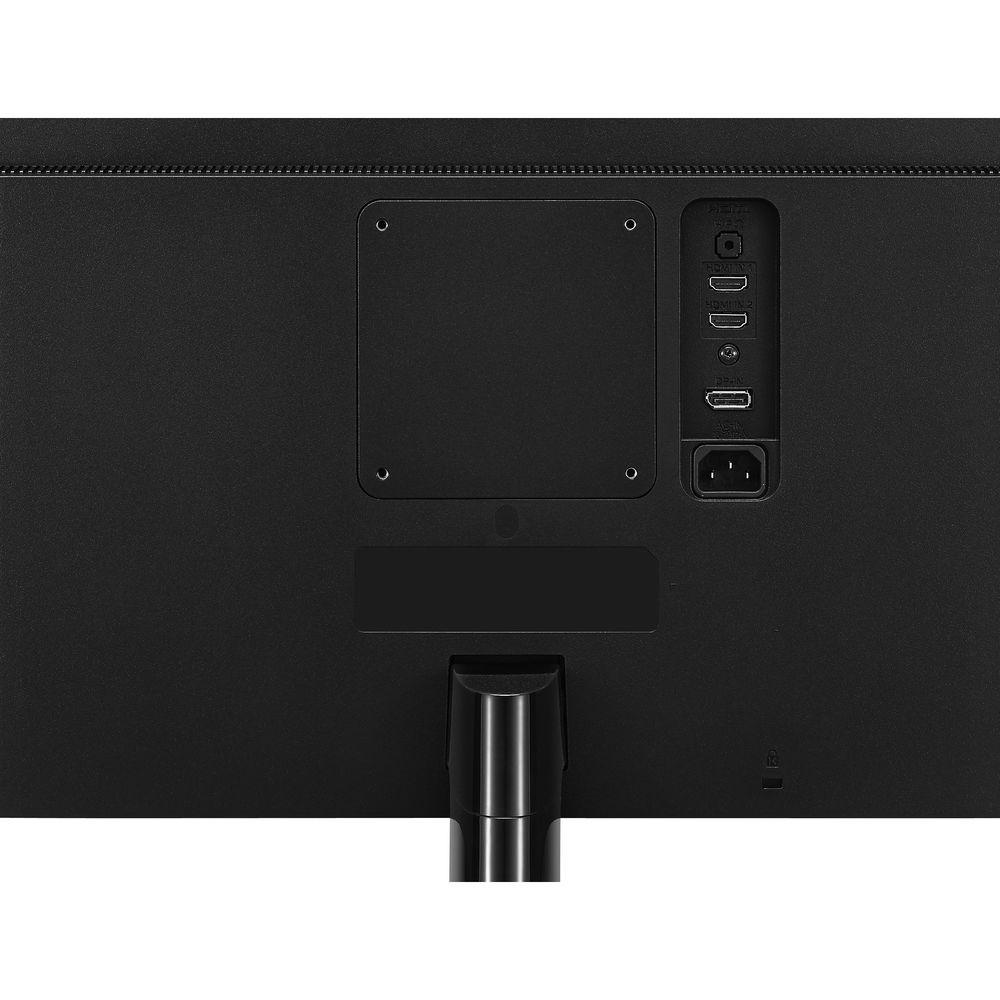

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Experience 4K with the 27UD58-B 27" 16:9 4K FreeSync IPS Monitor from LG. This monitor is designed for gamers who are looking for an ultra-high resolution display with technologies and features that will assist them on the battlefield. It's built with an In-Plane Switching (IPS) panel, which provides you with wide 178° viewing angles and vivid colors, and has a resolution of 3840 x 2160 for roughly 8.3 million pixels. Combined with a 250 cd/m² brightness rating, dynamic mega contrast, and support for 1.07 billion colors, you'll be able to enjoy crisp and clear content with darker blacks and brighter bright colors for an immersive viewing experience. Furthermore, it has a 5 ms response time and supports FreeSync technology, which syncs the monitor's refresh rate to the graphics card's frame rate output for smooth, tear- and stutter-free gaming. Connect this display to your system via HDMI or DisplayPort and adjust it to your viewing preference. Otherwise, you can use the 100 x 100mm VESA mounting holes to install an alternate stand or mount. - 4K UHD IPS
- Enjoy enhanced clarity and details with a 4K UHD display, which features 8.3 million pixels with a 3840 x 2160 resolution. In addition, an In-Plane Switching (IPS) panel offers wide viewing angles and crisp colors.
- FreeSync Technology
- FreeSync technology syncs the monitor's refresh rate with the graphics card's frame rate output to reduce tearing and stuttering for a smoother gaming experience.
- On-Screen Control
- Easily adjust your volume, brightness, picture mode presets, and more on your desktop instead of using the built-in buttons.
- Screen Split 2.0
- Customize your display's layout for efficient multitasking with Screen Split 2.0. With 14 options including picture-in-picture modes, you'll be able to resize and display multiple windows at once.
- Game Mode
- Enable game modes to optimize gaming conditions. There are three modes: 2 first-person shooter (FPS) and one real-time strategy (RTS) pre-sets so you can choose one that fits your games.
- Advanced Gaming Features
- Black stabilizer enhances dark scenes for an easier time spotting enemies and items while dynamic action sync ensures smooth, fluid gaming action.
- Arcline Design
- The stand's arc design provides a stable yet stylish base that supports the display.
- Special Features
- DDC/CI, HDCP, Reader Mode, Flicker Safe, Six Axis Control, Factory Calibrated, Plug-and-Play, On-Screen Control, SUPER+ Resolution, Black Equalizer, DAS Mode, FreeSync
UPC: 719192606579 In the Box LG 27UD58-B 27" 16:9 4K FreeSync IPS Monitor Power Cable HDMI Cable DisplayPort Cable Limited 1-Year Warranty User Manual PDF 6.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 27UD58-B 27" 16:9 4K FreeSync IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 27UD58-B Specs | | | Size | 27" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | FreeSync | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Color Gamut | 72% NTSC | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.1554 x 0.1554 mm | | | | Connectivity | 1 x DisplayPort 1.2 Input
2 x HDMI 2.0 | | | | Power Consumption | 29.5 W (Eco)
40 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | TCO Certified, ENERGY STAR, RoHS, REACH, EPEAT GOLD, as per Manufacturer | | | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 24.9 x 14.8 x 2.4" / 63.2 x 37.6 x 6.1 mm (Without Stand)
24.9 x 18.2 x 8.0" / 63.2 x 46.2 x 20.3 mm (With Stand) | | Weight | 12.3 lb / 5.6 kg (With Stand) | | | | Package Weight | 16.0 lb | | Box Dimensions (LxWxH) | 27.5 x 17.5 x 5.25" |
