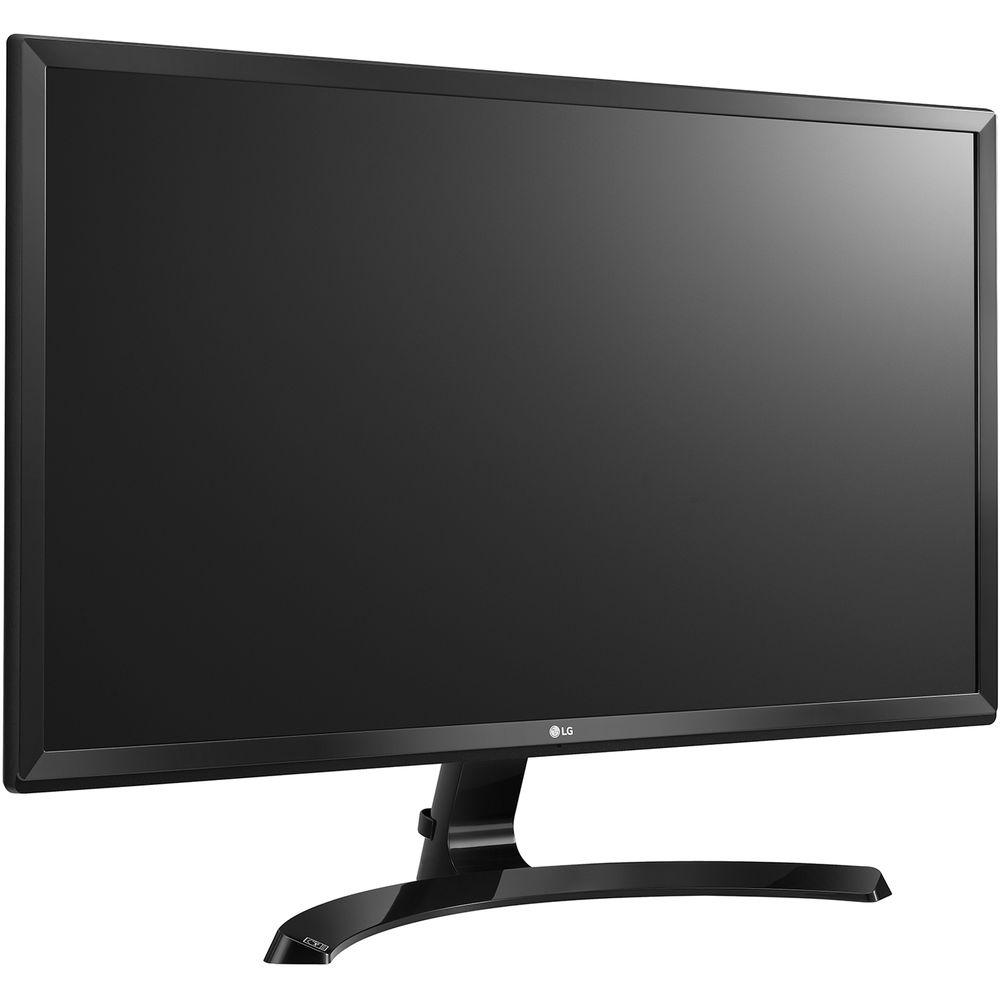

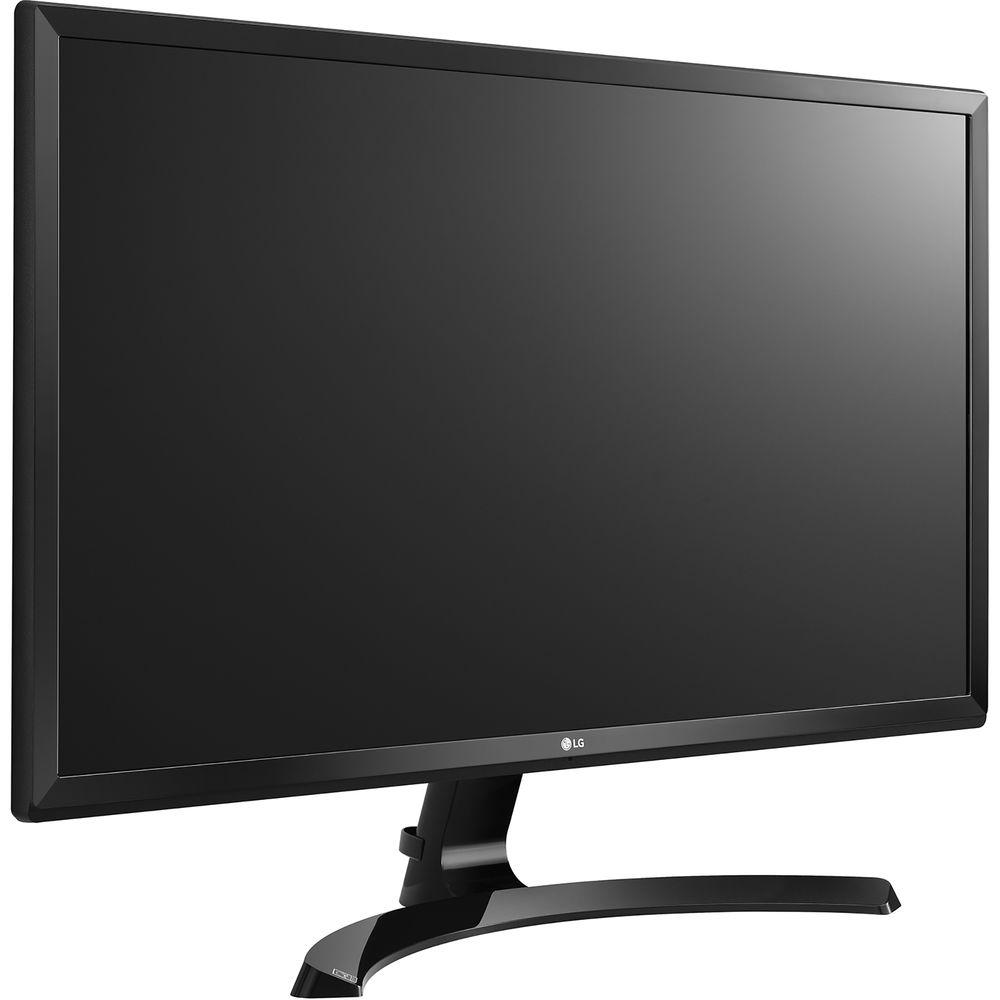

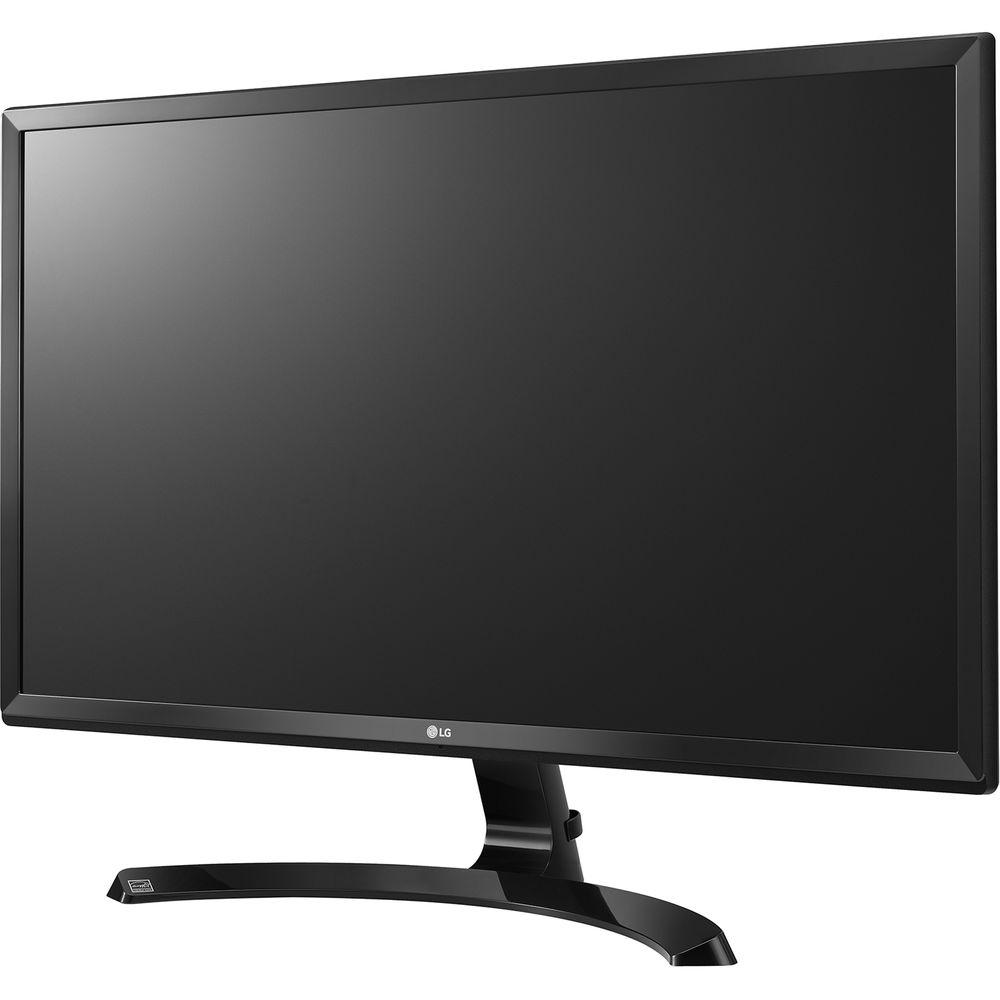

User Manual for LG 27UD60-B 27" 16:9 UHD IPS 4K Gaming Monitor Click to enlarge the picture
Contents of the user manual for the LG 27UD60-B 27" 16:9 UHD IPS
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 27UD60-B 27" 16:9 UHD IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More See your photos, videos, and more with improved clarity on the 27UD60-B 27" 16:9 UHD IPS Gaming Monitor from LG. This IPS (In-Plane Switching) display comes equipped with 8.3 million pixels and features a 4K UHD 3840 x 2160 resolution that provides up to four times the clarity of a Full HD monitor.
Along with the enhanced display clarity, this LG monitor features FreeSync Technology to help eliminate stutter and lag when playing fast moving games. Viewers can also take advantage of On-Screen Controls, making it easy to configure the screen to best suit your viewing needs. Resize the display, split the screen, and set the screen to picture-in-picture mode to see two windows simultaneously, you can choose between 14 different screen configurations to customize your monitor layout. For the gamer, LG has included a variety of gaming features including support for three gaming modes including two first-person shooter modes and a RTS pre-set mode as well as black stabilizer support and dynamic action sync.

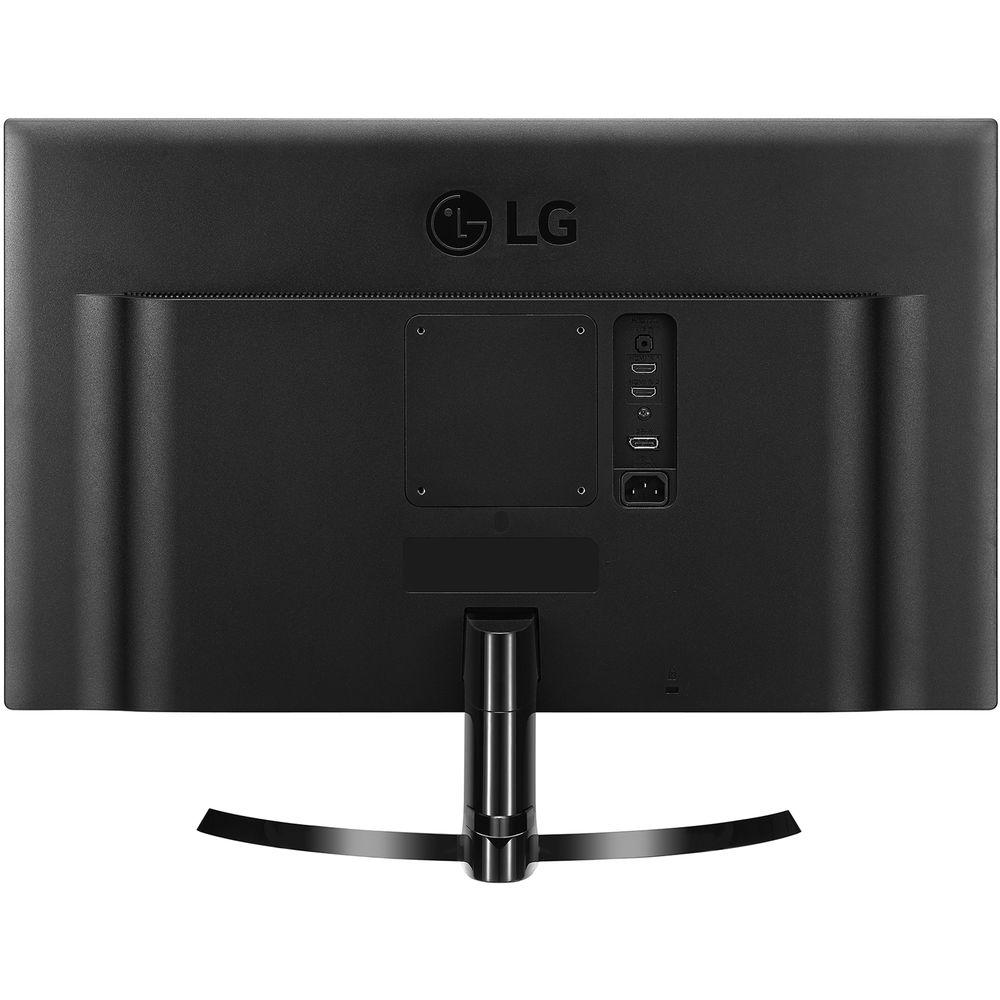

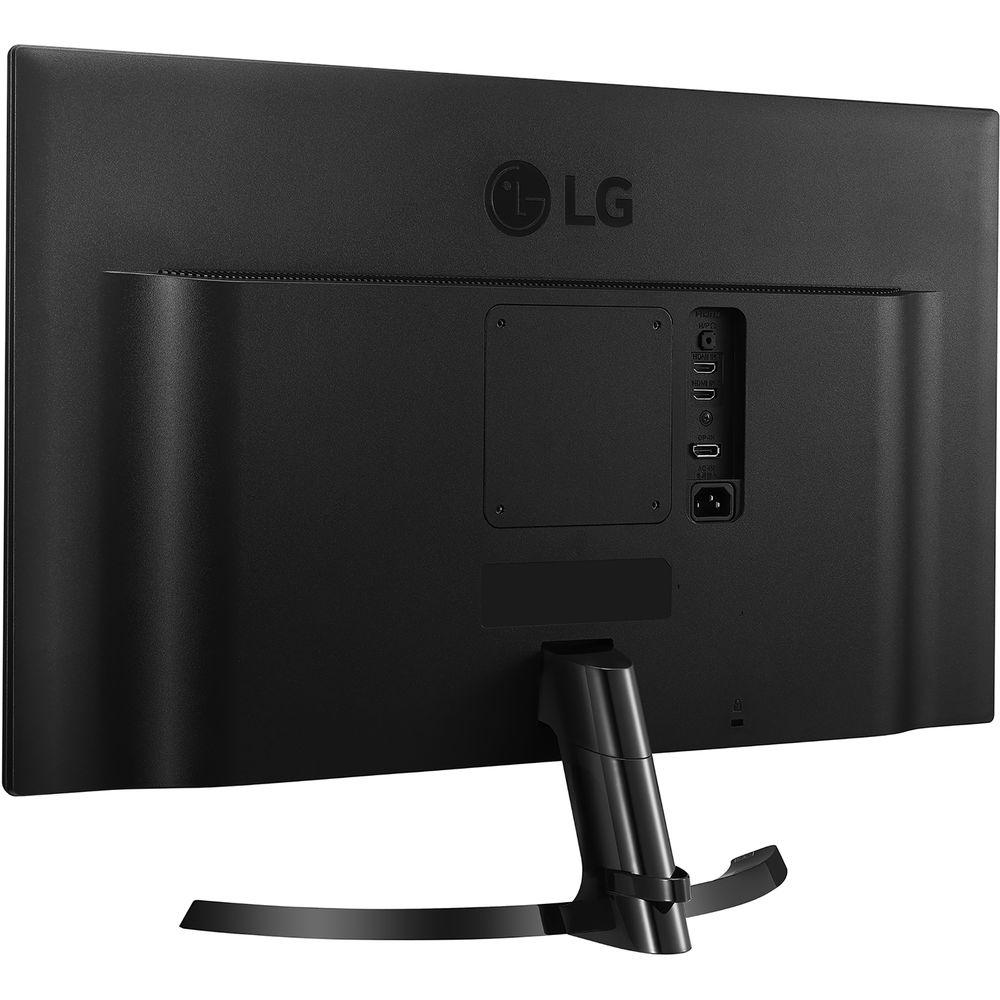

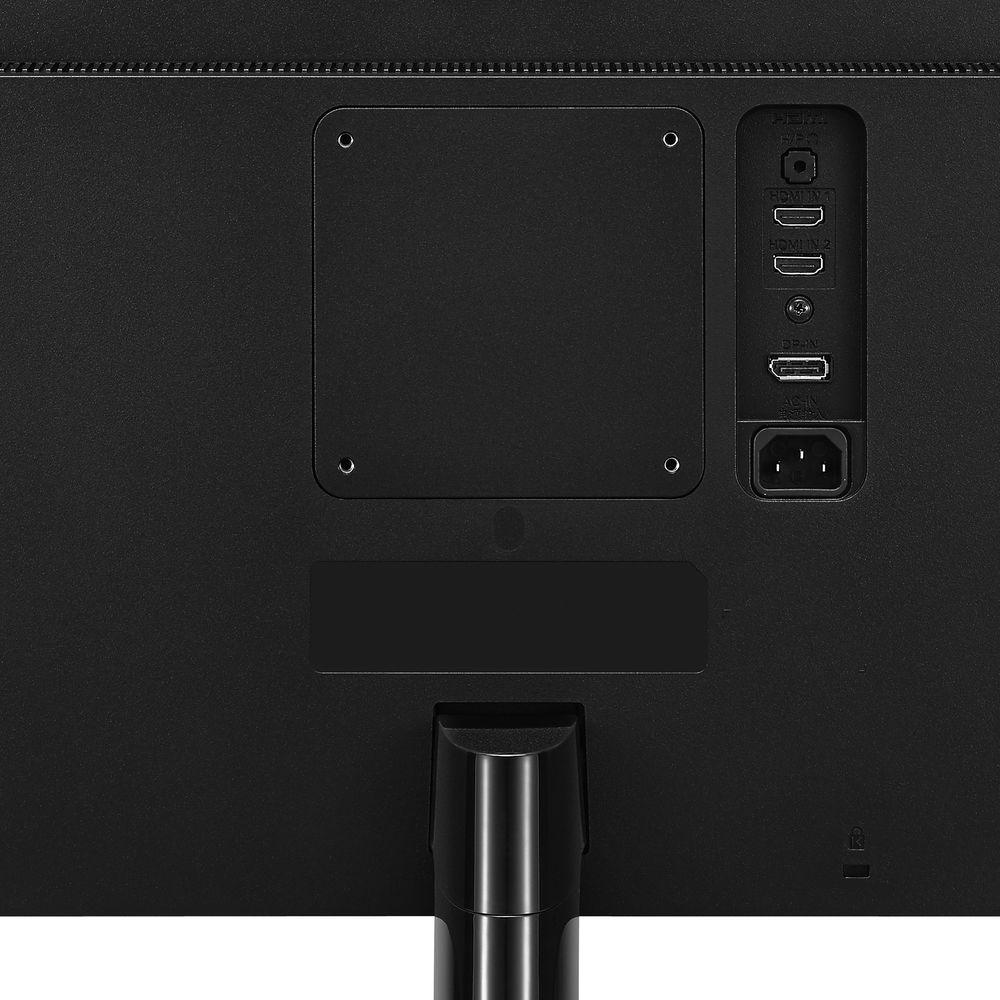

The 27UD60-B monitor comes equipped with both DisplayPort and HDMI inputs for easy setup. Once configured, viewers can take advantage of a 10-bit color table, 5 ms response time, 250 cd/m² brightness rating, and a 60 Hz refresh rate for a more dynamic picture with reduced ghosting and blur. Additionally, this IPS panel supports 178° horizontal and vertical viewing angles making it easy to see all the action from nearly any angle. - Built-In FreeSync Technology
- With FreeSync, gamers can experience seamless, fluid movement throughout hi-res, fast-paced games. FreeSync eliminates tearing and stuttering that can occur because of differences between a graphic card's frame rate and a monitor's refresh rate.
- 4K UHD Gaming

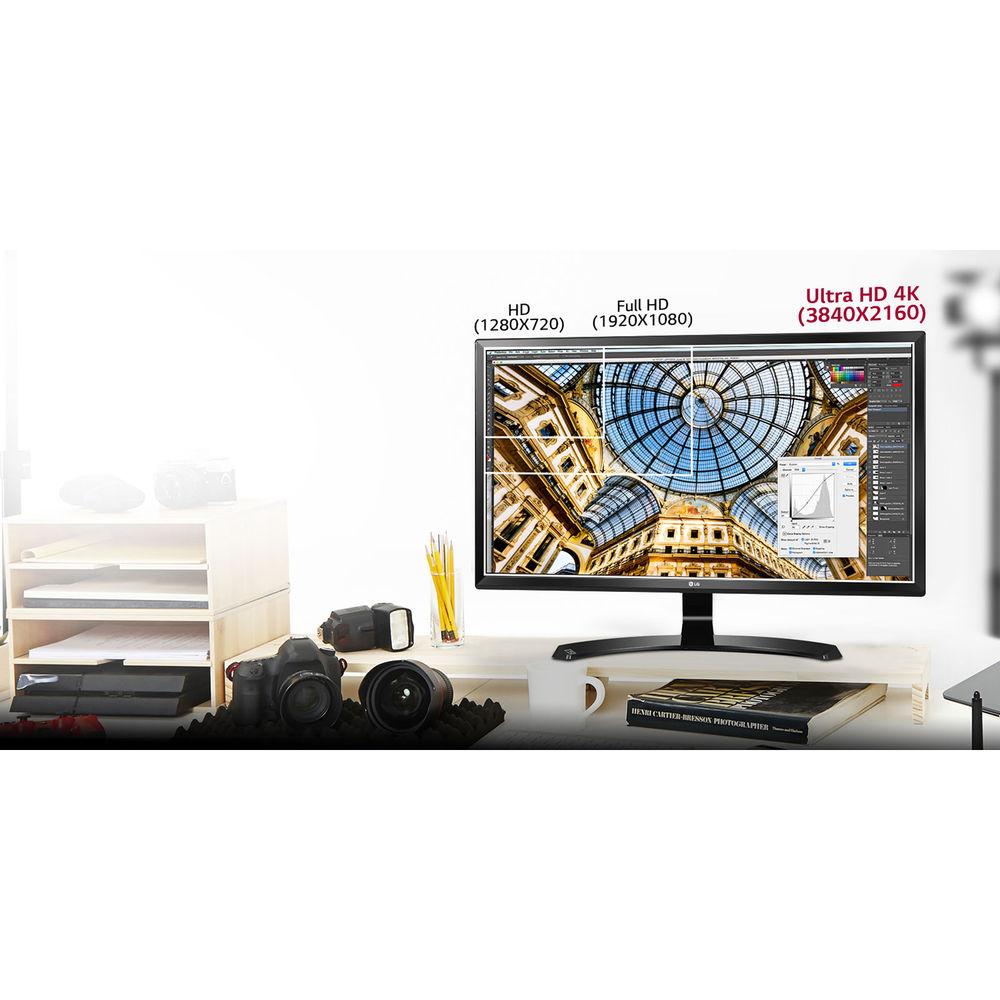

- The clarity and fine details of 4K UHD will amaze gamers thanks to 8.3 million pixels on a screen with resolution of 3840 x 2160. That's four times the resolution of Full HD for an even more immersive gaming experience.
- On-Screen Control
- On-Screen Control puts a host of essential monitor settings into a handy window for quick, easy access. Volume, brightness, picture mode presets, Screen Split 2.0, Dual Controller, and more can now be adjusted with just a few clicks of the mouse, instead of hard buttons on the monitor.
- Split Screen 2.0
- Customize your monitor layout for multitasking with LG Screen Split. Resize and display multiple windows at once, with 14 options including four different picture-in-picture (PIP) choices.
- Game Mode
- Set Game Mode for optimal gaming conditions. There are three modes, two First-Person-Shooter modes, and an RTS pre-set mode so you can choose the best mode for your games.
- Advanced Gaming Features
- Quickly optimize monitor settings to activate Black Stabilizer to reveal improved detail in dark scenes while the Dynamic Action Sync feature assures smooth, fluid gaming action.
- Arcline Design

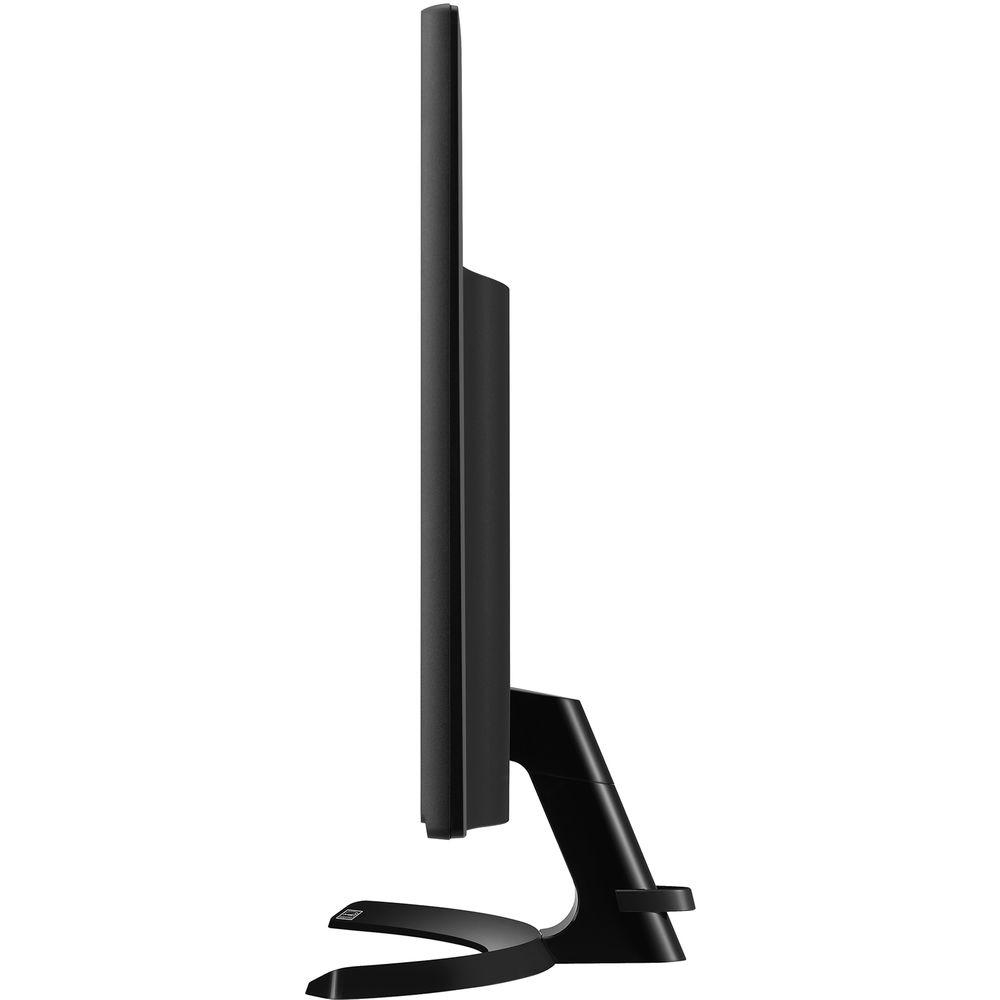

- The sleek design of this LG monitor is accentuated by the ArcLine stand. The smooth curve of the base provides stability, assuring dependable performance with a touch of elegance.
UPC: 719192615281 In the Box LG 27UD60-B 27" 16:9 UHD IPS 4K Gaming Monitor Power Cord HDMI Cable DisplayPort Cable Limited 1-Year Warranty User Manual PDF 6.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 27UD60-B 27" 16:9 UHD IPS 4K Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 27UD60-B Specs | Screen Size | 27" / 68.6 cm | | Panel Type | IPS (In-Plane Switching) | | Color Gamut (CIE1931) | NTSC 72% | | Color Depth | 10-bit (8-bit + A-FRC) | | Pixel Pitch | 0.1554 mm | | Response Time | 5 ms (GtG) | | Refresh Rate | 60 Hz | | Aspect Ratio | 16:9 | | Resolution | 3840 x 2160 | | Brightness | 250 cd/m² | | Contrast Ratio | Mega | | Viewing Angles (H/V) | 178°/178° | | Surface Treatment | Anti-glare, 3H | | Input/Output | 2 x HDMI (ver 2.0)
1 x DisplayPort (ver 1.2) | | Power | Type: Built-in power (40 W)
Input: 100-240 VAC, 50/60 Hz
Normal On (EPA 7.0): 29.5 W | | VESA Mount Size | 100 x 100 mm | | Standards | TCO7.0
UL(cUL)
EPEAT Gold
CB
FCC-B, CE
CCC, BSMI
KC
VCCI
EPA7.0
ErP
ROHS, REACH
Windows 10
FreeSync (through DisplayPort only) | | Dimensions | With Stand
24.9 x 8 x 18.2" / 63.2 x 20.3 x 46.2 cm
Without Stand
24.9 x 2.4 x 14.8" / 63.2 x 6.1 x 37.6 cm | | Weight | With Stand
12.3 lb / 5.6 kg | | | | Package Weight | 16.8 lb | | Box Dimensions (LxWxH) | 27.0 x 17.0 x 5.0" |
