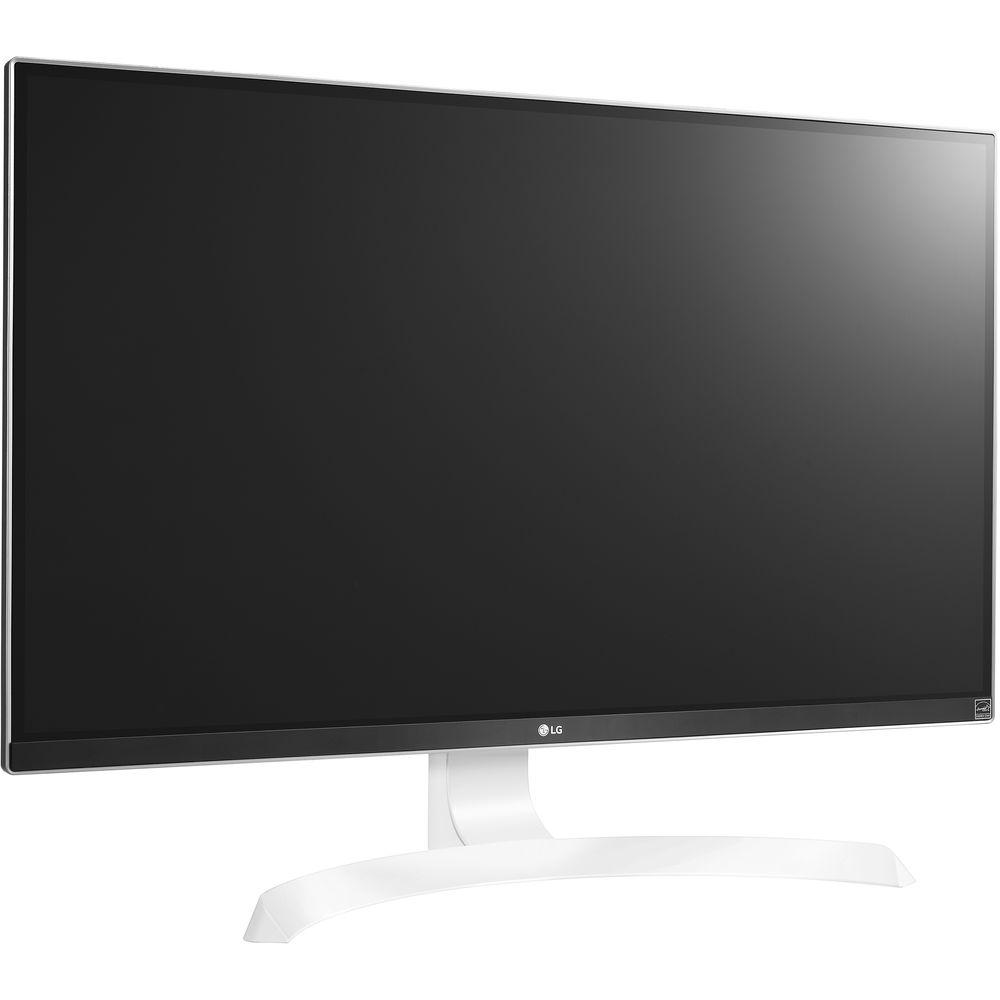

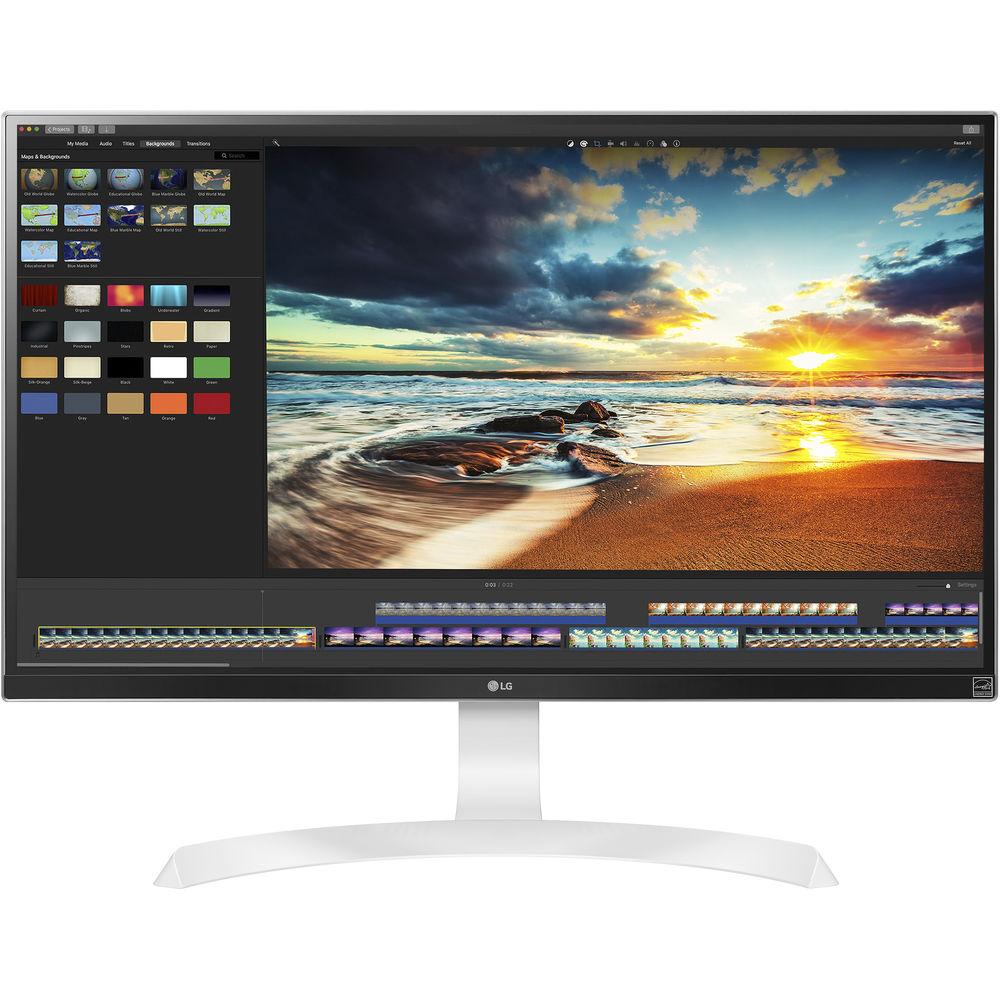

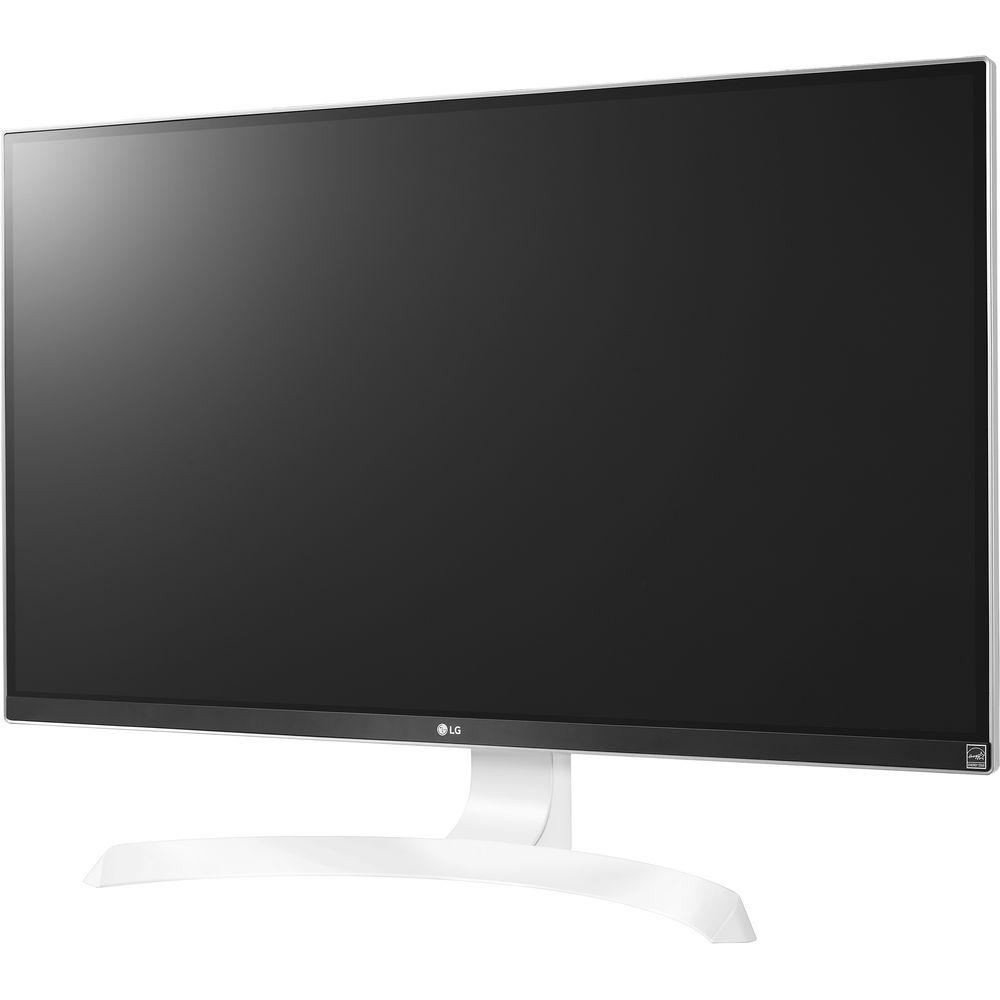

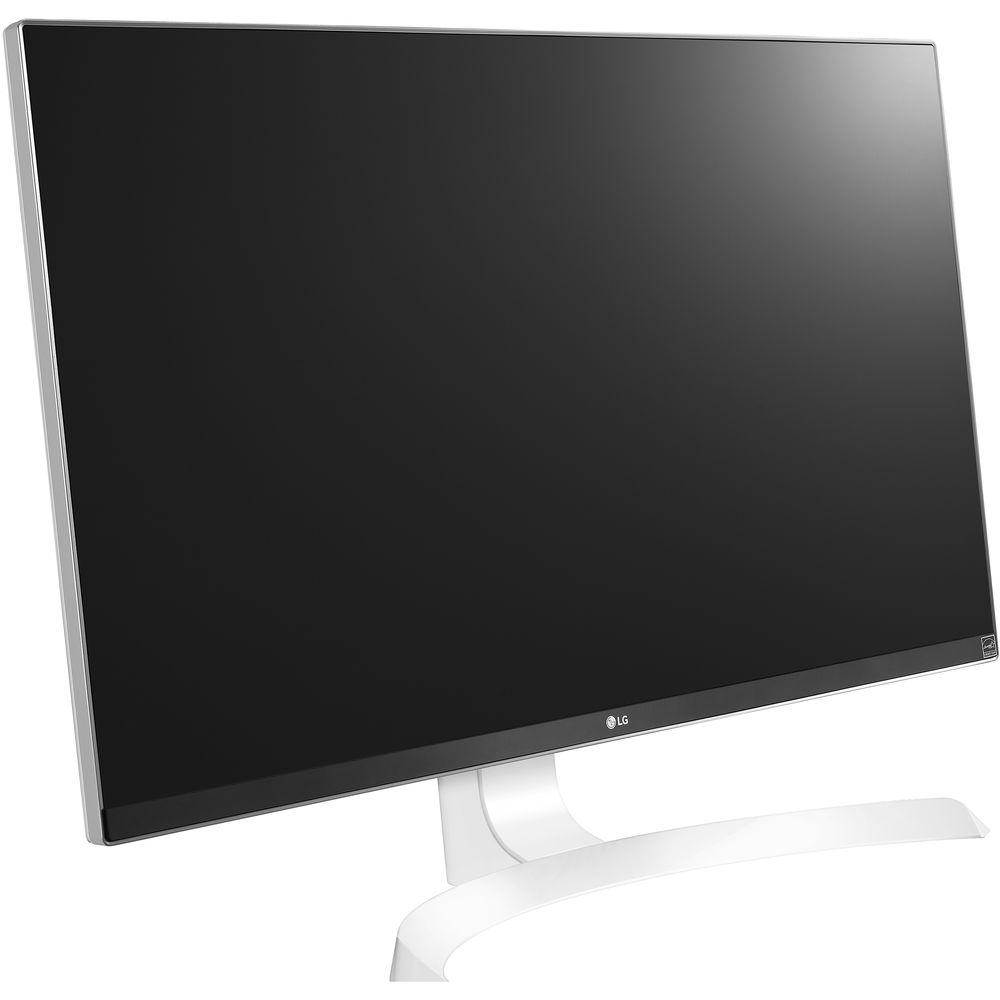

User Manual for LG 27UD69P-W 27" 16:9 Ultra HD IPS Gaming Monitor Click to enlarge the picture
Contents of the user manual for the LG 27UD69P-W 27" 16:9 Ultra HD
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 27UD69P-W 27" 16:9 Ultra HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Game in comfort with the 27UD69P-W 27" 16:9 Ultra HD IPS Gaming Monitor from LG. This gaming monitor not only features an ultra-thin bezel for fewer distractions, it comes equipped with gamer-centric tools including Dynamic Action Sync and Black Stabilizer technology designed to help you focus on the action. You can even sync the monitor with compatible AMD graphics cards thanks to AMD FreeSync functionality.

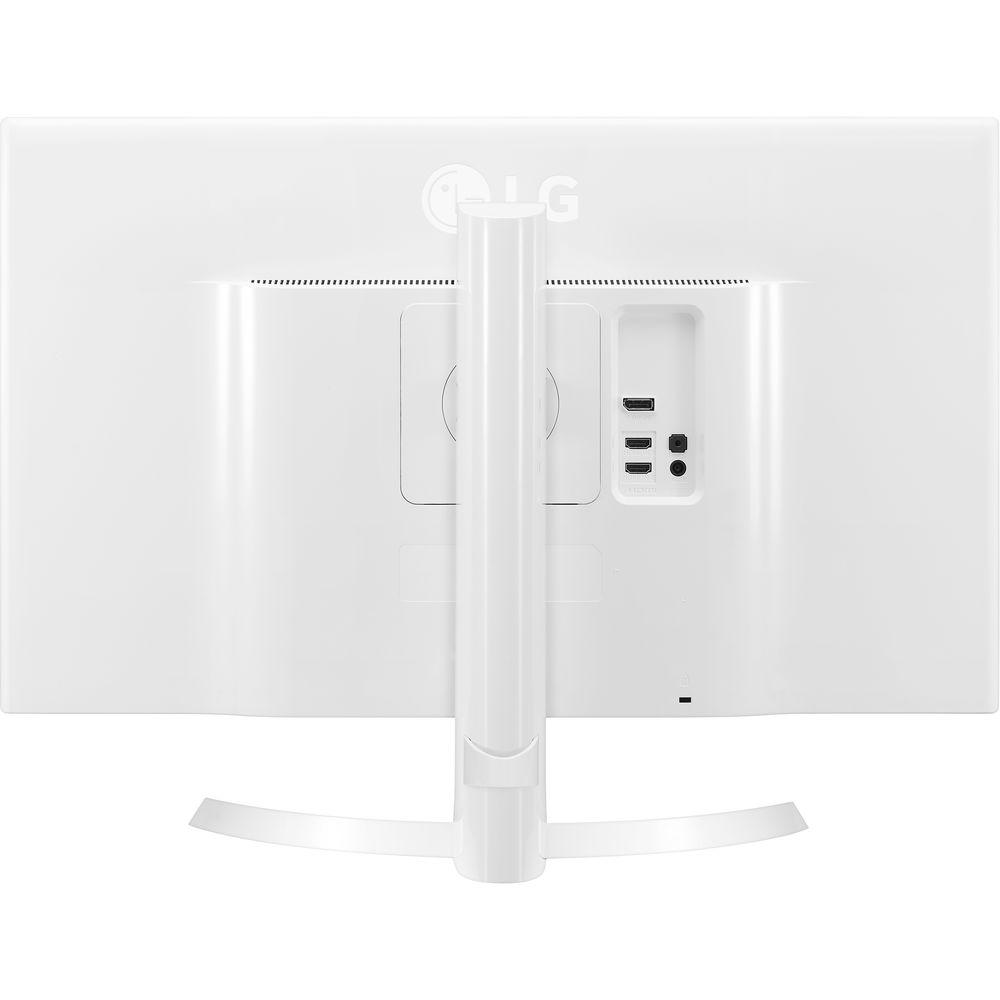

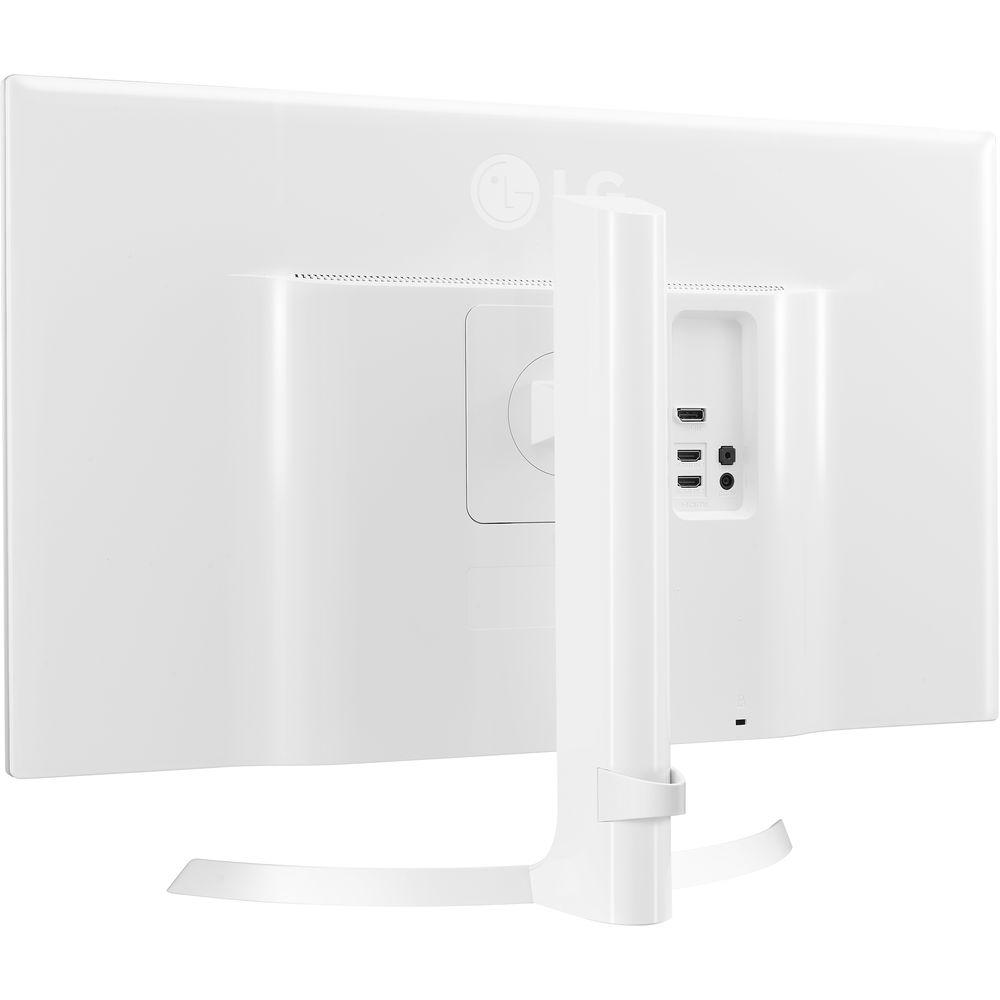

Setup and configuration of the LG 27UD69P is simple thanks to HDMI and DisplayPort inputs. Once configured, you can take advantage of the crisp Ultra HD 3840 x 2160 resolution to see your games, photos, documents, and more with enhanced clarity. In addition to the Ultra HD resolution, this LG display also features a 1300:1 contrast ratio, a 5 ms response time, and a 300 cd/m² brightness rating, as well as 99% coverage of the sRGB color space for improved color accuracy. - 4K IPS Display
- Enhanced Ultra HD performance is assured by the 4K display panel with IPS (In-Plane Switching), delivering accurate colors that remain consistent at wide viewing angles, with four times the resolution of Full HD.
- HDCP 2.2 Compatible
- This LG Ultra HD monitor is compatible with HDCP 2.2 copy protection, so it will display video from 4K streaming services, game consoles, and Ultra HD Blu-ray disc players.
- Virtually Borderless Design
- The ultra-thin bezel on three sides of this display offers a virtually borderless visual experience, without distraction from the detailed image.

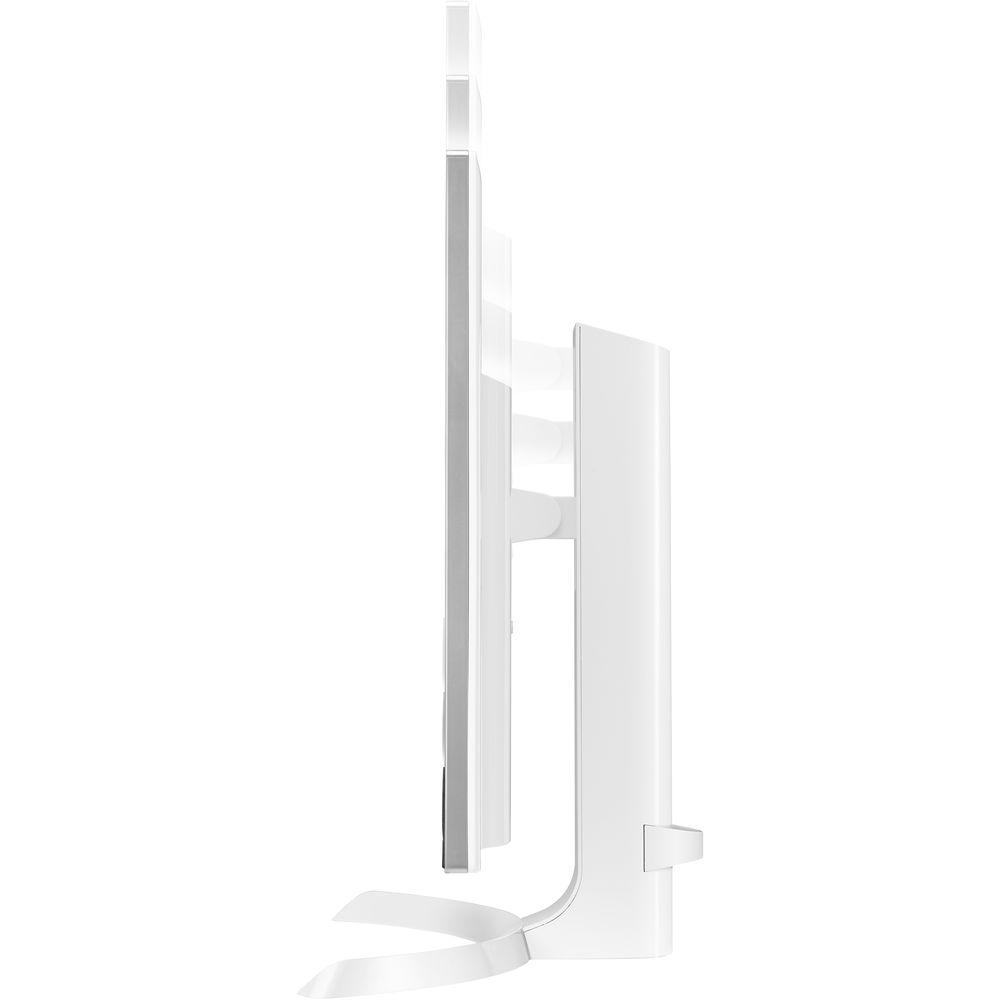

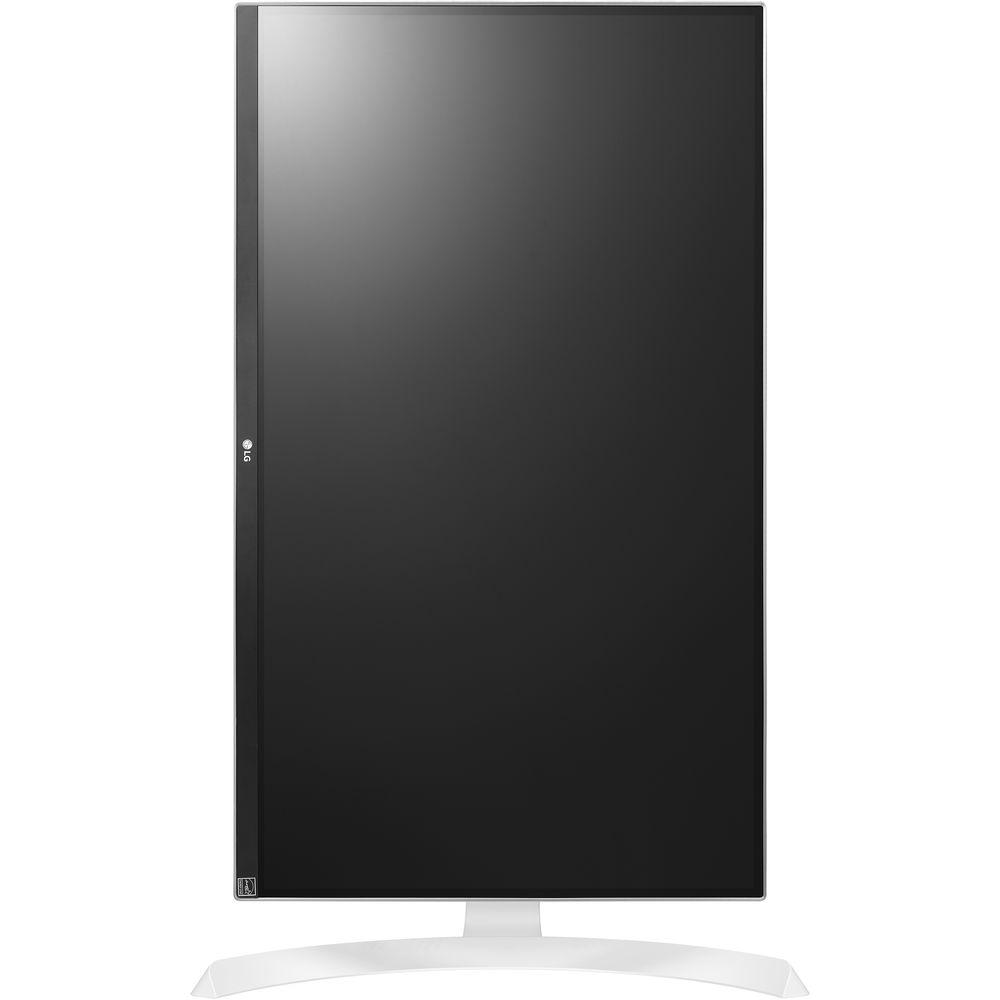

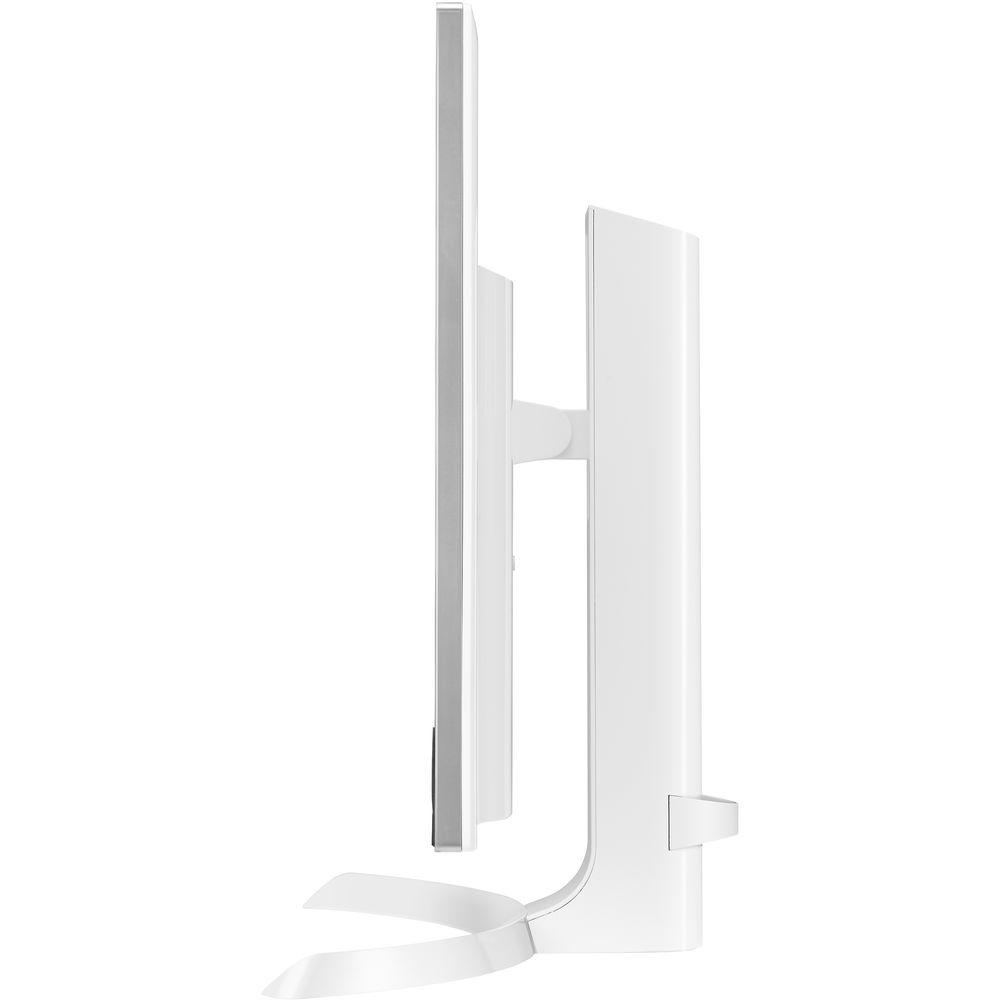

- Height, Tilt, and Pivot Adjustable
- This LG monitor is easy to put together with a simple press-and-click display-to-base attachment. The monitor provides comfortable viewing with versatile screen tilt, height, and pivot adjustments.
- AMD FreeSync
- With FreeSync, gamers can experience seamless, fluid movement throughout hi-res, fast-paced games. FreeSync virtually eliminates screen tearing and stuttering.
- Black Stabilizer
- Keep visibility even in dark scenes. LG's Black Stabilizer senses dark scenes and helps make it brighter so that you can find the enemies hiding and waiting to attack your player in the dark.
- Dynamic Action Sync
- Minimize input lag with Dynamic Action Sync so you can catch every single moment in real-time.
- On-Screen Control
- On-Screen Control puts a host of monitor settings into a handy window for quick, easy access. Volume, brightness, picture mode presets, Screen Split 2.0, Dual Controller, and more can now be adjusted with just a few clicks of the mouse.
- Screen Split
- Customize your monitor layout for multitasking with LG Screen Split. Resize and display multiple windows at once, with 14 options including four different picture-in-picture (PIP) choices.
UPC: 719192609129 In the Box LG 27UD69P-W 27" 16:9 Ultra HD IPS Gaming Monitor Power Cord HDMI Cable DisplayPort Cable Limited 1-Year Warranty User Manual PDF 5.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 27UD69P-W 27" 16:9 Ultra HD IPS Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 27UD69P-W Specs | | | Size | 27" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 163 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1300:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | FreeSync | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | HDR Compatibility | None | | Color Gamut | 99% sRGB | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.1554 x 0.1554 mm | | | | Connectivity | 2 x HDMI 2.0 Input
1 x DisplayPort 1.2 Input | | HDCP Support | Yes, Version 2.2 | | Built-In Speakers | None | | | | Power Consumption | 29.8 W (Typical)
40 W (Maximum)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | Power Supply | 40 W | | | | Certifications | CE, EPEAT GOLD, FCC, REACH, RoHS, UL, cUL, as per Manufacturer | | | | Height Adjustment | 4.72" / 120 mm | | Swivel Adjustment | None | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 24.2 x 21.2 x 9.3" / 61.5 x 53.8 x 23.6 cm (With Stand)
24.2 x 14.4 x 1.6" / 61.5 x 36.6 x 4.1 cm (Without Stand) | | Weight | 14.1 lb / 6.40 kg (With Stand)
10.1 lb / 4.58 kg (Without Stand) | | | | Package Weight | 20.9 lb | | Box Dimensions (LxWxH) | 32.0 x 18.5 x 7.0" |
