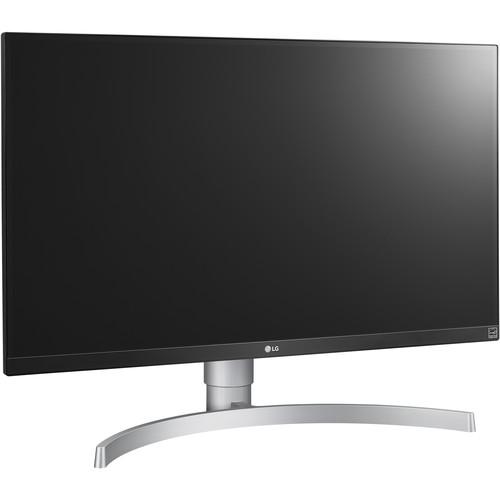

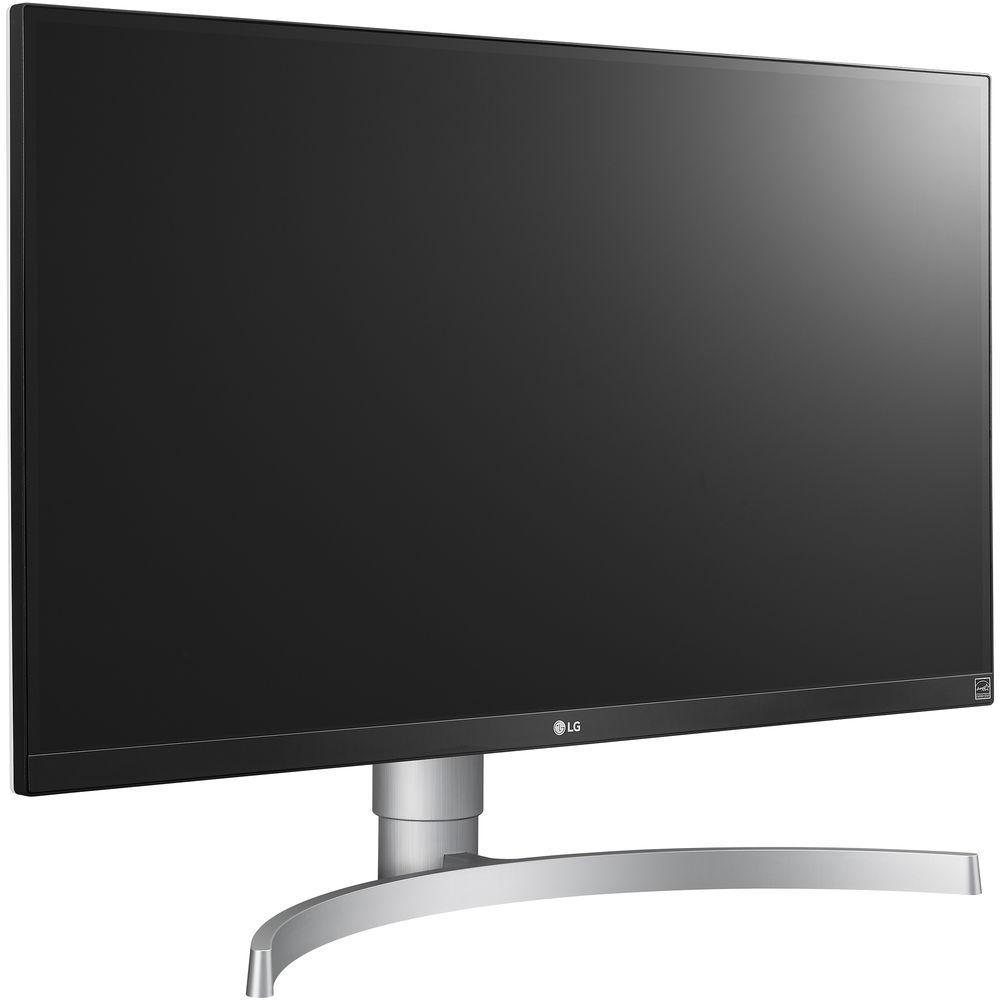

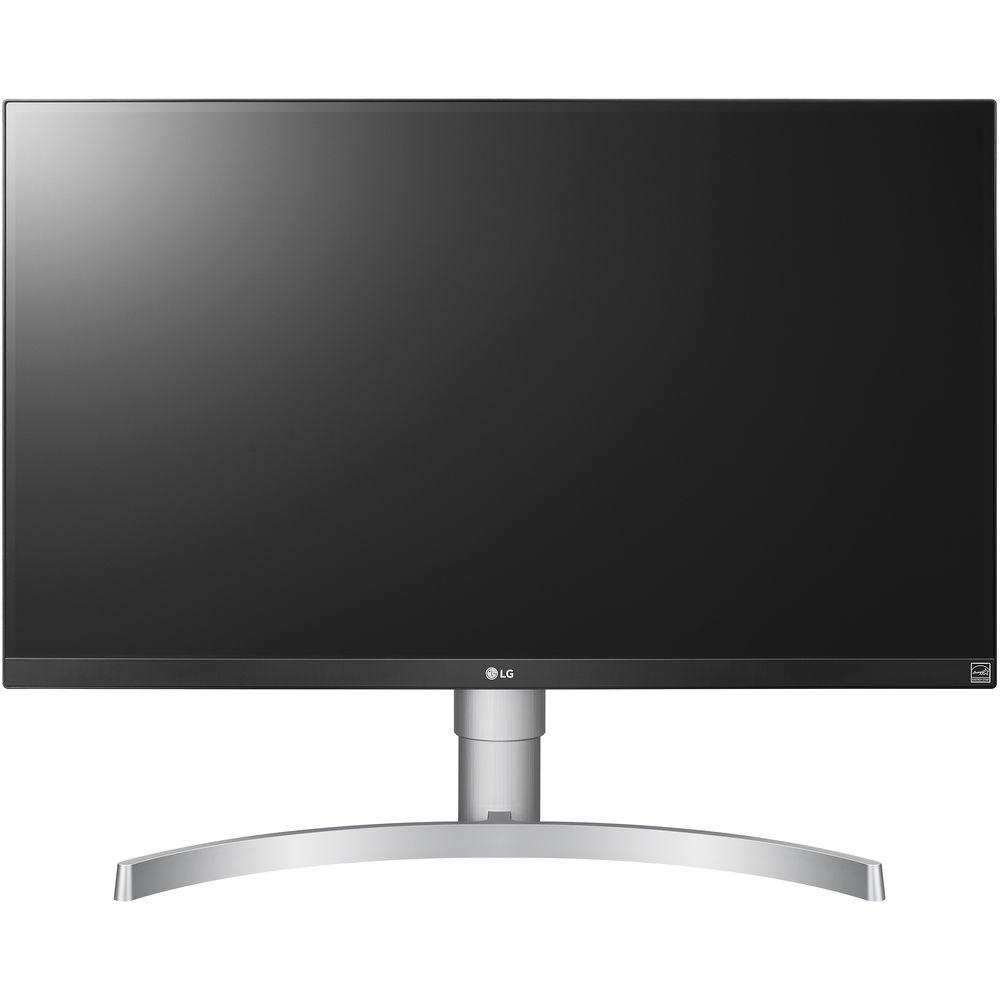

User Manual for LG 27UK650-W 27" 16:9 4K HDR FreeSync IPS Monitor Click to enlarge the picture
Contents of the user manual for the LG 27UK650-W 27" 16:9 4K HDR
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 27UK650-W 27" 16:9 4K HDR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

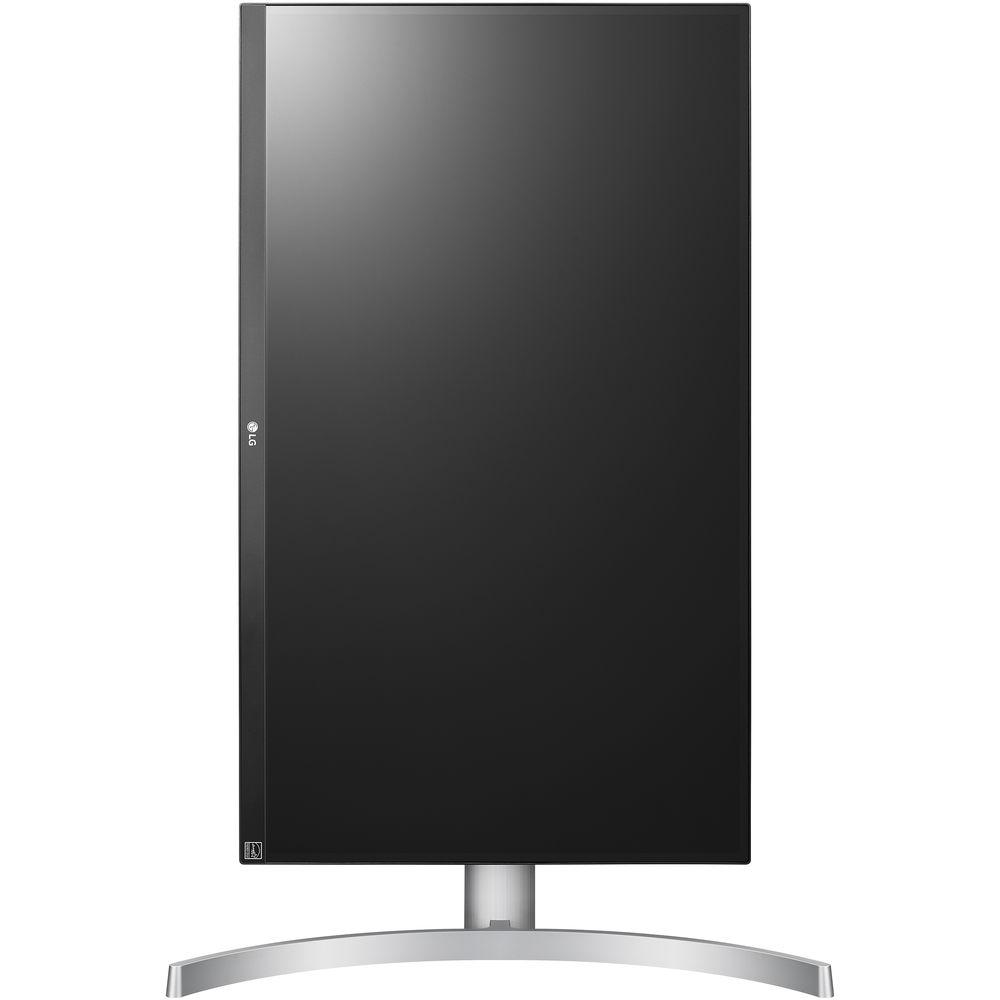

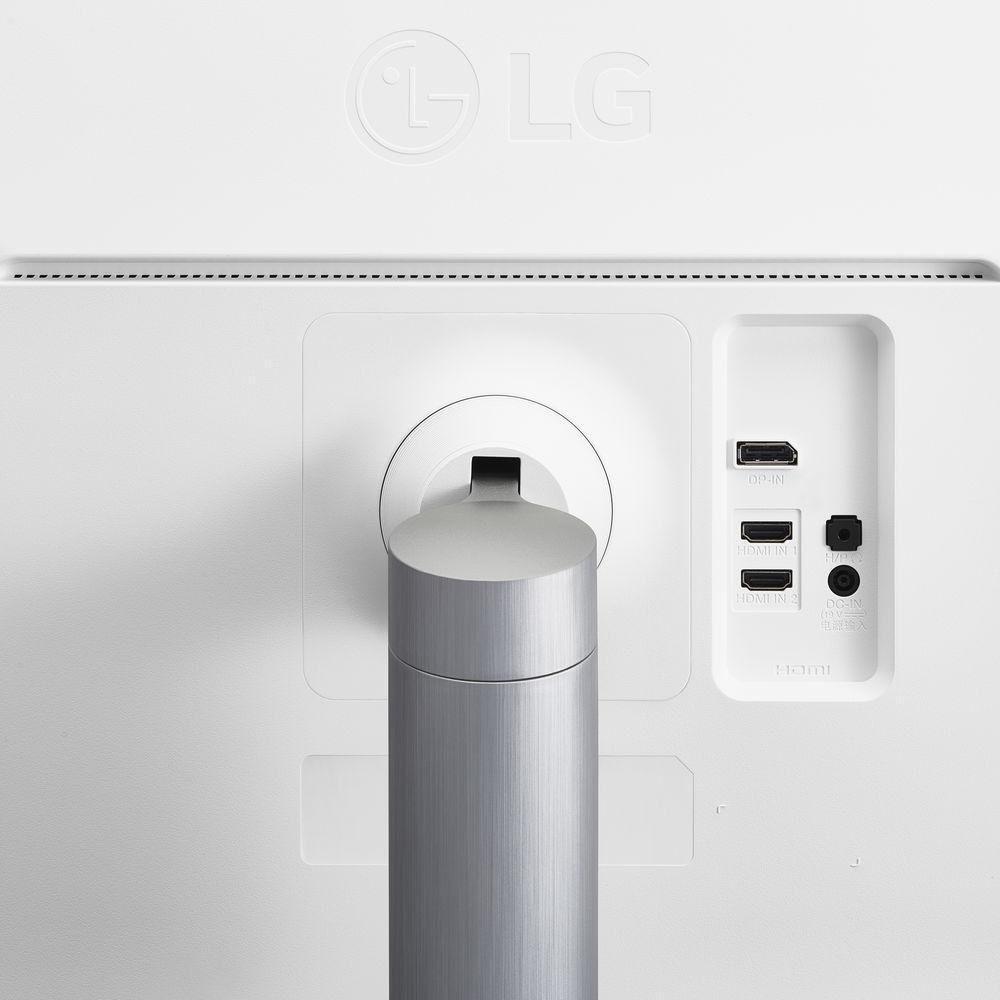

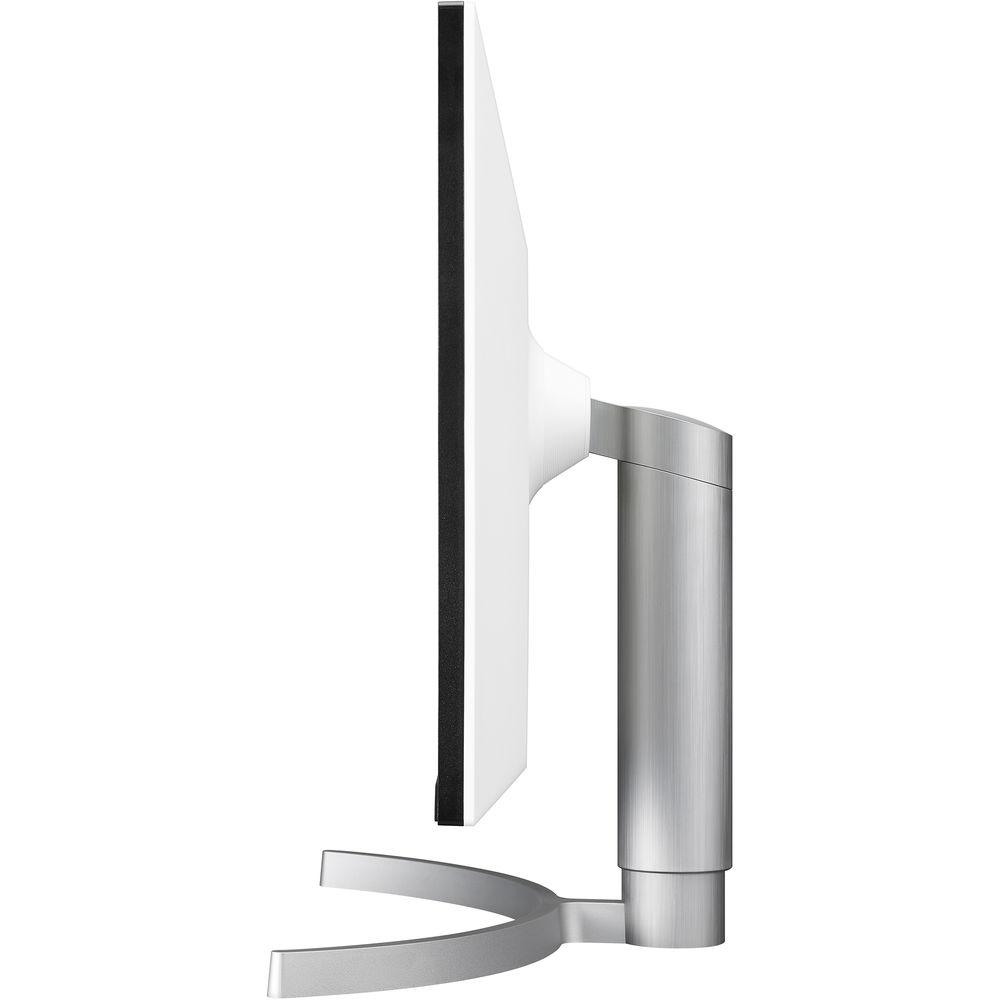

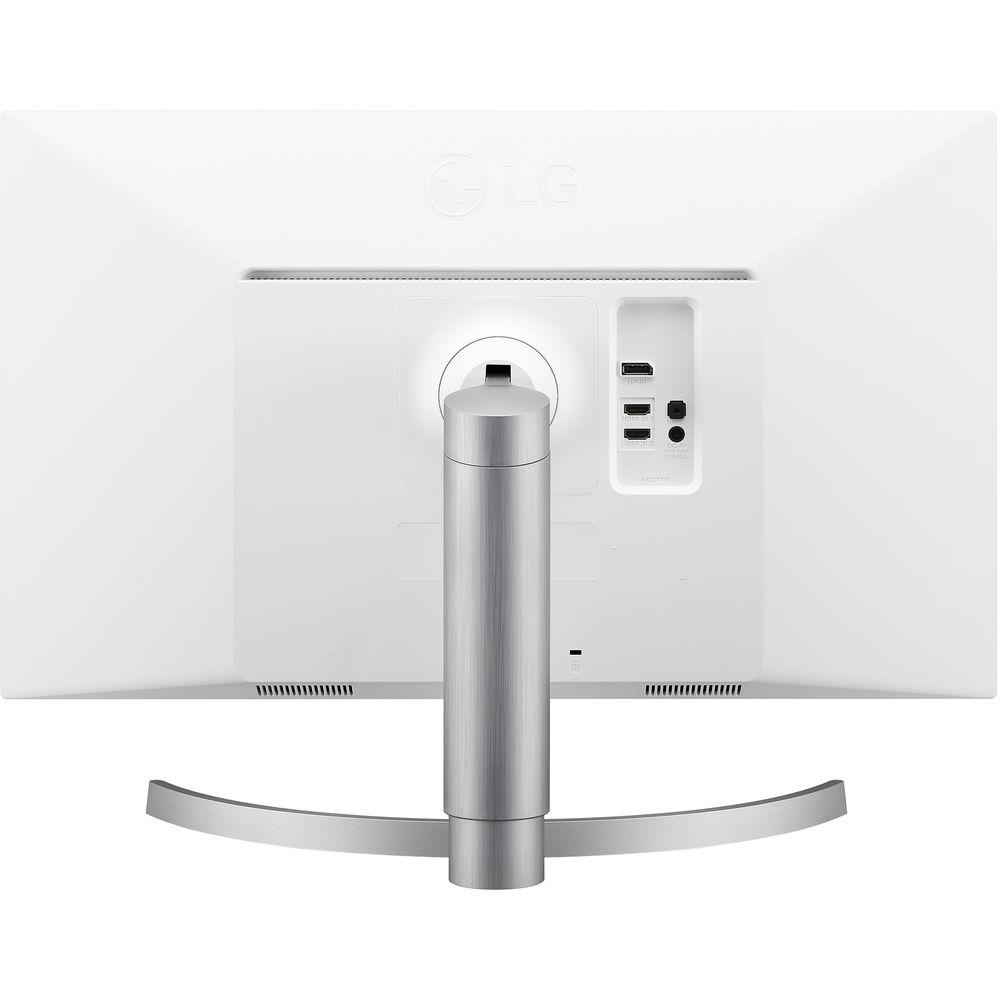

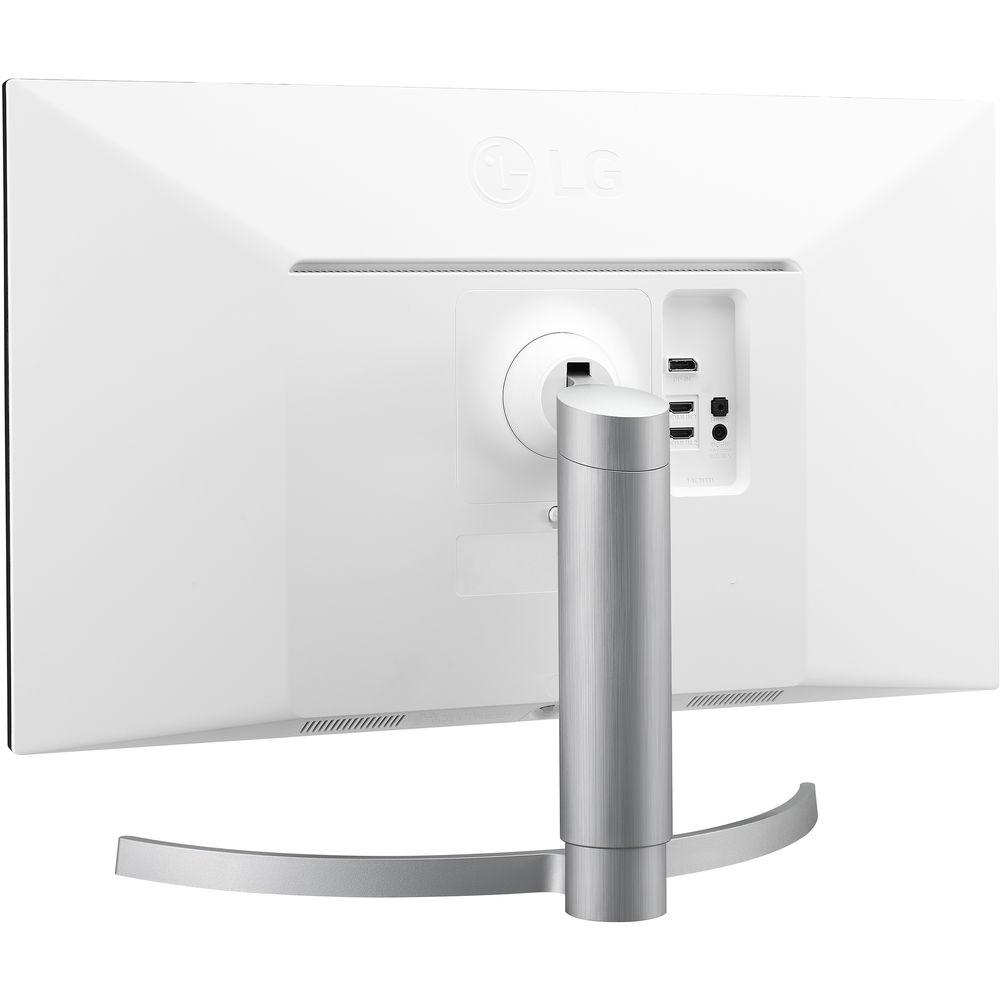

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The 27UK650-W 27" 16:9 4K HDR FreeSync IPS Monitor from LG is packed with plenty of features designed for gamers such as AMD FreeSync, Gaming Profiles, Black Stabilizer, and Dynamic Action Sync. Specs-wise, it has a 3840 x 2160 resolution, a 1000:1 static contrast ratio, a 350 cd/m² brightness rating, a 5 ms response time, and support for 1.07 billion colors. Moreover, it's HDR 10 compatible and features a HDR Effect option to help enhance your non-HDR content with vibrant HDR-like quality. Connect this display to your system via HDMI or DisplayPort and tilt, pivot, and adjust its height to your viewing preference. Otherwise, you can install an optional stand, mount, or arm using the VESA mounting holes on the back - HDR 10 Support & HDR Effect
- This monitor is compatible with the HDR 10 industry standard, supporting specific levels of color and brightness. The HDR Effect setting transform non-HDR content into HDR-like content with its picture quality algorithm.
- sRGB 99%
- Covering 99% of the sRGB color space, this monitor is also ideal for photographers, graphic designers, and anyone else handling color sensitive work.
- AMD FreeSync
- AMD FreeSync technology syncs the display's refresh rate with your graphics card's frame rate output to reduce screen tearing and stuttering for a smoother gaming experience.
- Advanced Gaming Features
-
- Game Modes - Optimized viewing for different application including Custom, HDR Effect, Reader, Photo, Cinema, Color Weakness, FPS1 Game / FPS2 Game, RTS Game, Custom (Game)
- Black Stabilizer - Enhances dark scenes for enhanced detail and clarity
- Dynamic Action Sync - Reduces input lag for more a more fluid gaming experience
- On Screen Control
- Simplify adjusting viewing settings with a handy on-screen window. Use it to adjust the volume, brightness, picture modes, and more with just a few clicks from your mouse.
- Additional Features
- Ratio (Wide, Original, 1:1), DDC/CI, HDCP, Plug-&-Play, Flicker Safe, SIX Axis Control, Reader Mode, Dual Controller, Super Resolution+, Black Level, Ergonomic Stand
UPC: 719192617452 In the Box LG 27UK650-W 27" 16:9 4K HDR FreeSync IPS Monitor Power Cable DisplayPort Cable HDMI Cable Limited 1-Year Warranty User Manual PDF 7.4mbfyefeevcsx Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 27UK650-W 27" 16:9 4K HDR FreeSync IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 27UK650-W Specs | | | Size | 27" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 163 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | FreeSync | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | HDR Compatibility | HDR10 | | Color Gamut | 99% sRGB | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 2 x HDMI 2.0
1 x DisplayPort 1.2
1 x 3.5 mm Output | | HDCP Support | Yes, Version 2.2 | | Built-In Speakers | None | | | | Power Consumption | 32 W (Eco)
45 W (Typical)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | Power Supply | 48 W | | | | Certifications | CE, EPEAT GOLD, FCC, REACH, RoHS, TUV, UL, VCCI, cUL, as per Manufacturer | | | | Height Adjustment | 4.33" / 110 mm | | Rotation Adjustment | 90° | | Swivel Adjustment | None | | Tilt Adjustment | -5 to 15° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | No | | Dimensions (W x H x D) | 24.1 x 22.3 x 9.1" / 612.1 x 566.4 x 231.1 mm (With Stand)
24.1 x 14.5 x 1.8" / 612.1 x 368.3 x 45.7 mm (Without Stand) | | Weight | 13.7 lb / 6.21 kg (With Stand)
10.1 lb / 4.58 kg (Without Stand) | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 27.0 x 19.5 x 8.0" |
