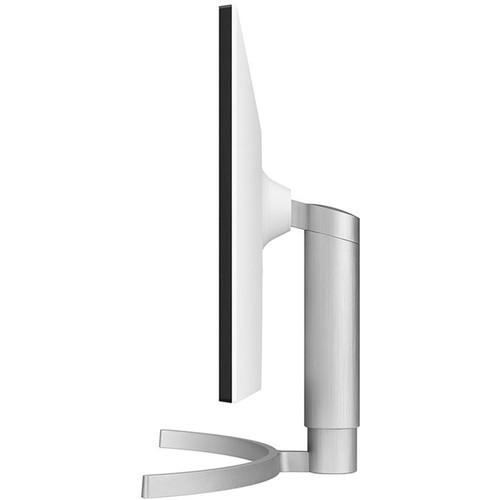

User Manual for LG 27UL550-W 27" 16:9 4K HDR FreeSync IPS Gaming Monitor Click to enlarge the picture
Contents of the user manual for the LG 27UL550-W 27" 16:9 4K HDR
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 27UL550-W 27" 16:9 4K HDR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

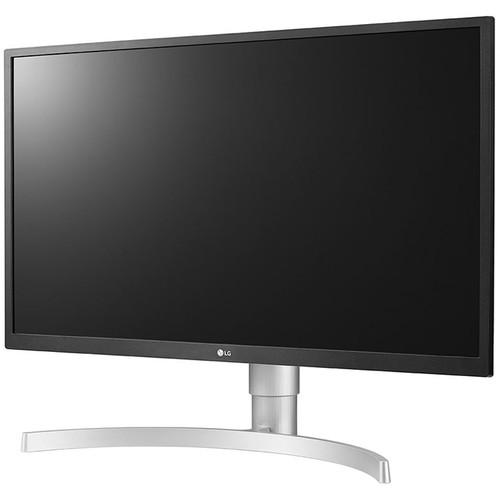

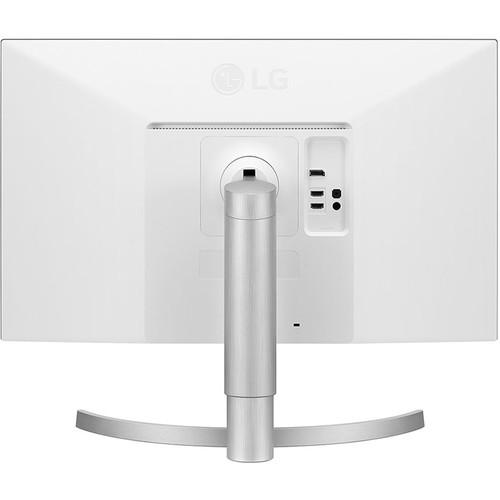

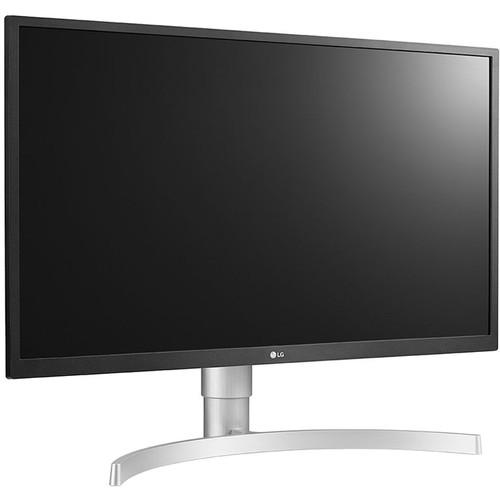

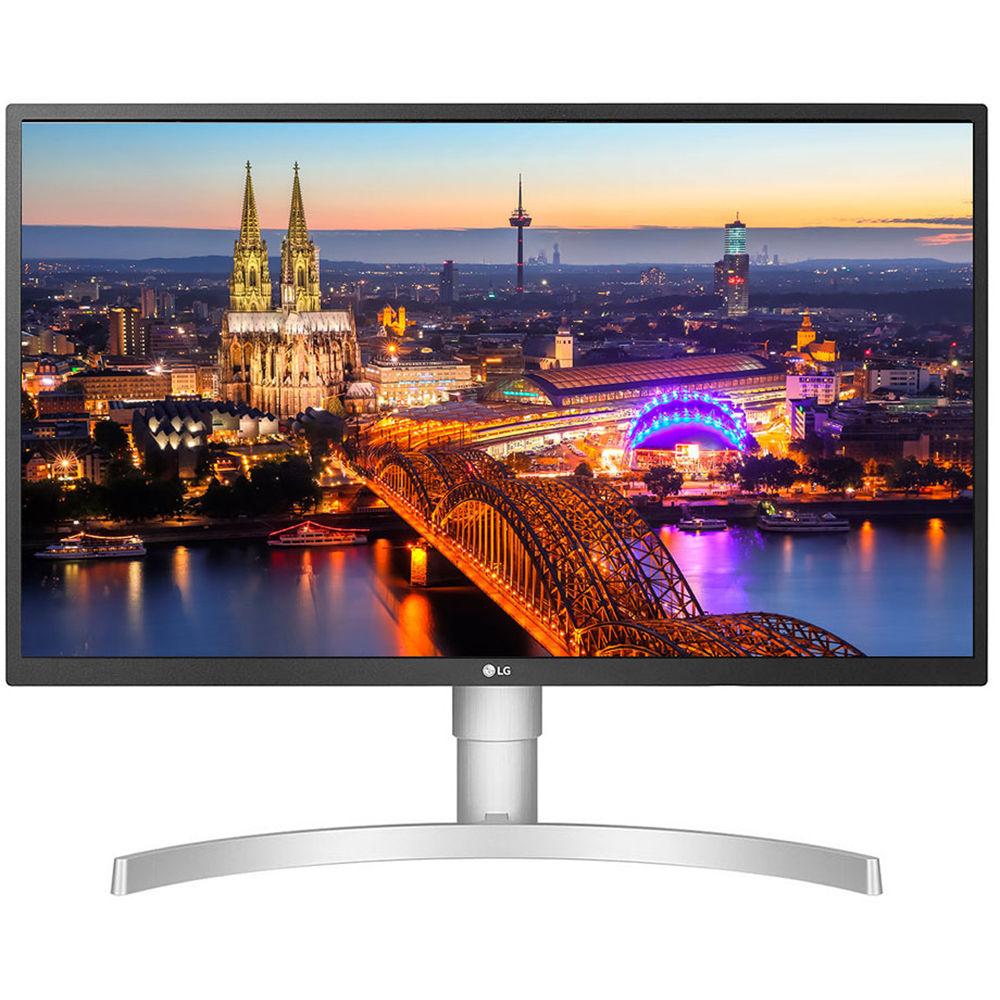

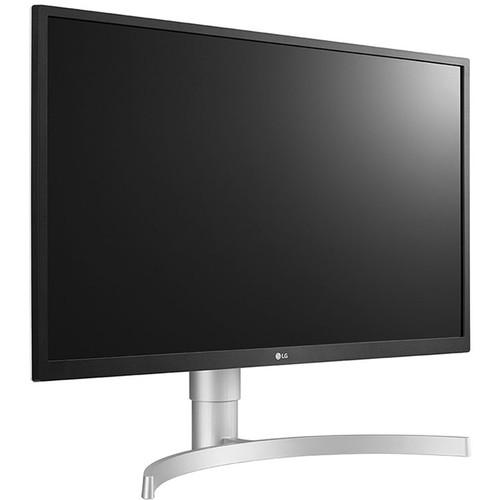

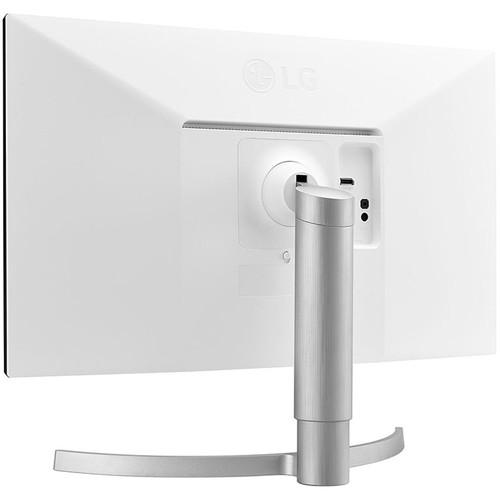

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The 27UL550-W 27" 16:9 4K HDR FreeSync IPS Gaming Monitor from LG is built with an IPS (In-Plane Switching) panel, which provides you with wide viewing angles and vivid colors. Furthermore, it comes color-calibrated from the factory to ensure colors are accurate. Specs-wise, it has a 3840 x 2160 4K UHD resolution, a 1000:1 static contrast ratio, a 300 cd/m² brightness rating, and support for up to 1.07 billion colors. Thanks to AMD Radeon FreeSync technology, which helps to reduce screen tearing, stuttering, and ghosting, you'll be able to enjoy a fluid gaming experience. Connect it to your system via HDMI or DisplayPort and adjust its versatile stand to best suit your viewing preference. You can also install an optional VESA-compatible mount, stand, or arm if needed. - AMD Radeon FreeSync
- AMD Radeon FreeSync technology syncs the display's refresh rate with your graphics card's frame rate output to reduce screen tearing, stuttering, and ghosting for a smoother gaming experience.
- Customized Modes
- Customized game modes provides you with optimized viewing settings for FPS and RTS games. You can also set up your own profile as needed.
- Dynamic Action Sync
- Dynamic Action Sync minimizes input lag for fluid and responsive actions.
- Black Stabilizer
- Black Stabilizer optimizes dark scenes for better visibility, allowing you to spot enemies that may be waiting for you.
- OnScreen Control
- Instead of fiddling with hardware buttons, you can use the OnScreen Control software to adjust your monitor settings with just a few clicks.
- Color Calibrated
- This display comes color-calibrated right from the factory to help maintain accurate colors.
- HDCP 2.2
- This monitor is HDCP 2.2 compatible, so it can display video from 4K streaming services, gaming consoles, and Ultra HD Blu-ray players.
UPC: 719192629820 In the Box LG 27UL550-W 27" 16:9 4K HDR FreeSync IPS Gaming Monitor Power Cable HDMI Cable DisplayPort Cable Limited 1-Year Warranty User Manual PDF 2.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 27UL550-W 27" 16:9 4K HDR FreeSync IPS Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 27UL550-W Specs | | | Size | 27" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 163 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | FreeSync | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | HDR Compatibility | HDR10 | | Color Gamut | 98% sRGB
98% CIE1931 | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.1554 x 0.1554 mm | | | | Connectivity | 2 x HDMI
1 x DisplayPort 1.4
1 x 3.5 mm Output | | HDCP Support | Yes, Version 2.2 | | Built-In Speakers | None | | | | Power Consumption | 36 W (Typical)
41 W (Maximum)
26 W (Eco)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | | | Height Adjustment | 4.33" / 110 mm | | Rotation Adjustment | 90° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 24.5 x 22.5 x 9.1" / 622.6 x 572.2 x 230.0 mm (With Stand)
24.5 x 14.6 x 1.8" / 622.6 x 371.0 x 45.8 mm (Without Stand) | | Weight | 13.23 lb / 6 kg (With Stand)
9.70 lb / 4.4 kg (Without Stand) | | | | Package Weight | 19.1 lb | | Box Dimensions (LxWxH) | 27.5 x 20.0 x 7.5" |
