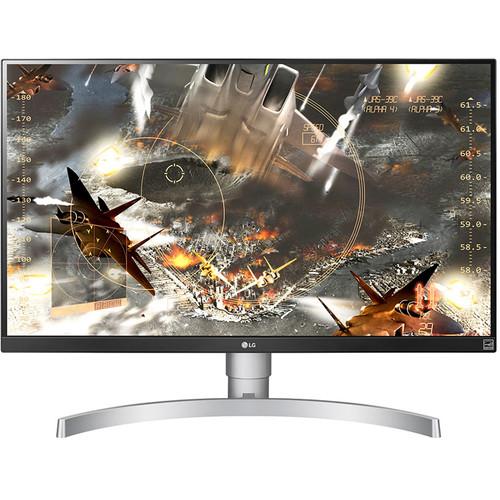

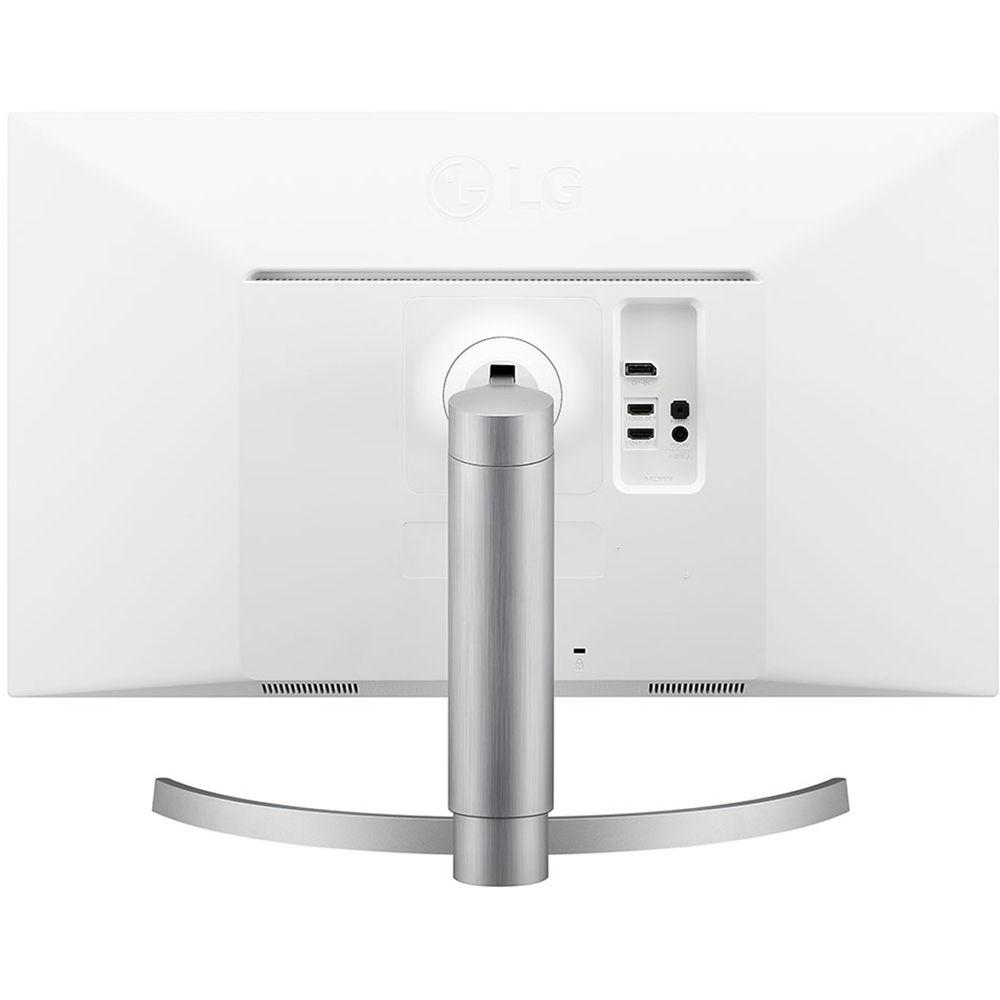

User Manual for LG 27UL650-W 27" 16:9 4K HDR FreeSync IPS Gaming Monitor Click to enlarge the picture
Contents of the user manual for the LG 27UL650-W 27" 16:9 4K HDR
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 27UL650-W 27" 16:9 4K HDR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

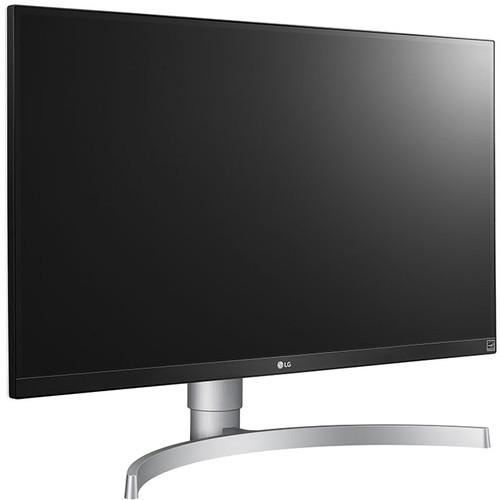

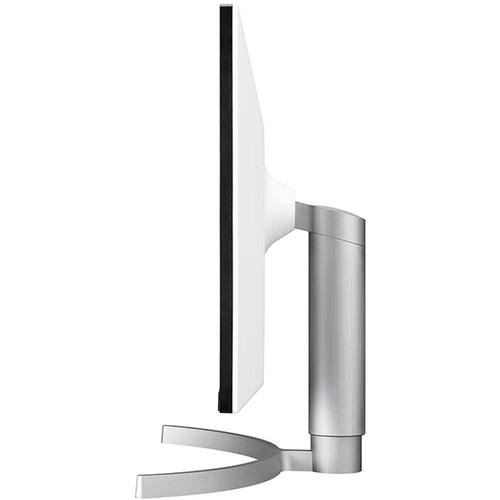

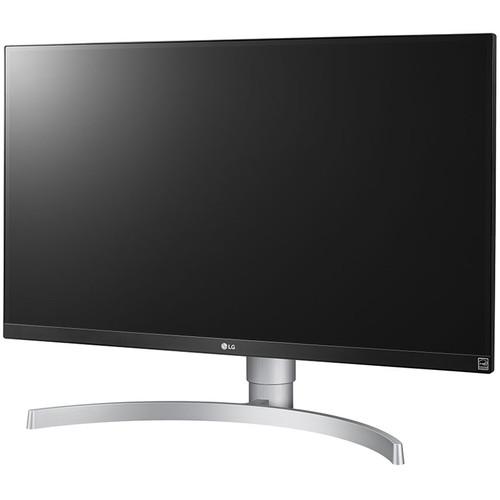

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The 27UL650-W 27" 16:9 4K HDR FreeSync IPS Gaming Monitor provides you with a detailed and vivid viewing experience whether you're watching movies or playing games. Its IPS (In-Plane Switching) panel features a 3840 x 2160 4K UHD resolution, a 350 cd/m² brightness rating, a 1000:1 static contrast ratio, and support for up to 1.07 billion colors. Combined with HDR10 support, 99% sRGB coverage, and a DisplayHDR 400 certification, this monitor can also be used for color-sensitive work. Gaming-wise, it's AMD FreeSync-compatible and features many help add-ons such as Game Mode, Dynamic Action Sync, and Black Stabilizer. Once it's connected to your system via HDMI or DisplayPort, you can tilt, pivot, and adjust its height to your viewing preference. Otherwise, you can install an optional VESA stand, mount, or arm if needed. - AMD FreeSync
- AMD FreeSync technology syncs the display's refresh rate with your graphics card's frame rate output to reduce screen tearing, stuttering, and ghosting for a smoother gaming experience.
- DisplayHDR 400
- This display is DisplayHDR 400 certified for a max brightness rating of 400 cd/m². Moreover, it supports the HDR10 standard for a bolder contrast between bright and dark colors.
- IPS with 99% sRGB
- Built with an IPS panel, this monitor covers 99% of the sRGB color gamut, which is ideal for users handling color-sensitive content.
- HDCP 2.2
- This monitor is HDCP 2.2 compatible, so it can display video from 4K streaming services, game consoles, and Ultra HD Blue-ray disc players.

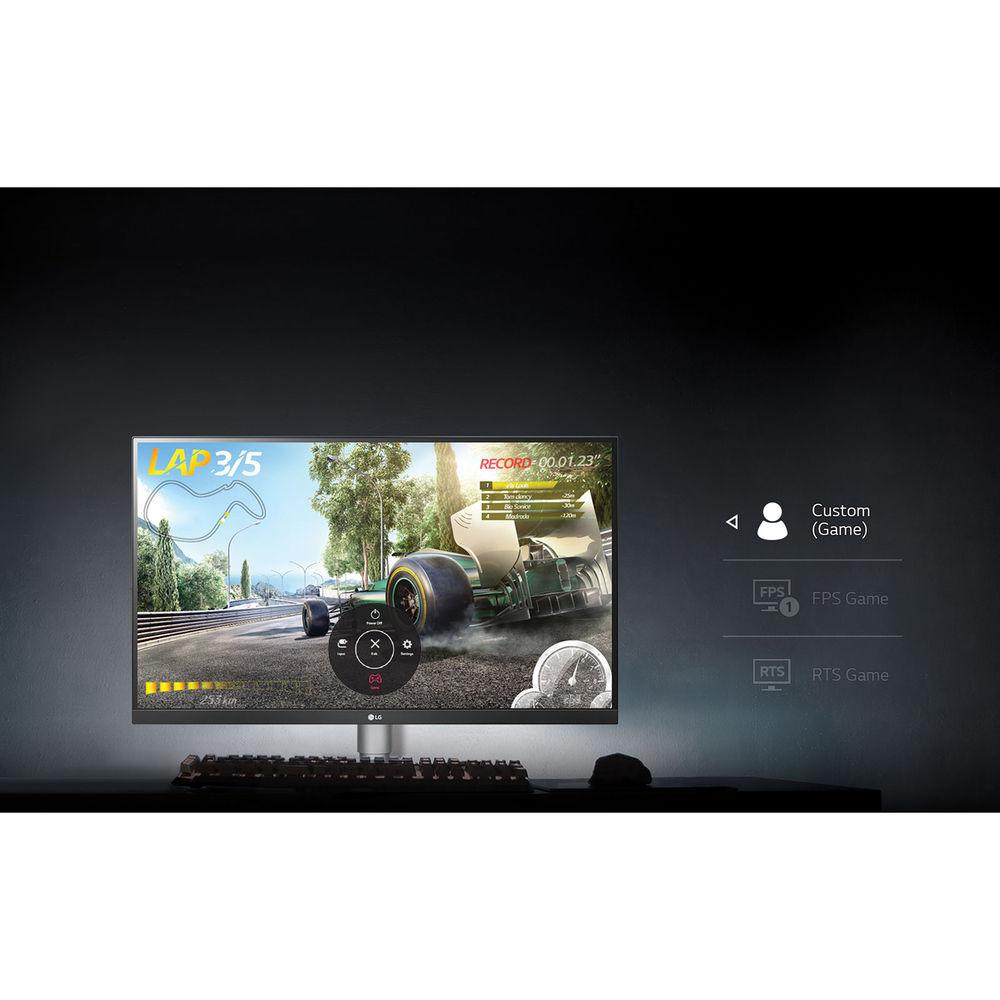

- Game Mode
- Game Mode provides you with game-optimized viewing modes to best fit your current genre.
- Dynamic Action Sync
- Dynamic Action Sync helps to reduce input lag so actions feel more fluid and responsive.
- Black Stabilizer
- Black Stabilizer optimizes dark scenes for better visibility, allowing you to spot enemies that may be waiting for you in the dark.
- Eye Care
- Flicker Safe and Reader Mode help to reduce eyestrain and fatigue from extended viewing periods.
- Additional Features
-
- Color Weakness
- Smart Energy Saving
- Super Resolution +
- H/W Calibration (True Color Pro)
- Color Calibrated
- On Screen Control
UPC: 719192625648 In the Box LG 27UL650-W 27" 16:9 4K HDR FreeSync IPS Gaming Monitor DisplayPort Cable HDMI Cable Power Cable Limited 1-Year Warranty User Manual PDF 2.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 27UL650-W 27" 16:9 4K HDR FreeSync IPS Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 27UL650-W Specs | | | Size | 27" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 163 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | FreeSync | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | HDR Compatibility | HDR10 | | Color Gamut | 99% sRGB
99% CIE1931 | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°

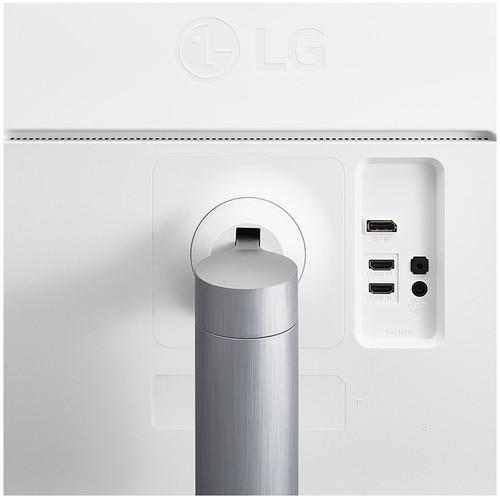

Vertical: 178° | | Dot Pitch | 0.1554 x 0.1554 mm | | | | Connectivity | 2 x HDMI
1 x DisplayPort
1 x 3.5 mm Output | | HDCP Support | Yes, Version 2.2 | | Built-In Speakers | None | | | | Power Consumption | 36 W (Typical)
43 W (Maximum)
22 W (Eco)

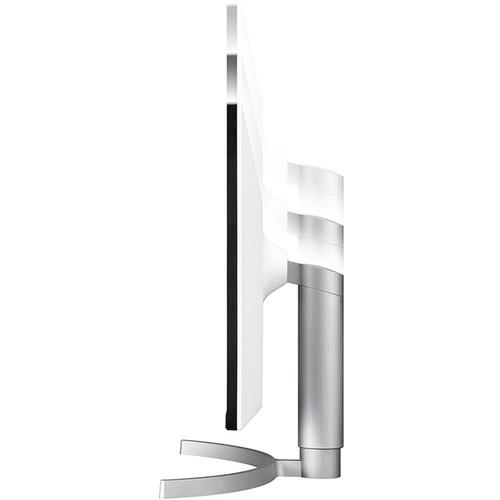

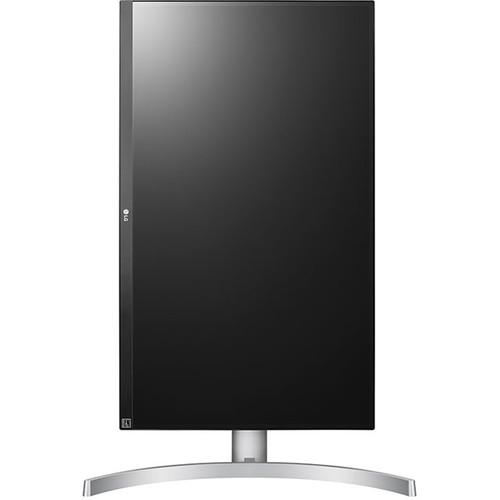

0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | | | Height Adjustment | 4.3" / 109.22 mm | | Rotation Adjustment | 90° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 24.1 x 22.3 x 9.1" / 612.1 x 566.4 x 231.1 mm (With Stand)
24.1 x 14.4 x 1.8" / 612.1 x 365.8 x 45.7 mm (Without Stand) | | Weight | 13.7 lb / 6.21 kg (With Stand)
10.1 lb / 4.58 kg (With Stand) | | | | Package Weight | 19.685 lb | | Box Dimensions (LxWxH) | 27.2 x 19.7 x 8.3" |
