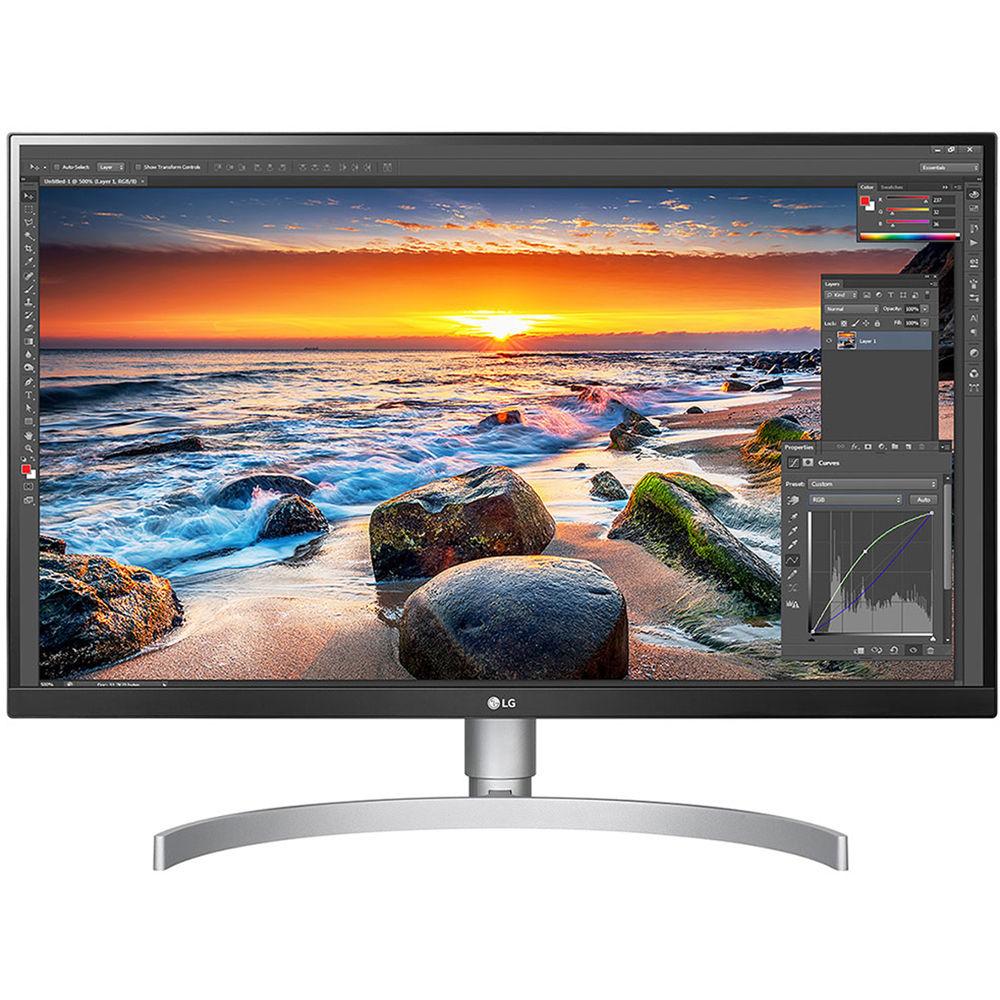

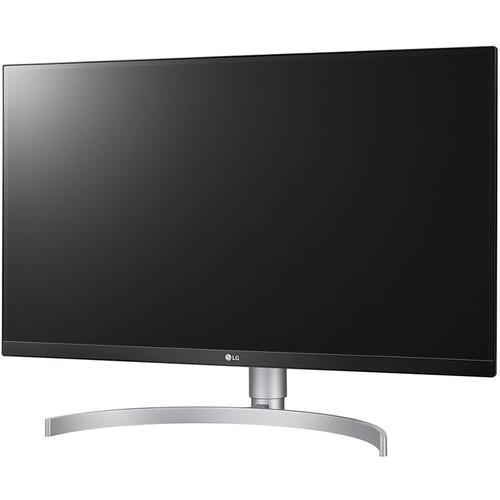

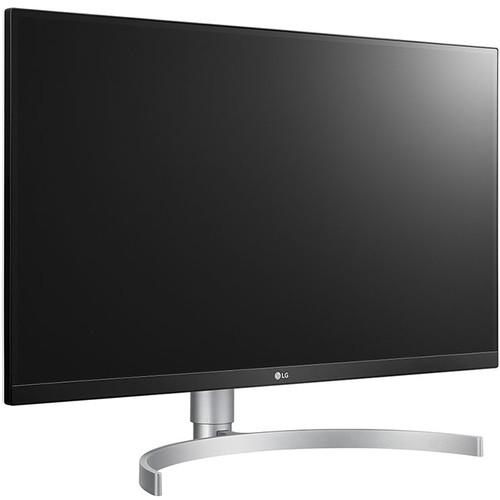

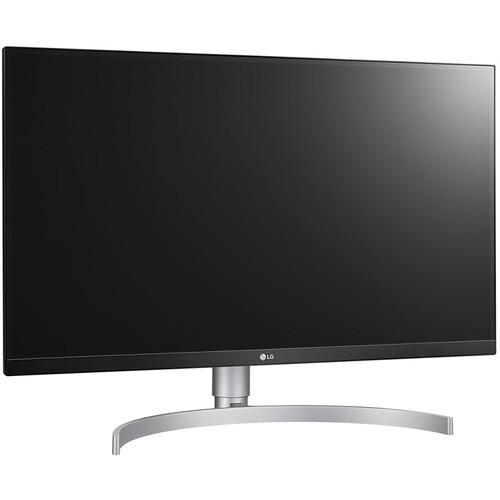

User Manual for LG 27UL850-W 27" 16:9 4K FreeSync IPS Gaming Monitor Click to enlarge the picture
Contents of the user manual for the LG 27UL850-W 27" 16:9 4K FreeSync
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 27UL850-W 27" 16:9 4K FreeSync contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

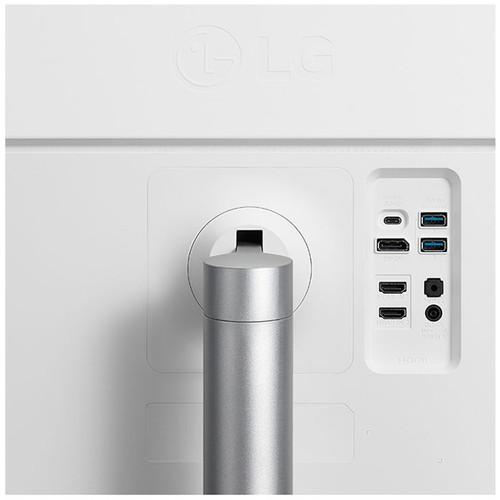

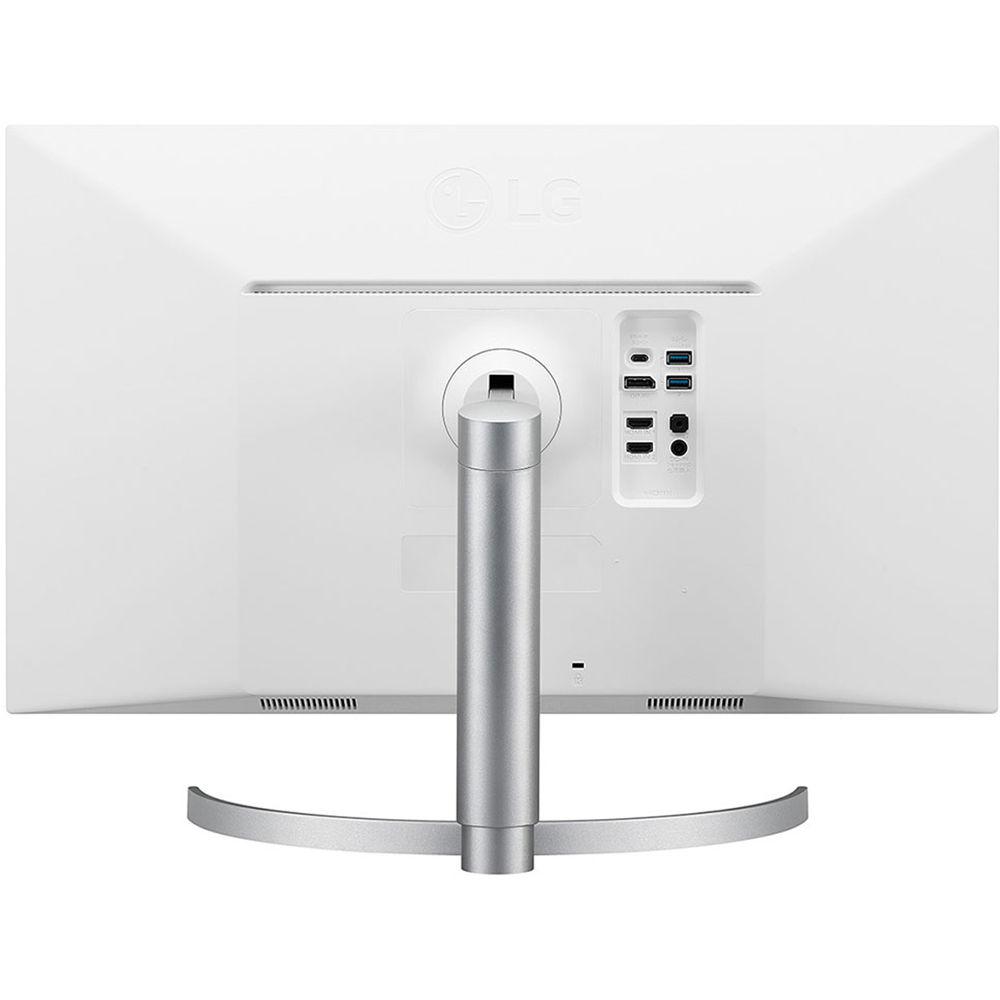

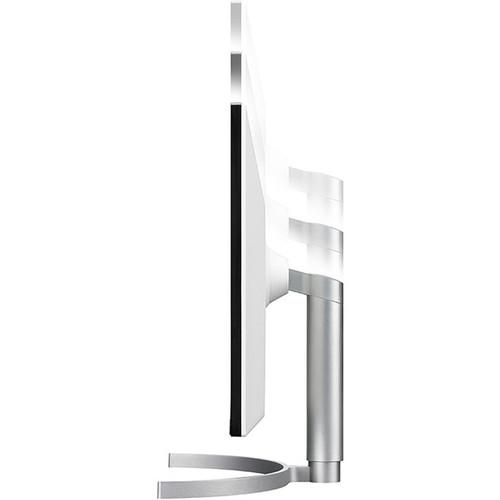

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The 27UL850-W 27" 16:9 4K FreeSync IPS Gaming Monitor from LG has multiple features to improve your gaming experience including AMD FreeSync and a 5 ms response time. Specs-wise, it's built with an In-Plane Switching (IPS) panel, which has a 3840 x 2160 4K UHD resolution, a 1000:1 static contrast ratio, a typical brightness rating of 350 cd/m², and support for 1.07 billion colors. With these combined, this display offers crisp details and vivid colors, even at wide viewing angles. Thank to 99% sRGB coverage, it can also be used for color-sensitive tasks. Once it's connected to your system via HDMI, DisplayPort, or USB Type-C, you can adjust its versatile stand to best fit your viewing preference. If needed, you can also install an optional VESA-compatible stand, mount, or arm - AMD FreeSync
- AMD FreeSync technology syncs your display's refresh rate with your graphics card's frame rate output to reduce screen tearing, stuttering, and ghosting for a smoother gaming experience.
- DisplayHDR 400
- This monitor is DisplayHDR 400 certified for a maximum brightness value of 400 cd/m², offering vivid colors with a more distinct contrast between bright and dark areas.
- IPS with 99% sRGB
- Covering 99% of the sRGB color space, this monitor can be used by professionals working with color-sensitive content.
- HDCP 2.2 Compatible
- With HDCP 2.2 compatibility, this monitor can be used with 4K streaming services, game consoles, and Ultra HD Blu-ray players.
- USB Type-C
- The USB Type-C port supports simultaneous 4K video display, data transfer, and laptop/mobile device charging over a single cable.
- Game Mode
- Select from a variety of game-optimized viewing modes or set up your own. In addition, there are helpful features such as an onscreen crosshair, brightness adjustments, and more.
- On-Screen Control
- Instead of fiddling with hardware buttons, you can easily adjust your monitor settings using an on-screen window.
- HDR10
- This monitor supports HDR10, an industry standard for High Dynamic Range, which takes advantage of the wide-gamut 10-bit color space to provide you with vivid images.
- Black Stabilizer
- Black Stabilizer optimizes dark scenes for better visibility, so you'll be able to spot enemies that may be waiting for you in the dark.
- Dynamic Action Sync
- Dynamic Action Sync helps to lower input lag, so your movements will feel more fluid and responsive.
- Additional Features
-
- Color Weakness
- Flicker Safe
- Smart Energy Saving
- Reader Mode
- Super Resolution +
- H/W Calibration (True Color Pro)
- Color Calibrated
UPC: 719192625655 In the Box LG 27UL850-W 27" 16:9 4K FreeSync IPS Gaming Monitor DisplayPort Cable HDMI Cable USB Type-C Cable Power Cable Limited 1-Year Warranty User Manual PDF 2.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 27UL850-W 27" 16:9 4K FreeSync IPS Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 27UL850-W Specs | | | Size | 27" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 163 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | FreeSync | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | HDR Compatibility | HDR10 | | Color Gamut | 99% sRGB
99% CIE1931 | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.1554 x 0.1554 mm | | | | Connectivity | 2 x HDMI
1 x DisplayPort
1 x USB Type-C
2 x USB Type-A (USB 3.1 Gen 1)
1 x 3.5 mm Output | | HDCP Support | Yes, Version 2.2 | | Built-In Speakers | Yes, 2 x 5 W | | | | Power Consumption | 40 W (Typical)
25.2 W (Eco)
130 W (Maximum)

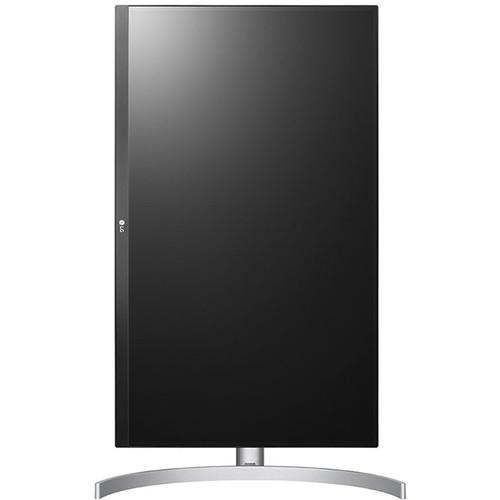

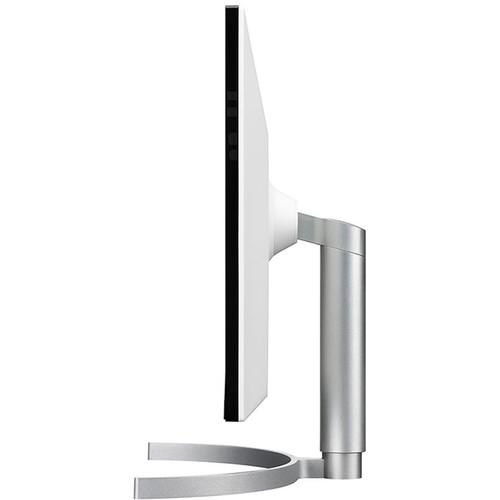

0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | USB Power Delivery | 60 W (via USB Type-C) | | | | Height Adjustment | 4.3" / 109.22 mm | | Rotation Adjustment | 90° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 24.1 x 22.0 x 9.2" / 612.1 x 558.8 x 233.7 mm (With Stand)
24.1 x 14.4 x 1.8" / 612.1 x 365.8 x 45.7 mm (Without Stand) | | Weight | 13.5 lb / 6.12 kg (With Stand)
10.6 lb / 4.81 kg (Without Stand) | | | | Package Weight | 20.3 lb | | Box Dimensions (LxWxH) | 27.0 x 19.0 x 7.8" |
