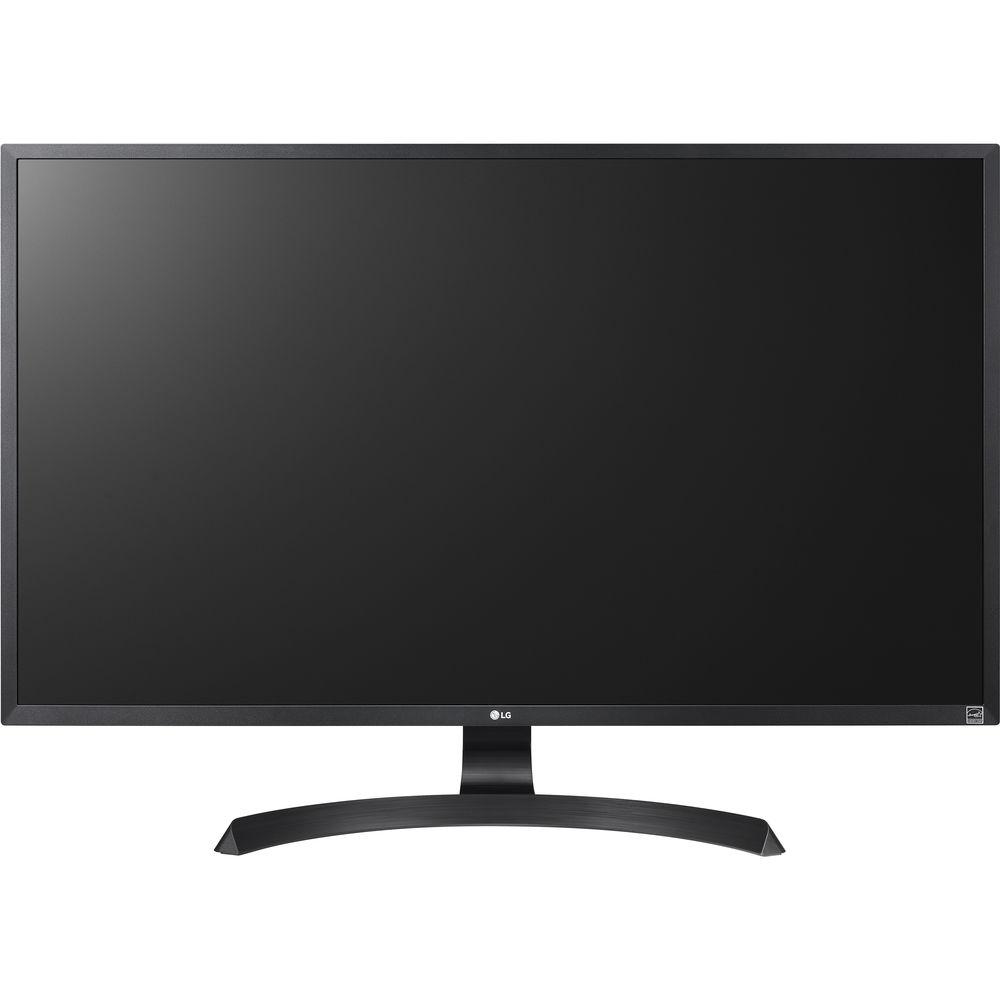

User Manual for LG 32MU59-B 32" 16:9 LCD Monitor Click to enlarge the picture
Contents of the user manual for the LG 32MU59-B 32" 16:9 LCD Monitor
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 32MU59-B 32" 16:9 LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

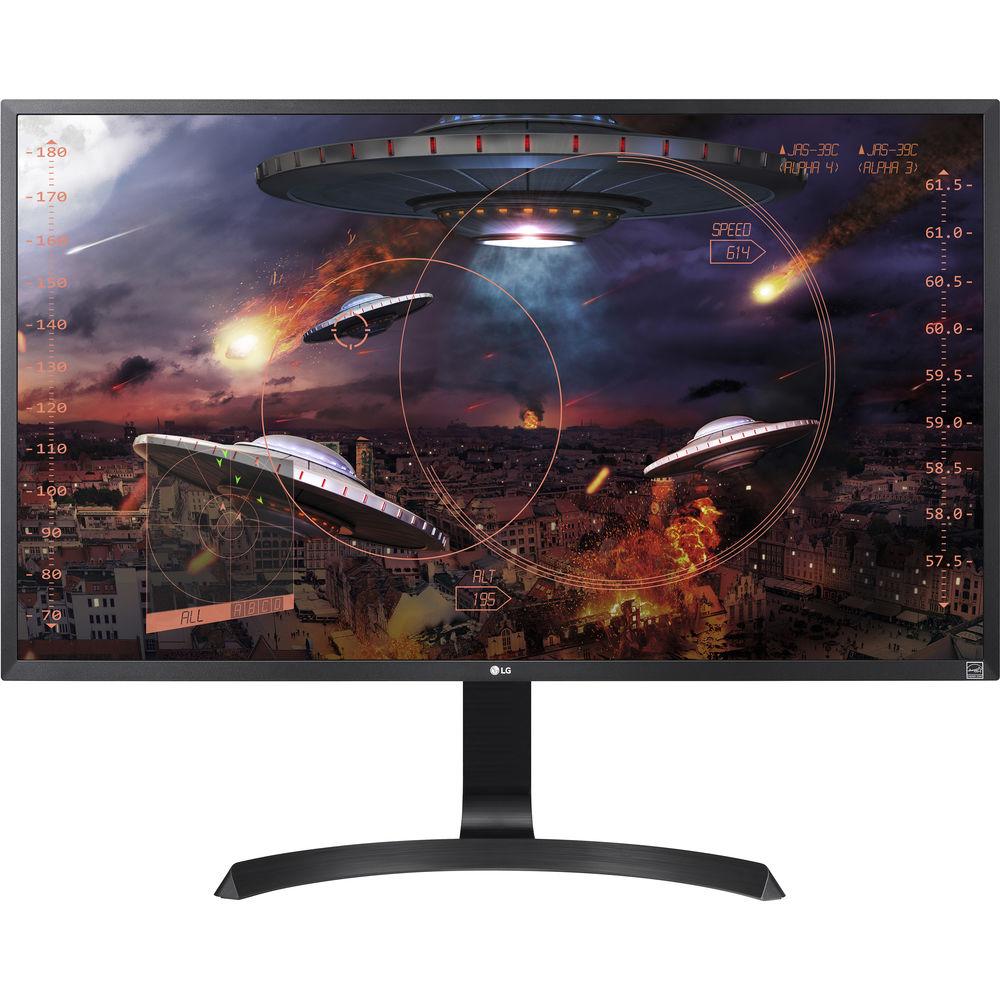

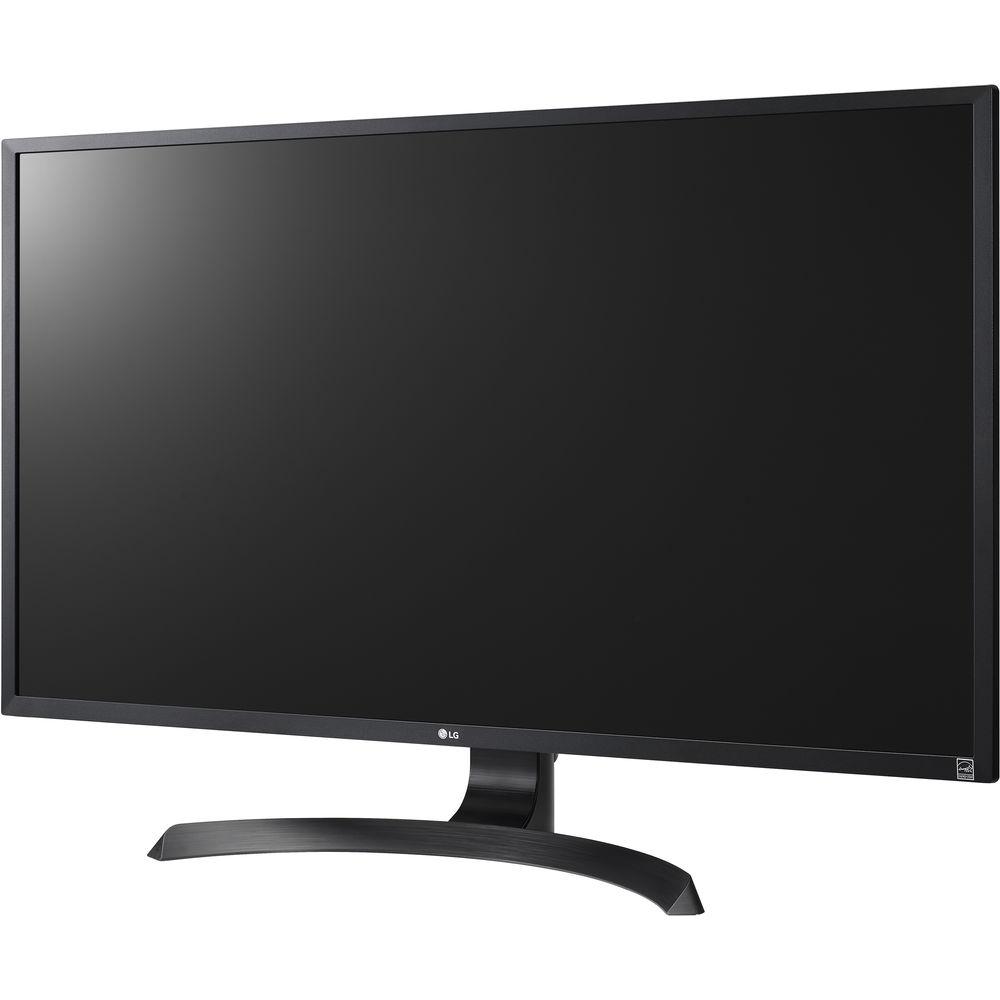

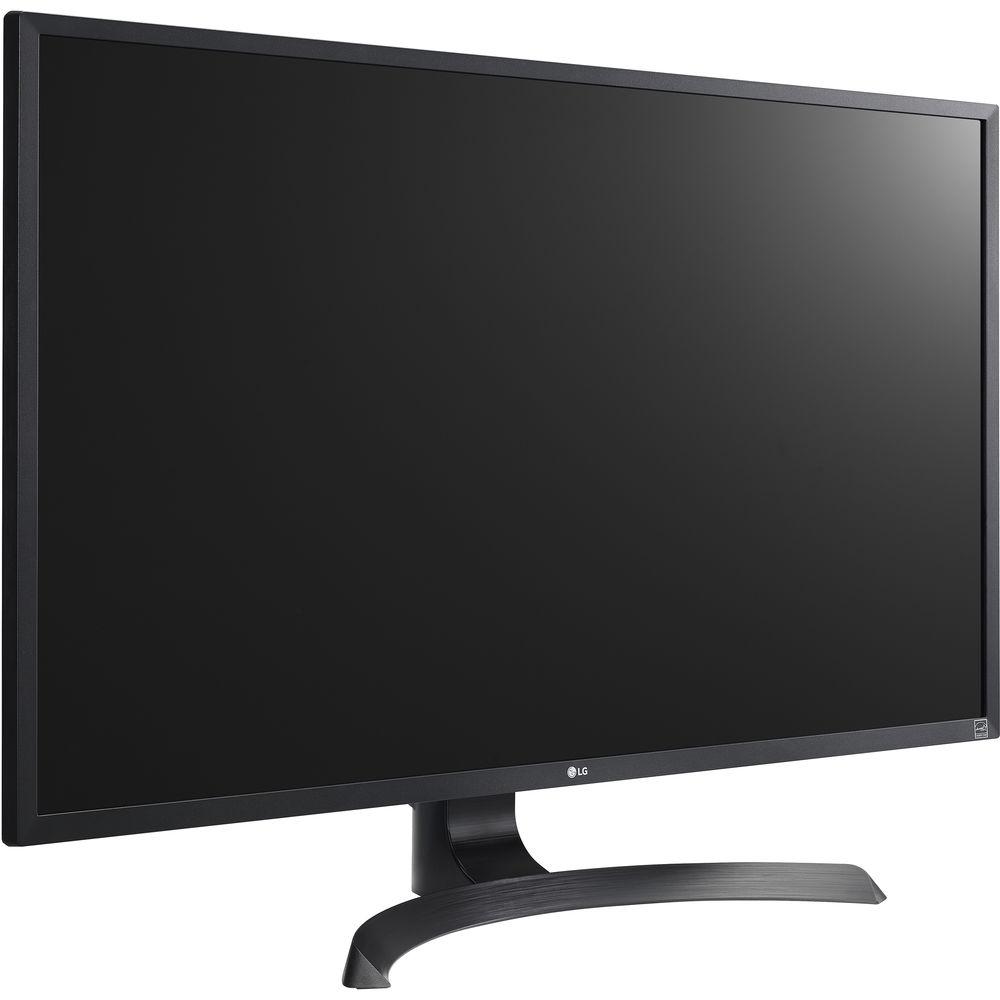

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More xqdrcurwxcqrwusaserwbwc With a 4K UHD 3840 x 2160 resolution, the 32MU59-B 32" 16:9 LCD Monitor from LG offers an enhanced viewing experience with improved clarity for a crisp, clean picture. In addition to a 4K UHD resolution, this LG monitor can also be used for tasks where color accuracy is a must as it covers 95% of the DCI-P3 color gamut. For the gamer, LG has incorporated AMD FreeSync, Black Stabilizer, and Dynamic Action Sync technologies to help eliminate screen tearing, blurring, and input lag, all while brightening dark areas of the screen for improved visibility.

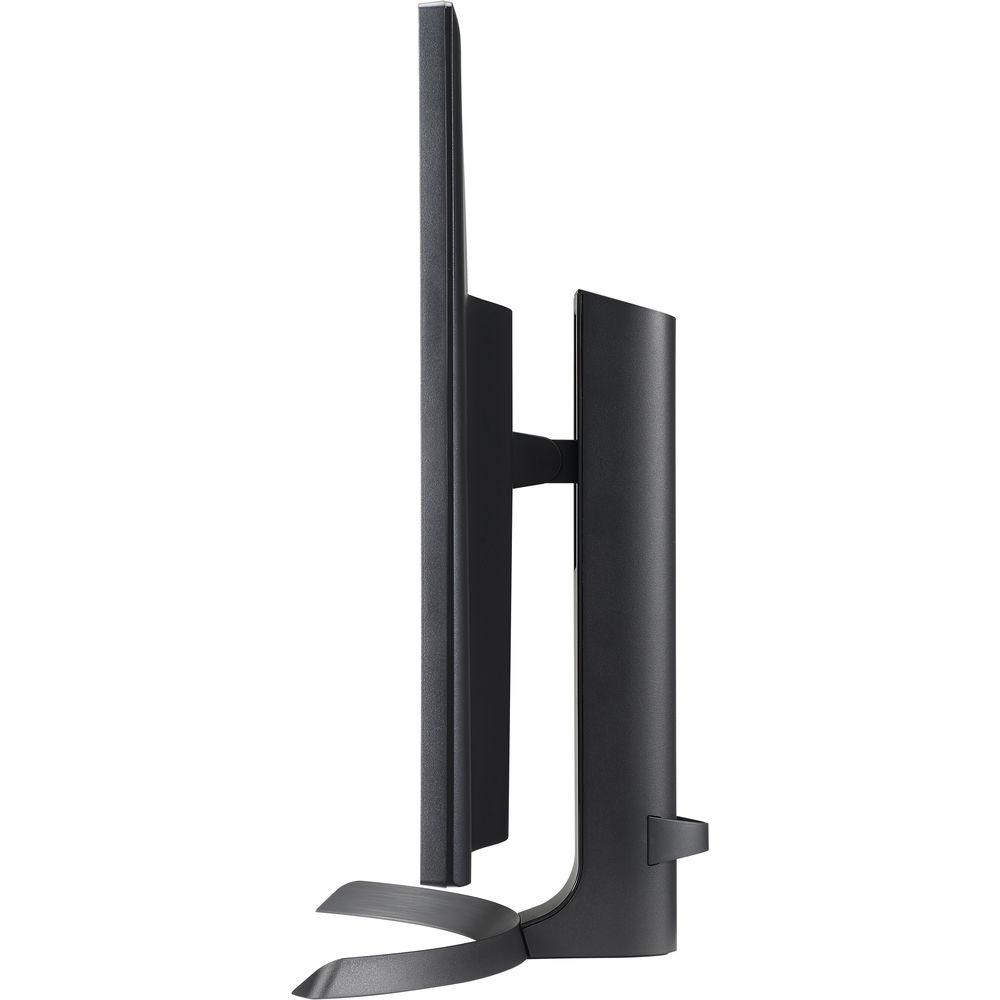

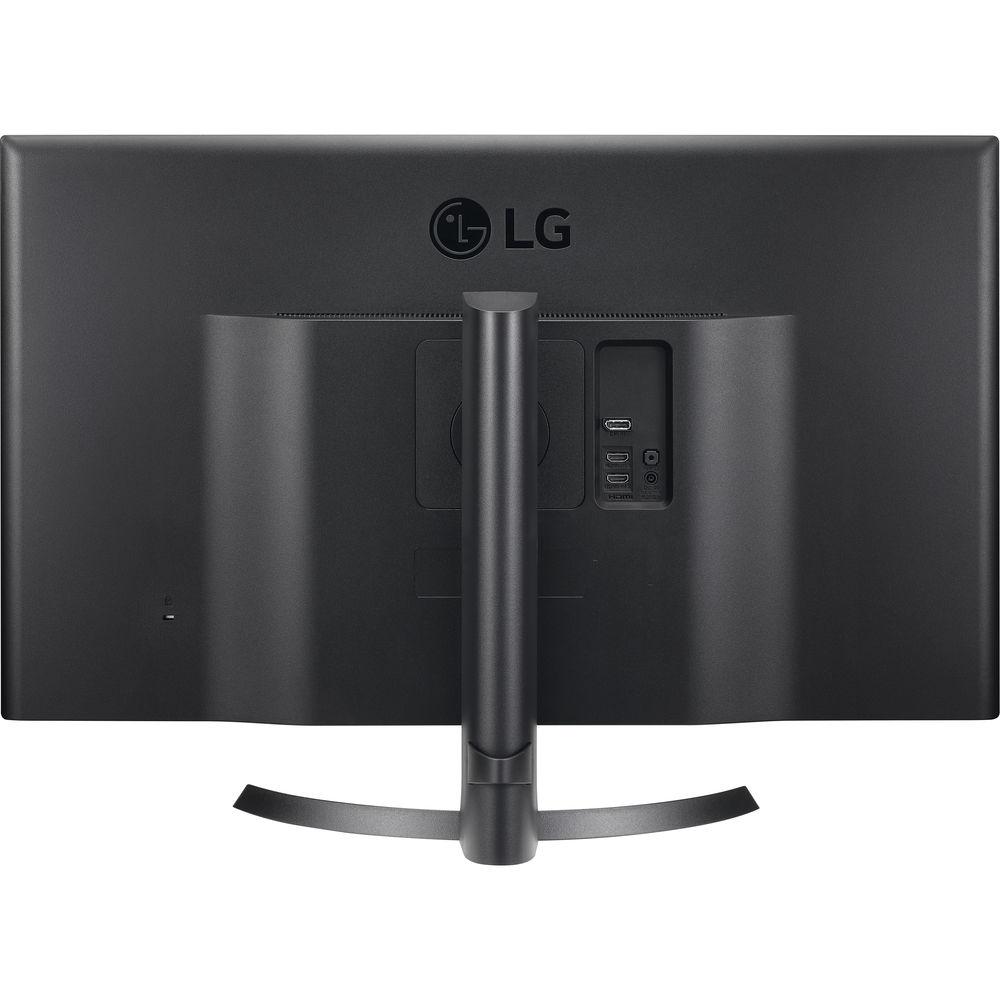

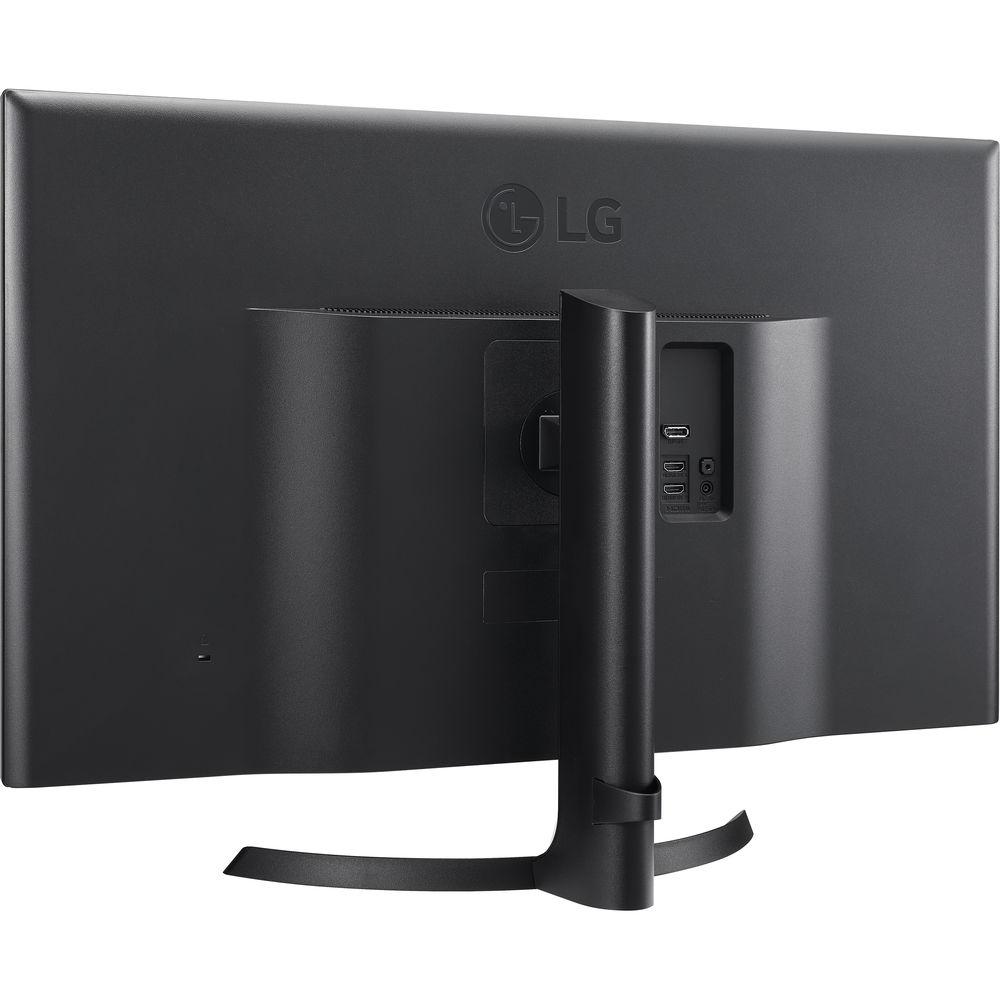

Setup and configuration of the LG 32MU59-B monitor is simple as it comes with dual HDMI version 2.0 inputs and a single DisplayPort 1.2 input. You can eve plug your headphones into this monitor thanks to the built-in headphone jack. Once configured, viewers can take advantage of the 4K UHD resolution screen as it features a 4 ms response time, a 3000:1 contrast ratio, and support for up to 1.07 billion colors. The height of the display can also be adjusted and the screen tilted from -5 to 20 degrees to maximize the viewing experience. - 32" 4K UHD
- Enhanced Ultra HD performance is assured by the specially designed 4K display, delivering accurate colors that remain consistent with four times the resolution of Full HD.
- DCI-P3 95% Color Gamut
- This monitor covers 95 of the DCI-P3 color space, the current standard utilized by the film industry, assuring an exceptionally wide range of available colors.
- HDCP 2.2 Compatible
- Connect with confidence - this LG 4K monitor is compatible with HDCP 2.2 copy protection, so it will display video from 4K streaming services, game consoles and Ultra HD Blu-ray disc players.
- AMD FreeSync Technology
- LG's monitors with AMD FreeSync technology reduce the tearing and stuttering that occur between a graphic card's frame rate and a monitor's refresh rate. Thanks to FreeSync, gaming enthusiasts can experience seamless, fluid movement throughout any hi-res, heavy-duty game.
- Dynamic Action Sync
- Gamers can experience optimized, fast-pace gaming with Dynamic Action Sync. Dynamic Action Sync is a feature that minimizes input lag so the gameplay in RTS games is more responsive.
- Black Stabilizer
- Keep visibility even in dark scenes. LG's Black Stabilizer senses dark scenes and helps make it brighter so that you can find the enemies hiding and waiting to attack your player in the dark.
- On-Screen Control
- On-Screen Control puts a host of monitor settings into a handy window for quick, easy access. Volume, brightness, picture mode presets, Screen Split 2.0, and Dual Controller can be adjusted with just a few clicks of the mouse.
- Screen Split
- Customize your monitor layout for multitasking with the latest version of LG Screen Split. Resize and display multiple windows at once, with 14 options including four different picture-in-picture (PIP) choices.

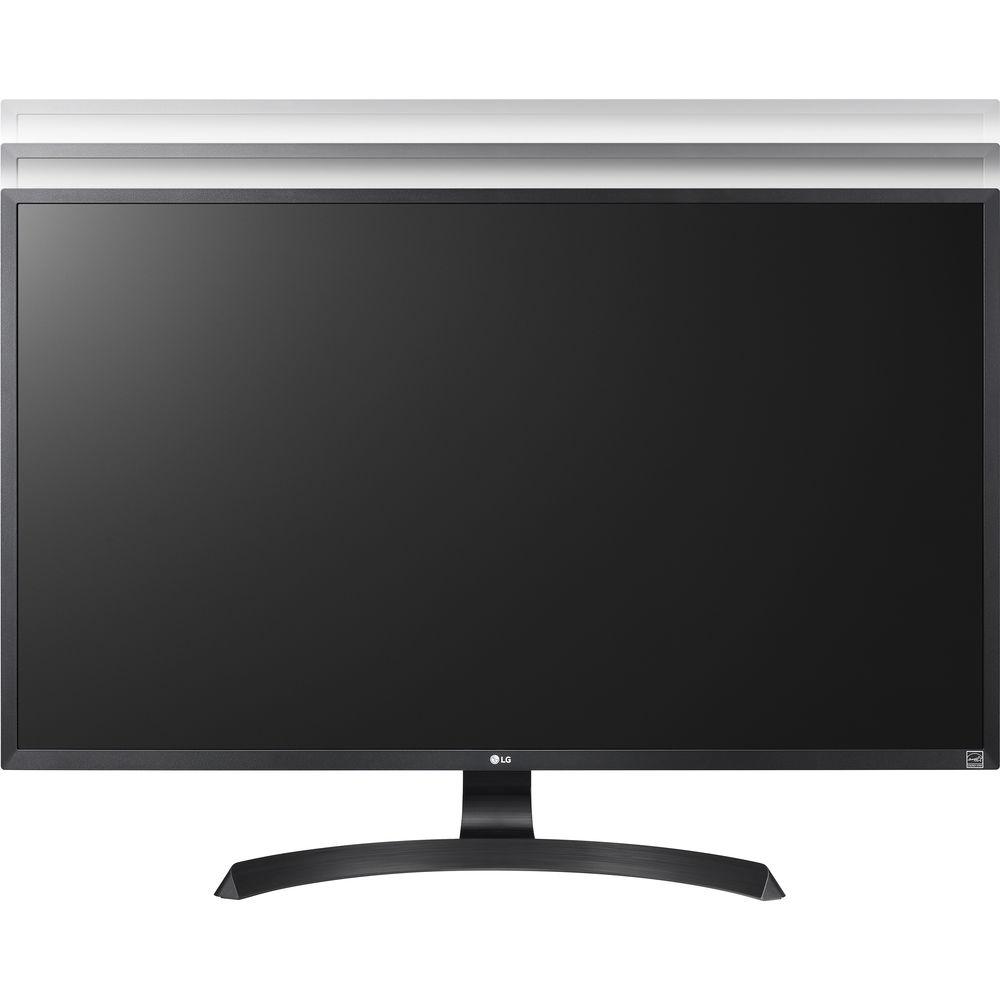

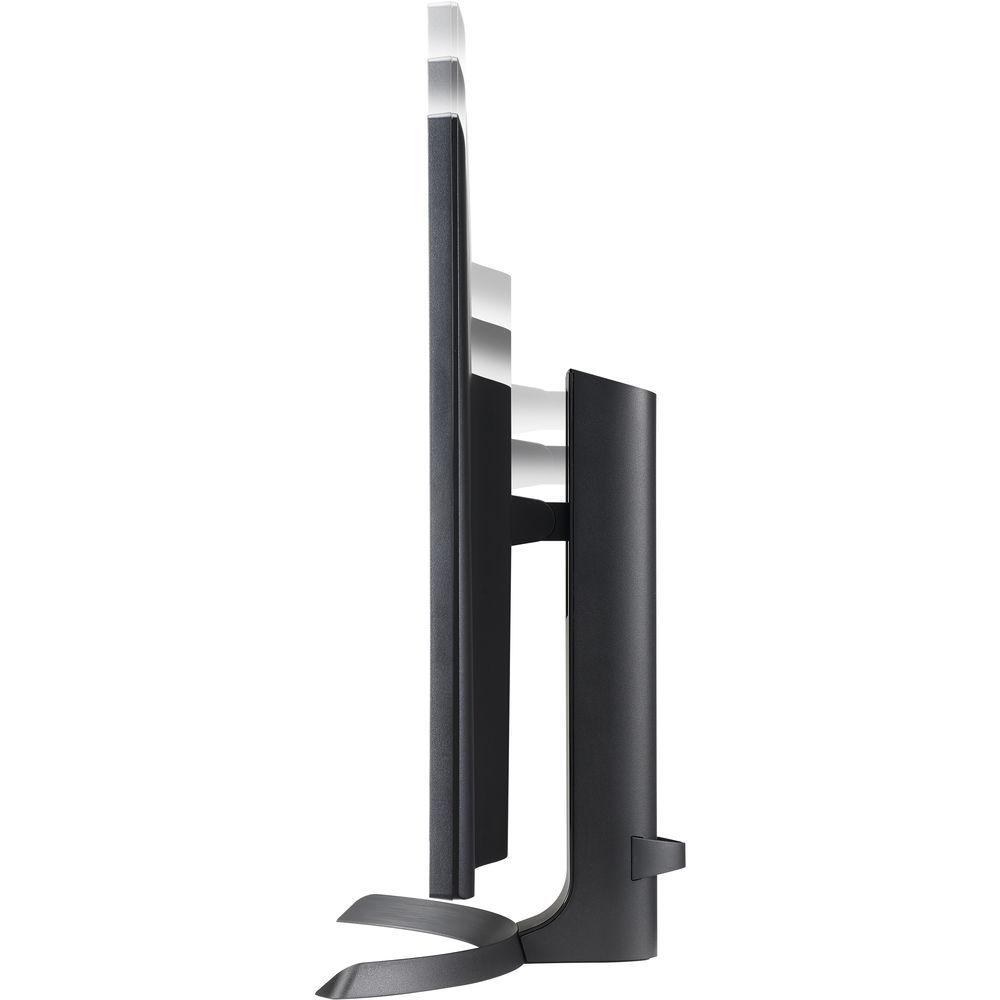

- Height Adjustable Display
- Find your perfect viewing angle - the adjustable stand allows users to raise and lower the monitor as desired to provide the best possible view.
UPC: 719192615359 In the Box LG 32MU59-B 32" 16:9 LCD Monitor Power Cord DisplayPort to DisplayPort Cable HDMI Cable Calibration Report Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 32MU59-B 32" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 32MU59-B Specs | | | Size | 31.5" | | Panel Type | VA LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 140 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 3000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | FreeSync | | Horizontal Frequency | 30 to 135 Hz | | Vertical Frequency | 56 to 61 Hz | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | HDR Compatibility | None | | Color Gamut | 95% DCI-P3 | | Response Time | 4 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.181 x 0.181 mm | | | | Connectivity | 2 x HDMI 2.0
1 x DisplayPort 1.2
1 x 3.5 mm Output | | HDCP Support | Yes, Version 2.2 | | Built-In Speakers | Yes, 2 x 5 W | | Supported Languages | Brazilian Portuguese
English
Finnish
French
German
Greek
Italian
Korean
Polish
Portuguese
Russian
Simplified Chinese
Swedish
Traditional Chinese
Ukrainian | | | | Power Consumption | 50 W (Maximum)
39 W (Typical)
0.5 W (Eco)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Supply | 65 W | | | | Certifications | CE, EPEAT GOLD, FCC, TCO Certified, UL, cUL, as per Manufacturer | | | | Height Adjustment | 4.72" / 120 mm | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 28.7 x 18.0 x 9.3" / 72.9 x 45.7 x 23.6 cm (With Stand)
28.7 x 16.7 x 2.0" / 72.9 x 42.4 x 5.1 cm (Without Stand) | | Weight | 15.7 lb / 7.12 kg (With Stand)
11.7 lb / 5.31 kg (Without Stand) | | | | Package Weight | 23.45 lb | | Box Dimensions (LxWxH) | 32.5 x 20.0 x 8.0" |
