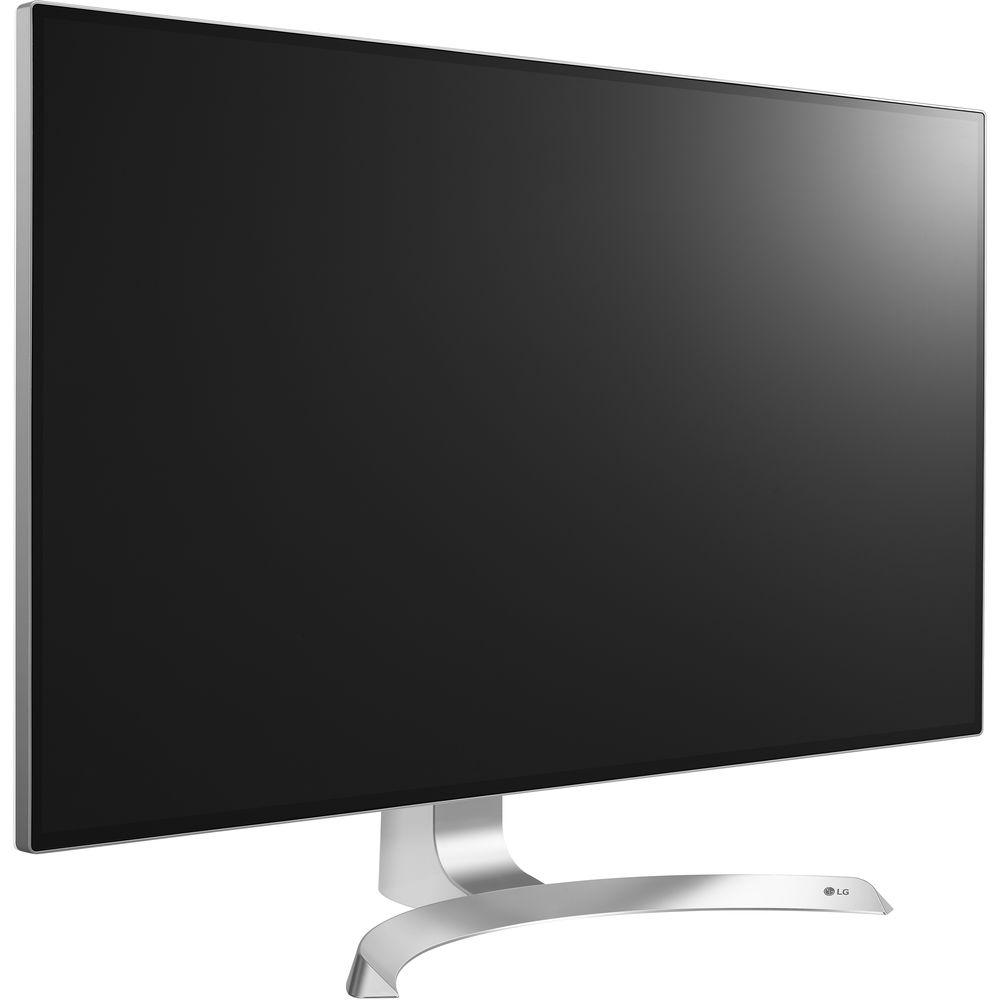

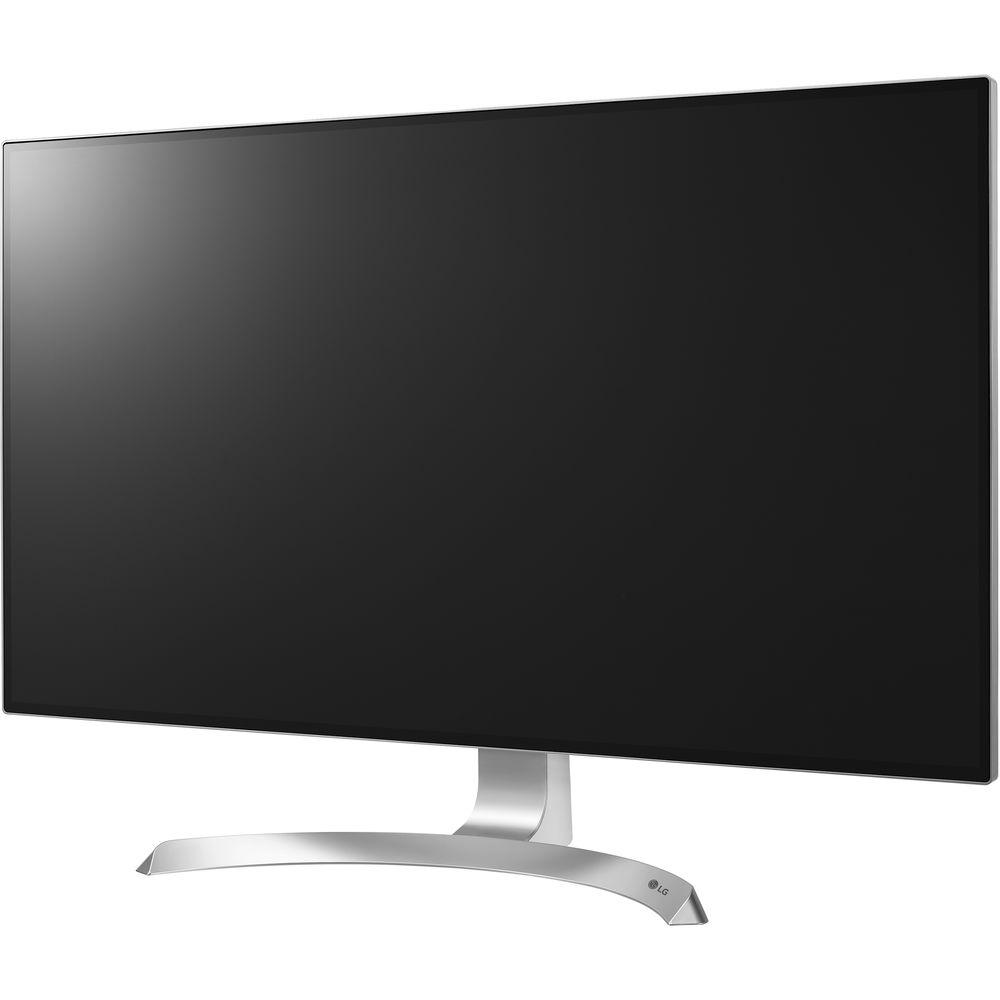

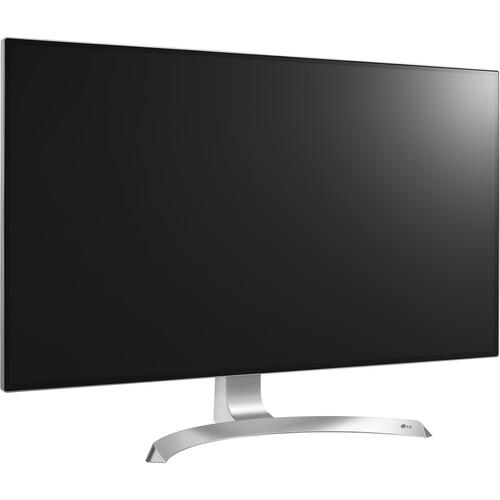

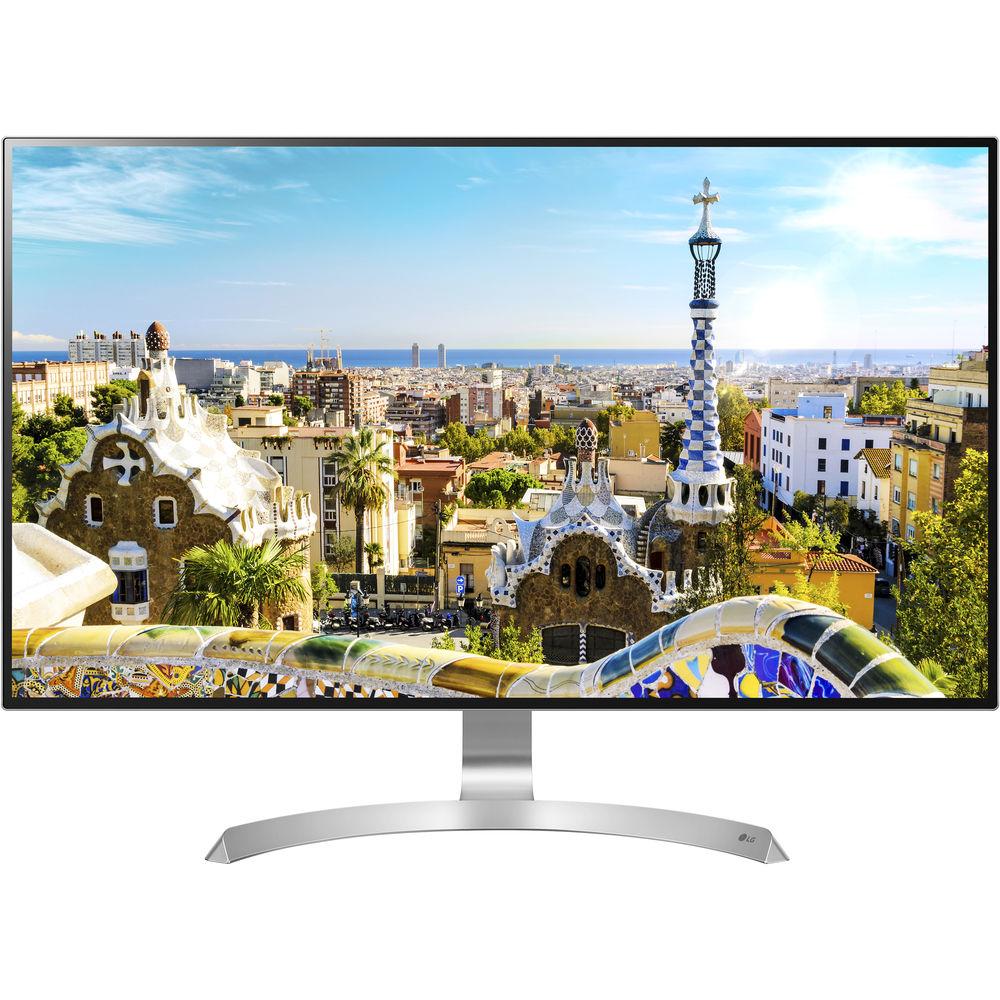

User Manual for LG 32MU99-W 32" 16:9 4K UHD IPS Monitor Click to enlarge the picture
Contents of the user manual for the LG 32MU99-W 32" 16:9 4K UHD
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 32MU99-W 32" 16:9 4K UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a 4K UHD display and support for HDR10 high dynamic range, the 32MU99-W 32" 16:9 4K UHD IPS Monitor from LG offers enhanced clarity with improved brightness capabilities to achieve specific levels color and brightness. In addition to enhanced brightness and clarity, this monitor also covers 95% of the DCI-P3 color space to ensure colors aren't only brighter, they are more accurate as well.
If the display itself wasn't enough, this monitor also comes equipped with USB Type-C connectivity, allowing you to connect compatible USB peripherals directly to the monitor. Viewers can also fine tune their display characteristics with a hardware calibration device, making it easy to adjust a variety of aspects of the display to further enhance the color accuracy and clarity. For the busy professional, LG has incorporated Screen Split technology right in to this monitor, allowing you to choose from one of 14 different screen configurations while on screen controls simplify the process of changing display settings such as volume, brightness, and more.

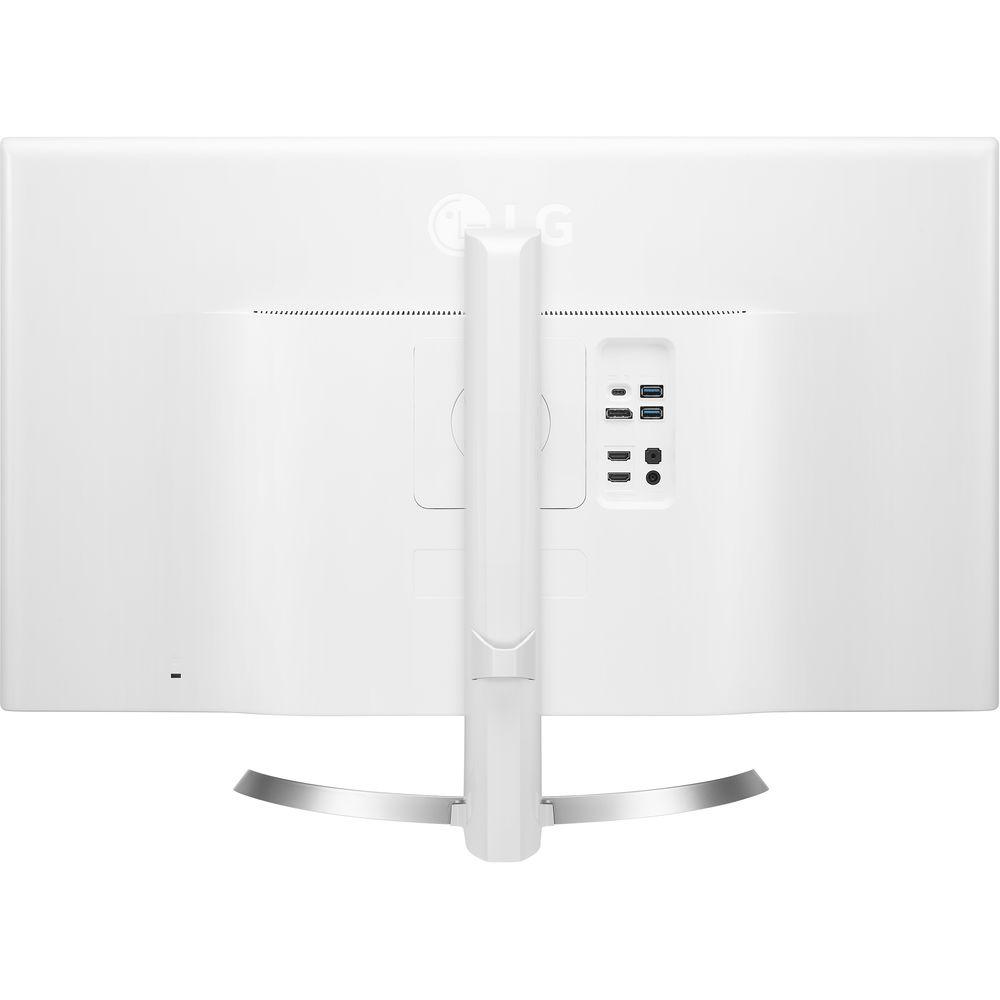

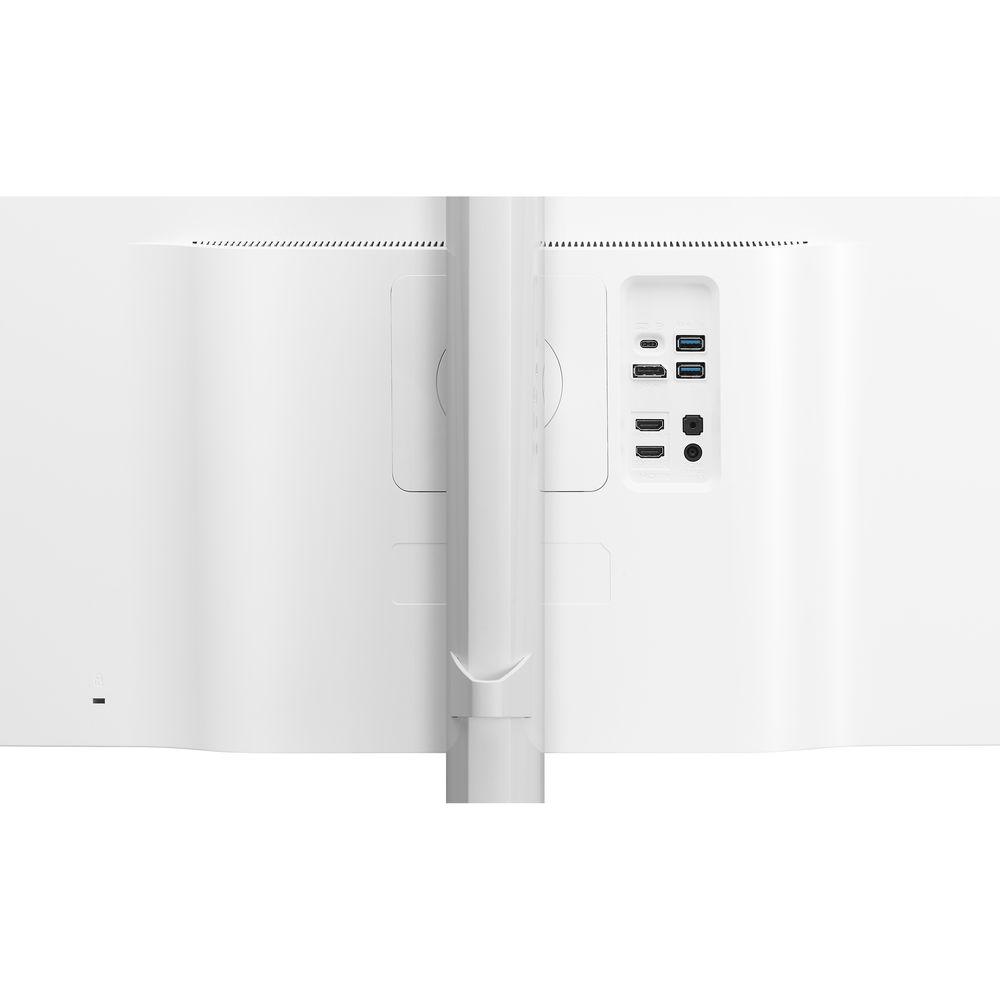

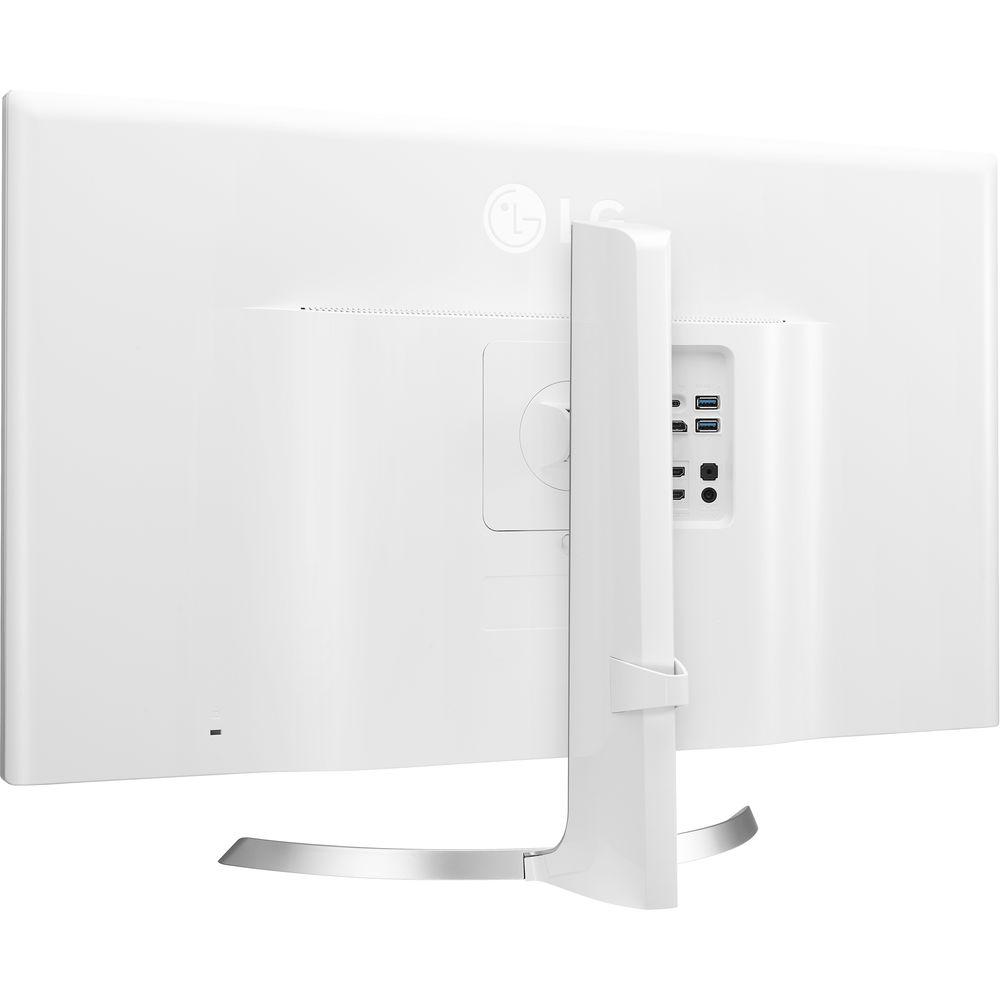

Setup is simple as the LG 32MU99-W comes equipped with HDMI, DisplayPort, and USB Type-C inputs. The 32MU99-W also comes equipped with a dedicated headphone jack and built-in speakers for a complete multimedia viewing experience. Installation is simple, just connect the monitor to the included stand and tilt, pivot, and adjust the height of the display. You can also mount the monitor using a VESA compatible mount to take full advantage of the 178° horizontal and vertical viewing angles. - 4K UHD IPS
- Enhanced Ultra HD performance is assured by the specially designed 4K display panel with In-Plane Switching (IPS), delivering accurate colors that remain consistent at wide viewing angles, with four times the resolution of Full HD.
- HDR10
- To more fully realize content creators' vision, this monitor is compatible with industry-standard HDR10 high dynamic range, supporting specific levels of color and brightness that exceed the capabilities of ordinary monitors.
Depending on the Windows 10 OS settings, HDR content may not be displayed accurately. Please check the HDR On/Off setting of Windows
(Improvements will be made through future Windows updates) - USB Type-C Connectivity
- The USB Type-C port allows 4K video display, data transfer, and laptop/mobile device charging, all at the same time over a single cable. Reduce cord clutter and increase efficiency with USB Type-C.
- HDCP 2.2 Compatible
- This LG 4K monitor is compatible with the latest HDCP 2.2 copy protection, so it will display video from 4K streaming services, game consoles, and Ultra HD Blu-ray disc players.
- DCI-P3 95 Color Gamut
- This monitor covers 95% of the DCI-P3 color space, the current standard utilized by the film industry, assuring an exceptionally wide range of available colors.
- Hardware Calibration Ready
- Providing the ultimate in fine-tuning for professionals, this LG monitor is designed to work with compatible calibration devices that ensure precise adjustments of color, brightness, and more.
- Virtually Borderless Design
- The ultra-thin bezel, a mere 1.3mm on four sides of this streamlined display, offers a virtually borderless visual experience, without distraction from the precise, gorgeous image.
- Bluetooth Audio with Rich Bass
- With a simple, Bluetooth connection between a mobile device and the monitor's built-in speakers (2 x 5W), enjoy the music that's stored on devices with more powerful, vivid sound quality. LG's Rich Bass function can cover sound under 85 Hz showcasing a wider and richer sound with impressive bass depth.
- On-Screen Control
- On-Screen Control puts a host of essential monitor settings into a handy window for quick, easy access. Volume, brightness, picture mode presets, Screen Split 2.0, and Dual Controller and more can now be adjusted with just a few clicks of the mouse.
- Screen Split
- Customize your monitor layout for multitasking with LG Screen Split. Resize and display multiple windows at once, with 14 options including four different picture-in-picture (PIP) choices.
- Easy Setup

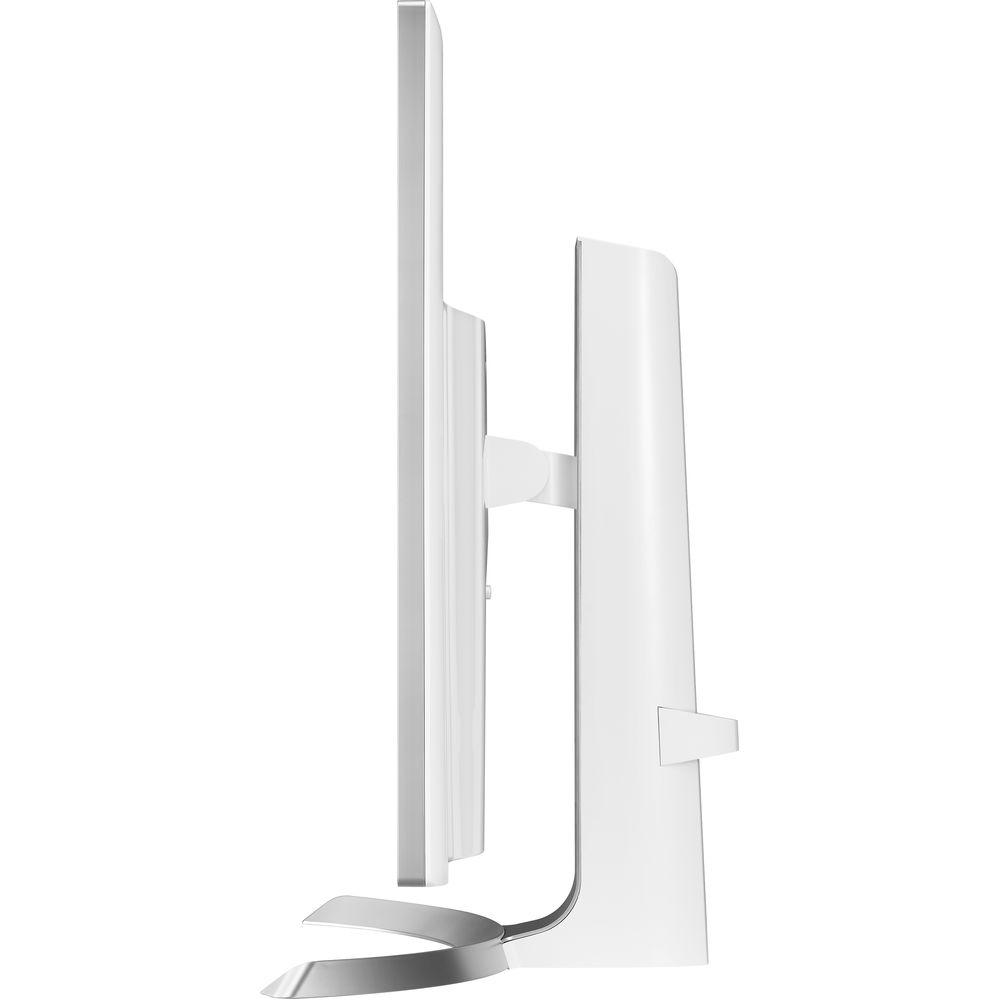

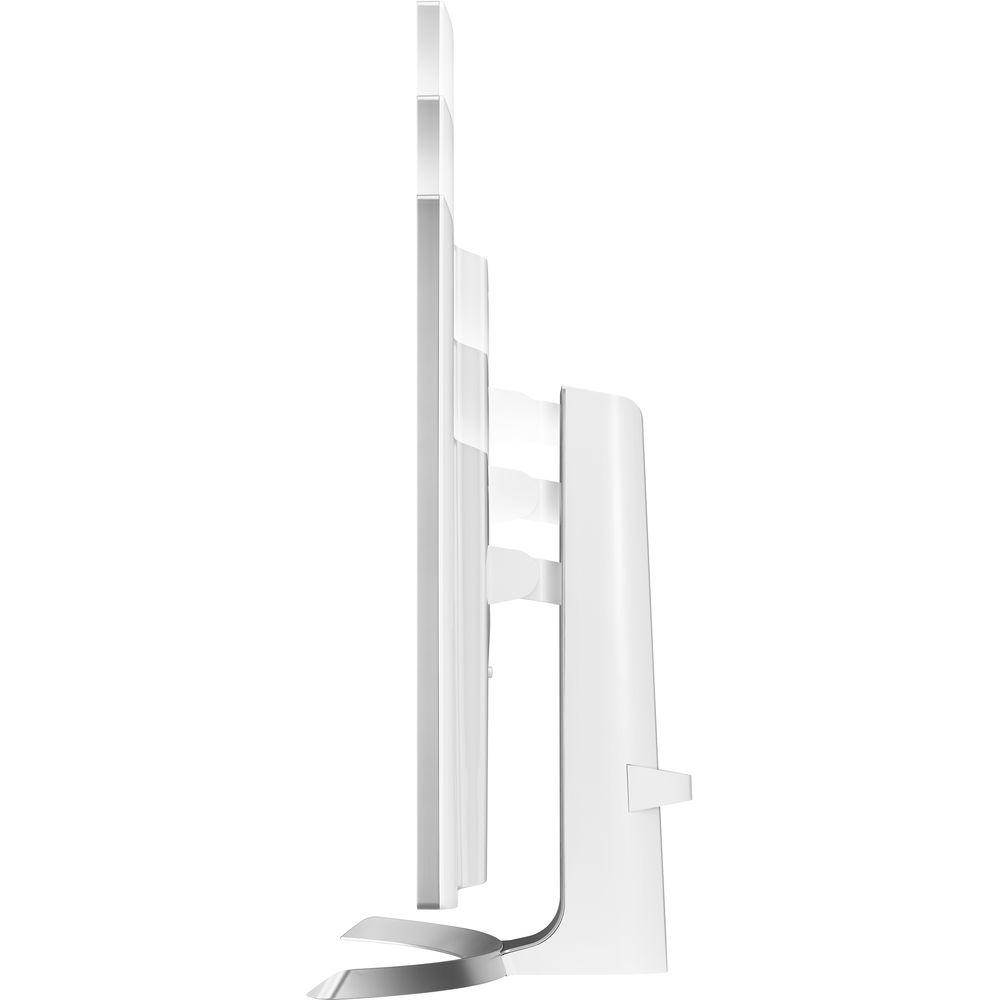

- The 32MU99 is easy to put together with a simple press-and-click display to-base attachment and provides comfortable viewing with versatile screen tilt/height and pivot adjustments.
UPC: 719192615342 In the Box LG 32MU99-W 32" 16:9 4K UHD IPS Monitor Power Cord DisplayPort to DisplayPort Cable HDMI Cable USB Type-C to USB Type-C Cable USB Type-A to USB Type-C Cable Calibration Report Limited 3-Year Warranty User Manual PDF 6.1mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 32MU99-W 32" 16:9 4K UHD IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 32MU99-W Specs | Panel Size | 32" / 81.3 cm
(31.5" / 80 cm diagonal) | | Panel Type | IPS (In-Plane Switching) | | Color Gamut | DCI-P3 95% (CIE 1976) | | Color Depth | 10-bit (8-bit + A-FRC) | | Pixel Pitch | 0.18159 x 0.18159 | | Aspect Ratio | 16:9 | | Resolution | 3840 x 2160 | | Brightness | 350 cd/m² (typical)
280 cd/m² (minimum) | | Contrast Ratio | 1300:1 (typical) | | Response Time (GtG) | 5 ms | | Viewing Angles (H/V) | 178°/178° | | Surface Treatment | Anti-glare 3H | | Inputs | 2 x HDMI (ver. 2.0a)
1 x DisplayPort (ver. 1.2)
1 x USB 3.0 Type-C PD 60 W / DP alternate mode / data | | Audio Output | Yes | | Speakers | 2 x 5 W | | Power | Type
Adapter (180 W)
Input
100-240 V; 50/60 Hz
Power Consumption
Normal On (EPA, Typical): 38 W
Normal On (Factory out Condition, Typical): 52 W
Power Save / Sleep Mode (Maximum): 1.2 W
DC Off (Maximum): 0.3 W | | Frequency | H-Frequency (HDMI): 30~135 kHz
V-Frequency (HDMI): 56~61 Hz
H-Frequency (DP): 30~135 kHz
V-Frequency (DP): 56~61 Hz
V-Frequency (FreeSync): 40~60 Hz (HDMI / DP)
H-Frequency (USB Type-C): 30~135 kHz
V-Frequency (USB Type-C): 56~61 Hz | | Resolution | 3840 x 2160 @ 60 Hz | | Controls | Key Number (Power Key Included): 1 x joystick
Key Type: Joystick
LED Color (On Mode): White
LED Color (Power Save Mode): Off
(Power LED ON: White blinking) | | OSD | Country
Chinese (Simplified, Traditional), English, Germanic, French, Spanish, Italian, Swedish, Finnish, Portuguese, Portuguese (Brazil), Polish, Russian, Greek, Ukrainian, Japanese, Korean
Number of Languages
17 | | USB Ports | 2 x USB 3.0 | | Stand | Detachable Base
Yes
Tilt
-5 to 20°
Height Adjustable
4.3" / 110 mm
Pivot
Yes | | Certifications | UL(cUL)
TUV-Type
EPEAT Gold
CB
FCC-B, CE
KC
EPA
ErP
ROHS, REACH
Windows 10
DisplayPort
USB type-C PD+DP Alt.Mode | | Dimensions | With Stand
28.1 x 10.2 x 19.1" / 71.4 x 25.9 x 48.5 cm
Without Stand
28.1 x 1.8 x 16.1" / 71.4 x 4.6 x 40.9 cm | | Weight | With Stand
18.5 lb / 8.4 kg
Without Stand
14.3 lb / 6.5 kg | | | | Package Weight | 29.0 lb | | Box Dimensions (LxWxH) | 36.0 x 20.0 x 8.0" |
