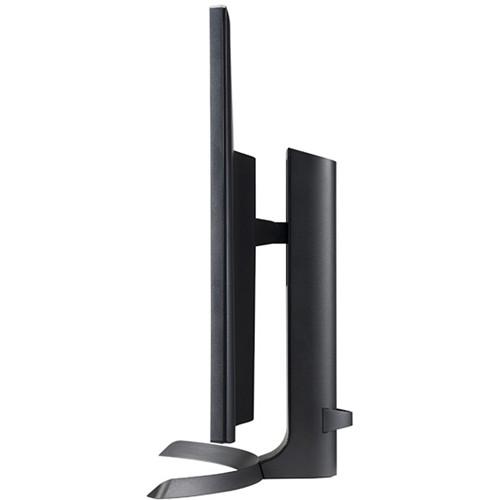

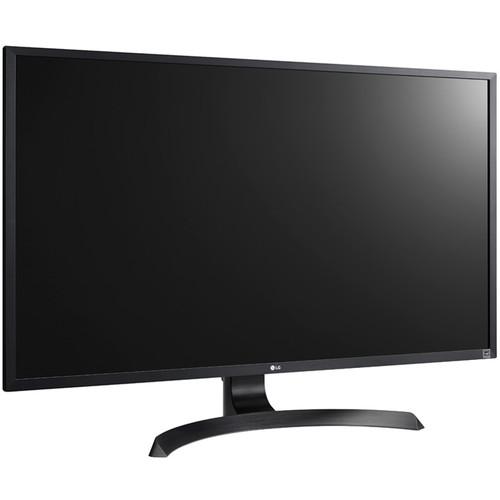

User Manual for LG 32UD59-B 32" 16:9 4K UHD FreeSync LCD Monitor Click to enlarge the picture
Contents of the user manual for the LG 32UD59-B 32" 16:9 4K UHD
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 32UD59-B 32" 16:9 4K UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

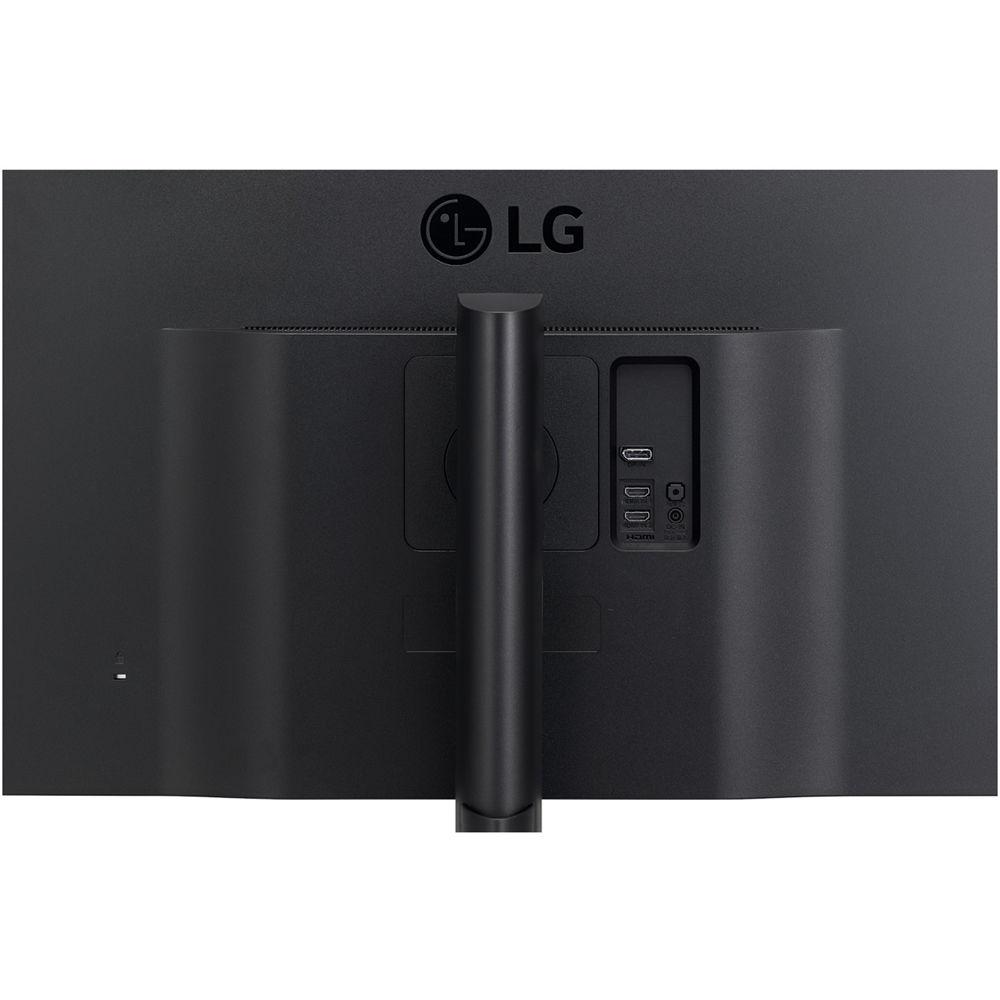

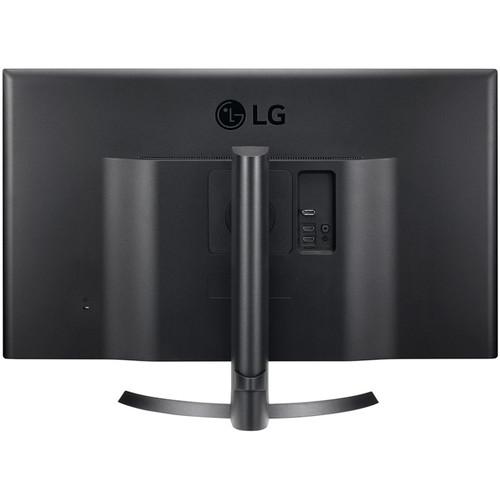

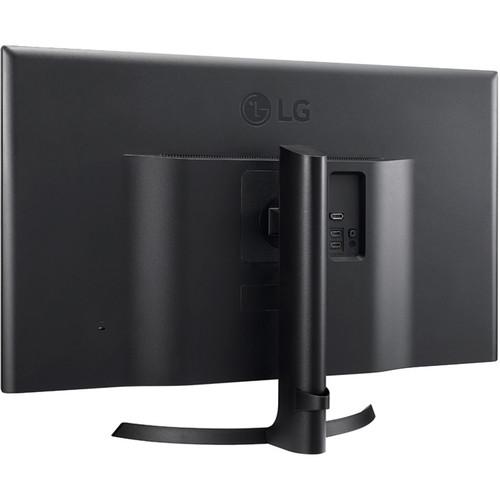

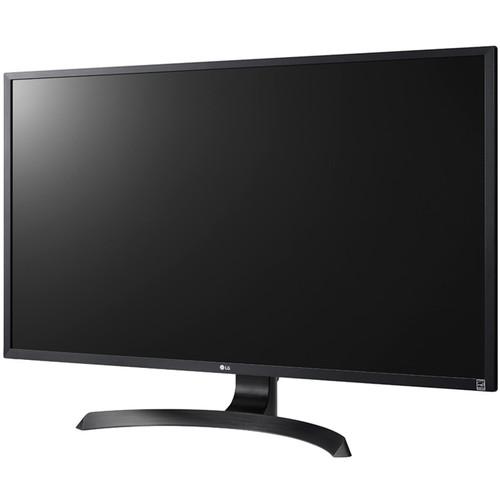

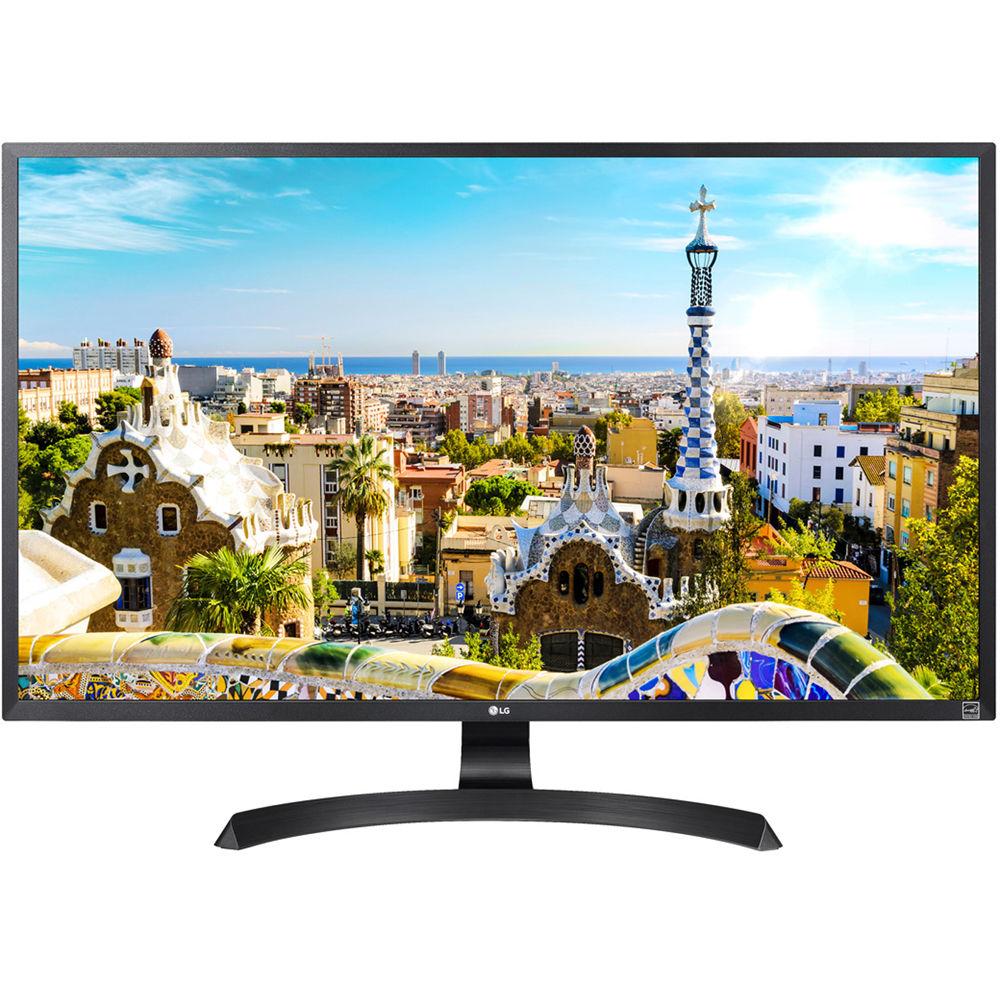

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With enhanced color accuracy and a 4K UHD resolution, the 32UD59-B 32" 16:9 4K UHD FreeSync LCD Monitor from LG is capable of supporting a variety of multimedia content. The 3840 x 2160 4K UHD resolution offers display clarity up to four times that of a 720p display along with an 8-bit color table and 95% coverage of the DCI-P3 color gamut. In addition to enhanced color clarity, this LG monitor features a 5 ms response time, a 3,000:1 contrast ratio, and a 300 cd/m² brightness rating for a more dynamic picture with reduced ghosting. Setup has also been simplified as the 32UD59-B comes equipped with both HDMI and DisplayPort inputs for easy installation.
Once configured the LG 32UD59-B offers a wealth of gaming features to take your games to the next level. With AMD FreeSync Technology built right in to the display you can sync this monitor to your computers compatible graphics card to further enhanced response times and virtually eliminate ghosting and tearing. With Dynamic Action Sync you benefit from reduced input lag while the Black Stabilizer helps to illuminate dark scenes in games giving you an edge over the competition. The settings of your monitor can be adjusted using On-Screen Control making it easy to configure the monitor how you want. - 32" 4K UHD
- Ultra HD performance is assured by the specially designed 4K display, delivering accurate colors that remain consistent with four times the resolution of Full HD.
- DCI-P3 95% Color Gamut
- This monitor covers 95% of the DCI-P3 color space, the current standard utilized by the film industry, assuring a wide range of available colors.
- HDCP 2.2 Compatible
- This LG 4K monitor is compatible with HDCP 2.2 copy protection, so it will display video from 4K streaming services, game consoles, and Ultra HD Blu-ray disc players.
- AMD FreeSync Compatible
- This LG monitor with AMD FreeSync technology reduces the tearing and stuttering that occurs between a graphic card's frame rate and a monitor's refresh rate. Thanks to FreeSync, gaming enthusiasts can experience seamless, fluid movement throughout any hi-res, heavy-duty game.
- Dynamic Action Sync
- Gamers can experience optimized, fast-pace gaming with Dynamic Action Sync. Dynamic Action Sync is a feature that minimizes input lag so the game play in RTS games is more responsive.
- Black Stabilizer
- Keep visibility even in dark scenes. LG's Black Stabilizer senses dark scenes and helps make it brighter so that you can find the enemies hiding and waiting to attack your player in the dark.
- On-Screen Control
- On-Screen Control puts a host of monitor settings into a handy window for quick, easy access. Volume, brightness, picture mode presets, Screen Split 2.0, and Dual Controller can be adjusted with just a few clicks of the mouse.
- Screen Split
- Customize your monitor layout for multitasking with the latest version of LG Screen Split. Resize and display multiple windows at once, with 14 options including four different picture-in-picture (PIP) choices.

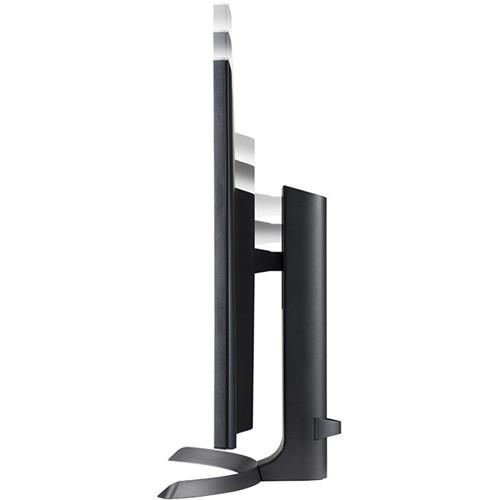

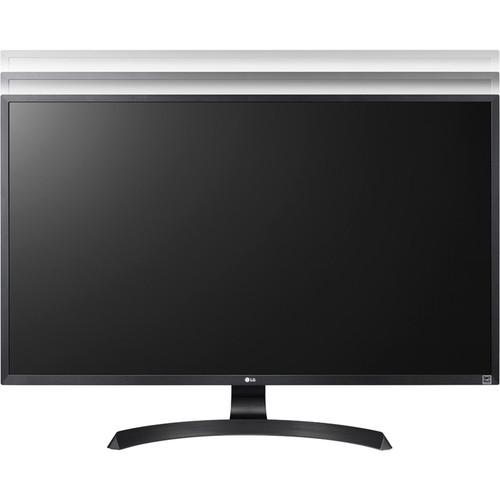

- Height Adjustable Display
- The adjustable stand allows users to raise and lower the monitor as desired to provide the best possible view.
UPC: 719192614611 In the Box LG 32UD59-B 32" 16:9 4K UHD FreeSync LCD Monitor Power Cord HDMI Cable DisplayPort Cable Limited 1-Year Warranty User Manual PDF 4.8mbeffyueawrsdzyesfaufwvv Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 32UD59-B 32" 16:9 4K UHD FreeSync LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 32UD59-B Specs | | | Size | 32" | | Panel Type | VA LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 137 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 3000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | FreeSync | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | HDR Compatibility | None | | Color Gamut | 95% DCI-P3 | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.181 x 0.181 mm | | | | Connectivity | 2 x HDMI 2.0
1 x DisplayPort 1.2 | | HDCP Support | Yes, Version 2.2 | | | | Power Consumption | 35.5 W (Typical)
50 W (Eco)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | | | Certifications | EPEAT GOLD, ErP Lot 6, UL, cUL, as per Manufacturer | | | | Height Adjustment | 4.72" / 120 mm | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | None | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | No | | Dimensions (W x H x D) | 28.7 x 18.0 x 9.3" / 729.0 x 457.2 x 236.2 mm (With Stand)
28.7 x 16.7 x 1.8" / 729.0 x 424.2 x 45.7 mm (Without Stand) | | Weight | 15.7 lb / 7.12 kg (With Stand)
11.7 lb / 5.31 kg (Without Stand) | | | | Package Weight | 21.65 lb | | Box Dimensions (LxWxH) | 34.0 x 20.0 x 7.0" |
