User Manual for LG 32UK550-B 31.5" 16:9 4K FreeSync LCD Gaming Monitor Click to enlarge the picture
Contents of the user manual for the LG 32UK550-B 31.5" 16:9 4K FreeSync
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 32UK550-B 31.5" 16:9 4K FreeSync contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

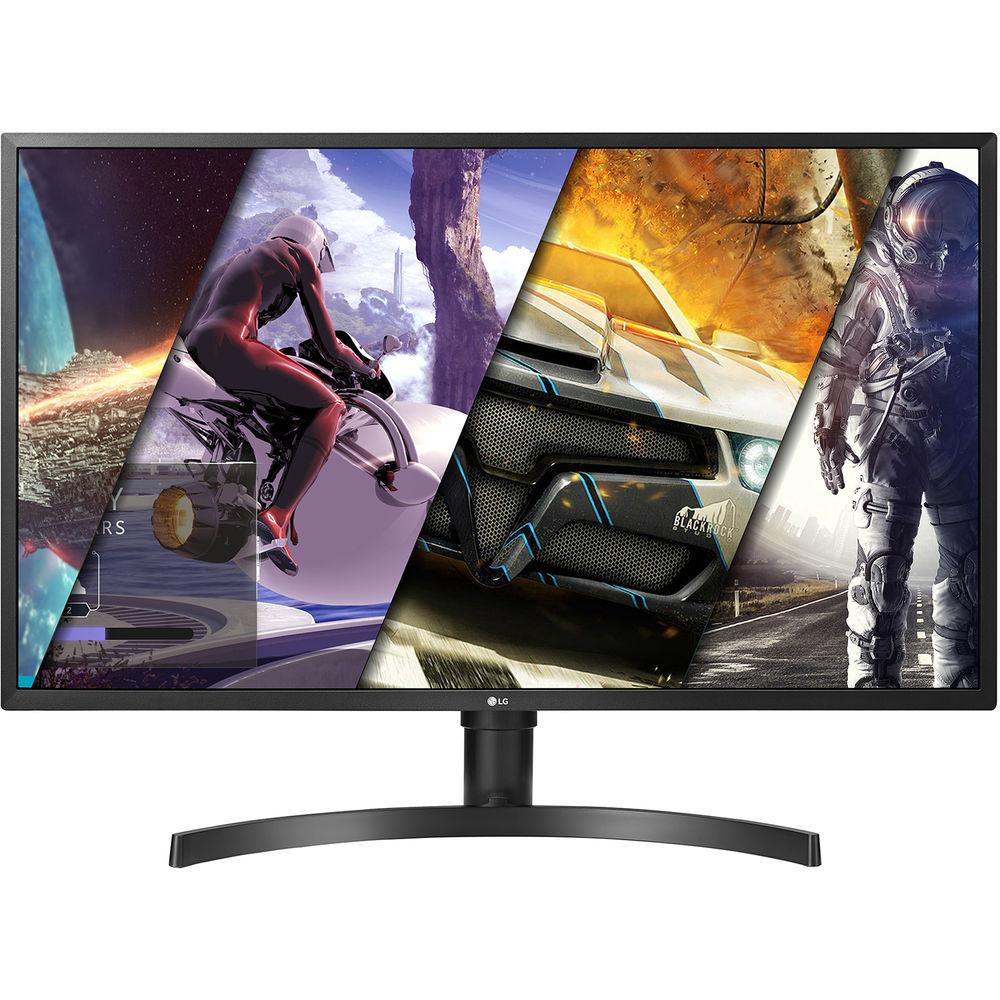

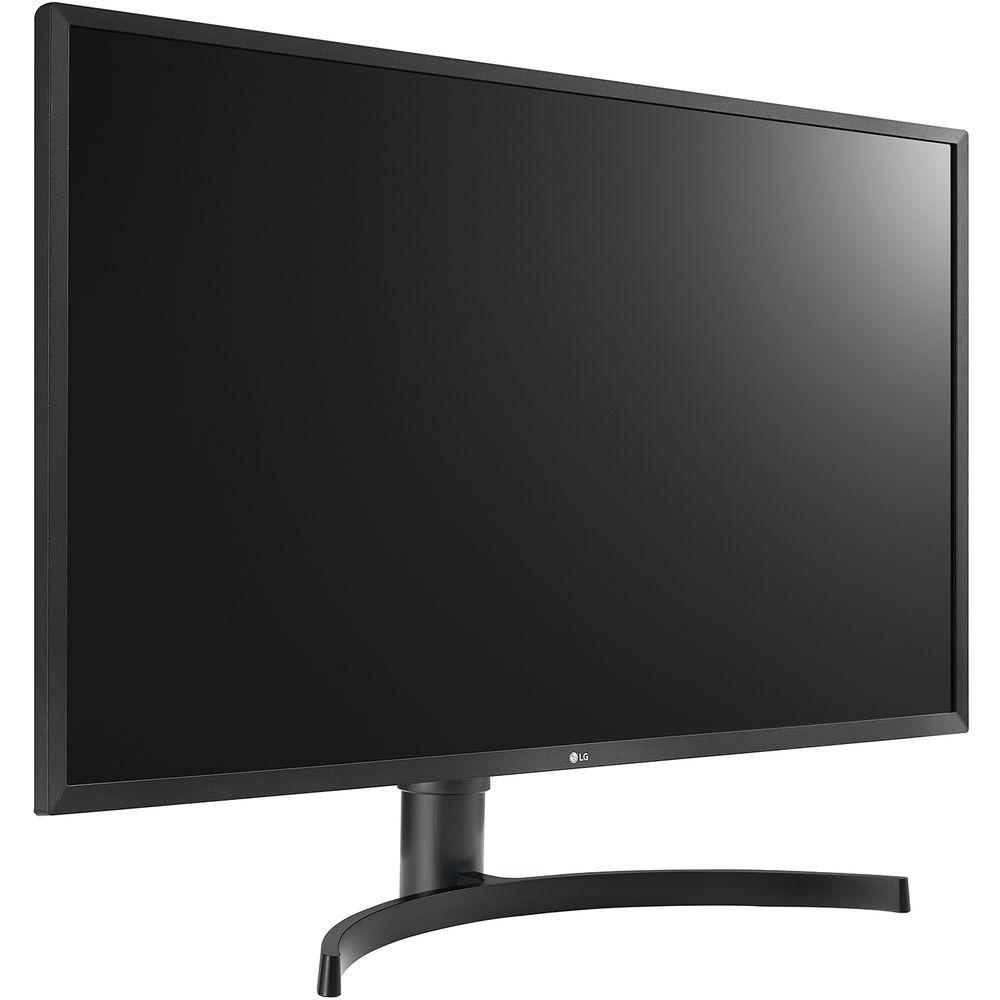

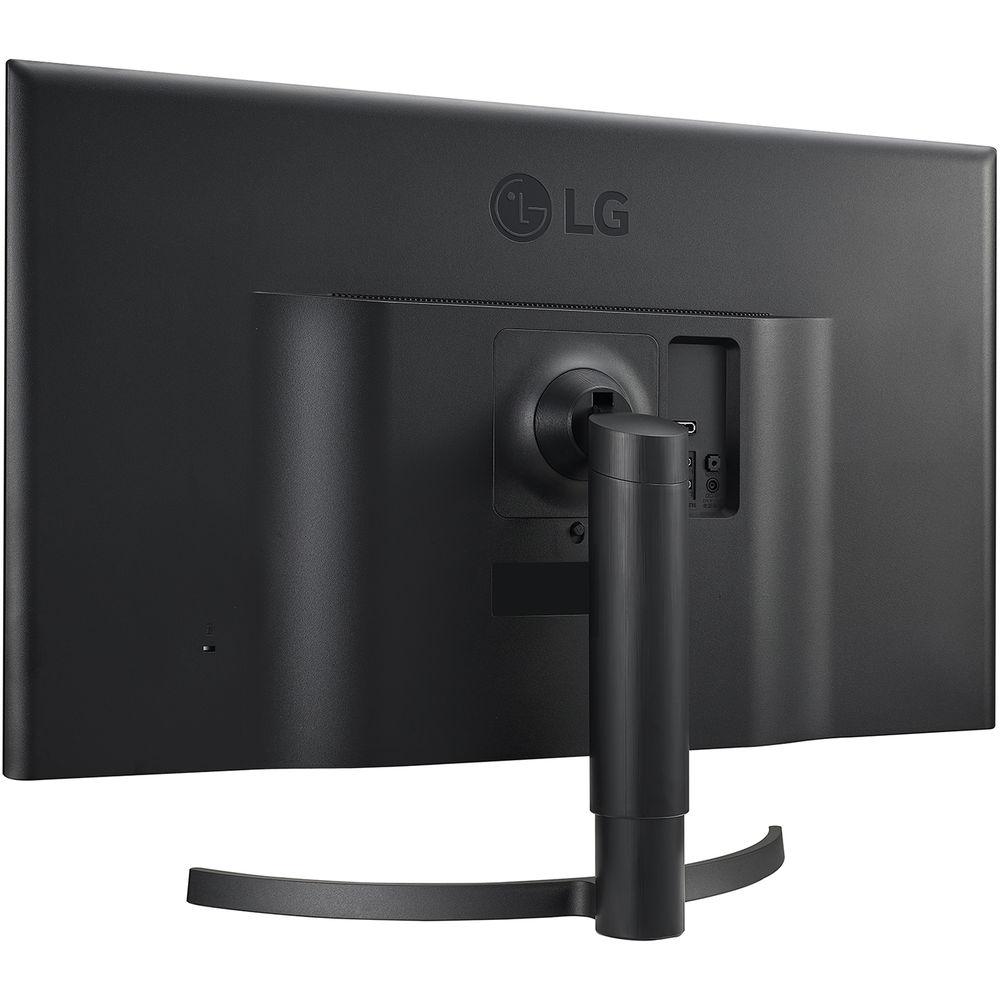

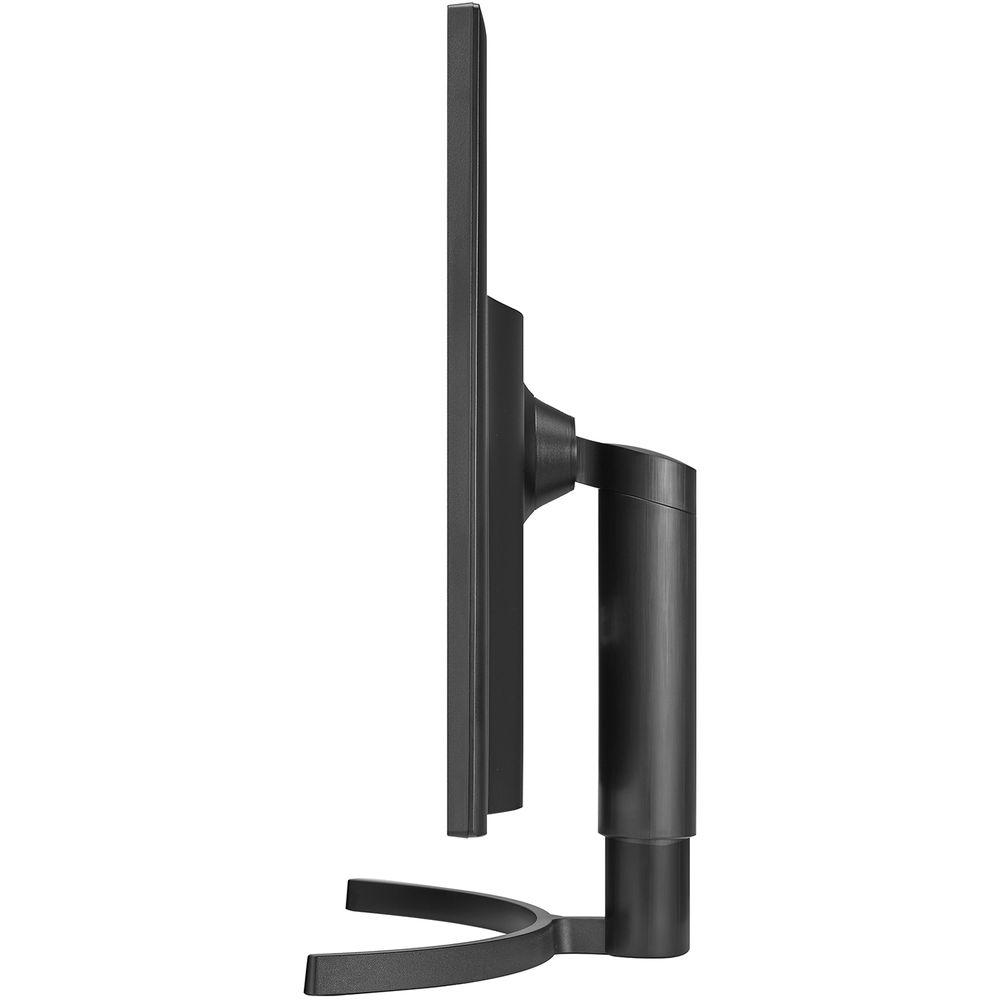

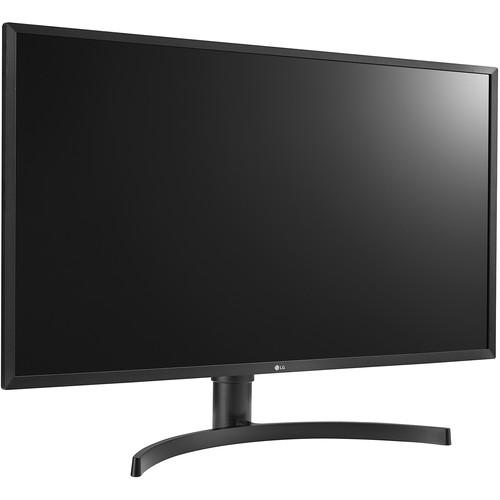

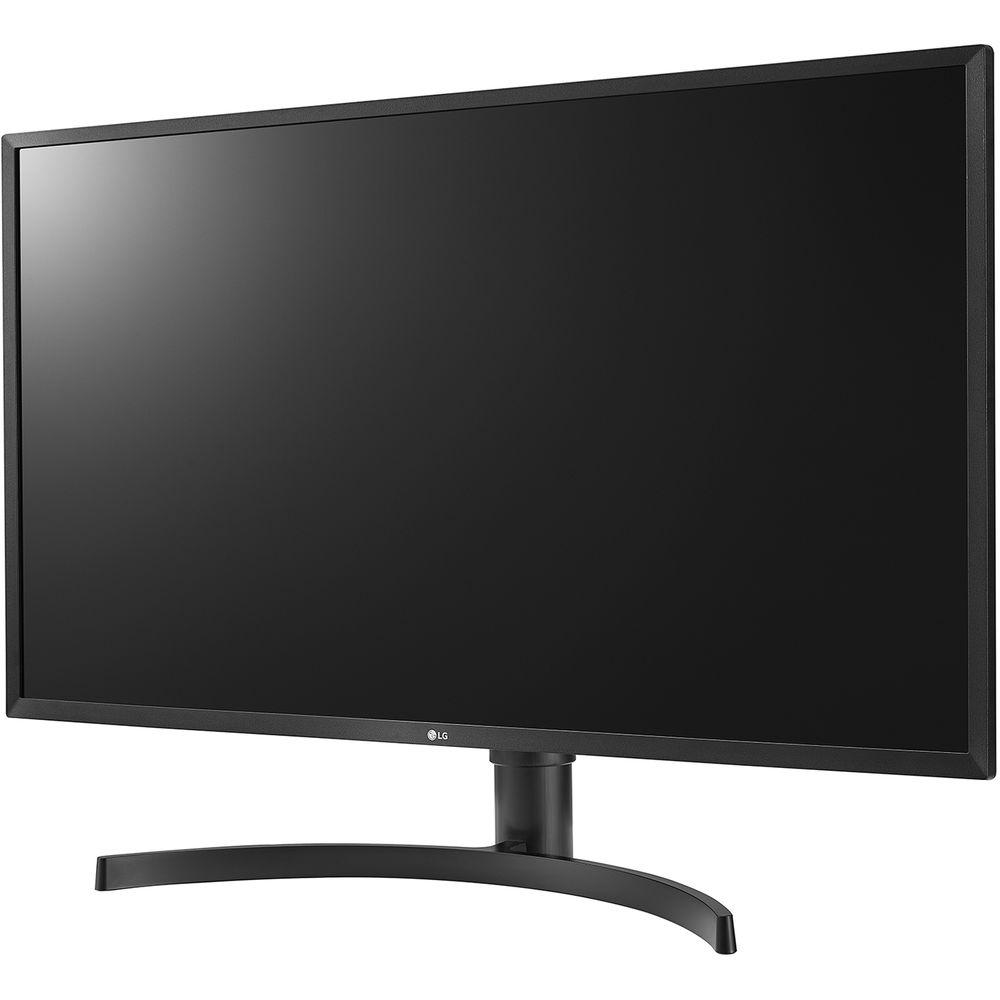

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The 32UK550-B 31.5" 16:9 4K FreeSync LCD Gaming Monitor from LG has multiple features to improve your gaming experience including AMD FreeSync and a 4 ms response time. Specs-wise, it's built with a Vertical Alignment (VA) panel, which has a 3840 x 2160 4K UHD resolution, a 3000:1 static contrast ratio, a brightness rating of 300 cd/m², and support for 1.07 billion colors. With these combined, this display offers crisp details and vivid colors, even at wide viewing angles. Thank to 95% DCI-P3 coverage, it can also be used for color-sensitive tasks. Once it's connected to your system via HDMI or DisplayPort, you can adjust its versatile stand to best fit your viewing preference. If needed, you can also install an optional VESA-compatible stand, mount, or arm. - AMD FreeSync
- AMD FreeSync technology syncs your display's refresh rate with your graphics card's frame rate output to reduce screen tearing, stuttering, and ghosting for a smoother gaming experience.
- Color Expression
- Covering 95% of the DCI-P3 color space, this monitor can be used by professionals working with color-sensitive content.
- Custom Gaming Environment
- Select from a variety of game-optimized viewing modes or set up your own. In addition, there are helpful features such as an onscreen crosshair, brightness adjustments, and more.
- Dynamic Action Sync
- Dynamic Action Sync helps to lower input lag, so your movements will feel more fluid and responsive.
- Black Stabilizer
- Black Stabilizer optimizes dark scenes for better visibility, so you'll be able to spot enemies that may be waiting for you in the dark.
- On-Screen Control
- Instead of fiddling with hardware buttons, you can easily adjust your monitor settings using an on-screen window.
- HDR10
- This monitor supports HDR10, an industry standard for High Dynamic Range, which takes advantage of the wide-gamut 10-bit color space to provide you with vivid images.
- Additional Features
-
- Color Weakness
- Flicker Safe
- Smart Energy Saving
- Reader Mode
- Super Resolution +
- Color Calibrated
- Dual Controller
UPC: 719192624467 In the Box LG 32UK550-B 31.5" 16:9 4K FreeSync LCD Gaming Monitor Power Cable DisplayPort Cable HDMI Cable Limited 1-Year Warranty User Manual PDF 2.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 32UK550-B 31.5" 16:9 4K FreeSync LCD Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 32UK550-B Specs | | | Size | 31.5" | | Panel Type | VA LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 139 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 3000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | FreeSync | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | HDR Compatibility | HDR10 | | Color Gamut | 95% DCI-P3
95% CIE1976 | | Response Time | 4 ms (GtG) | | Viewing Angle | Horizontal: 178°

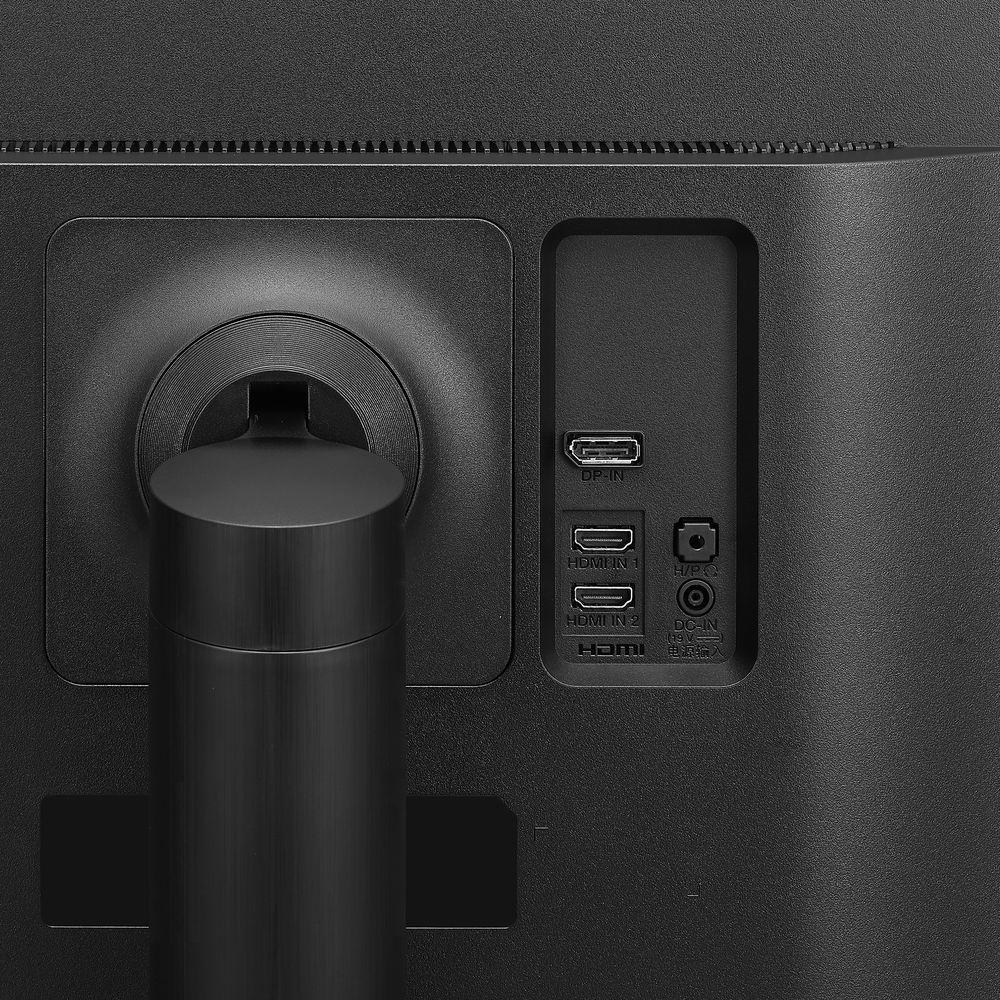

Vertical: 178° | | Dot Pitch | 0.181 x 0.181 mm | | | | Connectivity | 2 x HDMI
1 x DisplayPort
1 x 3.5 mm Output | | Built-In Speakers | Yes, 2 x 5 W | | | | Power Consumption | 50 W (Typical)
39 W (Eco)

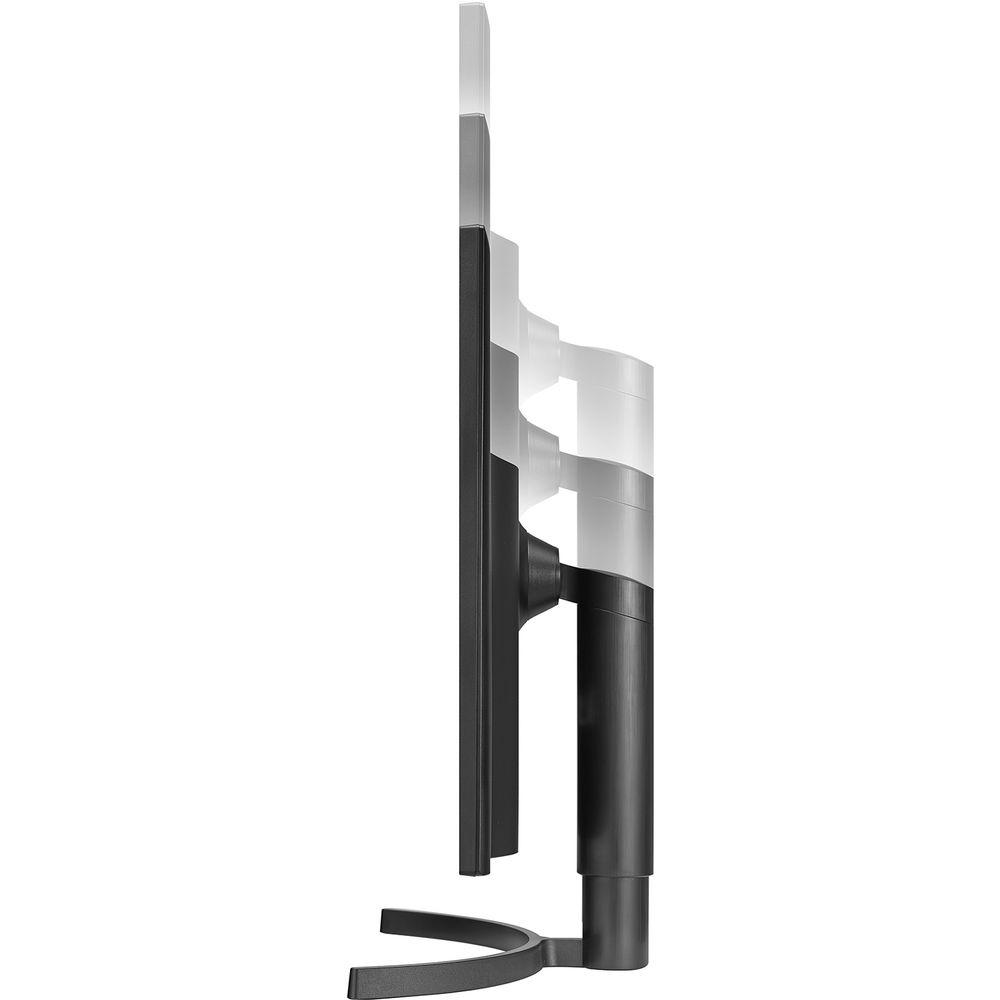

0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | | | Height Adjustment | 4.3" / 109.22 mm | | Mounting-Hole Pattern | None | | Dimensions (W x H x D) | 28.7 x 23.7 x 9.1" / 729.0 x 602.0 x 231.1 mm (With Stand)
28.7 x 16.7 x 2.0" / 729.0 x 424.2 x 50.8 mm (Without Stand) | | Weight | 15.4 lb / 6.99 kg (With Stand)
11.7 lb / 5.31 kg (Without Stand) | | | | Package Weight | 22.35 lb | | Box Dimensions (LxWxH) | 24.0 x 20.5 x 10.5" |
