User Manual for LG 32UL950-W 32" 16:9 4K UHD HDR FreeSync IPS Monitor Click to enlarge the picture
Contents of the user manual for the LG 32UL950-W 32" 16:9 4K UHD
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 32UL950-W 32" 16:9 4K UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More - LG Monitors - Nano IPS Displays
- LG 32UL950-W - 32" UltraFine 4K UHD LED Monitor with Thunderbolt 3

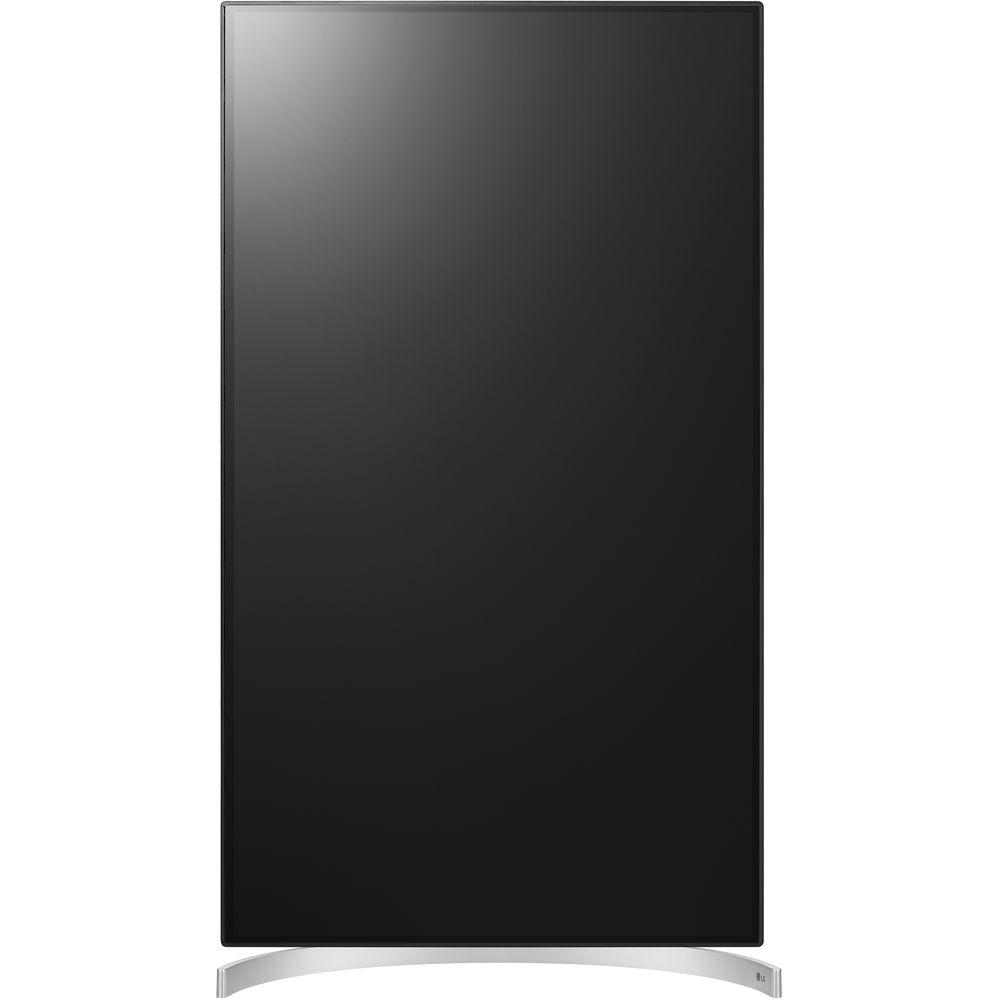

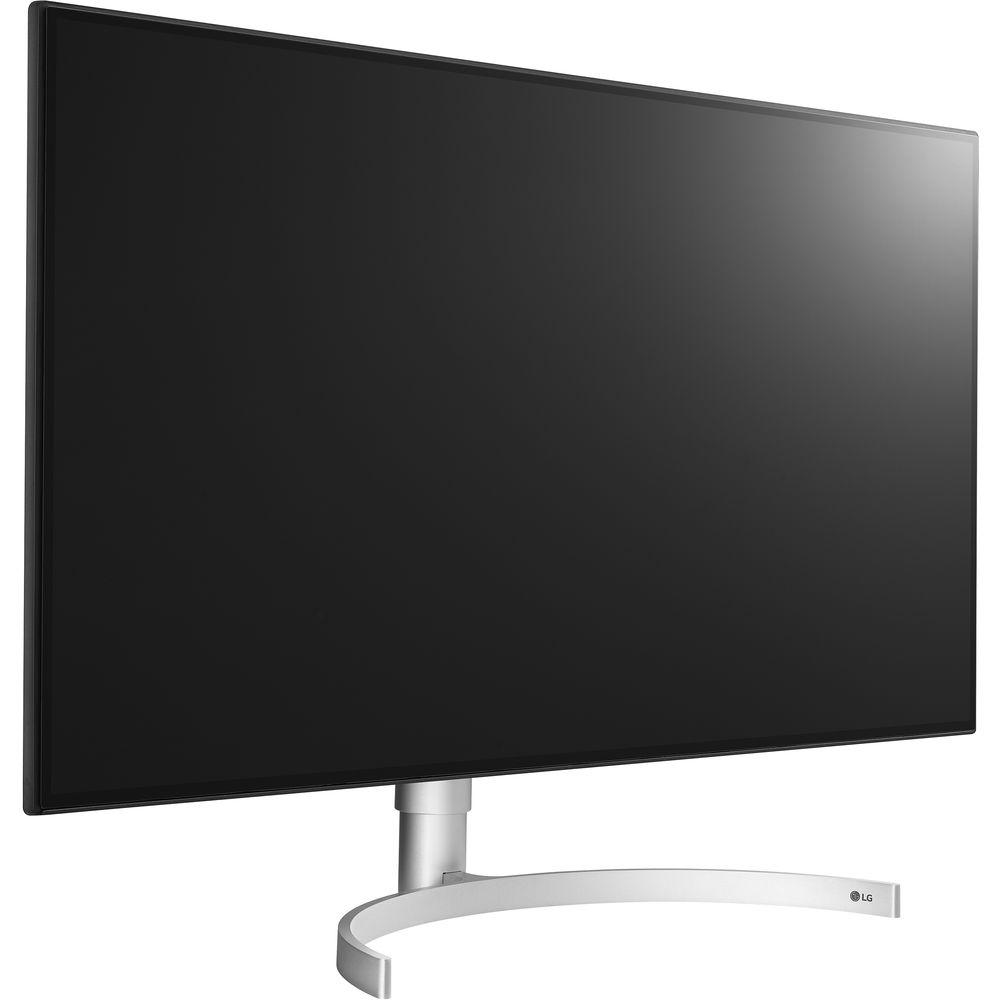

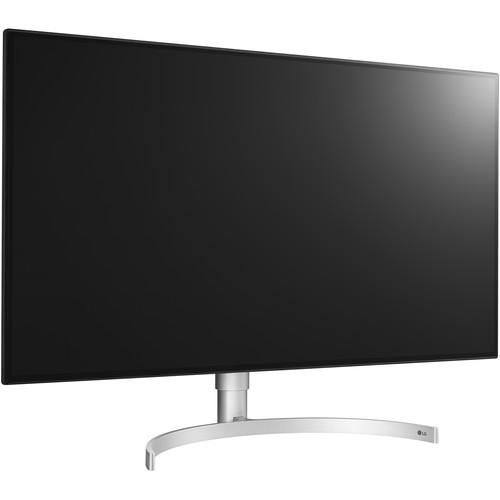

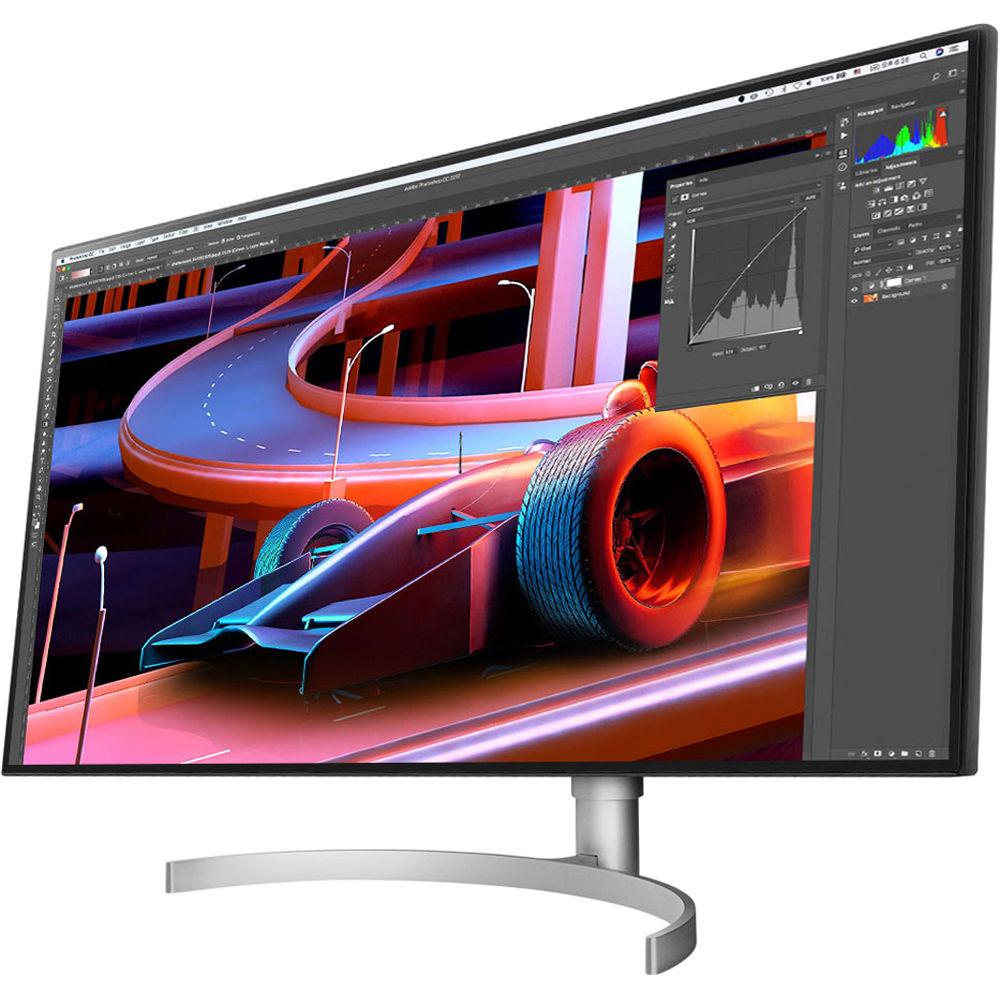

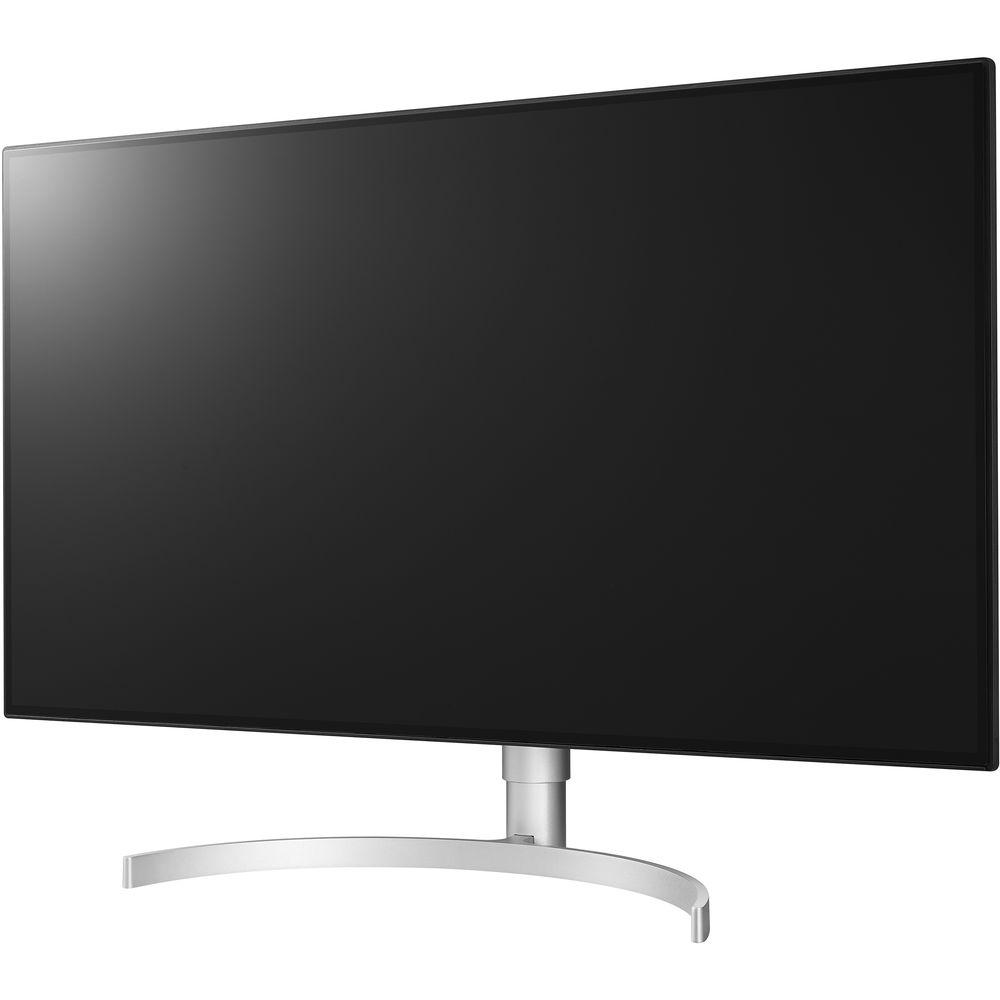

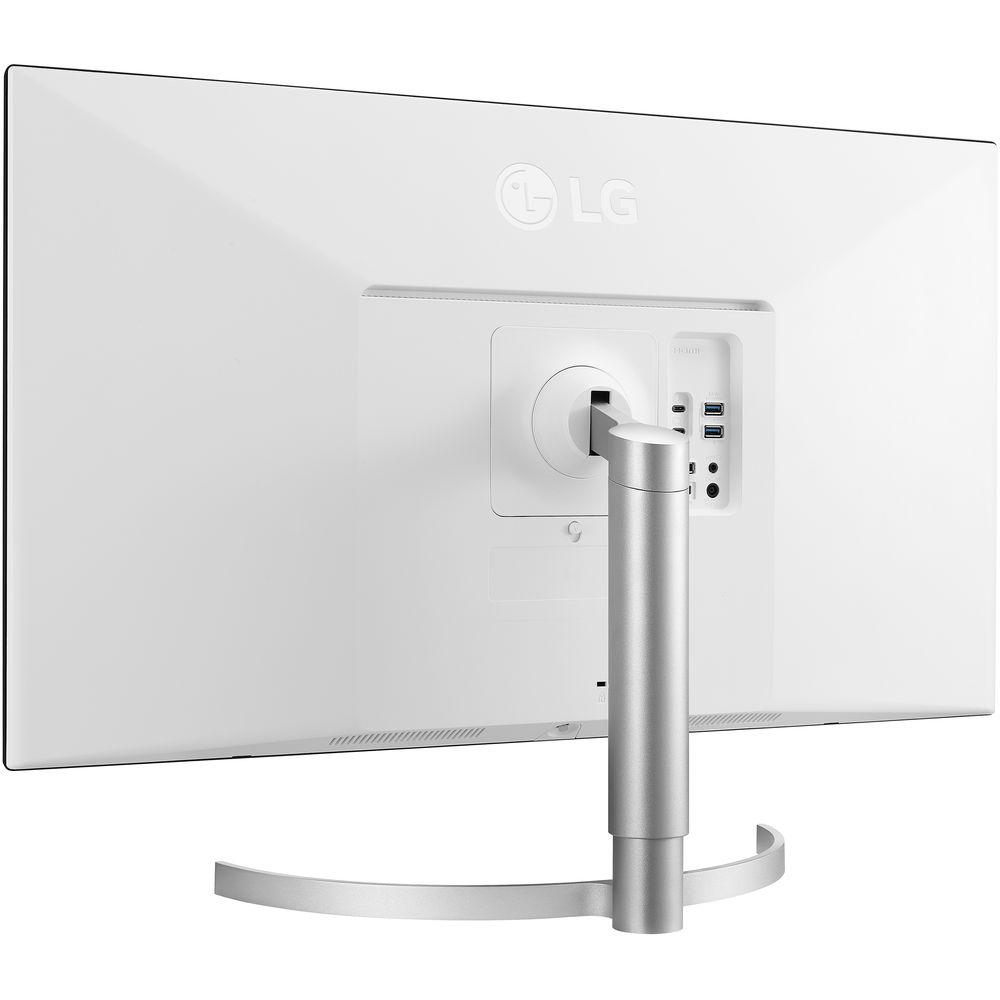

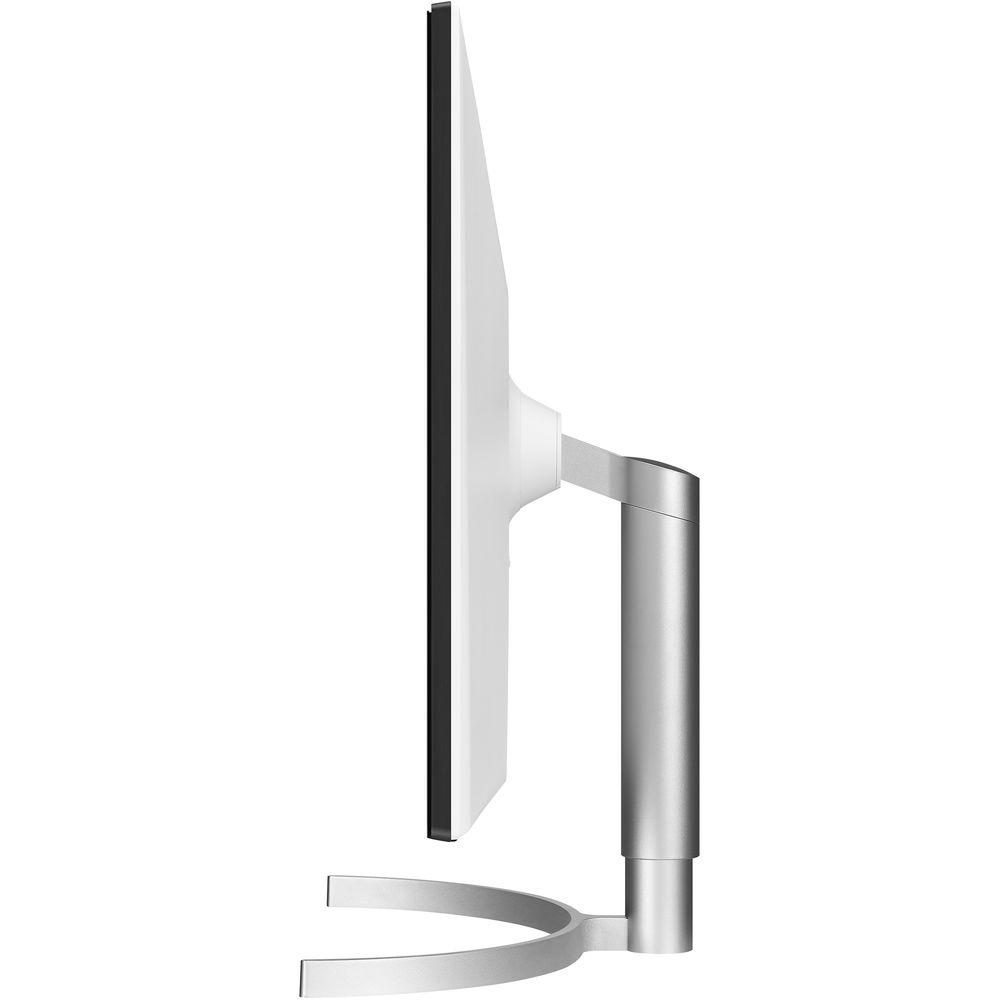

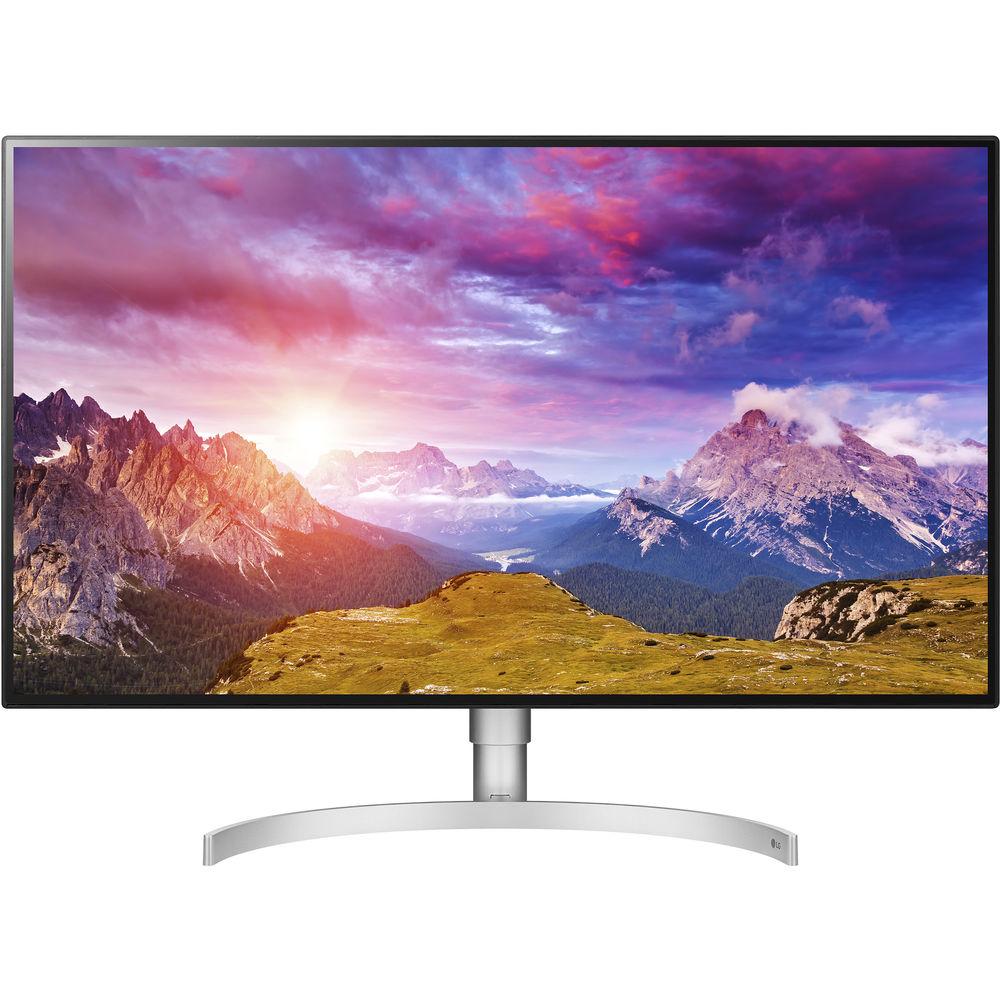

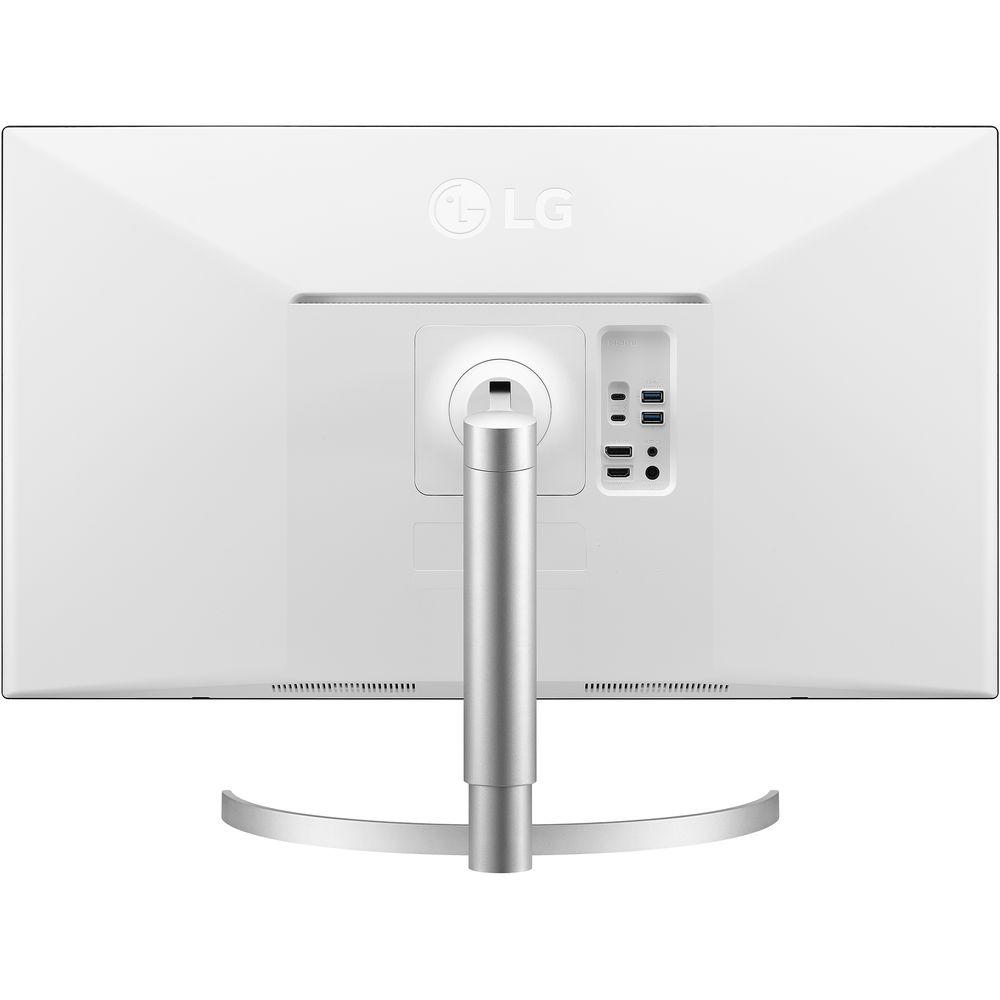

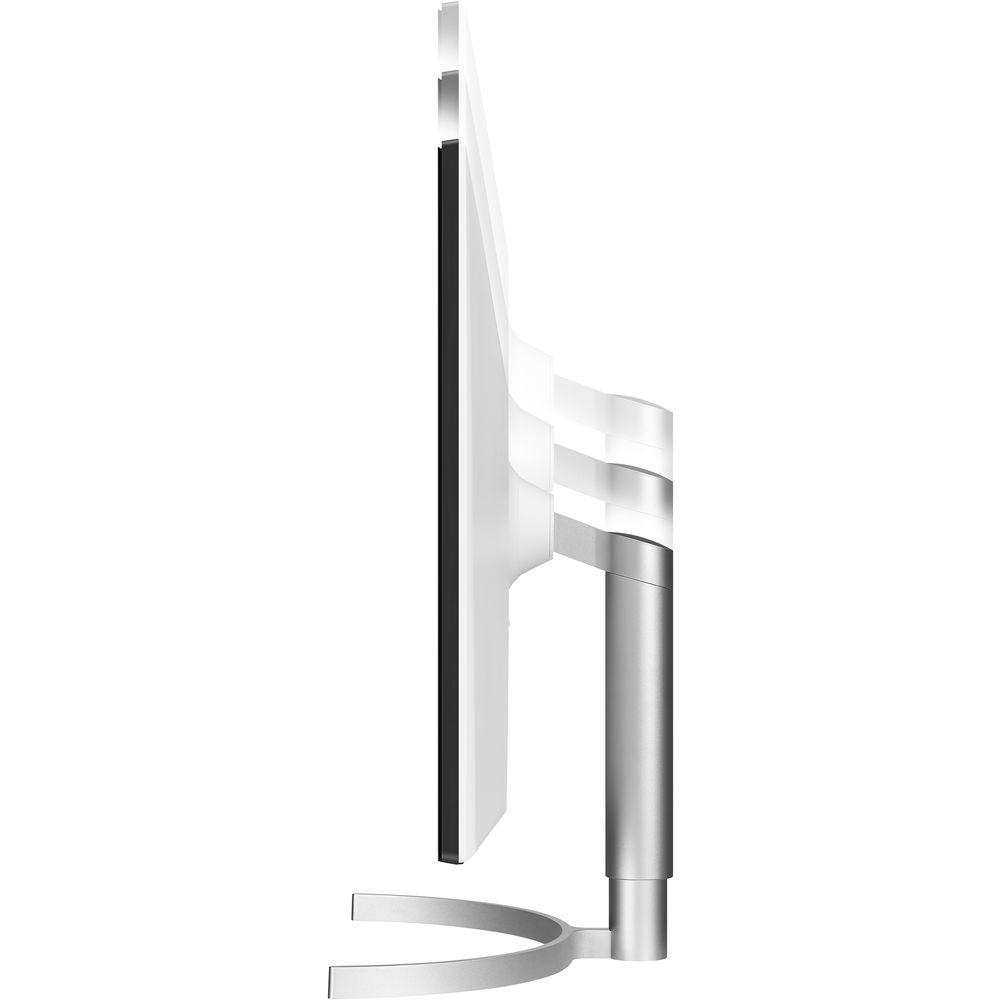

The 32UL950-W 32" 16:9 4K UHD HDR FreeSync IPS Monitor from LG features an expansive 32" screen size for an immersive viewing experience. Built with an In-Plane Switching (IPS) panel, it offers vivid colors and wide 178° viewing angles. Specs-wise, it has a 3840 x 2160 4K UHD resolution, a 1300:1 static contrast ratio, a 450 cd/m² brightness rating, and support for 1.07 billion colors. With these combined, this monitor provides you with crisp, clear details and accurate colors. Moreover, it supports AMD FreeSync technology, a helpful addition for gamers. Connect this display to your system via HDMI, DisplayPort, or even Thunderbolt 3 and tilt it to your viewing preference. If needed, you can also install an optional VESA stand, mount, or arm. For your convenience, it also has a built-in USB hub that you can use to quickly connect peripherals. - Nano IPS Display
- The Nano IPS display offers 98% DCI-P3 coverage for vivid color, which makes it ideal for users who deal with color-sensitive work.
- VESA DisplayHDR 600 Certified
- This display is VESA DisplayHDR 600 certified, which ensures real-time contrast ratios with local dimming, a visible increase in color gamut, and a high brightness rating for notable highlights.
- Thunderbolt 3
- Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port.
- AMD FreeSync Technology
- AMD FreeSync technology syncs the display's refresh rate with your graphics card's frame rate output to help reduce screen tearing, stuttering, and ghosting for a smoother gaming experience.
- On-Screen Control
- Instead of using built-in buttons, On-Screen Control puts your monitor settings into a convenient window for quick and easy access. Adjust its volume, brightness, and picture mode presets as well as access Screen Split 2.0 mode and more.
UPC: 719192625303 In the Box LG 32UL950-W 32" 16:9 4K UHD HDR FreeSync IPS Monitor DisplayPort Cable HDMI Cable USB Type-C Cable Thunderbolt 3 Cable Power Cable Limited 1-Year Warranty User Manual PDF 2.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 32UL950-W 32" 16:9 4K UHD HDR FreeSync IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG UltraFine Specs | | | Size | 32" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 137 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 450 cd/m2 | | Contrast Ratio | 1300:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | FreeSync | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | HDR Compatibility | HDR10 | | Color Gamut | 98% DCI-P3 | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.181 x 0.181 mm | | | | Connectivity | 1 x HDMI
1 x DisplayPort
2 x USB Type-A Input
1 x 3.5 mm Output
1 x USB Type-C (Thunderbolt 3) Input
1 x USB Type-C (Thunderbolt 3) Output | | HDCP Support | Yes, Version 2.2 | | Built-In Speakers | Yes, 2 | | | | Power Consumption | 200 W (Typical)
70 W (Eco)
1.2 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | USB Power Delivery | 60 W | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | No | | Dimensions (W x H x D) | 28.3 x 23.5 x 9.1" / 718.8 x 596.9 x 231.1 mm (With Stand)
28.3 x 16.3 x 1.8" / 718.8 x 414.0 x 45.7 mm (Without Stand) | | Weight | 16.1 lb / 7.30 kg (With Stand)
13.7 lb / 6.21 kg (Without Stand) | | | | Package Weight | 25.7 lb | | Box Dimensions (LxWxH) | 36.0 x 20.0 x 8.0" |
