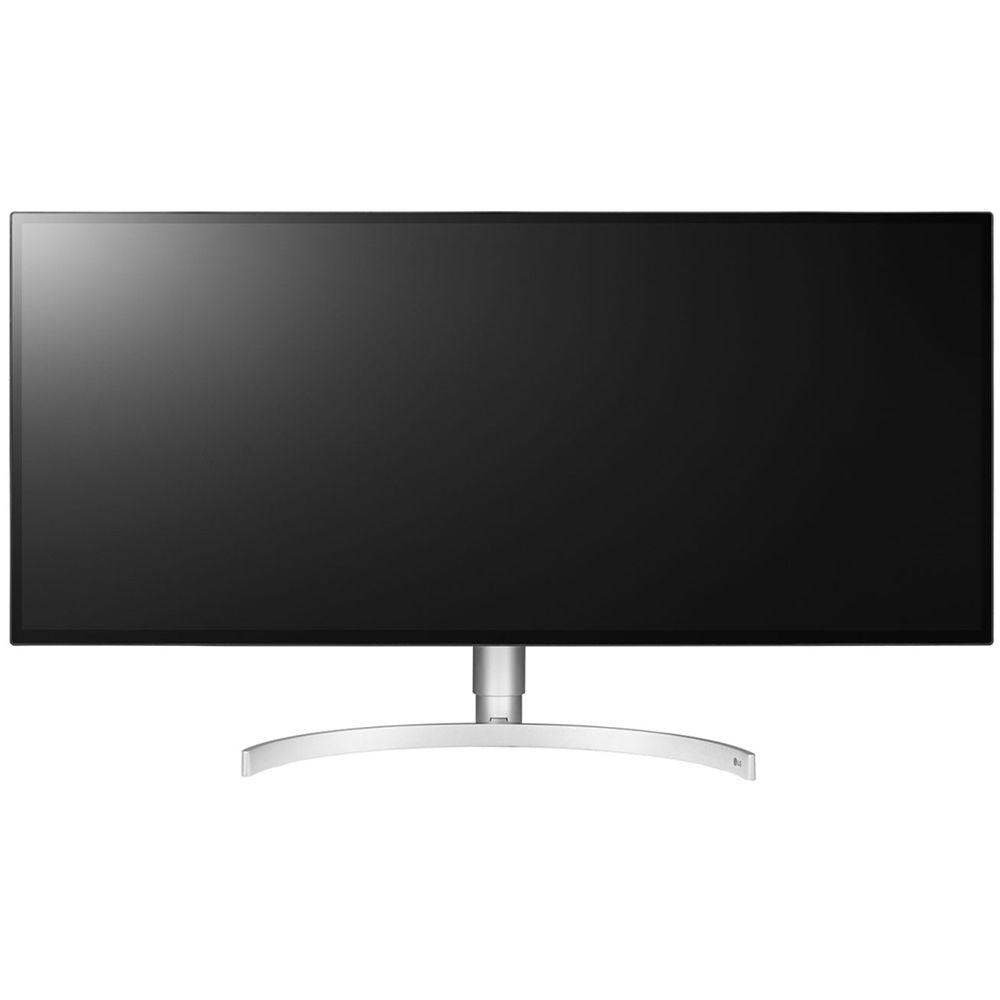

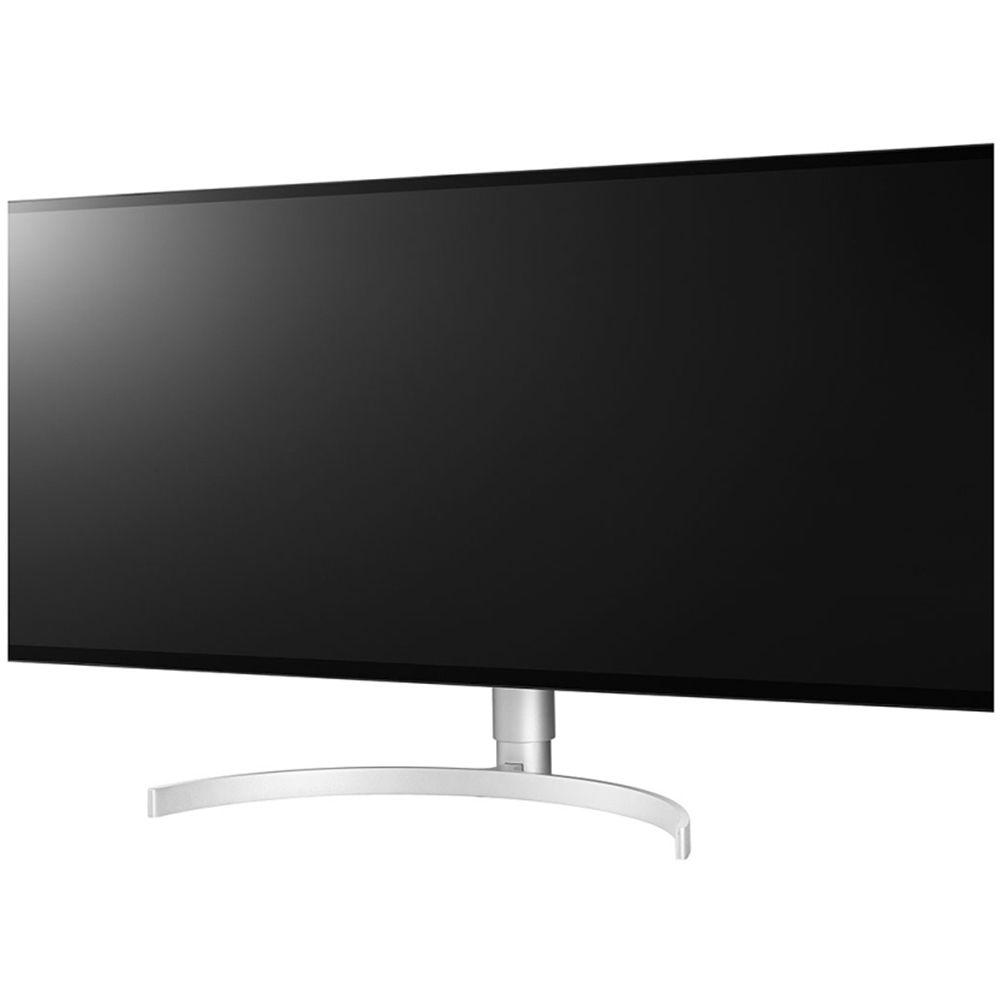

User Manual for LG 34BK95U-W 34" 21:9 UltraWide 5K2K WUHD Nano IPS Monitor Click to enlarge the picture
Contents of the user manual for the LG 34BK95U-W 34" 21:9 UltraWide 5K2K
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 34BK95U-W 34" 21:9 UltraWide 5K2K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

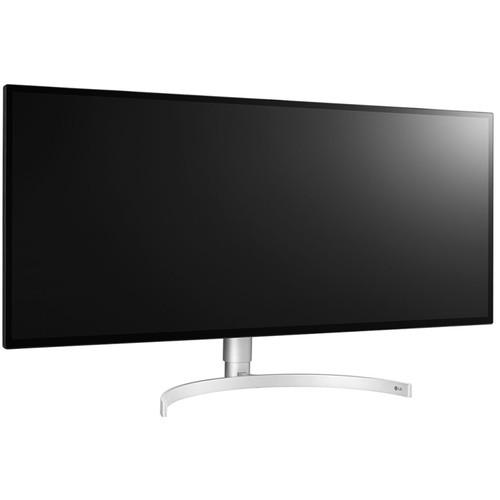

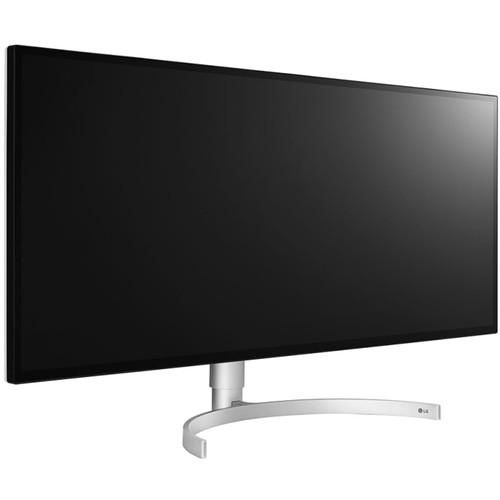

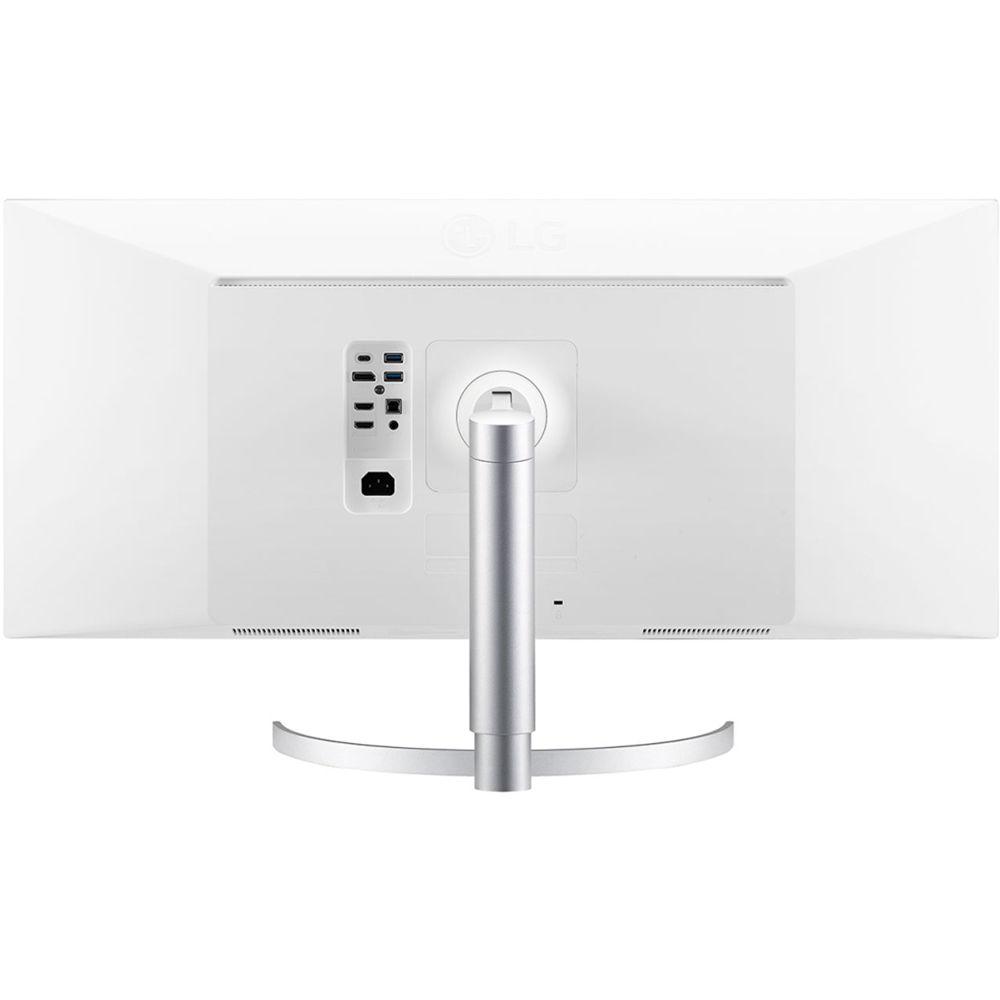

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Experience 5K2K WUHD resolution while multitasking at ease with the 34BK95U-W 34" 21:9 UltraWide 5K2K WUHD Nano IPS Monitor from LG. Aside from the 5120 x 2160 resolution and Nano IPS (In-Plane Switching) technology, this monitor features HDR 600 support for enhanced color and brightness, with a typical brightness rating of 450 cd/m2, a minimum brightness rating of 360 cd/m2, and support for 98% coverage of the DCI-P3 spectrum. Its streamlined design incorporates an ultra-thin bezel on all four sides to minimize distractions and make your viewing experience more immersive. Getting started with the 34BK95U-W monitor is simple as it comes equipped with a bevy of ports including Thunderbolt 3, DisplayPort, HDMI, USB 2.0, USB 3.0, and a dedicated headphone output. For optimum viewing and accessibility, fine-tune the position of your monitor by tilting and adjusting the height of the integrated ArcLine desktop stand. - 34" 5K2K UltraWide

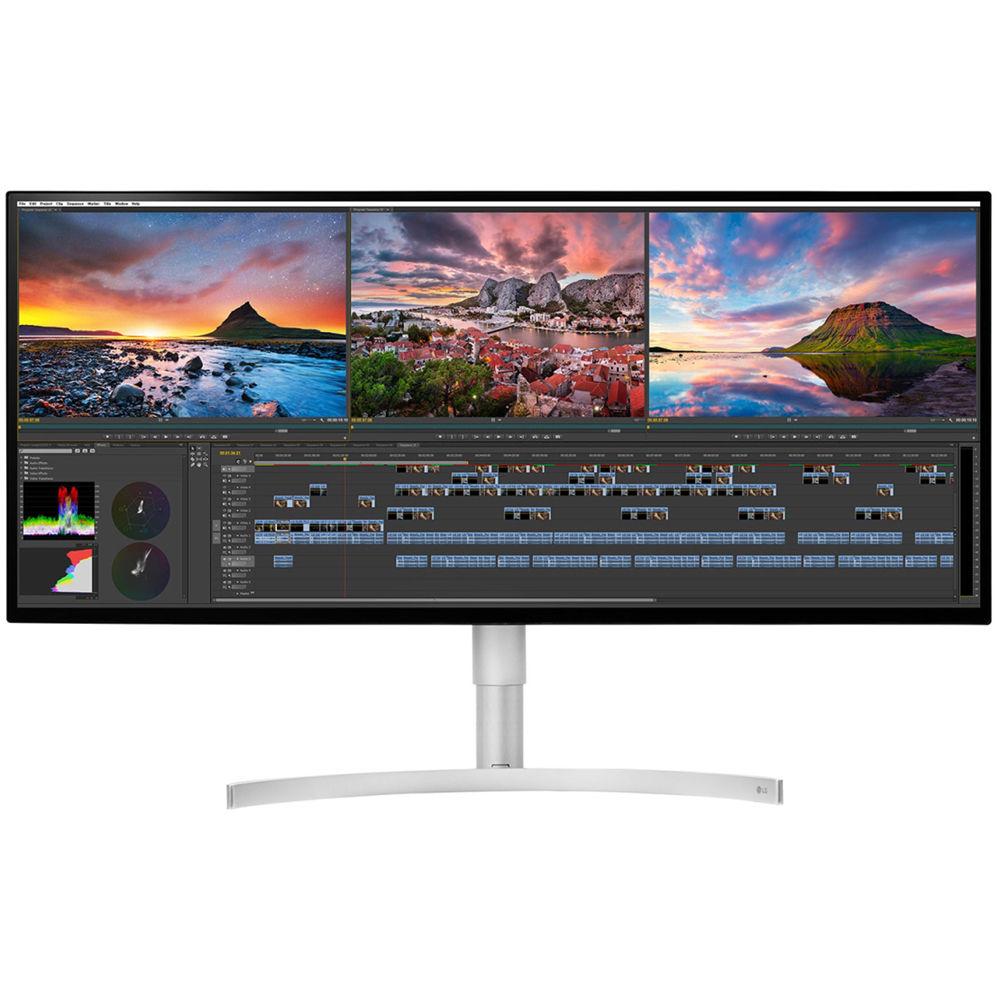

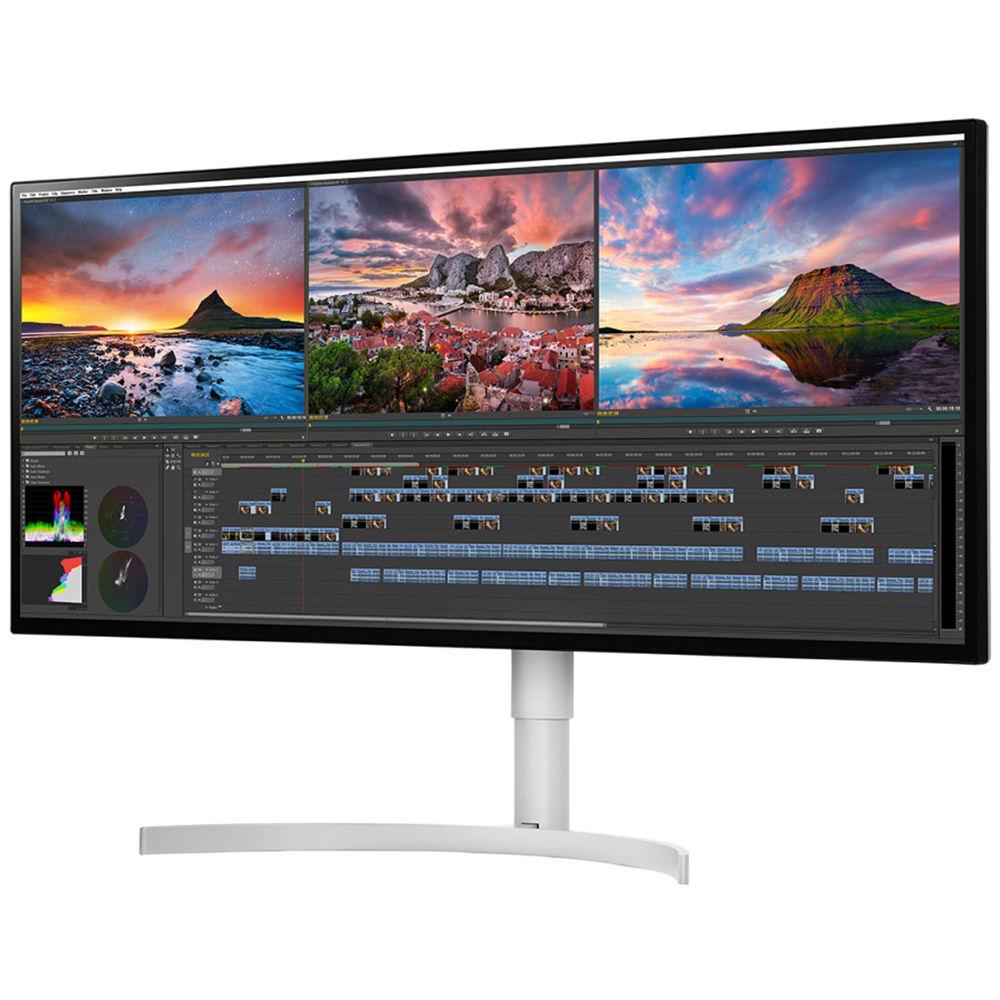

- Multitaskers can work in a generous 5:9 area while simultaneously viewing a 16:9 4K video on the same screen. The 5K2K 21:9 display of the 34BK95U-W offers 5120 x 2160 resolution optimized for video editors, programmers, and developers, with convenient single-cable Thunderbolt 3 connectivity.
- VESA DisplayHDR 600
- The 34BK95U-W offers high dynamic range and a peak luminance of 600 cd/m2 for lifelike imagery with bolder contrast between the brightest and darkest areas of the screen.
- Nano IPS Display
- More accurate color and a broader contrast ratio combine to deliver high-end picture quality. Featuring Nano IPS technology, the 34BK95U-W monitor covers 98% of the DCI-P3 color space, the digital film industry standard.
- On-Screen Control
- On-Screen Control puts a host of essential monitor settings into a handy window for quick, easy access. Screen Split 2.0, My Display Presets, PIP, 5:9 Preview, and more can be adjusted with just a few clicks of the mouse, instead of hard buttons on the monitor.
- Dual Controller Software
- The Dual Controller software enables you to easily connect two computers to your UltraWide monitor and activate the Picture By Picture (PBP) feature for displaying content from both computers on your screen.
- ArcLine Stand

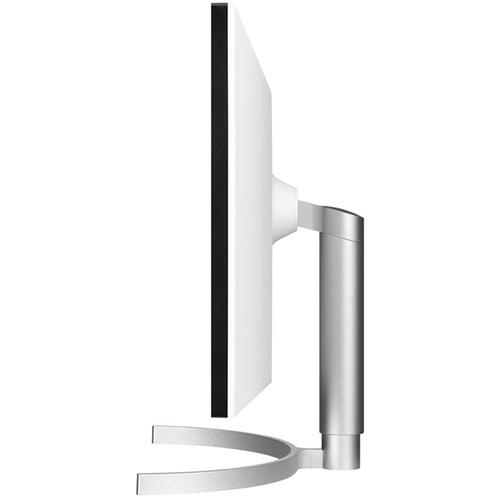

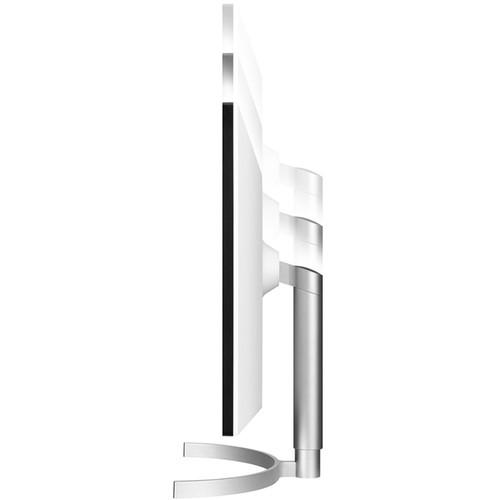

- The design of LG premium monitors is accentuated by the ArcLine stand. The smooth curve of the base provides stability, ensuring dependable performance with a touch of elegance. The ArcLine stand also allows for a height adjustment of 4.33" and a tilt of -5 to 15°.
UPC: 719192623224 In the Box LG 34BK95U-W 34" 21:9 UltraWide 5K2K WUHD Nano IPS Monitor DisplayPort Cable Thunderbolt Cable USB Type-B to Type-A Cable Cable Holder Power Cable Limited 3-Year Warranty User Manual PDF 2.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 34BK95U-W 34" 21:9 UltraWide 5K2K WUHD Nano IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 34BK95U-W Specs | | | Size | 34" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 5120 x 2160 | | Aspect Ratio | 21:9 | | Pixels Per Inch (ppi) | 163 ppi | | Maximum Brightness | 450 cd/m2 | | Contrast Ratio | 1200:1 | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Color Gamut | 98% DCI-P3 | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°

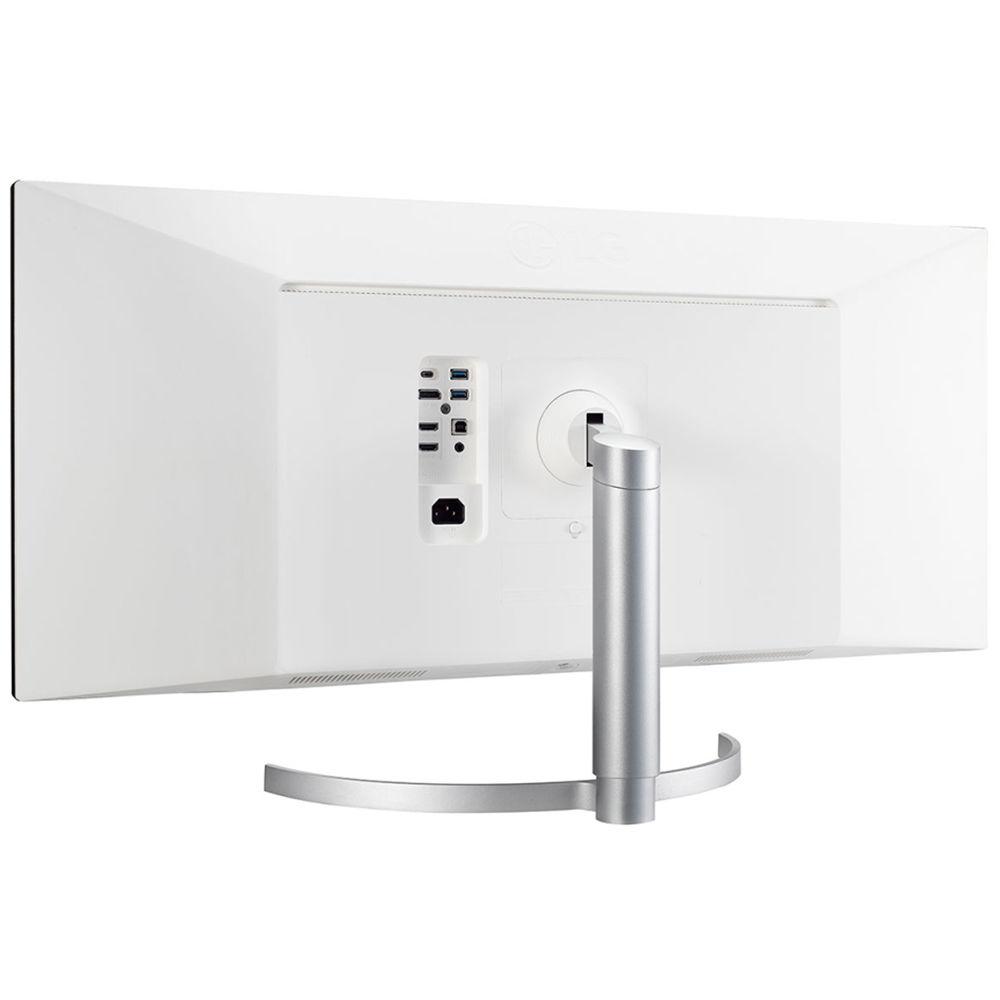

Vertical: 178° | | Dot Pitch | 0.0518 x 0.1554 mm | | | | Connectivity | 2 x HDMI Input
1 x DisplayPort Input
1 x USB Type-C (Thunderbolt 3) Input/Output
2 x USB Type-A (USB 3.1 Gen 1)
1 x USB Type-B (USB 2.0)
1 x 3.5 mm Output | | HDCP Support | Yes, Version 2.2 | | Built-In Speakers | Yes, 2 x 5 W | | | | Power Consumption | 80 W (Typical)
54.78 W (Eco)
1.2 W (Standby) | | Power Adapter Type | Internal | | USB Power Delivery | 85 W (via USB Type-C) | | | | Certifications | BSMI, CCC, ErP Lot 6, FCC, TCO Certified, TUV, UL, as per Manufacturer | | | | Height Adjustment | 4.33" / 110 mm | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -5 to 15° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 32.2 x 22.0 x 9.2" / 81.8 x 55.9 x 23.4 cm (With Stand)
32.2 x 14.2 x 2.2" / 81.8 x 36.1 x 5.6 cm (Without Stand) | | Weight | 19.4 lb / 8.80 kg (With Stand)
16.5 lb / 7.48 kg (Without Stand) | | | | Package Weight | 27.0 lb | | Box Dimensions (LxWxH) | 38.25 x 20.5 x 7.25" |
