User Manual for LG 34CB88-P 34" 21:9 Curved UltraWide QHD IPS Monitor Click to enlarge the picture
Contents of the user manual for the LG 34CB88-P 34" 21:9 Curved UltraWide
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
|
User manual for the LG 34CB88-P 34" 21:9 Curved UltraWide contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

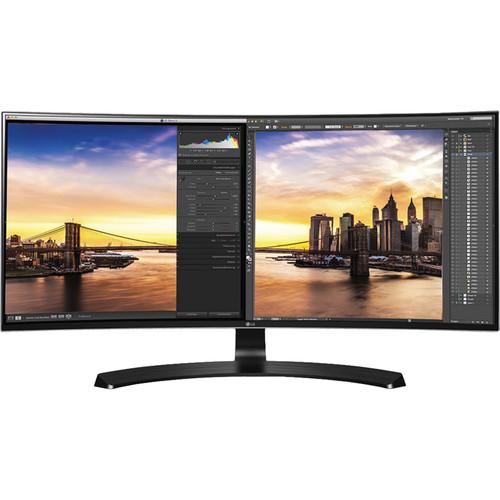

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The 34CB88-P 34" Curved UltraWide QHD Monitor from LG features a 3440 x 1440 resolution, a 21:9 aspect ratio, and is built with an IPS (In-Plane Switching) panel that offers vivid colors and wide viewing angles. Covering 99% of the sRGB color gamut and supporting 1.07 billion colors, this display can reach a brightness rating of 300 cd/m² and has a Mega dynamic contrast ratio that further enhances colors, providing you with darker blacks and brighter bright colors. Designed for gamers, the 34UM59-P has a 5 ms response time, Dynamic Action Sync (DAS) mode that reduces input lag, and FreeSync technology, which reduces tearing and stuttering. The ergonomic stand can be installed quickly and easily without the need for tools, and its height and tilt are adjustable for your comfort. - 21:9 Curved UltraWide QHD on IPS display
- Offers wrap-around field of view on a wide screen
Ensures vivid and accurate color expression for visual comfort - Screen Split 2.0
- Divides the display into multiple sections for different tasks by resizing the windows on the screen
Offers 14 advanced options including four types of Picture-in-Picture (PIP) mode
PIP mode allows you to work on the main screen while watching a video in a smaller window floating on the screen - FreeSync Technology
- Syncs the display's refresh rate with the graphics card's frame rate output reducing tearing and stuttering for a smoother gaming experience
- Black Stabilizer
- Allows gamers to have better visibility, even in deep-dark or bright-light scenes
- Dynamic Action Sync (DAS) Mode
- Minimizes input lag for more fluid and natural movements
- USB 3.0 Quick Charge
- Charge the battery of a connected device quickly using the USB 3.0 port on the product
- Preset Customized Options
- OnScreen Control allows you to easily customize monitor settings with a few clicks
Included My Display Presets offers customized picture mode for specific software
My Display Presets has automatically applied to picture mode you already preset - Flawless Color Expression
- Perceives the same color as a subject on display or RGB color code through a sRGB over 99% color space and IPS's accurate color expression
- Adjustable Stand with Height and Tilt Function
- Allows you to provide more comfortable working conditions
- Additional Features
- DDC/CI, HDCP, Key Lock, Response Time Control, Quick Charge, FreeSync (DP 55 to 75 Hz), Game Mode, Black Stabilizer, Flicker Safe, Automatic Standby, OnScreen Control, Reader Mode, Six Axis Control, Color Calibrated, Dual Controller, Smart Energy Saving (Conserve energy by using luminance compensation algorithm), Dual EDID (H/W), One-Click Stand Set-Up, Picture-in-Picture (PIP) in screen split mode, and Picture-by-Picture (PBP)
UPC: 719192607262 In the Box LG 34CB88-P 34" 21:9 Curved UltraWide QHD IPS Monitor Power Cord HDMI Cable DisplayPort Cable Cable Holder Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 34CB88-P 34" 21:9 Curved UltraWide QHD IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 34CB88-P Specs | | | Size | 34" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3440 x 1440 | | Aspect Ratio | 21:9 | | Pixels Per Inch (ppi) | 110 ppi | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | FreeSync | | Horizontal Frequency | 30 to 90 kHz (HDMI)
30 to 90 kHz (DisplayPort) | | Vertical Frequency | 56 to 61 Hz (HDMI)
56 to 61 Hz (DisplayPort) | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | HDR Compatibility | None | | Color Gamut | 99% sRGB | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2325 x 0.2325 mm | | | | Connectivity | 2 x HDMI 2.0 Input
1 x DisplayPort 1.2 Input
1 x 3.5 mm Output
1 x USB (USB 3.1 Gen 1) Input
2 x USB (USB 3.1 Gen 1) Output | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 7 W | | | | Power Consumption | 56.7 W (Eco)
65 W (Typical)
1.2 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | | | Certifications | BSMI, CE, FCC, TUV, cUL, as per Manufacturer | | | | Height Adjustment | 4.72" / 120 mm | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 32.2 x 22.4 x 9.9" / 81.8 x 56.9 x 25.1 cm (With Stand)
32.2 x 14.2 x 3.5" / 81.8 x 36.1 x 8.9 cm (Without Stand) | | Weight | 18.3 lb / 8.30 kg (With Stand)
13.7 lb / 6.21 kg (Without Stand) | | | | Package Weight | 24.75 lb | | Box Dimensions (LxWxH) | 38.3 x 20.3 x 8.1" |
