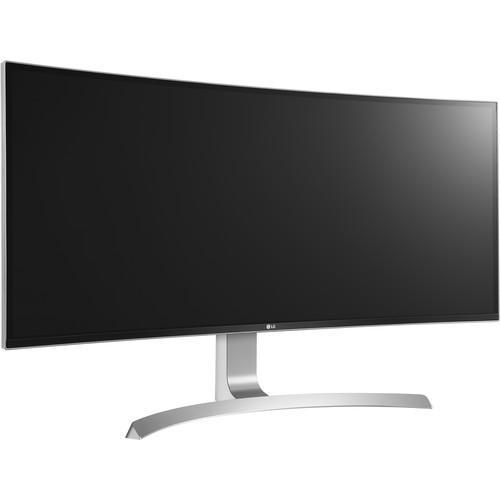

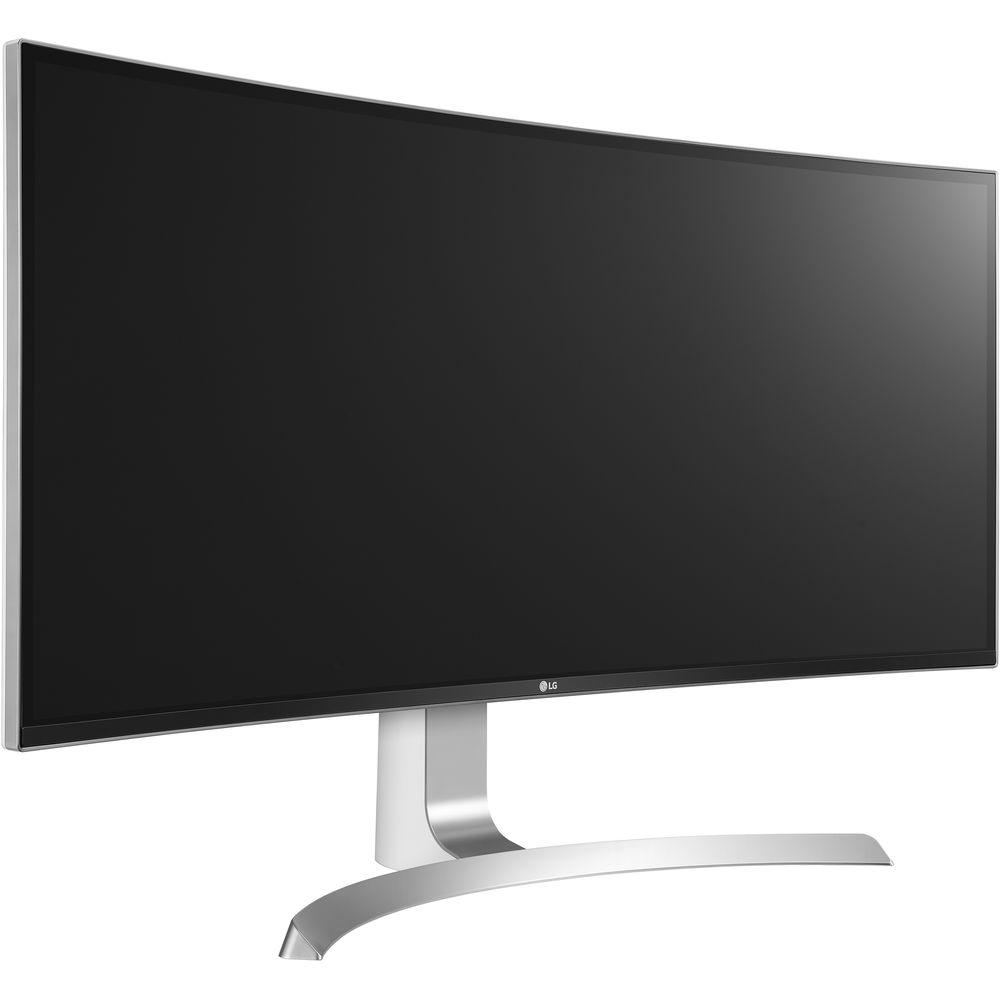

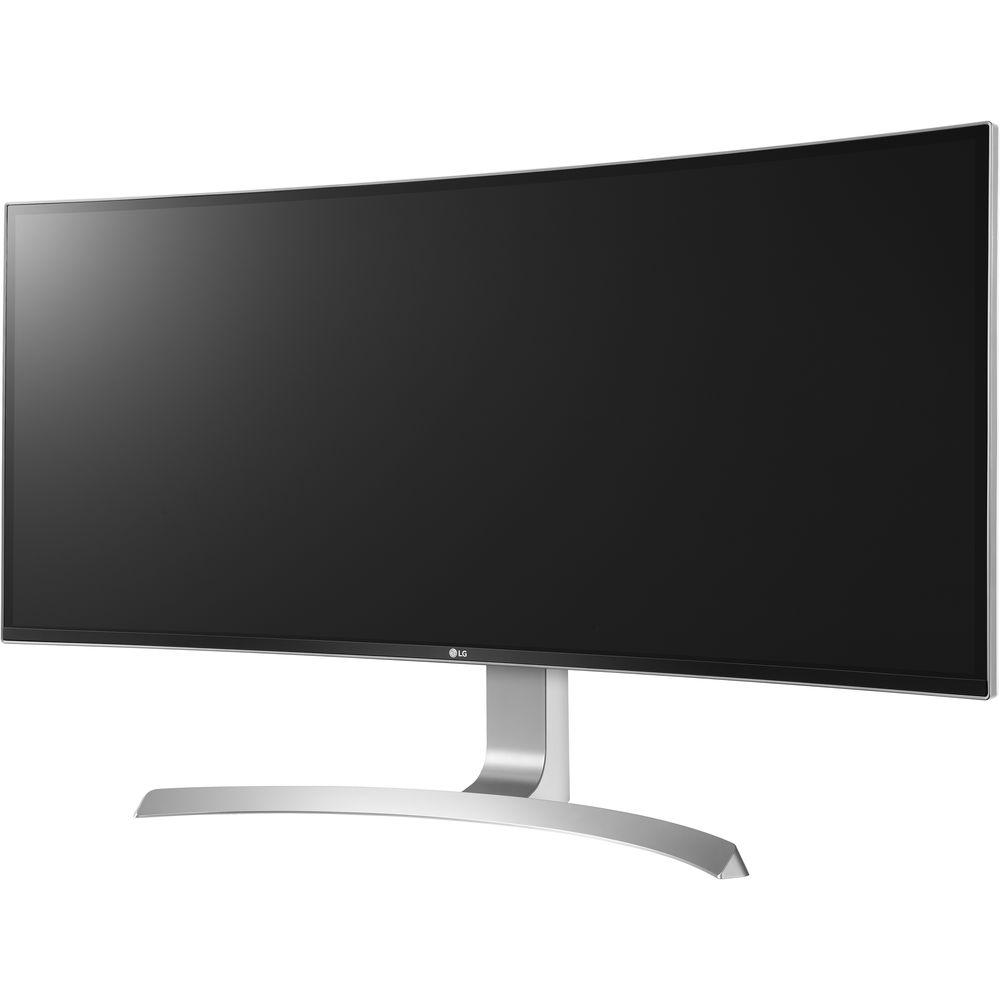

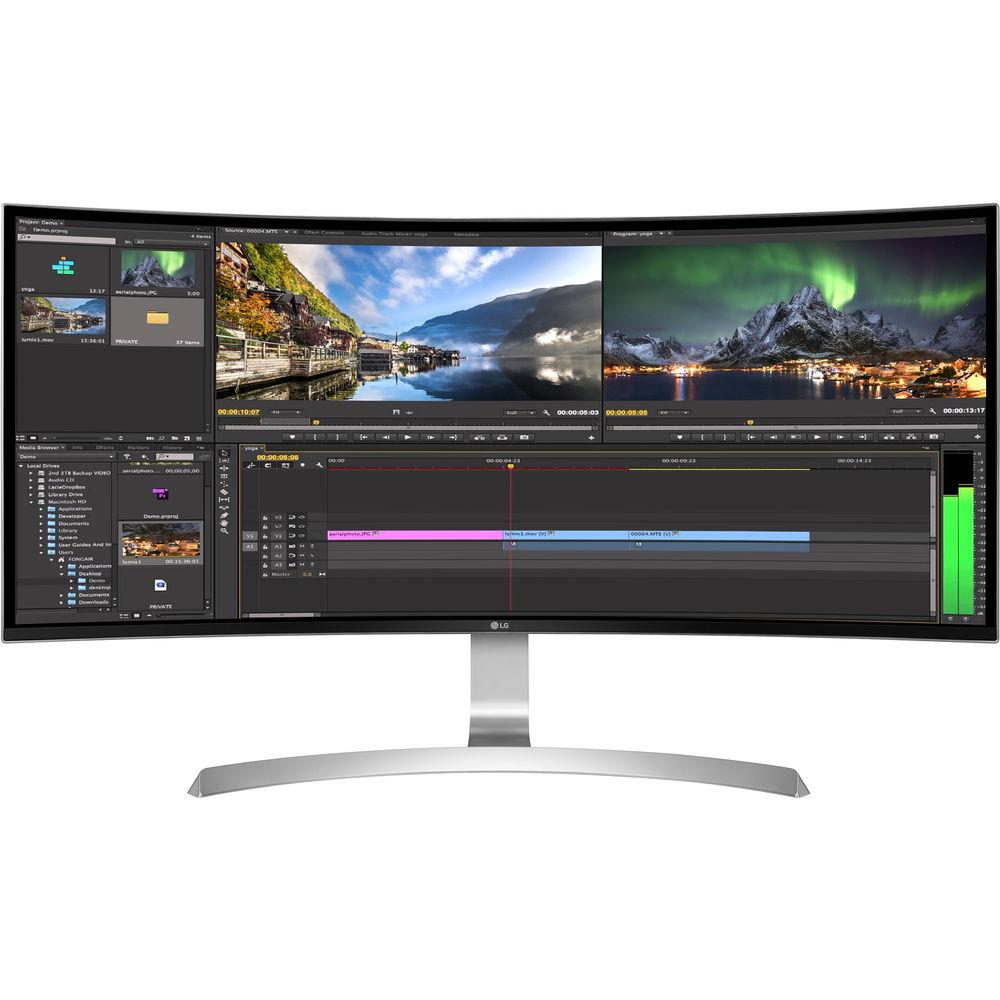

User Manual for LG 34CB99-W 34" 21:9 UltraWide Curved IPS Monitor Click to enlarge the picture
Contents of the user manual for the LG 34CB99-W 34" 21:9 UltraWide Curved
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 34CB99-W 34" 21:9 UltraWide Curved contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More actaufvqzefrycyuxwrwrdrrecfusdudsstv With a 21:9 aspect ratio, the UltraWide 34CB99-W 34" Curved IPS Monitor from LG offers an immersive viewing experience with a pixel area about 1.8 times larger than a Full HD 21:9 monitor and about 2.4 times larger than a Full HD 16:9 monitor.
In addition to the increased pixel area, this LG monitor features a 1900R curvature designed to mimic the curvature of the human eye, so you can see the entire screen without moving your head. The IPS (In-Plane Switching) panel comes complete with a 3440 x 1440 resolution, a 1000:1 contrast ratio, a 300 cd/m² brightness rating, a 5 ms response time, and support for up to 1.07 billion colors. This monitor also supports FreeSync technology to create a more fluid gaming experience by syncing with compatible graphics cards to virtually eliminate all tearing and blurring during intense, fast moving scenes.

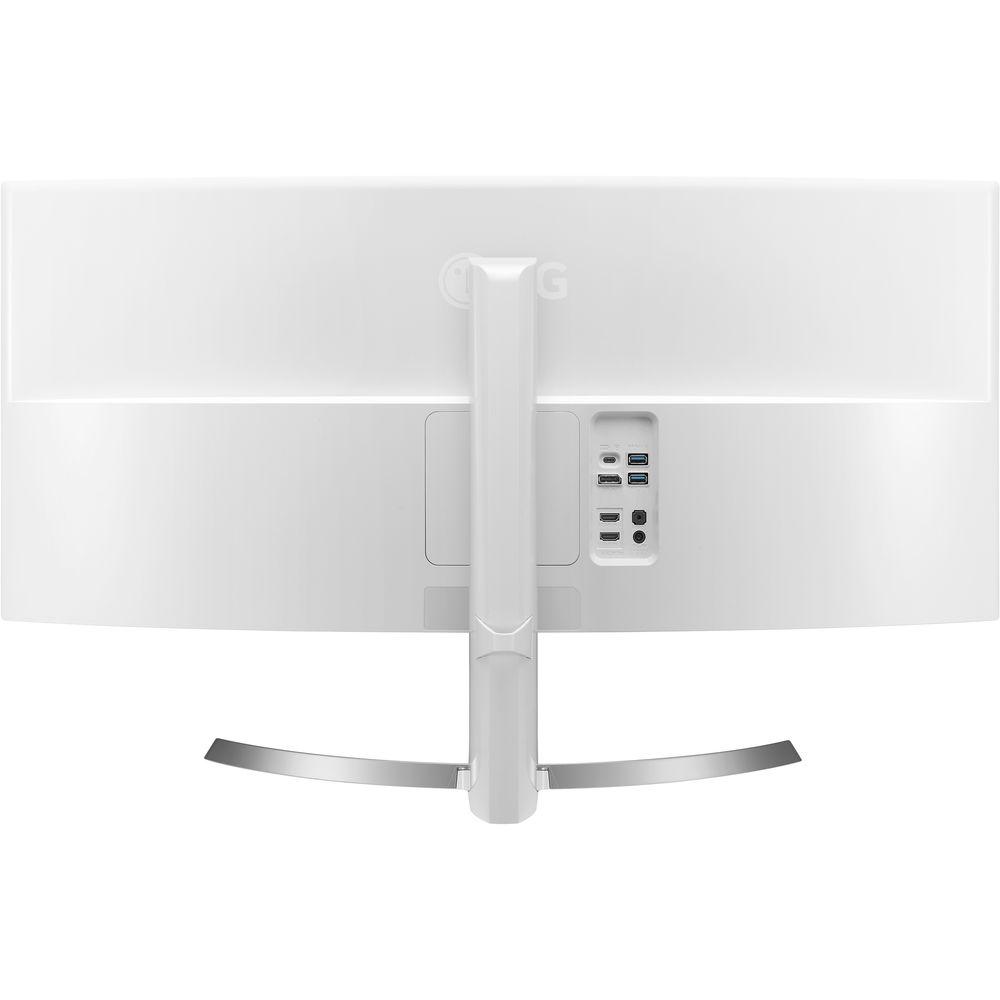

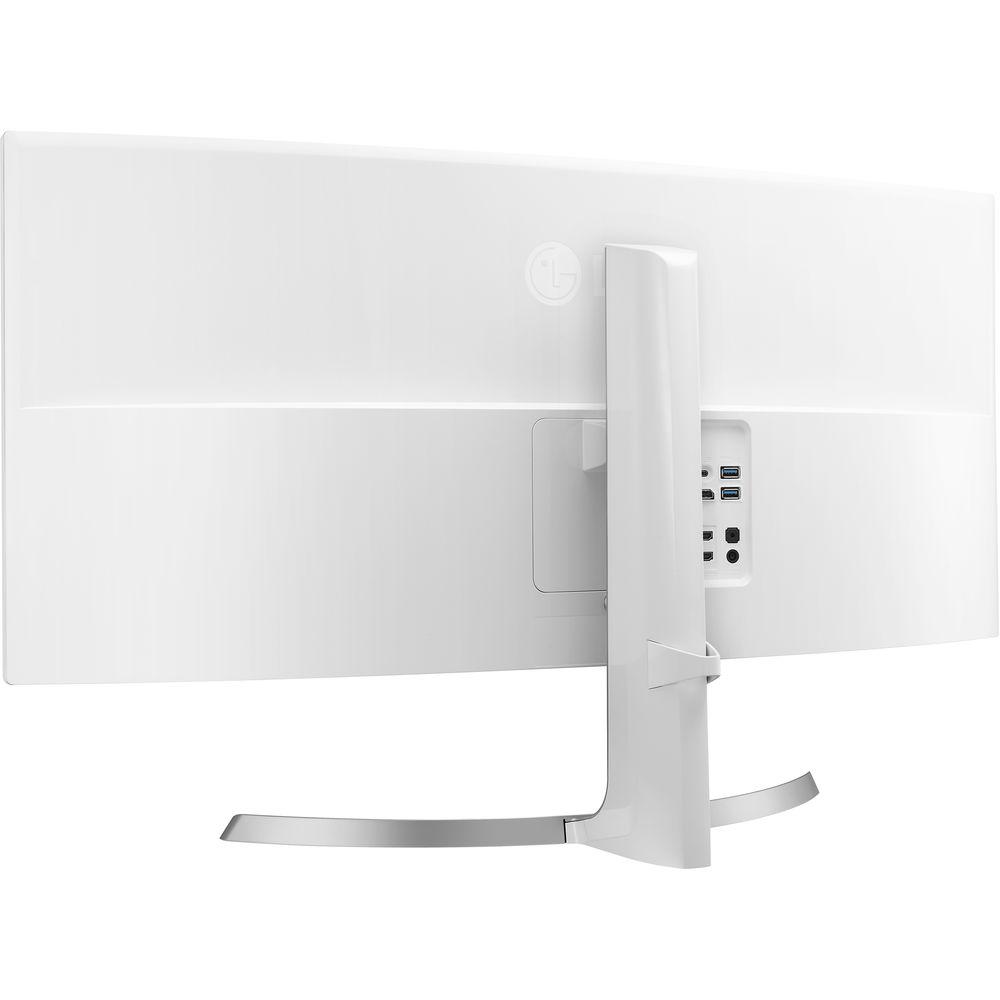

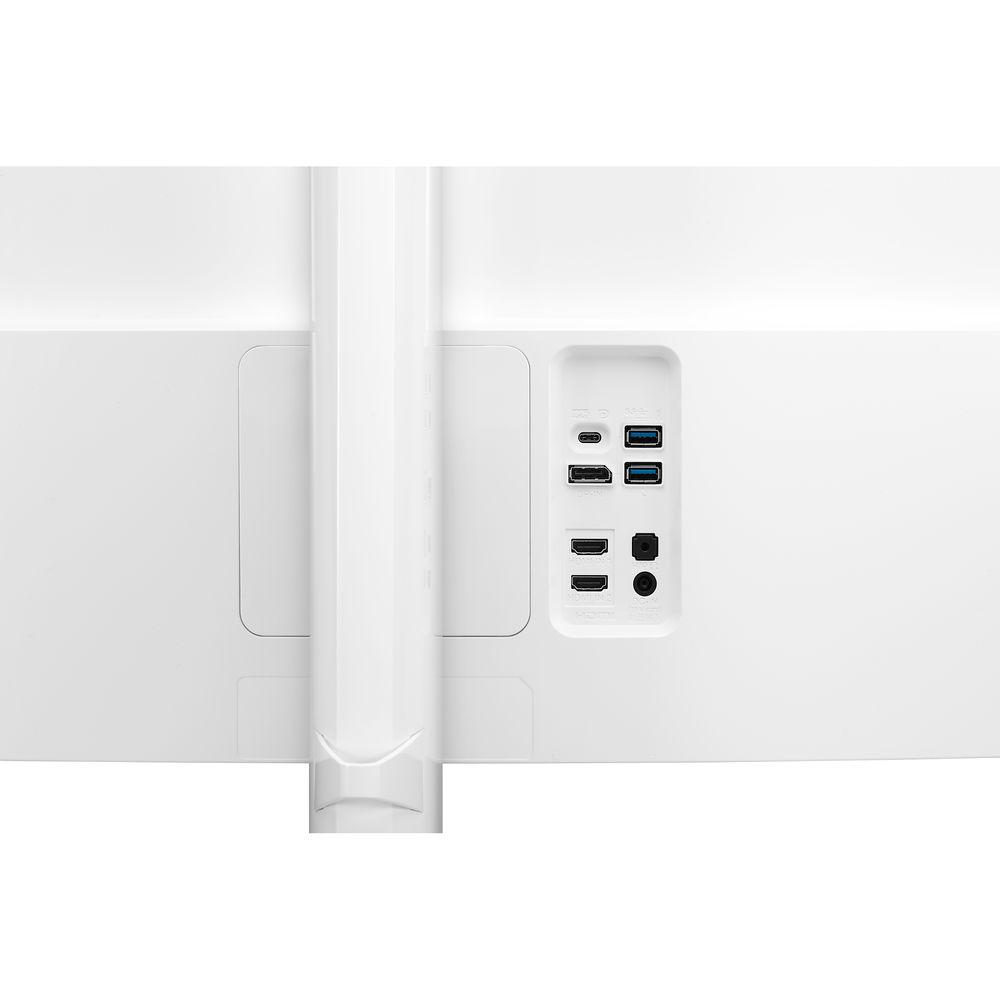

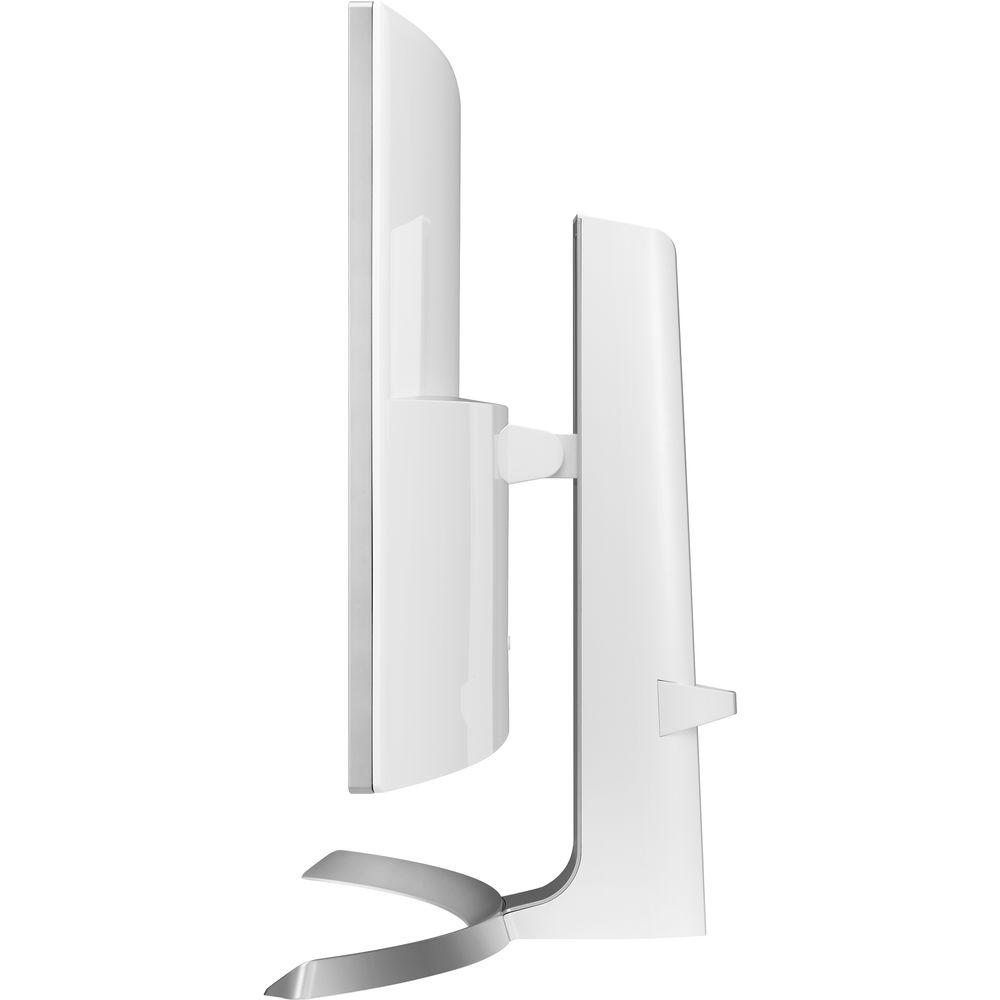

Setting up the LG 34CB99-W UltraWide monitor is simple as it comes equipped with HDMI and DisplayPort inputs along with a built-in USB hub to connect USB compatible peripherals directly to the monitor. Included with the USB hub is a dedicated quick charge port to quickly charge devices such as smartphones and tablets. Once configured the display can be tilted and the height can be adjusted to take full advantage of the 178° horizontal and vertical viewing angles while the built-in 7W speakers complete the multimedia viewing experience. - In-Plane Switching Display
- IPS technology highlights the performance of liquid crystal displays. Response times are shortened, color reproduction is improved, and users can now view the screen at virtually any angle.
- USB Type-C Connectivity
- The integrated USB Type-C port allow 4K video display, data transfer, and laptop/mobile device charging, all at the same time over a single cable. Reduce cord clutter and increase efficiency with USB Type-C.
- USB 3.0 Quick Charge
- Save time when you power up the battery of a connected device using USB 3.0 Quick Charge. Once enabled, this convenient feature allows a phone or other mobile device to charge up to four times faster than regular USB 3.0.
- Split Screen 2.0
- Customize your monitor layout for multitasking with the latest version of LG Screen Split. Resize and display multiple windows at once, with 14 options including four different picture-in-picture (PIP) choices.
- FreeSync
- With FreeSync, gamers can experience seamless, fluid movement throughout hi-res, fast-paced games. FreeSync nearly eliminates tearing and stuttering that can occur because of differences between a graphic card's frame rate and a monitor's refresh rate.
- Reader Mode
- Reducing blue light to help lessen eye fatigue, Reader Mode provides optimal conditions for reading. With just a click of a mouse, you can more comfortably read your display.
- Additional Features
- • Ratio: Wide, Original, Cinema 1, Cinema 2, 1:1
• PIP: PIP mode in Screen Split
• PBP
• DDC/CI
• HDCP:HDMI (2.2:/ 1.4), DP(1.4) , USB-C(1.4)
• Key Lock
• Response Time Control
• Quick Charge
• FreeSync
• Game Mode
• DAS Mode
• Black Equalizer
• Flicker Safe
• Smart Energy Saving
• Automatic Standby
• Reader Mode
• Six Axis Control
• SUPER + Resolution
• Color Calibrated
• Dual controller
• Screen Split2.0 (in OSC)
• My Display Preset (in OSC)
• OnScreen Control (OSC)
• Dual EDID (H/W)
• One Click Stand Set-up UPC: 719192613973 In the Box LG 34CB99-W 34" 21:9 UltraWide Curved IPS Monitor Power Cord HDMI Cable DisplayPort Cable USB Type-C to USB Type-C Cable USB Type-A to USB Type-C Cable Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 34CB99-W 34" 21:9 UltraWide Curved IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 34CB99-W Specs | Panel Size | 34" / 86.4 cm | | Curvature | 1900R | | Panel Type | In-plane switching (IPS) | | Color Gamut (CIE1931) | sRGB 99% | | Color Depth (Number of Colors) | 10-bit (8-bit+FRC), 1.07 billion | | Pixel Pitch | 0.2325 x 0.2325 mm | | Resolution | 3440 x 1440 | | Brightness | Typical: 300 cd/m²
Minimum: 240 cd/m² | | Contrast Ratio | Typical: 1000:1 | | Contrast Ratio (DFC) | Mega | | Response Time (GtG) | 5 ms | | Viewing Angles (H/V) | 178°/178° (CR≥10) | | Aspect Ratio | 21:9 | | Signal Inputs | 2 x HDMI (version 2.0)
1 x DisplayPort (version 1.2)
1 x USB Type-C
1 x Headphone out
2 x USB 3.0 downstream
(Included quick charge for port 1) | | Speaker | 2 x 7 W output speakers
Audio Tuning: MaxxAudio | | Power | Power Specifications
Type: Adapter
Input: 100-240, 50/60 Hz
Output: (USB Type-C PD): 60 W
Power Consumption
Normal On (EPA Standard): 48 W
Normal On (Typical): 70 W
Power Save/Sleep Mode (Max): 1.2 W
DC Off (Max): 0.3 W | | Picture Modes | Custom, Reader, Photo, Cinema, Dark Room 1, Dark Room 2, Color Weakness, FPS Game 1, FPS Game 2, RTS Game, Custom (Game) | | Stand | Tilt (Angle): -5 to 20°
Height (Range): 4.3" / 11 cm | | VESA Mount Standard | 100 x 100 mm | | Certifications | UL(cUL)
TUV-Type
FCC-B, CE
ErP
Windows 10
ENERGY STAR | | Dimensions | With Stand
32.2 x 19-23.3 x 10.2" / 81.8 x 48.3-59.2 x 25.9 cm
Without Stand
32.2 x 14.2 x 3.5" / 81.8 x 36.1 x 8.9 cm | | Weight | With Stand
18.5 lb / 8.4 kg
Without Stand
13.9 lb / 6.3 kg | | | | Package Weight | 25.0 lb | | Box Dimensions (LxWxH) | 38.0 x 20.0 x 7.0" |
