User Manual for LG 34UB88-P 34" 21:9 UltraWide QHD IPS Monitor Click to enlarge the picture
Contents of the user manual for the LG 34UB88-P 34" 21:9 UltraWide QHD
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 34UB88-P 34" 21:9 UltraWide QHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

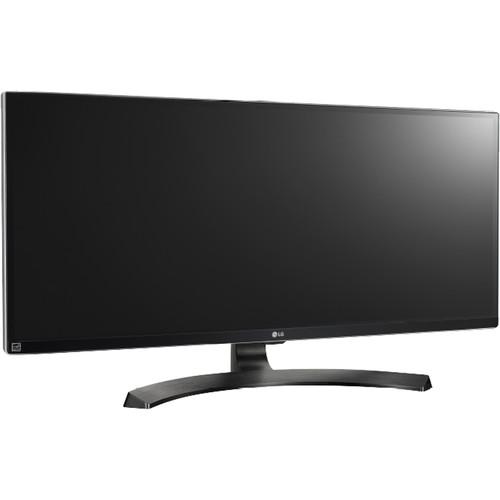

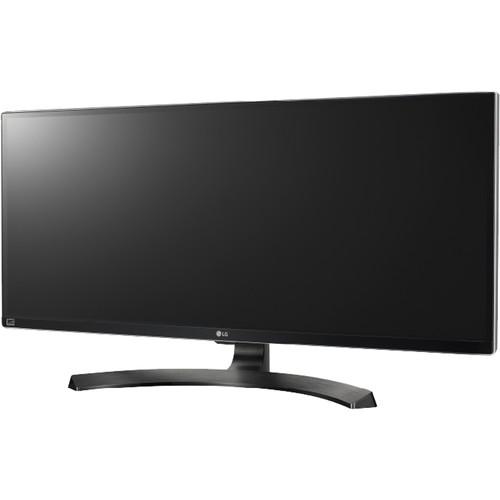

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More efuezdvttetwyrdxservwszfrrswtdwdsbusc With a 3440 x 1440 QHD resolution and a 21:9 aspect ratio, the 34UB88-P 34" 21:9 UltraWide QHD IPS Monitor from LG offers vivid colors and wide viewing angles. Covering 99% of the sRGB color gamut and supporting 1.07 billion colors, this display can reach a brightness rating of 300 cd/m² and has a Mega dynamic contrast ratio that further enhances colors, providing you with darker blacks and brighter bright colors. Designed for gamers, the 34UM59-P has a 5 ms response time, Dynamic Action Sync (DAS) mode that reduces input lag, and FreeSync technology, which reduces tearing and stuttering; and a variety of game-enhancing features. The ergonomic stand can be installed quickly and easily without the need for tools, and its height and tilt are adjustable for your comfort. - 21:9 UltraWide QHD on IPS display
- Ensures vivid and accurate color expression for visual comfort

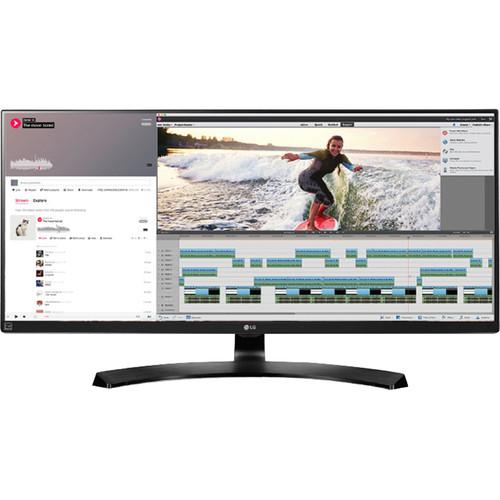

- Screen Split (version 2.0)
- Divides the display into multiple sections for different tasks by resizing the windows on the screen
Offers 14 advanced options including four types of Picture-in-Picture (PIP) modes
PIP mode allows you to work on the main screen while watching a video in a smaller window floating on the screen - FreeSync Technology
- Syncs the display's refresh rate with the graphics card's frame rate output, reducing tearing and stuttering for a smoother gaming experience
- Black Stabilizer
- Allows gamers to have better visibility, even in deep-dark or bright-light scenes
- USB 3.0 Quick Charge
- Charge the battery of a connected device quickly using the USB 3.0 Quick Charge port
- Preset Customized Options
- OnScreen Control allows you to easily customize monitor settings with a few clicks
Included My Display Presets offers customized picture mode for specific software
My Display Presets offers customized picture modes for specific software - Flawless Color Expression
- This monitor has been color calibrated at the factory, enabling color accuracy for easier color management
- Thunderbolt 2 Port for Compatibility with Mac Devices
- Expand computing capability more easily via a simple daisy-chain configuration without the need for an extra connector
Data transmission is faster than USB 3.0 with the Thunderbolt 2 port - Additional Features
- DDC/CI, HDCP, Key Lock, Response Time Control, Quick Charge, FreeSync (DP 48 to 75 Hz), Game Mode, Flicker Safe, Automatic Standby, Reader Mode, Six Axis Control, Color Calibrated, Dual Controller, OnScreen Control, Smart Energy Saving (Conserve energy by using luminance compensation algorithm), Dual EDID (H/W), One-Click Stand Set-Up, Picture-in-Picture (PIP) in screen split mode, and Picture-by-Picture (PBP) mode
UPC: 719192607279 In the Box LG 34UB88-P 34" 21:9 UltraWide QHD IPS Monitor Power Cord HDMI Cable DisplayPort Cable Cable Holder Limited 3-Year Warranty More from Manufacturer efuezdvttetwyrdxservwszfrrswtdwdsbusc Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 34UB88-P 34" 21:9 UltraWide QHD IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 34UB88-P Specs | Panel Size | 34" (86.4 cm) | | Panel Type | IPS | | Brightness | 300 cd/m2 | | Contrast Ratio | Typical: 1,000:1
DFC: Mega | | Viewing Angle (CR≥10) | 178°/178° | | Pixel Pitch (H x V) | 0.2325 x 0.2325 mm | | Response Time | 5 ms (GtG)

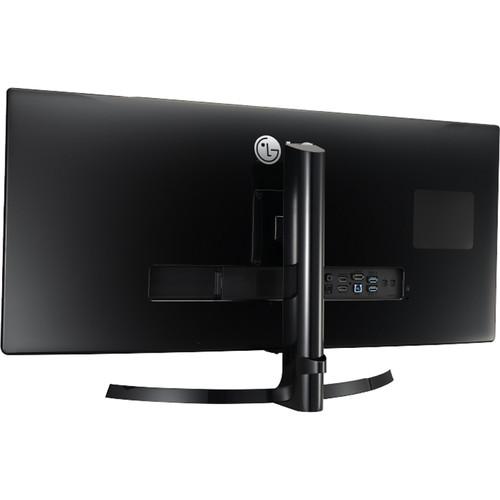

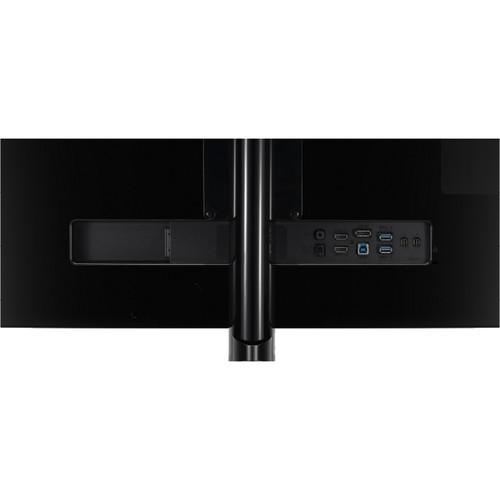

14 ms (on/off) | | Aspect Ratio | Wide (21:9), Original, Cinema 1, Cinema 2, 1:1 | | Native Resolution | 3440 x 1440 | | Color Gamut (CIE1931) | sRGB over 99% | | Color Depth (Number of Colors) | 10-bit (8-bit + FRC), 1.07B | | Signal Input | 2 x HDMI (version 2.0)
1 x DisplayPort (version 1.2)
2 x Thunderbolt | | Audio Output | 1 x Headphone jack | | USB | 1 x USB 3.0 (up-stream)
2 x USB 3.0 (down-stream), Quick Charge available on port 1 | | Speaker | 2 x 7 W | | Tuning | Audio Tuning: MaxxAudio | | Frequency | H-Frequency:
HDMI, DisplayPort, Thunderbolt: 30 to 90 kHz
V-Frequency:
HDMI, DisplayPort, Thunderbolt: 56 to 61 Hz

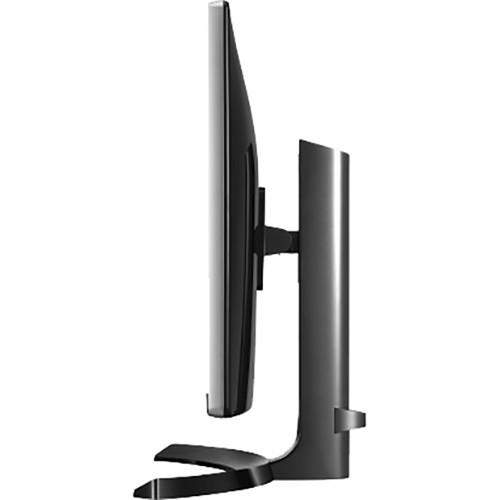

FreeSync (via DisplayPort): 48 to 75 Hz | | Picture Modes | Custom, Reader, Photo, Cinema, Dark Room 1, Dark Room 2, Color Weakness, FPS Game 1, FPS Game 2, RTS Game, Custom (Game), Calibration 1, and Calibration 2 | | Tilt Range | -5 to 20° | | Stand Height | 4.7" (120 mm) | | Compliant Standards | UL (cUL)
TUV-Type
FCC-B, CE
CCC (for China)
BSMI (for Taiwan)
ENERGY STAR qualified
Erp
EPEAT Gold | | Vesa Standard Mount Interface | 100 x 100 mm | | Power Type | Adapter | | Power Input | 100 to 240 VAC | | Power Consumption | Normal On: 56.73 W (EPA7.0), 70 W (typical)
Power Save/Sleep Mode: 1.2 W (maximum)
DC Off: 0.3 W (maximum) | | Dimensions | With Stand: 32.7 x 16.9-21.6 x 9.9" (83.1 x 42.9-54.9 x 25.1 cm)
Without Stand: 32.7 x 15 x 1.9" (83.1 x 38.1 x 4.8 cm) | | Weight | With Stand: 18.5 lb (8.4 kg)
Without Stand: 13.9 lb (6.3 kg) | | | | Package Weight | 25.0 lb | | Box Dimensions (LxWxH) | 38.5 x 20.4 x 8.1" |
