User Manual for LG 34UC79G-B 34" 21:9 Curved 144 Hz FreeSync IPS Monitor Click to enlarge the picture
Contents of the user manual for the LG 34UC79G-B 34" 21:9 Curved 144
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 34UC79G-B 34" 21:9 Curved 144 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

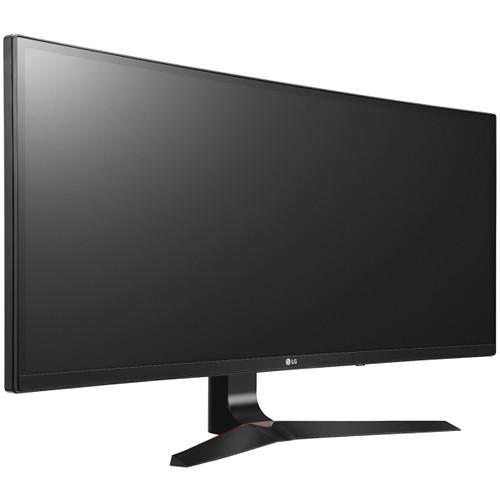

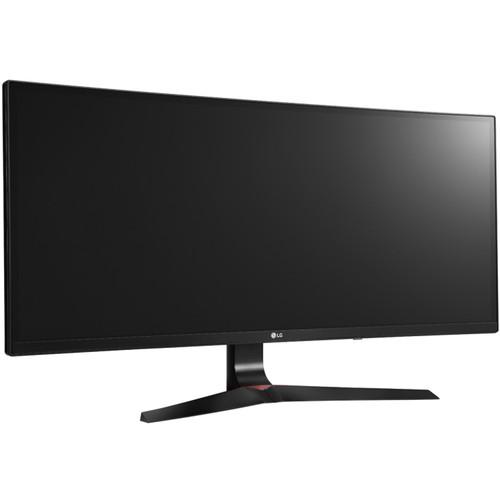

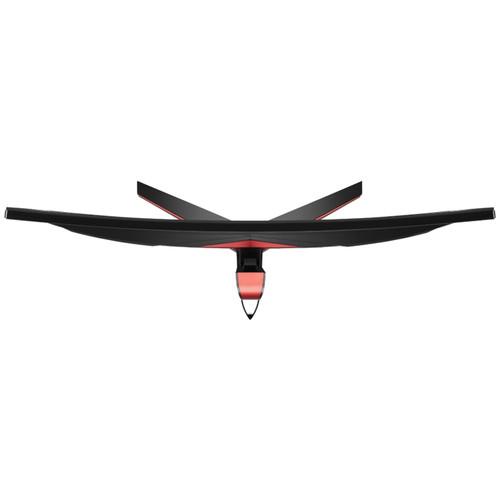

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Take a front seat and immerse yourself in your games with the 34UC79G-B 34" 21:9 Curved 144 Hz FreeSync IPS Monitor from LG. The curvature of the display makes it easy to see all areas of the screen without moving your head and its large size takes up most of your field of view, putting you right in the middle of the action. With a 2560 x 1080 resolution, the 34UC79G-B provides you with crisp and clear pictures. It is constructed with an In-Plane Switching (IPS) panel, which has wide 178° viewing angles and immersive colors. Combined with a mega dynamic contrast ratio, 250 cd/m² brightness rating, 8-bit color support, and a 5 ms response time, you'll be able to enjoy vivid, lag-free content reproduction with darker blacks and brighter bright colors.

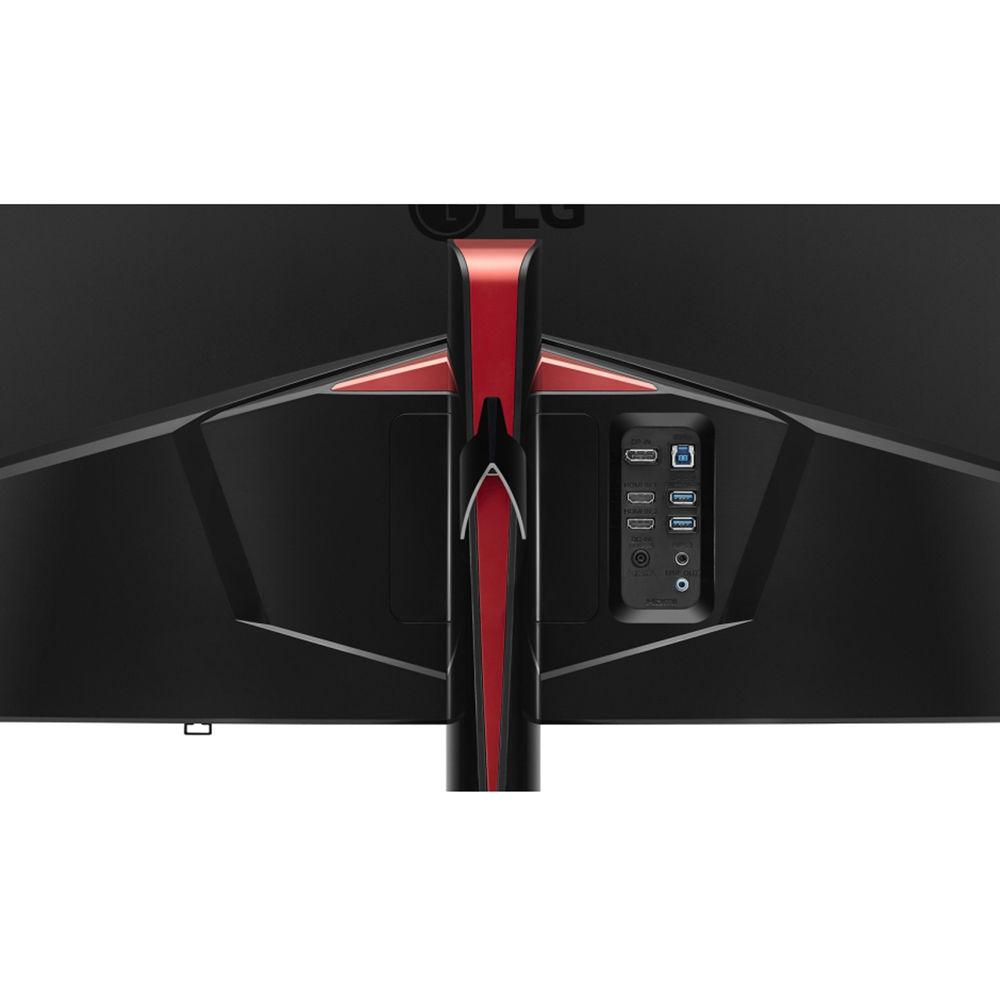

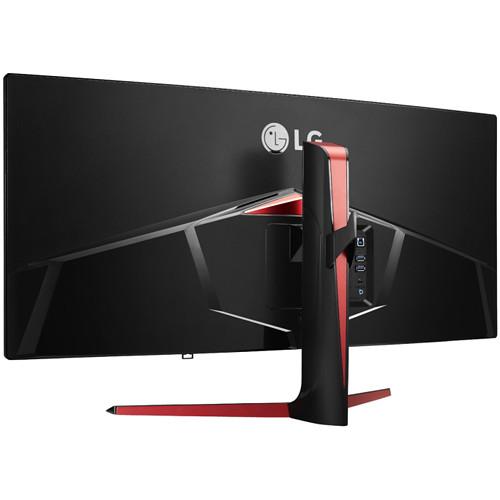

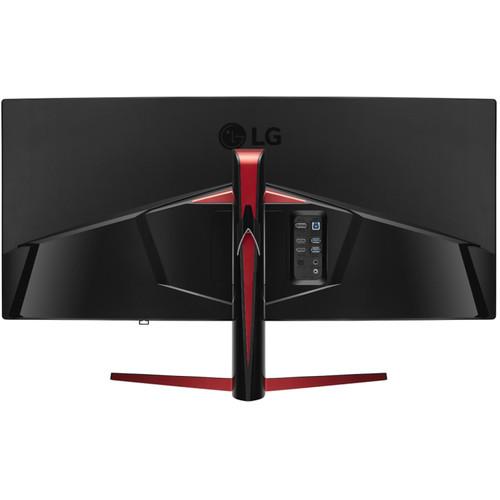

Furthermore, this monitor supports AMD FreeSync (Adaptive Sync) technology through DisplayPort, which synchronizes the display's refresh rate with the graphics card's frame rate output, eliminating screen stuttering and tearing. It also has two USB 3.0 Type-A ports, one of which is quick-charge compatible for your mobile devices. Connect this display to your system via DisplayPort or HDMI and adjust it to your viewing preference. Otherwise, you can install an alternate mount or stand using the VESA mounting pattern holes on the back. Whether for work or for play, an ultra-wide display lets you have multiple windows side by side, or one large window where you can see all the details. - AMD FreeSync Technology
- AMD FreeSync technology syncs the display's refresh rate with the graphics card's frame rate output to reduce tearing and stuttering to provide you with a smooth and lag-free gaming experience.
- 1 ms Motion Blur Reduction
- The 1 ms motion blur reduction feature lowers the response time to virtually 1 ms to remove blurring and ghosting for precise and accurate reactions.
- 144 Hz Refresh Rate
- At high refresh rates, games are noticeably smoother than compared with monitors with refresh rates of 60 or 70 Hz. Combined with AMD FreeSync, almost everything from menus to games will feel more fluid.
- Crosshair

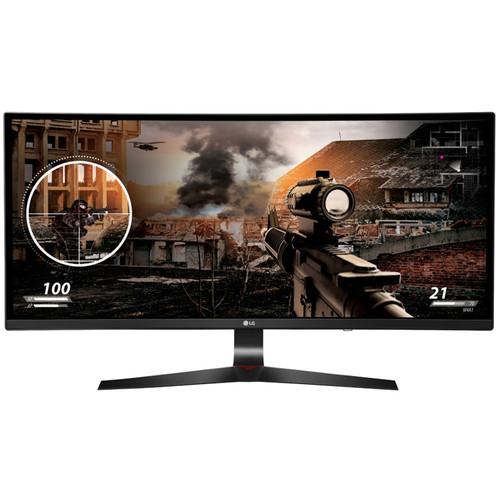

- If you need a helping hand in First Person Shooters (FPS), the Crosshair feature places a crosshair right in the center of the display so you'll know if you're on point even without having to scope in.
- Advanced Gaming Features
- Black Stabilizer enables you to see details in dark scenes, which is especially helpful when looking for enemies and getting the drop on them. Dynamic Action Sync further smooths out your gameplay by reducing input lag.
- Game Mode
- Adjust through different optimized modes depending on your current application. There are three modes: two First Person Shooter modes and one Real Time Strategy (RTS) mode to assist you with your gaming.
- FPS1 - For First Person Shooting games, FPS mode 1 provides optimal scanning in brighter daytime. It enables the 1 ms Motion Blur Reduction and Black Stabilizer features.
- FPS2 - This mode is for darker nighttime settings and utilizes FreeSync, Black Stabilizer, and Dynamic Action Sync.
- RTS - Made for Real Time Strategy games, this mode takes advantage of FreeSync, Black Stabilizer, and Dynamic Action Sync.
- Additional Features
-
- Picture Mode - Custom, Reader, Photo, Cinema, Dark Room 1, Dark Room 2, Color Weakness
- Ratio - Wide, Original, Cinema 1, Cinema 2
- PiP - In-Screen Split
- DDC/CI, HDCP, Key Lock, DAS Mode, Flicker Safe, Six Axis Control, Smar Energy Saving, Reader Mode, Super+ Resolution, Color Calibrated, Dual Controller, Screen Split 2.0, My Display Preset OnScreen Control, Dual EDID, One Click Stand Set-up
UPC: 719192606715 In the Box LG 34UC79G-B 34" 21:9 Curved 144 Hz FreeSync IPS Monitor Power Cable HDMI Cable DisplayPort Cable Cable Holder Limited 1-Year Warranty User Manual PDF 5.8mbzvssqsdqsqazfxtctswuzsatzwvewwctudxtdd Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 34UC79G-B 34" 21:9 Curved 144 Hz FreeSync IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 34UC79G Specs | | | Size | 34" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1080 | | Maximum Brightness | 250 cd/m2 | | Refresh Rate | 144 Hz | | Adaptive Sync Technology | FreeSync | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 72% NTSC | | Response Time | 14 ms
5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.312 x 0.312 mm | | | | Connectivity | 1 x USB Type-A (USB 3.1 Gen 1) Input
2 x USB Type-A (USB 3.1 Gen 1) Output
2 x HDMI 2.0

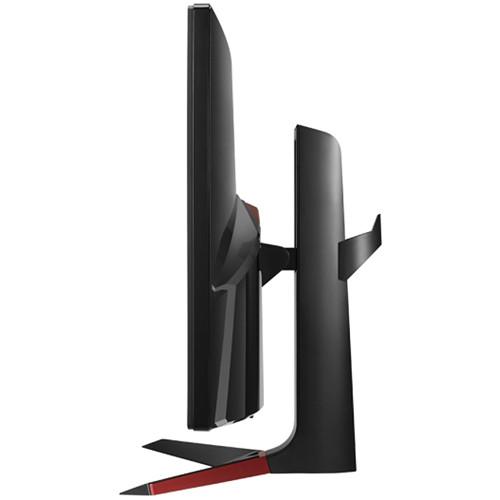

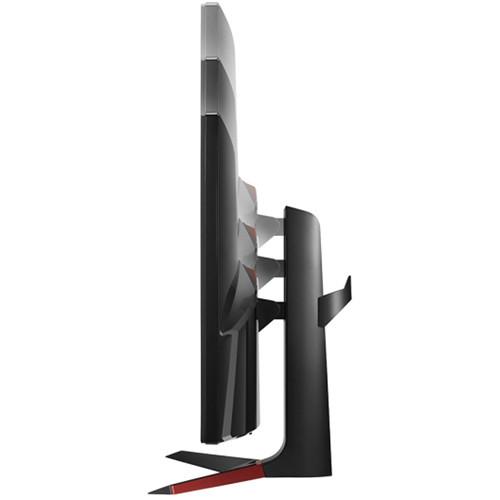

1 x DisplayPort 1.2 | | | | Power Consumption | 50 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Height Adjustment | 4.7" / 11.9 cm | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 32.7 x 11.0 x 17.7" / 83.1 x 27.9 x 45.0 mm (With Stand)
32.7 x 14.6 x 3.0" / 83.1 x 37.1 x 7.6 mm (Without Stand) | | Weight | 14.1 lb / 6.4 kg (Without Stand)
18.9 lb / 8.6 kg (With Stand) | | | | Package Weight | 26.0 lb | | Box Dimensions (LxWxH) | 38.0 x 20.5 x 8.0" |
