User Manual for LG 34UC88-B 34" 21:9 UltraWide Curved FreeSync IPS Monitor Click to enlarge the picture
Contents of the user manual for the LG 34UC88-B 34" 21:9 UltraWide Curved
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 34UC88-B 34" 21:9 UltraWide Curved contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More - Get #SeriouslyProfessional with LG UltraWide® Monitors

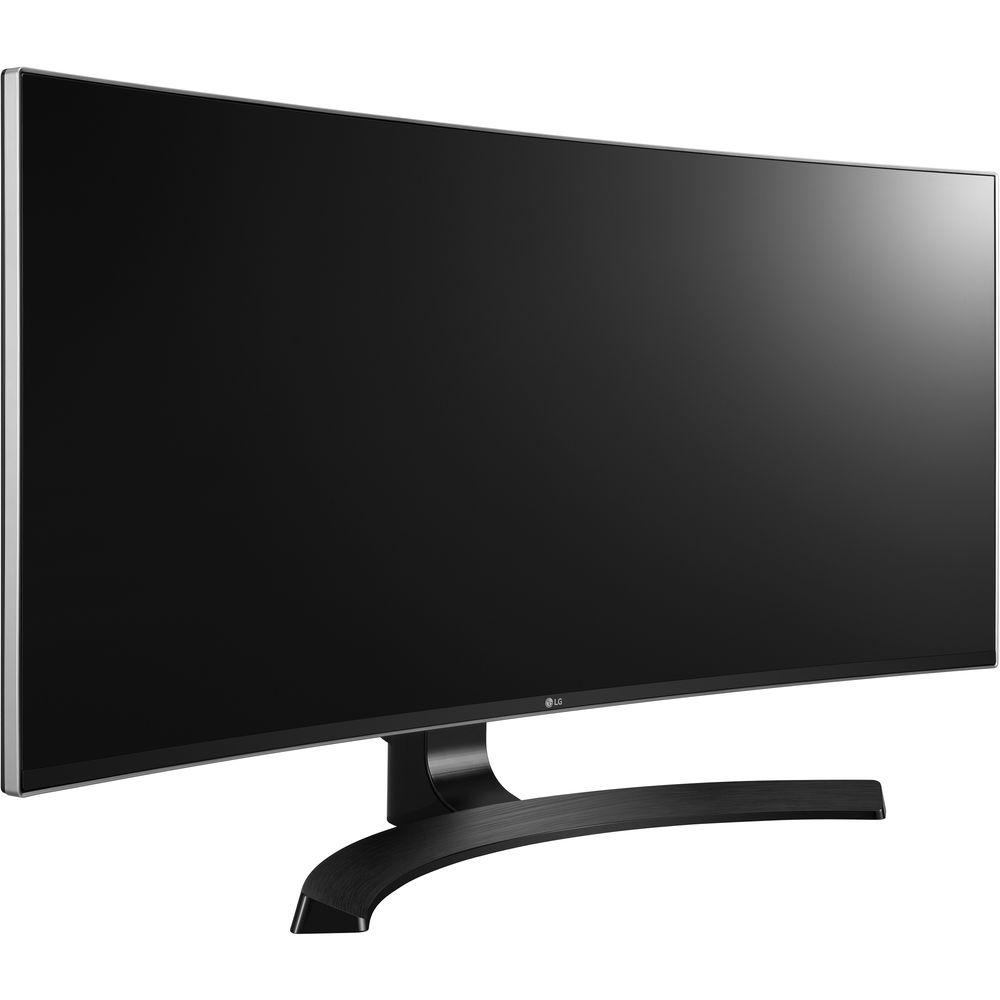

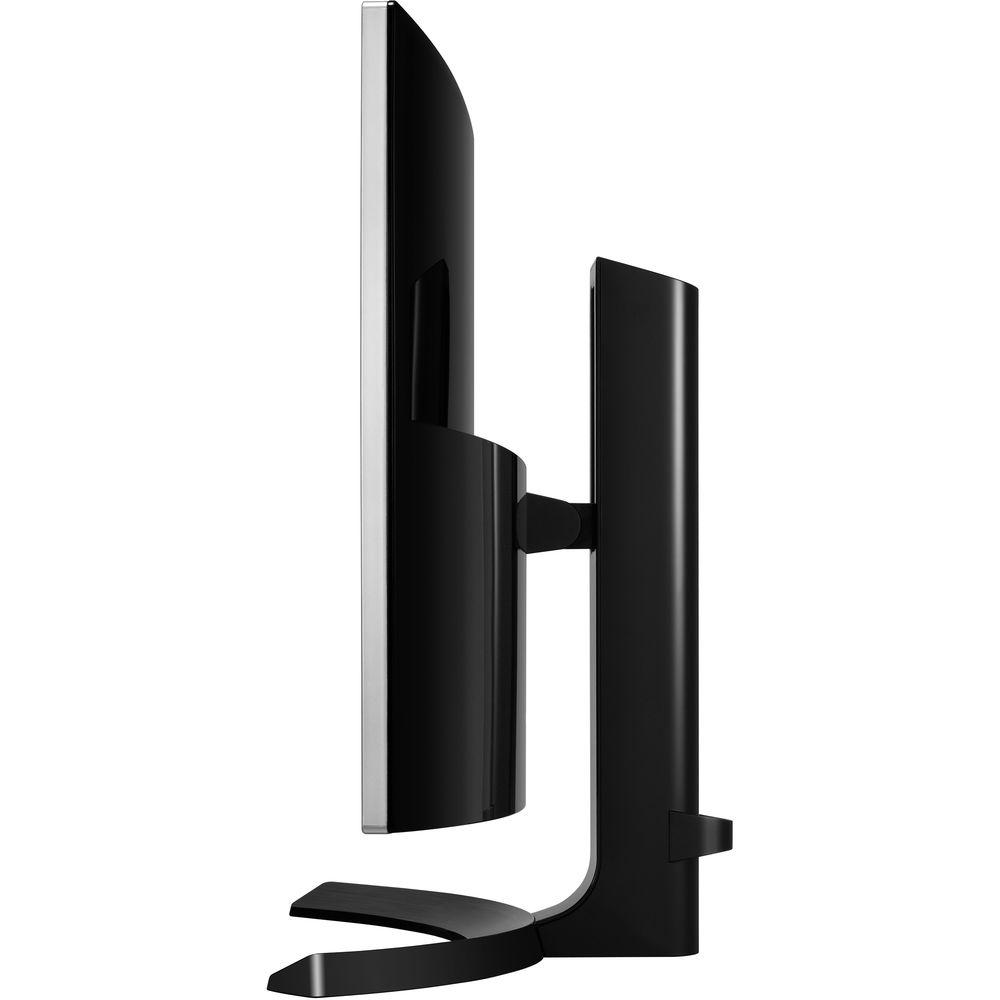

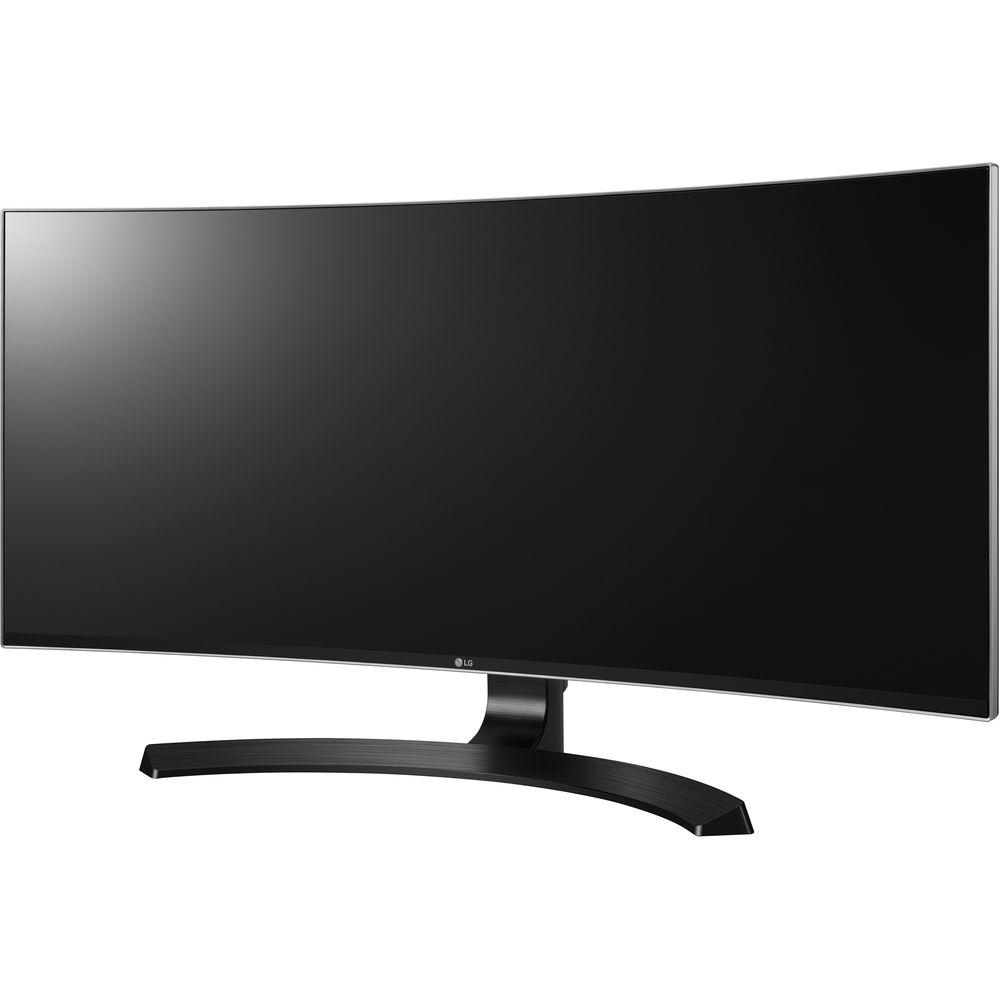

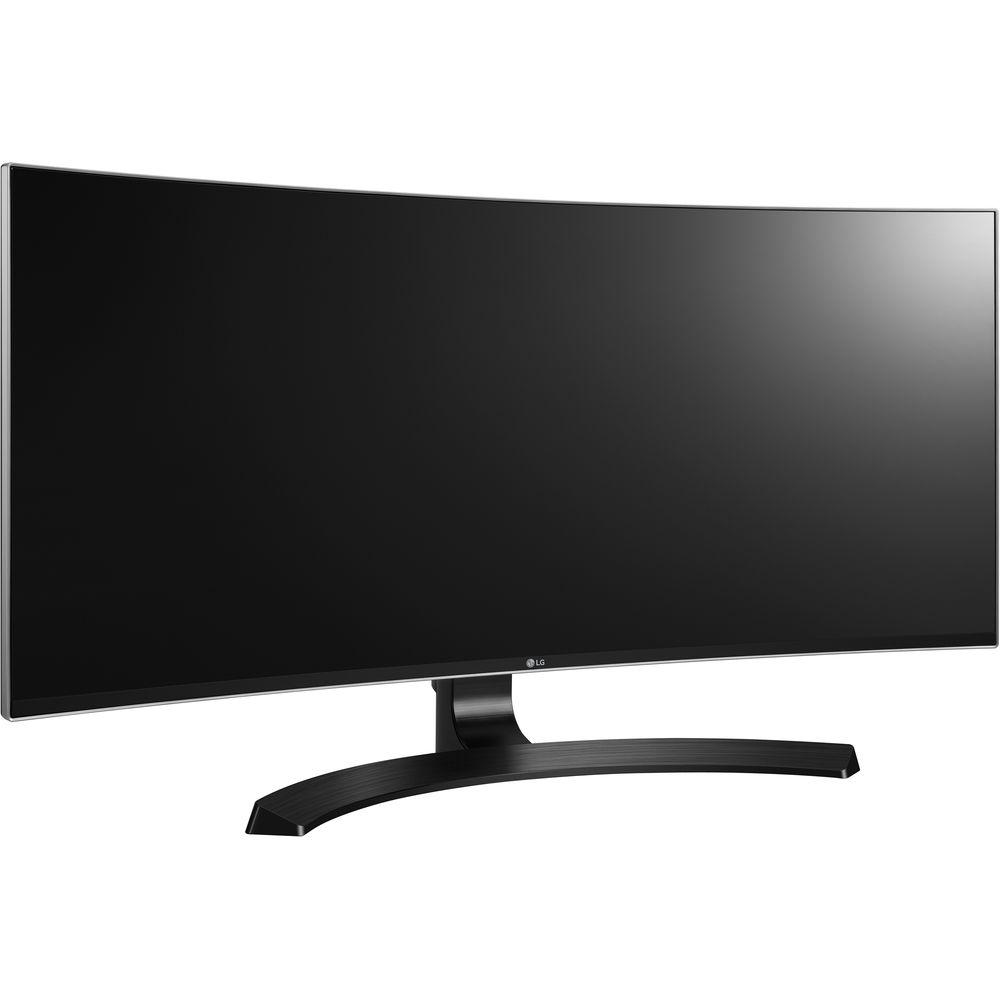

The 34UC88-B 34" 21:9 UltraWide Curved FreeSync IPS Monitor from LG features a curved, ultra-wide display that's suitable for both work and play. For work and multitasking purposes, an ultra-wide display lets you have multiple windows side by side, or one large window where you can see all the details. On the other hand, gaming on this display will feel more immersive as the curved sides wrap around your field of view, putting you right in the middle of the action.
With a 3440 x 1440 QHD resolution, the 34UC88-B provides you with crisp and clear pictures. It is constructed with an In-Plane Switching (IPS) panel, which has wide viewing angles and immersive colors. Combined with a 5,000,000:1 dynamic contrast ratio, 300 cd/m² brightness rating, 10-bit color support, and a 5 ms response time, you'll be able to enjoy vivid, lag-free content reproduction with darker blacks and brighter bright colors.

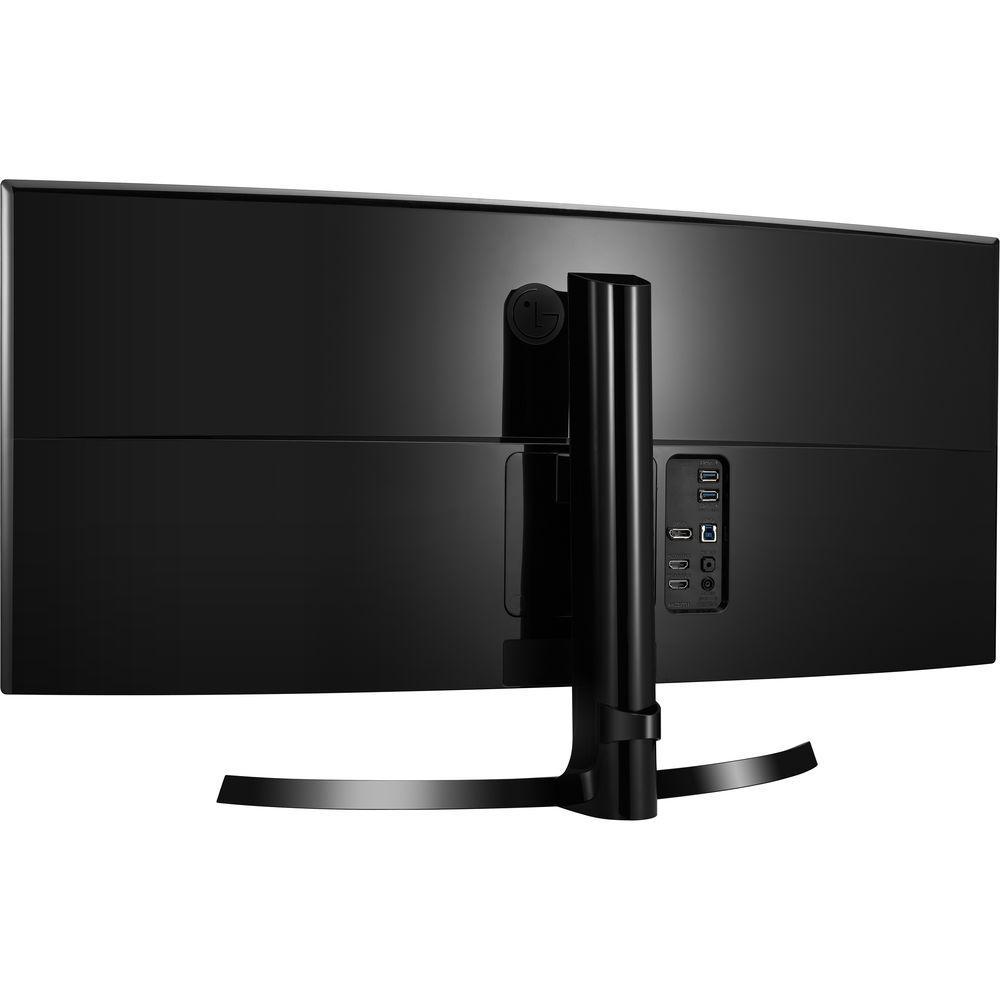

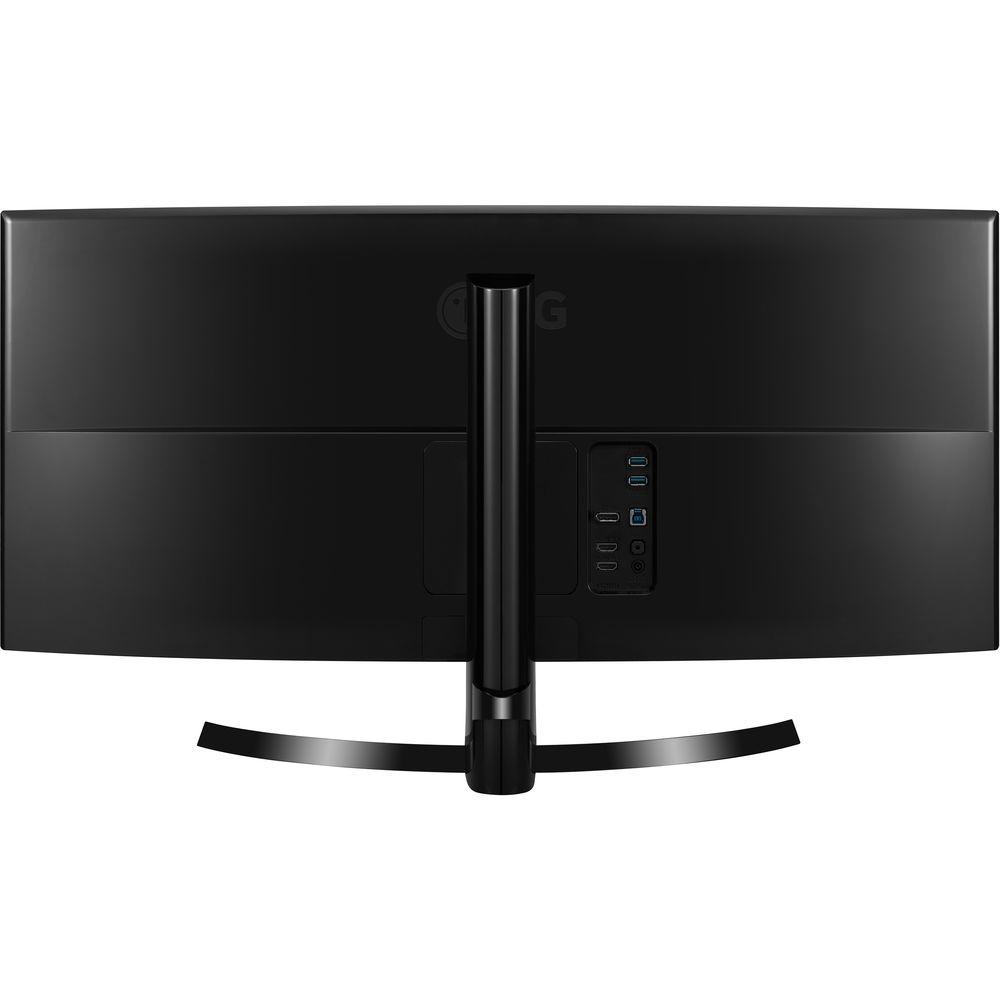

Furthermore, this monitor supports FreeSync (Adaptive Sync) technology through DisplayPort, which synchronizes your graphics card with the display to output content at variable refresh rates, eliminating screen stuttering and tearing. It also has two USB 3.0 Type-A ports, one of which is quick-charge compatible for your mobile devices. Connect this display to your system via DisplayPort or HDMI, then tilt and adjust its height to your viewing preference. Otherwise, you can install a different mount or stand using the VESA mounting pattern holes on the back. - Curved, UltraWide QHD IPS Display

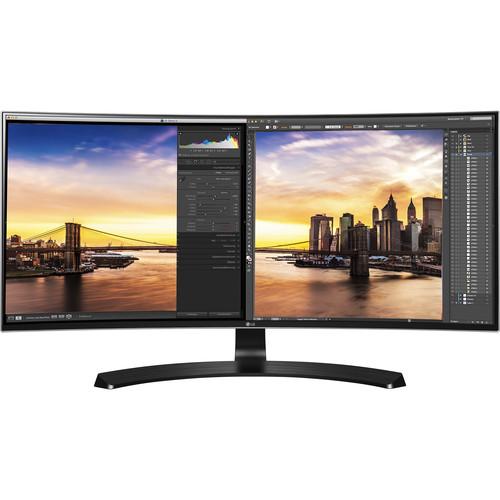

- The curved, UltraWide QHD screen allows you to multitask more efficiently than before. Have up to three windows side by side or even work on large Excel spreadsheets without having to scroll.
- FreeSync
- This technology allows for communication between the graphics card and monitor to synchronize frame rate output. Utilizing a dynamic refresh rate, AMD FreeSync effectively eliminates tearing, stuttering, and jerkiness for smooth gameplay.
- USB 3.0 Quick Charge
- One of the USB 3.0 Type-A ports supports quick charging. Once enabled, this convenient feature allows a phone or other mobile device to charge up to four times faster than through a regular USB port.
- Additional Features
- Picture-in-Picture
PBP
DDC/CI
HDCP
Key Lock
Response Time Control
Game Mode
Reader Mode
DAS Mode
Black Stabilizer
Flicker Safe
Smart Energy Saving
Automatic Standby
Six Axis Control
Color Calibrated UPC: 719192199811 In the Box LG 34UC88-B 34" 21:9 UltraWide Curved FreeSync IPS Monitor Power Cable HDMI Cable DisplayPort Cable USB Cable PC Audio Cable Limited 1-Year Warranty User Manual PDF 11.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 34UC88-B 34" 21:9 UltraWide Curved FreeSync IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 34UC88-B Specs | | | Size | 34" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3440 x 1440 | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 300 cd/m2 | | Dynamic Contrast Ratio | 5,000,000:1 | | Refresh Rate | 75 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Color Gamut | 99% sRGB | | Response Time | 5 ms | | Viewing Angle | Horizontal: 178°

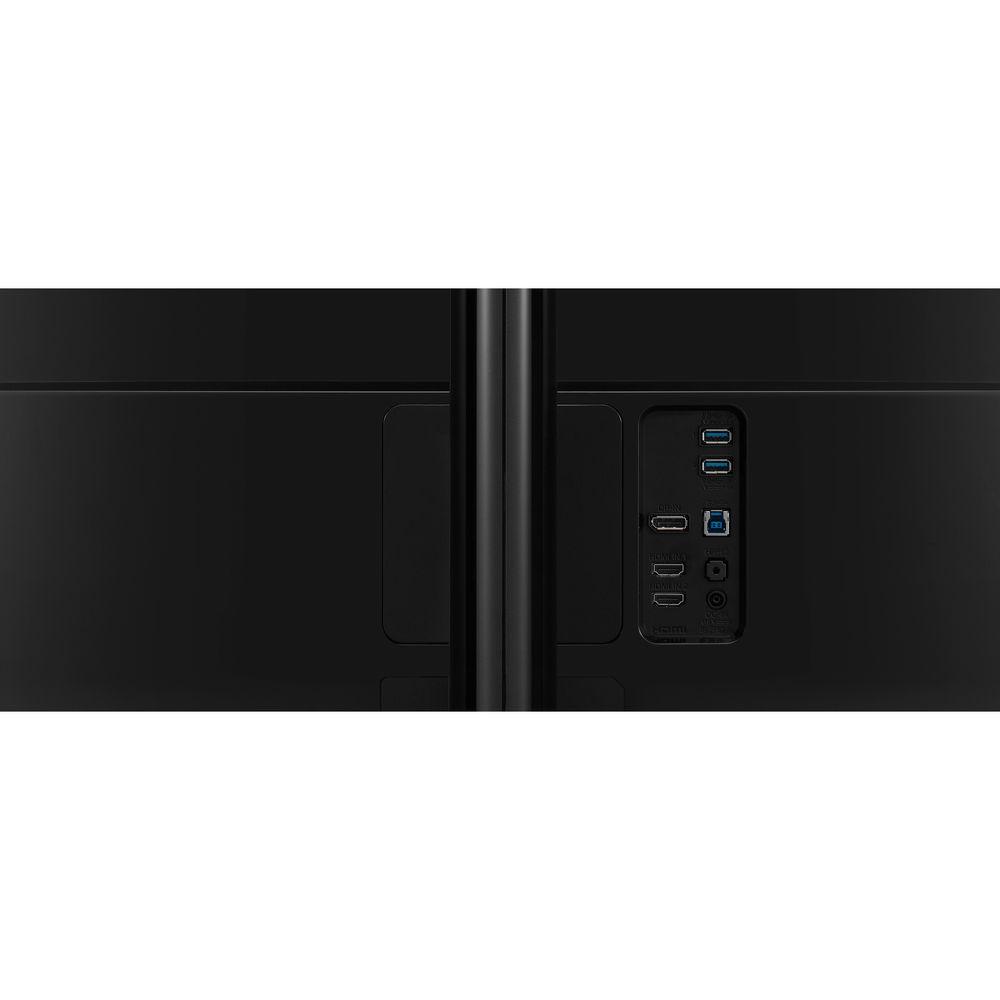

Vertical: 178° | | Dot Pitch | 0.2628 x 0.2628 mm | | | | Connectivity | 1 x USB Type-A (USB 3.1 Gen 1) Input
2 x USB Type-A (USB 3.1 Gen 1) Output
1 x DisplayPort 1.2 Input
2 x HDMI 2.0 | | Built-In Speakers | Yes, 2 x 7 W | | | | Power Consumption | 56.7 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | ENERGY STAR, EPEAT GOLD, as per Manufacturer | | | | Height Adjustment | 4.7" / 11.9 cm | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 32.2 x 17.6 x 9.4" / 81.8 x 44.7 x 23.9 mm (With Stand)
32.2 x 14.2 x 3.5" / 81.8 x 36.1 x 8.9 mm (Without Stand) | | Weight | 18.3 lb / 8.3 kg (With Stand) | | | | Package Weight | 25.8 lb | | Box Dimensions (LxWxH) | 38.0 x 20.0 x 8.0" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 26 owners. Add your rating and experience with the product.
