User Manual for LG 34UC98-W 34" 21:9 Curved IPS Monitor Click to enlarge the picture
Contents of the user manual for the LG 34UC98-W 34" 21:9 Curved IPS
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 34UC98-W 34" 21:9 Curved IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

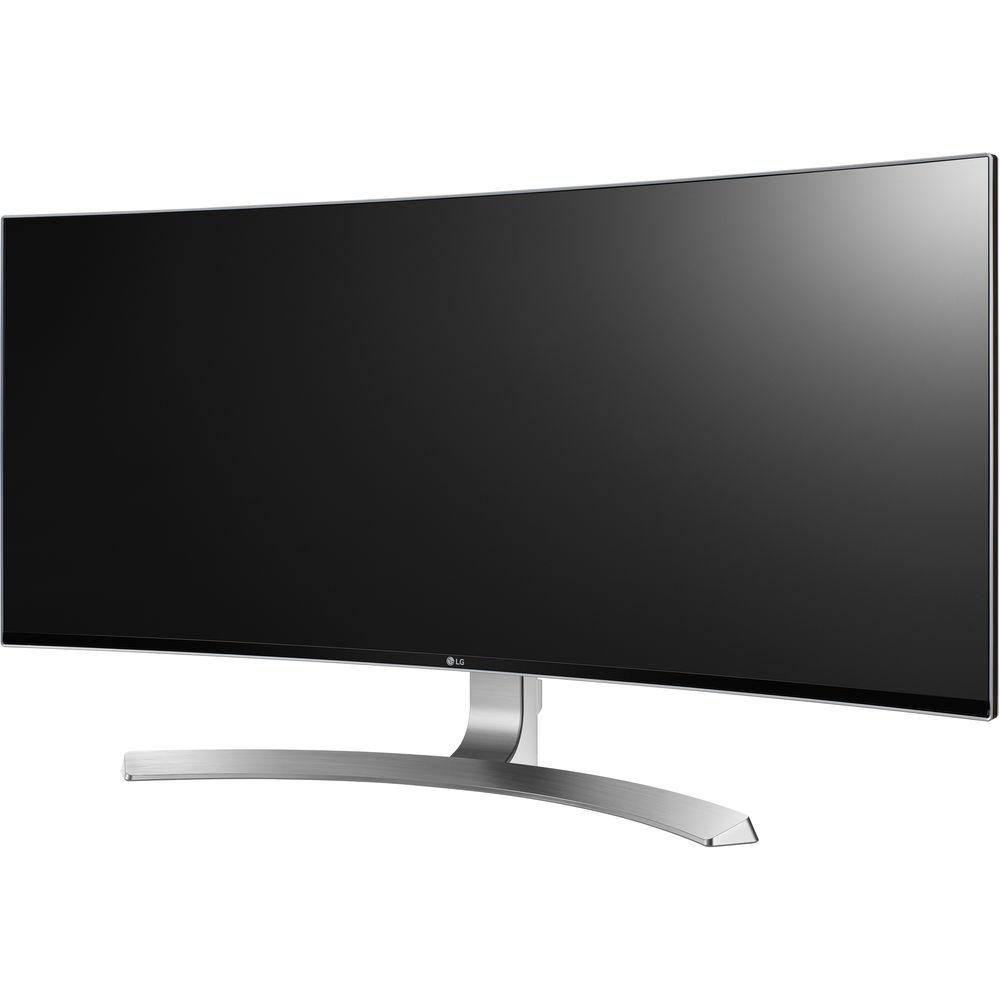

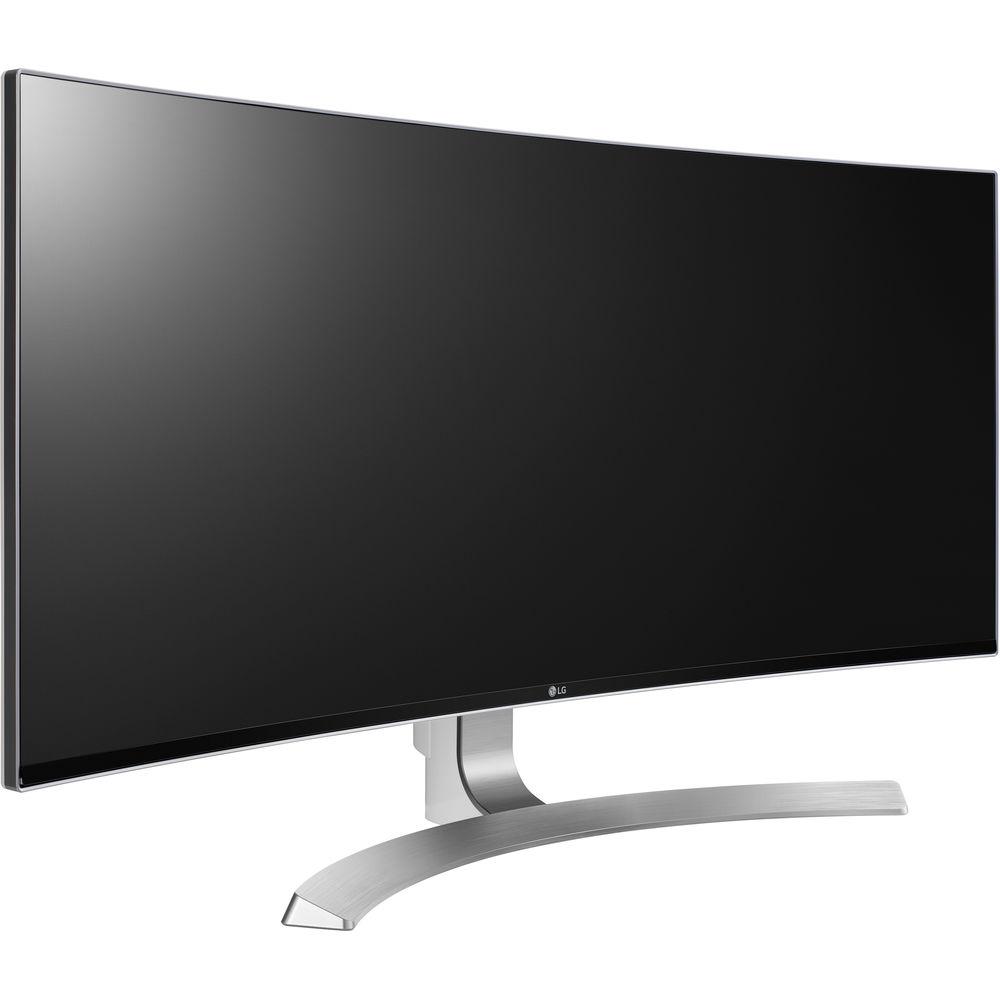

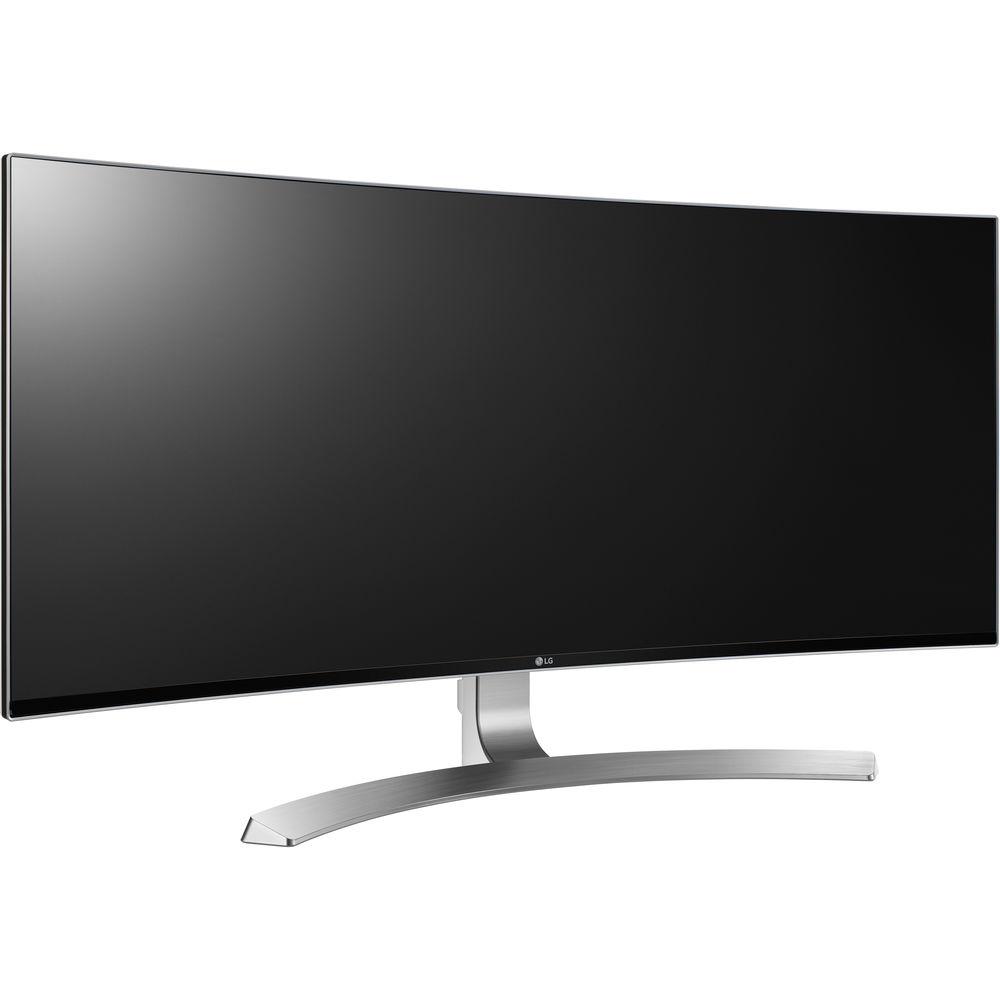

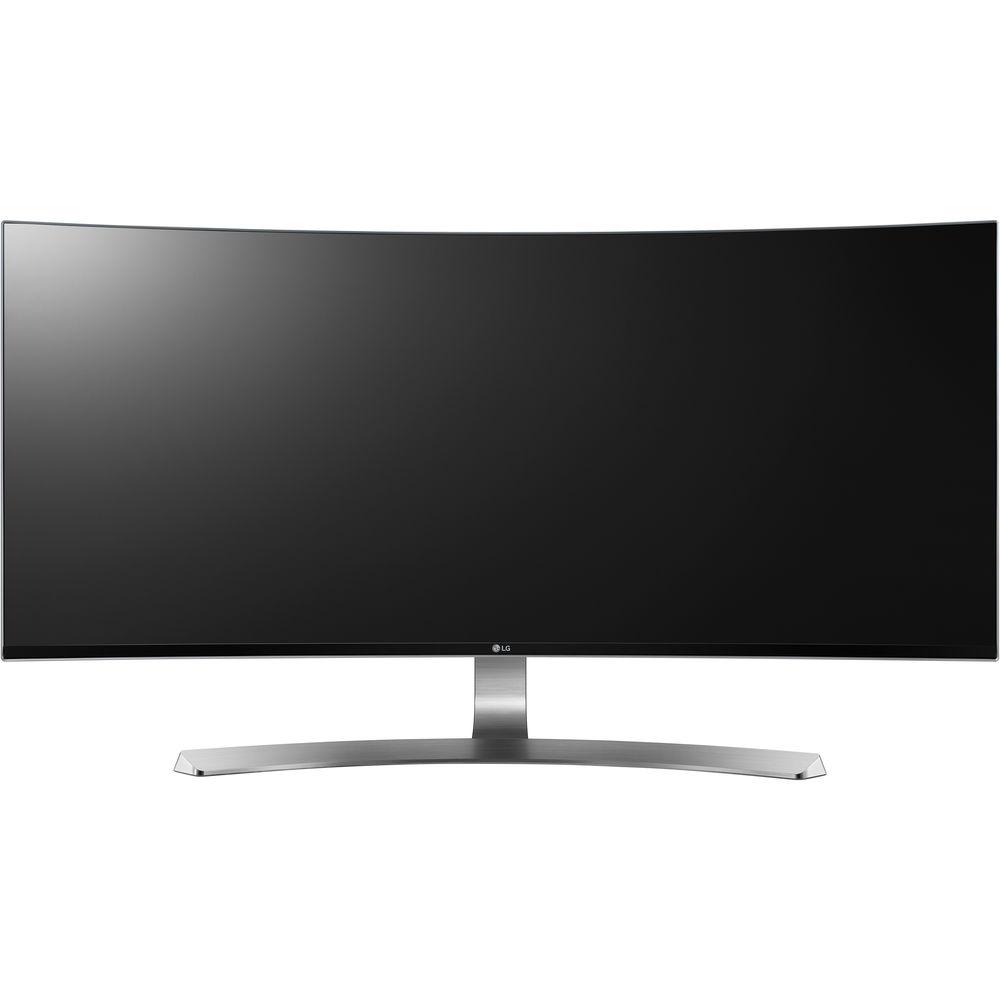

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The curved In-Plane Switching (IPS) display found on the 34UC98-W 34" Monitor from LG makes it easy to see all areas of the screen without moving your head. The curvature of the display ensures that all points of the screen are equidistant from the eye offering an enhanced viewing experience. Whether working, gaming, or watching a movie this 21:9 display features a 3440 x 1440 resolution along with a 5 ms response time producing a clearer picture complete with reduced ghosting and blur. In addition to clarity and reduced ghosting, this LG monitor also covers up to 99% of the sRGB color spectrum for enhanced color accuracy. With OnScreen Control (OSC) and Split Screen 2.0 technology the display can be customized using Picture-in-Picture or Picture-by-Picture functionality to get a side by side view of your content.

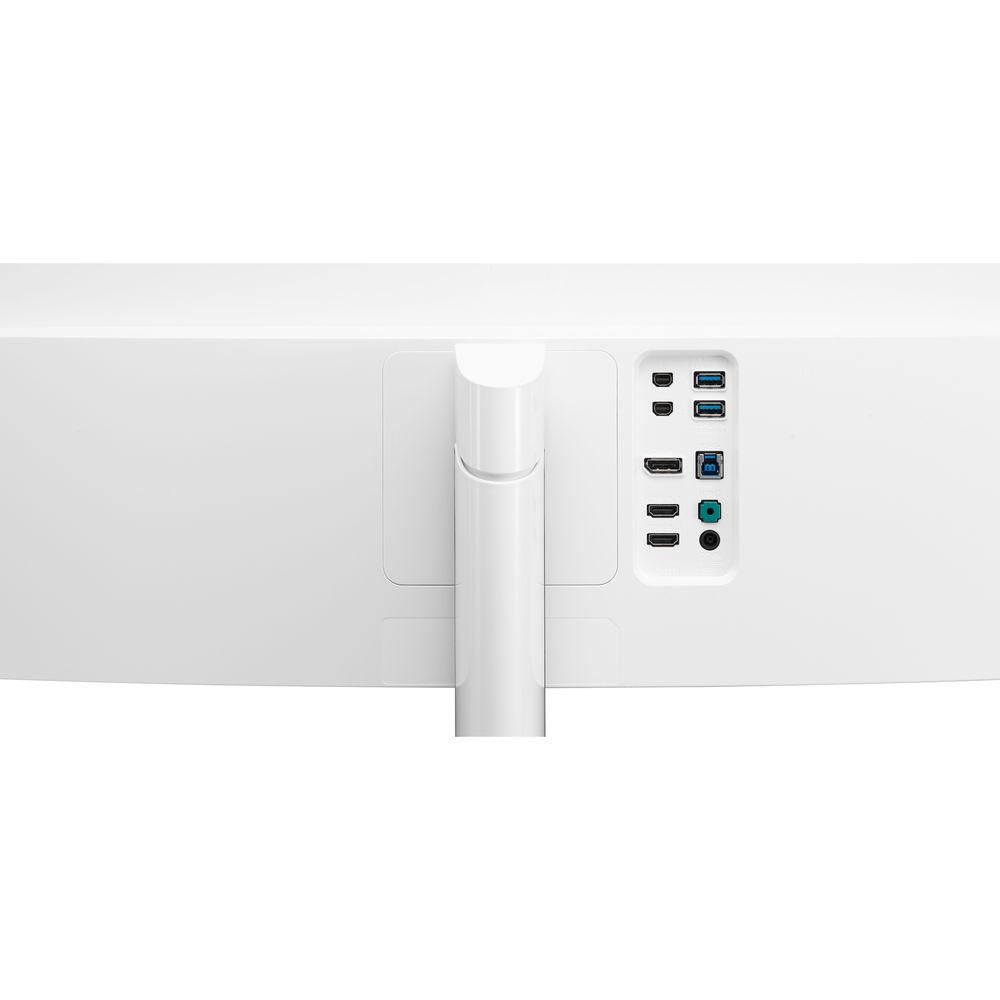

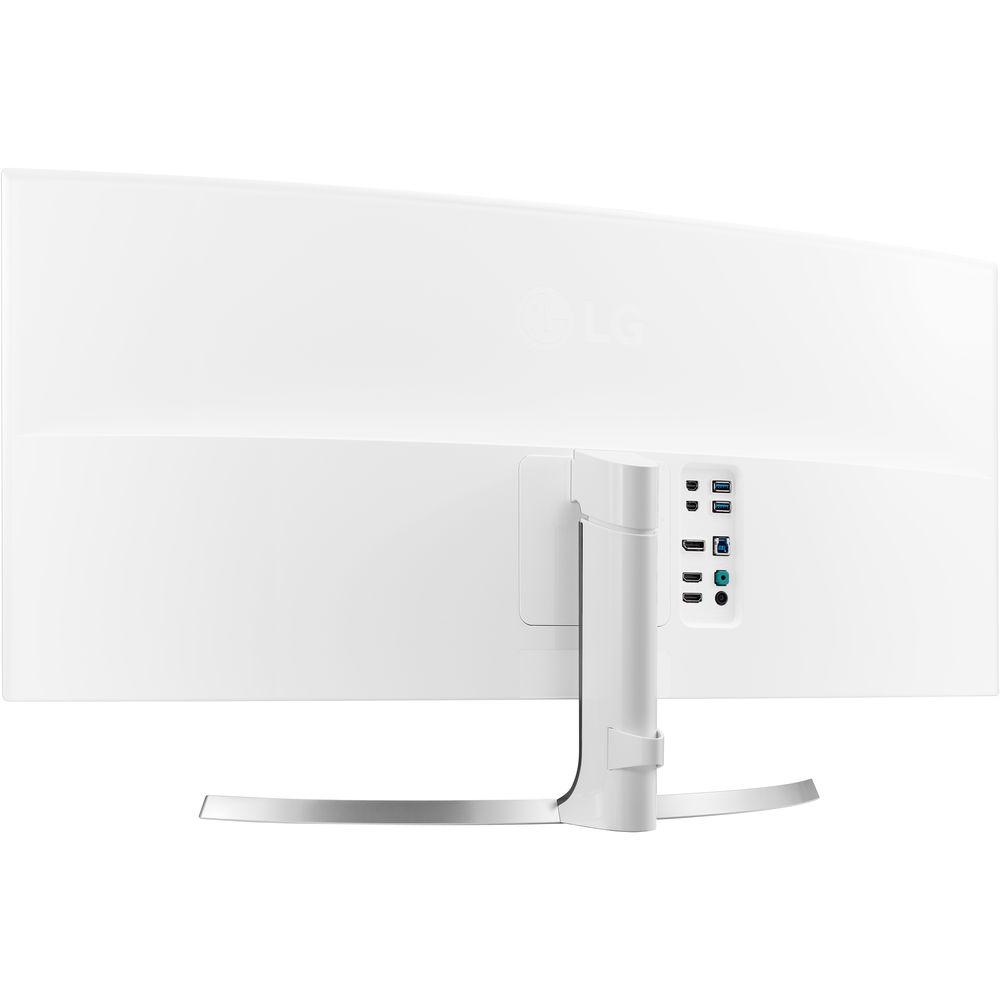

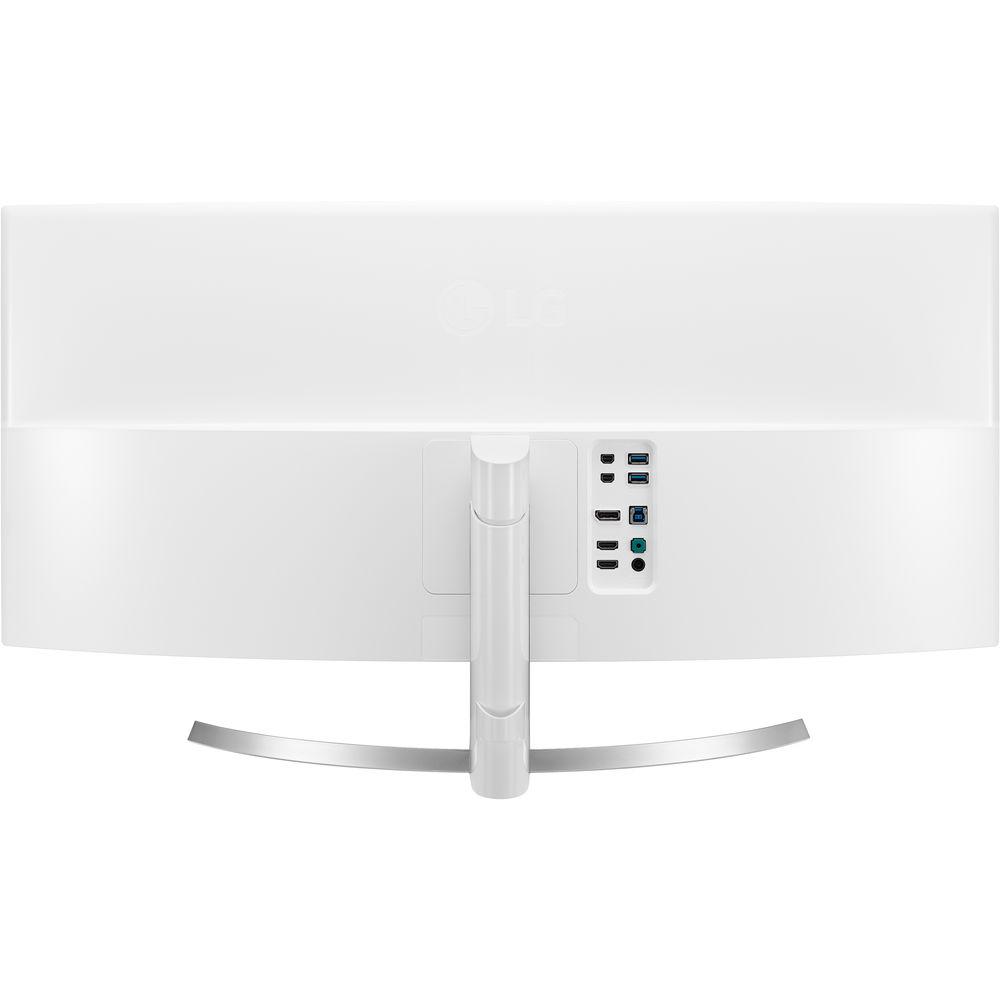

Connectivity is key on any monitor, and the LG 34UC98-W doesn't disappoint. It comes equipped with dual Thunderbolt 2.0 ports, two HDMI (ver. 2.0) ports, one DisplayPort, and a dedicated USB 3.0 hub. The dual Thunderbolt 2.0 ports offer a bi-directional data transfer rates of up to 10-gigabits per second, as well as the ability to daisy-chain devices. USB compatible devices such as external storage drives, keyboards, mice, and even smartphones and tablets can be connected to any of the USB 3.0 ports. LG has even built-in a quick-charge USB 3.0 port to charge compatible devices faster than a traditional USB 2.0 port. - Thunderbolt 2.0
- Two Thunderbolt input/output ports allow you to connect compatible devices to move data between them with incredible speed of around 10-gigabits-per-second throughput in both directions. Speeds much faster than USB 2.0.
- USB Connectivity
- Charge the battery of a connected device quickly using the USB 3.0 port. This port charges USB 3.0 Quick Charge compatible devices much faster than typical USB 2.0 cables, so waiting for a full charge doesn't hold you up.
- OnScreen Control & Screen Split 2.0
- OnScreen Control allows you to easily control the screen configurations and display settings to customize workspace on the screen with a few clicks of mouse. An upgraded Screen Split feature with PIP Mode and My Display Presets are designed to offer many on screen window resizing options for an organized and efficient user experience.
- sRGB Over 99%
- sRGB is the standard color space of ideal color reproduction. So, with over 99% coverage of the sRGB spectrum, this LG monitor is a great solution for professional photographers, graphic designers, or anyone looking for highly accurate color.

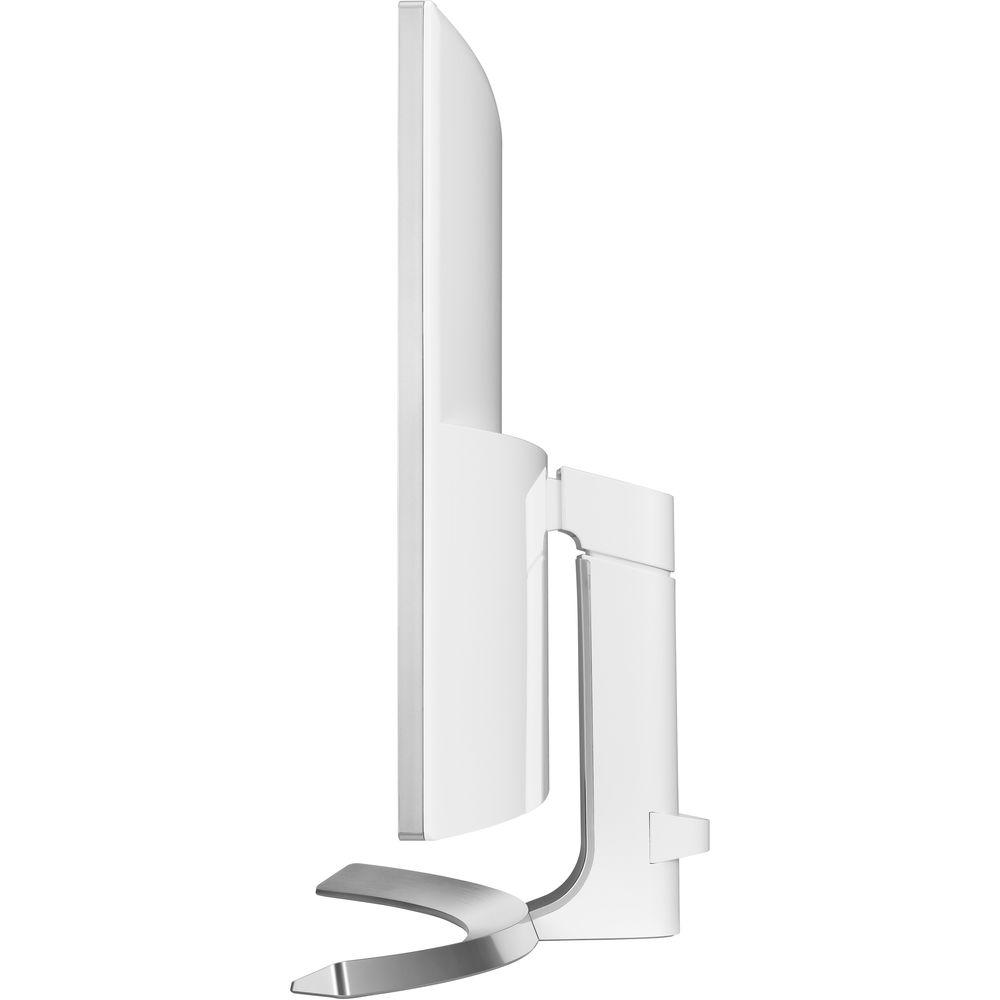

- Screen Height & Tilt Adjustable
- Thoughtful ergonomic design such as adjustable height and tilt of the display for optimal eye level assures you a comfortable work space setting.
- Game Mode
- Game Mode, consisting of FPS, RTS, and Custom modes, provides a customized gaming experience that can be optimized to suit your favorite game genres.
- Other Features
-
- DDC/CI
- HDCP
- Key Lock
- Response Time Control
- FreeSync
- Game Mode
- DAS Mode
- Black Stabilizer
- Flicker Safe
- Automatic Standby
- Reader Mode
- Six Axis Control
- Color Calibrated
- Dual Controller
- Dual EDID (H/W)
- One Click Stand Setup
UPC: 719192199378 In the Box LG 34UC98-W 34" 21:9 Curved IPS Monitor CD Power Cord AC/DC Adapter HDMI Cable DisplayPort Cable Stand Body Stand Base Cable Holder Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 34UC98-W 34" 21:9 Curved IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the LG 34UC98-W 34" 21:9 Curved IPS Monitor can be downloaded in PDF format at the link stated below.
Technical parametersLG 34UC98 Specs | | | Size | 34" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3440 x 1440 | | Aspect Ratio | 21:9 | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 300 cd/m2 | | Dynamic Contrast Ratio | 5,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | FreeSync | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Color Gamut | 99% sRGB | | Response Time | 5 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2325 x 0.2325 mm | | | | Connectivity | 1 x USB Input
2 x USB Type-A (USB 3.1 Gen 1) Output
1 x DisplayPort Input
2 x HDMI 2.0
2 x Mini DisplayPort (Thunderbolt 2) | | Built-In Speakers | Yes, 2 x 7 W | | | | Power Consumption | 56.7 W (Typical) | | AC Input Power | 110 to 220 VAC, 50 / 60 Hz | | | | Height Adjustment | 4.3" / 10.9 cm | | Tilt Adjustment | -5 to 15° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 32.2 x 17.8 x 9.1" / 81.8 x 45.2 x 23.1 mm (With Stand)
32.2 x 14.2 x 3.5" / 81.8 x 36.1 x 8.9 mm (Without Stand) | | Weight | 17.2 lb / 7.8 kg (With Stand) | | | | Package Weight | 24.7 lb | | Box Dimensions (LxWxH) | 38.0 x 20.0 x 8.0" |
