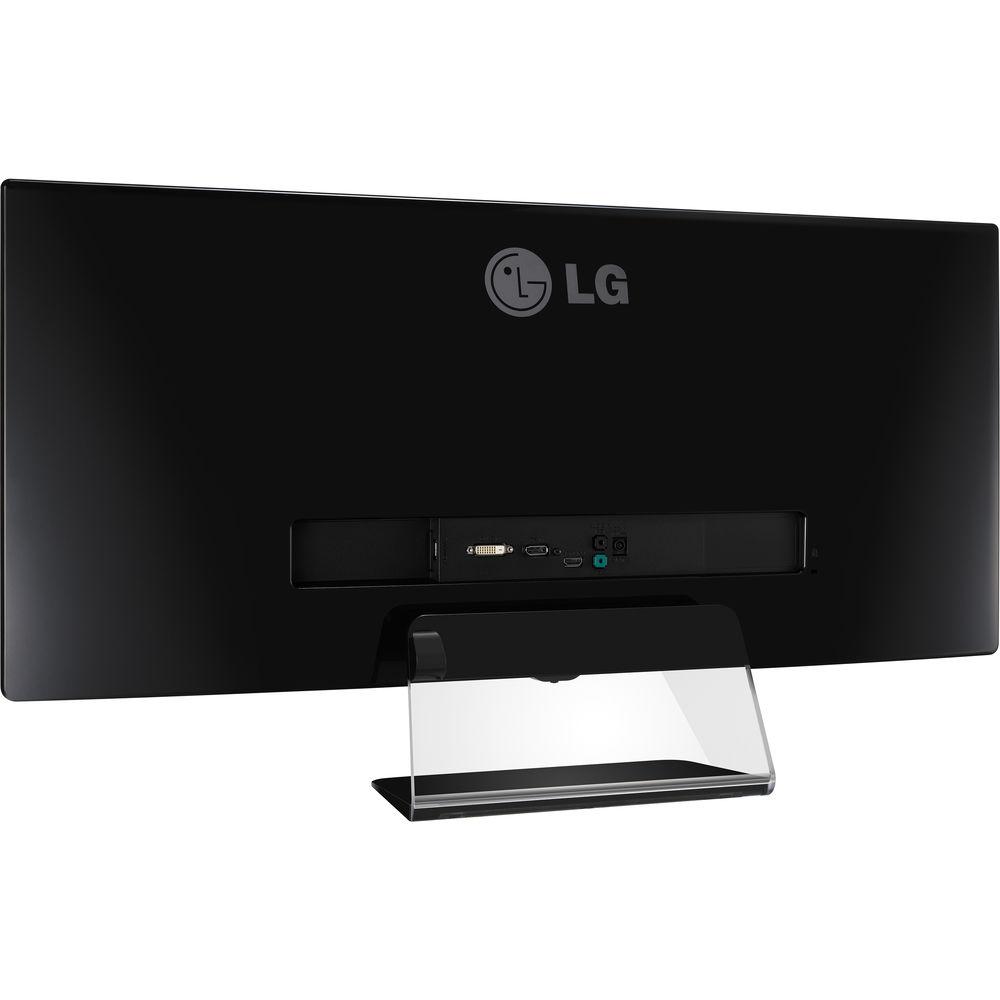

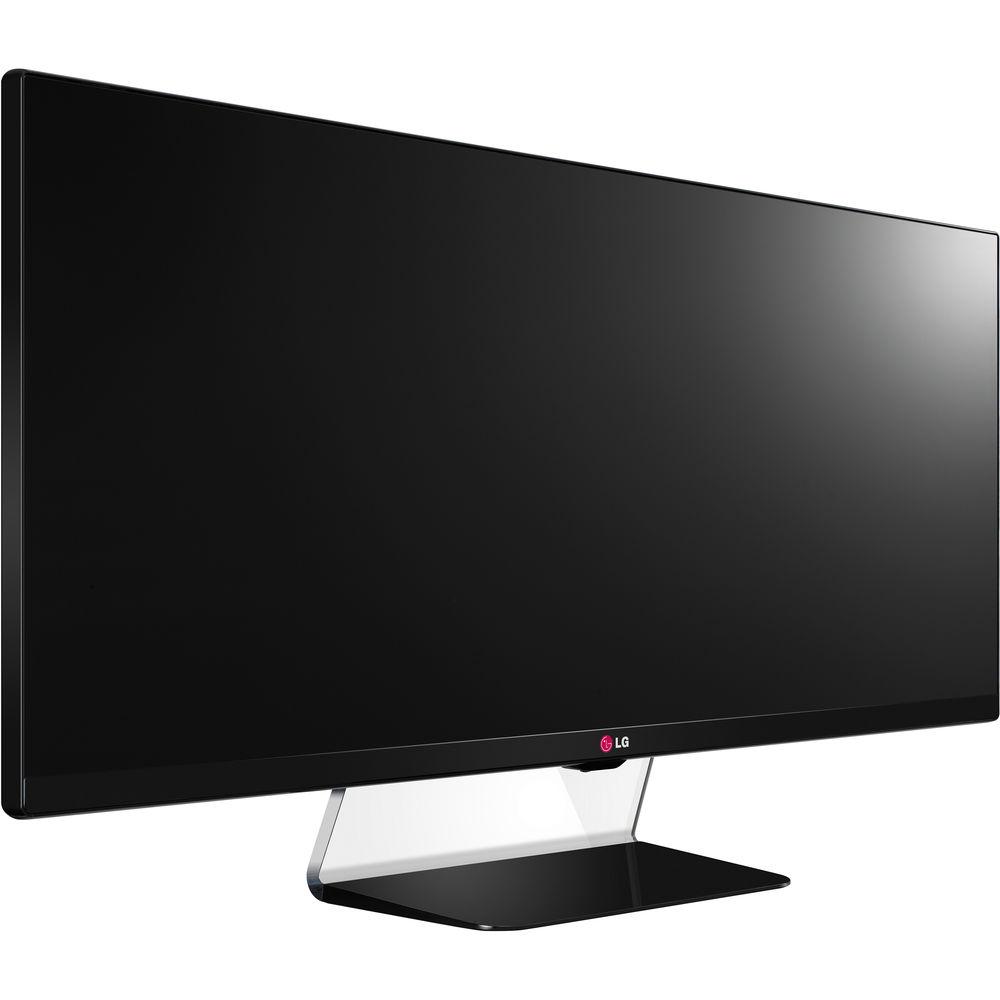

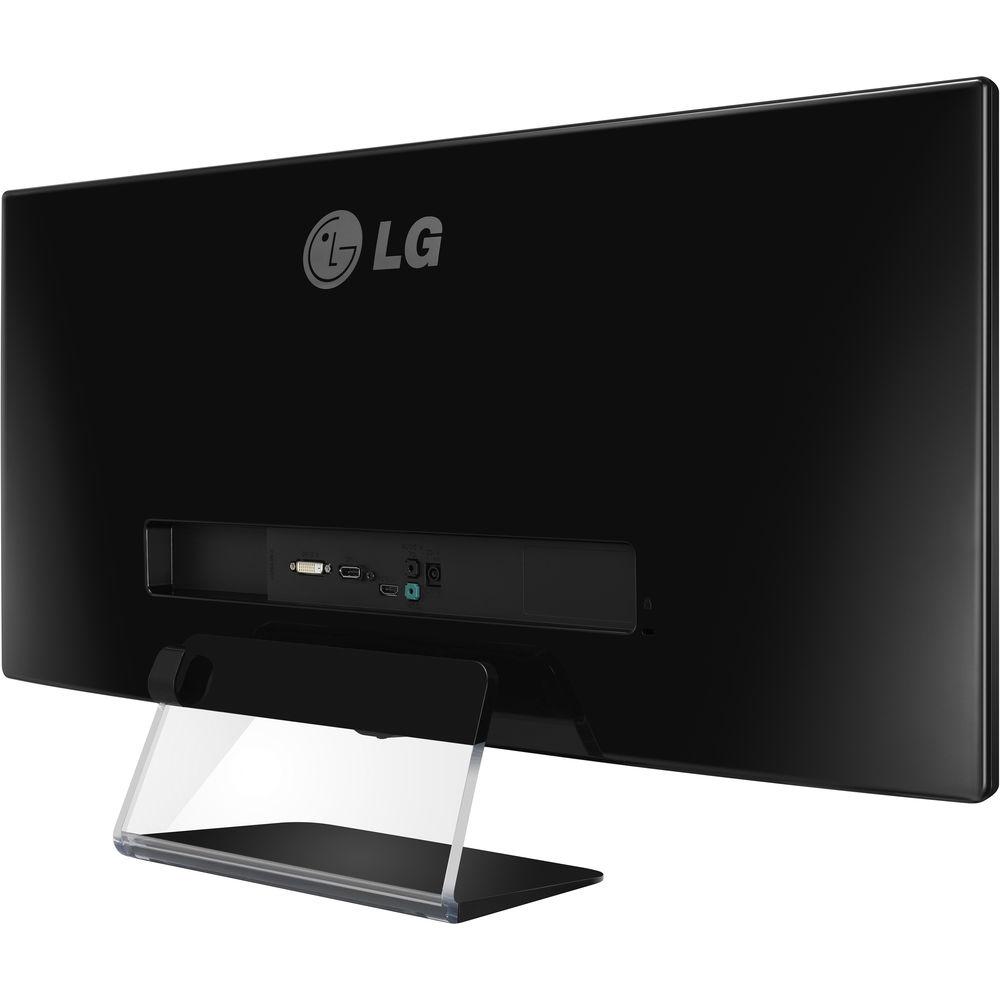

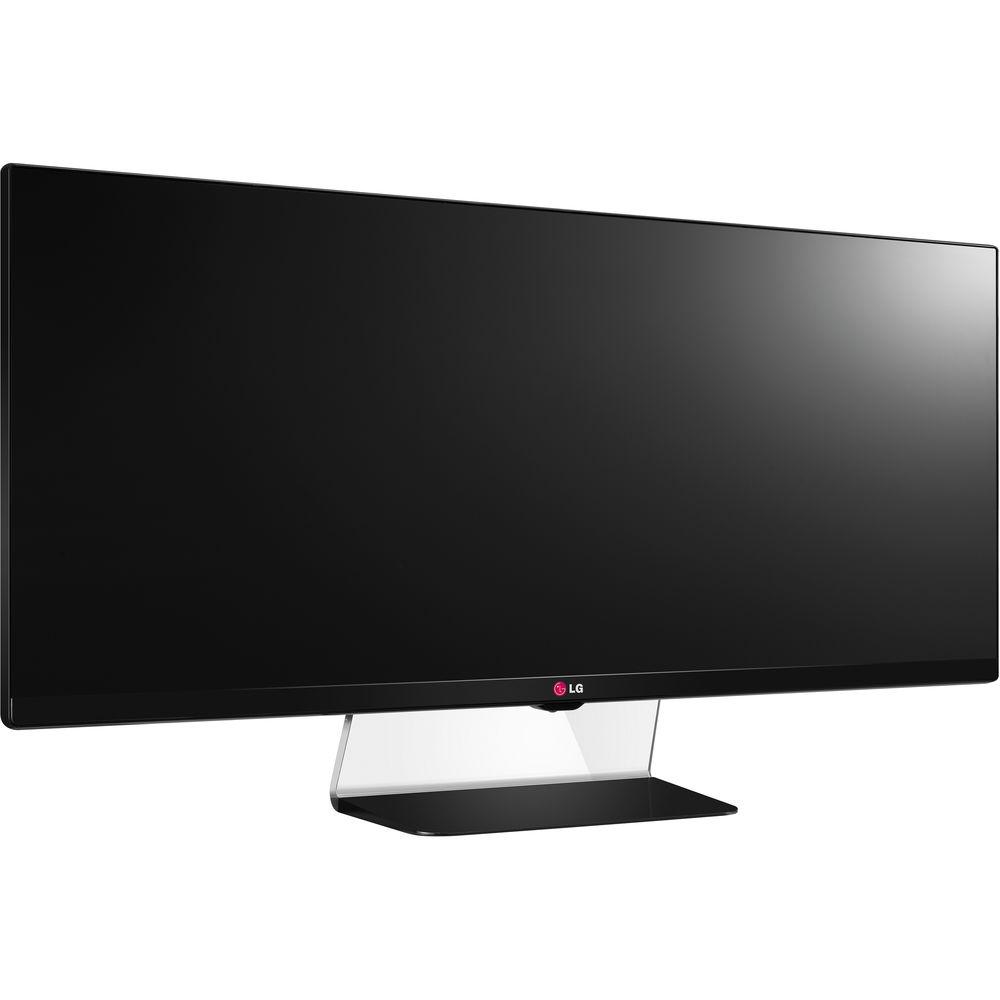

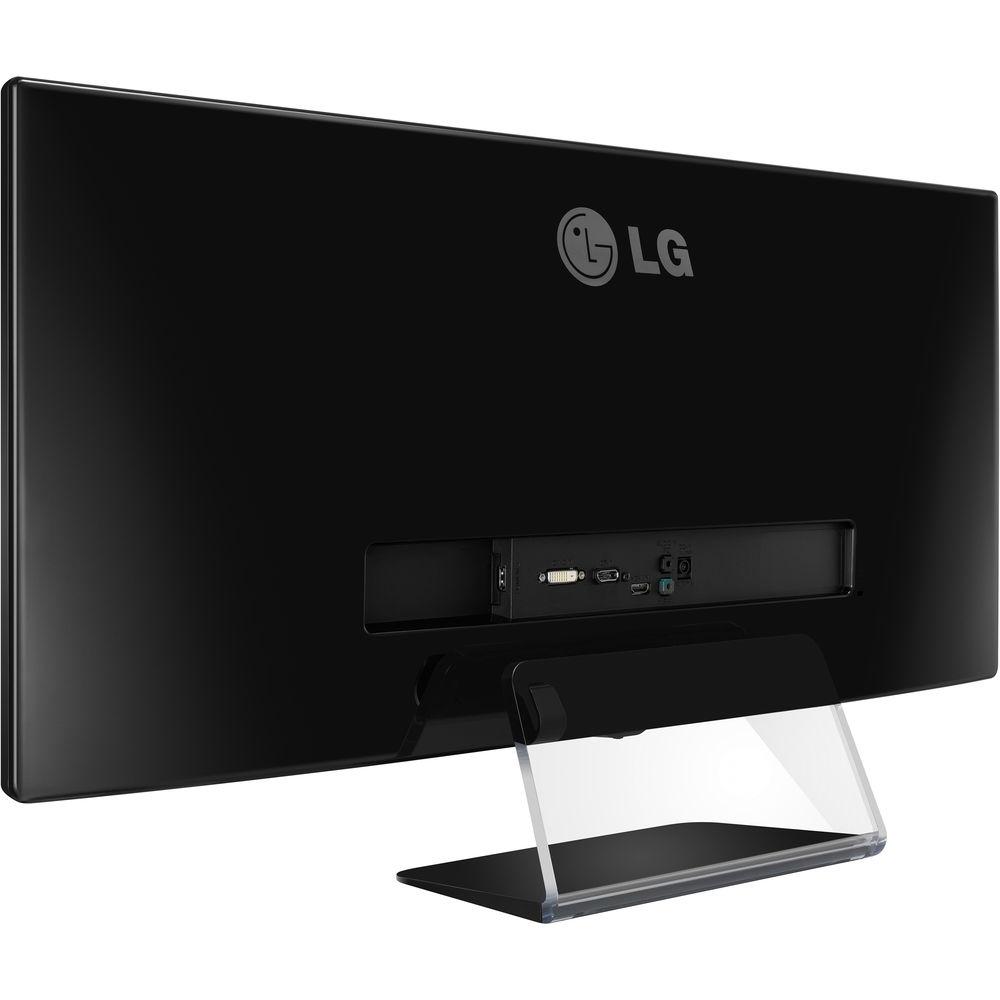

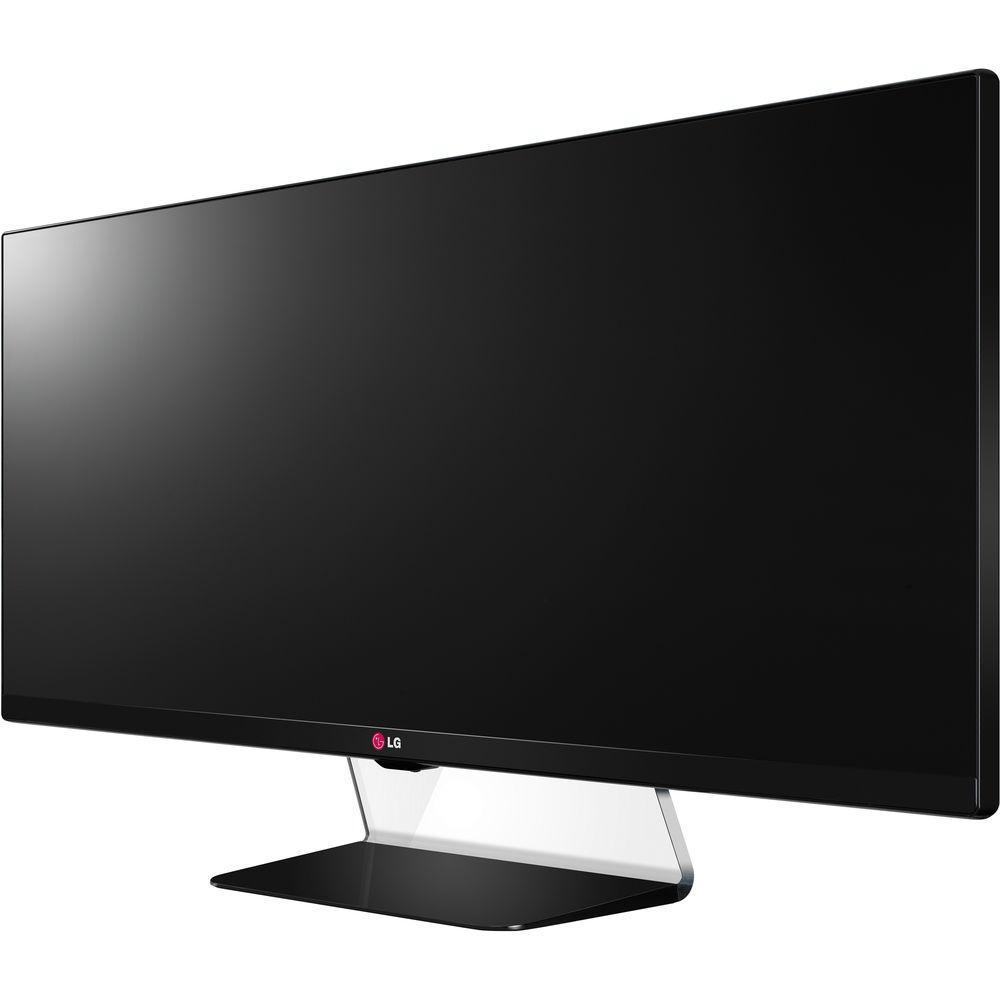

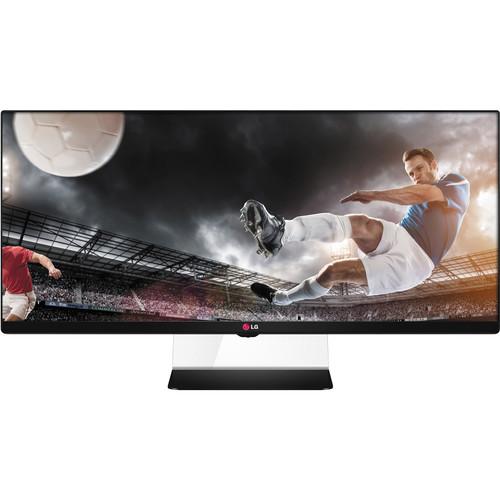

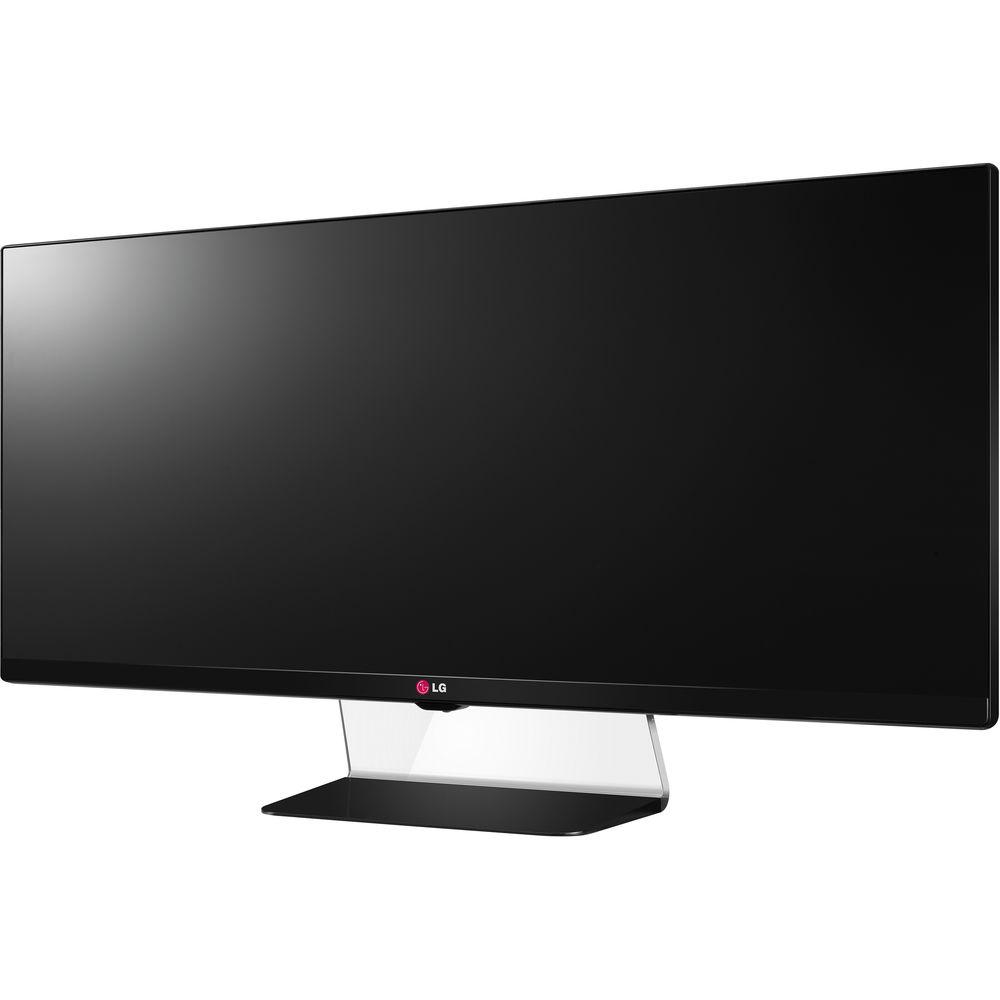

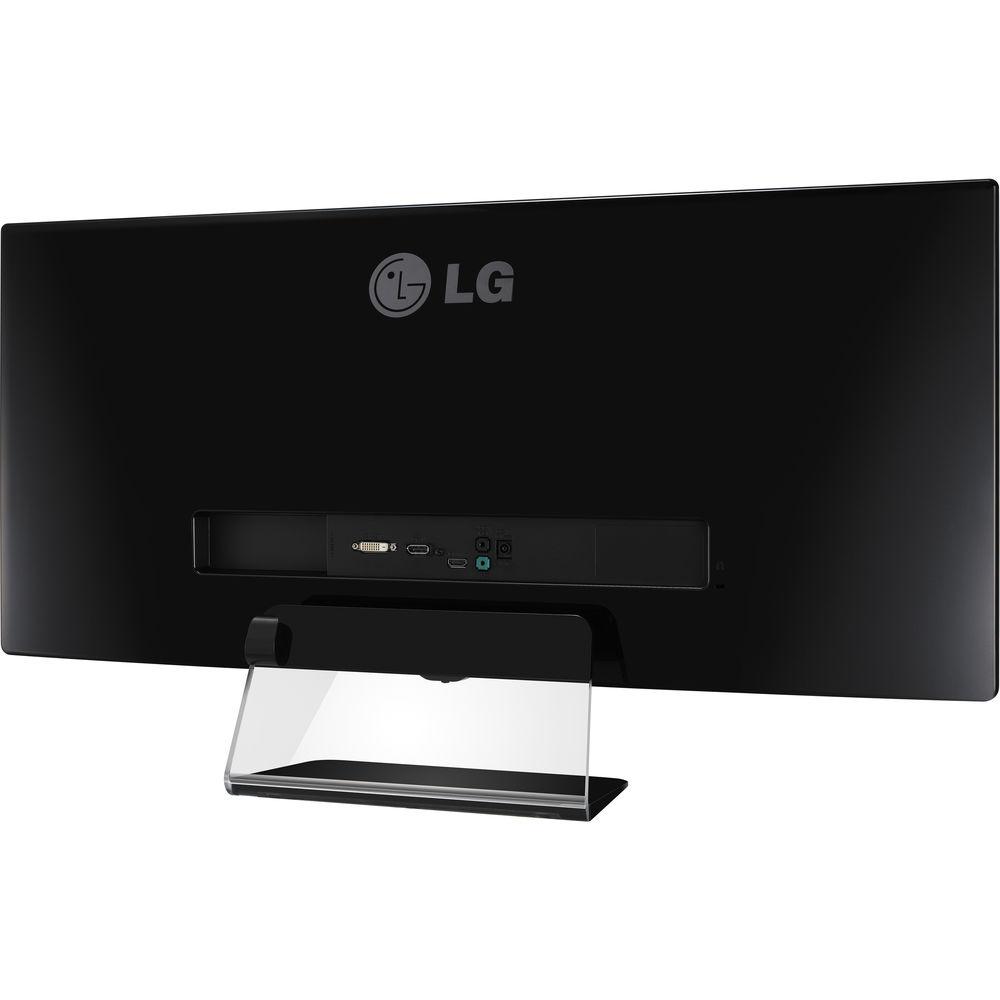

User Manual for LG 34UM64-P 34" Widescreen 21:9 UltraWide IPS Monitor Click to enlarge the picture
Contents of the user manual for the LG 34UM64-P 34" Widescreen 21:9 UltraWide
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 34UM64-P 34" Widescreen 21:9 UltraWide contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The 34UM64-P 34" Widescreen 21:9 UltraWide IPS Monitor from LG features a resolution of 2560 x 1080 with an aspect ratio of 21:9, which also allows you to divide the display into 2 to 4 customizable sections via software, so you can multitask with up to 4 programs on a 34" monitor at the same time. This LG IPS monitor provides a 99% color gamut that accurately reproduces colors for reds, blues, and whites, and provides deep blacks. With 178° viewing angles that eliminate color shifts, IPS monitors allow you to see the same clear images from the far left or right, as you would see from the center. LG provides two HDMI ports for connecting to various HDMI devices such as computers, Blu-ray players, TV cable boxes, and more. In addition to the HDMI ports, this monitor also offers a DVI-D and a DisplayPort for connecting to Windows and Mac systems.
The LG monitor is suited for entrainment uses by providing features such as 5,000,000:1 dynamic contrast ratio, 300 cd/m² brightness rating, and a response time of 5 ms that offers brighter colors, darker blacks, and less blurring of images when viewing action movies or playing sport games. To complete the multimedia experience, this monitor provides audio via built-in 7-watt speakers. Included with the LG monitor are a power cord and one HDMI cable. - Flicker-Safe and Reader Mode
- LG's Flicker-Safe system is always on to reduce flicker level to almost zero. In addition, switch to Reader Mode with a simple touch of a hot key to minimize exposure to harmful blue light.
- Joystick Control
- The joystick provides menu controls with a touch of your finger.
- Ultrawide 21:9 Aspect Ratio
- Allows you to view multiple documents at the same time, without the need to switch back and forth. This provides more on-screen workspace when compared to 16:9 screens.
- 4-Screen Split Software
- LG provides software that divides the screen into two to four different windows which is also Mac-compatible. This software includes an autofitting function. With a simple drag or a double click, a new window will automatically fit into the marginal room of the screen. The 21:9 screen allows for efficient multitasking, enabling you to open and run an editing program and its source clip folder without minimizing other programs.
- SRGB 99%
- With a 99% coverage of the sRGB color spectrum, this LG monitor offers more accurate colors.
- Dynamic Contrast Ratio
- This LG monitor offers a dynamic contrast ratio of 5,000,000:1 that provides deep blacks, bright whites, and enhances the colors.
UPC: 719192195066 In the Box LG 34UM64-P 34" Widescreen 21:9 UltraWide IPS Monitor Power Cord HDMI Cable Limited 3-Year Warranty User Manual PDF 13.2mbvcawterbzexqtdrzcx More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 34UM64-P 34" Widescreen 21:9 UltraWide IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 34UM64-P Specs | | | Size | 34" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1080 | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 5,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 90 kHz | | Vertical Frequency | 50 to 75 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 99% sRGB | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.315 x 0.315 mm | | | | Connectivity | 1 x 3.5 mm Input
1 x DVI-D
1 x DisplayPort Input
2 x HDMI | | Built-In Speakers | Yes, 2 x 7 W | | | | Power Consumption | 34 W (Eco)
0.5 W (Standby)
48 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | ENERGY STAR, REACH, RoHS, as per Manufacturer | | | | Tilt Adjustment | -5 to 15° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 32.7 x 18.5 x 6.8" / 83.1 x 47.0 x 17.3 mm (With Stand)
32.7 x 15.0 x 3.3" / 83.1 x 38.1 x 8.4 mm (Without Stand) | | Weight | 16.1 lb / 7.3 kg (With Stand)
13.9 lb / 6.3 kg (Without Stand) | | | | Package Weight | 21.8 lb | | Box Dimensions (LxWxH) | 35.0 x 20.0 x 7.0" |
