User Manual for LG 34UM88-P 34" 21:9 UltraWide FreeSync IPS Monitor Click to enlarge the picture
Contents of the user manual for the LG 34UM88-P 34" 21:9 UltraWide FreeSync
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 34UM88-P 34" 21:9 UltraWide FreeSync contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More - Get #SeriouslyProfessional with LG UltraWide® Monitors

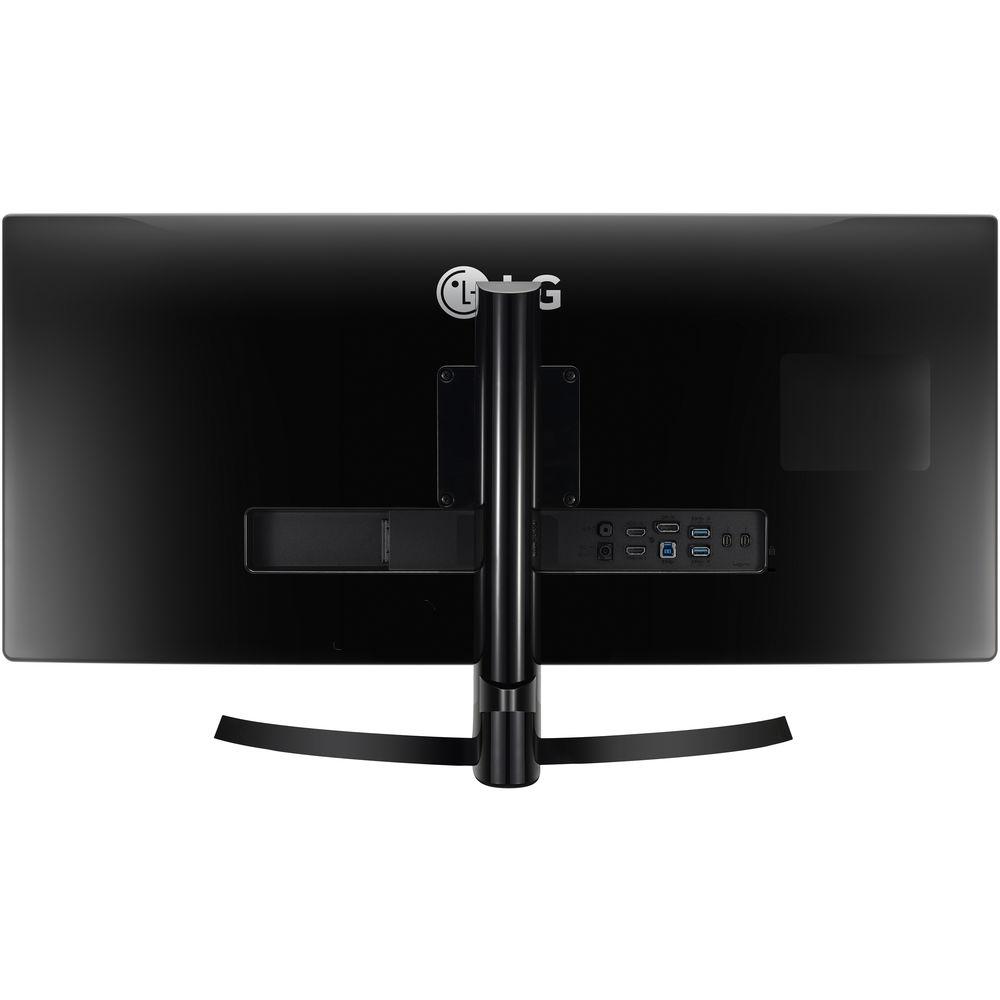

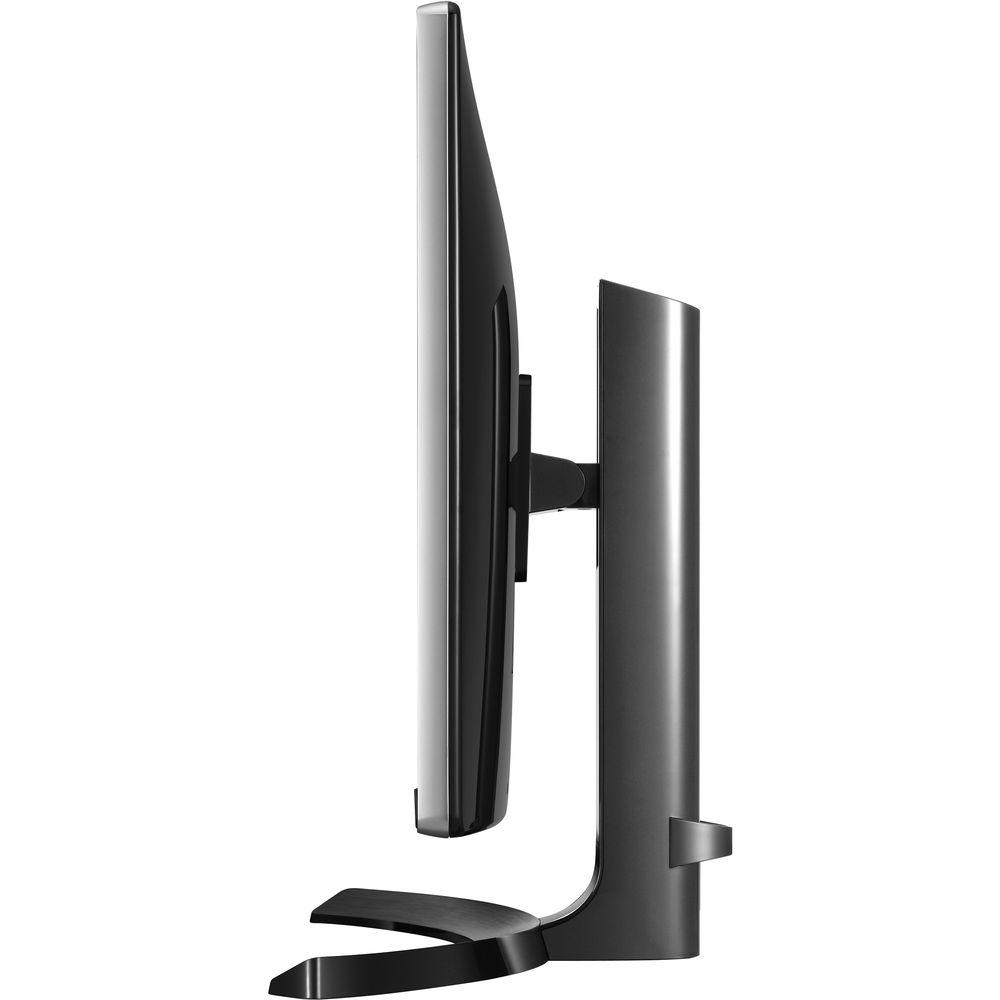

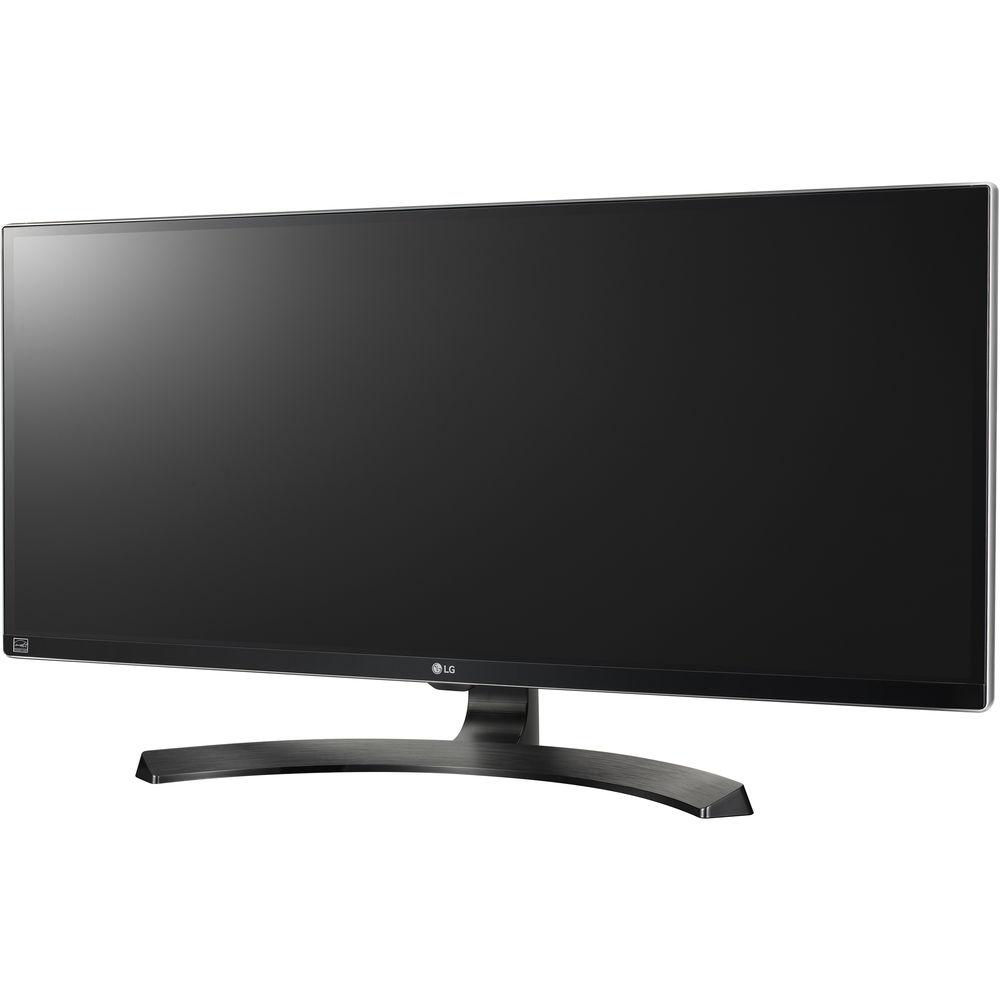

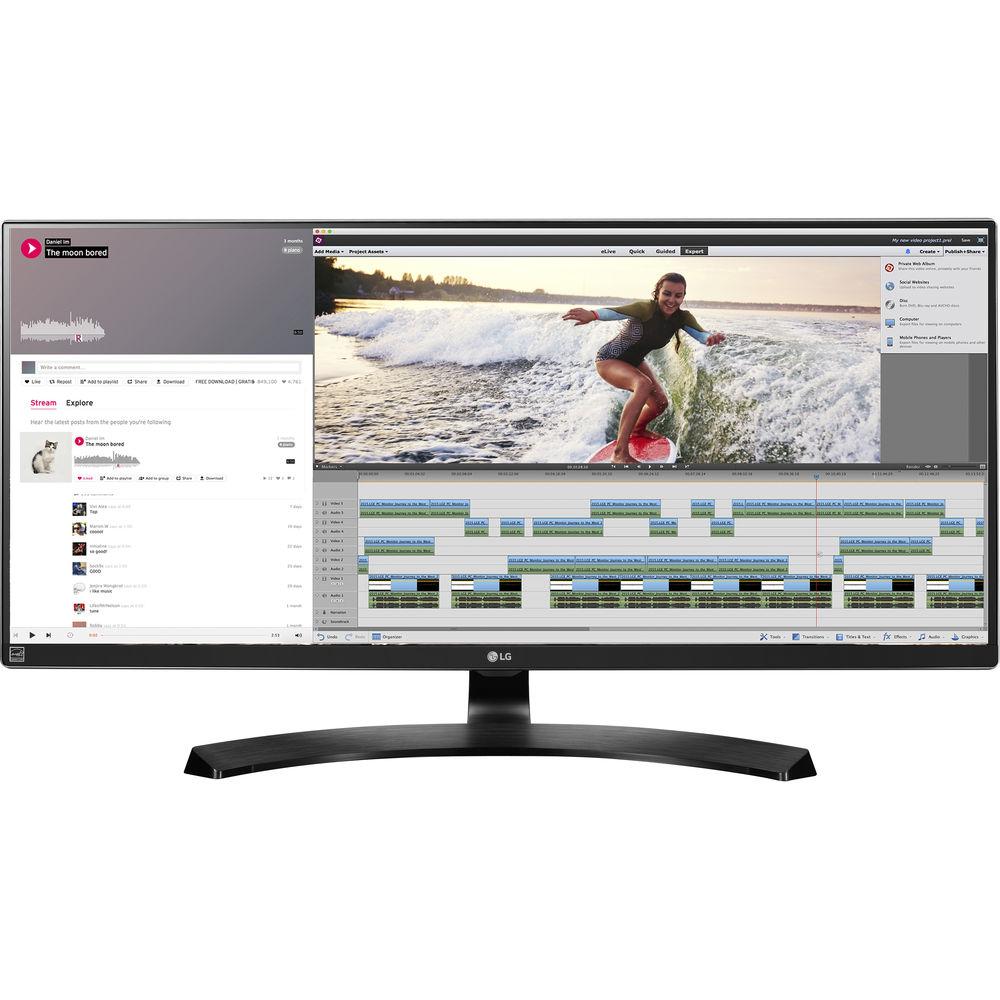

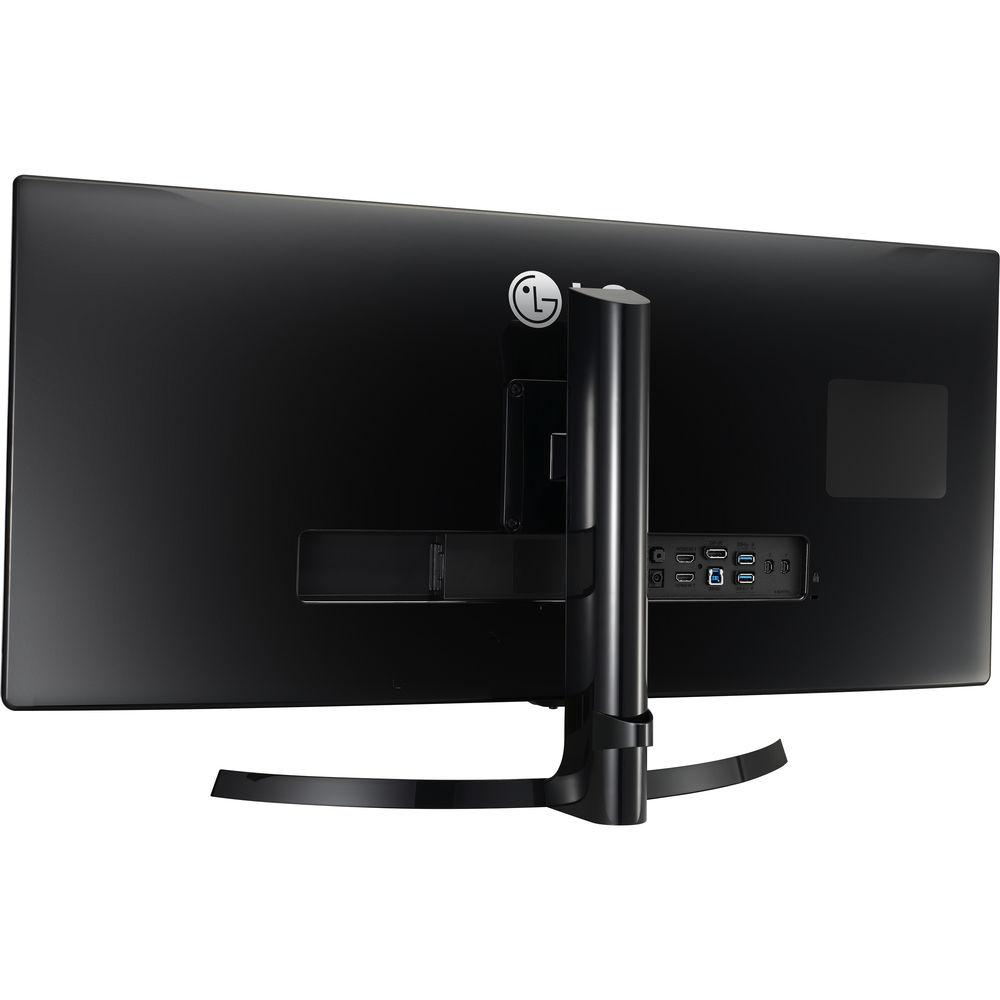

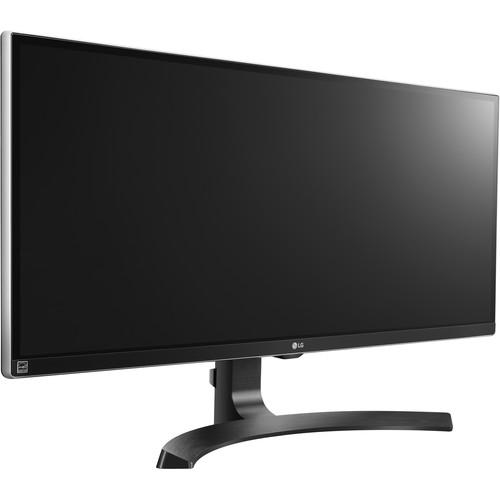

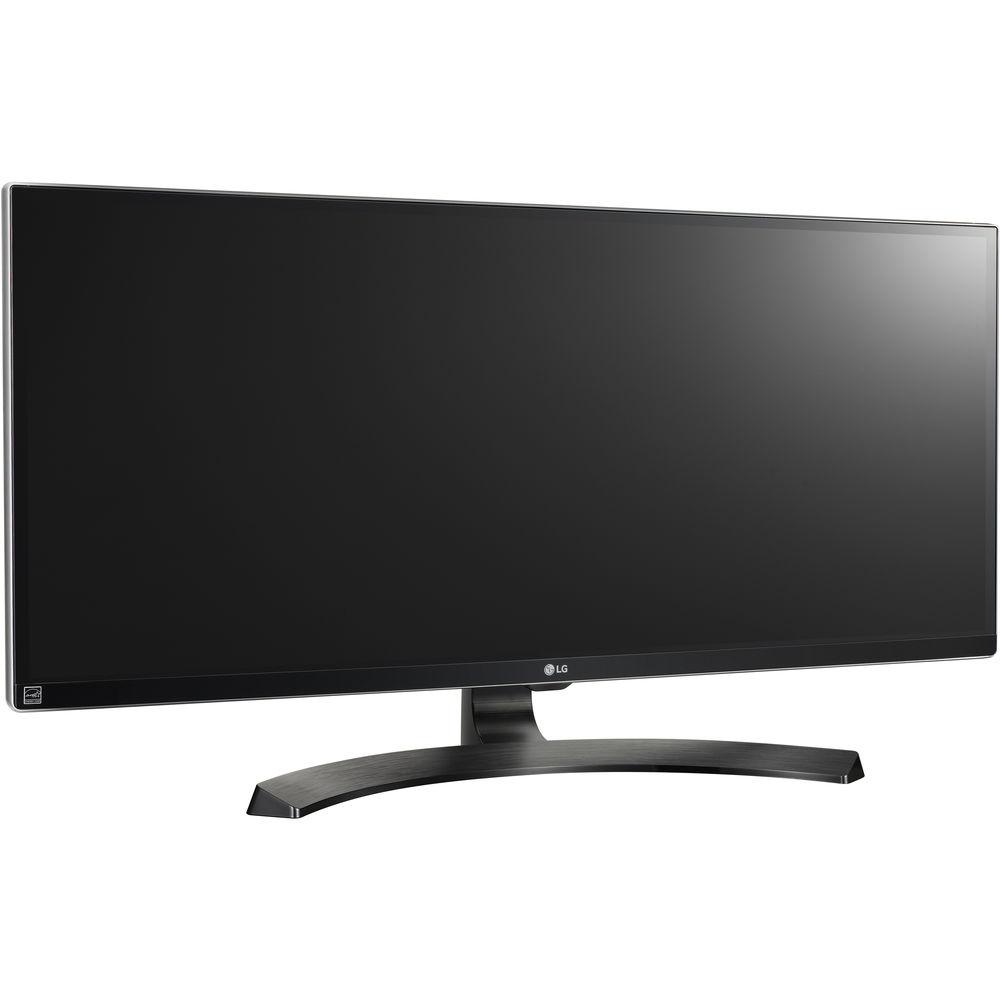

The 34UM88-P 34" 21:9 UltraWide FreeSync IPS Monitor from LG features an ultra-wide display that's suitable for both work and play. For work and multitasking purposes, an ultra-wide display lets you have multiple windows side by side, or one large window where you can see all the details. On the other hand, gaming on this display will feel more immersive as the large screen takes up most of your field of view, putting you right in the middle of the action.
With a 3440 x 1440 QHD resolution, the 34UM88-P provides you with crisp and clear pictures. It is constructed with an In-Plane Switching (IPS) panel, which has wide viewing angles and immersive colors. Combined with a 5,000,000:1 dynamic contrast ratio, 300 cd/m² brightness rating, 10-bit color support, and a 5 ms response time, you'll be able to enjoy vivid, lag-free content reproduction with darker blacks and brighter bright colors.

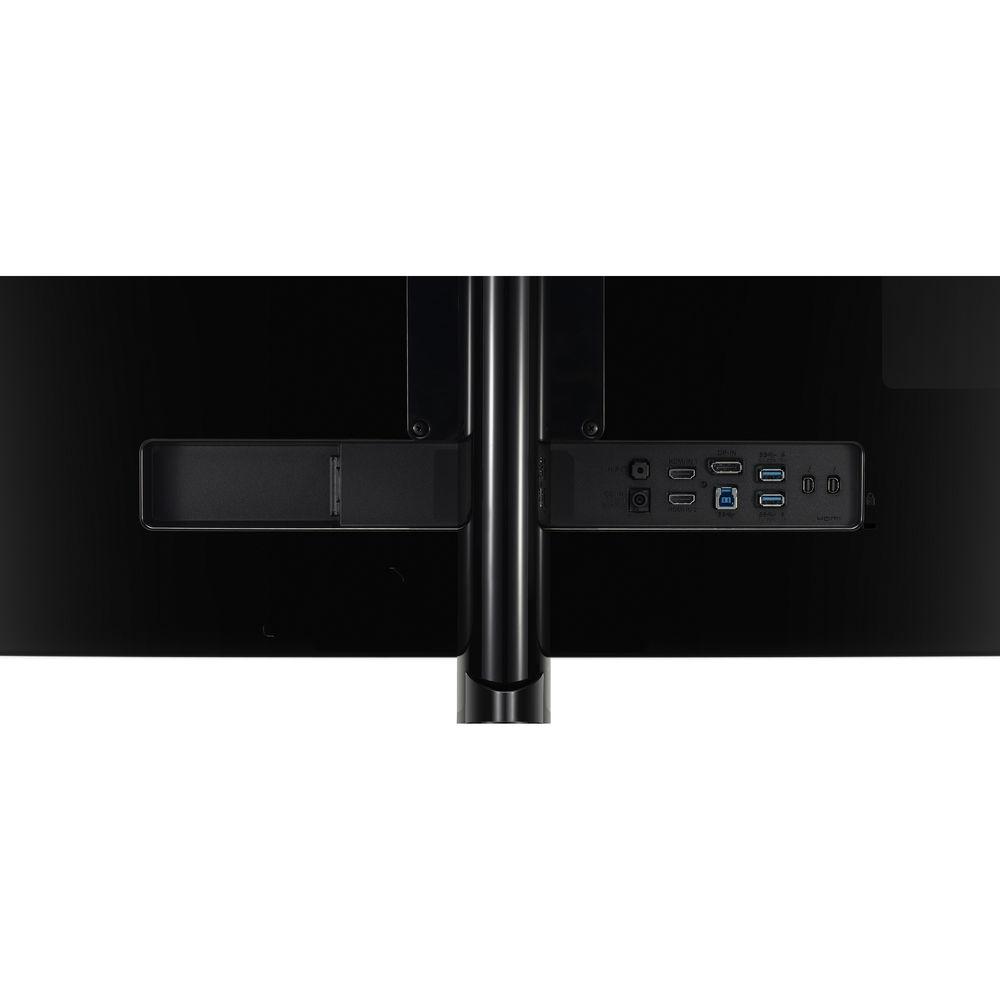

Furthermore, this monitor supports FreeSync (Adaptive Sync) technology through DisplayPort, which synchronizes your graphics card with the display to output content at variable refresh rates, eliminating screen stuttering and tearing. It also has two USB 3.0 Type-A ports, one of which is quick-charge compatible for your mobile devices. Connect this display to your system via DisplayPort, HDMI, or Thunderbolt 2.0, then tilt and adjust its height to your viewing preference. Otherwise, you can install a different mount or stand using the VESA mounting pattern holes on the back. - UltraWide QHD IPS Display
- The ultra-wide QHD screen allows you to multitask more efficiently than before. Have up to three windows side by side or even work on large Excel spreadsheets without having to scroll.
- FreeSync
- This technology allows for communication between the graphics card and monitor to synchronize frame rate output. Utilizing a dynamic refresh rate, AMD FreeSync effectively eliminates tearing, stuttering, and jerkiness for smooth gameplay.
- Thunderbolt 2.0
- Two Thunderbolt input/output ports allow you to connect compatible devices to transfer data between them with speeds of up to 20 Gbps, or four times faster than USB 3.0.
- USB 3.0 Quick Charge
- Save time charging your mobile devices with USB 3.0 quick charge. Once enabled, this convenient feature allows a phone or other mobile device to charge up to four times faster than via regular USB 3.0.
- On-Screen Control
- On-Screen Control puts a host of essential monitor settings into a handy window for quick, easy access. Volume, brightness, picture mode presets, Screen Split 2.0, Dual Controller, and more can now be adjusted with just a few clicks of the mouse, instead of physical buttons on the monitor.
- Screen Split 2.0
- Customize your monitor layout for multitasking with Screen Split 2.0. Resize and display multiple windows at once, with 14 options including four different picture-in-picture (PIP) choices.
- Game Mode
- Set your game mode for optimal gaming conditions. There are three game modes: two First-Person-Shooter (FPS) modes, and a Real-Time Strategy (RTS) pre-set mode so you can choose the best mode for you.
- Black Stabilizer
- Keep visibility even in dark scenes. LG's Black Stabilizer senses dark scenes and makes them brighter so that you can find enemies hiding and waiting to attack you in the dark.
- Additional Features
- Picture Mode
Ratio: Wide, Original, Cinema 1, Cinema 2, 1:1
PBP (Picture-by-Picture)
DDC/CI
HDCP
Key Lock
Response Time Control
DAS Mode
Reader Mode
Flicker Safe
Smart Energy Saving
Automatic Standby
SIX Axis Control
Color Calibrated
H/W Calibration (True Color Finder)
Dual Controller
My Display Preset (in OSC)
Dual EDID (H/W) UPC: 719192199408 In the Box LG 34UM88-P 34" 21:9 UltraWide FreeSync IPS Monitor Power Cable HDMI Cable DisplayPort Cable Cable Holder Limited 1-Year Warranty User Manual PDF 10.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 34UM88-P 34" 21:9 UltraWide FreeSync IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 34UM88-P Specs | | | Size | 34" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3440 x 1440 | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 300 cd/m2 | | Dynamic Contrast Ratio | 5,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | FreeSync | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Color Gamut | 99% sRGB | | Response Time | 5 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2325 x 0.2325 mm | | | | Connectivity | 1 x USB Type-A (USB 3.1 Gen 1) Input
2 x USB Type-A (USB 3.1 Gen 1) Output
1 x DisplayPort 1.2 Input
2 x HDMI 2.0
2 x Mini DisplayPort (Thunderbolt 2) | | Built-In Speakers | Yes, 2 x 7 W | | | | Power Consumption | 56.73 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | ENERGY STAR, EPEAT GOLD, as per Manufacturer | | | | Height Adjustment | 4.7" / 11.9 cm | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 32.7 x 16.9 x 9.4" / 83.1 x 42.9 x 23.9 mm (With Stand)
32.7 x 15.0 x 1.9" / 83.1 x 38.1 x 4.8 mm (Without Stand) | | Weight | 18.5 lb / 8.4 kg (With Stand) | | | | Package Weight | 27.0 lb | | Box Dimensions (LxWxH) | 38.0 x 21.0 x 8.0" |
