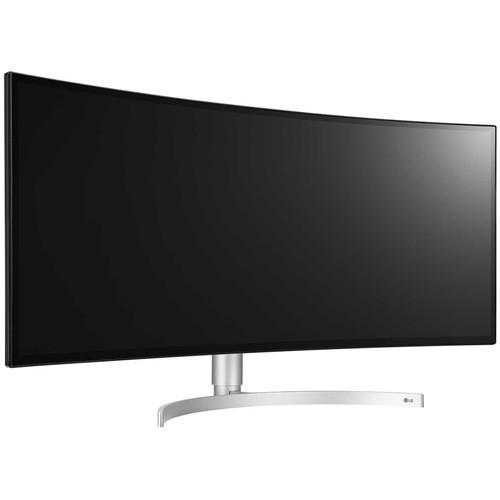

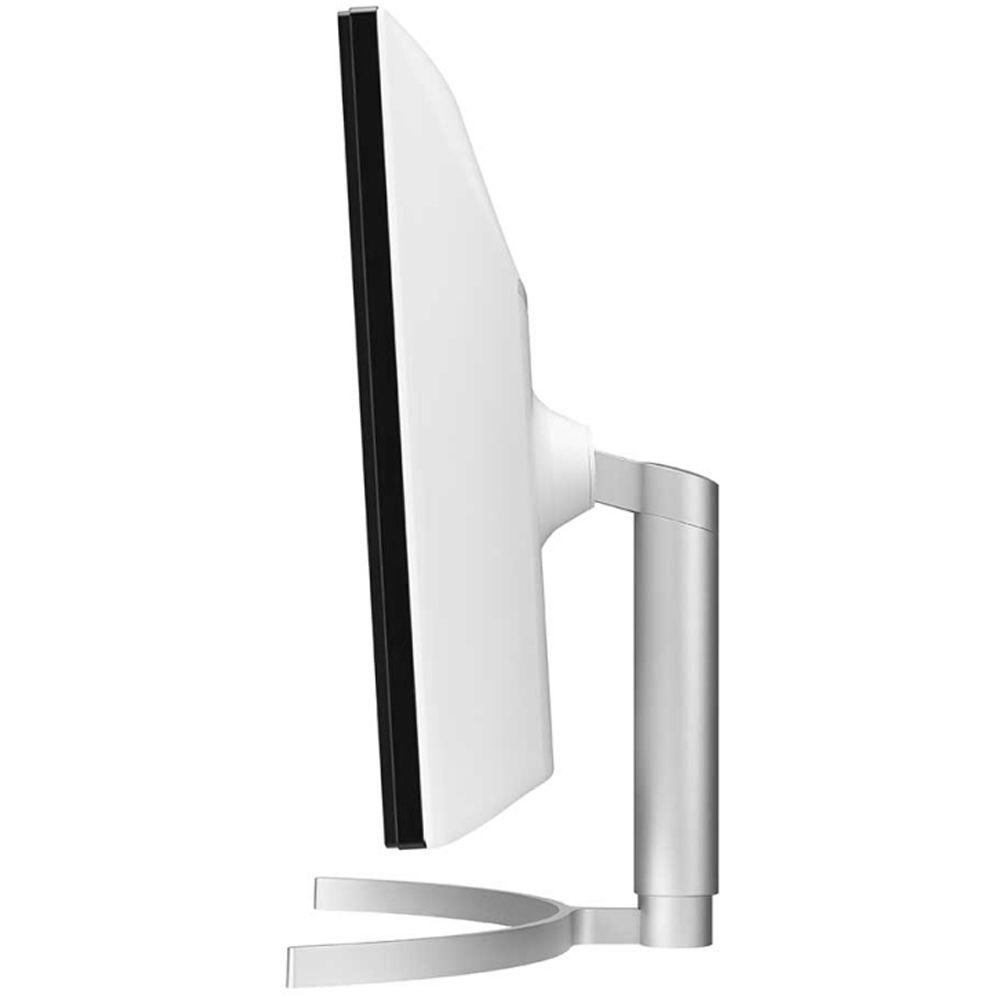

User Manual for LG 34WK95C-W 34" 21:9 Curved UltraWide Nano IPS Monitor Click to enlarge the picture
Contents of the user manual for the LG 34WK95C-W 34" 21:9 Curved UltraWide
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 34WK95C-W 34" 21:9 Curved UltraWide contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

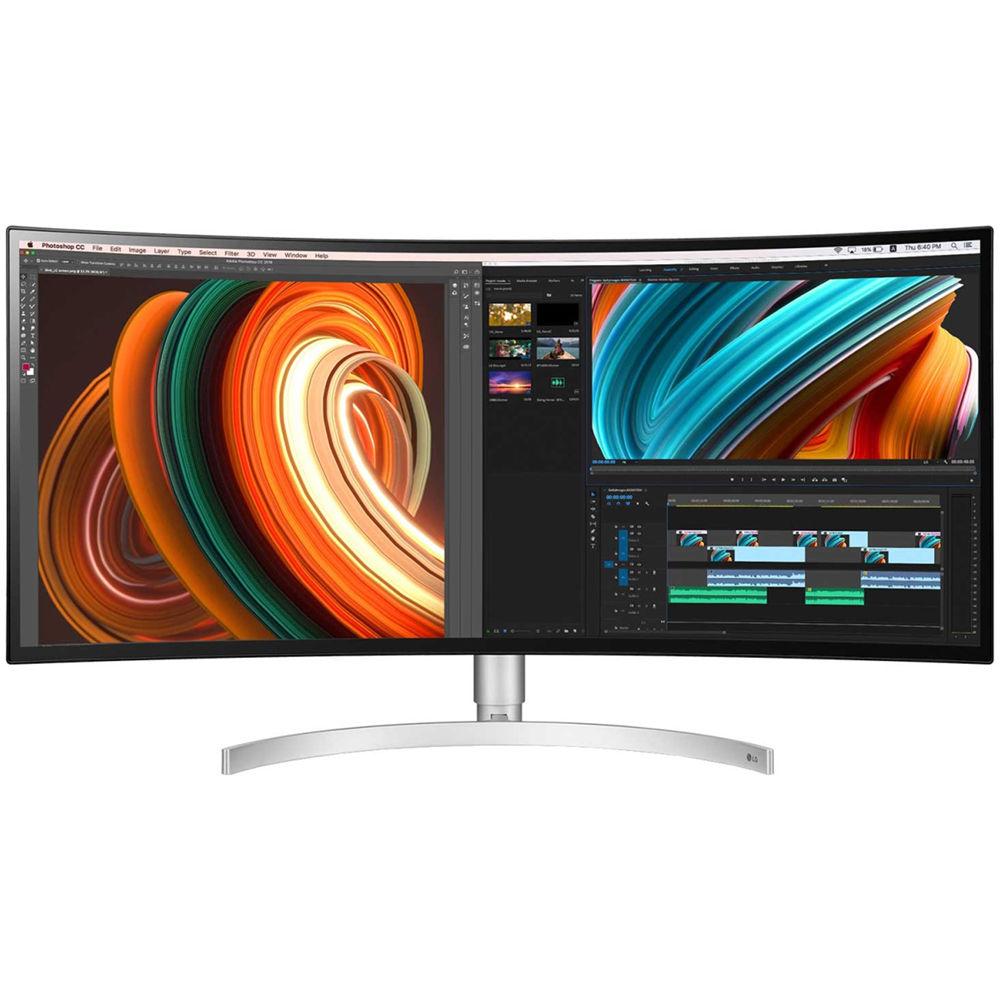

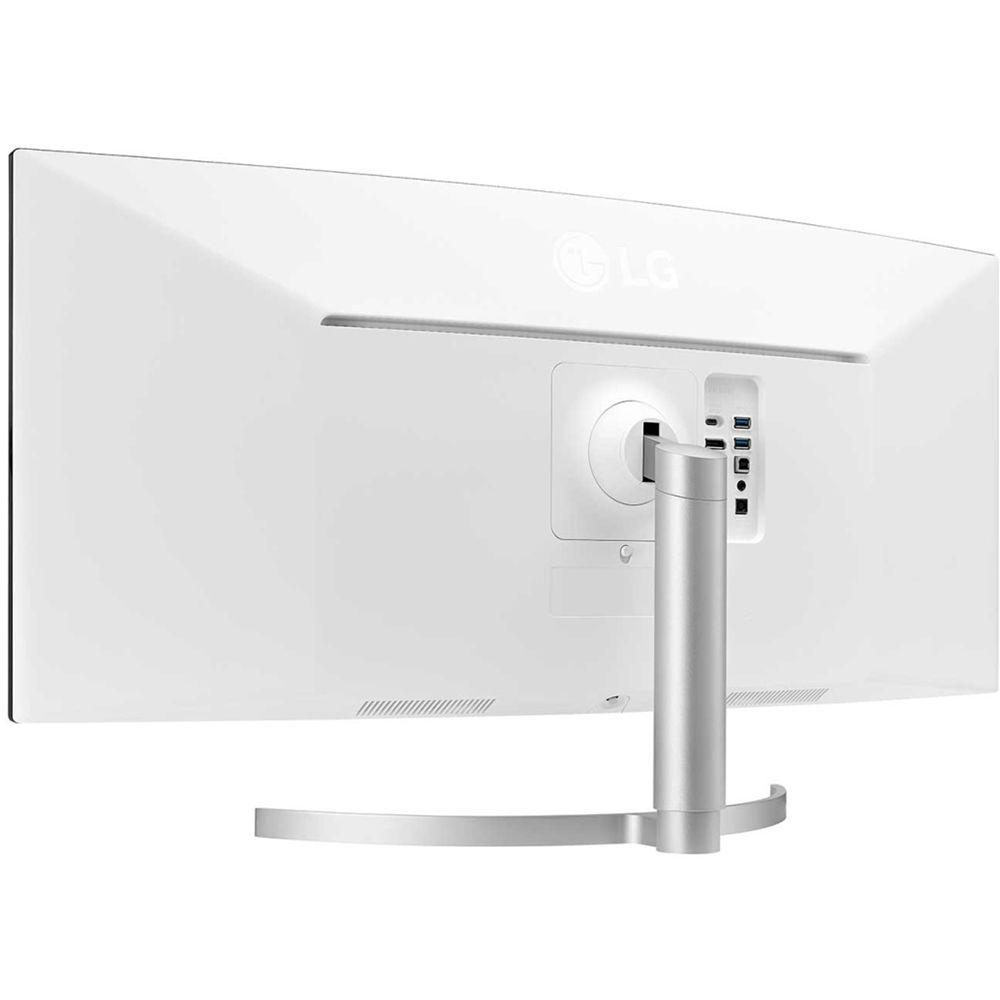

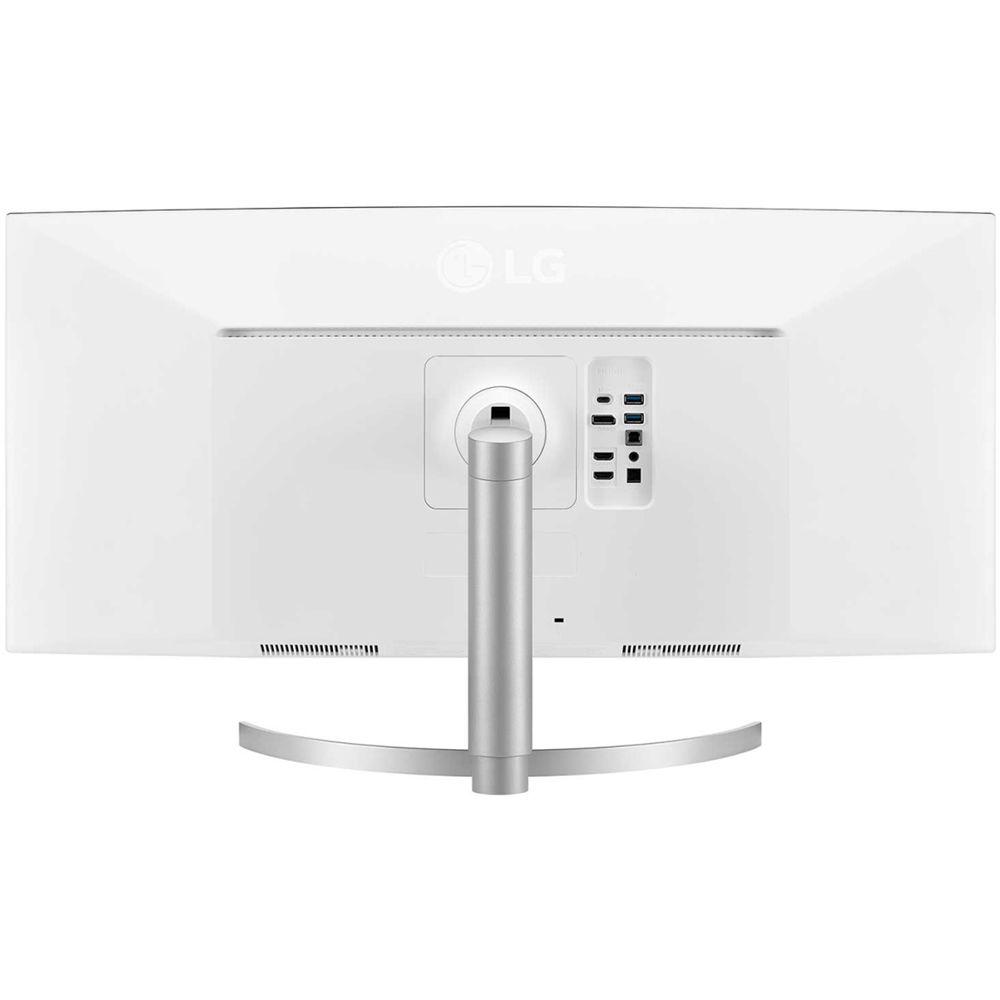

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Designed for content creators, video editors, programmers, and developers, the 34WK95C-W 34" 21:9 Curved UltraWide Nano IPS Monitor from LG features a native resolution of 3440 x 1440 with a 75 Hz refresh rate. It also features Nano In-Plane Switching (IPS) technology, support for 1.07 billion colors and DisplayHDR 400 (HDR10), a 21:9 aspect ratio, a static contrast ratio of 1000:1, a typical brightness level of 400 cd/m2, a 5 ms (GtG) response time, Radeon FreeSync technology, and an anti-glare coating with a 3H hardness rating. Using the 178° horizontal and vertical viewing angles, it is possible to watch content from virtually any position. This display has two HDMI 2.0 ports and one DisplayPort 1.2 port for connecting to your system. There is also one USB 3.1 Gen 1 Type-C port, two USB 3.1 Gen 1 Type-A ports, and one USB 3.1 Gen 1 Type-B port. The USB Type-C port supports 4K video, data transfers, and 60W of power for device charging, and audio can be output using the dual integrated 7W stereo speakers or 3.5mm headphone jack.

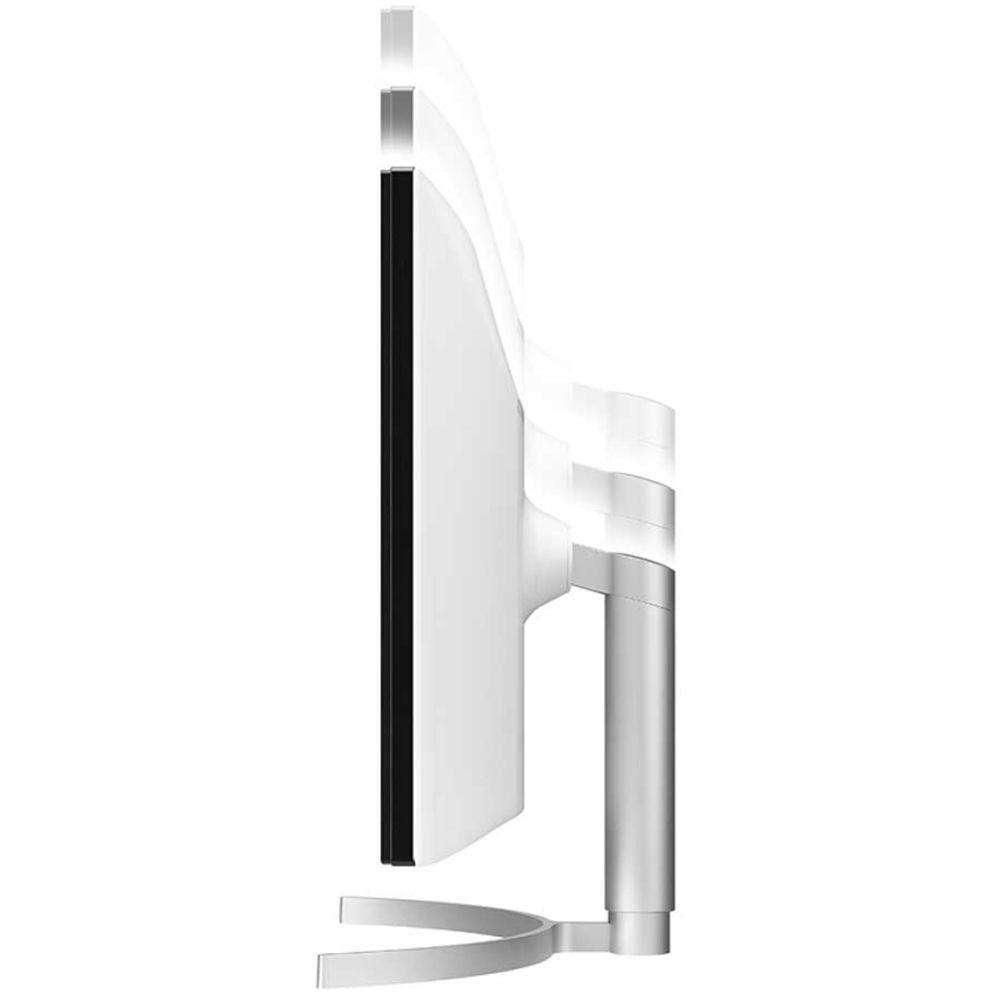

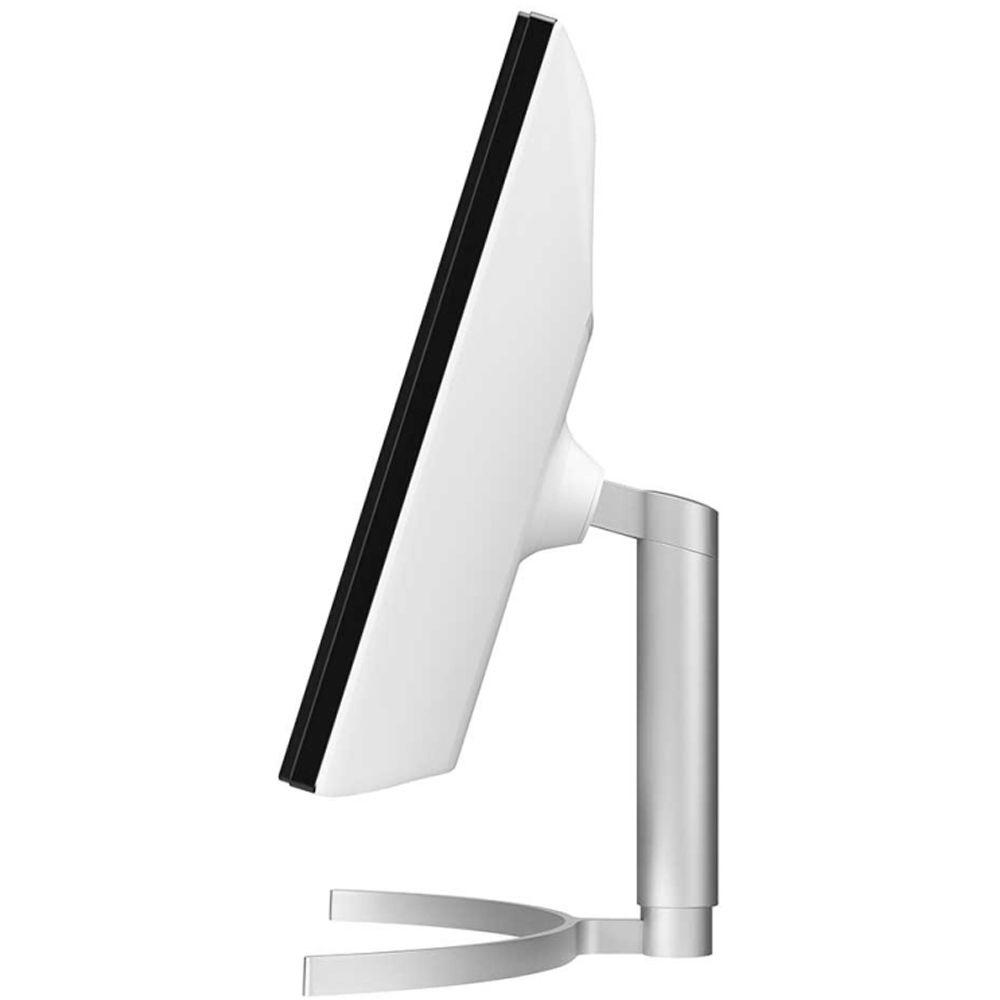

LG has engineered the 34WK95C-W with support for 98% of the DCI-P3 color gamut. To further help improve viewing and accessibility, this display features a vertical tilt of -5 to 15°, a height adjustment of 4.3", and fits 100 x 100mm VESA wall mounts. General Features - Nano IPS Display
- The Nano IPS panel delivers accurate color and greater contrast.
- DCI-P3 98% Color Gamut
- The 34WK95C covers 98% of the DCI-P3 color space, the current standard utilized by the film industry, assuring a wide range of available colors.
- VESA DisplayHDR 400
- Discover a more lifelike picture with high dynamic range, which provides bolder contrast between the brightest and darkest areas of the screen. This HDR400 monitor has been rated to deliver a peak luminance of 400 cd/m² for undeniably spectacular highlights. Please note that DisplayHDR 400 requires HDR10 support.
- 34" UltraWide QHD
- The 3440 x 1440 UltraWide QHD display offers sharp picture quality. Its pixel area is about 1.8x larger than an UltraWide Full HD 21:9 monitor, and about 2.4x larger than a Full HD 16:9 monitor.
- USB Type-C Connectivity
- A USB Type-C port allows for 4K video display, data transfers, and laptop/mobile device charging up to 60W, all at the same time and over a single cable. Reduce cord clutter and increase efficiency with USB Type-C.
- On-Screen Control
- On-Screen Control puts a host of essential monitor settings into a handy window for quick, easy access. Volume, brightness, picture mode presets, Screen Split 2.0, and more can now be adjusted with just a few clicks of the mouse, instead of hard buttons on the monitor.
- Ergonomic Design
- The thin bezel of this streamlined display offers a virtually borderless visual experience.
UPC: 719192617377 In the Box LG 34WK95C-W 34" 21:9 Curved UltraWide Nano IPS Monitor DisplayPort Cable HDMI Cable USB Type-C Cable USB Type-C to Type-A Cable Power Cable Limited 1-Year Warranty User Manual PDF 2.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 34WK95C-W 34" 21:9 Curved UltraWide Nano IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the LG 34WK95C-W 34" 21:9 Curved UltraWide Nano IPS Monitor can be downloaded in PDF format at the link stated below.
Technical parametersLG 34WK95C-W Specs | | | Size | 34" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3440 x 1440 | | Aspect Ratio | 21:9 | | Pixels Per Inch (ppi) | 109 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 75 Hz | | Adaptive Sync Technology | FreeSync | | HDR Compatibility | HDR10 | | Color Gamut | 98% DCI-P3 | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2325 x 0.2325 mm | | | | Connectivity | 2 x HDMI 2.0
1 x DisplayPort 1.2
1 x USB Type-C (USB 3.1 Gen 1)
2 x USB Type-A (USB 3.1 Gen 1)
1 x USB Type-B (USB 3.1 Gen 1)
1 x 3.5 mm | | Built-In Speakers | Yes, 2 x 7 W | | | | Power Consumption | 200 W (Maximum)
85 W (Typical)
1.2 W (Eco)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | USB Power Delivery | 60 W (via USB Type-C) | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 0 to 80% | | Storage Humidity | 0 to 85% | | | | Height Adjustment | 4.33" / 110 mm | | Tilt Adjustment | -5 to 15° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 32.3 x 22.1 x 9.9" / 82.0 x 56.1 x 25.1 cm (With Stand)
32.3 x 14.3 x 3.7" / 82.0 x 36.3 x 9.4 cm (Without Stand) | | Weight | 15.4 lb / 6.99 kg (With Stand)
12.4 lb / 5.62 kg (Without Stand) | | | | Package Weight | 25.8 lb | | Box Dimensions (LxWxH) | 37.0 x 21.0 x 8.0" |
