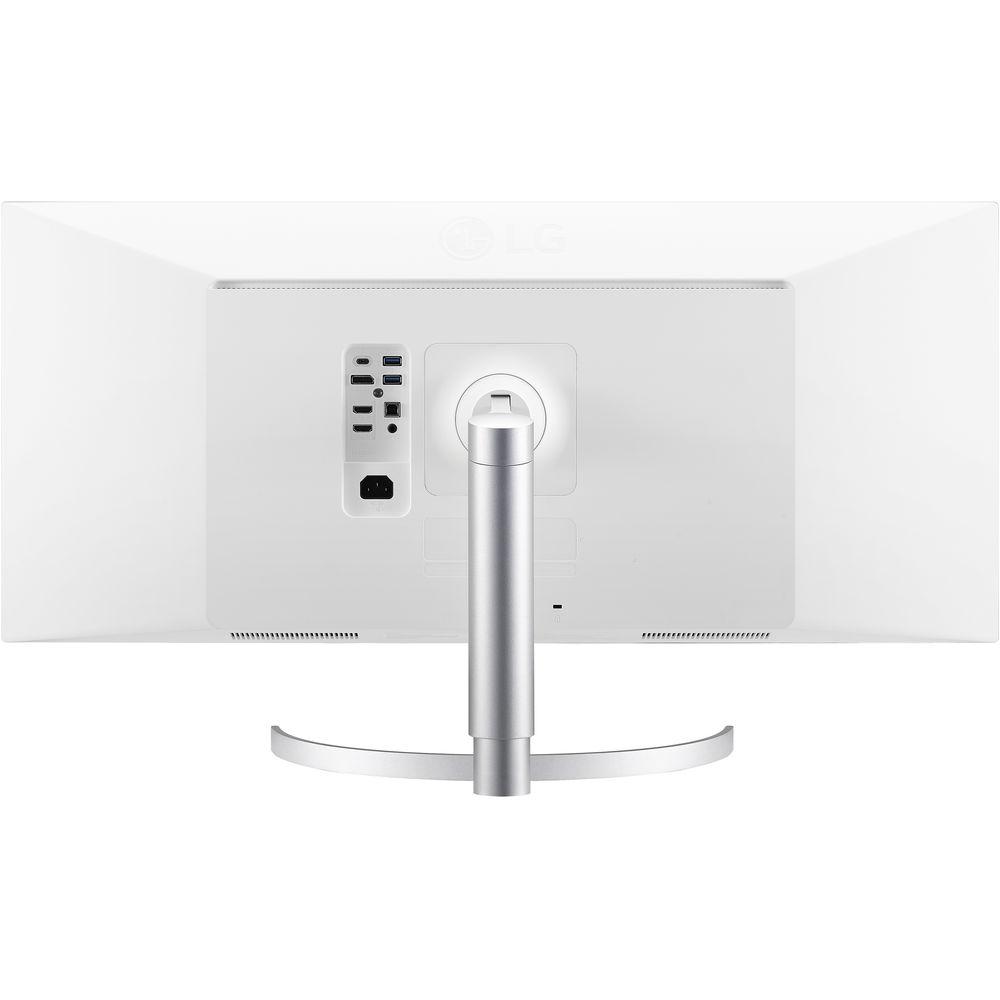

User Manual for LG 34WK95U-W 34" 21:9 UltraWide 5K Nano IPS Monitor Click to enlarge the picture
Contents of the user manual for the LG 34WK95U-W 34" 21:9 UltraWide 5K
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 34WK95U-W 34" 21:9 UltraWide 5K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|
Product description CES 2018: LG's New Consumer Tech Lineup Read More - LG Monitors - Nano IPS Displays
- LG 34WK95U-W: 34" Class 21:9 UltraWide 5K2K Nano IPS LED Monitor with HDR 600 (34" Diagonal)

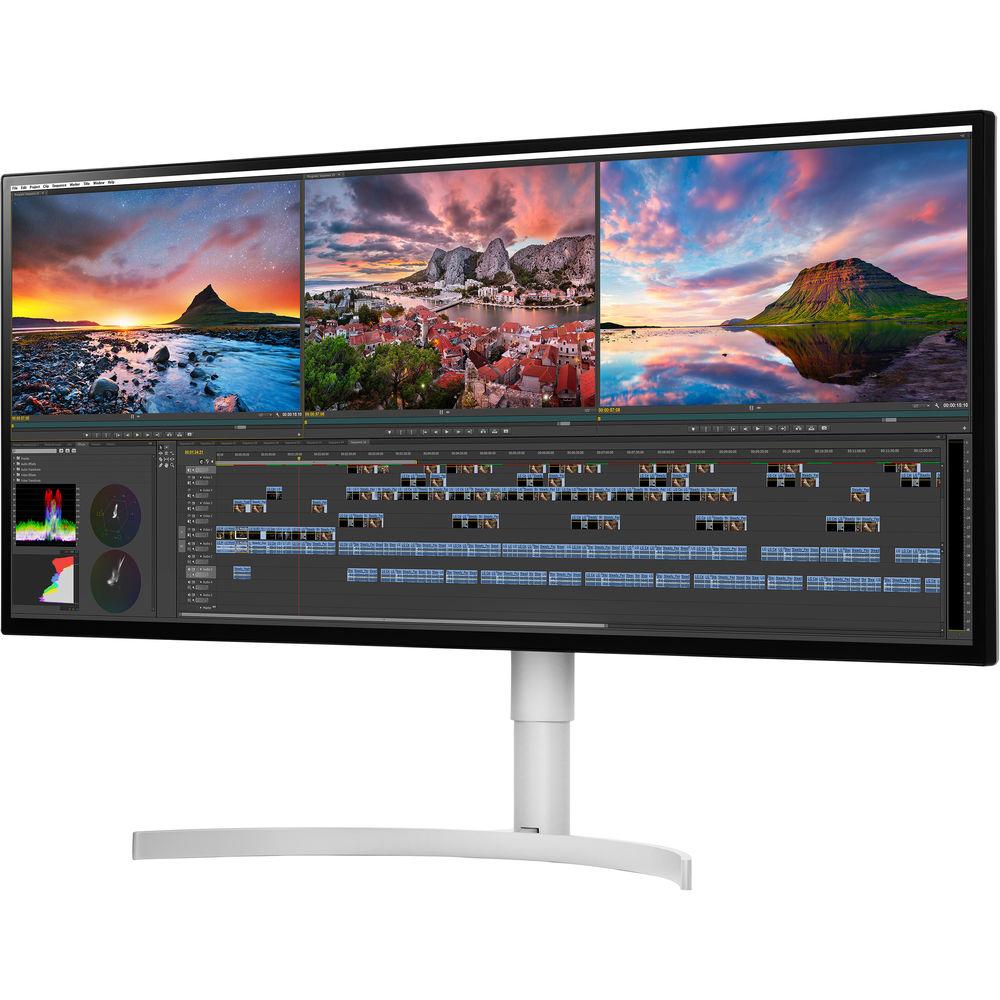

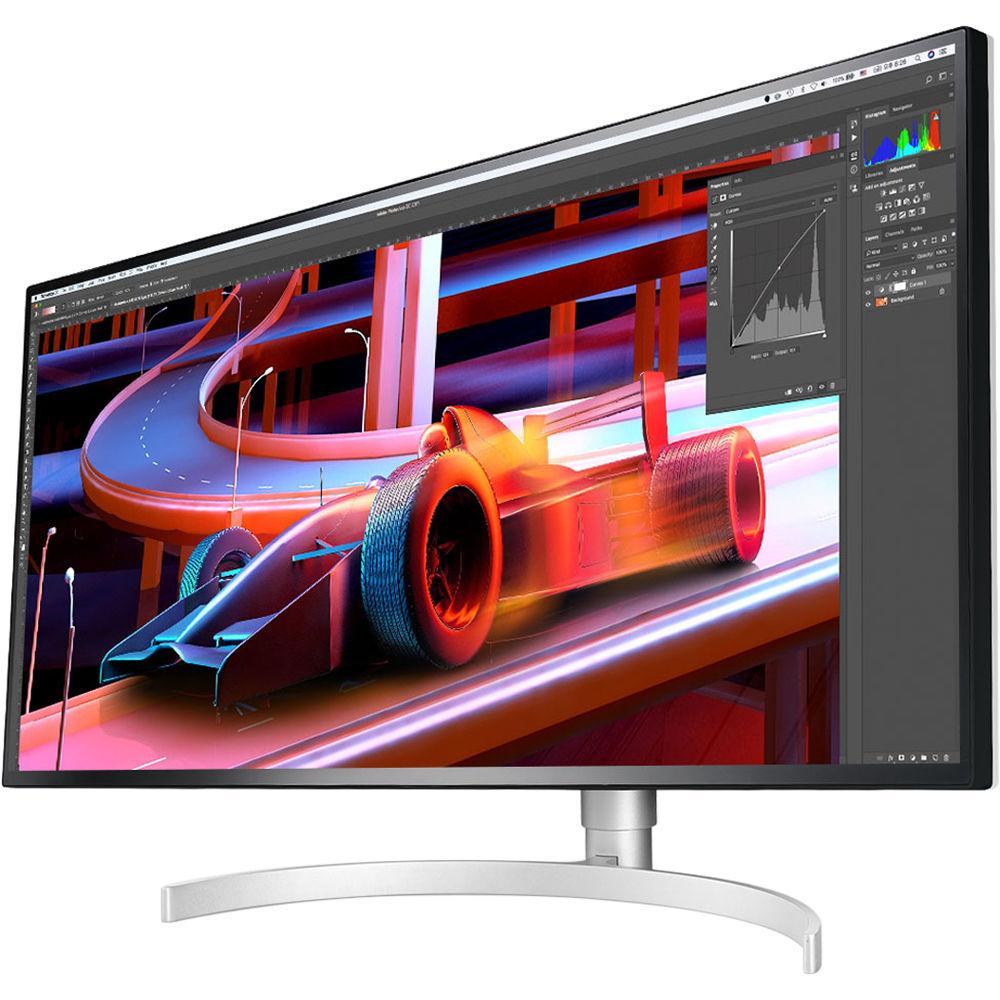

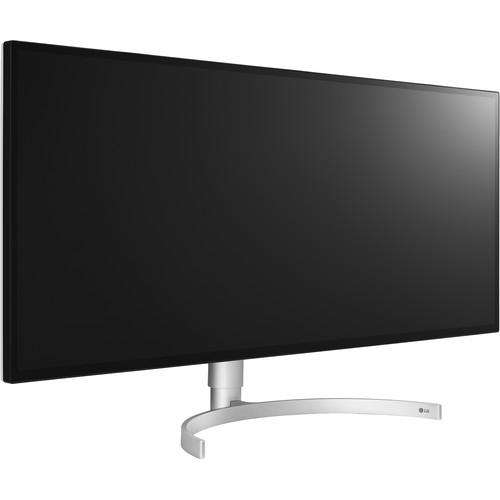

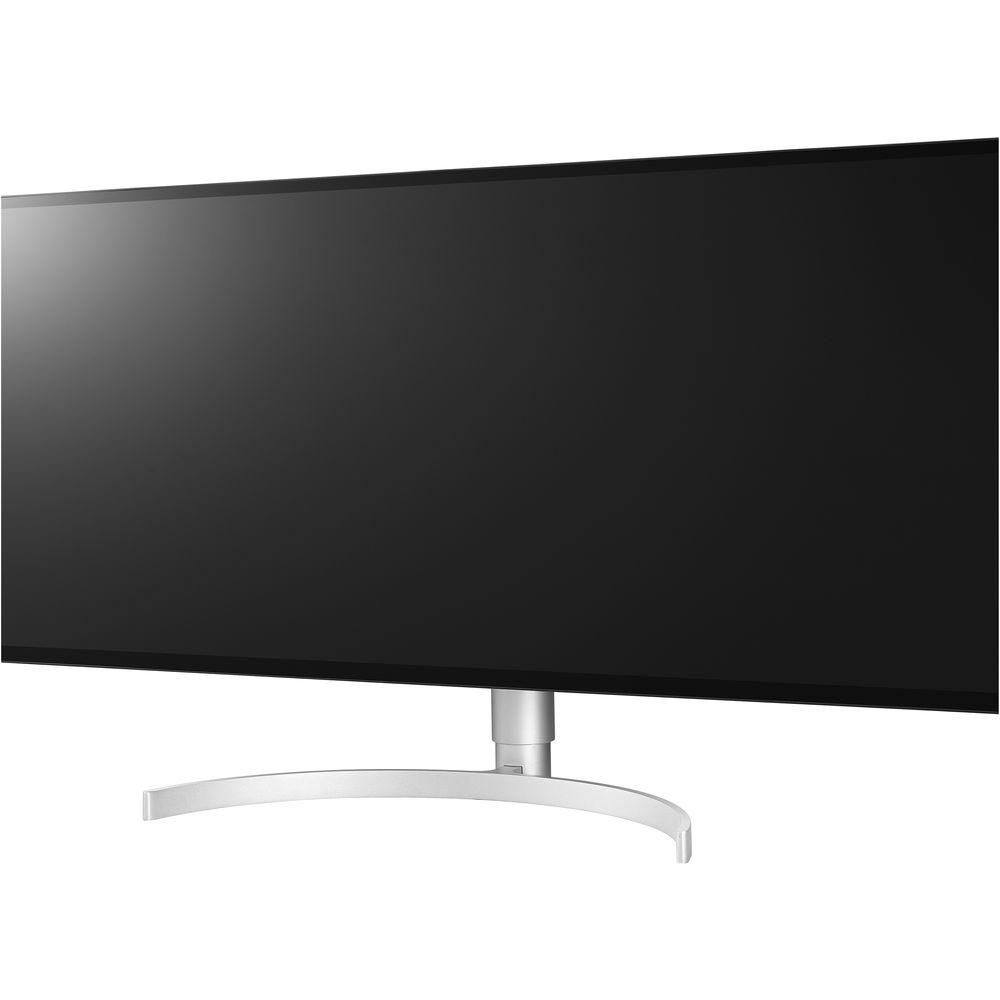

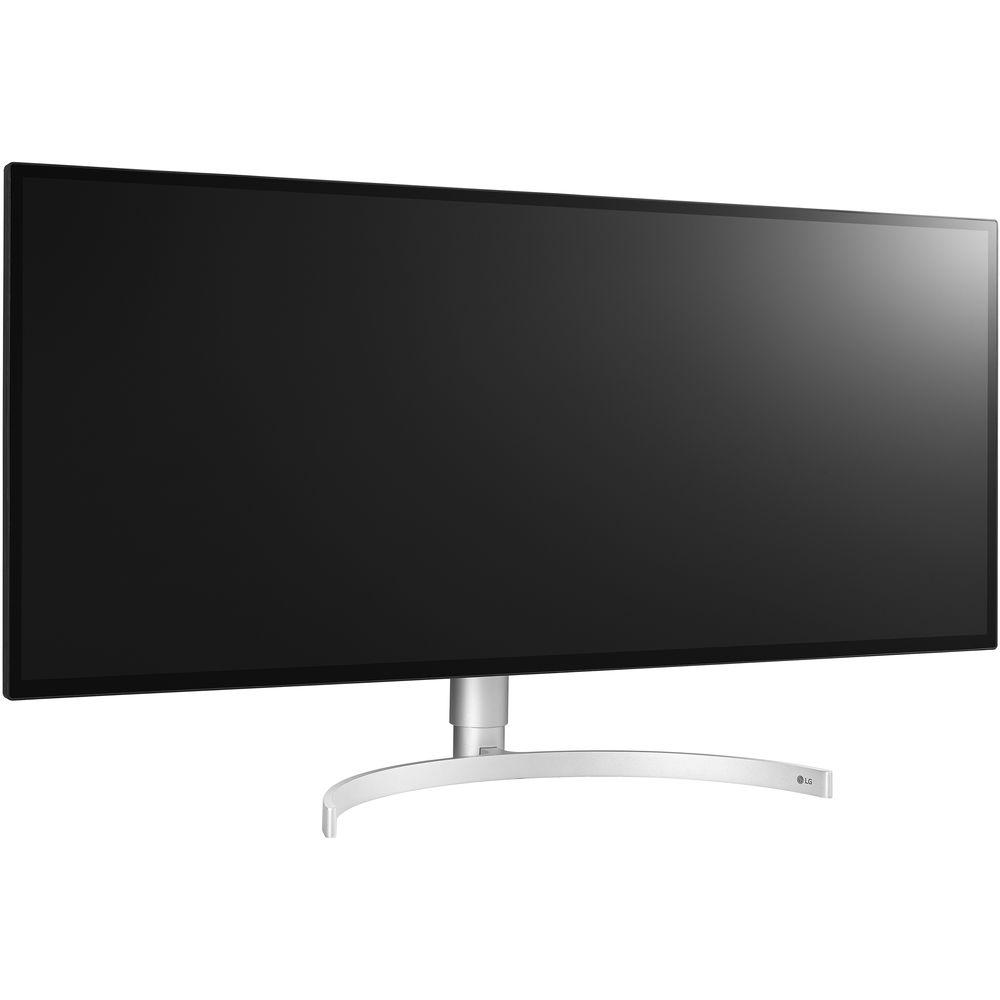

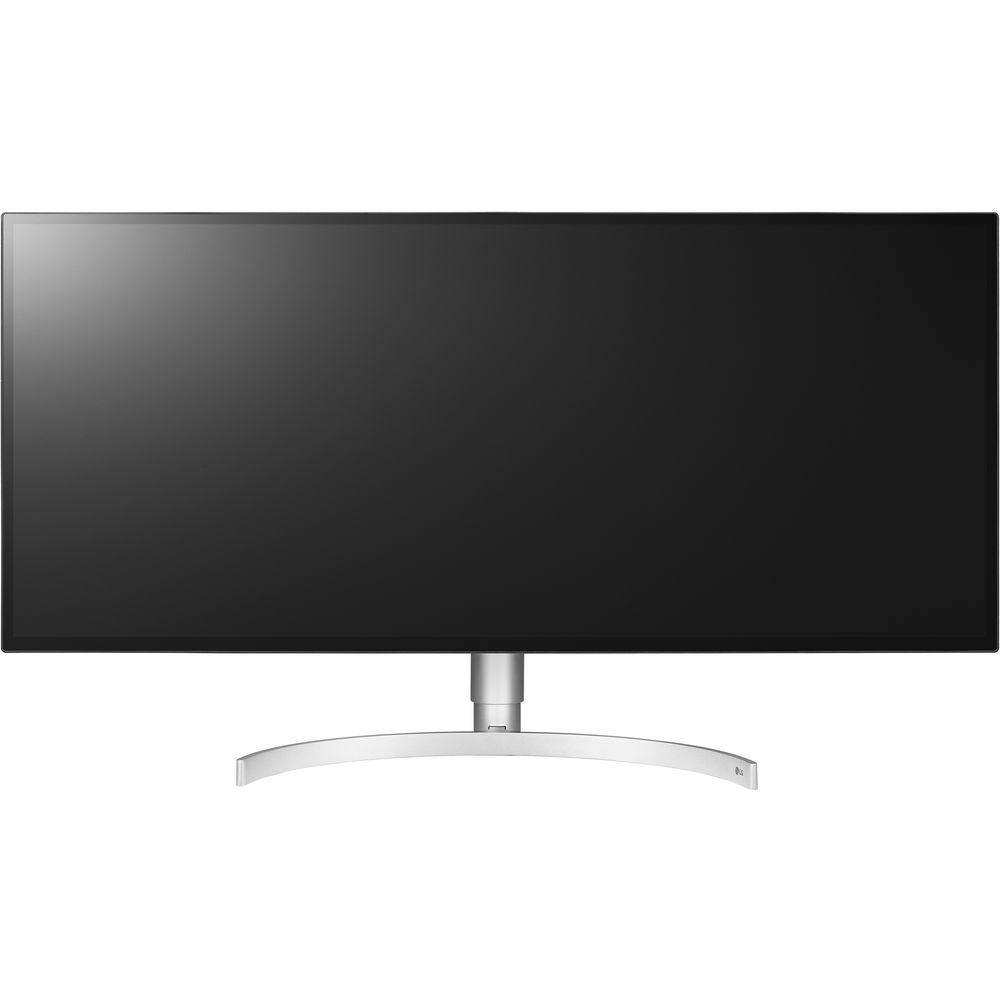

Designed for content creators, video editors, programmers, and developers, the 34WK95U-W 34" 21:9 UltraWide 5K Nano IPS Monitor from LG features a native resolution of 5120 x 2160 with a 60 Hz refresh rate. It also features Nano In-Plane Switching (IPS) technology, support for 1.07 billion colors and DisplayHDR 600 (HDR10), a 21:9 aspect ratio, an anti-glare coating with a 3H hardness rating, a static contrast ratio of 1200:1, a maximum brightness level of 600 cd/m2, and a 5 ms (GtG) response time. Using the 178° horizontal and vertical viewing angles, it is possible to watch content from virtually any position. This display has one Thunderbolt 3 / USB Type-C port , one DisplayPort port, and two HDMI. If you'd like to take advantage of this display's USB capabilities, there is one USB Type-B port and two Type-A ports and audio can be output using the dual integrated 5W stereo speakers or 3.5mm headphone jack.
LG has engineered the 34WK95U-W with support for 98% of the DCI-P3 color gamut, which displays up to 35% more than 100% sRGB. To further help improve viewing and accessibility, the this display features a vertical tilt of -5 to 15° and a height adjustment of 4.3". General Features - For Content Creators
- Multitaskers can now work in a generous 5:9 area while simultaneously viewing a 16:9 4K video on the same screen. The 5K2K 21:9 display of the 34WK95U offers a 5120 x 2160 resolution optimized for video editors, programmers, and developers, with convenient single-cable Thunderbolt 3 connectivity.
- VESA DisplayHDR 600
- Discover a more lifelike picture with high dynamic range, which provides bolder contrast between the brightest and darkest areas of the screen. This HDR 600 monitor has been rated to deliver a peak luminance of 600 nits for spectacular highlights. Please note that DisplayHDR 600 requires HDR10 support.
- Nano IPS Display - Accurate Color
- More accurate color and a broader contrast ratio combine to deliver high picture quality. High dynamic range (HDR) makes bright and dark portions of the image even more so, while Nano IPS controls color better, covering 98% of the DCI-P3 color space, the digital film industry standard. DCI-P3 is typically 35% larger than 100% sRGB coverage.
- Color Range with DCI-P3
- Editing on-site footage with full color expression is possible with DCI-P3 Digital Cinema Color Standard. It reproduces digital color content just as you intended with the preview camera on site, allowing for accurate conditions like shadow detail, color, saturation, and brightness for precise editing & overall control in post-production.
- Delicate Color Expression
- Nanometer-sized particles on the screen's LED absorb excess light wavelengths, realizing richer color expression that accurately reproduces the content, from actual images and videos to CG.
- Thunderbolt 3
- Simplify setup with a single cable for video, audio, and data transfers, as well as simultaneous laptop charging up to 85W. Designed for demanding professionals, this versatile and compact port enables 40 Gb/s data transfers and high-bandwidth video, including a 4K signal to two different screens, or 5K/60 fps to a single screen.
- Faster Speeds
- Thunderbolt 3 operates at speeds up to 40 Gb/s, which is twice as fast as Thunderbolt 2 and eight times faster than USB 3.0/3.1 Gen 1.
- On-Screen Control - Versatile Display Settings
- On-Screen Control puts a host of essential monitor settings into a handy window for quick, easy access. Volume, brightness, picture mode presets, Screen Split, and more can now be adjusted with just a few clicks of the mouse, instead of hard buttons on the monitor.

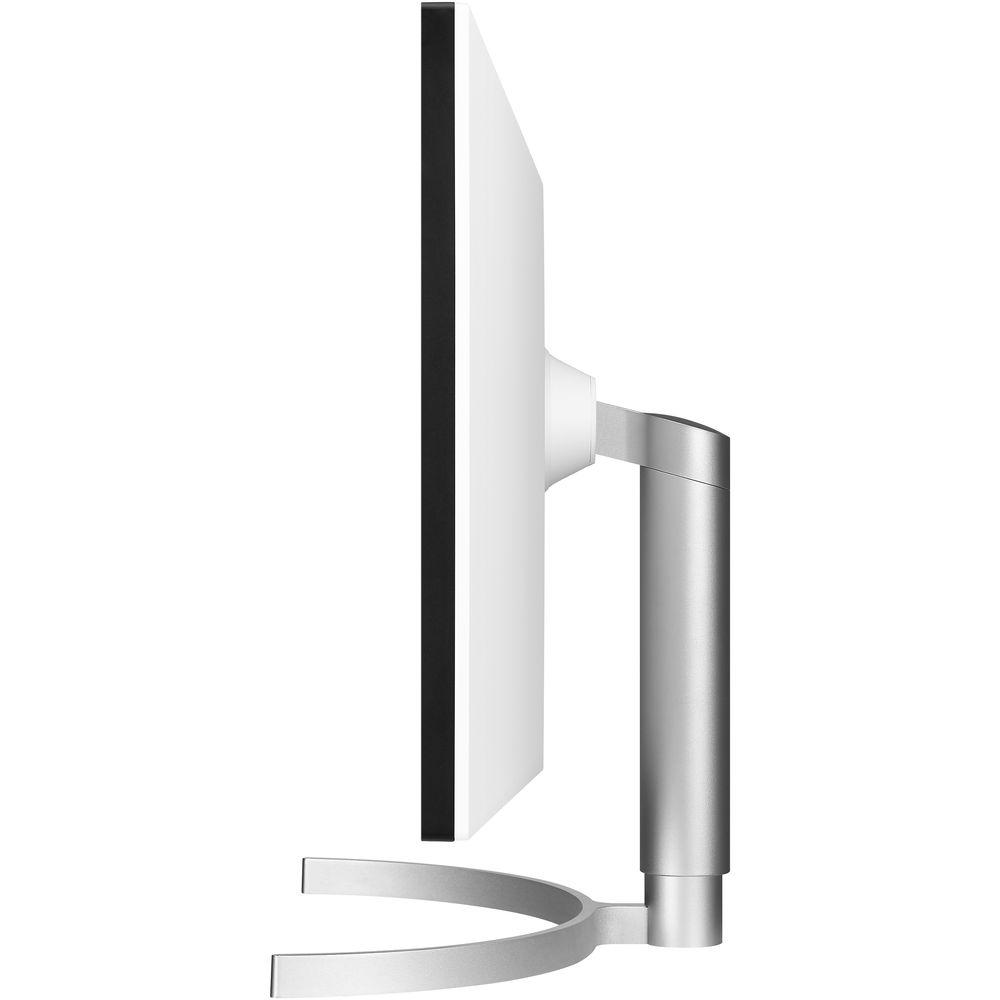

- Virtually Borderless Design
- With an ultra-thin bezel, the slim and sleek design unites form and function to offer a virtually borderless visual viewing experience.
UPC: 719192617384 In the Box LG 34WK95U-W 34" 21:9 UltraWide 5K Nano IPS Monitor 100 x 100mm VESA Wall Mount Thunderbolt 3 Cable DisplayPort Cable USB Type-B to A Cable Power Cord Cable Holder Limited 1-Year Parts & Labor Warranty 10 Factors to Consider When Selecting A Monitor for Video Editing Mary Latvis 03/04/2019 User Manual PDF 2.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 34WK95U-W 34" 21:9 UltraWide 5K Nano IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 34WK95U-W Specs | | | Size | 34" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 5120 x 2160 | | Aspect Ratio | 21:9 | | Pixels Per Inch (ppi) | 163 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 600 cd/m2 | | Contrast Ratio | 1200:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | HDR Compatibility | HDR10 | | Color Gamut | 98% DCI-P3 | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°

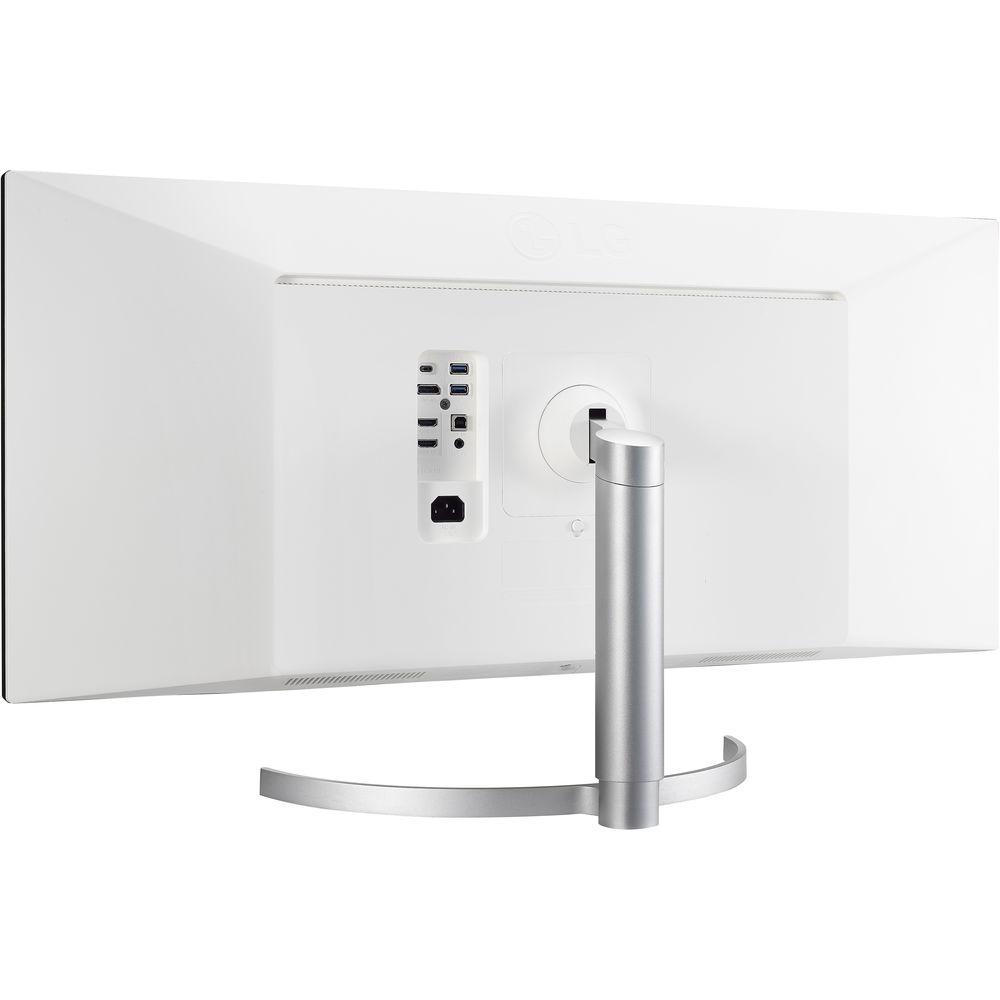

Vertical: 178° | | Dot Pitch | 0.0518 x 0.1544 mm | | | | Connectivity | 1 x USB Type-C (Thunderbolt 3)
2 x HDMI Input
1 x DisplayPort Input
1 x USB Type-B
2 x USB Type-A
1 x 3.5 mm Output | | HDCP Support | Yes, Version 2.2 | | Built-In Speakers | Yes, 2 x 5 W | | | | Power Consumption | 80 W (Typical)
54.78 W (Eco)
1.2 W (Standby) | | Power Adapter Type | Internal | | USB Power Delivery | 85 W | | | | Height Adjustment | 4.33" / 110 mm | | Tilt Adjustment | -5 to 15° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 32.2 x 22.0 x 9.2" / 81.8 x 55.9 x 23.4 cm (With Stand)
32.2 x 14.2 x 2.2" / 81.8 x 36.1 x 5.6 cm (Without Stand) | | Weight | 19.4 lb / 8.80 kg (With Stand)
16.5 lb / 7.48 kg (Without Stand) | | | | Package Weight | 27.0 lb | | Box Dimensions (LxWxH) | 38.5 x 21.5 x 7.0" |
