User Manual for LG 34WL85C 34" 21:9 Curved HDR10 IPS Monitor Click to enlarge the picture
Contents of the user manual for the LG 34WL85C 34" 21:9 Curved HDR10
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 34WL85C 34" 21:9 Curved HDR10 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

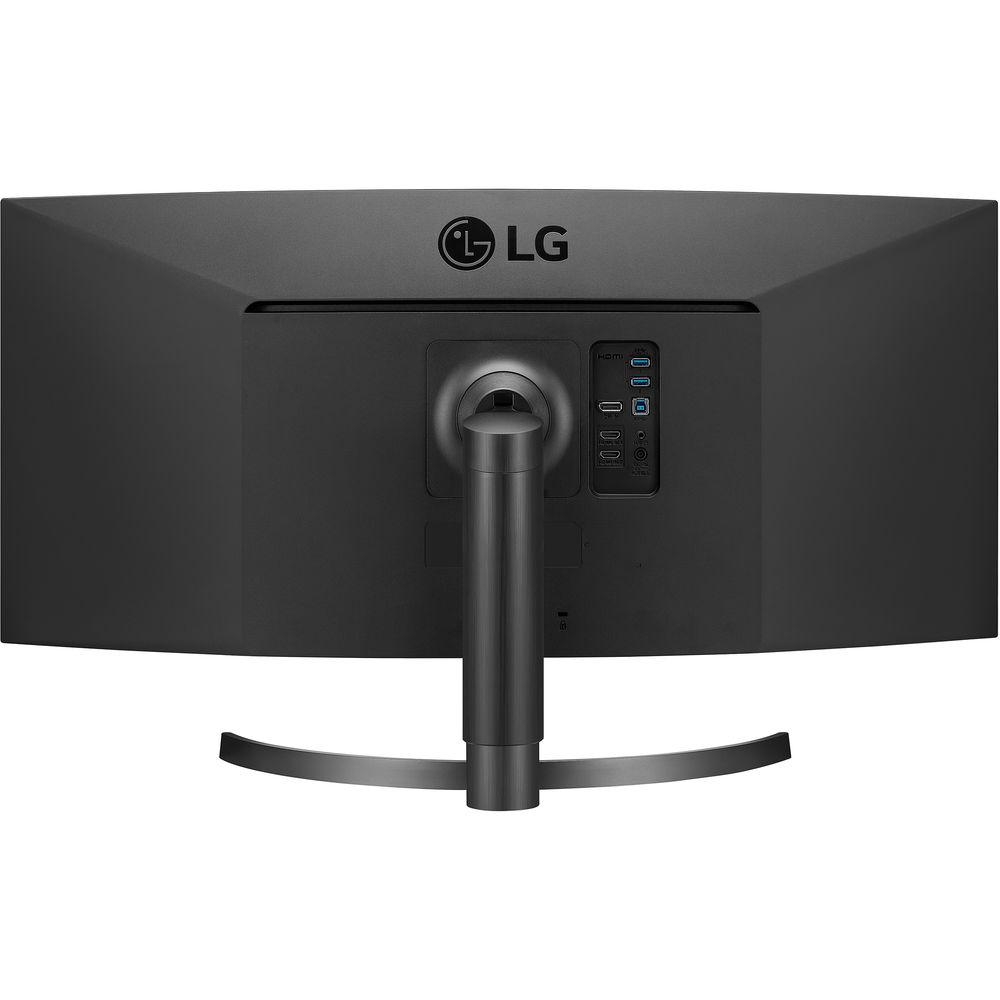

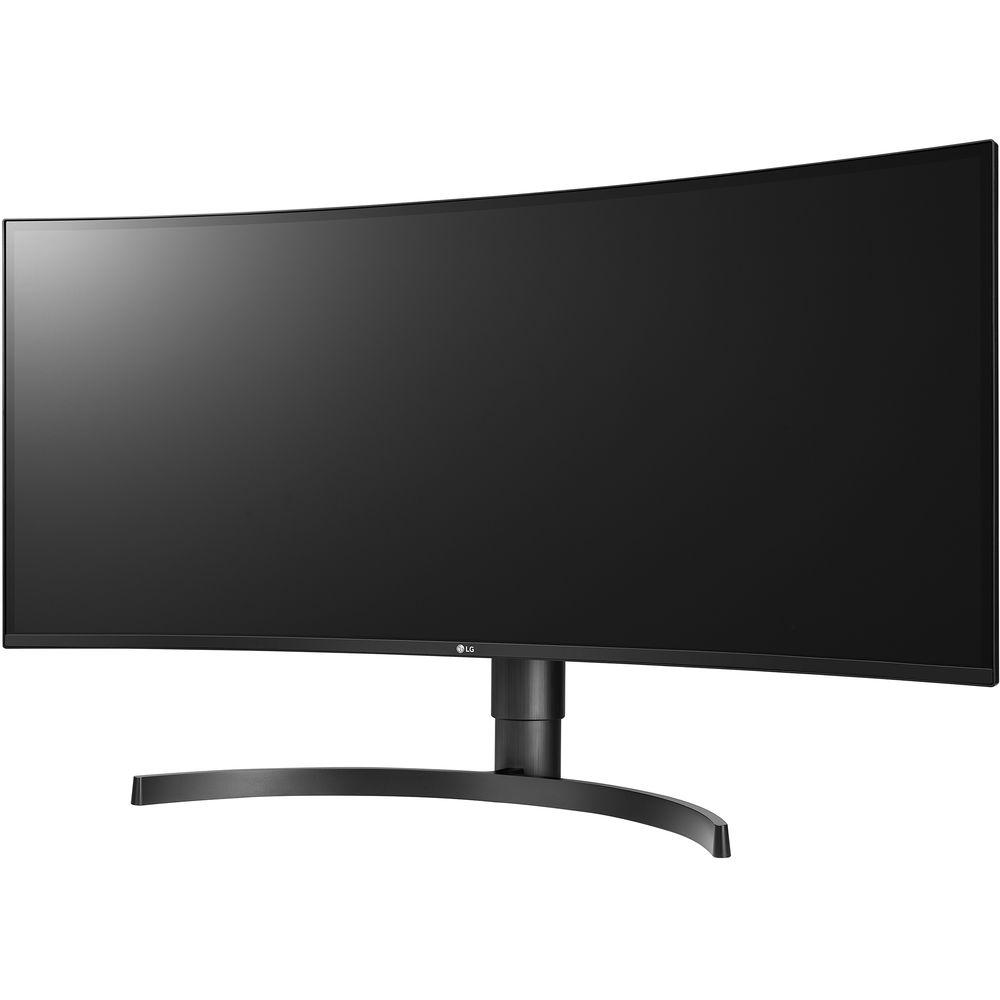

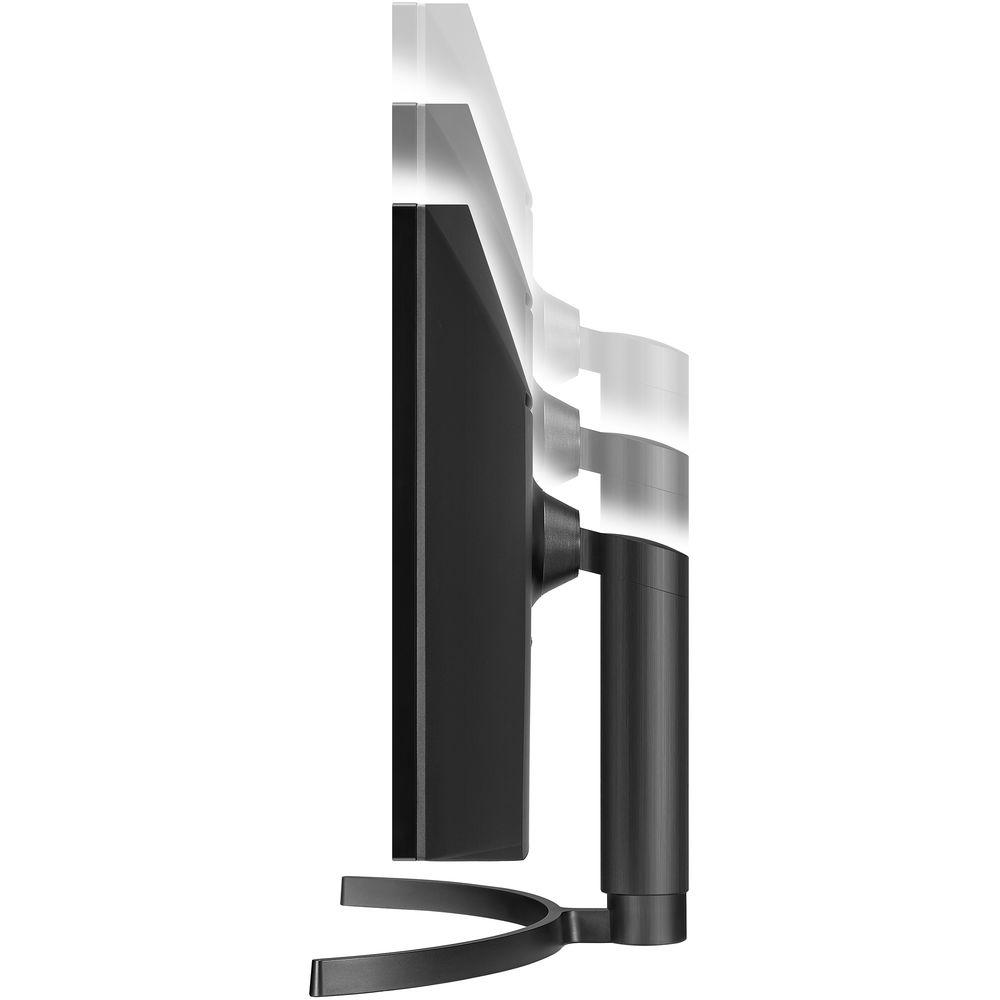

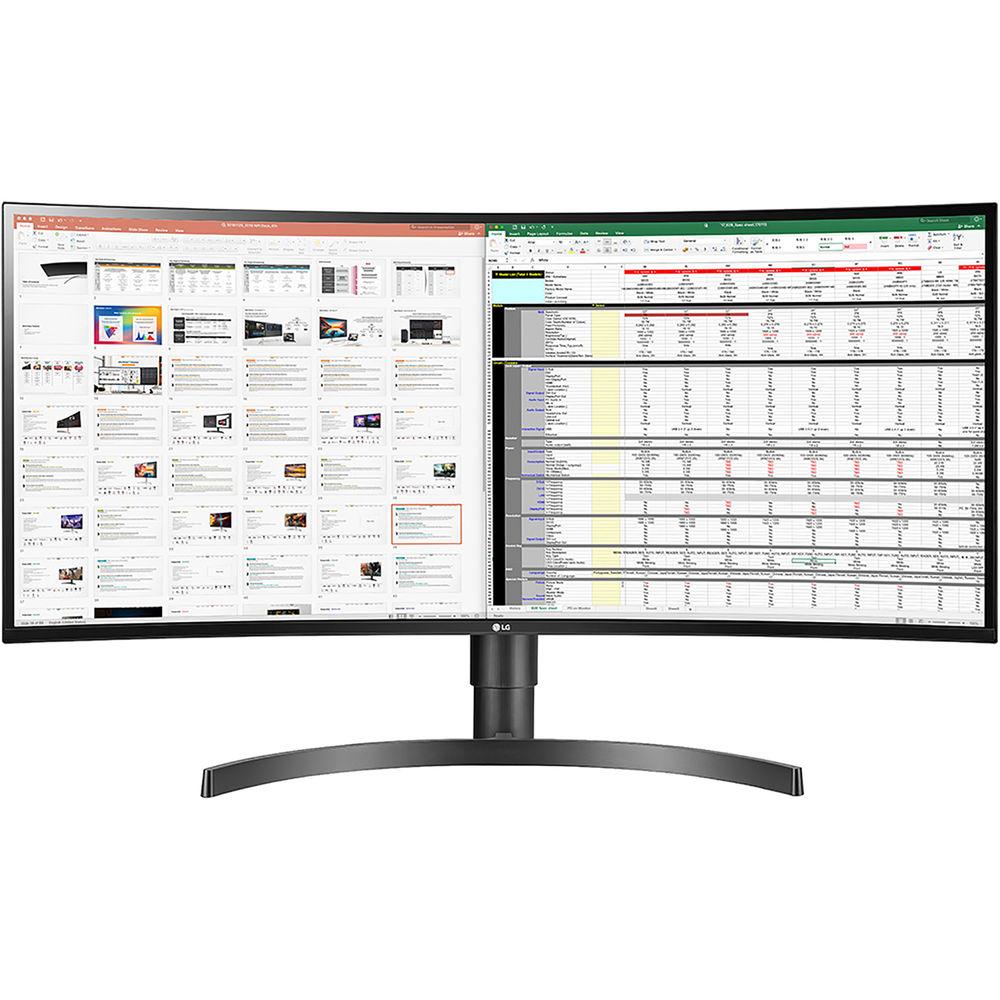

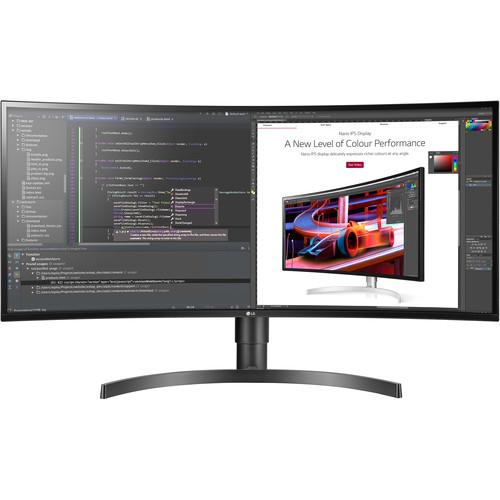

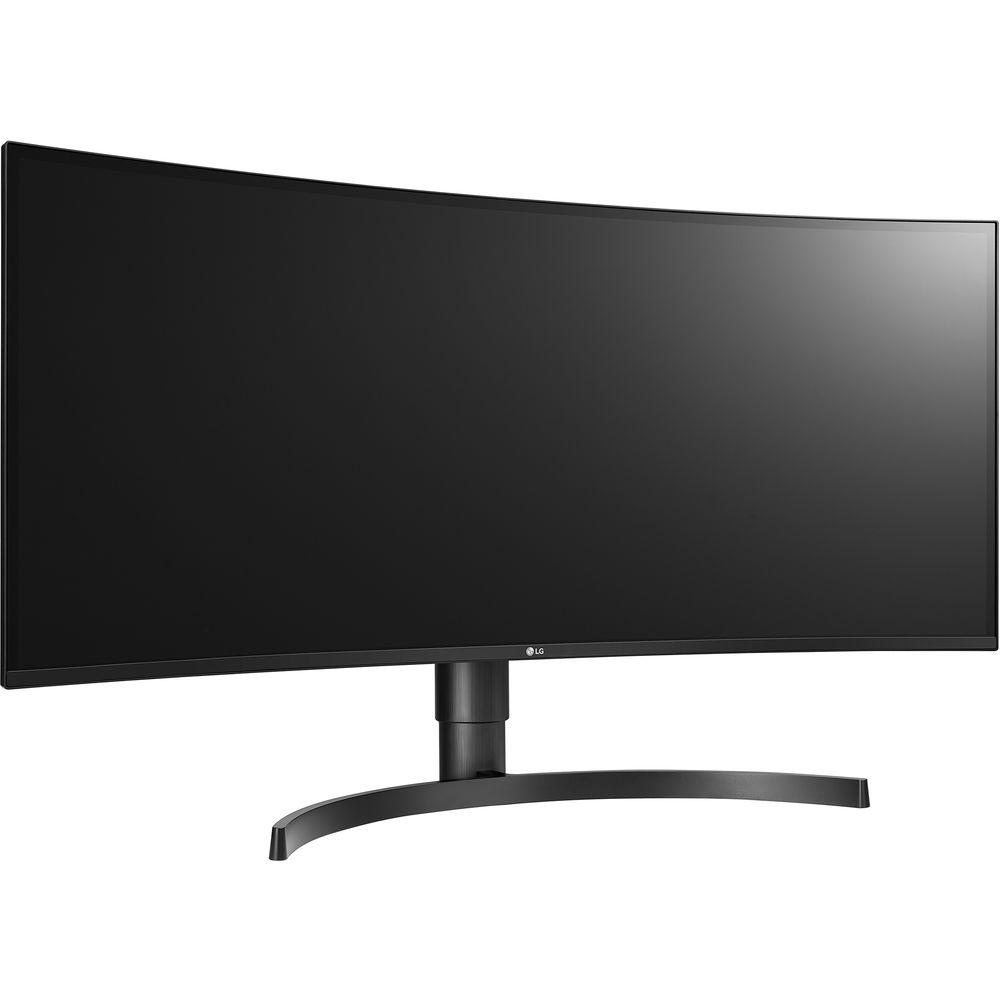

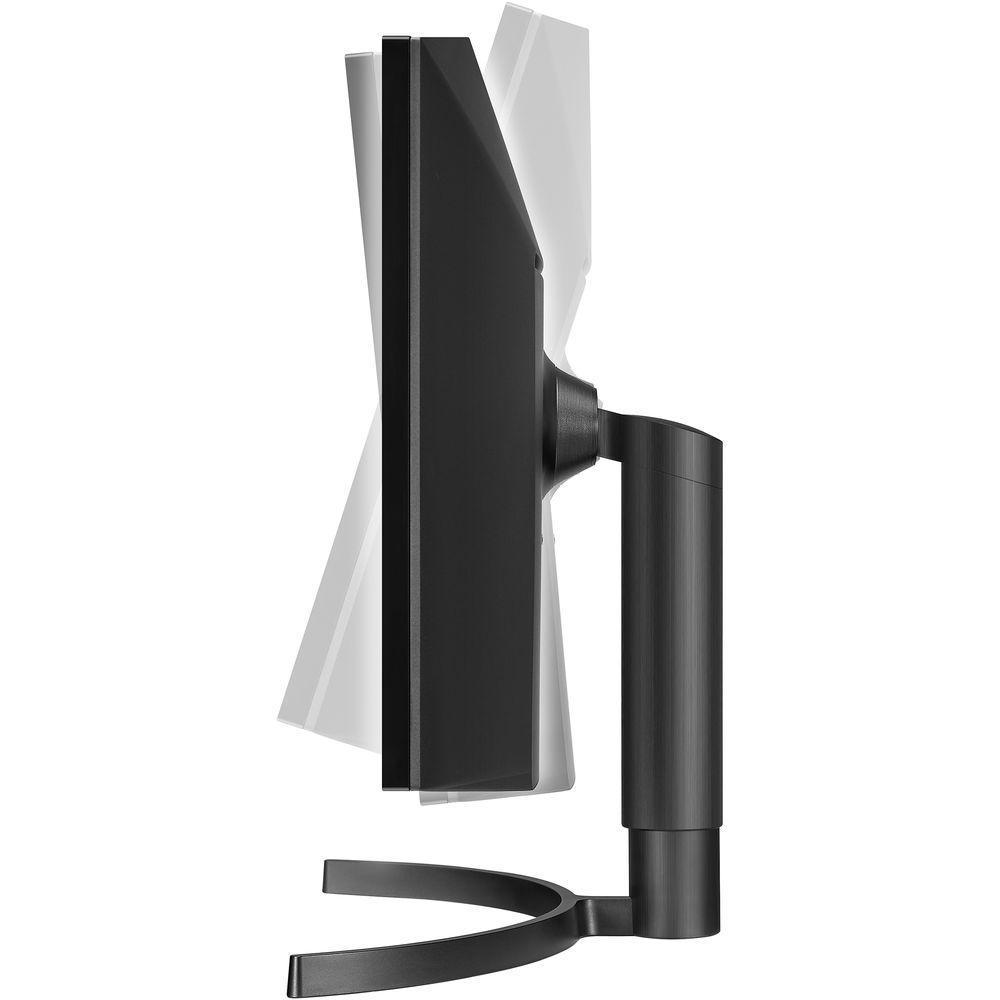

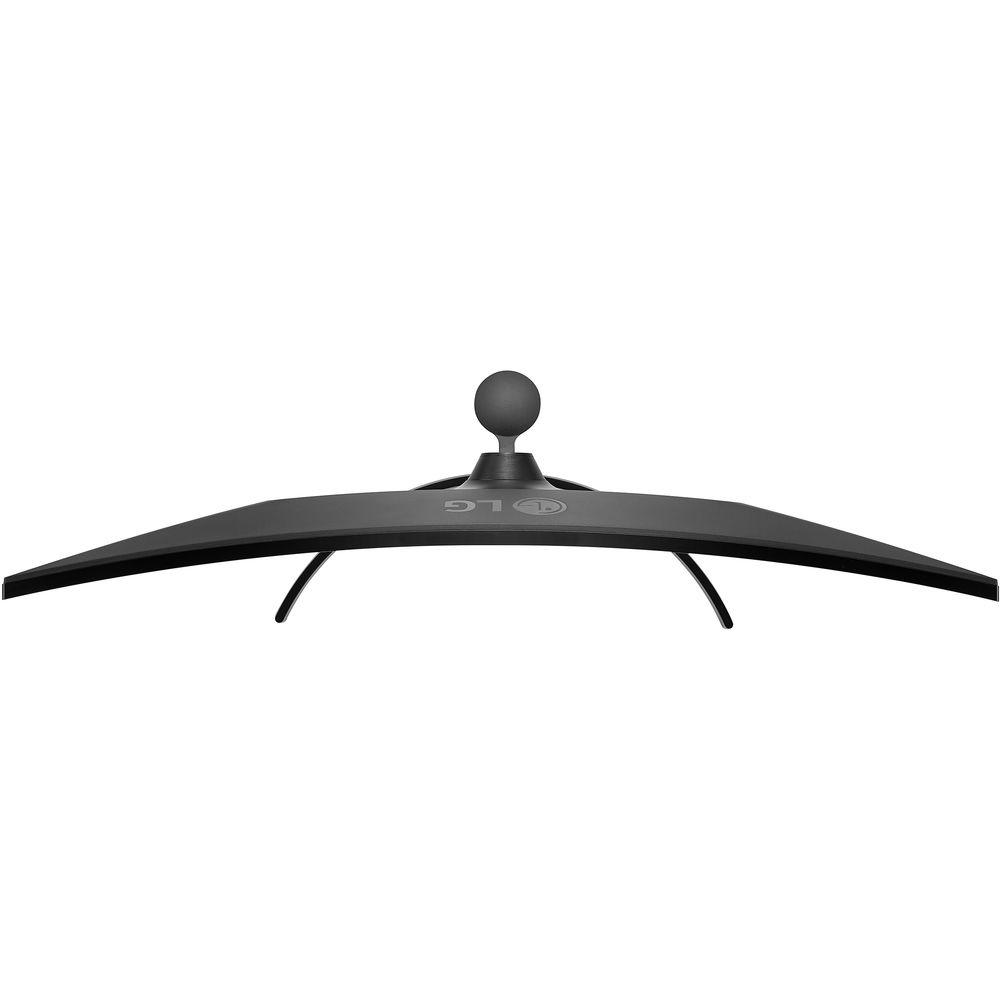

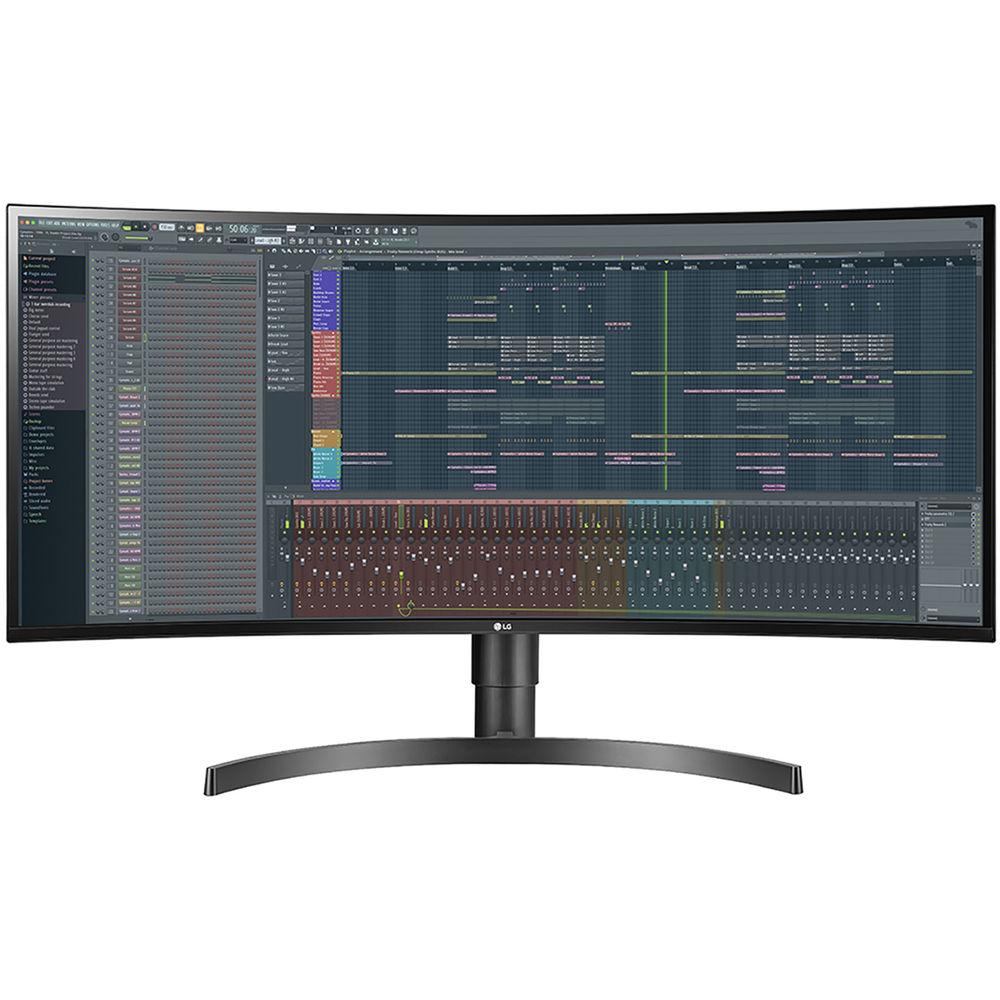

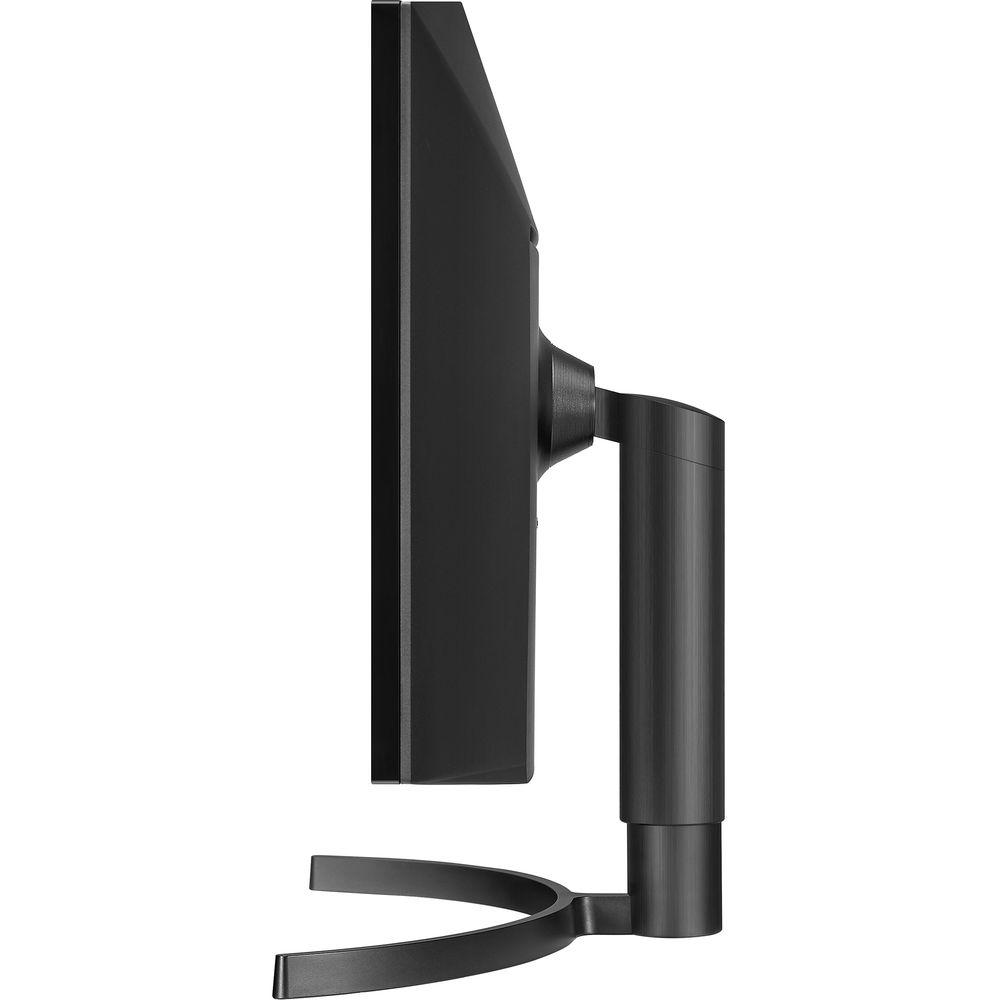

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The 34WL85C 34" 21:9 Curved HDR10 IPS Monitor from LG features an expansive 34" IPS (In-Plane Switching) panel with a 3440 x 1440 resolution. Its curved edges wrap around your field-of-view, placing you right in the center of the action. Other specs include a 1000:1 static contrast ratio, a 300 cd/m² brightness rating, a 5 ms response time, and support for 1.07 billion colors. It's also worth noting that this monitor supports HDR10 content, so you can enjoy content with vivid colors. For your convenience, it has a two-port USB hub that you can use to plug in flash drives and peripherals. Once it's connected to your system via HDMI or DisplayPort, you can tilt and adjust its height to your viewing preference. - HDR10
- This monitor is compatible with the HDR10 industry standard, supporting specific levels of color and brightness. The HDR Effect setting transform non-HDR content into HDR-like content with its picture quality algorithm.
- Black Stabilizer
- Black Stabilizer optimizes dark scenes for better visibility, allowing you to spot enemies that may be waiting for you in the dark.
- Dynamic Action Sync
- Dynamic Action Sync helps to reduce input lag for movements and commands that feel more fluid and on-time.
- Crosshair
- An on-screen crosshair overlay helps you pinpoint the center of the screen for some assistance in First-Person Shooter games.
- Flicker Safe & Reader Mode
- Flicker Safe and Reader Mode help to reduce eye strain and fatigue caused by flickering and blue light over extended viewing periods.
- On-Screen Control
- Rather than using built-in hardware buttons, you can use the On-Screen Control menu to easily adjust your monitor settings.
- Additional Features
-
- Picture-by-Picture (PBP)
- Color Weakness
- Smart Energy Saving
- Super Resolution +
- Color Calibrated
- Dual Controller
UPC: 719192629738 In the Box LG 34WL85C 34" 21:9 Curved HDR10 IPS Monitor DisplayPort Cable HDMI Cable Power Cable Limited 1-Year Warranty User Manual PDF 2.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 34WL85C 34" 21:9 Curved HDR10 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 34WL85C-B Specs | | | Size | 34" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3440 x 1440 | | Aspect Ratio | 21:9 | | Pixels Per Inch (ppi) | 110 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | HDR Compatibility | HDR10 | | Color Gamut | 99% sRGB
99% CIE1931 | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2325 x 0.2325 mm | | | | Connectivity | 2 x HDMI
1 x DisplayPort
1 x 3.5 mm Output
1 x USB Type-B (USB 2.0) Input
2 x USB Type-A (USB 3.1 Gen 1) Output | | Built-In Speakers | Yes, 2 x 7 W | | | | Power Consumption | 70 W (Typical)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | DC Input Power | 19 VDC at 5.79 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 80% | | Storage Humidity | 85% | | | | Height Adjustment | 4.33" / 110 mm | | Dimensions (W x H x D) | 32.1 x 22.4 x 9.9" / 815.3 x 569.0 x 251.5 mm (With Stand)
32.1 x 14.1 x 3.7" / 815.3 x 358.1 x 94.0 mm (Without Stand) | | Weight | 17.6 lb / 7.98 kg (With Stand)
13.9 lb / 6.30 kg (Without Stand) | | | | Package Weight | 30.0 lb | | Box Dimensions (LxWxH) | 39.0 x 20.5 x 8.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 57 owners. Add your rating and experience with the product.
