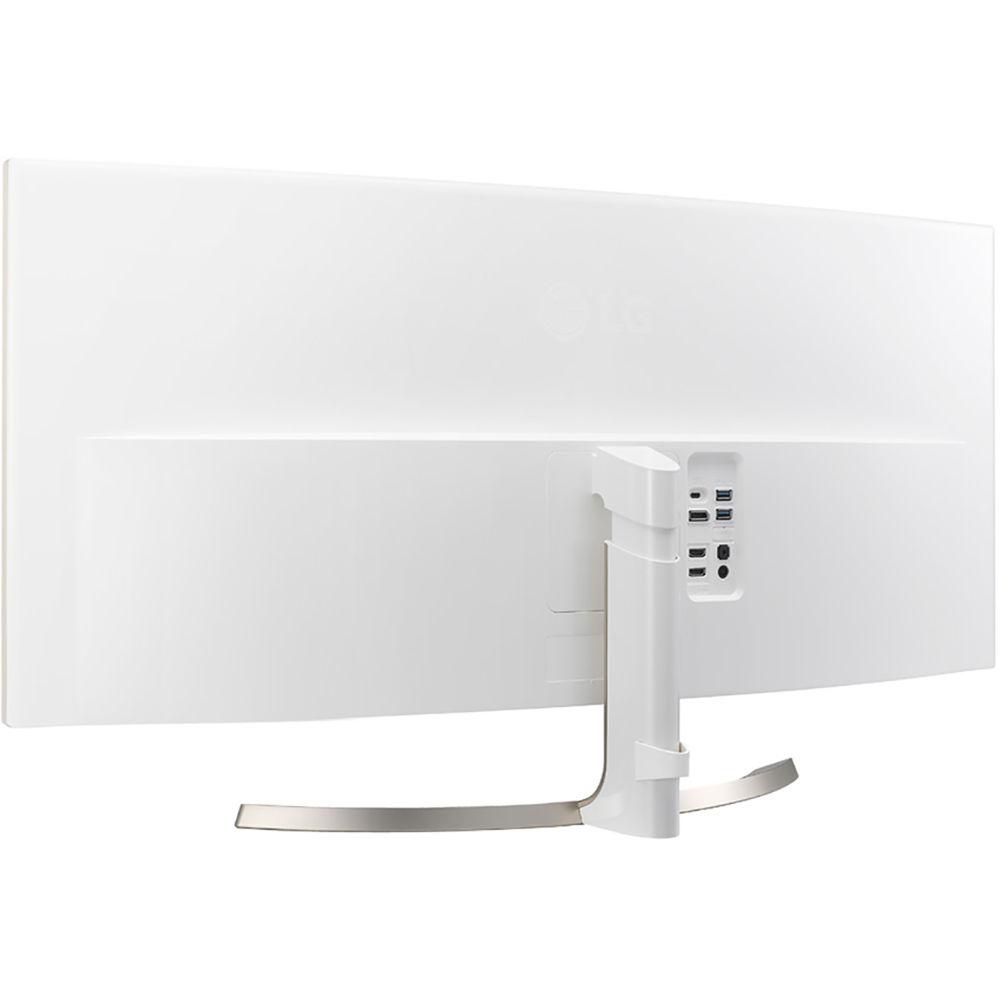

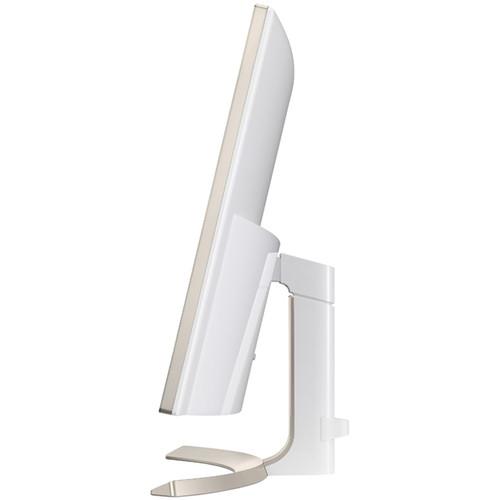

User Manual for LG 38CB99-W 38" 21:9 WQHD Curved IPS Monitor Click to enlarge the picture
Contents of the user manual for the LG 38CB99-W 38" 21:9 WQHD Curved
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 38CB99-W 38" 21:9 WQHD Curved contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

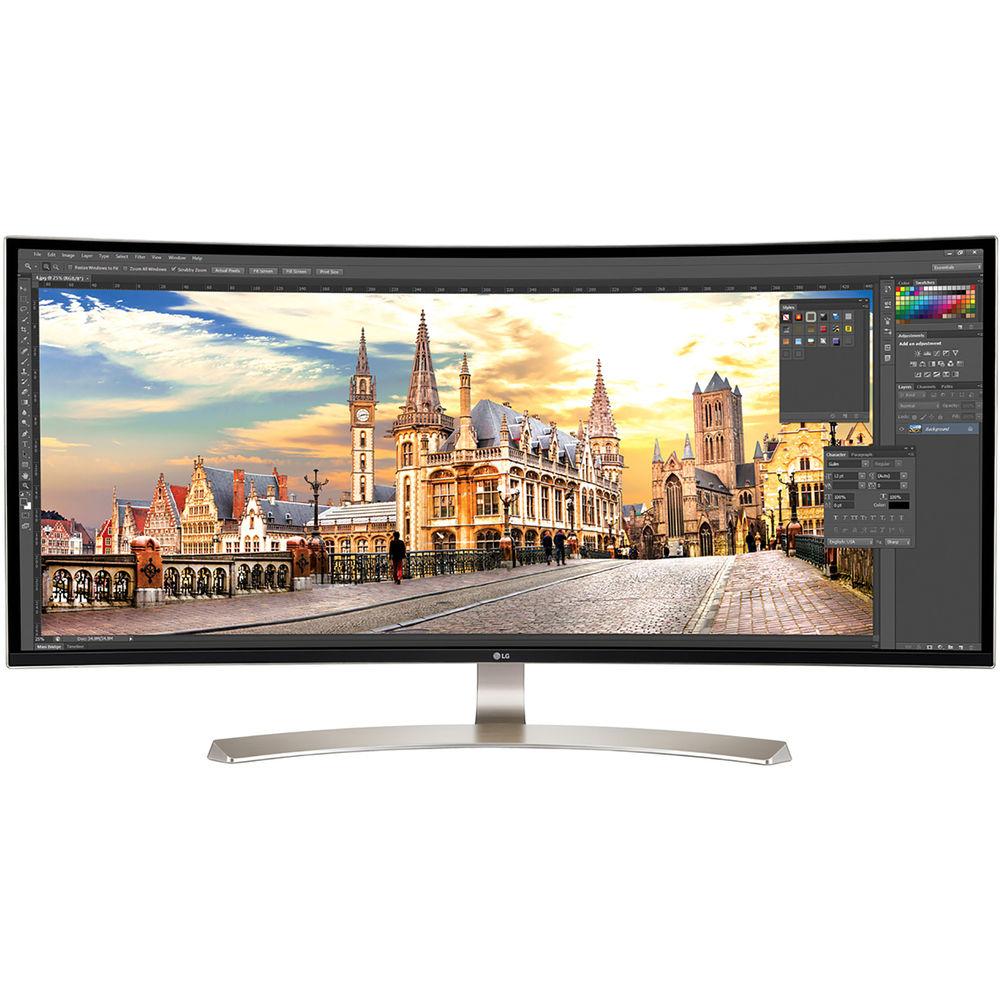

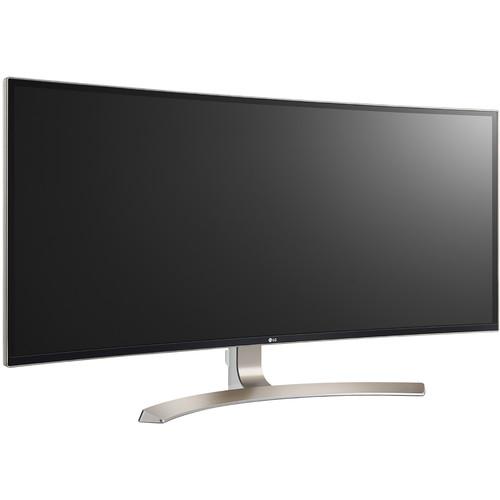

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With an UltraWide 21:9 aspect ratio, the 38CB99-W 38" WQHD+ Curved IPS Monitor from LG is designed to offer nearly double the screen real estate than a traditional 16:9 monitor. In addition to the UltraWide aspect ratio, this display features a 3840 x 1600 QHD resolution accompanied by a 1,000:1 contrast ratio, and a 5 ms response time to ensure you receive enhanced picture clarity with reduced ghosting. If color clarity is a must, this LG monitor even covers 99% of the sRGB color space.

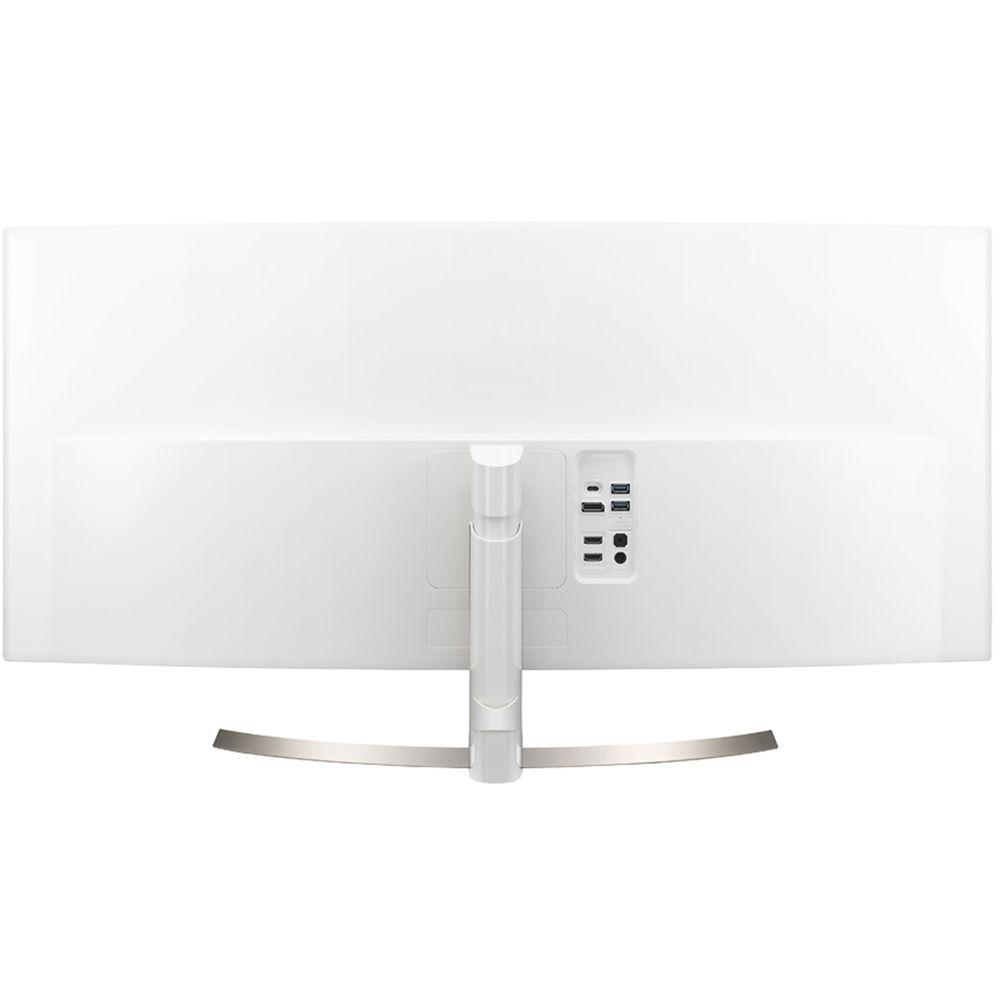

Setup and configuration of the LG 38CB99-W IPS (In-Plane Switching) monitor is simple as it comes equipped with HDMI, DisplayPort, and USB Type-C inputs. Users also benefit from standard USB ports to connect USB compatible peripherals to the display as well as a headphone jack for a complete multimedia experience. If everyone wants to hear the audio, LG has incorporated dual 10 watt speakers with Bluetooth into this display. - Stretching the Limits of Display Real Estate
- LG's single 21:9 Curved Display is 2.4 times wider than a standard 16:9 configuration. Boasting of 3840 x 1600 QHD resolution, this display offers a wide work space to view multiple files at once without the bezel distortion caused by a normal dual monitor set-up.
- Takes Up Less Desk Space

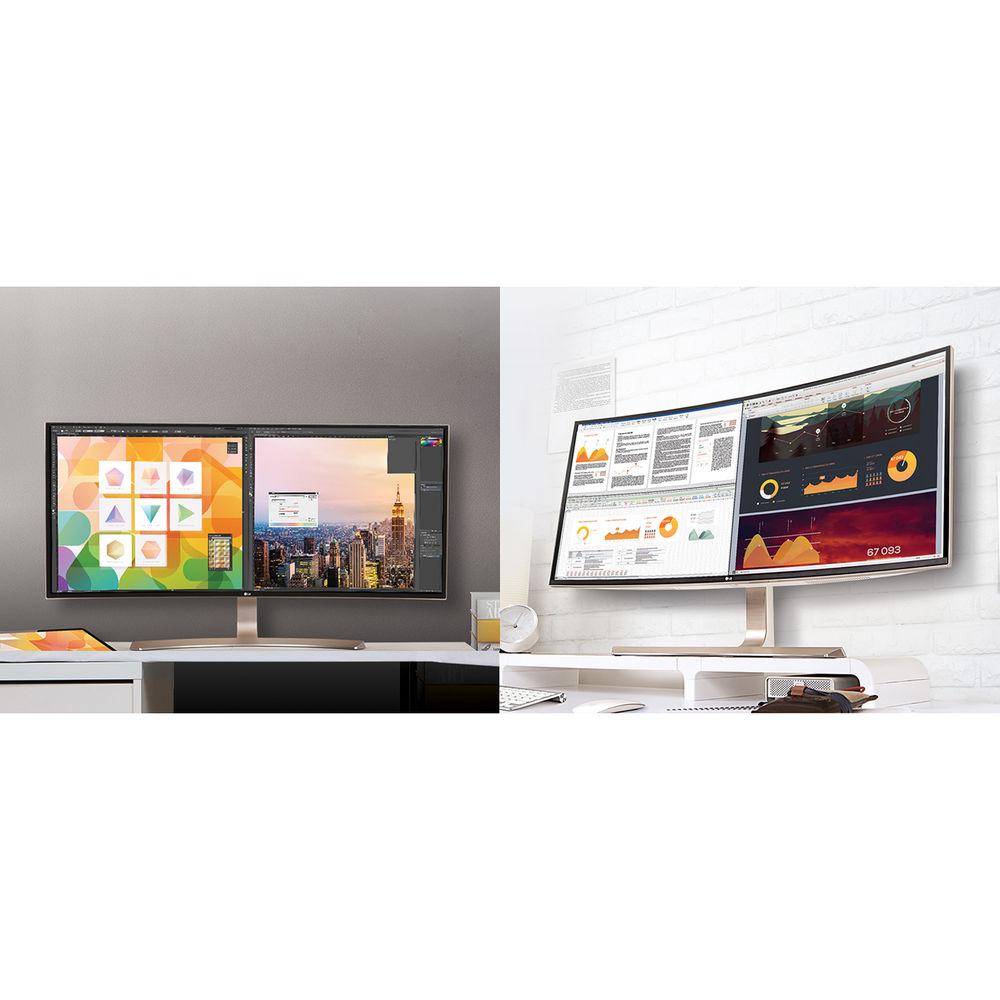

- A triple 16:9 Full HD display setup may provide more screen information than a single monitor, but the desk space needed is inconvenient and inefficient. LG's dual 21:9 UltraWide Curved display setup takes up less desk space while providing a significantly greater amount of display real estate. When comparing LG's 38CB99-W dual monitor setup to that of a conventional 16:9 Full HD triple monitor configuration, the width of the 38CB99-W is 89 percent of a conventional triple monitor setup while delivering an impressive 159 percent of on-screen working space.
- Additional Features
- Ratio: Wide, Original, Cinema 1, Cinema 2, 1 : 1
PIP (PIP mode in Screen Split)
PBP
DDC/CI
HDCP
Key Lock
Response Time Control
Quick Charge
FreeSync (DP 52~75 Hz)
Game Mode
DAS Mode
Black Stabilizer
1 ms Motion Blur Reduction
Flicker Safe
Automatic standby
Reader Mode (Picture Mode)
Six Axis Control
SUPER+Resolution
Color Calibrated
Dual Control
Screen split 2.0 (in OSC)
My Display Preset (in OSC)
OnScreen Control (OSC)
Dual EDID (H/W)
One Click Stand Set-up UPC: 719192609587 In the Box LG 38CB99-W 38" 21:9 WQHD+ Curved IPS Monitor Power Cord AC/DC Adapter HDMI Cable DisplayPort Cable USB Type-C Cable USB Type-C to Type-A Adapter Stand Base Cable Holder Stand Body Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 38CB99-W 38" 21:9 WQHD Curved IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 38CB99-W Specs | Screen Size | 38" (96.5 cm) | | Screen Type | TFT LCD | | Panel | IPS (In-Plane Switching) | | Pixel Pitch | 0.229 x 0.229 mm | | Color Depth | HDMI: 8-bit
DisplayPort: 8-bit / 10-bit
1.07 billion colors supported | | Contrast Ratio | Static: 1,000:1
Dynamic: Mega | | Color Gamut (CIE1931) | sRGB 99% | | Resolution | Maximum: 3840 x 1600 @ 75 Hz
Recommended: 3840 x 1600 @ 60 Hz | | Response Time | 1 ms (motion blur reduction) 5 ms (GtG) 14 ms (typical) | | Brightness | 300 cd/m² | | Viewing Angles (H/V) | 178°/178° | | Speakers | 2 x 10 watt speakers (with Bluetooth)
Rich Bass audio tuning | | Frequency | H-Frequency (HDMI): 30 ~ 125 kHz
V-Frequency (HDMI): 56 ~ 75 Hz
H-Frequency (DP): 30 ~ 101 kHz
V-Frequency (DP): 56 ~ 75 Hz (FreeSync 52~75 Hz)
H-Frequency (USB-C): 30 ~ 125 kHz

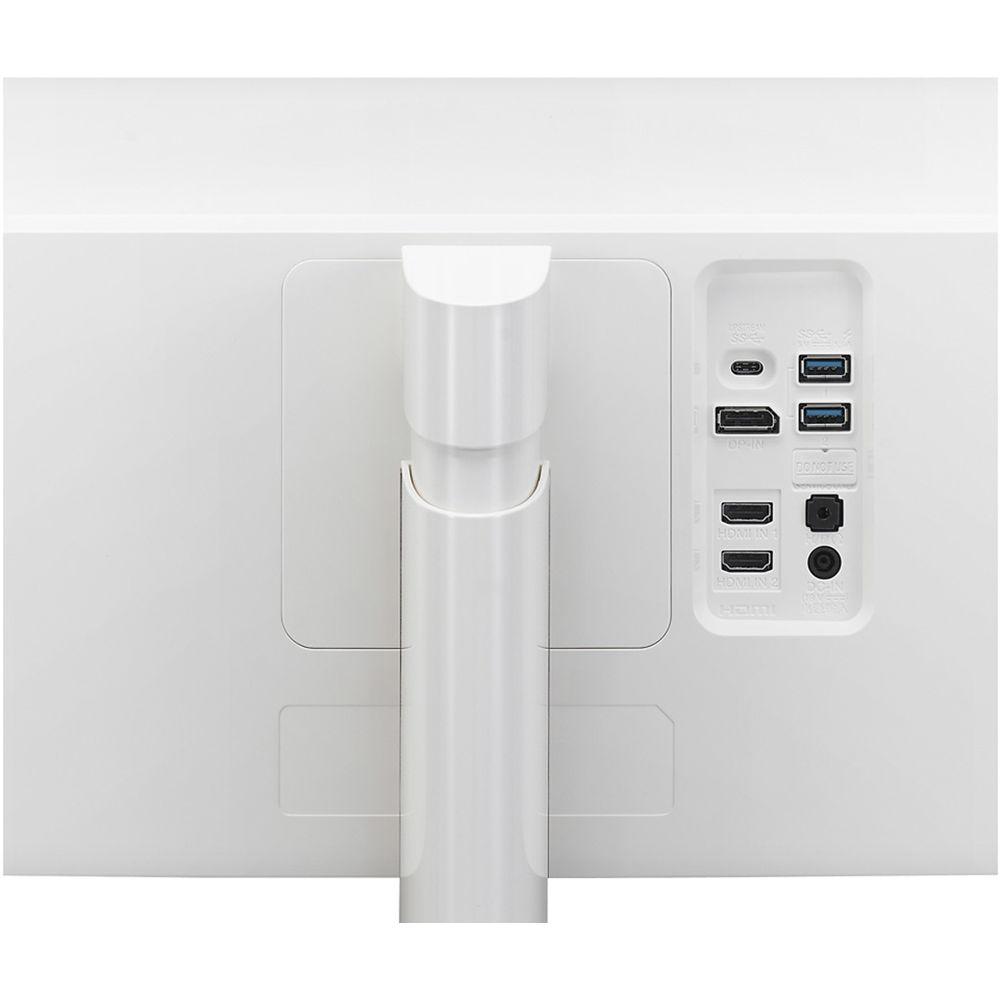

V-Frequency (USB-C): 56 ~ 75 Hz | | Synchronization | Separate sync | | Connectors | 2 x HDMI
1 x DisplayPort
1 x USB Type-C 3.0 (upstream)
2 x USB 3.0 (5 V, 1.5 A)
1 x Headphone output
1 x DC input | | Power | Type
Adapter
Input
100 ~240, 50/60 Hz
Power Consumption
Output (USB Type-C PD): 60 W
Normal On (EPA standard): 48 W
Normal On (Typ.): 70 W
Power Save/Sleep Mode (Max): 1.2 W
DC Off (Max): 0.3 W | | Bluetooth | Frequency Range: 2400 to 2483.5 MHz
Output Power (Maximum): 10 dBm
FCC ID: BEJ9QK-DMWB1NP6 / IC: 2703H-DMWB1NP6 | | VESA Mount Compatible | 100 x 100 mm | | Picture Modes | Custom, Reader, Photo, Cinema, Dark Room 1, Dark Room 2, Color Weakness, FPS Game 1, FPS Game 2, RTS Game, Custom (Game) | | Ergonomics | Tilt

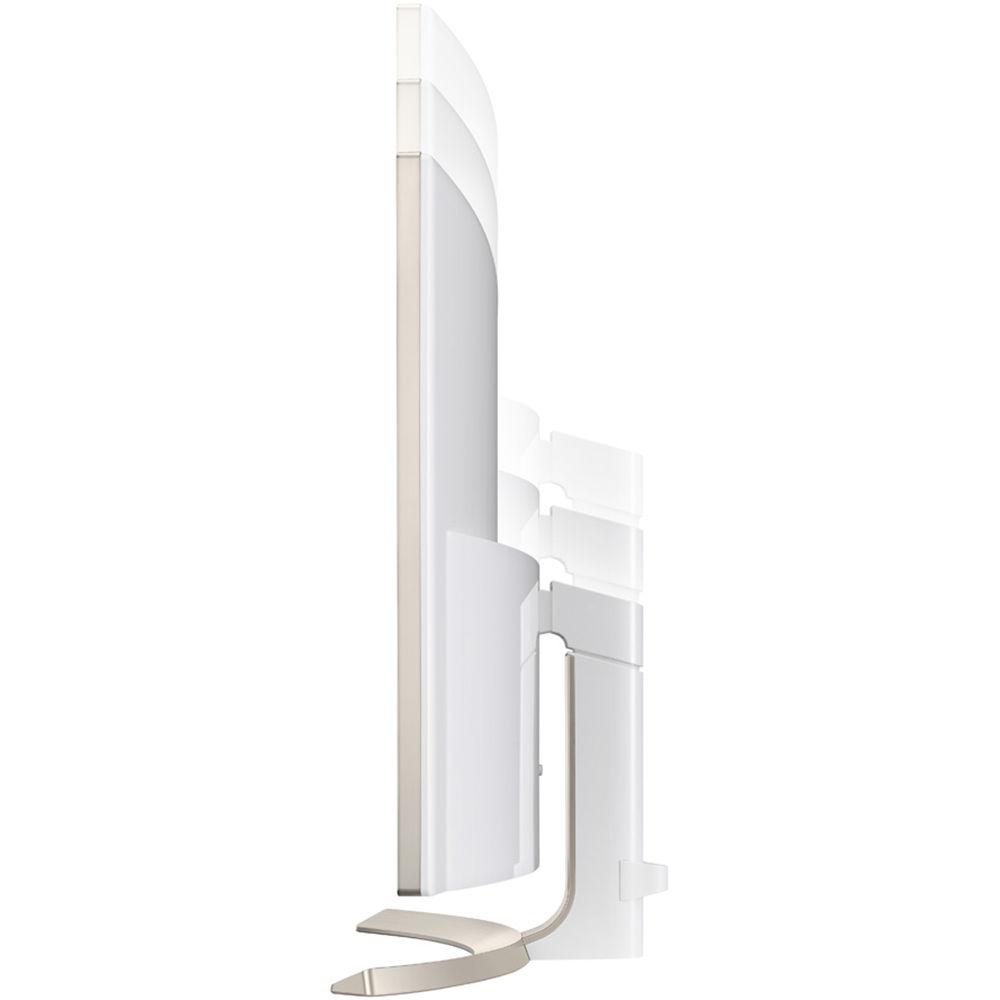

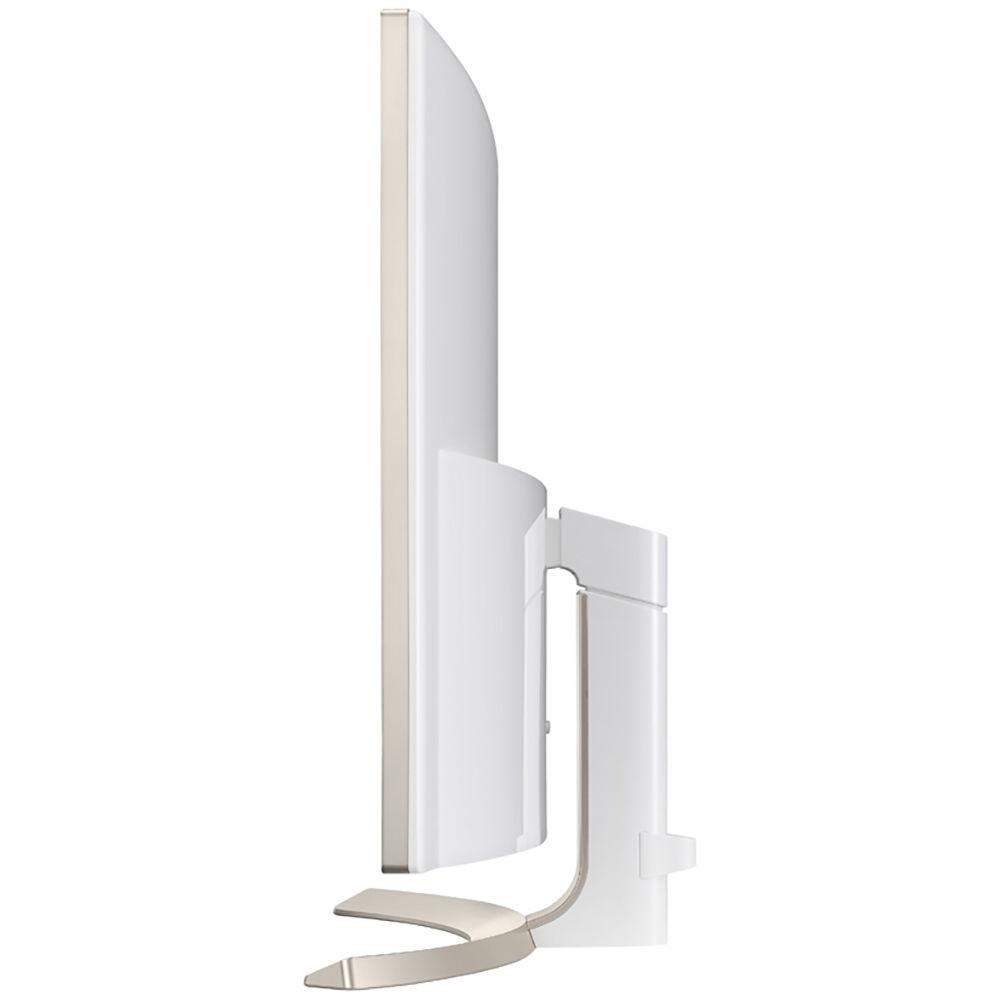

-5~15°
Height Adjustable
4.3" (110 mm) | | Certifications | UL(cUL), TUV-Type, FCC-B, CE, CCC (for China), BSMI (for Taiwan), ErP, Windows | | Operating Conditions | Temperature: 32 to 104°F (0 to 40°C)
Humidity: Less than 80% | | Storage Conditions | Temperature: -4 to 140°F (-20 to 60°C)
Humidity: Less than 85% | | Dimensions | With Stand: 35.3 x 18.3 x 9" (897.2 x 466.2 x 230.4 mm)
Without Stand: 35.3 x 15.5 x 3.6" (897.2 x 394 x 91.5 mm) | | Weight | With Stand: 20.5 lb (9.3 kg)
Without Stand: 16.9 lb (7.7 kg) | | | | Package Weight | 30.0 lb | | Box Dimensions (LxWxH) | 41.0 x 21.0 x 8.0" |
