User Manual for LG 40" Pro:Centric Hospitality LED TV with Integrated Pro:Idiom and b-LAN Click to enlarge the picture
Contents of the user manual for the LG 40" Pro:Centric Hospitality LED TV
- Product category: Commercial Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Commercial Monitors
 |
User manual for the LG 40" Pro:Centric Hospitality LED TV contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

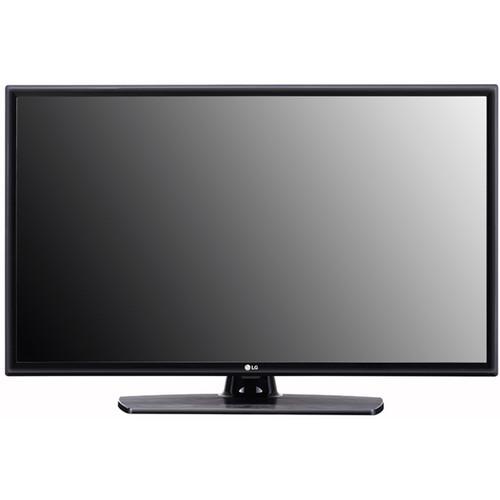

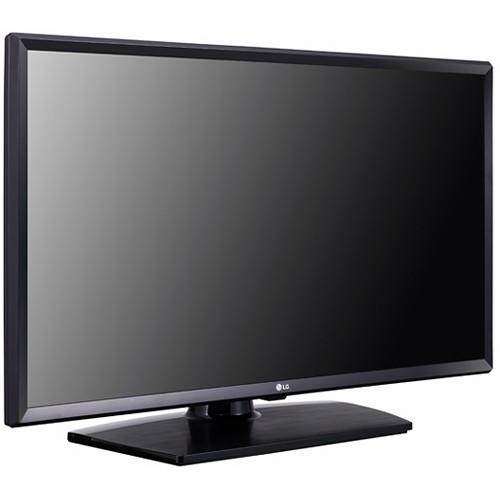

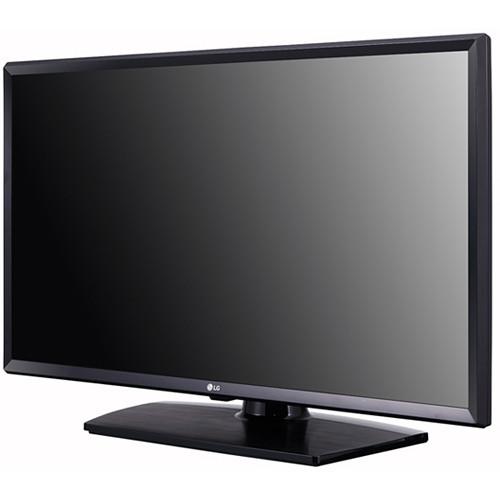

Product description The 40" Pro:Centric Hospitality LED TV from LG delivers clear and crisp images with 1920 x 1080 resolution through energy-efficient LED technology. It features 4000:1 contrast ratio and 176° wide viewing angle.
The Pro:Idiom unlocks access to premium content to help ensure rapid and broad deployment of HDTV and other high-value digital content. It has been designed specifically for users of premium HDTV content from cable, satellite, or VOD (Video on Demand) services.

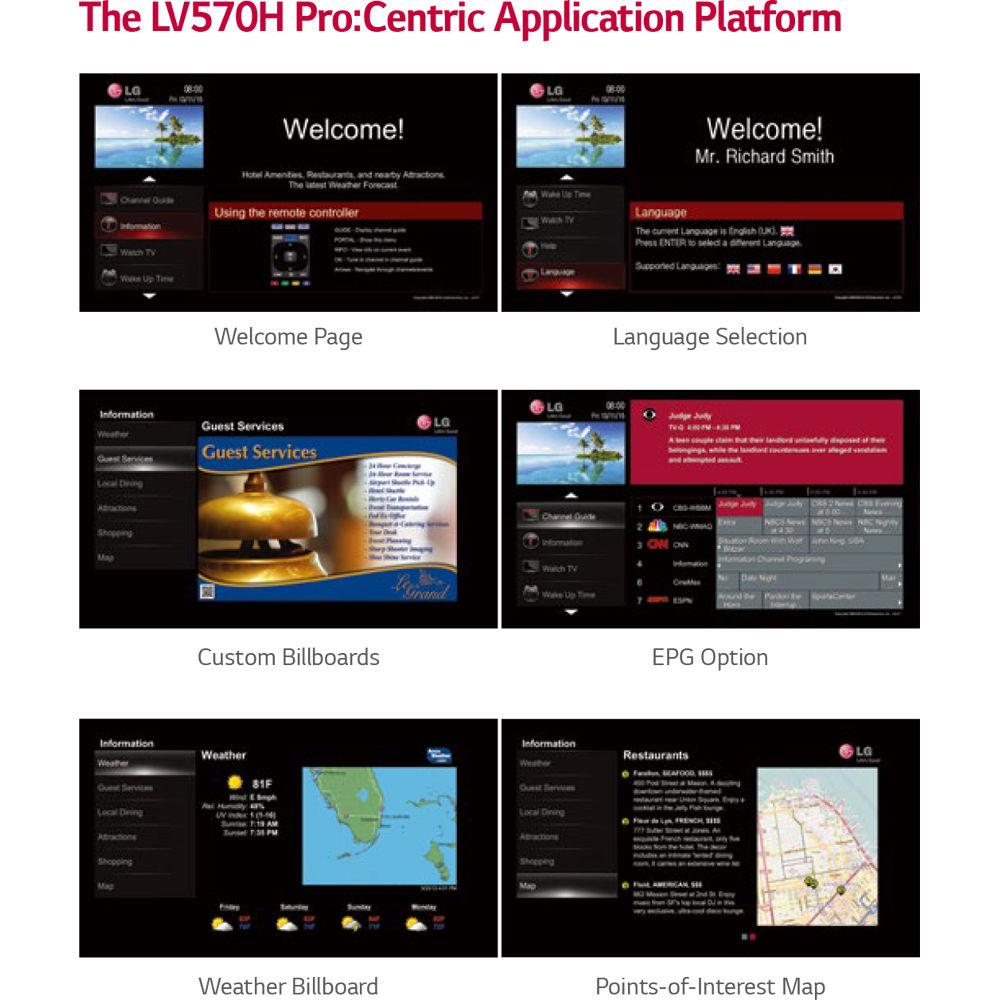

The Pro:Centric application enhances guests' experience of their in-room hotel TVs. Guests can locate and enjoy available television programming, check on the daily weather and review hotel amenities—all from the comfort of their room using the LED TV. With remote management, individual room visits are no longer required for TV software and TV configuration updates. Updates may be loaded on the Pro:Centric server using the Pro:Centric admin client. The Pro:Centric admin client also enables users to remotely update the Pro:Centric application features. - Welcome Screen
- A greeting message with your hotel name and its logo on the TV when it is turned on. The welcome screen provides an inviting, personalized experience for your guests.
- Self-Diagnostics via USB
- The TV stores diagnostic data, which can be saved to a USB memory device, thus enabling service engineers to analyze the data and identify technical issues quickly and easily.

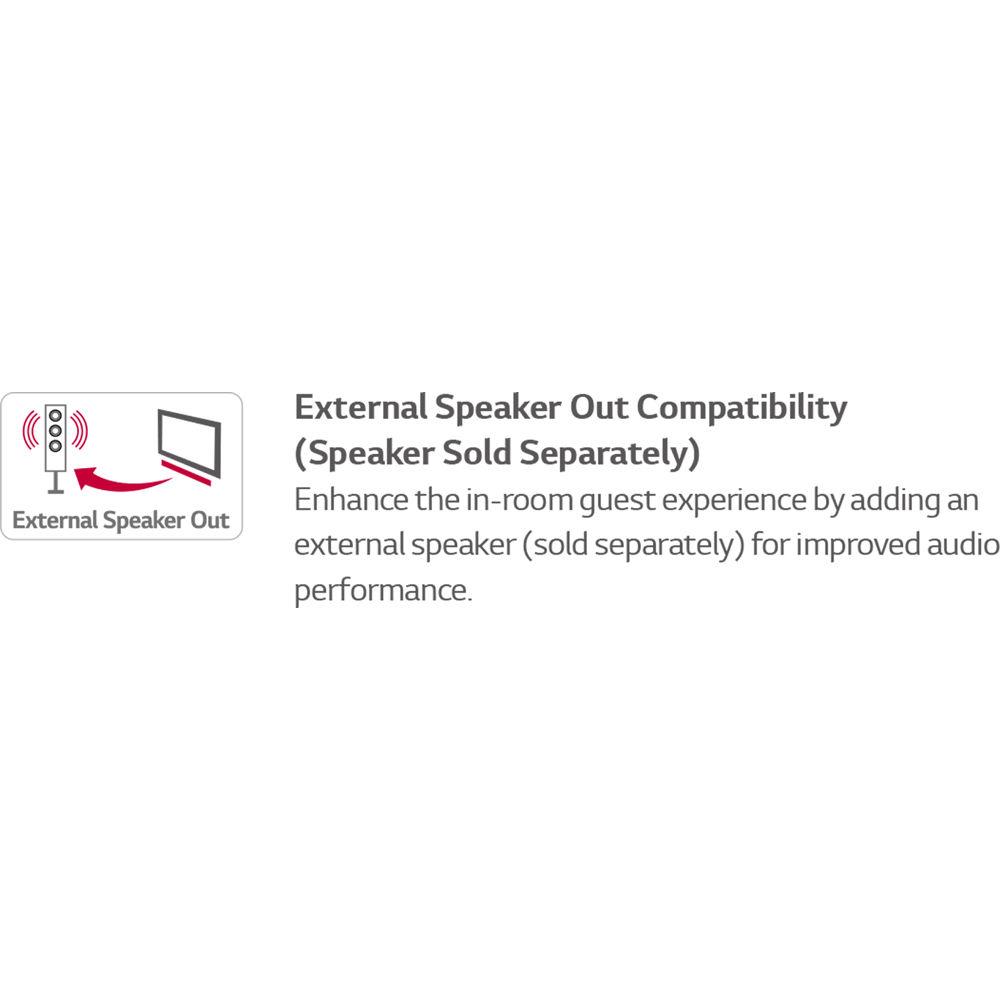

- External Speaker Output Compatibility
- Enhance the in-room guest experience by adding an external speaker (sold separately) for improved audio performance.
- USB Cloning
- Clone all commercial TVs with astonishing speed and ease. The USB Cloning feature allows you to simply copy and transfer TV settings from a designated Master TV to all target TVs using a USB memory device.
- Multi-IR Functionality
- The Multi-IR function allows for the use of IR codes based on bed number in a multi-TV single-room installation.

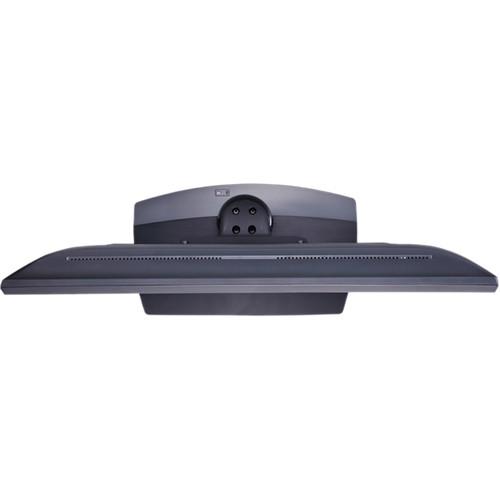

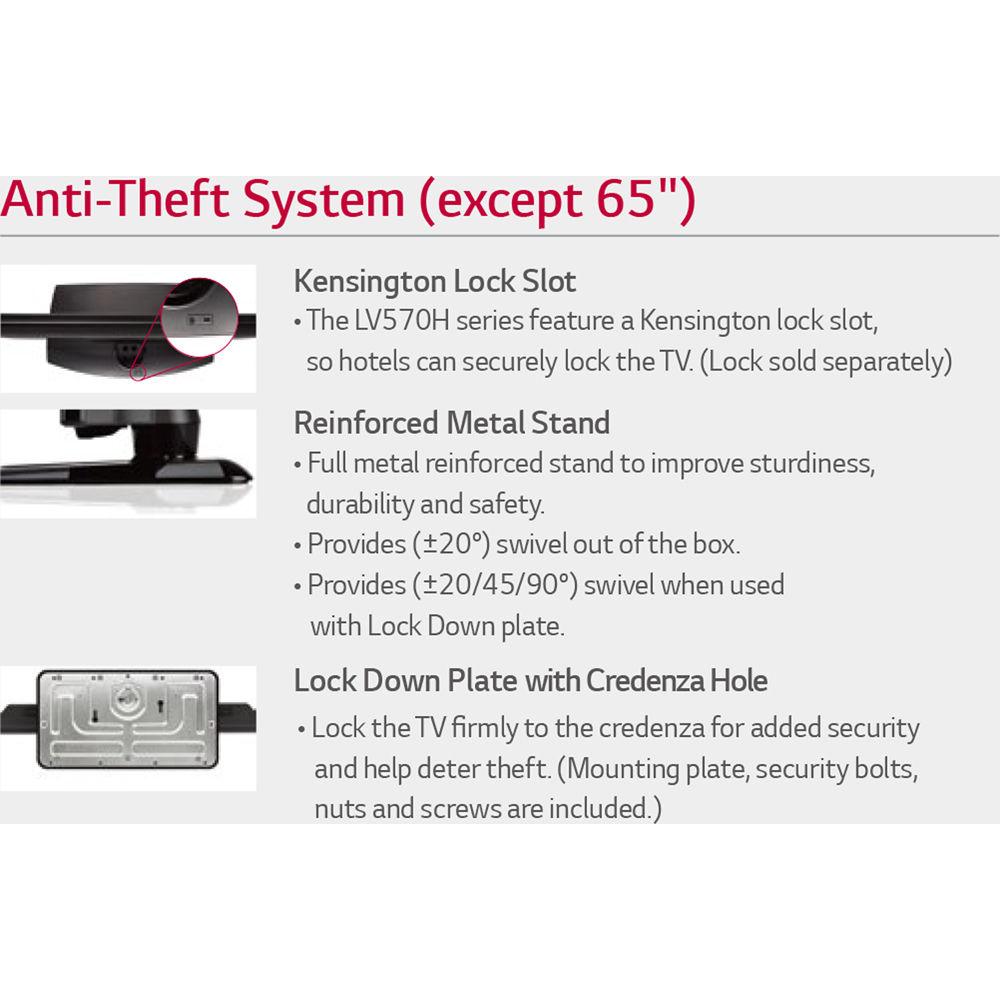

- Commercial-Grade Stand
- Allows guests to watch TV from any angle. Also, for security purposes, the stand may be secured to its table.
In the Box LG 40" Pro:Centric Hospitality LED TV with Integrated Pro:Idiom and b-LAN Remote Control 5.9' Power Cable Stand Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 40" Pro:Centric Hospitality LED TV with Integrated Pro:Idiom and b-LAN in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

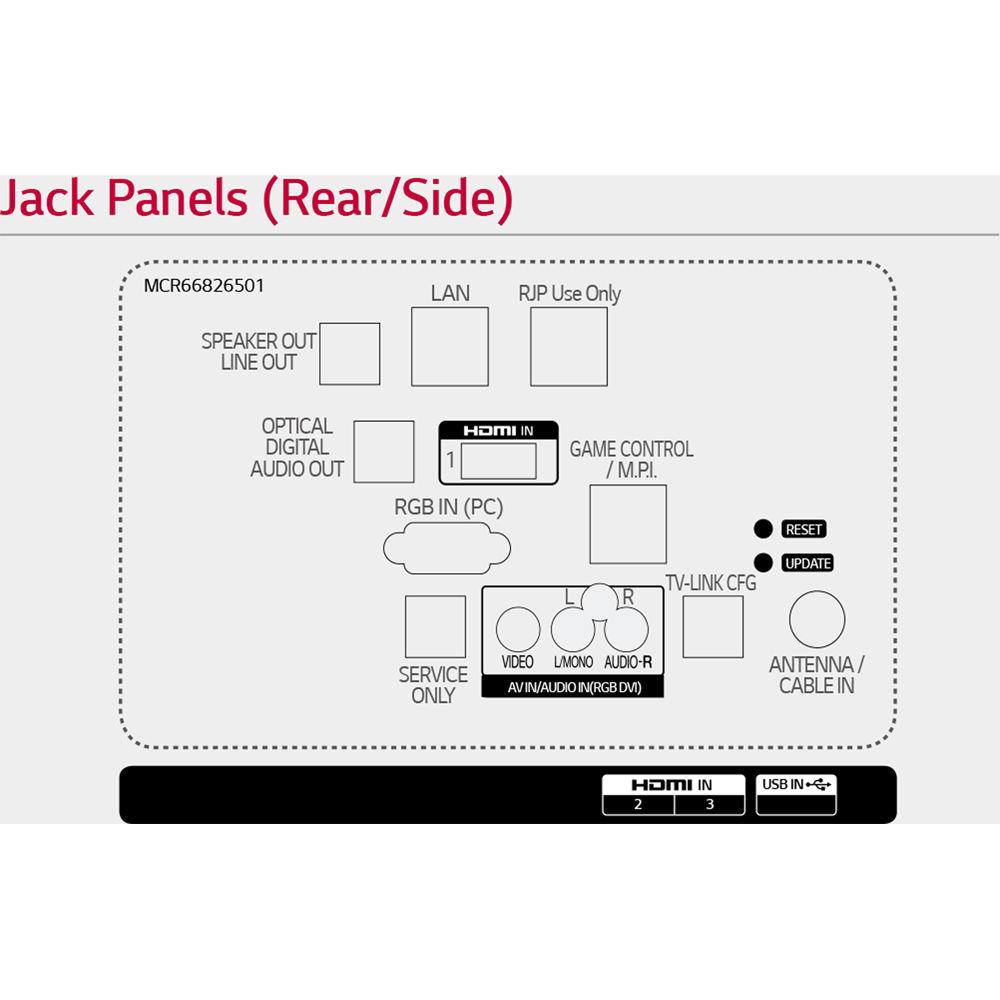

Technical parametersLG LV570H Specs | | | Screen Size (Diagonal) | 39.6" | | Native Resolution | 1920 x 1080 | | Viewing Angle (H x V) | 176 x 176° | | Aspect Ratio | 16:9 | | Contrast Ratio | 4000:1 | | Dynamic Contrast Ratio | 1,000,000:1 | | Response Time | 9.5 ms | | Refresh Rate | 60 Hz | | Backlighting Technology | Direct LED | | | | Input Ports | 1 x 1/8" / 3.5 mm – Audio (Rear)
2 x HDMI – Audio, Video (Side)
1 x RF Antenna – Audio, Video (Rear)
1 x HDMI – Audio, Video (Rear)
1 x 15-Pin VGA – Video (Rear) | | Output Ports | 1 x TOSLINK Optical – Audio (Rear) | | USB Ports | 1 x USB 2.0(Side) | | Ethernet Ports | 2 | | Digital Media Slot | None | | | | TV Tuner | Yes - ATSC, Clear QAM | | | | Built-In Speakers | Yes, 2 x 5 W | | Speaker Configuration | 2-Channel | | | | Power Consumption | Typical: 31.6 W
Standby: 0.5 W | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | | | Certifications | FCC, RoHS, UL, as per Manufacturer | | | | Wall Mounting | 200 x 200mm | | Dimensions | 35.9 x 20.8 x 2.2" / 91.1 x 52.8 x 5.6 cm (without Stand)
35.9 x 22.7 x 11.1" / 91.1 x 57.6 x 28.2 cm (with Stand) | | Weight | 16.5 lb / 7.5 kg (without Stand)
22.9 lb / 10.4 kg (with Stand) |
