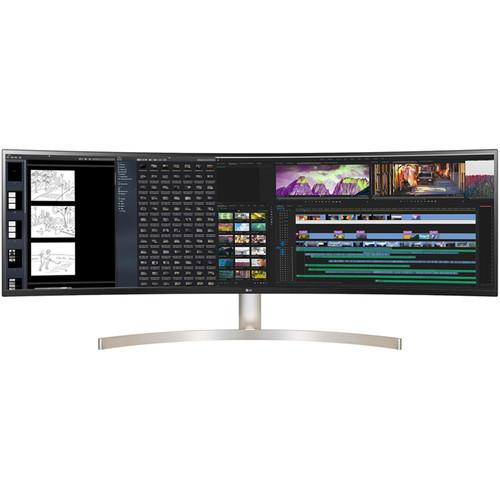

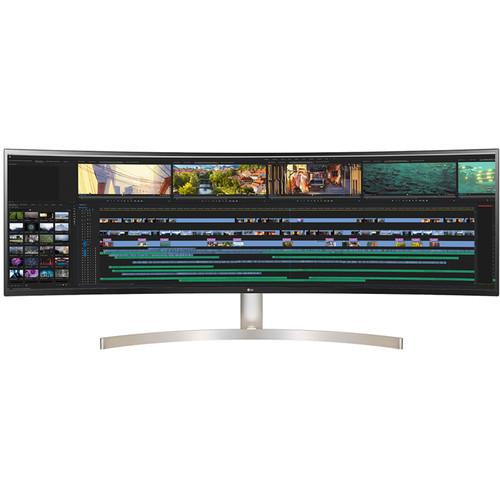

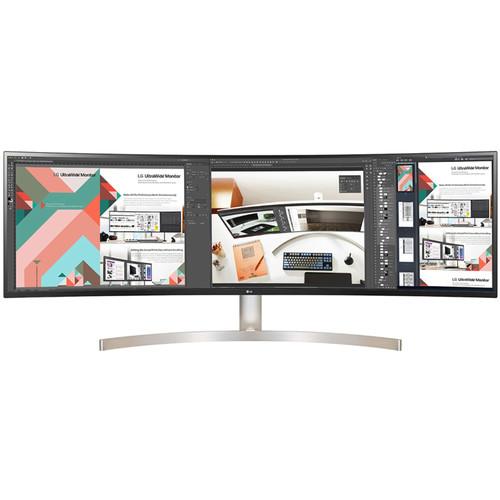

User Manual for LG 49WL95C-W 49" 32:9 Curved UltraWide HDR IPS Monitor Click to enlarge the picture
Contents of the user manual for the LG 49WL95C-W 49" 32:9 Curved UltraWide
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 49WL95C-W 49" 32:9 Curved UltraWide contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

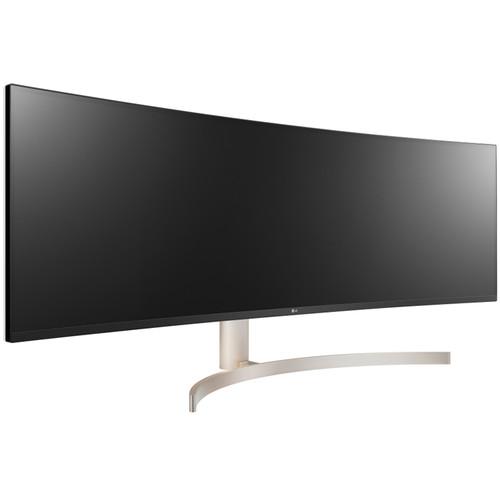

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The 49WL95C-W 49" 32:9 Curved UltraWide HDR IPS Monitor from LG is essentially two 27" 1440p QHD monitors stitched together without the distracting bezel in the middle for seamless multitasking. Built with a curved IPS (In-Plane Switching) panel, it wraps around your field of view and provides you with wide viewing angles and vivid colors. Specs-wise, it features a 5120 x 1440 resolution, a 1000:1 static contrast ratio, a 350 cd/m² brightness rating, and support for up to 1.07 billion colors. Connect it to your system or systems via HDMI, DisplayPort, or even USB Type-C and adjust its versatile stand to best fit your viewing preference. - USB Type-C
- The USB Type-C interface on this display supports a display connection, data transfer, and device charging, all at the same time with just one cable.
- OnScreen Control
- Instead of fiddling with built-in hardware buttons, you can use the OnScreen Control software to adjust your display settings with just a few clicks.
- Dual Controller 2.0
- Dual Controller 2.0 lets you connect two systems to the display and use them at the same time with one keyboard or mouse.
- HDR 10
- HDR 10 is a standard for HDR, which provides users with brighter whites and deeper blacks with at least a 10-bit color depth for more vivid colors.
- Rich Bass Sound
- The two 10W speakers with Rich Bass support allow you to enjoy music, movies, and more without having to purchase additional accessories.
- Automatic Brightness Control
- The ambient light sensor built into this monitor lets it automatically adjust the brightness to your environment for optimal viewing.

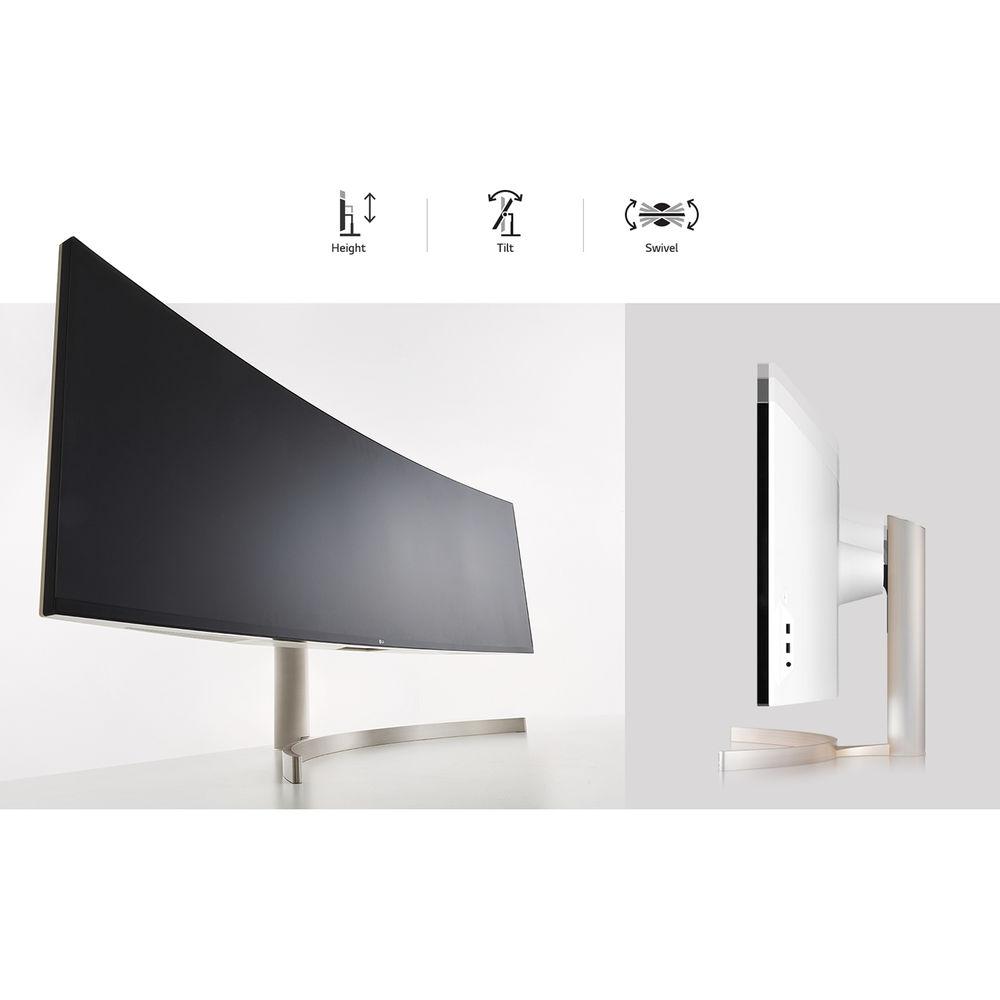

- Ergonomics
- Tile, swivel, and adjust the height of this monitor to best fit your viewing preference using its versatile stand.
- Other Features
-
- HDR Effect
- Color Calibrated
- Feature Safe
- Reader Mode
- Color Weakness
- Super Resolution +
- Dynamic Action Sync
- PBP (2PBP/3PBP)
- Smart Energy Saving
UPC: 719192629639 In the Box LG 49WL95C-W 49" 32:9 Curved UltraWide HDR IPS Monitor HDMI Cable DisplayPort Cable USB Type-C Cable USB Type-C to Type-A Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 49WL95C-W 49" 32:9 Curved UltraWide HDR IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 49WL95C-W Specs | | | Size | 49" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 5120 x 1440 | | Aspect Ratio | 32:9 | | Pixels Per Inch (ppi) | 108 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | HDR Compatibility | HDR10 | | Color Gamut | 99% sRGB
99% CIE1931 | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°

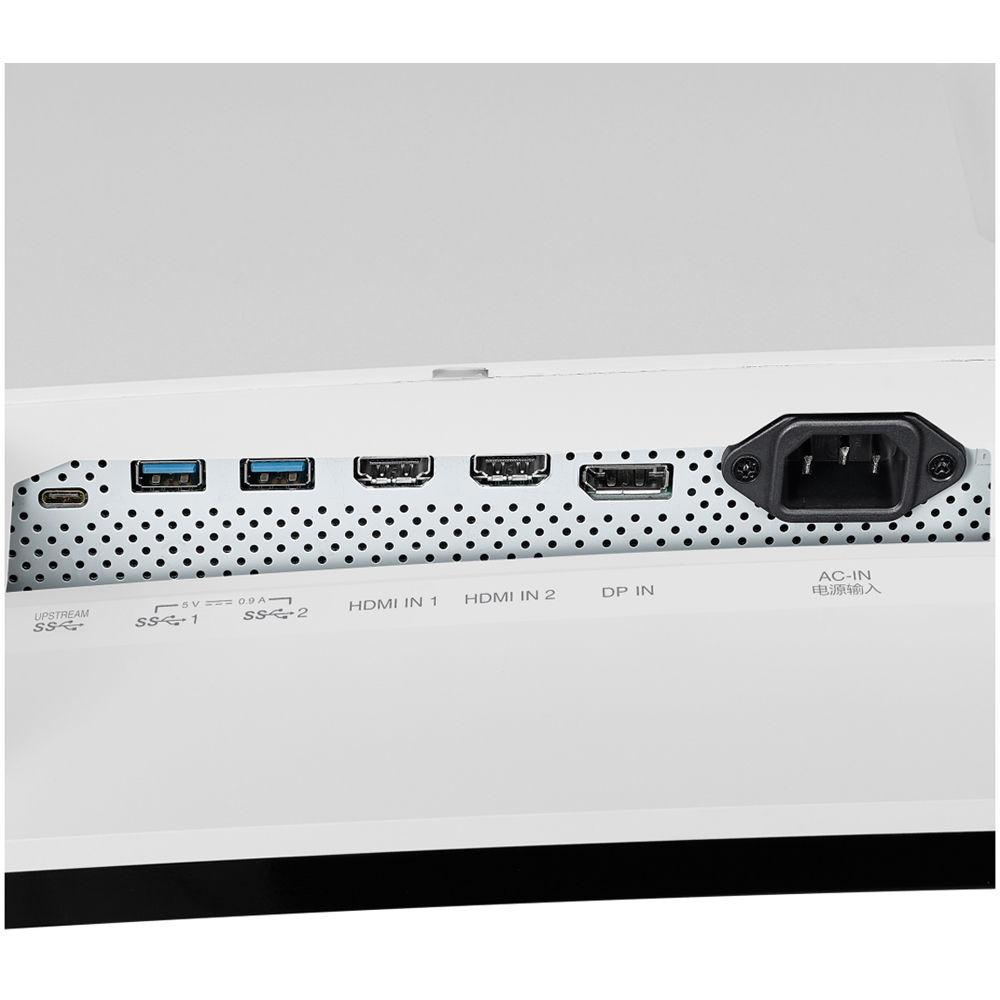

Vertical: 178° | | Dot Pitch | 0.234 x 0.234 mm | | | | Connectivity | 2 x HDMI
1 x DisplayPort 1.4
1 x USB Type-C
4 x USB Type-A (USB 3.1 Gen 1) Output
1 x 3.5 mm | | Built-In Speakers | Yes, 2 x 10 W | | | | Power Consumption | 80 W (Typical)
1 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | USB Power Delivery | 85 W (via USB Type-C) | | | | Height Adjustment | 4.33" / 110 mm | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 47.8 x 21.4 x 12.1" / 1215.1 x 543.5 x 307.3 mm (With Stand)
47.8 x 14.4 x 4.5" / 1215.1 x 365.7 x 114.2 mm (Without Stand) | | Weight | 33.51 lb / 15.2 kg (With Stand)
27.78 lb / 12.6 kg (Without Stand) | | | | Package Weight | 45.85 lb | | Box Dimensions (LxWxH) | 52.0 x 19.05 x 11.6" |
