User Manual for LG 55" Class 2x2 Video-Wall Display Bundle Click to enlarge the picture
Contents of the user manual for the LG 55" Class 2x2 Video-Wall Display
- Product category: Commercial Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Commercial Monitors
 |
User manual for the LG 55" Class 2x2 Video-Wall Display contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

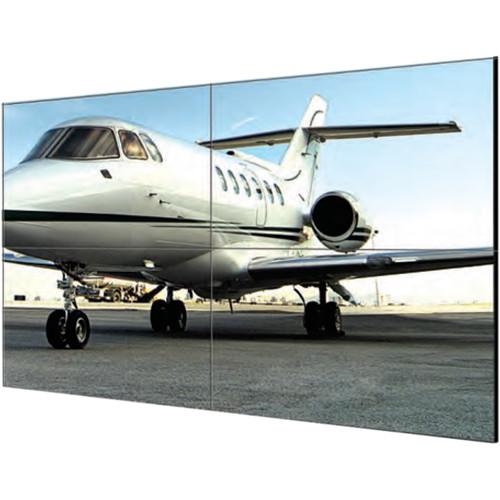

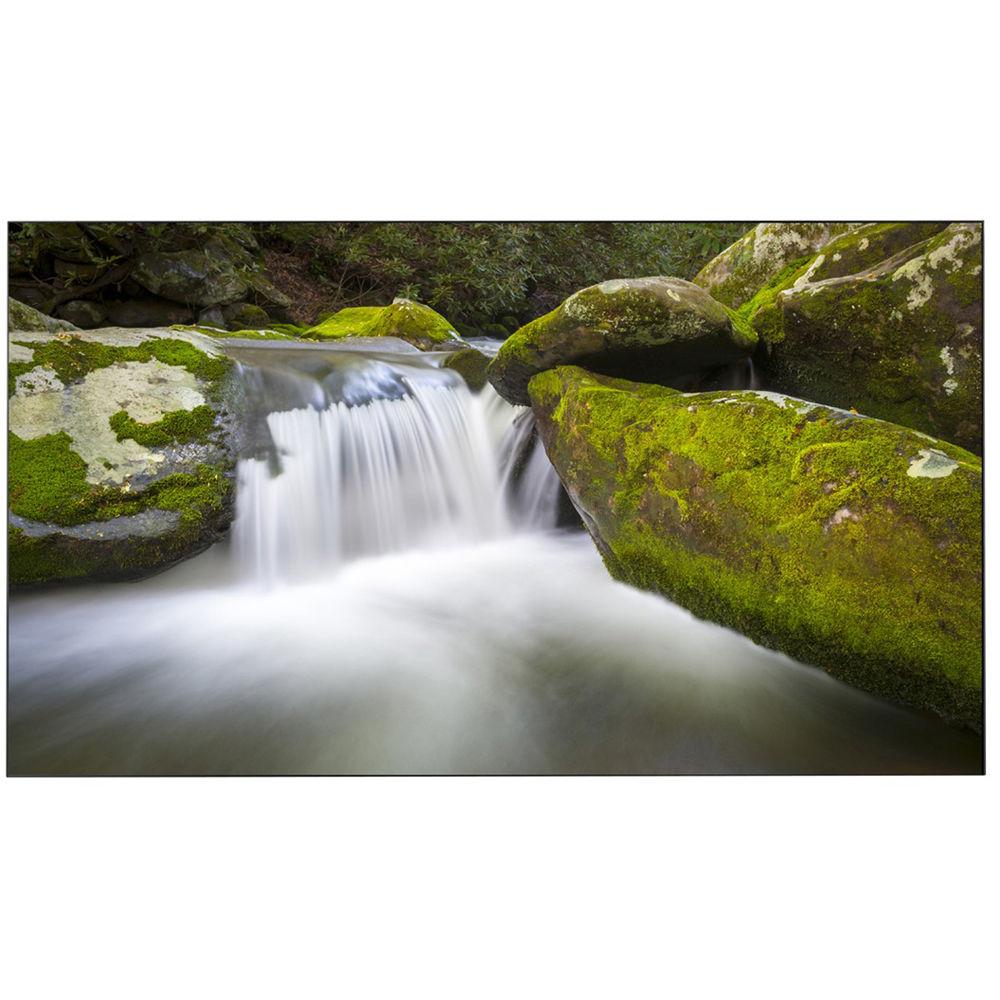

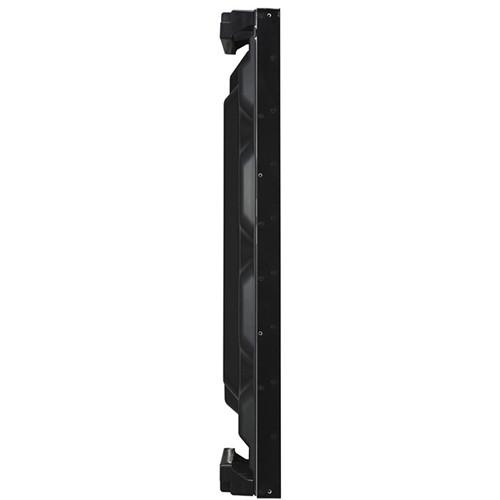

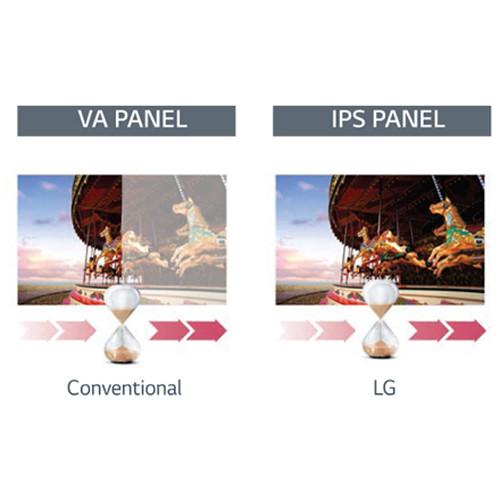

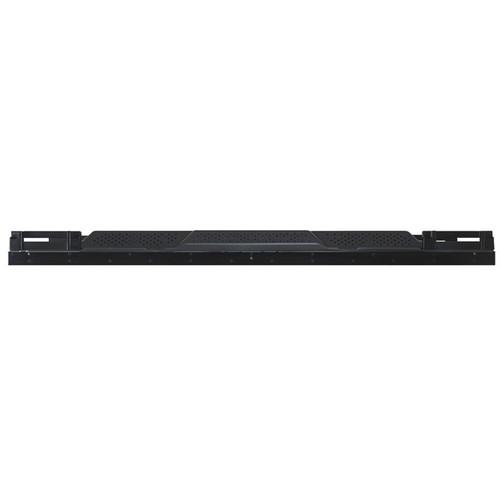

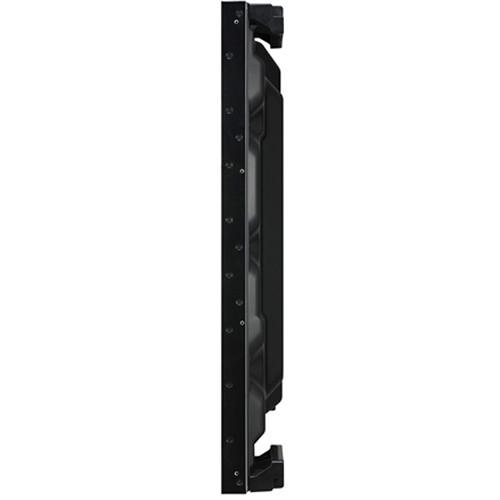

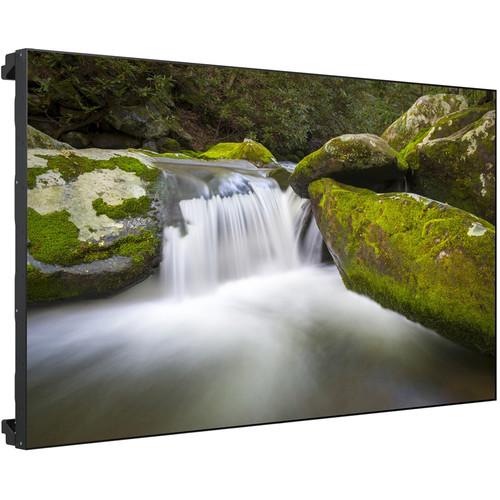

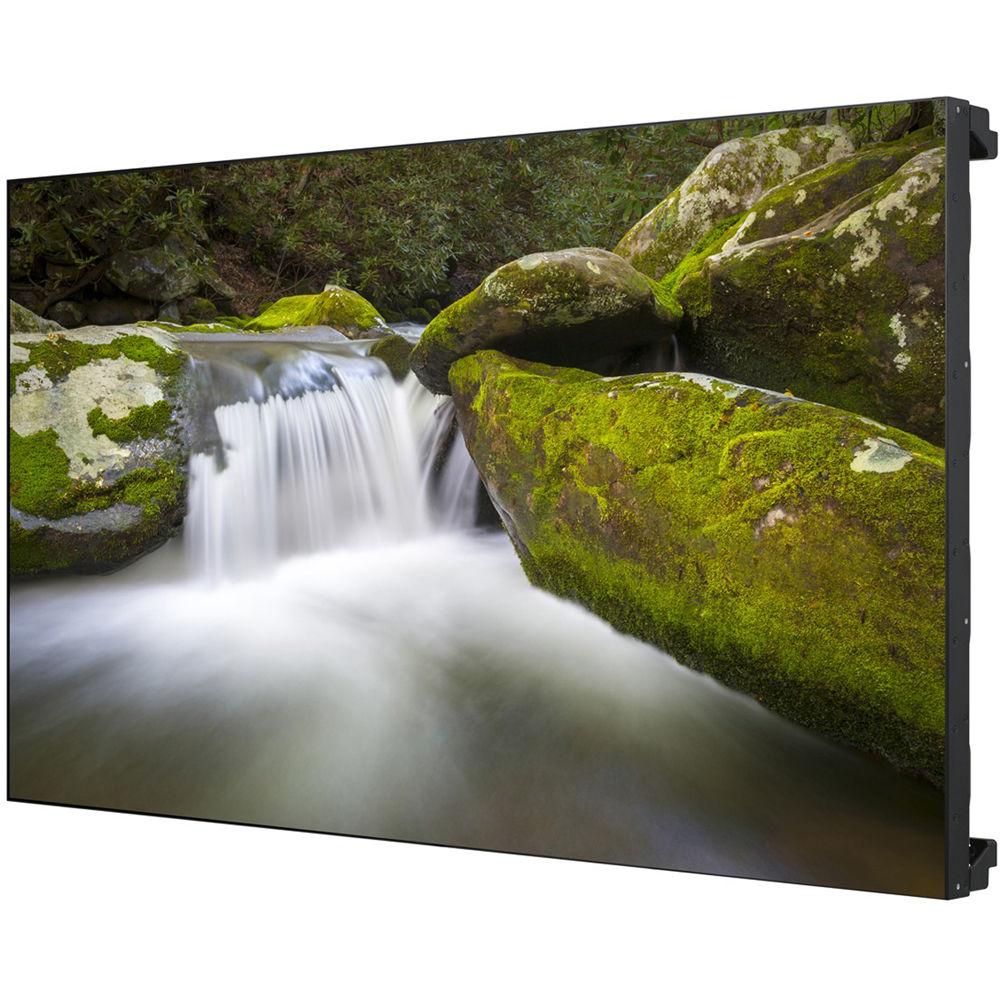

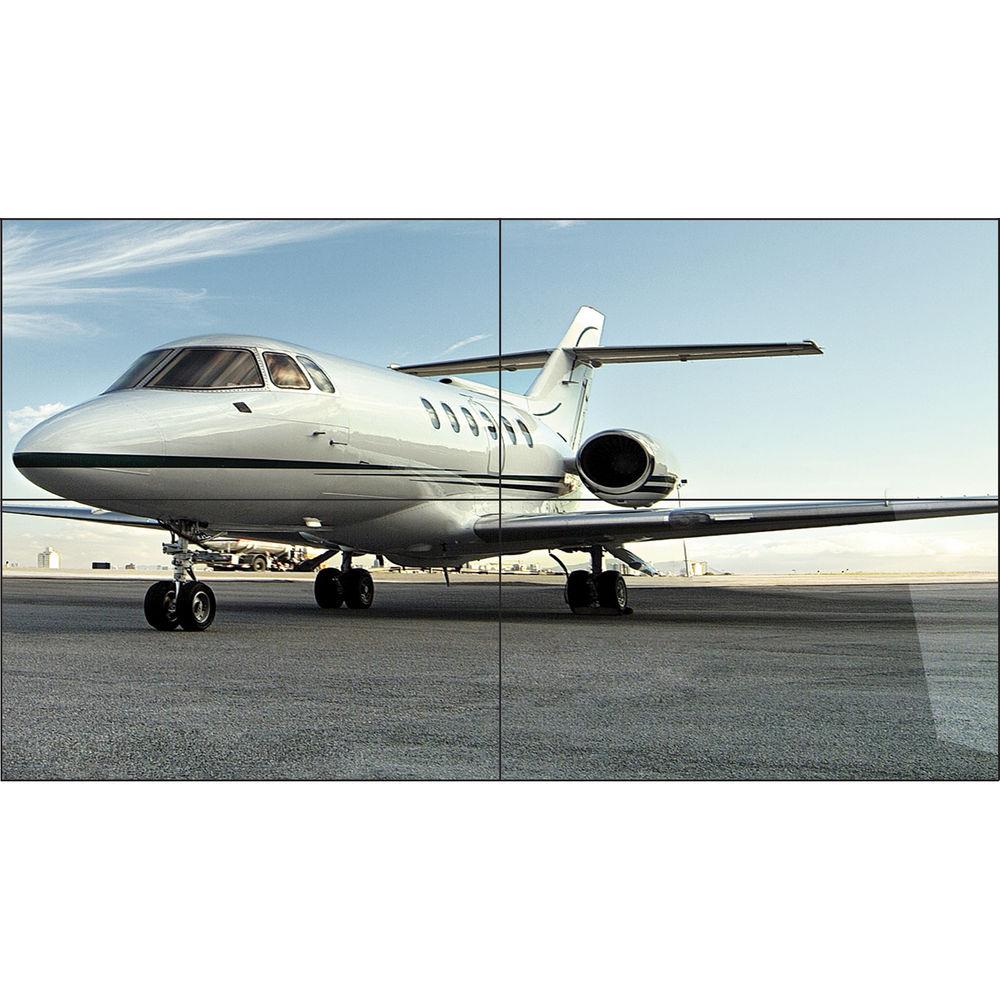

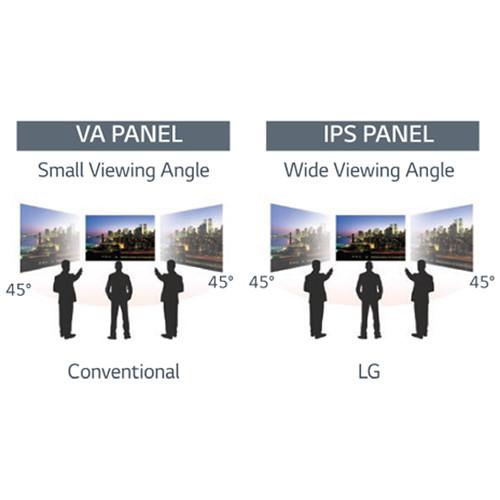

Product description The 55" Class 2x2 Video-Wall Display Bundle from LG includes four 55"-Class Full HD Commercial LED Monitors, four Crimson Video Wall Mounts, four RS232C for control signals, four power cords, and four Display Ports for video signal. The monitor is designed for use in video-walls in brightly-lit environments. Each monitor features a hard-coated, anti-glare 55"-class IPS LED display with a 1920 x 1080 native resolution for viewing detailed Full HD images without pixel loss. This monitor's 700 cd/m² brightness rating and 1400:1 contrast ratio showcases its ability to handle light and dark on-screen images.As a digital-signage-capable display, this commercial monitor is suitable for use in environments such as control rooms, broadcast studios, and retail environments. This display is equipped with VGA, DVI, DisplayPort, and HDMI ports for connecting a variety of video sources. Daisy chaining is also supported via DisplayPort connectivity. With a VESA 600x400 compliance for wall mounting, this display features a combined 3.5mm bezel design for seamless video-wall integration. The included Crimson Video Wall Mount is a pull-out mount for quick installation and maintenance. - Daisy-Chain Support
- DisplayPort 1.2 connectors enable UHD content playback on 4K video walls in four display configurations.
- TruMotion 60 Hz Refresh Rate
- TruMotion 60Hz refresh rate is designed to reduce motion blur and judder, ensuring vivid image details.
- SuperSign V Software
-
- Video walls are easily configured using included templates
- Rotate, cut, and edit content in desired layout
- Content can be scheduled based on time and day
- Ability to distribute content to media players
- SuperSign C Software (Free Download)
- The intuitive GUI in SuperSign C software allows simple measurement and adjustment of display settings instantly. You can also employ automatic white balancing of a video-wall display by using a sensor (sold separately).
- Remotely Monitor and Control
- SuperSign C software allows offers intuitive GUI-based remote monitoring and control via LAN and RS232 connection.
- Shine-Out Ambient Light Reflection
- This feature allows the monitor to be suitable for window display by reflecting away ambient light for increased image visibility and clear images in bright lighting environments.
- Additional Features
-
- 90% brightness uniformity rating
- SuperSign Elite-c and Elite-w lite compatible
- Brightness, contrast, and backlight adjustment
- Position/Size
- Temperature sensor
- ISM Method: Normal, Orbiter, Inversion, White wash
- Auto config/phase
- Smart energy saving
- Auto power/Source memory
- PIP/PBP
- Tile Mode: Up to 15 x 15 (natural mode)
- Tile Play with USB
- Input label
- DPM select
UPC: 719192198364 In the Box LG 55" Class 2x2 Video-Wall Display Bundle SuperSign V Software SuperSign C Software (Download) Remote Control Power Cable DisplayPort Cable IR Receiver RS-232C Cable Tilting Guide Screw Limited 3-Year Warranty including Backlight Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 55" Class 2x2 Video-Wall Display Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 55LV77 Specs | | | Screen Size (Diagonal) | 54.6" | | Native Resolution | 1920 x 1080 | | Supported Display Resolutions | 1920 x 1080 / 60 Hz | | Panel Type | IPS-Type LCD | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Brightness | 700 cd/m
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 52 owners. Add your rating and experience with the product.
