User Manual for LG 55LV77A-7B 55"-Class Full HD Commercial LED Monitor Click to enlarge the picture
Contents of the user manual for the LG 55LV77A-7B 55"-Class Full HD Commercial
- Product category: Commercial Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Commercial Monitors
 |
User manual for the LG 55LV77A-7B 55"-Class Full HD Commercial contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

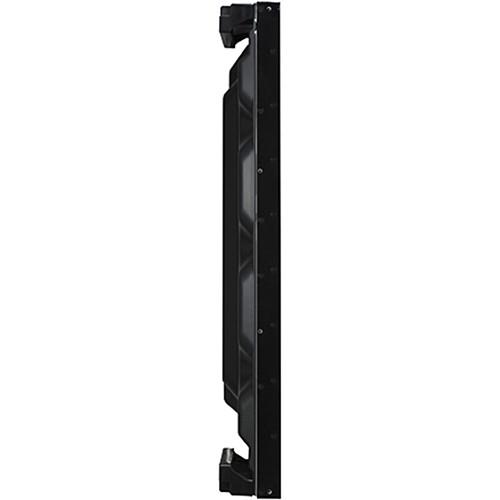

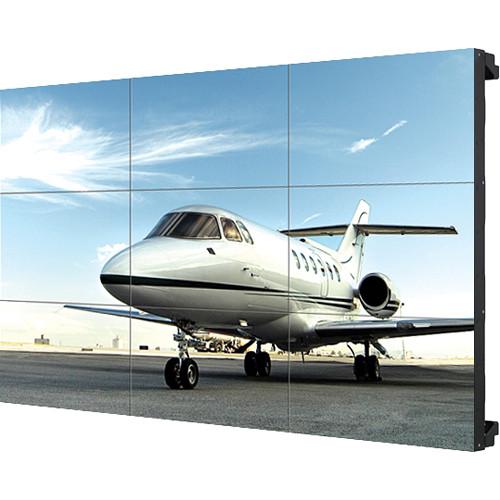

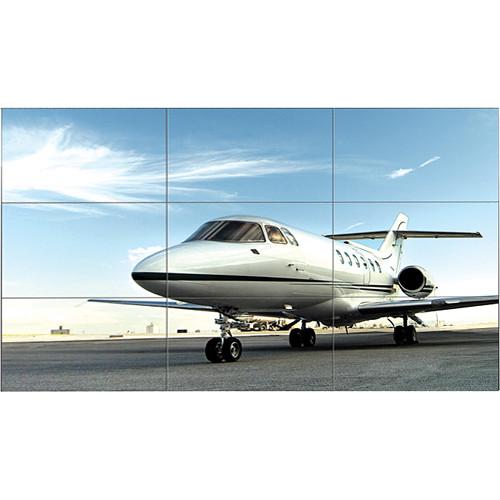

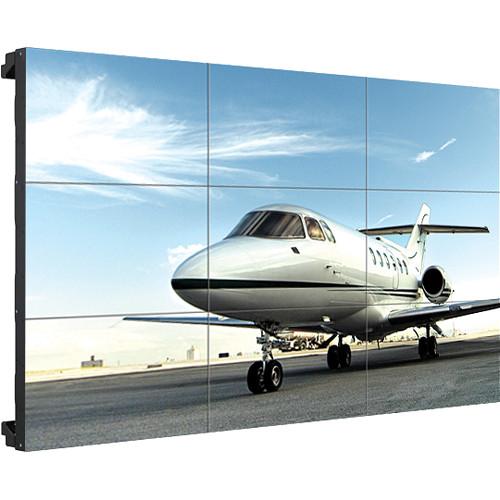

Product description The black LG 55LV77A-7B 55"-Class Full HD Commercial LED Monitor is suitable for placement in video-walls and brightly-lit environments. This business-ready monitor features a hard-coated, anti-glare 55"-class IPS LED display with a 1920 x 1080 native resolution for viewing detailed Full HD images without pixel loss. This monitor's 700 cd/m² brightness rating and 1400:1 contrast ratio showcases its ability to handle light and dark on-screen images. For viewing flexibility it can also accommodate portrait and landscape viewing orientations.

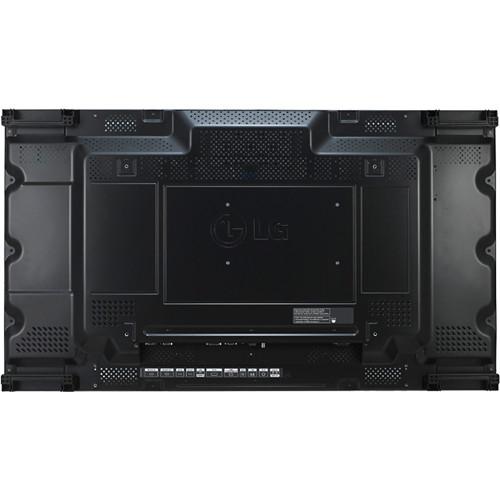

As a digital-signage-capable display, this commercial monitor is suitable for use in environments such as control rooms, broadcast studios, and retail environments. This display is equipped with VGA, DVI, DisplayPort, and HDMI ports for connecting a variety of video sources. Daisy chaining is also supported via DisplayPort connectivity. While this monitor doesn't include a table stand, it is VESA 600 x 400 compliant for wall mounting. Furthermore, this display features a combined 3.5mm bezel design for seamless video-wall integration. - Daisy-Chain Support
- DisplayPort 1.2 connectors enable UHD content playback on 4K video walls in 2 x 2 display configurations.
- TruMotion 60 Hz Refresh Rate
- TruMotion 60Hz refresh rate is designed to reduce motion blur and judder, ensuring vivid image details.
- SuperSign V Software
-
- Video walls are easily configured using included templates
- Rotate, cut, and edit content in desired layout
- Content can be scheduled based on time and day
- Ability to distribute content to media players
- SuperSign C Software (Free Download)
- The intuitive GUI in SuperSign C software allows simple measurement and adjustment of display settings instantly. You can also employ automatic white balancing of a video-wall display by using a sensor (sold separately).
- Remotely Monitor and Control
- SuperSign C software allows offers intuitive GUI-based remote monitoring and control via LAN and RS232 connection.
- Shine-Out Ambient Light Reflection
- This feature allows the monitor to be suitable for window display by reflecting away ambient light for increased image visibility and clear images in bright lighting environments.
- Additional Features
-
- 90% brightness uniformity rating
- SuperSign Elite-c and Elite-w lite compatible
- Brightness, contrast, and backlight adjustment
- Position/Size
- Temperature sensor
- ISM Method: Normal, Orbiter, Inversion, White wash
- Auto config/phase
- Smart energy saving
- Auto power/Source memory
- PIP/PBP
- Tile Mode: Up to 15 x 15 (natural mode)
- Tile Play with USB
- Input label
- DPM select
UPC: 719192195172 In the Box LG 55LV77A-7B 55"-Class Full HD Commercial LED Monitor (Black) SuperSign V Software SuperSign C Software (Download) Remote Control Power Cable DisplayPort Cable IR Receiver RS-232C Cable Tilting Guide Screw Limited 3-Year Warranty including Backlight More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 55LV77A-7B 55"-Class Full HD Commercial LED Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG LV77A Specs | | | Screen Size (Diagonal) | 54.6" | | Native Resolution | 1920 x 1080 | | Supported Display Resolutions | 1920 x 1080 / 60 Hz | | Panel Type | IPS-Type LCD | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Brightness | 700 cd/m
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
