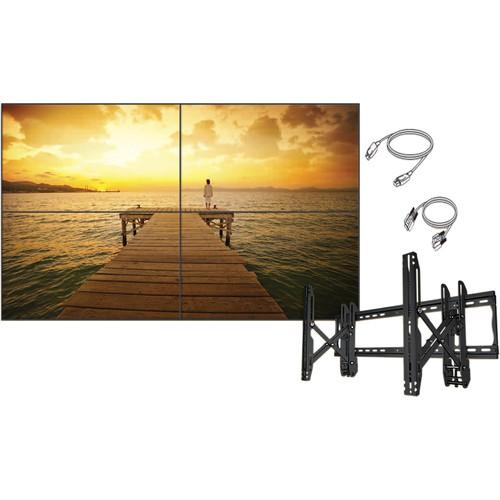

User Manual for LG 55VH7BW-4C 55" 2x2 Video Wall Bundle Click to enlarge the picture
Contents of the user manual for the LG 55VH7BW-4C 55" 2x2 Video Wall
- Product category: Commercial Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Commercial Monitors
|
User manual for the LG 55VH7BW-4C 55" 2x2 Video Wall contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|
Product description The black 55VH7BW-4C 55" 2x2 Video Wall Bundle from LG includes four 55VH7B-B commercial monitors, four VW4600G2 Crimson Video Wall Mounts, and all necessary cables. The monitor features a borderless design with bezel-to-bezel width of 0.1", making it suitable for use as a part of a video wall with other 55VH7B displays. Its built-in quad-core Quad Core SoC (System-on-Chip) processor plays various types of content without the need for an extra media player. The display offers a native resolution of 1920 x 1080, 700 cd/m2 brightness rating, and a dynamic contrast ratio of 500,000:1 for deeper dark and brighter light colors. Furthermore, the 55" IPS panel with horizontal and vertical viewing angles of 178° ensures no color deviation or distortion from any angle. - Borderless design with its 0.03" even panel bezel and 0.1" bezel-to-bezel size (verified by Nemko), enables immersive and seamless viewing experiences on assembled video wall screens.
- Built-in quad-core SoC (system-on-chip) can play various content formats, eliminating the need for an external media player.
- Built-in SoC enables the display to play its video file without lag for synchronized content playback.
- webOS platform allows you to build apps and construct your own customized signage solutions using the LG Software Development Kit (not included) and technical support.
- Ensures clear picture quality even when installed in stacks of more than four.
- VIC (Video Wall Image Creation technology): Color and brightness differences are compensated in circuit part with an algorithm to make the panels into a same characteristic so that each video wall maintains the consistent white balance.
- LG's LED-backlight technology ensures consistent brightness across the whole screen for a clearer picture.
- Includes an image improvement algorithm that can adjust to objects located in the boundary of bezel for a seamless viewing experience.
- LAN daisy chain support allows you to execute commands to control and monitor the screens in the video wall, and even update their firmware.
- Features a guide bracket that ensures the video wall remains flat.
- Features a classified in/out port that prevents errors when connecting a daisy chain.
- 8 Control Buttons: To operate various functions of the display such as controlling the OSD (On Screen Display) and changing the input source.
UPC: 719192614284 In the Box LG 55VH7BW-4C 55" 2x2 Video Wall Bundle 55VH7B 55" Video Wall Display (Single Display) xysztdecevreeq 4 x DVI Cable 4 x RS232C Cable 4 x Power Cord 4 x Displayport Cable 4 x Crimson VW4600G2 Video Wall Mount Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 55VH7BW-4C 55" 2x2 Video Wall Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 55VH7BW-4C Specs | Screen Size | 55" (139.7 cm) | | Panel Technology | IPS | | Aspect Ratio | 16:9 | | Native Resolution | 1920 x 1080 | | Brightness | 700 cd/m2 | | Contrast Ratio | 1400:1 | | Dynamic CR (DCR) | 500,000:1 | | Viewing Angle | 178 x 178° | | Response Time | 8 ms (G to G) | | Surface Treatment | Hard coating (2 H), Anti-reflection treatment of the front polarizer (Reflectance <2 %) | | Working Time | 24 Hours | | Orientation | Portrait and Landscape | | Input | 1 x HDMI, 1 x DP, 1 x DVI-D, 1 x OPS, 1 x Audio, 1 x USB 2.0, 1 x USB 3.0, 1 x RGB | | Output | 1 x DP, 1 x Audio | | External Control | RS232C, RJ45, IR Receiver | | Bezel Width | 0.03" (0.9 mm) (Top/Bottom/Left/Right even bezel) / 0.1" (1.8 mm) *B to B : Panel Bezel + Panel Bezel | | Operating Temperature Range | 32 to 104°F (0 to 40°C) | | Operating Humidity Range | 10 to 80 % | | Power Supply | 100 to 240 VAC, 50/60 Hz | | Power Type | Built-In Power | | Power Consumption | Type: 220 W
Smart Energy Saving: 110 W | | Safety | Safety: UL, cUL, CB, TUV, KC
EMC: FCC Class "A", CE, KCC
ErP / Energy Star: NA / Yes (Energy Star 7.0) | | Compatibility | Media Player Compatibility: OPS Type Compatible: Yes
External Media Player Attachable: Yes (MP500/MP700)
Software Compatibility: SuperSign W/Lite: Yes
SuperSign C: Yes | | Vesa Standard Mount Interface | 600 x 400 mm | | Dimension | 47.7 x 26.9 x 3.4" (121.14 x 68.22 x 8.65 cm) | | Weight | 41 lb (18.6 kg) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
