User Manual for LG C8PUA 77" Class HDR UHD Smart OLED TV Click to enlarge the picture
Contents of the user manual for the LG C8PUA 77" Class HDR UHD
- Product category: Televisions LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Televisions
 |
User manual for the LG C8PUA 77" Class HDR UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

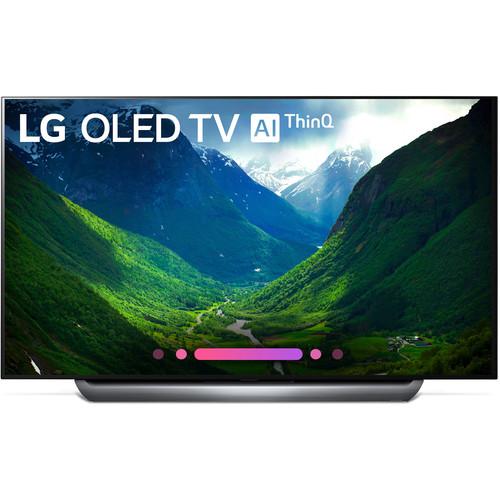

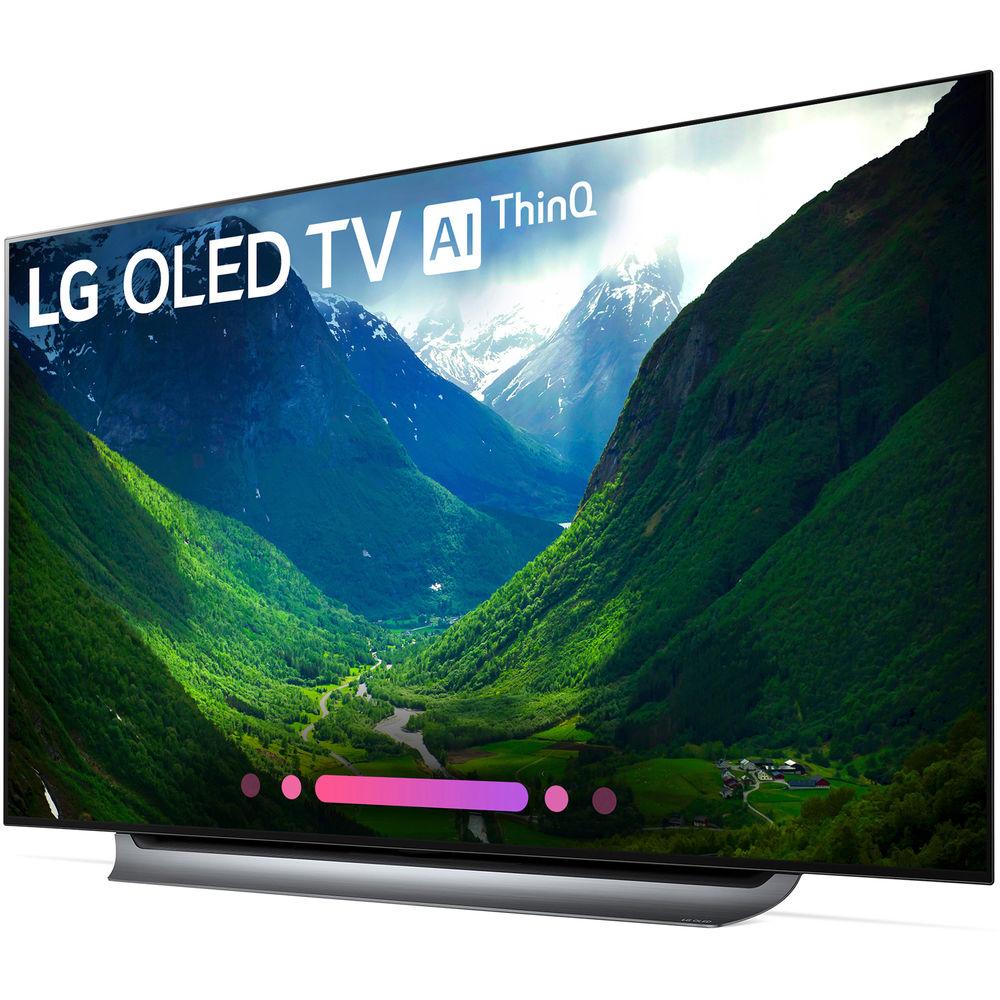

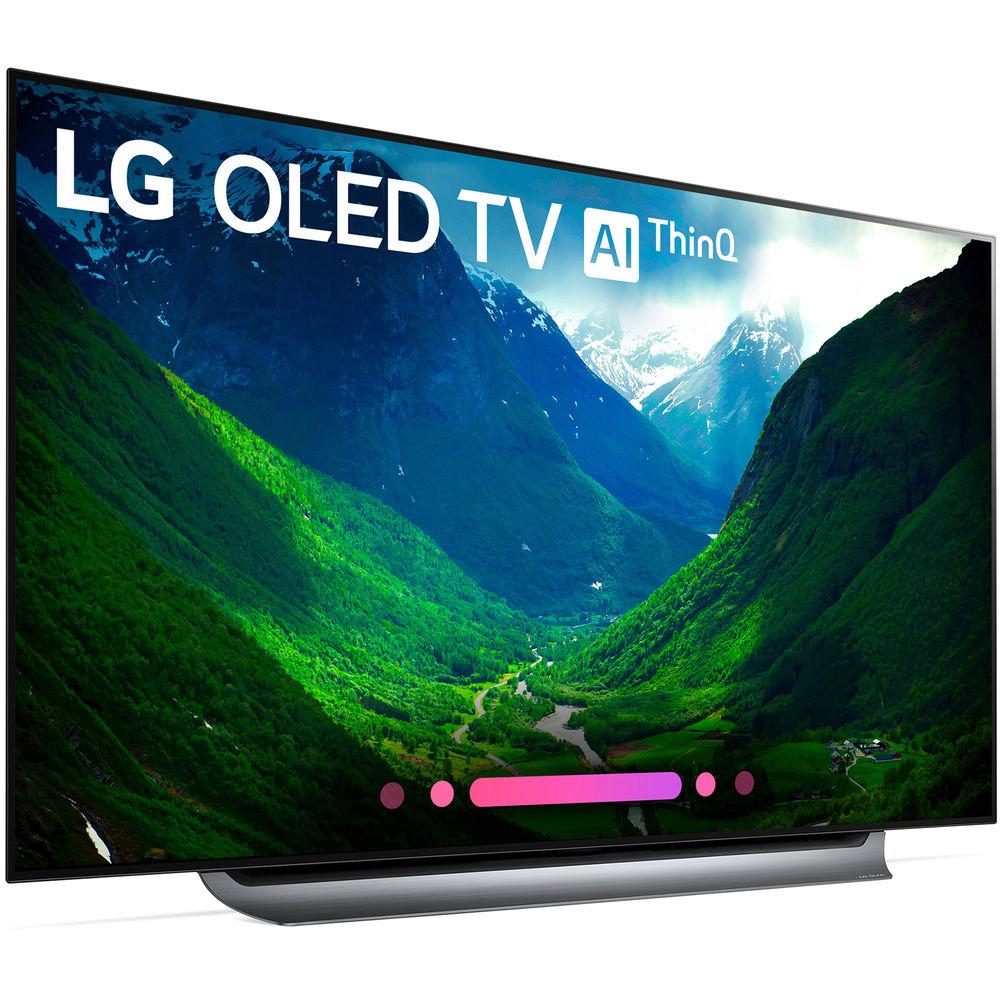

Product description The Big March TV Tournament Read More View content at four times the resolution of 1080p with the LG C8PUA 77" Class HDR UHD Smart OLED TV. It has a 76.8" OLED display for enhanced black levels and virtually infinite contrast. Being HDR10-, Dolby Vision-, and HLG-compatible, it can display a wider range of color with compatible content than non-HDR TVs; it also supports Advanced HDR playback via USB.
The C8PUA has built-in Wi-Fi and Ethernet connectivity to allow access to your favorite apps and Internet-based content via the LG Content Store and the integrated web browser. You can use your tablet or smartphone for media sharing and screen mirroring on the C8PUA. With four HDMI inputs, there are multiple options for connecting high-definition video sources. It also features a composite RCA input analog sources. Three USB ports are onboard for connecting multimedia peripherals like flash drives. Note: Content acquired via certain apps may require subscription to a service. - α9 Intelligent Processor
- The α9 Intelligent Processor is designed to deliver true-to-life images with rich colors, sharpness, and depth for enhanced realism.
- LG AI ThinQ
- AI ThinQ TVs are engineered to become the hub for all your connected smart devices. Beyond apps and entertainment, LG AI ThinQ uses voice control with Google Home built-in, plus Amazon Echo compatibility to create a smart TV platform for your IoT devices.
- 4K Cinema HDR
- The C8PUA series supports the HDR10, HLG, Dolby Vision, and (via USB) Advanced HDR formats.
- Dolby Atmos Decoding
- Dolby Atmos surround sound technology dispenses with channel-based coding in favor of more advanced object-based coding, giving the sound designer the ability to precisely place sounds anywhere in the 3-dimensional space.
- Additional Features
-
- Infinite Contrast
- Pixel-level dimming
- Ultra Luminance Pro
- Intense Color
- 10-bit color for a billion rich colors
- True Color Accuracy
- Wide viewing angle
- 4K Upscaler
- Google Assistant
- Google Home & Amazon Alexa compatibility with optional equipment
- Intelligent Voice Recognition
- Universal control capability
- Gallery Mode
- LG Content Store for app downloads
- Full web browser
- Channel Plus
- Screen Share & Content Share screen mirroring
- DTS-HD decoding
- Bluetooth audio playback (version 4.2)
- LG Sound Sync
- Integrated 802.11ac Wi-Fi with Wi-Fi Direct
- IP control
- Simplink HDMI CEC
- ARC support via HDMI 2
UPC: 719192620957 In the Box LG C8PUA 77" Class HDR UHD Smart OLED TV Magic Remote Control with Battery Power Cable Limited 1-Year Warranty The Top 8 TVs of 2018 Richard Risitano 12/20/2018 The B&H Television Buying Guide Lawrence Neves 01/31/2018 User Manual PDF 20.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the LG C8PUA 77" Class HDR UHD Smart OLED TV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

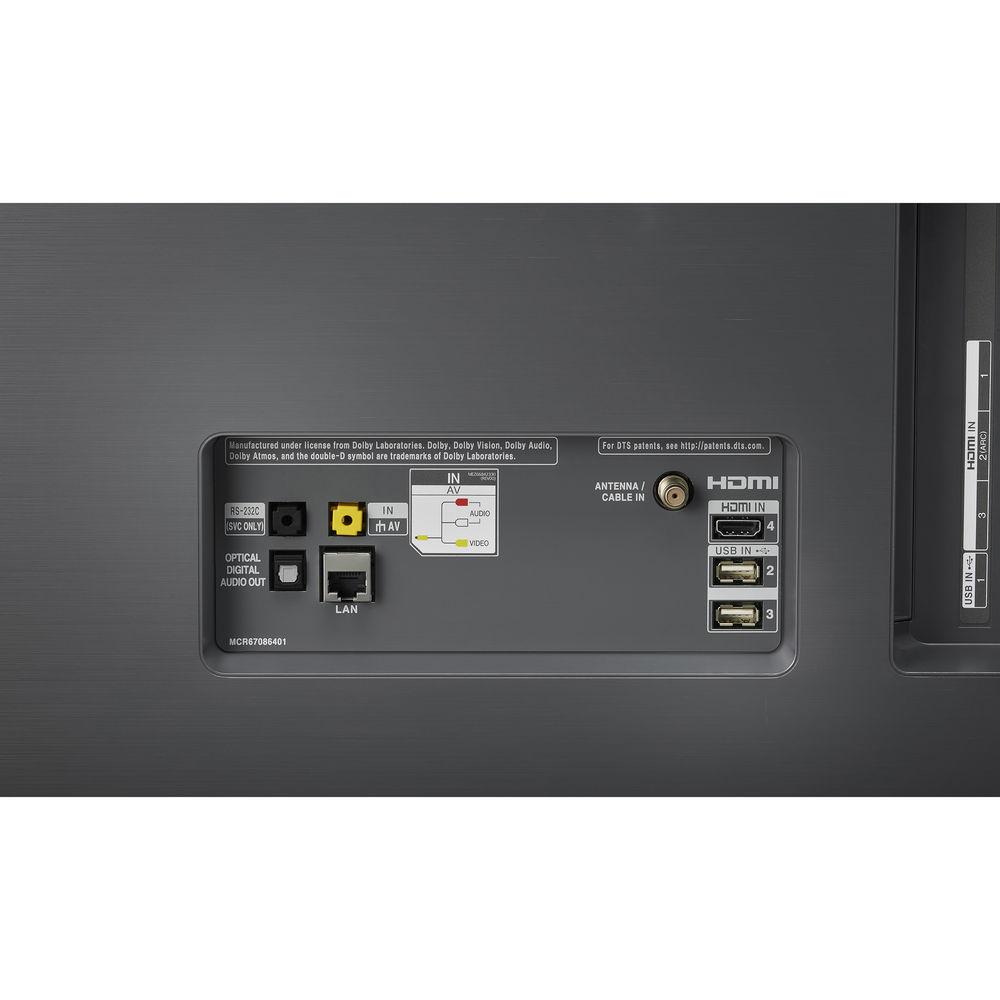

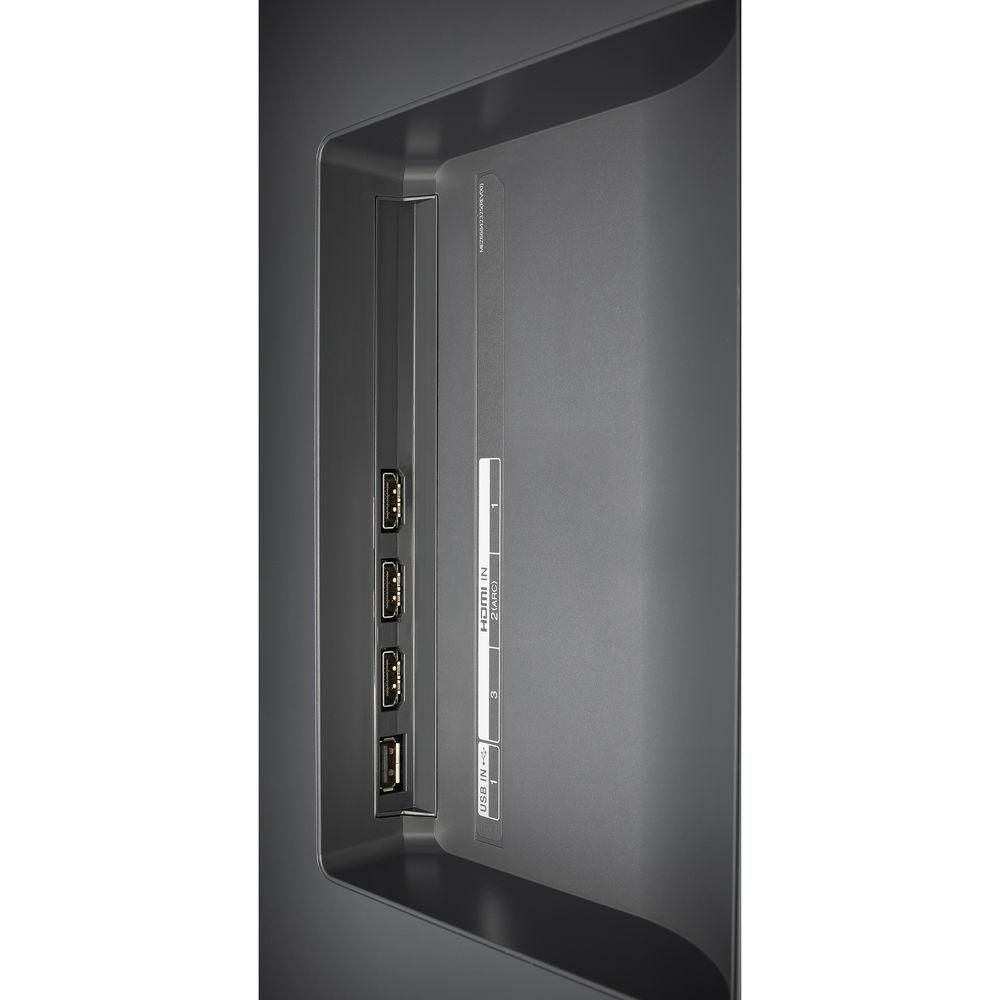

Technical parametersLG C8 Specs | | | Screen Size (Diagonal) | 76.8" | | Panel Type | OLED | | Aspect Ratio | 16:9 | | Pixel Resolution | 3840 x 2160 | | HDR Compatibility | HDR10, Dolby Vision, Hybrid Log Gamma, Advanced HDR | | | | Video System | NTSC / | | TV Tuner | Yes | | 3D | No | | | | Primary Connectivity Location | Display | | Input Ports | 3 x HDMI – Audio, Video (Side)
1 x HDMI – Audio, Video (Rear)
1 x RF Antenna – Audio, Video (Rear)
1 x RCA Composite – Video (Rear)
1 x RCA Stereo (L/R) – Audio (Rear) | | Output Ports | 1 x TOSLINK Optical – Audio (Rear) | | USB Ports | 2 x USB 2.0 – Audio, Photo, Video (Side)
1 x USB 2.0 – Audio, Photo, Video (Rear) | | Ethernet | LAN | | Control | RS-232C | | | | Sound | Stereo | | Subwoofer | None | | Power | 40 W | | Dolby Digital | Yes | | | | Virtual Assistant Support | Amazon Alexa, Google Assistant | | Operating System | AI ThinQ | | Wi-Fi | Built-In | | Remote Control | Yes | | Wall Mounting | 400 x 200mm | | | | Power Requirements | 120 VAC, 50/60 Hz | | Power Consumption | Standby: < 0.5 W | | Dimensions (W x H x D) | 67.8 x 39.0 x 2.2" / 172.2 x 99.1 x 5.6 cm Without stand
67.8 x 41.4 x 10.0" / 172.2 x 105.2 x 25.4 cm With stand | | Weight | 65.9 lb / 29.9 kg Without stand
80.5 lb / 36.5 kg With stand | | | | Package Weight | 109.0 lb | | Box Dimensions (LxWxH) | 73.5 x 44.5 x 11.0" |
