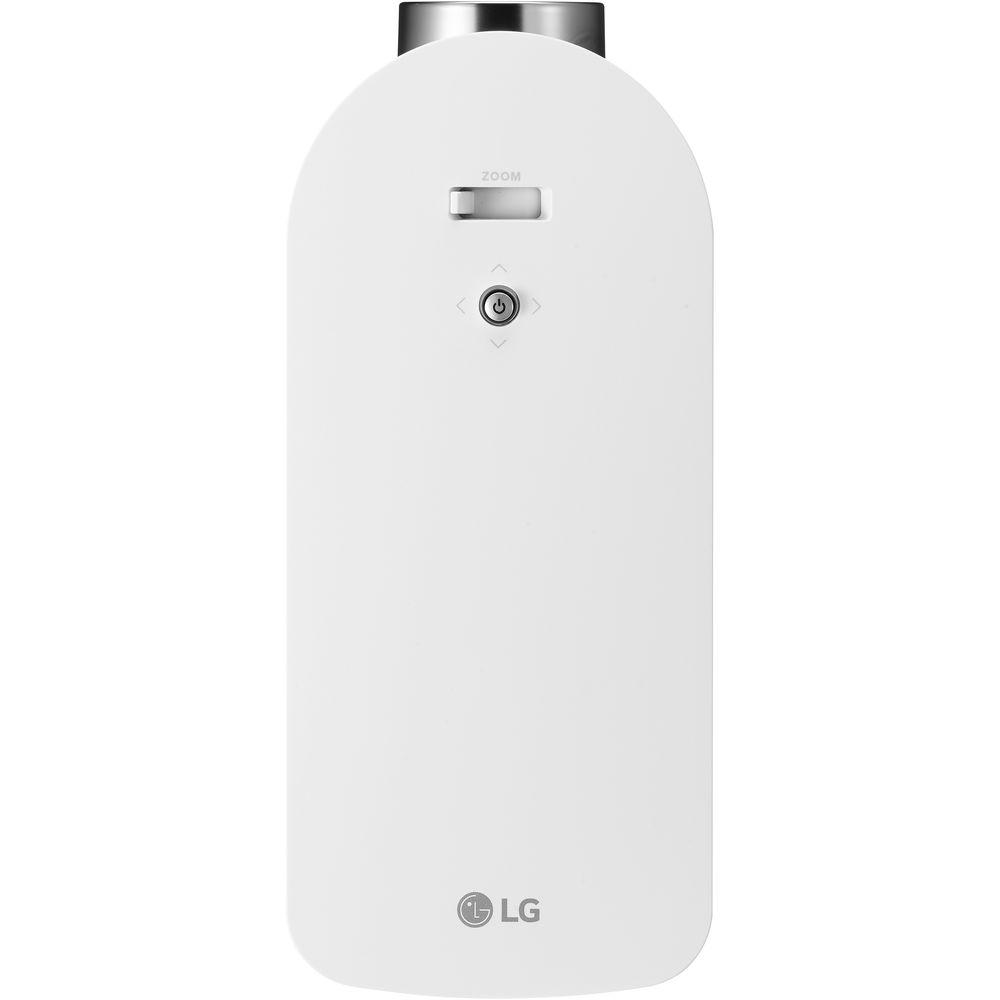

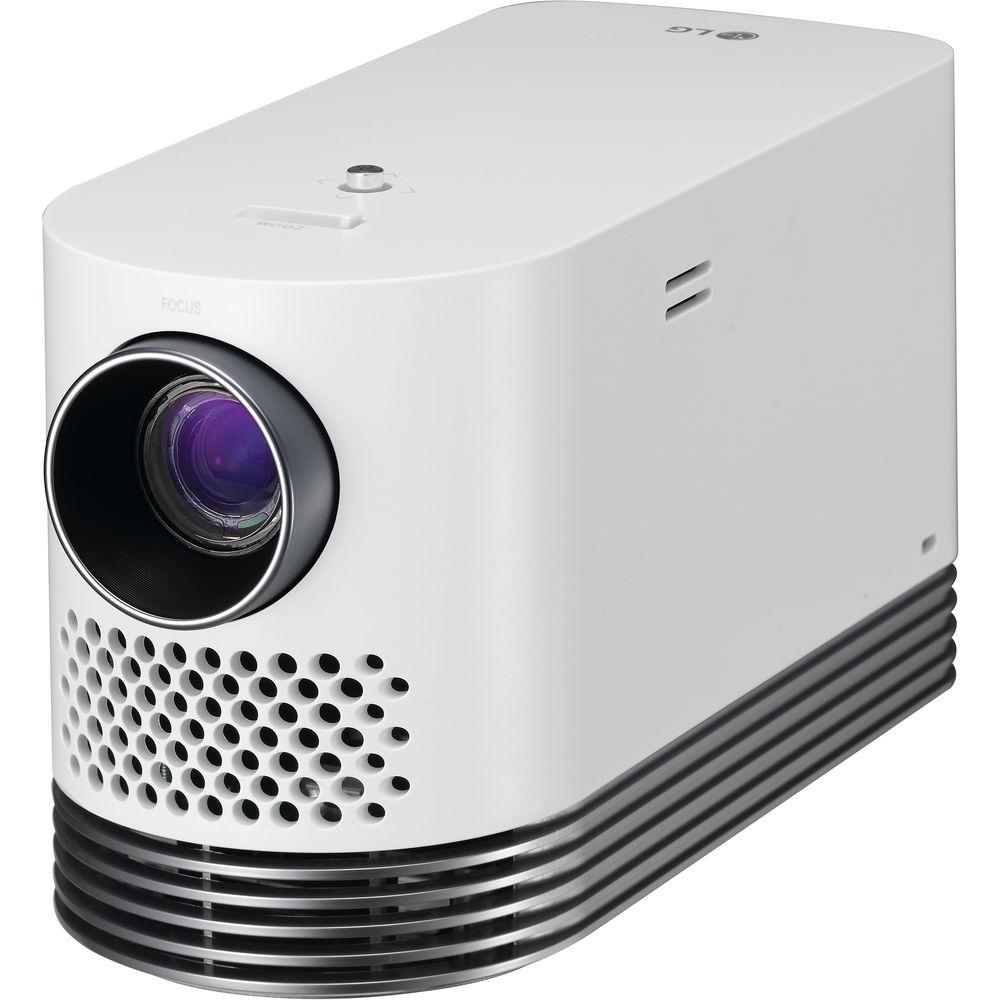

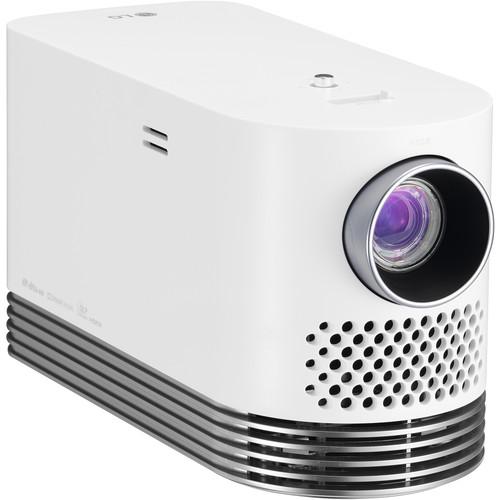

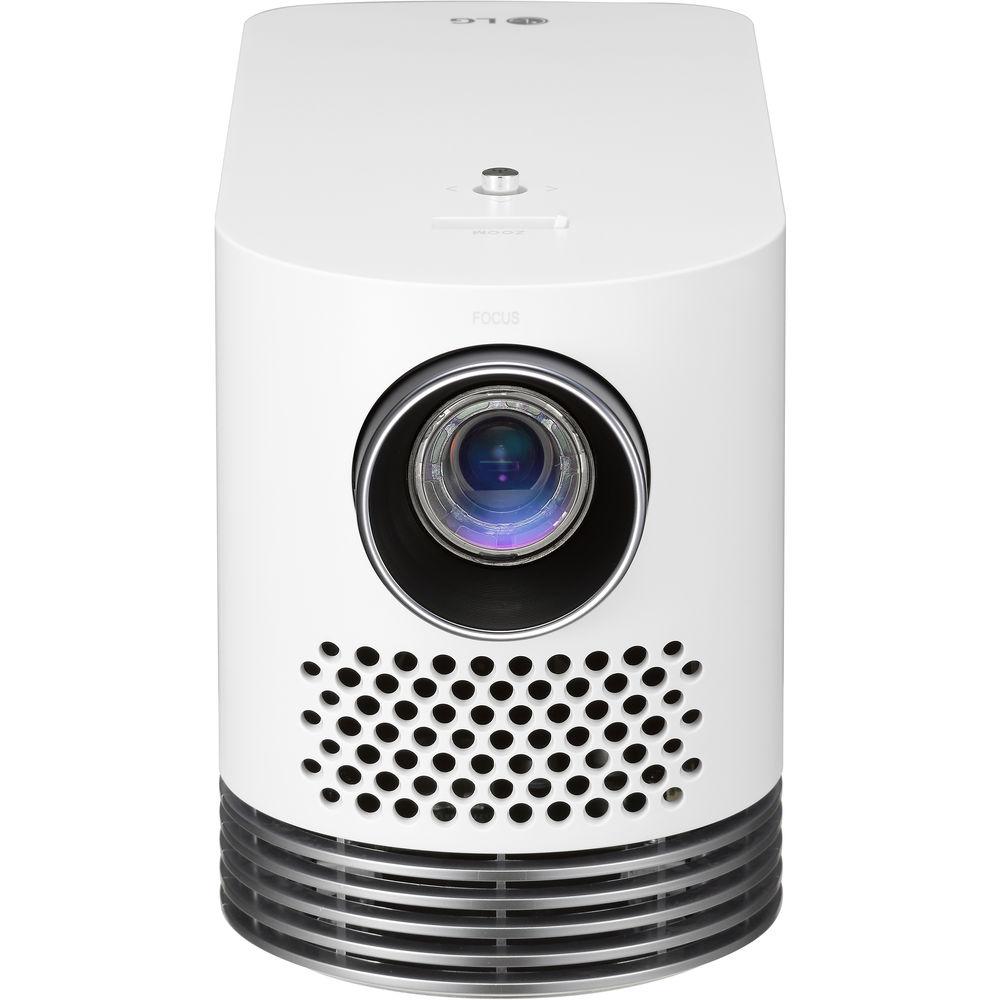

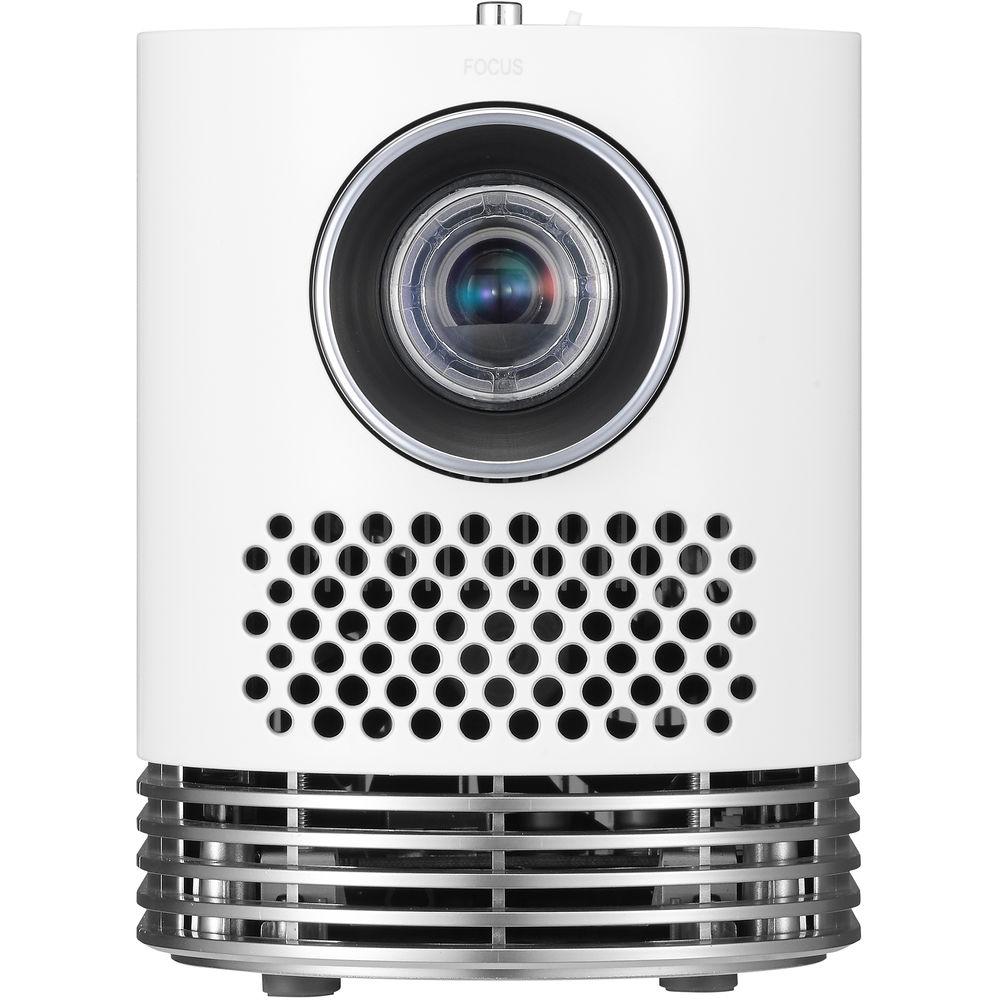

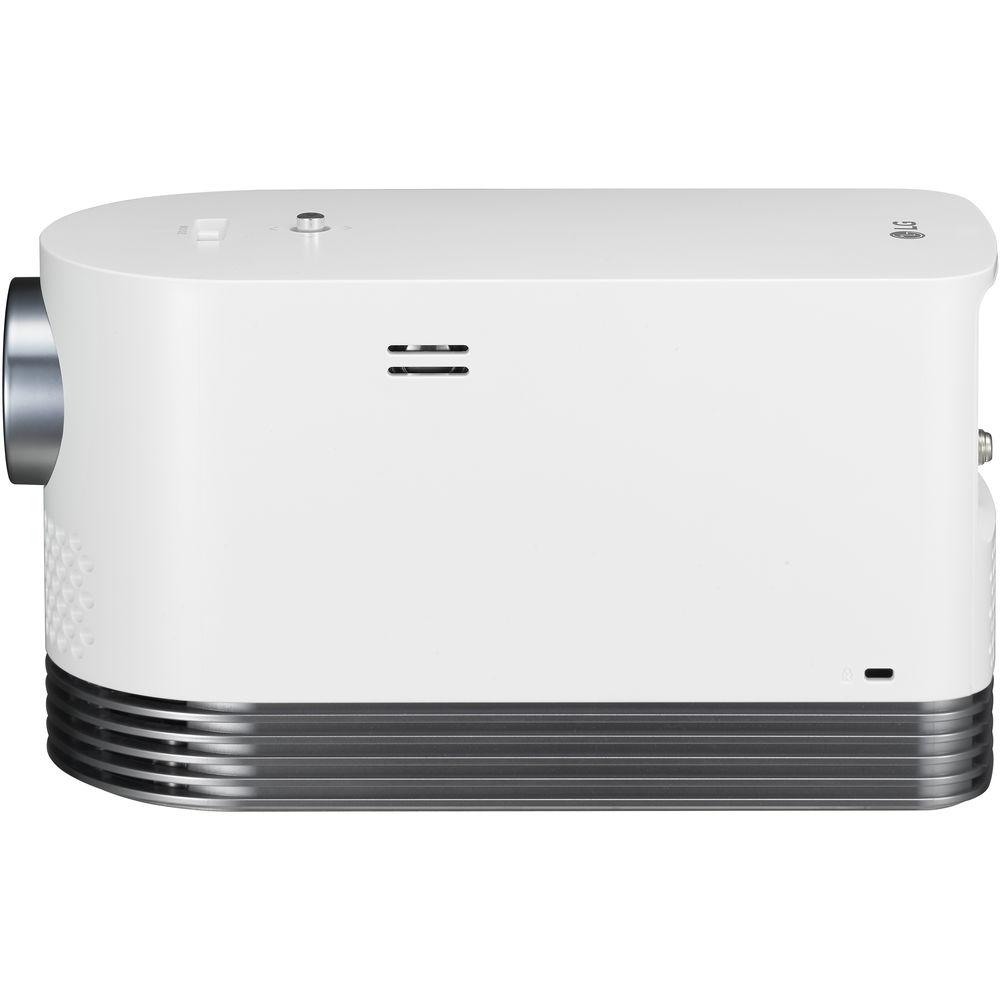

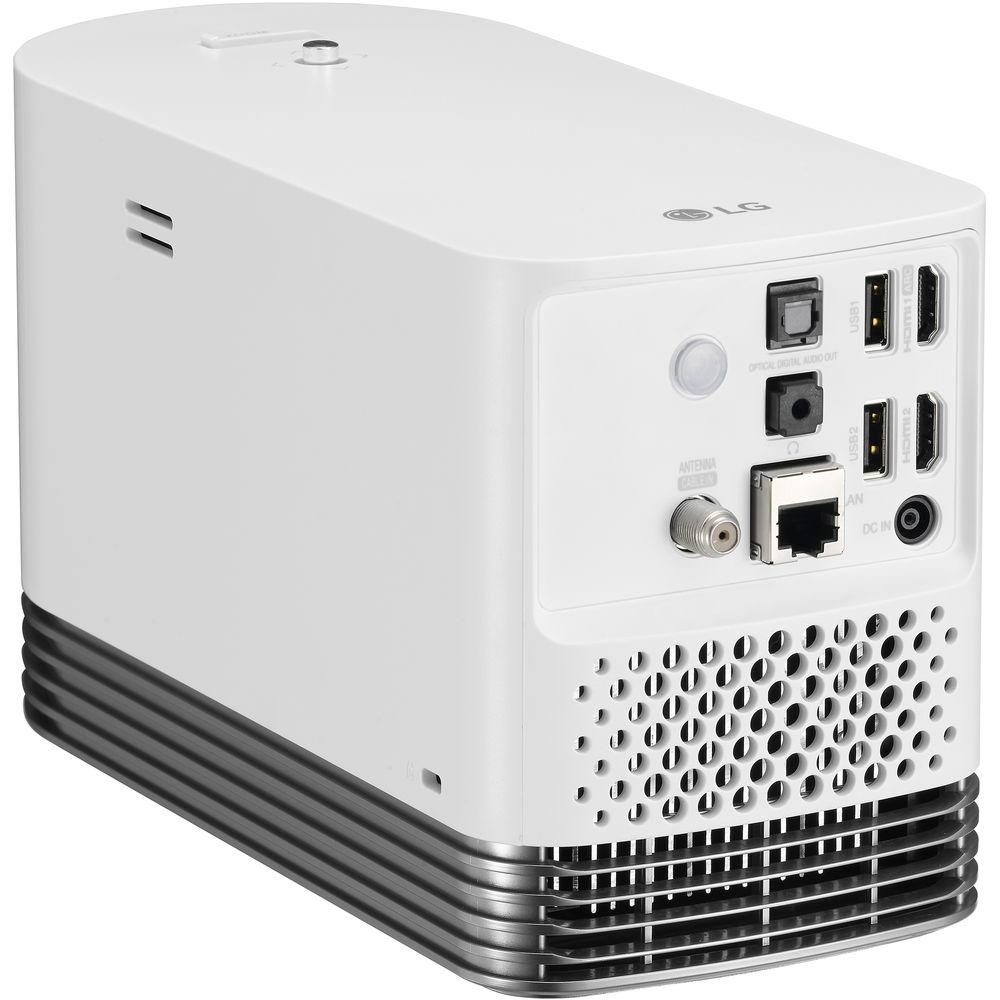

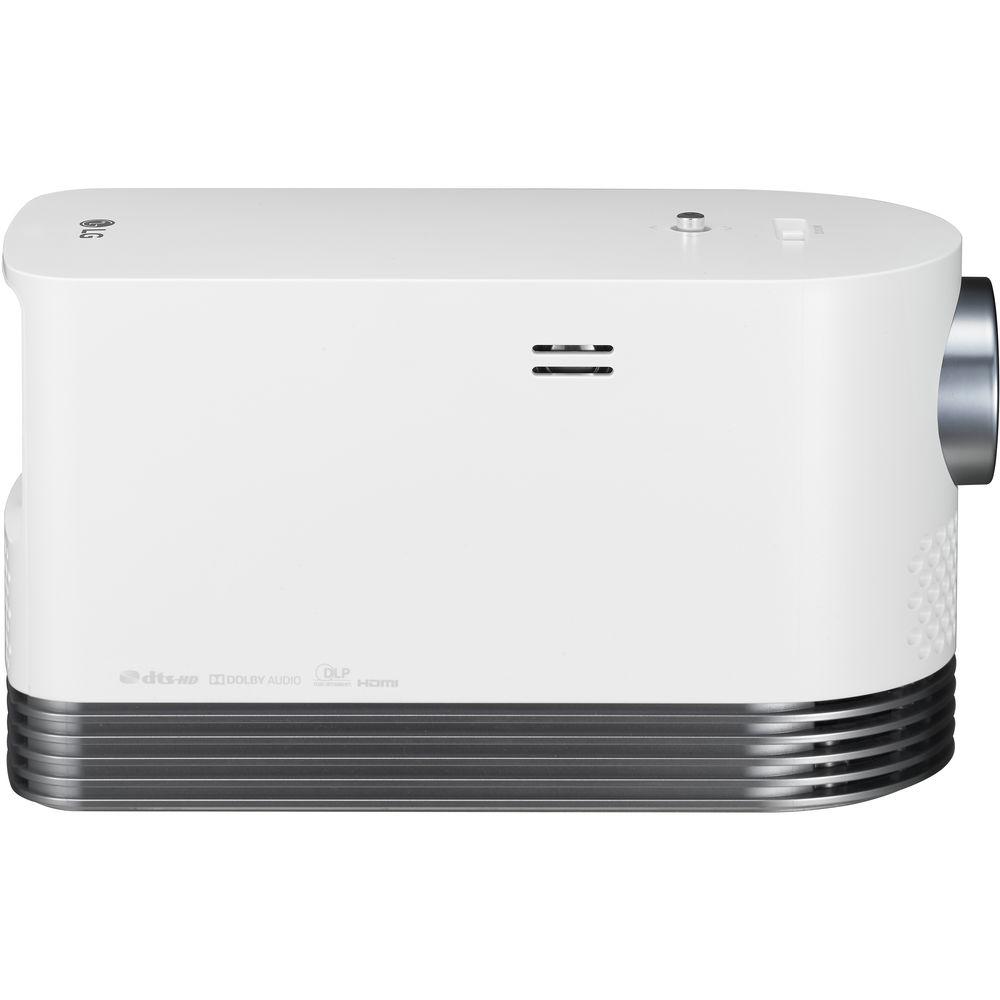

User Manual for LG HF80LA XPR Full HD Laser DLP Home Theater Projector Click to enlarge the picture
Contents of the user manual for the LG HF80LA XPR Full HD Laser
- Product category: Home Theater Projectors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Home Theater Projectors
 |
User manual for the LG HF80LA XPR Full HD Laser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|
Product description Buying Guide to Projectors Read More Enjoy smart-TV functionality on the big screen with the LG HF80LA XPR Full HD Laser DLP Home Theater Projector. It has a maximum brightness of 2000 lumens and can achieve an 80" image from just an 8.1' distance from your screen or wall. The projector uses XPR processing technology to create Full HD (1920 x 1080) images on your screen or wall. Integrated Ethernet connectivity provides internet access and allows you to mirror content from compatible smart devices.
Two HDMI inputs provide wired connectivity for your digital high-definition devices like cable boxes or Blu-ray players. The two USB ports allow you to connect compatible drives for multimedia playback or to use a keyboard, mouse, or select other peripherals. The HF80LA has two 3W speakers built-in, plus wired digital, analog, and wireless Bluetooth audio output, allowing you to listen to your source with nearly any system. The built-in tuner and RF connection enables you to watch broadcast TV without a cable box. -
- Bluetooth audio output
- Manual 4-corner digital keystone adjustment
- Automatic vertical keystone
- USB support for DivX, MP3, and photo files
- Trumotion
- 80" image projection at 8.1'; 40" image projection at 4'
- App store
- Integrated web browser
- DLNA connectivity
- Screen Share (with Miracast, WiDi-supporting devices)
- Wireless Contents Share (with iOS and Android devices)
- Bluetooth A/V sync adjustment
- HID (keyboard/mouse/GamePad connection via USB)
- Quick On/Off – on in 10 seconds, off in 2 seconds
UPC: 719192625815 In the Box LG HF80LA XPR Full HD Laser DLP Home Theater Projector Magic Remote Control with Battery Power Adapter Limited 1-Year Warranty Spec sheet PDF 343.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the LG HF80LA XPR Full HD Laser DLP Home Theater Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG HF80LA Specs | | | Display System | DLP | | On-Screen Resolution | Up to Full HD (1920 x 1080) via XPR | | Max Brightness | 2000 Lumens | | Aspect Ratio | 16:9
4:3 | | Dynamic Contrast Ratio | 150,000:1 | | | | Focus | Manual | | Optical Zoom | Manual: 1.1x | | Projection Size | 30 - 120" / 76.20 - 304.80 cm | | | | Keystone Correction | Auto-Vertical

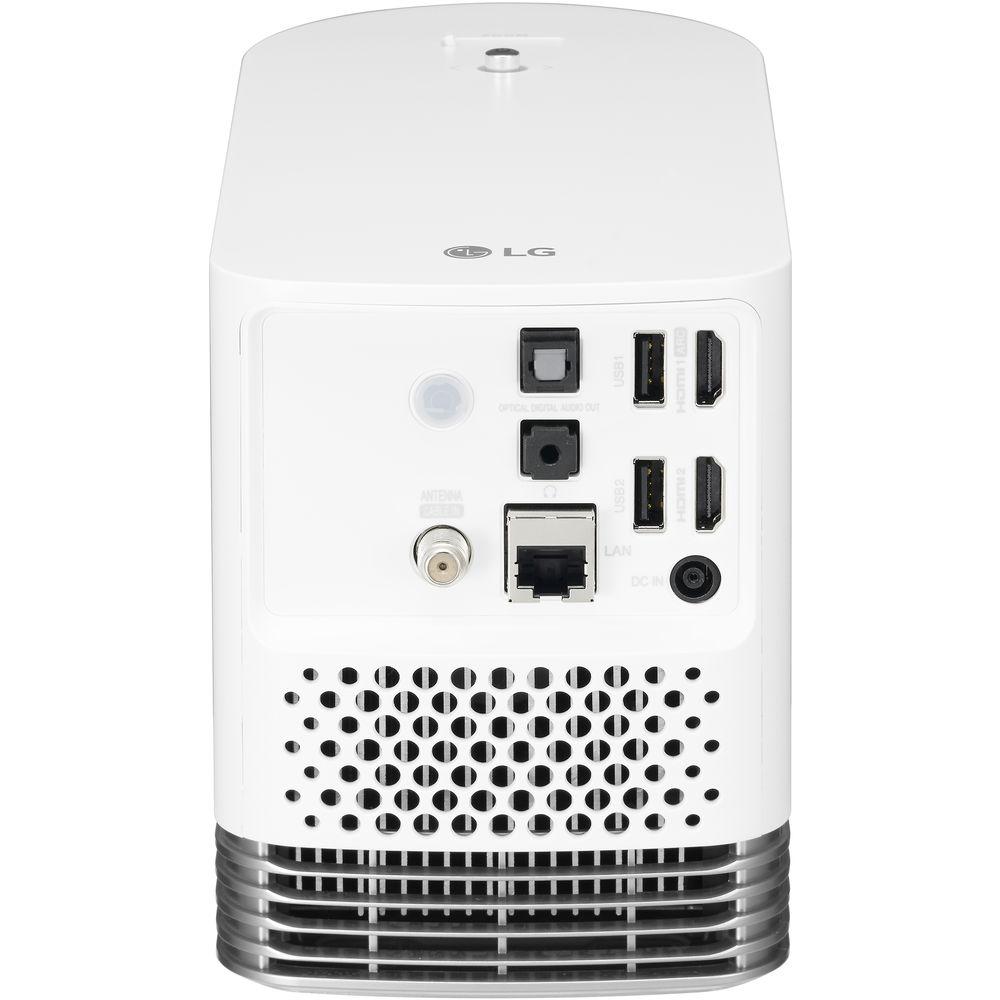

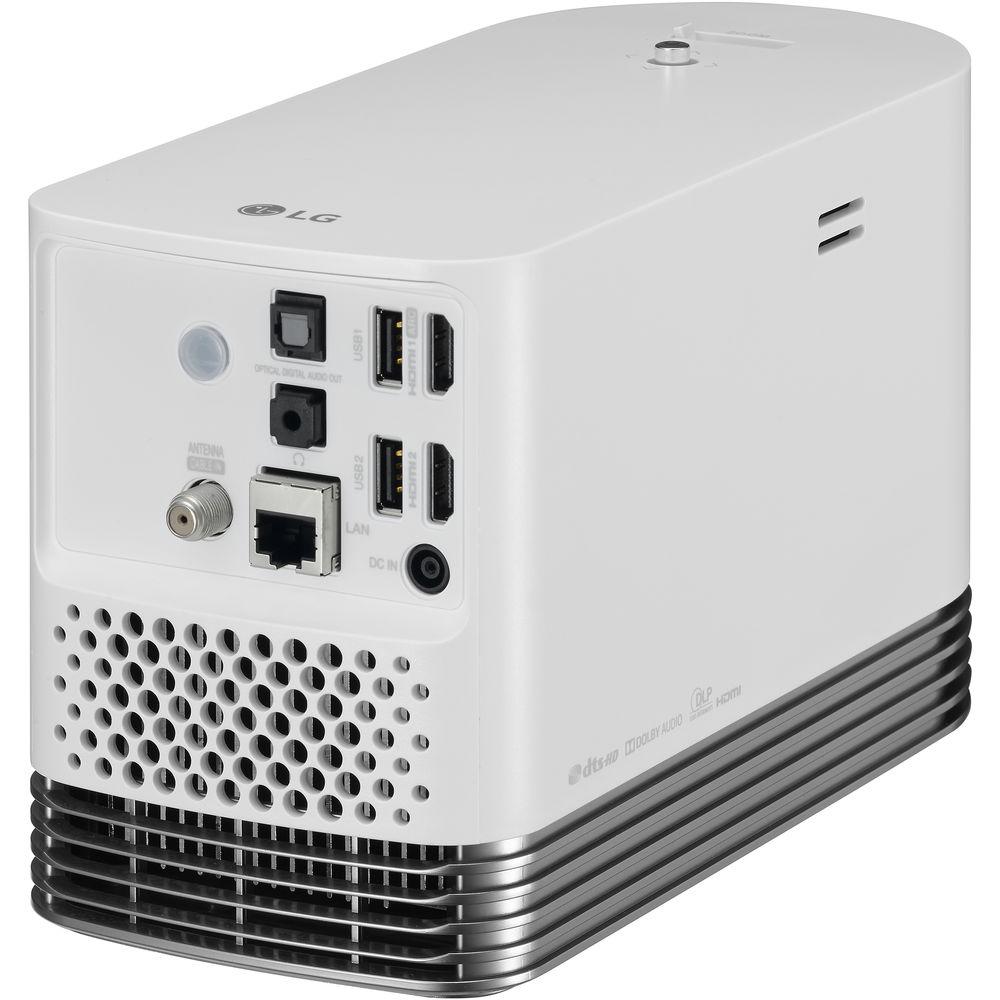

Manual | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 6W | | | | Inputs/Outputs | 2 x HDMI (HDMI Type-A) Audio, Video Input
1 x RF Audio, Video Input
2 x USB 2.0 (USB Type-A) Audio, Video Input
1 x Ethernet (RJ45) LAN
1 x TOSLINK Audio Output
1 x 1/8" / 3.5 mm Mini Audio Output | | | | Light Source | Laser Phosphor | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Fan Noise | Full Brightness: 30 dB
Medium Brightness: 28 dB
Low Brightness: 26 dB | | Supported Audio File Types | MP3 | | Supported Video File Types | DivX | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 140 W
Standby Mode (Lamp Off): <0.5 W | | Dimensions (W x H x D) | 4.3 x 5.5 x 9.9" / 10.9 x 14.0 x 25.1 cm | | Weight | 4.6 lb / 2.09 kg | | | | Package Weight | 7.625 lb | | Box Dimensions (LxWxH) | 15.0 x 13.05 x 6.2" |
