User Manual for LG LHB675N 2-Channel 3D Blu-ray Home Theater System Click to enlarge the picture
Contents of the user manual for the LG LHB675N 2-Channel 3D Blu-ray Home
- Product category: Home Theater in a Box LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Home Theater in a Box
 |
User manual for the LG LHB675N 2-Channel 3D Blu-ray Home contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

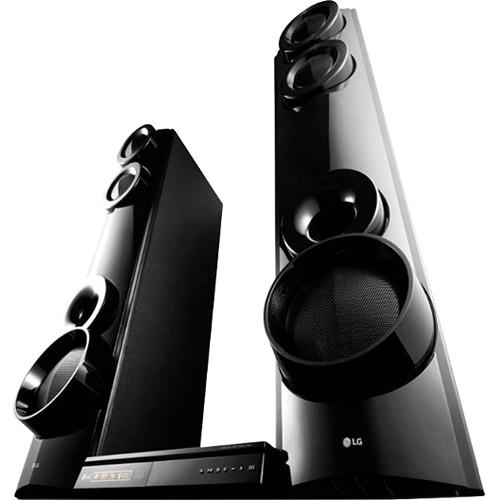

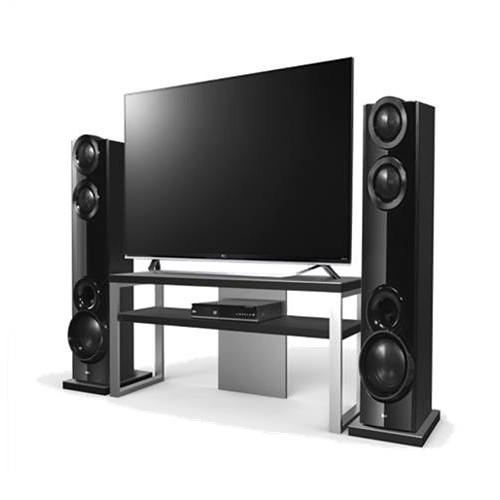

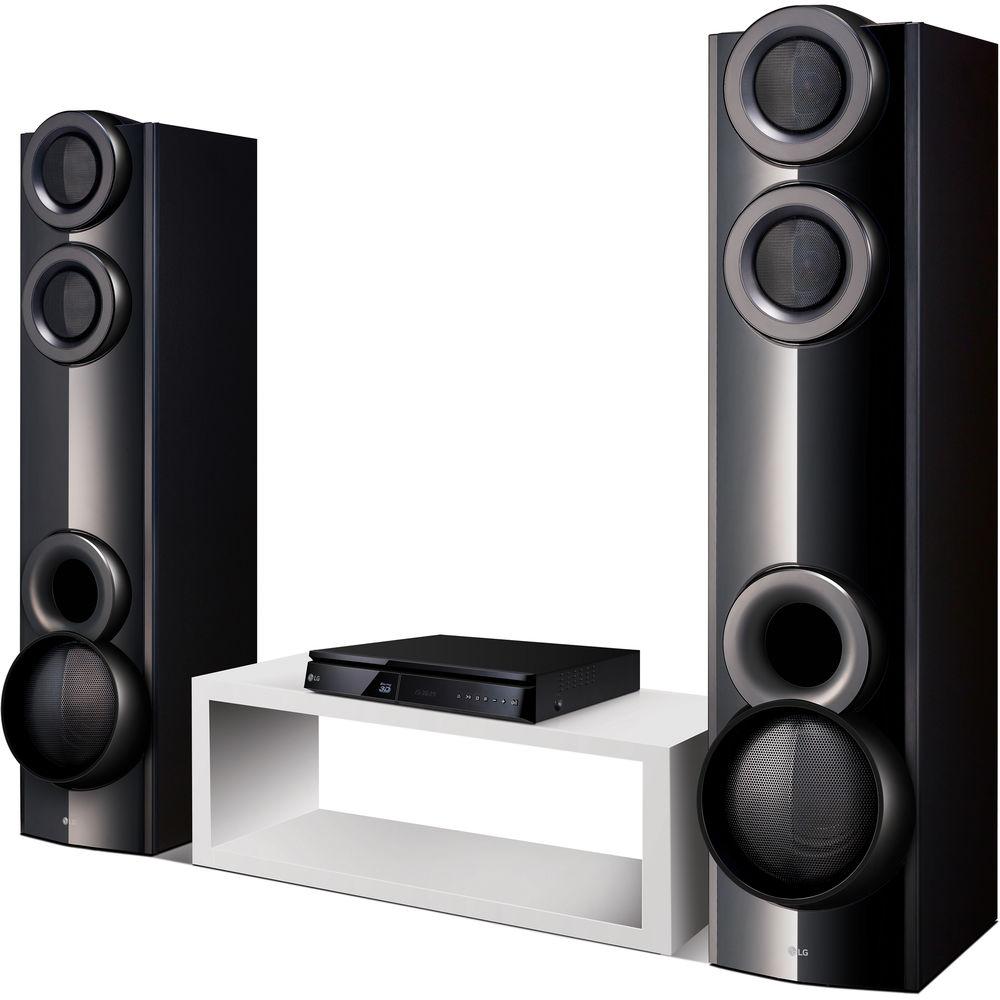

Product description Enjoy immersive audio and wireless music playback with the LG LHB675N 2-Channel 3D Blu-ray Home Theater System. This 1002W system consists of two floorstanding speakers and a combination Blu-ray player and amplifier. Integrated Bluetooth connectivity allows you to wirelessly stream music from compatible devices such as smartphones and tablets.
The optical and RCA audio inputs allow you to connect a variety of external source components. An HDMI output is onboard to connect your system to your display, and ARC compatibility enables video to get to your display and display-based audio, such as built-in apps, to get to the system over a single cable. There's even a USB port available for interfacing compatible drives for playback of your digital audio files. This system's built-in FM tuner allows you to listen to free over-the-air radio programming. - Simulated Surround Sound
- This 1002W system uses a simulated surround sound effect to deliver an enhanced home theater experience with just two speakers.
- 3D Blu-ray Playback
- If you have a 3D-capable display, you can enjoy 3D playback with compatible discs.
- Dedicated Woofers
- This system features dedicated woofers for augmented bass without a separate subwoofer, so no additional wires or setup are required.
- Additional Features
-
- External HDD playback
- USB Direct Recording
- Smartphone remote app
- SIMPLINK HDMI CEC
- LG TV Sound Sync via Bluetooth
- Private Sound Mode
UPC: 719192613393 In the Box LG LHB675N 2-Channel 3D Blu-ray Home Theater System Remote Control with Batteries FM Antenna Speaker Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LG LHB675N 2-Channel 3D Blu-ray Home Theater System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG LHB675N Specs | | | Channels | 2 | | Power Output | Total: 1002 W RMS @ 3 Ohms, 10% THD
Per Channel: 501 W RMS @ 3 Ohms, 10% THD
Per Driver: 167 W RMS @ 3 Ohms, 10% THD | | Driver Size | Not specified by manufacturer | | Frequency Response | 20 Hz to 18 kHz (48, 96, 192 kHz sampling) | | Harmonic Distortion | <0.05% | | Dynamic Range | >80 dB | | Radio Tuner | FM | | Tuning Range | 87.5 to 108 MHz | | Disc Types | BD-ROM, BD-R, BD-RE, DVD, DVD±R, DVD±RW, Audio CD, CD-R, CD-RW, DTS-CD | | Regions Supported | Blu-ray: A
DVD: 1 | | Color System | NTSC | | Audio Formats | LPCM, Dolby Digital, Dolby Digital Plus, Dolby True HD, DTS, DTS-HD High Resolution Audio, DTS-HD Master Audio | | File Support | Video: MPEG2, MPEG4 AVC (H.264), SMPTE VC1 (VC-9), MKV, AVCHD, M4V, WMV, FLV, 3GP, MPEG-1, MP4, MOV, VOB, Xvid
Audio: MPEG 1/2 L2, MP3/ID3 Tag, FLAC, WMA, AAC | | Laser Type | Semiconductor | | Laser Wavelength | 405 nm / 650 nm | | | | Bluetooth | Yes | | Inputs | 1 x optical TOSLINK
1 x stereo RCA AUX [2 Vrms (1 kHz, 0 dB), 600 Ohms]
1 x USB (5 V, 500 mA) | | Outputs | 1 x HDMI with ARC | | Other Connections | 1 x FM antenna
1 x Ethernet LAN | | Speaker Connectors | Not specified by manufacturer | | | | Power Requirements | Not specified by manufacturer | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 5 to 90% | | Power Consumption (Active) | 135 W | | Power Consumption (Standby) | <0.5 W | | Dimensions (W x H x D) | Main Unit: 14.2 x 2.4 x 12.2" / 36.1 x 6.1 x 31 cm
Speakers: 9.1 x 39.2 x 12.2" / 23.1 x 99.6 x 31 cm each | | Weight (Approximate) | Main Unit: 5.8 lb / 2.6 kg
Speakers: 29 lb / 13.2 kg each | | | | Package Weight | 68.25 lb | | Box Dimensions (LxWxH) | 42.25 x 25.13 x 15.0" |
