User Manual for LG LJ4540 24" Class HD LED TV Click to enlarge the picture
Contents of the user manual for the LG LJ4540 24" Class HD LED
- Product category: Televisions LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Televisions
 |
User manual for the LG LJ4540 24" Class HD LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

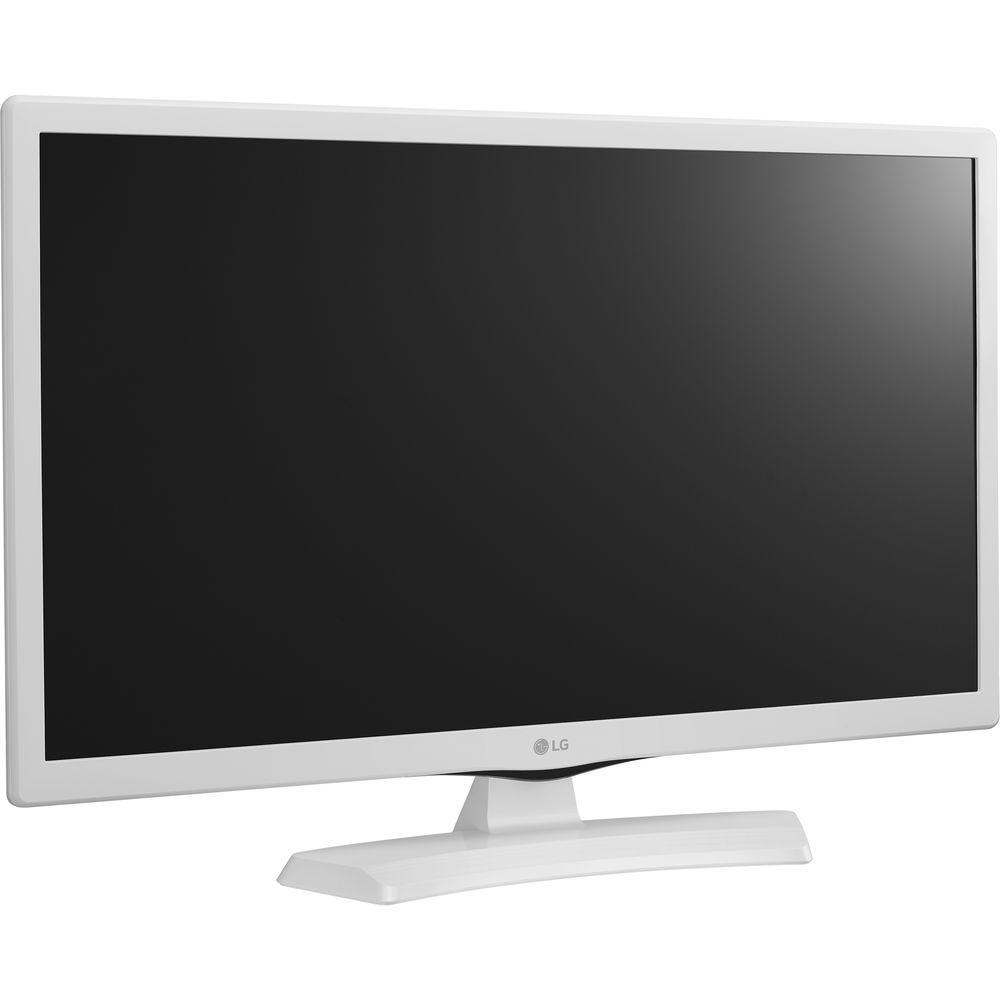

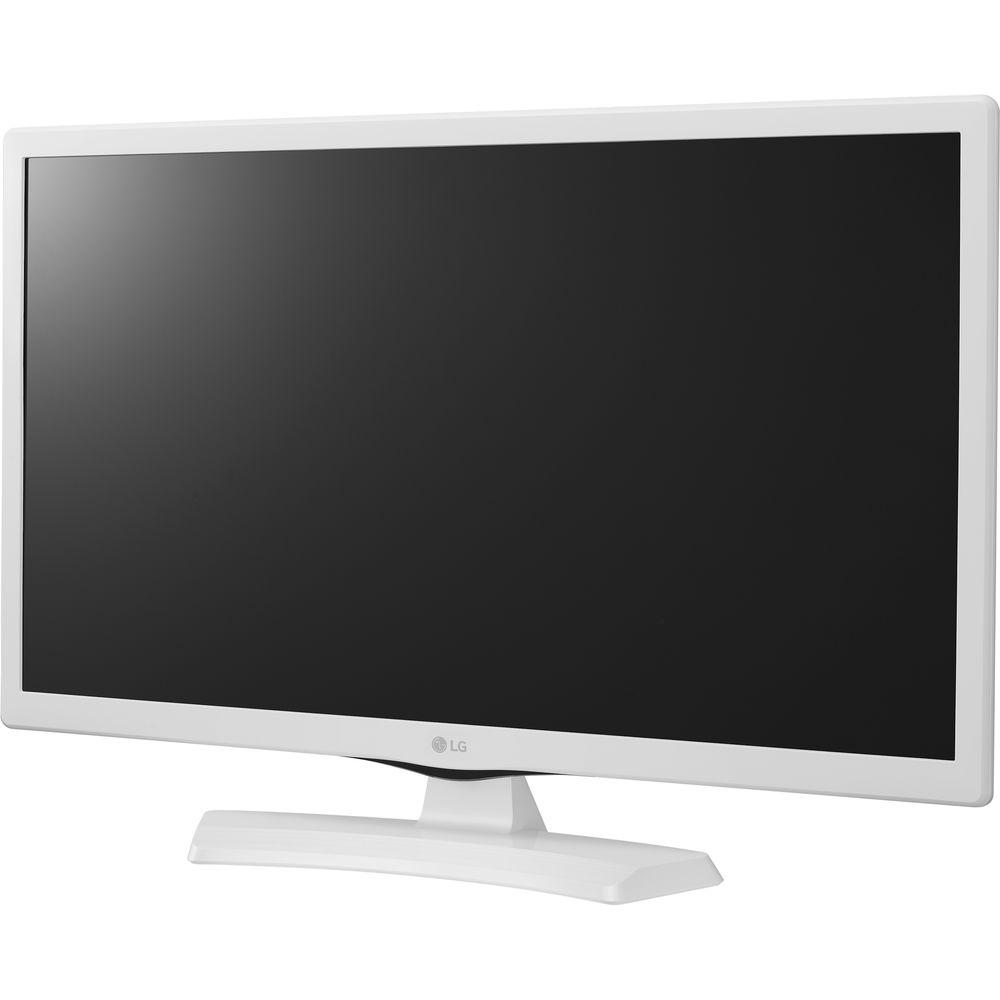

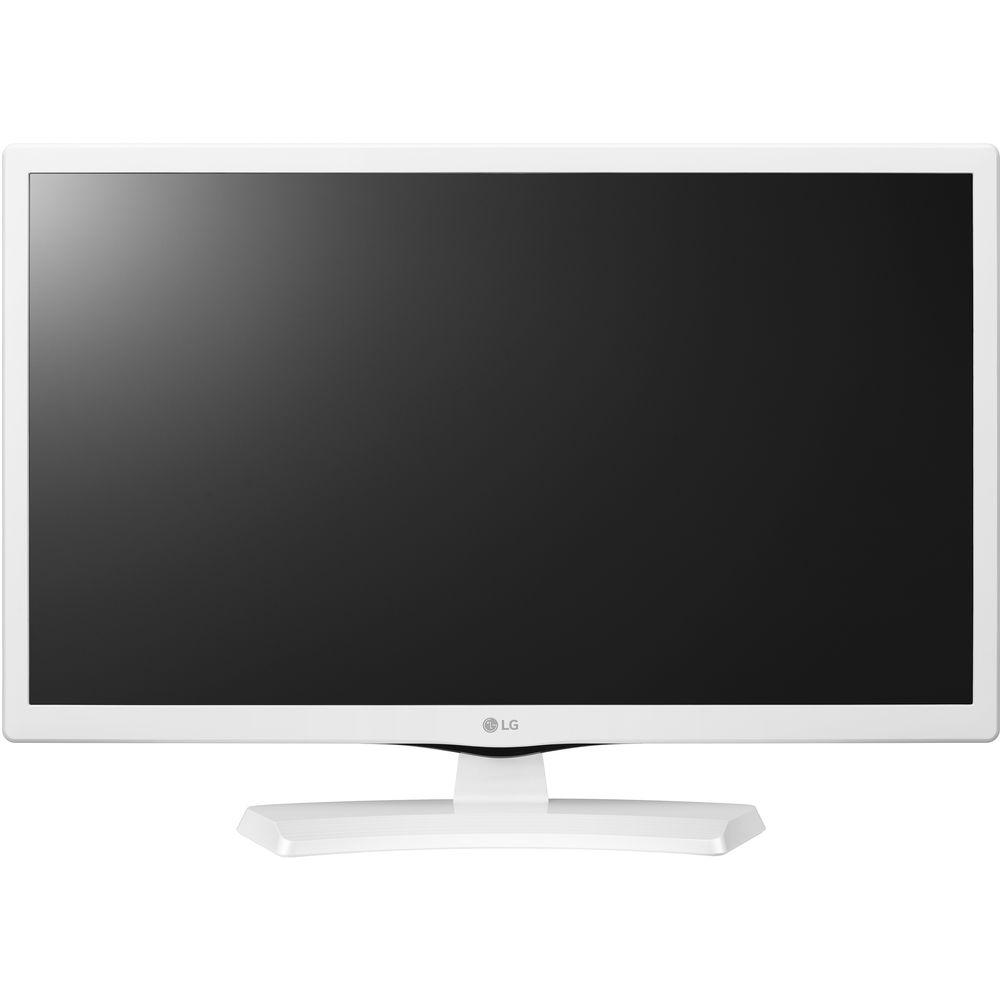

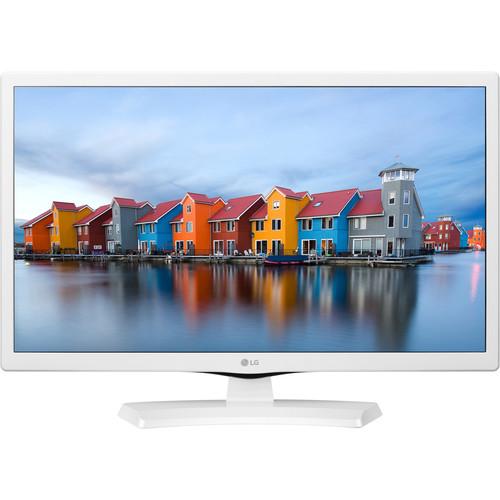

Product description The Big March TV Tournament Read More ybcusrtwy Enjoy high-definition content with the white LG LJ4540 24" Class HD LED TV. This 23.6" LED-backlit LCD panel features a native resolution of 1366 x 768, allowing you to view detailed 720p HD images. Its HDMI input will allow you to connect your digital HD sources, such as HD cable/satellite boxes or game consoles. A remote control is included as an added convenience. - Designed for smart energy saving
- 8-bit (6-bit + FRC) color depth
- Non-glare surface treatment
UPC: 719192609006 In the Box LG LJ4540 24" Class HD LED TV (White) Remote Control Limited 1-Year Warranty The Top 8 TVs of 2018 Richard Risitano 12/20/2018 The B&H Television Buying Guide Lawrence Neves 01/31/2018 Specification PDF 450.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the LG LJ4540 24" Class HD LED TV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

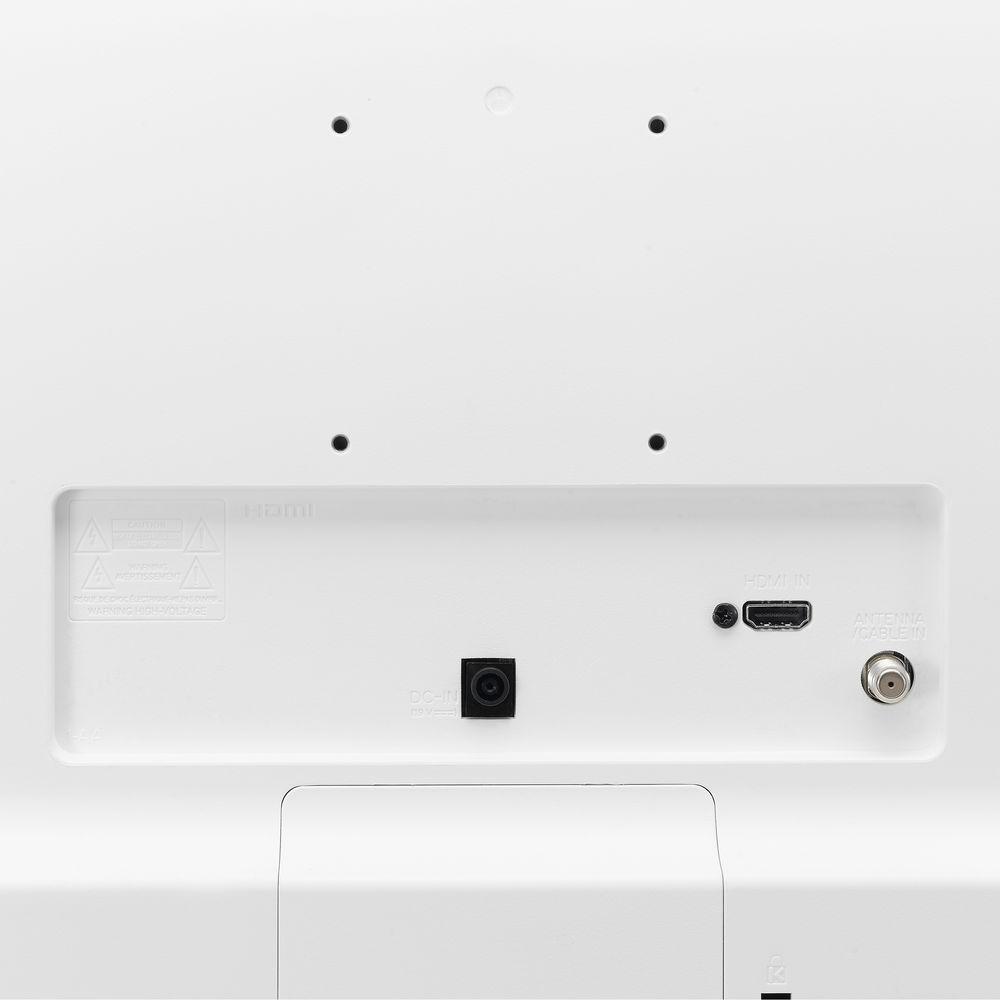

Technical parametersLG LJ4540 Specs | | | Screen Size (Diagonal) | 23.6" | | Panel Type | LCD | | Aspect Ratio | 16:9 | | Pixel Resolution | 1366 x 768 | | Brightness | 180 cd/m² | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 5,000,000:1 | | Response Time | 14 ms | | Dot Pitch | 0.38175 x 0.38175 mm | | Display Colors | 16.7 Million | | Viewing Angle (H x V) | 178 x 178° | | | | Video System | NTSC / | | TV Tuner | Yes | | 3D | No | | | | Primary Connectivity Location | Display | | Input Ports | 1 x HDMI – Audio, Video
1 x RF Antenna – Audio, Video | | USB Ports | 1 x USB 2.0 – Audio, Photo, Video | | | | Sound | Stereo | | Subwoofer | None | | Power | 6 W | | | | Picture Modes | APS, Cinema, Game, Sports, Standard, Vivid | | Remote Control | Yes | | Wall Mounting | 75 x 75mm | | | | Power Requirements | 100-240 VAC | | Power Consumption | Operational: 26.0 W
Standby: 1.0 W | | Dimensions (W x H x D) | 21.9 x 15.2 x 5.8" / 55.6 x 38.6 x 14.7 cm With stand
21.9 x 13.6 x 2.1" / 55.6 x 34.5 x 5.3 cm Without stand | | Weight | 7.5 lb / 3.40 kg With stand
7.1 lb / 3.2 kg Without stand | | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 27.5 x 15.5 x 5.1" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 72 owners. Add your rating and experience with the product.
