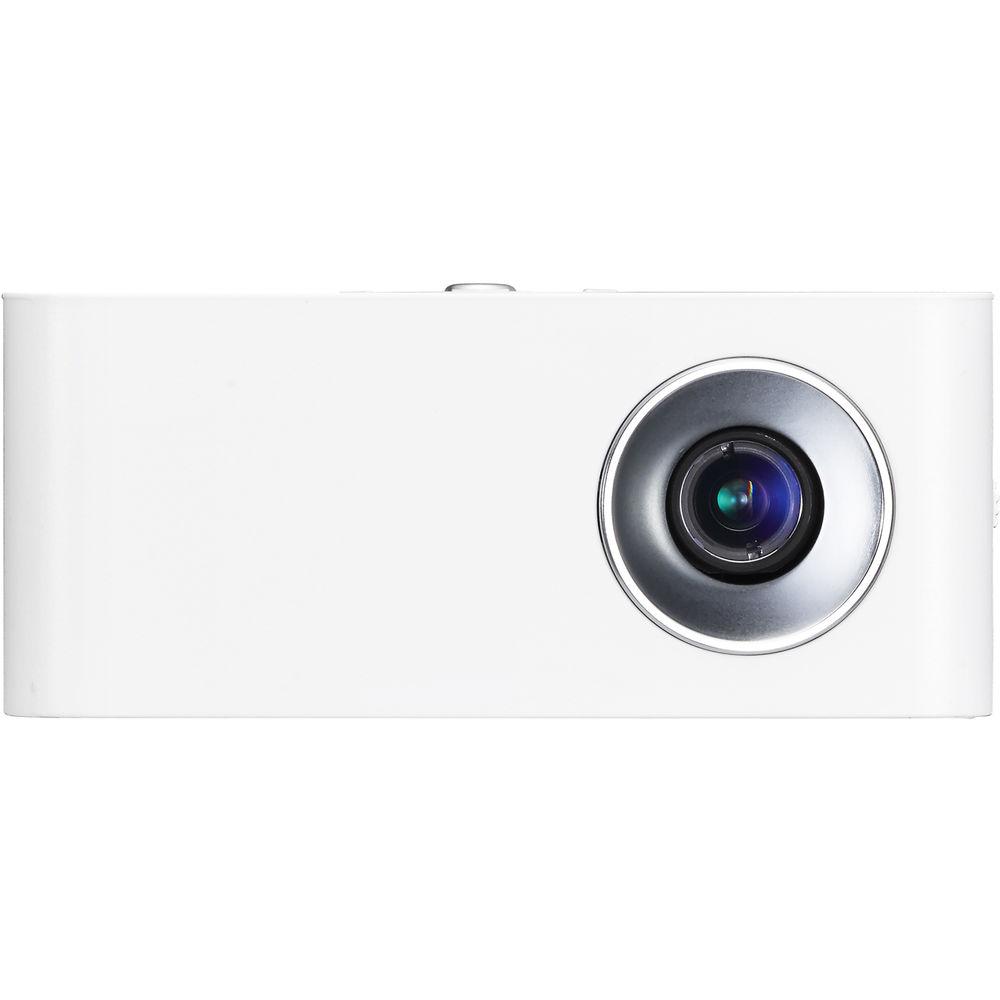

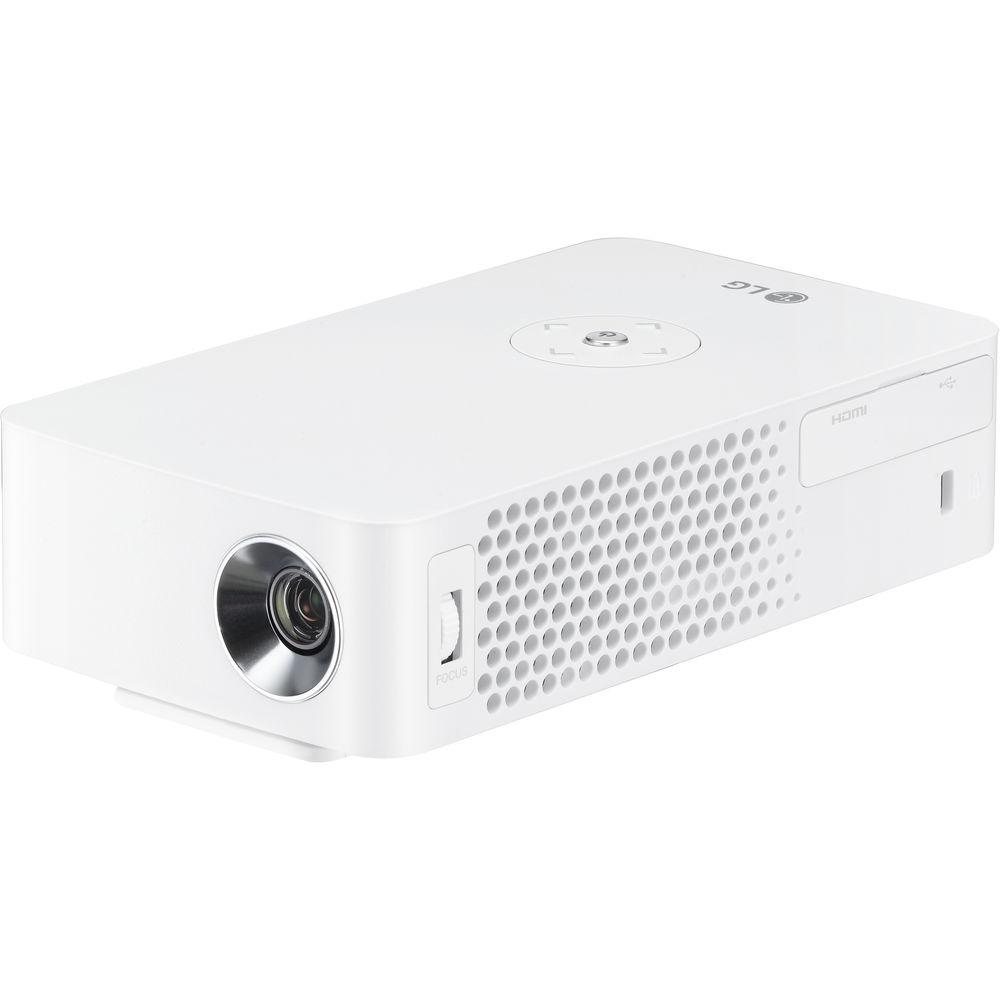

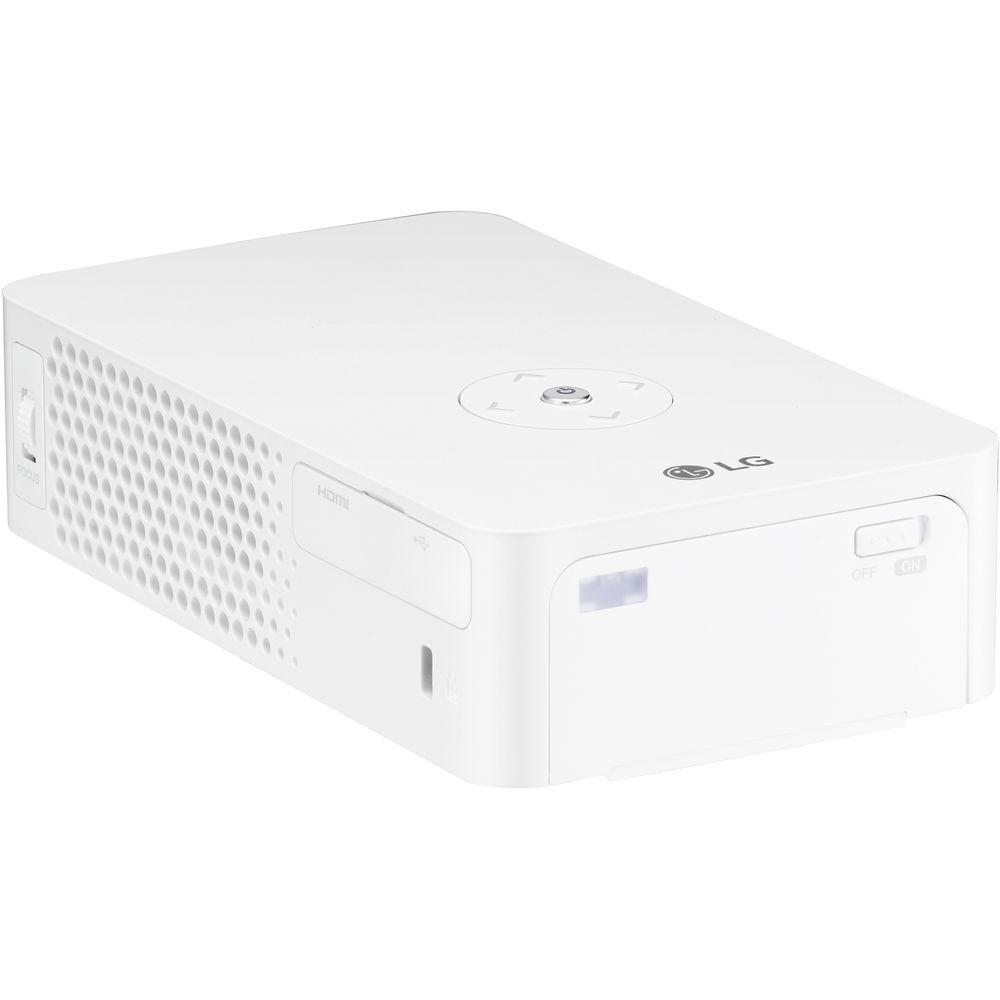

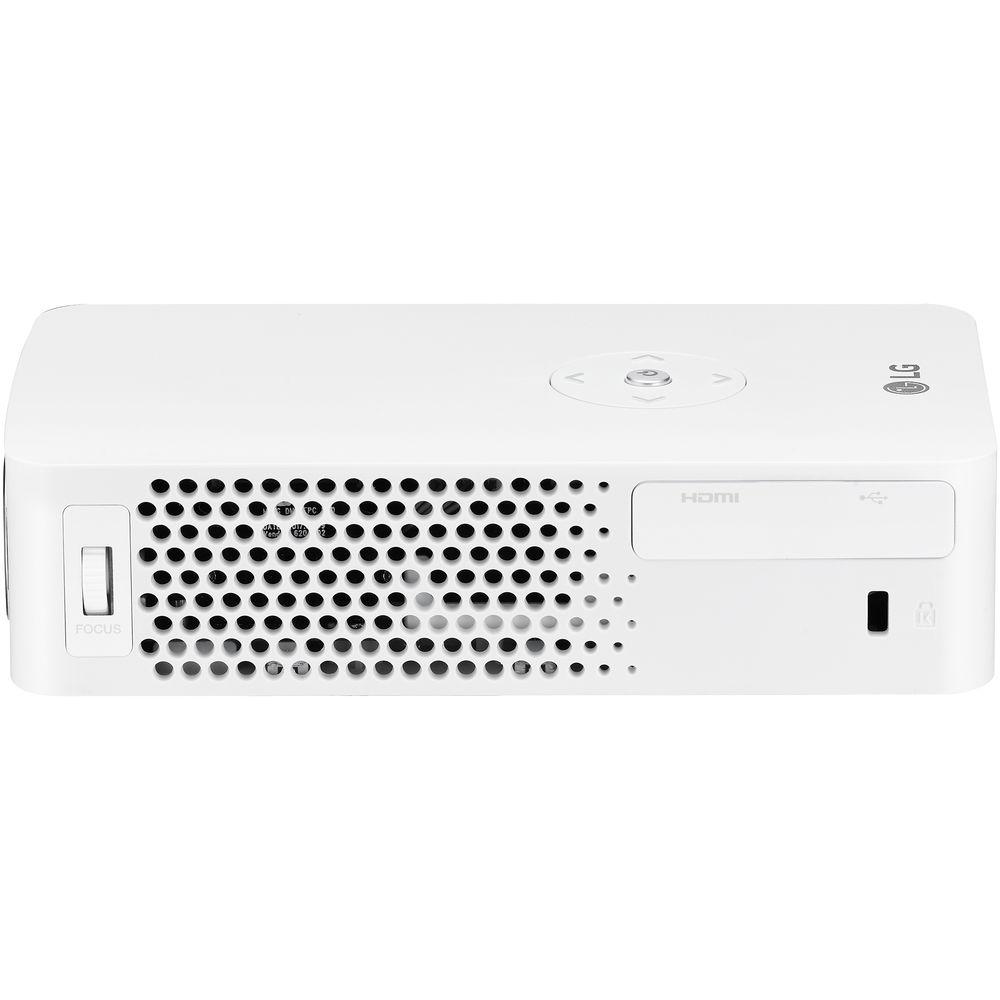

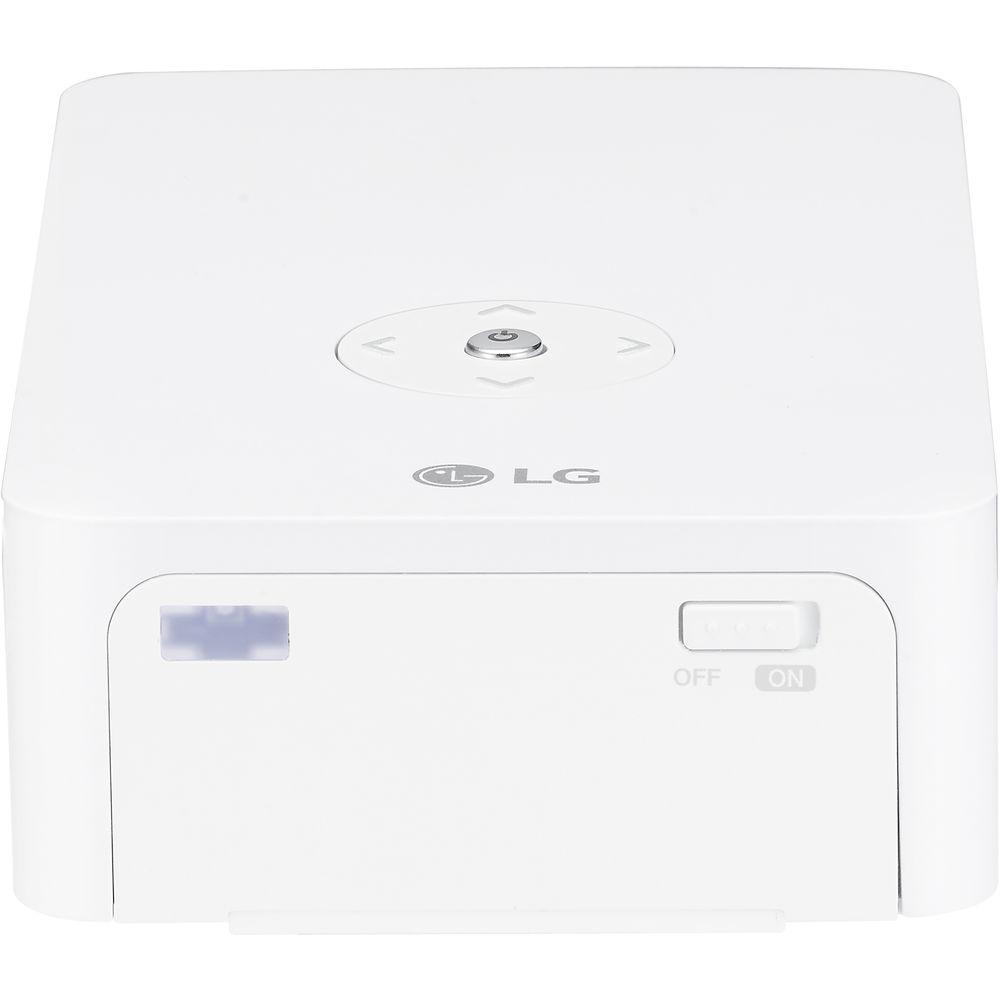

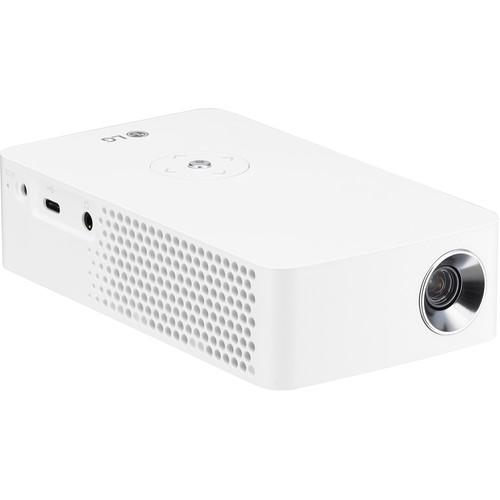

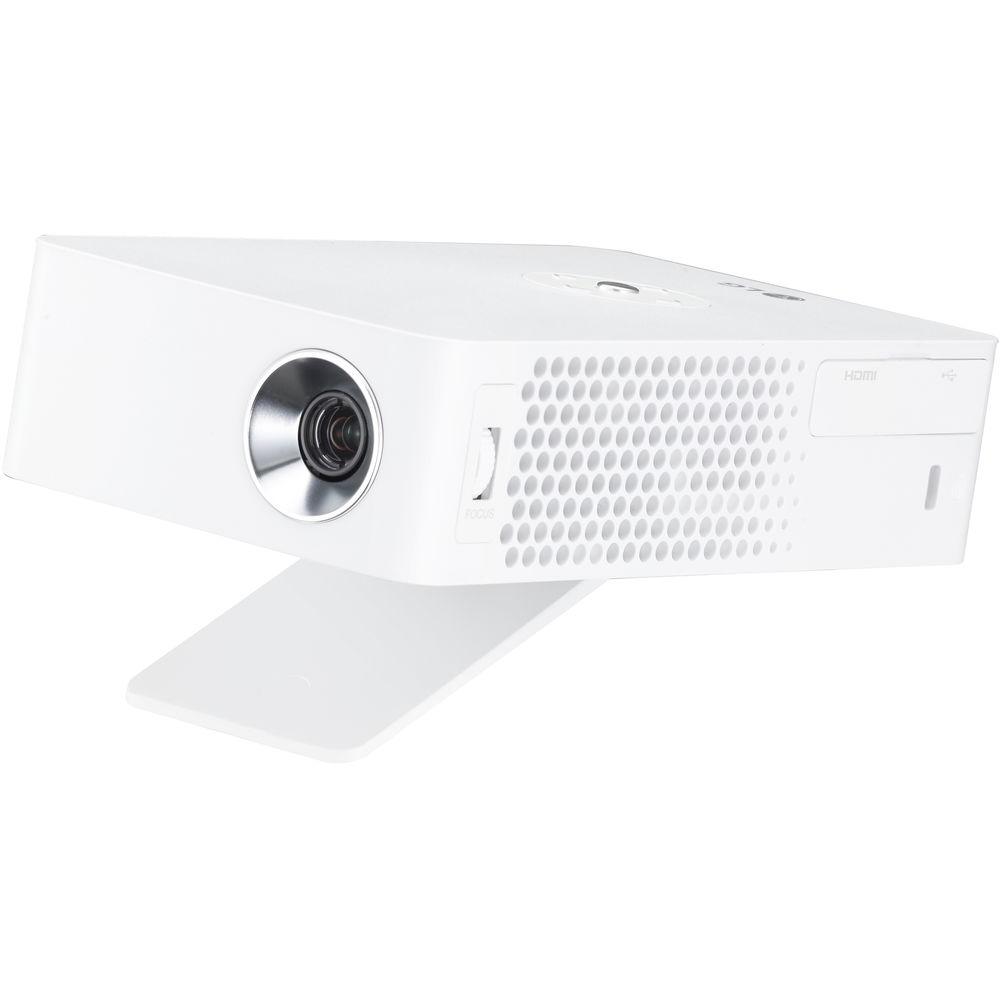

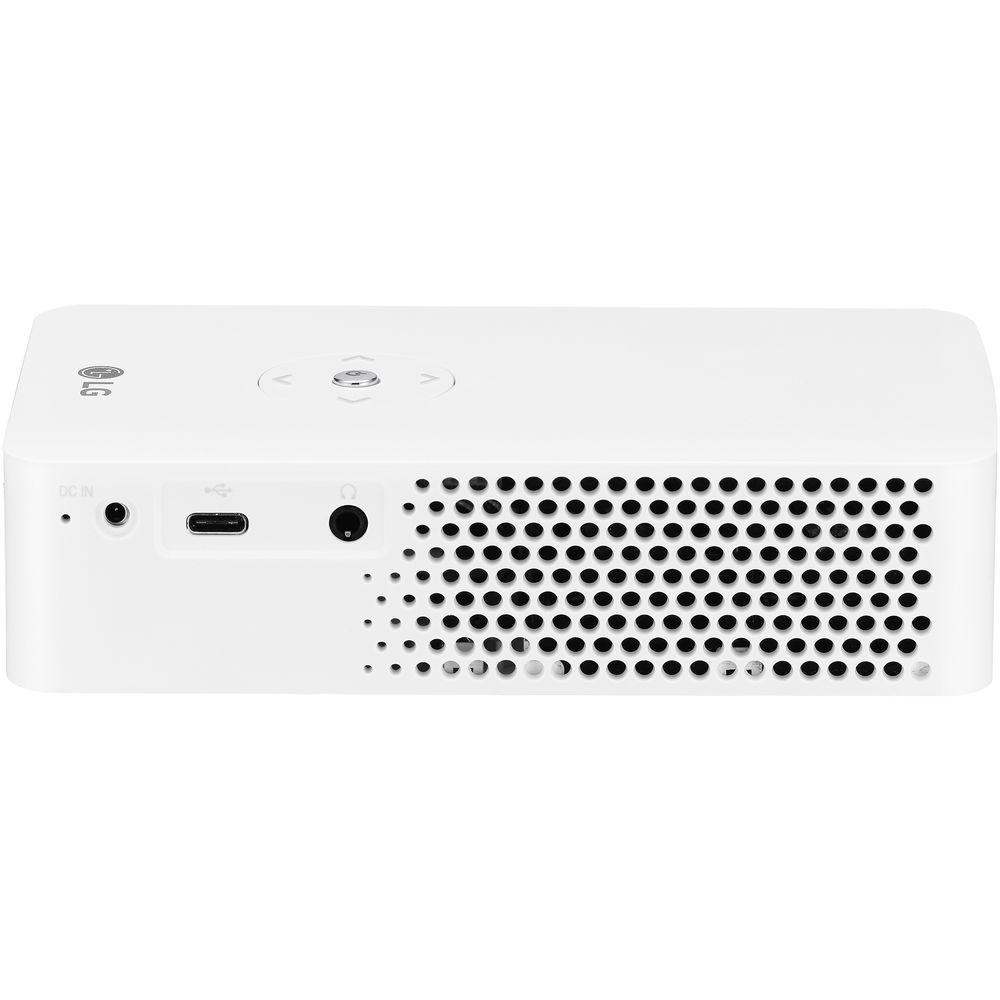

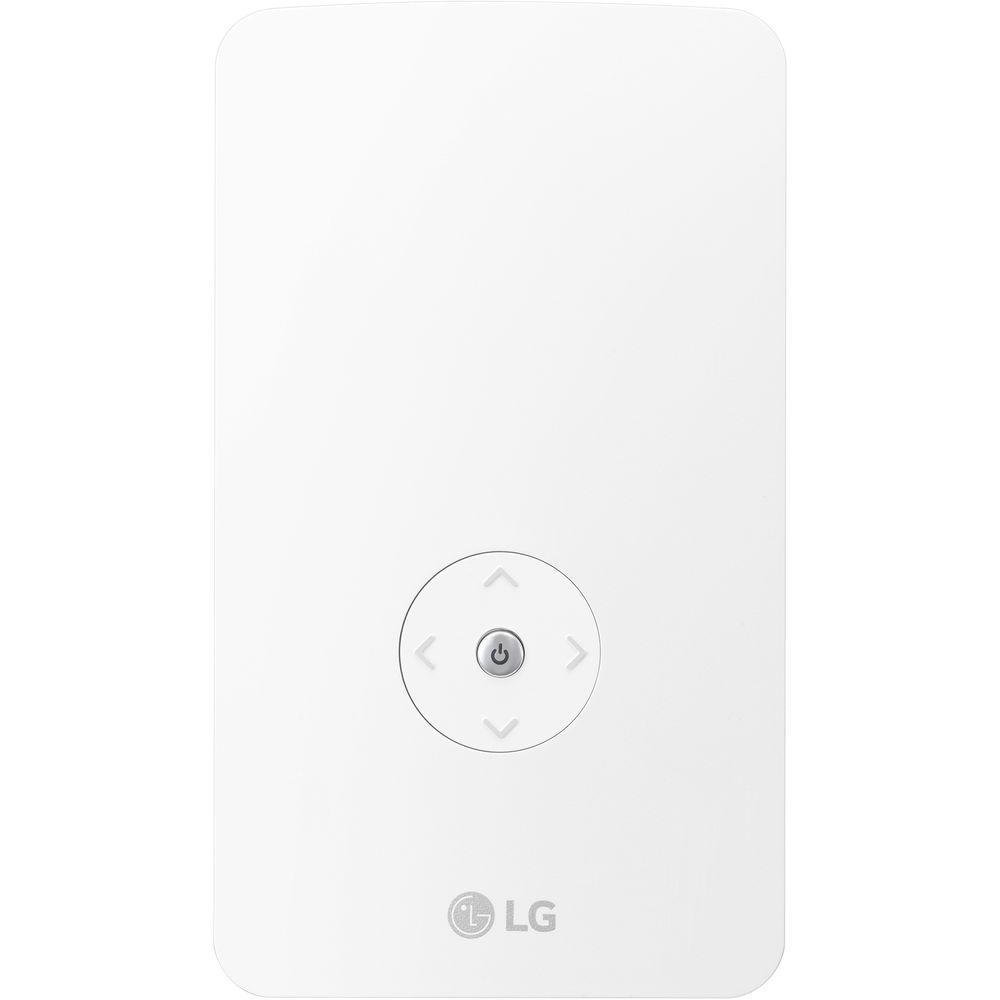

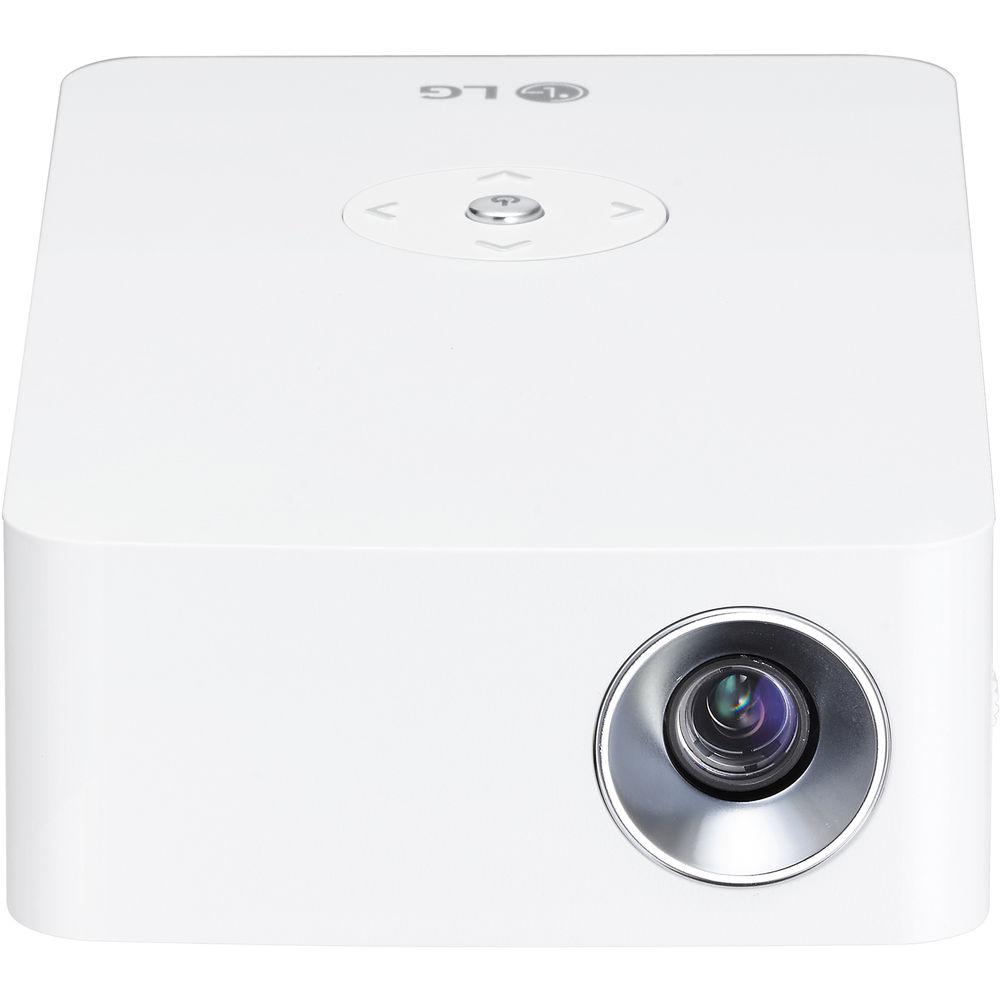

User Manual for LG MiniBeam PH30JG 250-Lumen HD DLP Pico Projector with Wi-Fi Click to enlarge the picture
Contents of the user manual for the LG MiniBeam PH30JG 250-Lumen HD DLP
- Product category: Pico Projectors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Pico Projectors
 |
User manual for the LG MiniBeam PH30JG 250-Lumen HD DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|
Product description Project content from nearly any source with the LG MiniBeam PH30JG 250-Lumen HD DLP Pico Projector. It features an HDMI input with MHL support for wired connectivity to your smartphone or tablet, and WiDi for wireless mirroring of compatible devices. Its native resolution of 1280 x 720, brightness of up to 250 lumens, and dynamic contrast ratio of 100,000:1 will help keep images clear in dark settings.
The MiniBeam PH30JG comes equipped with a USB Type-A port so you can view your DivX and photo content from a USB storage drive or play your USB-loaded MP3s through its speaker. The projector also has a USB Type-C port for playback from compatible laptops and mobile devices, plus charging of your mobile device. Its LED will last up to 30,000 hours to virtually eliminate the need for replacement. For added convenience, the projector includes a remote control. - Up to 100" of HD Resolution
- Discover a big picture in 720p high definition. Even images displayed at up to 100" retain natural-looking detail with clear text and no flicker at most viewing distances.
- Up to 4-Hour Battery Life
- Take the PH30JG almost anywhere, anytime; thanks to its built-in battery, there's no need to fumble with power cords or adapters. Enjoy up to four hours of use on a single charge.
- Wireless Screen Share
- Download and install the free LG TV Plus app from Google Play or the Apple App Store on a compatible Android or iOS device to stream videos and photos from your smartphone or tablet to the projector over your home network via Miracast or WiDi. The app also has a touchscreen remote control built-in.
- Up to 30,000-Hour Lamp Life
- The LED light source is designed to display rich, natural colors, and last up to 30,000 hours. That means that if the projector is used eight hours per day, every day, the lamp will not need replacement for approximately 10 years.
- Bluetooth Audio Output
- Pair big sound with your big-screen viewing experience. Wirelessly stream sound directly from the projector to your Bluetooth-compatible audio system, such as portable speakers, headphones, or soundbars.
- USB Type-C Connectivity
- The USB Type-C port enables screen mirroring from a compatible laptop, tablet, or smartphone, plus device charging at the same time over a single cable, reducing cord clutter.
- Additional Features
-
- Adjustable contrast ratio modes include 4:3, 16:9, Just scan, Set by Pro, and Cinema Zoom
- Photo playback via USB
- Projects 80" images from 7.8' away
- Quick on/off - on in 10 seconds, off in 2 seconds
UPC: 719192614031 In the Box LG MiniBeam PH30JG 250-Lumen HD DLP Pico Projector with Wi-Fi Remote Control AC Adapter Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LG MiniBeam PH30JG 250-Lumen HD DLP Pico Projector with Wi-Fi in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG PH30JG Specs | | | Display System | DLP | | Native Chip Resolution | 1280 x 720 (HD) | | Max Brightness | 250 Lumens | | Aspect Ratio | Native: 16:9 | | Dynamic Contrast Ratio | 100,000:1 | | | | Projection Size | 20 - 100" / 50.80 - 254.00 cm | | | | Keystone Correction | Auto-Vertical | | Built-In Speaker | Yes (Mono) | | Speaker Power | 1W | | | | Inputs/Outputs | 1 x HDMI with MHL Support Audio/Video (Input)
1 x USB Type-A Female (Input)
1 x USB Type-C Female (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output) | | Wireless LAN / Wi-Fi | Yes, Built-in | | | | Light Source | LED | | Expected Lamp Life | Medium Brightness: 30,000 Hours | | Fan Noise | Full Brightness: 29 dB
Medium Brightness: 25 dB
Low Brightness: 22 dB | | Supported Audio File Types | MP3 | | Supported Video File Types | DivX | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 45 W
Standby Mode (Lamp Off): <0.5 W | | Dimensions (W x H x D) | 3.4 x 1.4 x 5.8" / 8.6 x 3.6 x 14.7 cm | | Weight | 1.08 lb / .49 kg | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 10.0 x 8.0 x 3.0" |
