Product description

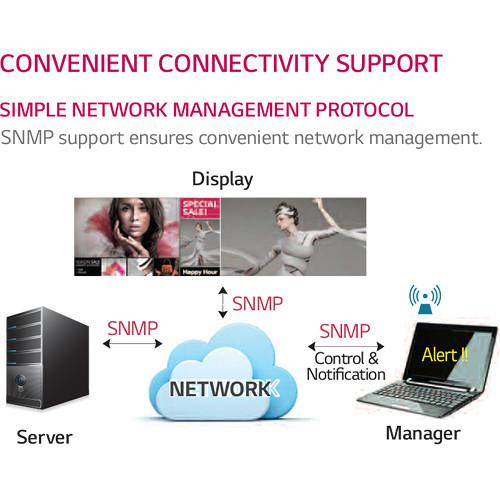

Simple Network Management Protocol
• Simple Network Management Protocol (SNMP) support helps ensure convenient network management.

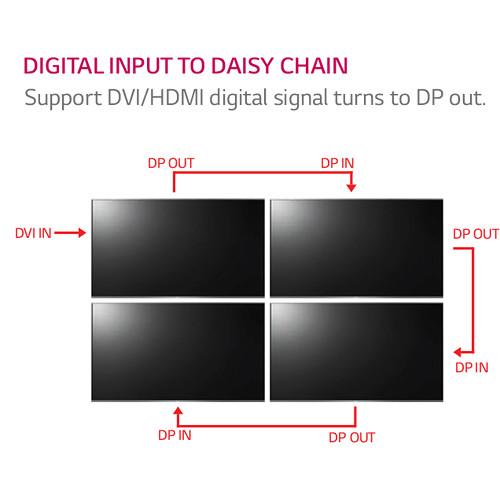

Digital Input for Daisy-Chaining
• The SH7DB-series outputs DVI and HDMI signals over the DisplayPort output to daisy-chain multiple displays.

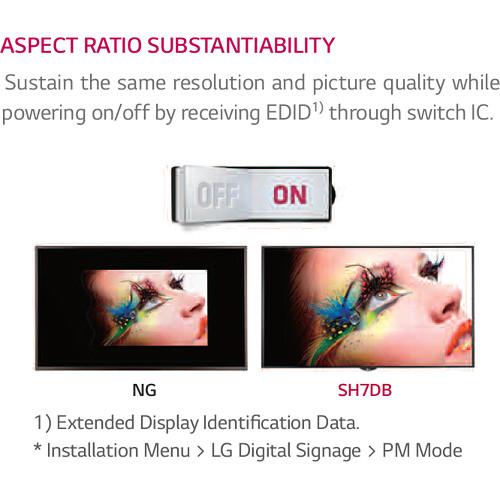

Aspect Ratio Sustainability
• Maintain the same resolution and image quality while powering the display on and off by receiving EDID (Extended Display Identification Data) through switch IC.

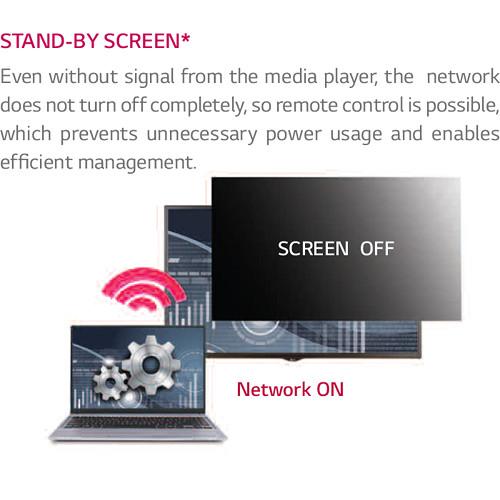

Standby Screen
• Even without a signal from the media player, the network does not turn off completely, so remote control is possible, preventing unnecessary power usage and enabling efficient management.

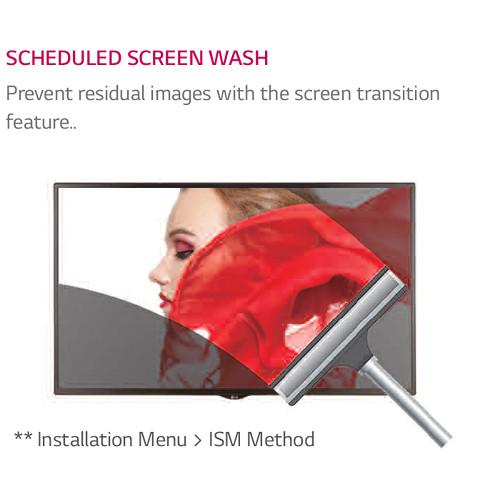

Scheduled Screen Wash
• Prevent residual images with the screen transition feature.

Screen Fault Detection
• This feature detects screen failure and sends an alert log via email.

USB Content Scheduling
• Play and schedule content with a USB connection with no server connection required.

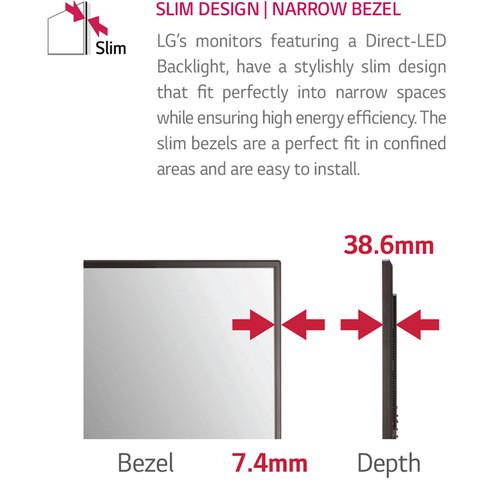

Slim Design with a Narrow Bezel
• The SH7DB-series uses a direct-LED backlight, enabling the overall depth to be just 1.3", allowing it to blend nearly seamlessly with the wall, with an optional wall mount. The slim 7.4mm bezel is easily overlook in video wall installations.

Conformal Coating
• The conformal coating is designed to help protect against water, dust, and iron powder deposits, which can accumulate in harsh environments, saving on installation and added enclosure costs.

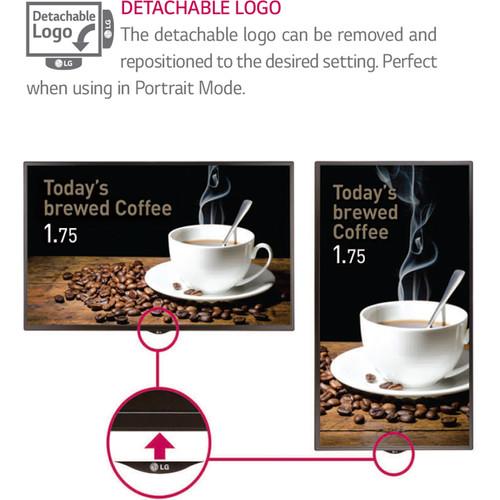

Detachable Logo
• The ability to detach the logo allows it to be properly viewed whether the display is in portrait or landscape mode.

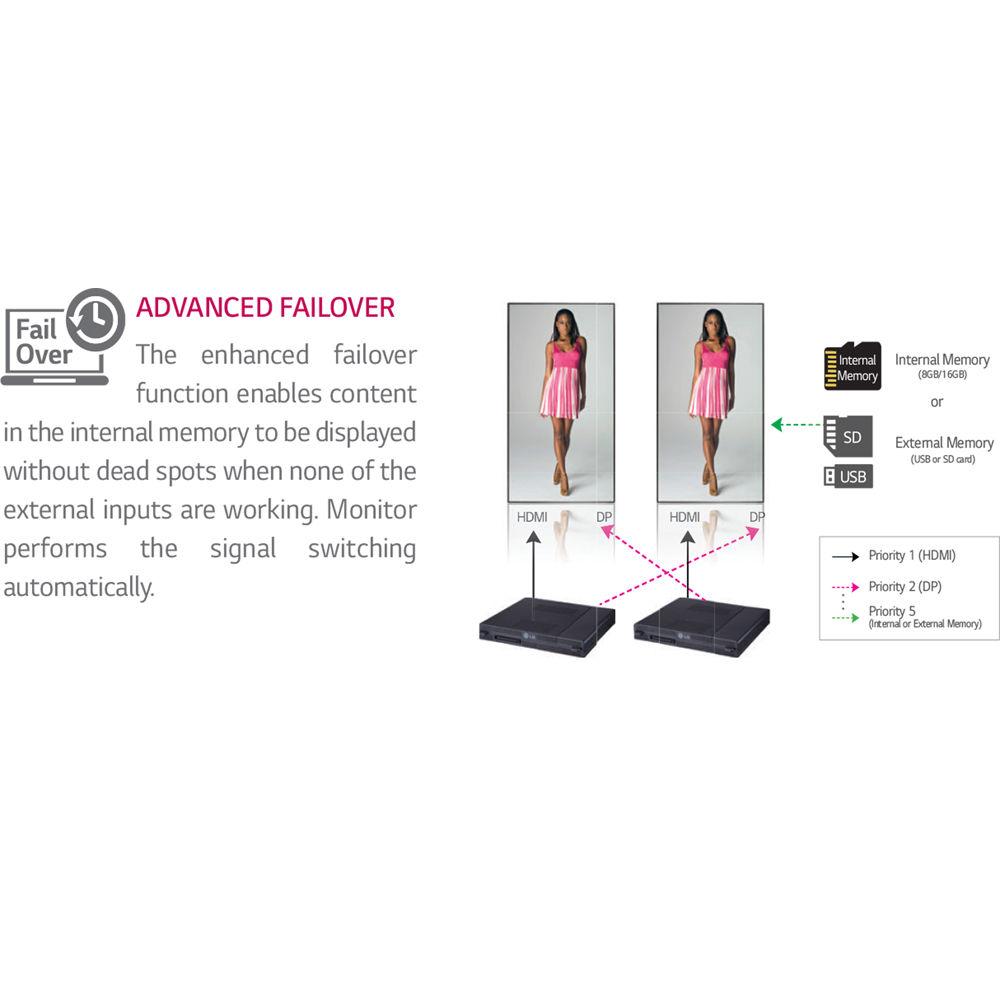

Failover
• The enhanced failover function enables content in the internal memory to be displayed without dead spots when none of the external inputs are working. The display switches over to the internal memory automatically.

OPS (Open Pluggable Specification) Kit / HDBaseT Box Connectivity with Optional Kit
• The SH7DB provides connectivity for an OPS Kit to connect a third-party OPS player or HDBaseT box, giving you the flexibility to choose any OPS-compatible media player.

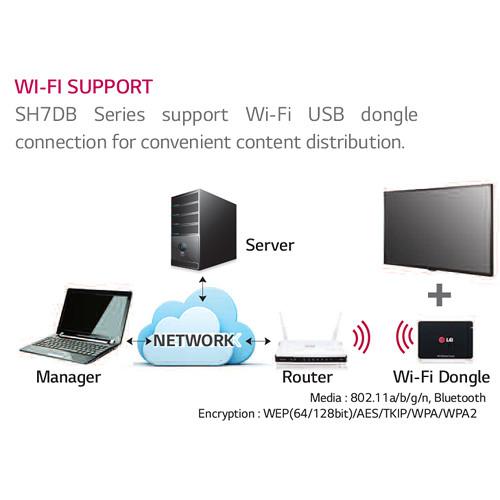

Wi-Fi Support with Optional Adapter
• The SH7DB-series supports Wi-Fi USB adapter connection for convenient content distribution.

Additional Features
• • Surface treatment – hard coating (3H), anti-glare treatment of the front polarizer (haze 10%)
  • Auto brightness sensor
  • Tile Mode (up to 15 x 15) with Natural Mode
  • Brightness, contrast, backlight, position & size control
  • Auto config/phase
  • ISM methods – Normal, White Wash, Color Wash, Orbiter, inversion, Washing Bar, user image
  • Additional controls – dynamic contrast, dynamic color, color gamut, skin color, sky color, grass color, gamma
  • Clock, on/off timer, auto off, auto standby
  • Input label
  • Power on status – standard, PWR, LST
  • DPM select / DPM wake up
  • Energy saving modes – Minimum, Medium, Maximum, Screen off
  • Smart Energy Saving
  • USB cloning – logo image download, EzDownload, Sent to USB, Receive from USB
  • Easy Brightness Control
  • Calibration Mode
  • DS
  • Screen off scheduling
  • Time sync clock
  • PM mode
  • Holiday schedule
  • Frameware updates via LAN
  • Local time auto setting
  • Still image
  • HDMI CEC
  • Limited Mode – input source change, menu display, OSD display
  • Power on default – input source, A/V setting, aspect ratio
  • Wake on LAN
  • Power on delay – 0 to 255
  • Pivot Mode
  • OSD Portrait Mode – 0, 90, 270°
  • Intelligent Auto
  • Password protection/change
  • Manual/auto SetID setup
  • Configuration setup – splash upset, time, USB auto playback, screen saver cube
  • Lock Mode via USB
  • Failover to USB, VGA, DVI, HDMI
  • SuperSign Server setup – player name, server IP setting, server IP status
  • No signal image via internal memory
  • OPS computer power control – sync on, sync on/off, disable
  • Audio balance control
  • Speaker on/off
  • Clear Voice II
  • Virtual surround
  • Equalizer
  • Standard, News, Music, Cinema, Sport, and Game sound modes
  • MP500/MP700 media players attachable
  • Compatible with SuperSign-w lite and SuperSign-c

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

LG SH7DB Specs

Screen Size (Diagonal)	48.5"
Native Resolution	1920 x 1080
Panel Type	IPS-Type LCD
Bit Depth / Color Support	8-Bit+FRC (1.07 Billion Colors)
Brightness	700 cd/m Rating 60% users recommend this product to others. And what about you? This product has already been rated by 19 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
